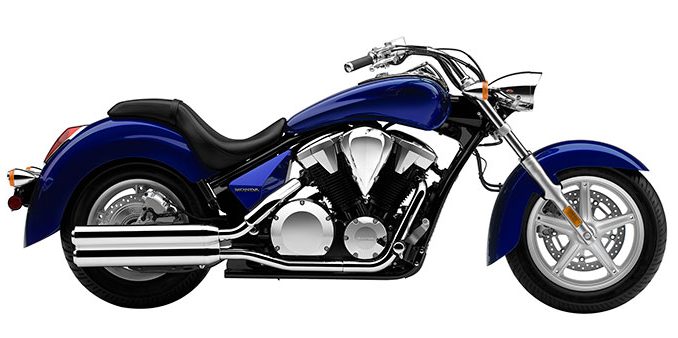

2015 Honda Stateline ABS VT1300CRA
2015 Honda Stateline ABS VT1300CRA



2015 Honda Stateline ABS VT1300CRA Review

2015 Honda Stateline ABS VT1300CRA on www.Totalmotorcycle.com

Meet The Modern Custom with ABS…

Picture yourself on the open road… your long, low mount cantering obediently beneath you, while the throbbing of its massive V-Twin engine soothes your cares away; this is the Stateline experience. And when you finally pull into some town on the other side of the Province, the flowing lines and graceful style will ensure you get more than your fair share of attention. But the Stateline’s charm doesn’t end there; standard linked ABS brakes help you keep your cool in difficult conditions.

People ride cruisers for two big reasons: the way they work, and the way they look. Around town and on the road, the relaxed, stretched-out cruiser style is not only comfortable, but it makes sense too. And the way they look—cruisers turn heads everywhere, even when they’re parked. That’s especially true of the Honda Stateline. With its stretched lines and progressive styling, it really stands out. With its 1312cc V-twin engine, shaft final drive, disc brakes and fuel injection, it’s as modern and trouble-free as any Honda out there, and you know how good that feels.

You see a lot of cruisers out there that have too much junk hung all over them. Not the Stateline. Its streamlined good looks really set it apart. And the way it rides? That puts it even further ahead of the pack.

A Cruiser Apart


Plenty of cruisers sacrifice function and comfort for the way they look. Not the Honda Stateline. Like every Honda motorcycle, the Stateline is first and foremost a machine built for riders who love to ride. Superior engineering, flawless fit and finish, and quality parts through and through all add up to a machine that stands apart. Plenty of bikes look good sitting in the garage. The Stateline looks better and better the more and more you ride.



Options & Pricing

With its head-turning styling and brawny 1312cc V-twin powerplant, one might think that a single Stateline model was plenty to go around. But guess what? The good news is that you have two versions of the Stateline to choose from: our standard (and we hesitate to call anything about this machine “standard”) model and an anti-lock brake-equipped Stateline ABS.

Stateline ABS
•1312cc liquid-cooled 52° V-twin engine
•Color-matched frame
•Anti-lock braking system







2015 Honda Stateline ABS VT1300CRA www.Totalmotorcycle.com Key Features

•1,312 cc liquid-cooled 52-degree V-twin delivers strong low-end and midrange torque, with ample power for passing and relaxed cruising.
•Dual two-axis primary counterbalancers help to minimize harsh engine vibration without eliminating the powerful pulses transmitted by the traditional V-twin design.
•Electronic control unit (ECU) provides 3-D ignition maps for each cylinder, creating ideal spark advance settings for superb rideability and efficiency.
•A long wheelbase accentuates the Stateline’s stretched look and allows an ultra-low 680 mm (26.8 in.) seat height.

It’s All About the Engine.

Fuel-injected and featuring three valves per cylinder, the Stateline’s mighty 1312cc 52-degree V-twin is the perfect fusion of traditional layout and modern engineering.


Less Is More.

Everything about the Stateline is tastefully done, with a streamlined spin. Case in point: Check out the tank-mounted speedometer, nestled inside a gorgeous, specially designed chrome housing.


Stopping Power.

The Stateline features a 336mm front and a 296mm rear-disc brake and the option of Honda’s Anti-lock Brake System. That makes for powerful, sure stops. Because you never know what the open road is going to throw at you






2015 Honda Stateline ABS VT1300CRA www.Totalmotorcycle.com Features and Benefits

Five-Spoke Cast Wheels

Silver-finish five-spoke wheels never go out of true, are easy to keep clean and just plain look right on a sharp, contemporary cruiser like the Stateline.

Front- and Rear-Disc Brakes (Optional ABS)

A single 336mm disc/twin-piston caliper unit up front and 296mm disc/single-piston caliper setup in back ensure the Stateline can reel itself in when needed.

Retro-Progressive Styling

Like its Sabre and Fury cousins, the Stateline with its chopped dragster look, beefy V-twin and long, neo-design fenders, is one of the most authentic, radically styled custom motorcycles that Honda has ever produced.

Tank-Mounted Instruments

Part of the Stateline’s super-clean look comes from mounting the instruments in a streamlined, modern tank nacelle. It completely opens up the handlebar area, yet still gives you all the information you need.

Programmed Fuel Injection (PGM-FI)

Forget about fiddling with a choke—the Stateline’s fuel injection system means no-hassle startups on cold mornings or at high altitudes, and optimal performance in any condition.

1312cc V-Twin Engine

Powerful 1312cc, 52-degree V-twin engine with a single-pin crankshaft and dual balancers has plenty of torque, and the feel only a V-twin can deliver.

Low-Slung Saddle

Measuring in at an ultralow 26.7 inches, the Stateline’s wide, one-piece, deep-dish seat not only beefs up the comfort level, but the classic styling as well.

Wide, Low-Profile Tires

Big, fat and bad to the bone, the Stateline’s wide, low tires do more than just look good—they are the basis for the Stateline’s excellent handling. Exactly what you’d expect from a Honda cruiser.

Shaft Final Drive

The shaft final drive is quiet, clean and has been uniquely integrated into the overall design.

Front- and Rear-Disc Brakes (Optional ABS)

A single 336mm disc/twin-piston caliper unit up front and 296mm disc/single-piston caliper setup in back ensure the Stateline can reel itself in when needed.

Full Valanced Fenders

Those long, full-coverage fenders with their deep side valances are purely modern, but pay tribute to some of the classic cruisers of old. That combination of classic and new is what the Stateline is all about.

Three-Valve Dual-Plug Combustion Chamber


Engine/Drivetrain

1,312 cc liquid-cooled 52-degree V-twin delivers strong low-end and midrange torque, with ample power for passing and relaxed cruising..
Powerplant design features special camshafts and a single-pin crankshaft to accentuate the engine’s character..
Dual two-axis primary counterbalancers help to minimize harsh engine vibration without eliminating the powerful pulses transmitted by the traditional V-twin design..
Each three-valve cylinder head features two 31 mm intake valves and a large 40 mm exhaust valve to produce optimum flow for the incoming air/fuel charge..
Simple-to-service screw-and-locknut valve-clearance adjusters..
Programmed fuel injection (PGM-FI) contributes to strong engine performance and low emissions..
Electronic control unit (ECU) provides 3-D ignition maps for each cylinder, creating ideal spark advance settings for superb rideability and efficiency..
Two spark plugs per cylinder for efficient combustion at all engine speeds..
A unique dry-sump oil system utilizes a closed-crankcase design and places the oil tank inside the gearbox case. The result is a freer-revving engine for improved power and a lower engine height..
Custom chromed shotgun-style exhaust system produces a unique deep exhaust note..
Shaft final drive for smooth, low-maintenance operation..
Five-speed transmission with carefully selected gear ratios for exciting roll-on performance..
The compact radiator is tucked neatly between the frame’s front downtubes for a clean look without hampering cooling performance..
To maintain the remarkably uncluttered look between the front cylinder and the front downtube/radiator area, the top radiator hose is hidden away beneath the front valve cover..
Automatic cam-chain tensioners reduce maintenance requirements..
Reliable electric-starter system..
Sturdy clutch utilizes a rubber clutch-centre damper to ensure smooth and quiet shifting..

Chassis/Suspension

Combined Braking System with ABS provides both the operating ease of linked front and rear brakes and the control of an advanced Anti-lock Braking System..
High-mount steering head gives the frame a see-through, open-air look with plenty of breathing room between the tank/upper frame and the front cylinder head..
Five-spoke alloy wheels hold a fat 170-series rear tire paired with a 17-inch front tire..
A long wheelbase accentuates the Stateline’s stretched look and allows an ultra-low 680 mm (26.8 in.) seat height..
The Stateline’s sleek lines cloak an ingenious single-shock rear suspension system with adjustable rebound damping and five-position spring preload adjustment for superb riding comfort that’s far above the norm for a chopper-style motorcycle..

Additional Features

Wide, retro-styled pullback handlebar offers all day comfort..
A wide selection of Honda Genuine Accessories allow you to add your personal touch..











2015 Honda Stateline ABS VT1300CRA – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

ENGINE

Engine Type
1312cc liquid-cooled 52° V-twin

Bore And Stroke
89.5mm x 104.3mm

Induction
PGM-FI with automatic enrichment circuit, one 38mm throttle body

Ignition
Digital with 3-D mapping, two spark plugs per cylinder

Compression Ratio
9.2:1

Valve Train
SOHC; three valves per cylinder

DRIVE TRAIN


Transmission
Five-speed

Final Drive
Shaft

CHASSIS / SUSPENSION / BRAKES


Front Suspension
41mm fork; 4.0 inches travel

Rear Suspension
Single shock; 3.9 inches travel

Front Brake
Single 336mm disc with twin-piston caliper

Rear Brake
296mm disc with single-piston caliper; Optional ABS and CBS

Front Tire
140/80-17

Rear Tire
170/80-15

DIMENSIONS


Rake
33° (Caster Angle)

Trail
118mm (4.6 inches)

Wheelbase
70.1 inches

Seat Height
26.7 inches

Curb Weight
688 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.)

Fuel Capacity
4.4 gallons

OTHER


Model Id
VT1300CRA

Emissions
Meets current EPA standards. Models sold in California meet current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.

Available Colors
Blue Metallic

Mpg
46 MPG

FACTORY WARRANTY INFORMATION


One Year
Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

Note
Honda’s fuel-economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.









2015 Honda Stateline ABS VT1300CRA – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $
CDN


Engine Type
Liquid-cooled 52-degree V-twin

Displacement
1,312 cc

Bore & Stroke
89.5 mm x 104.3 mm

Compression Ratio
9.2:1

Valve Train
Chain-driven SOHC, 3 valves per cylinder

Fuel Delivery
PGM-FI electronic fuel injection

Transmission
Five-speed

Final Drive
Shaft

Front Suspension
41 mm fork; 102 mm (4 in.) travel

Rear Suspension
Single shock with adjustable rebound damping and five-position spring preload adjustability; 100 mm (3.9 in.) travel

Tires
140/80 – 17 front; 170/80 – 15 rear

Brakes
Front single 336 mm disc with triple-piston caliper; rear single 296 mm disc with dual-piston caliper. Combined Braking System with ABS (Anti-lock Braking System)

Seat Height
680 mm (26.8 in.)

Wheelbase
1,785 mm (70.3 in.)

Curb Weight
311 kg (686 lb) including required fluids and full tank of gas – ready to ride

Fuel Capacity
16.6 litres

Colour
Atmosphere Blue

Warranty
12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus






2015 Honda Stateline ABS VT1300CRA – www.Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £ GBP (On The Road).





All specifications are provisional and subject to change without notice.

# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
