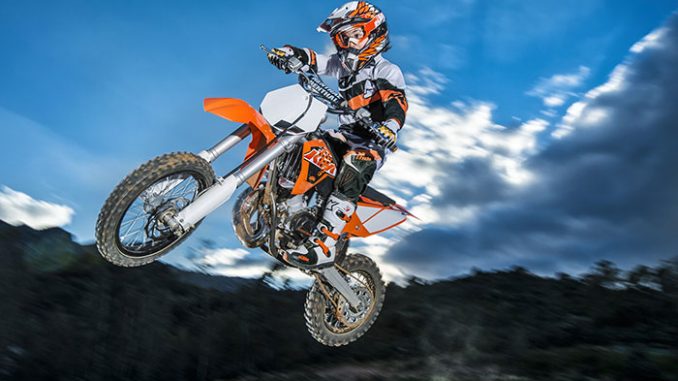

2015 KTM 65 SX
2015 KTM 65 SX

2015 KTM 65 SX
2015 KTM 65 SX

2015 KTM 65 SX
2015 KTM 65 SX



2015 KTM 65 SX Review

2015 KTM 65 SX on www.Totalmotorcycle.com

Promotion to the Next Division…

An absolutely fully-fledged sports machine for up-and-coming riders from around 8 to 12 years of age, up to a height of 1.60 m. The 65 SX defines the benchmark in its class in terms of performance, handling, equipment and workmanship.




2015 KTM 65 SX www.Totalmotorcycle.com Key Features

Chassis



Top ergonomics



Performance






2015 KTM 65 SX www.Totalmotorcycle.com Features and Benefits


ENGINE

Superior performance doesn’t come from just anywhere; it’s delivered by a KTM engine with the latest 2-stroke technology and a 6-speed transmission. The pressure-controlled exhaust valve (PCEV) delivers plenty of torque from the bottom end up and easy-to-ride, very linear power development. An optimised ignition curve guarantees reliable combustion across the whole rev range. Constant temperature control and hence consistently high performance are ensured by an intelligent cooling circuit with integrated crankcase cooling and two radiators.

CLUTCH

The 65 SX engine is equipped with a hydraulic clutch actuation system from FORMULA, which guarantees smooth and very precise clutch control. Moreover, it also has the same feel (clutch and brake levers are interchangeable) and the same looks as the front brake.



RADIATOR

Constant temperature control and hence consistently high performance are ensured by an intelligent cooling circuit with integrated crankcase cooling and two radiators.


BRAKES

The hydraulic disc brakes on the 65 SX have been developed by brake specialist FORMULA. Heavy-duty 4-piston brake callipers bite hard into the lightweight 198 or 160 mm Wave brake discs.



BRAKES

The hydraulic disc brakes on the 65 SX have been developed by brake specialist FORMULA. Heavy-duty 4-piston brake callipers bite hard into the lightweight 198 or 160 mm Wave brake discs.



SHOCK ABSORBER

The 65 SX is equipped with a newly developed shock absorber from WP, which not only excels with completely new settings, but now also provides the rider with the opportunity to regulate high and low-speed compression damping. This allows the suspension to be adjusted even better to track and rider, thereby guaranteeing best possible traction and optimum contact with the ground.


HANDLEBAR

The classy, anodised, Renthal handlebar made from a high-quality aluminium alloy excels with optimal ergonomics and the highest levels of stability. A crash pad around the centre brace protects the rider from hard knocks.



GRAPHICS AND COLOURS

The graphic design derived from that of the full-size SX bikes makes the 65 SX even cooler. Its frame has a robust plastic coating in anthracite metallic.









2015 KTM 65 SX – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See dealer for pricing in USD

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 64.85 cm³
Bore 45 mm
Stroke 40.8 mm
Starting aid Kickstarter
Transmission 6 gear, claw shifted
Engine lubrication Mixture oil lubrication
Primary gear ratio 23:75 straight cut spur gear
Final drive 14:48
Cooling system Liquid cooling system
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame of chrome molybdenum steel tubing, powder-coated
Forks WP Suspension USD 35
Shock absorber WP Suspension 3614 BAVP
Suspension travel Front 215 mm
Suspension travel Rear 270 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with four-pot brake caliper
Brake discs – diameter Front 198 mm
Brake discs – diameter Rear 160 mm
Chain 1/2 x 1/4″ O Ring
Steering head angle 64.5°
Wheel base 1,137 mm
Ground clearance (unloaded) 280 mm
Seat height (unloaded) 750 mm
Total fuel tank capacity approx. 3.5 l
Unleaded premium fuel (95 octane), mixed with 2-stroke engine oil (1:60)
Weight without fuel approx. 55.4 kg








2015 KTM 65 SX – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 64.85 cm³
Bore 45 mm
Stroke 40.8 mm
Starting aid Kickstarter
Transmission 6 gear, claw shifted
Engine lubrication Mixture oil lubrication
Primary gear ratio 23:75 straight cut spur gear
Final drive 14:48
Cooling system Liquid cooling system
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame of chrome molybdenum steel tubing, powder-coated
Forks WP Suspension USD 35
Shock absorber WP Suspension 3614 BAVP
Suspension travel Front 215 mm
Suspension travel Rear 270 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with four-pot brake caliper
Brake discs – diameter Front 198 mm
Brake discs – diameter Rear 160 mm
Chain 1/2 x 1/4″ O Ring
Steering head angle 64.5°
Wheel base 1,137 mm
Ground clearance (unloaded) 280 mm
Seat height (unloaded) 750 mm
Total fuel tank capacity approx. 3.5 l
Unleaded premium fuel (95 octane), mixed with 2-stroke engine oil (1:60)
Weight without fuel approx. 55.4 kg








2015 KTM 65 SX – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 64.85 cm³
Bore 45 mm
Stroke 40.8 mm
Starting aid Kickstarter
Transmission 6 gear, claw shifted
Engine lubrication Mixture oil lubrication
Primary gear ratio 23:75 straight cut spur gear
Final drive 14:48
Cooling system Liquid cooling system
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Central tube frame of chrome molybdenum steel tubing, powder-coated
Forks WP Suspension USD 35
Shock absorber WP Suspension 3614 BAVP
Suspension travel Front 215 mm
Suspension travel Rear 270 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with four-pot brake caliper
Brake discs – diameter Front 198 mm
Brake discs – diameter Rear 160 mm
Chain 1/2 x 1/4″ O Ring
Steering head angle 64.5°
Wheel base 1,137 mm
Ground clearance (unloaded) 280 mm
Seat height (unloaded) 750 mm
Total fuel tank capacity approx. 3.5 l
Unleaded premium fuel (95 octane), mixed with 2-stroke engine oil (1:60)
Weight without fuel approx. 55.4 kg

* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
