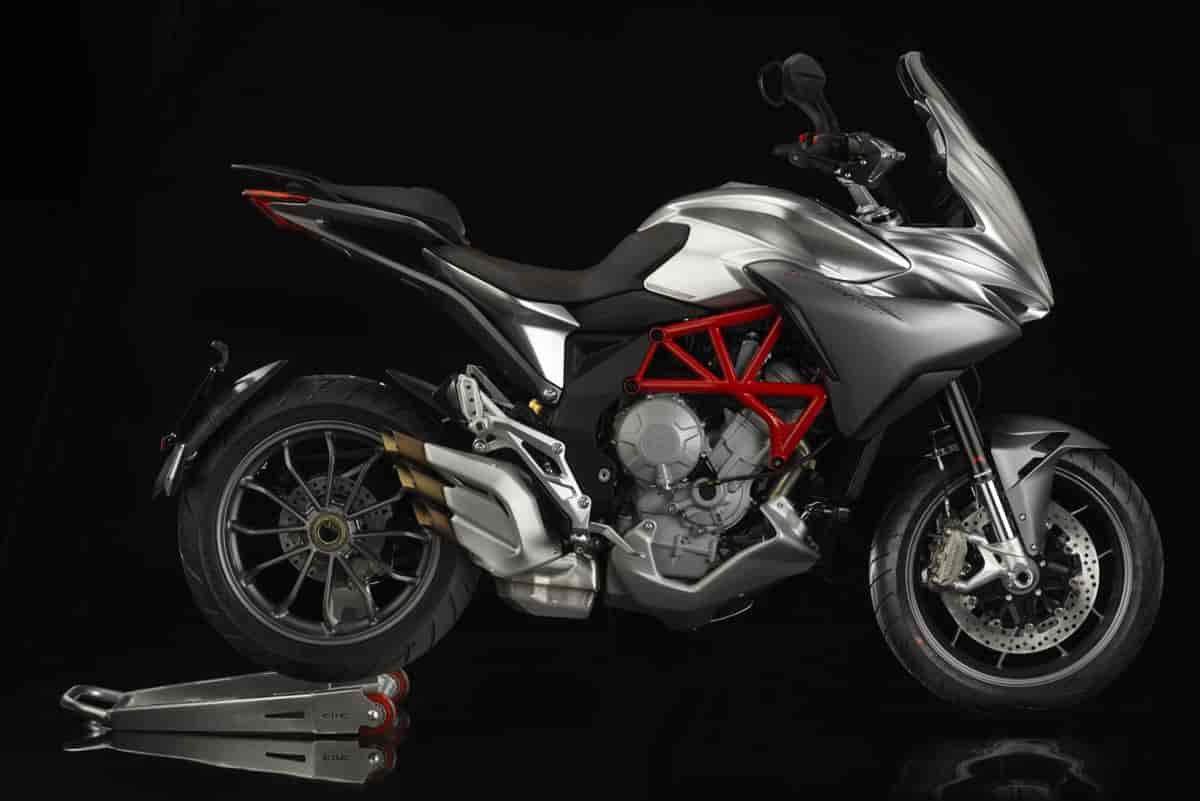

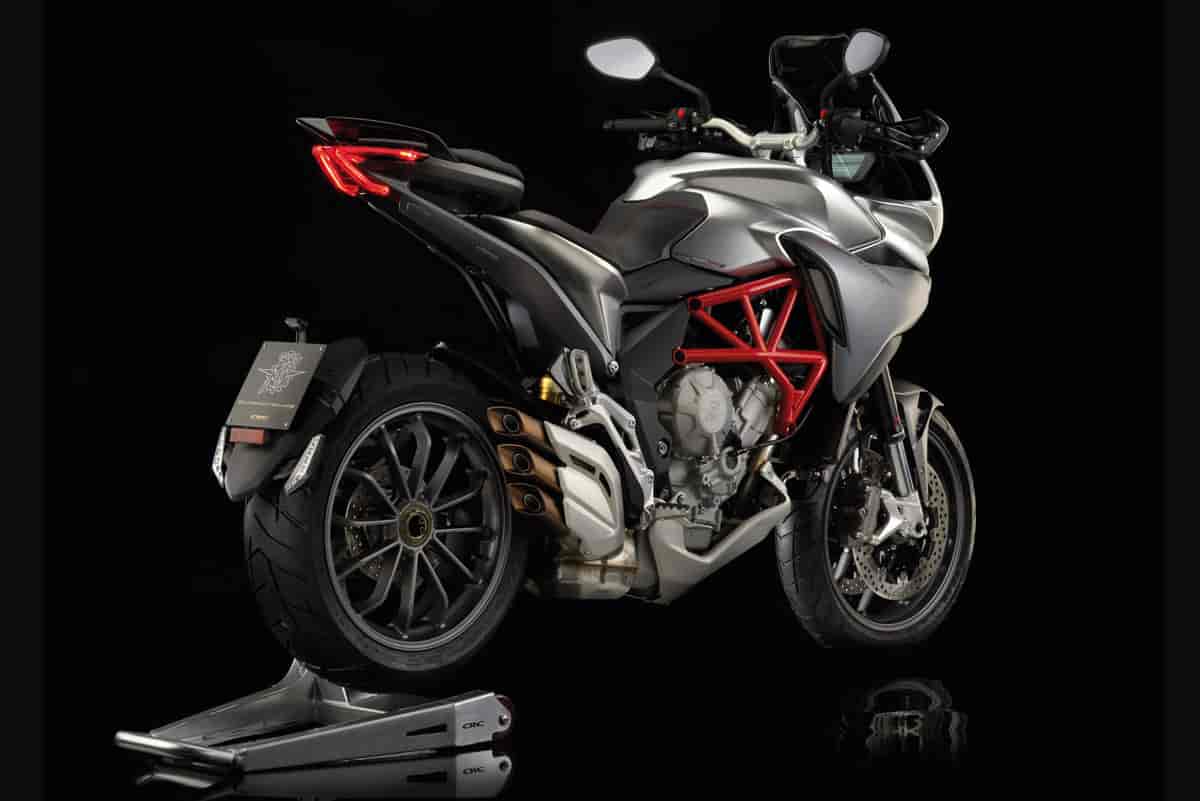

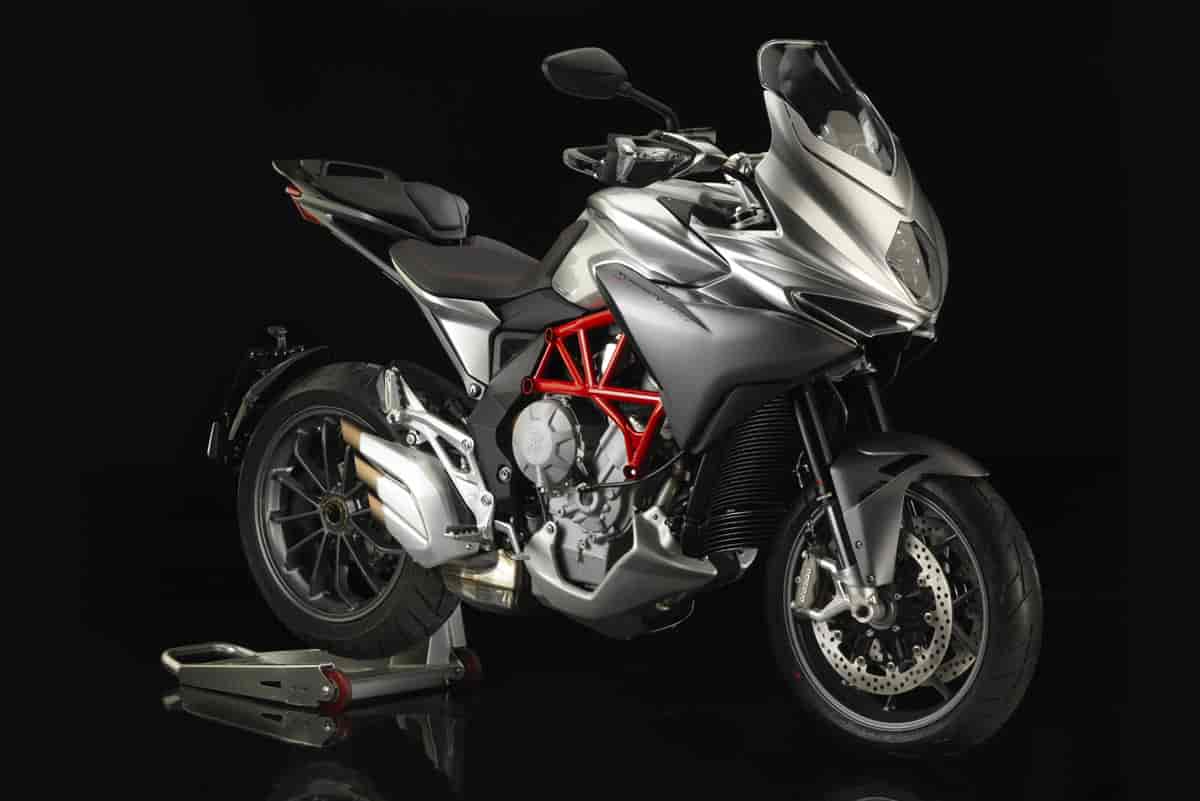

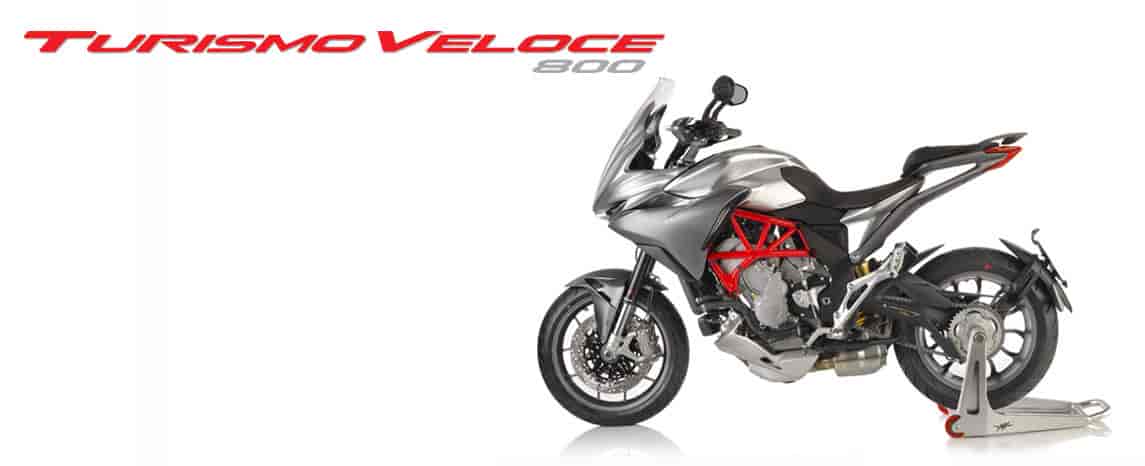

2015 MV Agusta Turismo Veloce 800 Review
2015 MV Agusta Turismo Veloce 800 on www.Totalmotorcycle.com
You couldn’t ask for more…
The pure emotions involved in traveling, the feeling of the open road beneath you, the limits that get pushed further every day.
A new dimension. A world described by turns and straight stretches, scenery and hairpin bends, asphalt. Unique sensations. And just one name: Turismo Veloce.
MV Agusta forsakes common ground and outlines a new way of understanding touring. Available in dealerships from the beginning of 2015.
Lightweight. Feeling. Riding pleasure. Performance. The lightweight 800 three cylinder engine at the centre of the precious frame with steel trellis structure and aluminium plates. Electronics at the service of the rider. And so MV Agusta reinvents the Tourer bike, fast, lightweight and dynamic.
The new 3 cylinder engine with 110 HP maximum power and torque increased by 15% (in the most commonly used rpm range) with respect to the engine that equips the Rivale and Brutale. The weight/power ratio and torque value make this bike unique and give it unforgettable riding pleasure. Specific pistons, compression ratio that optimises performance and consumption, top shelf electronics management. In fact, with the new MVICS 2.0 (Motor & Vehicle Integrated Control System), the injection time and required quantity of fuel at any time or engine speed are calculated with absolute precision. MVICS 2.0 uses the new TC and the EAS 2.0 with blipper system, all managed through the new 5” colour TFT instrument cluster which means that the Turismo Veloce is both docile when riding with the throttle barely open and vivacious with a twist of the wrist.
Acceleration and pick up allow you to take on the competition, thanks in part to the ratios of the refined removable gearbox which have been optimised for this model. The already low fuel consumption of the three cylinder MV Agusta engines has been further lowered compared to current models, up to 20% less. And the search for optimum combustion in the chamber has made Euro4 approval possible.
The availability of 4 engine maps (Touring and Rain with 90 HP maximum power, Sport with 110 and Custom which can be personalised) translates into maximum freedom of choice to match your riding style in any conditions. Some of the parameters that can be personalised are the engine torque curve along the power distribution arc (two levels), the rev limiter mode (more or less abrupt), throttle sensitivity (three levels), engine brake (two levels) and engine response (two levels).
The substantial traction control evolution, adjustable to eight different levels or able to be disabled, gives the rider a system that guarantees safety first and foremost, but without penalising the feeling and sensations which are an essential part of the experience that comes with sitting in the saddle of every MV Agusta. The new operating logic of the quickshift gearbox falls under this same category: the EAS 2.0 lets the rider up and downshift without using the clutch. The result? Extremely reduced shifting times, comfort and a lot more focus dedicated on riding.
The revolutionary concept at the base of this MV Agusta style Tourer is available in two versions: Turismo Veloce, for those who want light weight and sportiness above all without giving up any of the features, such as the full LED lights and the instrument cluster with large 5”TFT colour display and Bluetooth. Turismo Veloce Lusso: with electronically controlled suspension which acquires data on the dynamic performance of the inertial platform, Turismo Veloce is even more comfortable and efficient, turn after turn. The system acts on the hydraulic compression and rebound, even with the bike in motion. The instrument cluster with large 5” TFT
colour display also provides GPS information acquisition. And the dedicated App provides full rider and passenger integration. The original arrangement of the panniers (30 litres each with identical dimensions) inserted perfectly into the tail fairing with a uniquely styled and practical solution, requires a bearing structure in cast aluminium which supports the rider saddle, the passenger saddle and the panniers to reduce the transversal bulk of the bike, as well as guaranteeing the cargo carrying capacity needed to press on even
To the horizon!
MV Agusta Turismo Veloce 800. A name that dates back to the early days of Meccanica Verghera, the company founded on the intuition of Count Domenico Agusta and that is now at the very pinnacle of motorcycling thanks to 75 World Championship titles and an incredible history blended with both mystique and performance.
With the Turismo Veloce (literally Fast Tourer), MV Agusta has reinterpreted the tourer concept in the name of exclusivity, agility, ease of riding and performance.
Unlike all of the heavier and oversized models offered by the competition, MV Agusta has chosen to utilize a compact and powerful 800cc engine.
Turismo Veloce brings back the essence of Granturismo. It does so with its unmistakable lines and styling solutions which provide the practicality that no Grand Tourer can do without. It reiterates the same ideal with an approach to riding which makes the new MV Agusta the ground breaker for a new way of travelling.
2015 MV Agusta Turismo Veloce 800 www.Totalmotorcycle.com Key Features
The Turismo Veloce celebrates the unique pleasure of Grand Tourismo with two models of MV Agusta: the first for traveling through time and space with the feeling of agility that only a complete but essential motorcycle can provide.
The second is the Turismo Veloce Lusso whose very name suggests things that seem to have been forgotten in time. Lusso stands for an extraordinary level of accessories and technical solutions which include the innovative MVCSC system (MV Agusta Chassis Stability Control) electronic stability control through the use of semi-active suspension, less bulky saddle bags which nevertheless can carry an astounding 60 litres and the new generation MVICS 2.0 (Motor & Vehicle Integrated Control System) inertial platform which includes the up&down EAS 2.0 electronic gear change system as well as the Anti Wheelie System. These features have never before been offered to a Touring bike.
The standard equipment also includes an immobiliser, heated handle grips, Bluetooth connection and integrated GPS.
Turismo Veloce 800 â‚¬15,990
Turismo Veloce 800 Lusso â‚¬18,990
Every country could have a price variation due to local import duties and taxes.
Turismo Veloce 800: Red/Silver and Silver/Aviation Grey
Turismo Veloce 800 Lusso: Red/Silver and Pearl White/Aviation Grey
2015 MV Agusta Turismo Veloce 800 www.Totalmotorcycle.com Features and Benefits
TURISMO VELOCE 800 Design
Turismo Veloce captures the essence touring and transmits the emotions directly to the rider. It means mile after mile of sweeping through curves and bends, hours of riding in complete peace with a single aim: to arrive at your destination in the most enjoyable way possible. Turismo Veloce is the first real tourer that truly provokes new emotions.
Designed for medium to long range touring, the Turismo Veloce was developed with an in-line three-cylinder 800cc engine. A milestone which further increases the wide range of machines.
The design reflects the compact size of the engine, and the overall form of the bike is beautifully balanced. The saddle bags, which are critical components on any Tourer, simply flow seamlessly into the overall motorcycle design.
On the Turismo Veloce the complete integration of aesthetics and function is a reality and the unique design a lesson of innovation. With the saddle bags removed, the Turismo Veloce becomes a true Sports bike as befits its MV Agusta name.
With the saddle bags on, the Turismo Veloce remains slender, sleek and exclusive. The tail and headlight units use Full LED technology and add to the marked three dimensionality of the bike while emphasizing the new layout of the three exit exhaust pipes.
TURISMO VELOCE 800 Frame and Suspensions
Frame and Suspensions
The frame is unmistakeably MV Agusta – steel tubing at the front set off by aluminium alloy side plates – redesigned to meet the specific requirements of the Turismo Veloce. As a result, it is wider in the middle section and features special plates designed to act as an anchor for the centre stand. The Turismo Veloce makes good use of the rider and passenger saddle support and does likewise with the saddle bags thanks to a lightweight aluminium alloy support system.
The suspension system has been developed to ensure maximum comfort when touring and dynamic performance in sports use. On the Turismo Veloce Lusso, the MVCSC 2.0 system, employing Sachs front forks and rear shock absorber, features a sophisticated electronic control system which, through continuous interventions to the hydraulic settings, provides the best possible response to all specific riding conditions.
The ECU includes the inertial platform which supplies vital parameter readings which are key to the continuous suspension setting changes and employs the Skyhook algorithm.
This algorithm has been specially developed by MV Agusta. The system acts on the hydraulic compression and rebound readings when the bike is in motion.
Engine and Electronics
The perfect blend of agility and performance. The Turismo Veloce is a perfect example of this: its three-cylinder 800cc engine is a new interpretation of the advanced engine on which MV Agusta has based the expansion of its model range. Its size would lead you to believe it’s a smaller engine thanks to the layout, and the three cylinders ensure excellent power output from low and medium revs then all the way up to the top of the rev range. This three-cylinder engine has many characteristics which make it a milestone for MV in terms of the technology applied to a standard production bike.
The oil and water cooling systems have been integrated into the casting of the engine and this particular feature of the three-cylinder engine that gives it such an exceptional aesthetic impact and which allows it to blend in perfectly with the flowing lines of the Turismo Veloce. Under the cast and forged aluminium surfaces lies a counterrotating crankshaft derived directly from MotoGP. This was introduced as standard on the F3 675 and characterises the MV Agusta three-cylinder engine, not to mention the considerable impact it has on riding dynamics by significantly decreasing the effects of inertia when the bike changes direction.
The precise application of fluid dynamic and thermodynamic principles, along with evolved electronic engine management systems have permitted specific fuel mapping settings to be designed to ideally suit both Tourismo and Sport riding modes on the new Turismo Veloce.
The reference platform is the new second generation MVICS 2.0 (Motor & Vehicle Integrated Control System) which permits customizing the mapping with versatility being its strongest point. There are three preset mapping options. The Tourismo option offers fuel mapping specifically designed for touring and limits power output to 100 CV. The Sport setting increases power to the maximum output of 125 CV whereas the Rain option is for riding safely when there is little road grip and the Traction Control is automatically set to the maximum level. The fourth option, Custom, is also available whereby the rider individually selects various parameters to create the best possible set-up for the riders personal desires. Among the above mentioned customizing parameters are the engine torque curve in-line with power output (two levels), rev limiter cut in point (Hard or Soft), throttle sensitivity (three levels), engine braking (two levels), engine response (two levels) and, naturally, traction control (eight levels). The MVICS 2.0 system also includes the Anti Wheelie system offered for the first time on a Touring motorcycle. The evolved electronics system also features cruise control which lets the rider set and maintain a constant speed. The EAS 2.0
(Electronically Assisted Shift) system is also present for the first time with clutch-less down-shifting and lets the rider select a higher or lower gear without having to use the clutch. The Turismo Veloce and Turismo Veloce Lusso will only be available with ABS. Access to the many parameters by which the rider can personalize the motorcycle is via new controls on the handlebars with an improved intuitive system that lets the rider make adjustments on the move without being distracted. Access to the menu is via dedicated buttons that make implementing changes to the management system parameters even quicker. The instrument panel on the Turismo Veloce displays the most important information and was designed specifically for this model. The panel features a 5″ TFT colour display which provides access to the numerous electronically controlled parameters. On the Lusso there is also an evolved GPS system to enhance its Touring character.
The GPS displays route information, fuel consumption and engine use. Thanks to the TFT panel being perfectly positioned, the rider never loses sight of the road and can travel in the safest way possible. Bluetooth communication as standard on the Turismo Veloce puts the rider, passenger and bike in constant communication and allows the experience to be shared with others using dedicated apps.
2015 MV Agusta Turismo Veloce 800 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
2015 MV Agusta Turismo Veloce 800 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN
2015 MV Agusta Turismo Veloce 800 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: â‚¬15,990 EUR
Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C”
Total displacement 798 cm3 (48.7 cu. in.)
Compression ratio 13.3:1
Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. power – r.p.m. (at the crankshaft)** 92 kW (125 hp) at 11.600 r.p.m.
Max. torque – r.p.m. 84 Nm (8.6 kgm) at 8.600 r.p.m.
Cooling system Cooling with separated liquid and oil
Engine management system Integrated ignition – injection system
MVICS 2.0 (Motor & Vehicle Integrated
Control System) with three injectors.
Engine control unit Eldor EM2.0, throttle
body full drive by wire Mikuni, pencil-coil
with ion-sensing technology, control of
detonation and misfire. Torque control
with four maps, Traction Control with
eight levels of intervention
Electronic quick shift MV EAS 2.0 (Electronically Assisted Shift)
Clutch Wet, multi-disc
Transmission Cassette style; six speed, constant mesh
Primary drive 19/36
First gear: 13/37
Second gear: 16/34
Third gear: 18/32
Fourth gear: 19/30
Fifth gear: 21/30
Sixth gear: 22/29
Final drive ratio 16/41
Voltage 12 V
Alternator 450 W at 5000 r.p.m.
Battery 12 V – 11 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1420 mm (55,80 in.)
Overall length 2080 mm (81.84 in.)
Overall width 900 mm (35,41 in.)
Saddle height 870 mm (34.23 in.)
Min. ground clearance 140 mm (5.51 in.)
Trail 108 mm (4.25 in.)
Dry weight 194 kg (427.7 lbs.)
Fuel tank capacity 20 l (5.28 U.S. gal.)
Maximum speed* 240 km/h (149.1 mph)
Type ALS Steel tubular trellis (MAG welded)
Rear swing arm pivot plates material Aluminium alloy
Type Marzocchi “UPSIDE DOWN” telescopic
hydraulic fork with rebound-compression
damping and spring preload external
and separate adjustment
Fork dia. 43 mm (1.69 in.)
Fork travel 160 mm (6.30 in.)
Type Progressive Sachs, single shock
absorber with rebound and compression
damping and spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 160 mm (6.30 in.)
Front brake Double floating disc with Ã˜ 320 mm
(Ã˜ 12.6 in.) diameter, with steel braking
disc and flange
Front brake caliper Brembo radial-type, with 4 pistons
Ã˜ 32 mm (Ã˜ 1.26 in.)
Rear brake Single steel disc with Ã˜ 220 mm
(Ã˜ 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons – Ã˜ 34 mm (Ã˜ 1.34
ABS System Bosch 9 Plus with RLM (Rear wheel Lift-up
Front: Material/size Aluminium alloy 3.50” x 17”
Rear: Material/size Aluminium alloy 5.50” x 17”
Front 120/70 – ZR 17 M/C (58 W)
Rear 190/55 – ZR 17 M/C (75 W)
Included accessories Immobilizer – Bluetooth
MV Agusta is committed to the constant improvement of our products. Therefore the information and technical characteristics of the vehicles are subject to change without notice.
* Top speed attained on closed course.
** Limited power versions available on demand.
Every country could have a price variation due to local import duties and taxes.
Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
