2015 Triumph Daytona 675R ABS Review

2015 Triumph Daytona 675R ABS on www.Totalmotorcycle.com

Lives on the road but was born for the track. The Triumph Daytona 675 and 675R supersports motorcycles are precision instruments that feed every bit of rider information directly to you whilst simultaneously responding to your every input.

So that, when you ride a Daytona 675, you plug directly in to become part of a performance machine that is unbeatable for usability and pure engagement on the road or track

In the Daytona 675R, we’ve made exceptional the new standard. This is a true track day tool. Focused. Committed. Taking our experience gained on track and road with the outgoing bike and combining the latest developments in engineering technology and thinking, we’re giving you an even faster, better handling, easier riding bike.The result is a bike which is 1kg (2.2lb) lighter than the old model with a new triple motor that delivers even more power all the way through to 14,400 rpm redline. The new frame geometry, mass centralisation and race-derived Öhlins suspension enables razor sharp handling and confidence-inspiring feedback. Add Brembo brakes, a quickshifter, carbon trim and some subtle styling details and you know you’re riding a true thoroughbred motorcycle




2015 Triumph Daytona 675R ABS www.Totalmotorcycle.com Key Features

The R spec takes an already impressive package to the next level increasing its performance focus further, as well as sporting a unique look. It’s the bike that propelled Danny Eslick to a historic victory at the 2014 Daytona 200 and carried Gary Johnson to a TT win at the Isle of Man in June 2014.

– Öhlins TTX rear suspension and NIX30 inverted forks offer full suspension adjustability.
– Brembo Monobloc calipers offer precise powerful stopping
– Triumph quick-shifter as standard blends gears and improves acceleration
– Carbon fibre cockpit infill panels, red rear subframe and red wheel pinstripes complete the refined R look.

The Daytona 675 R is available in

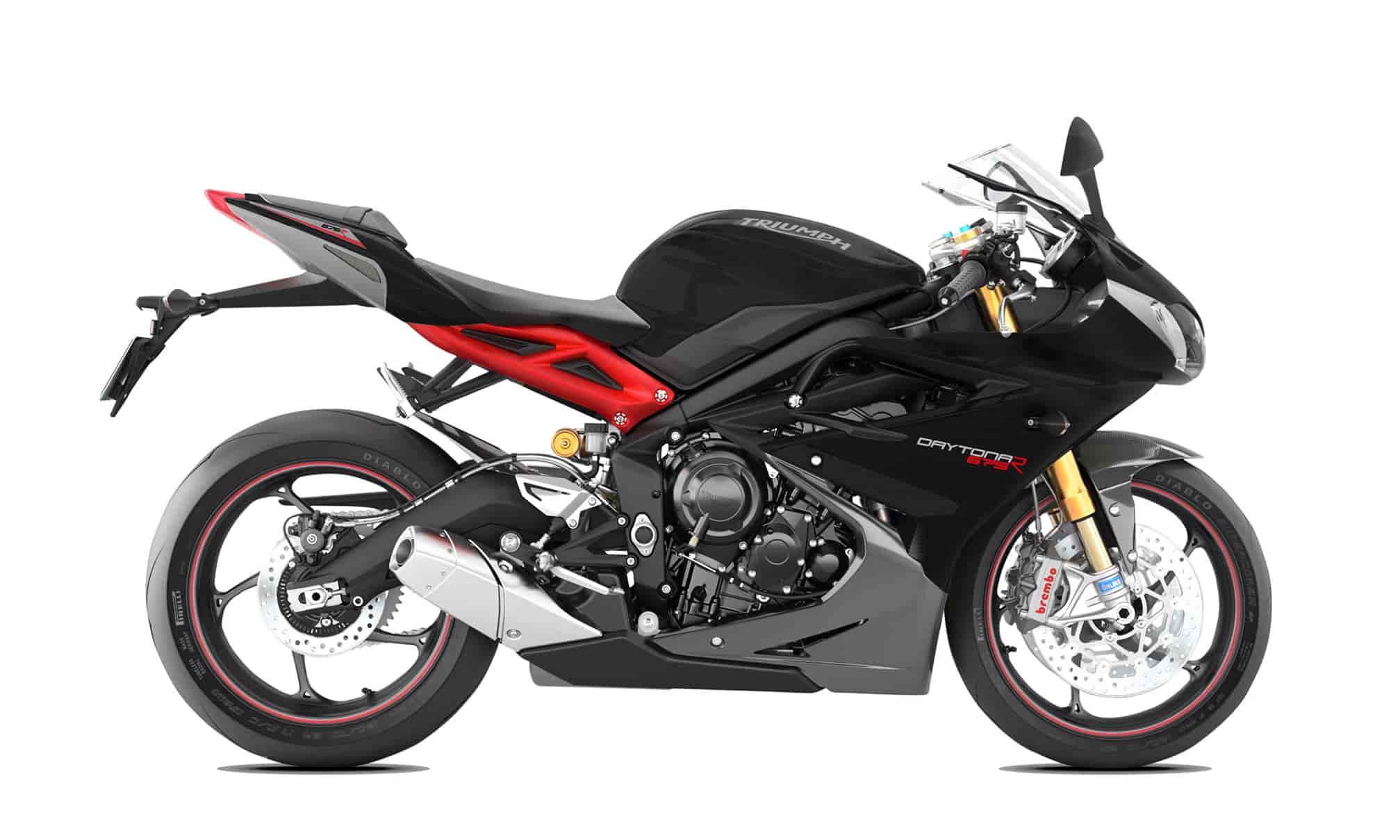

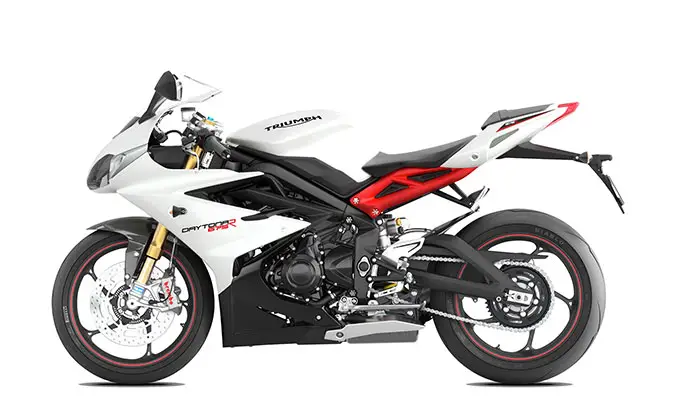

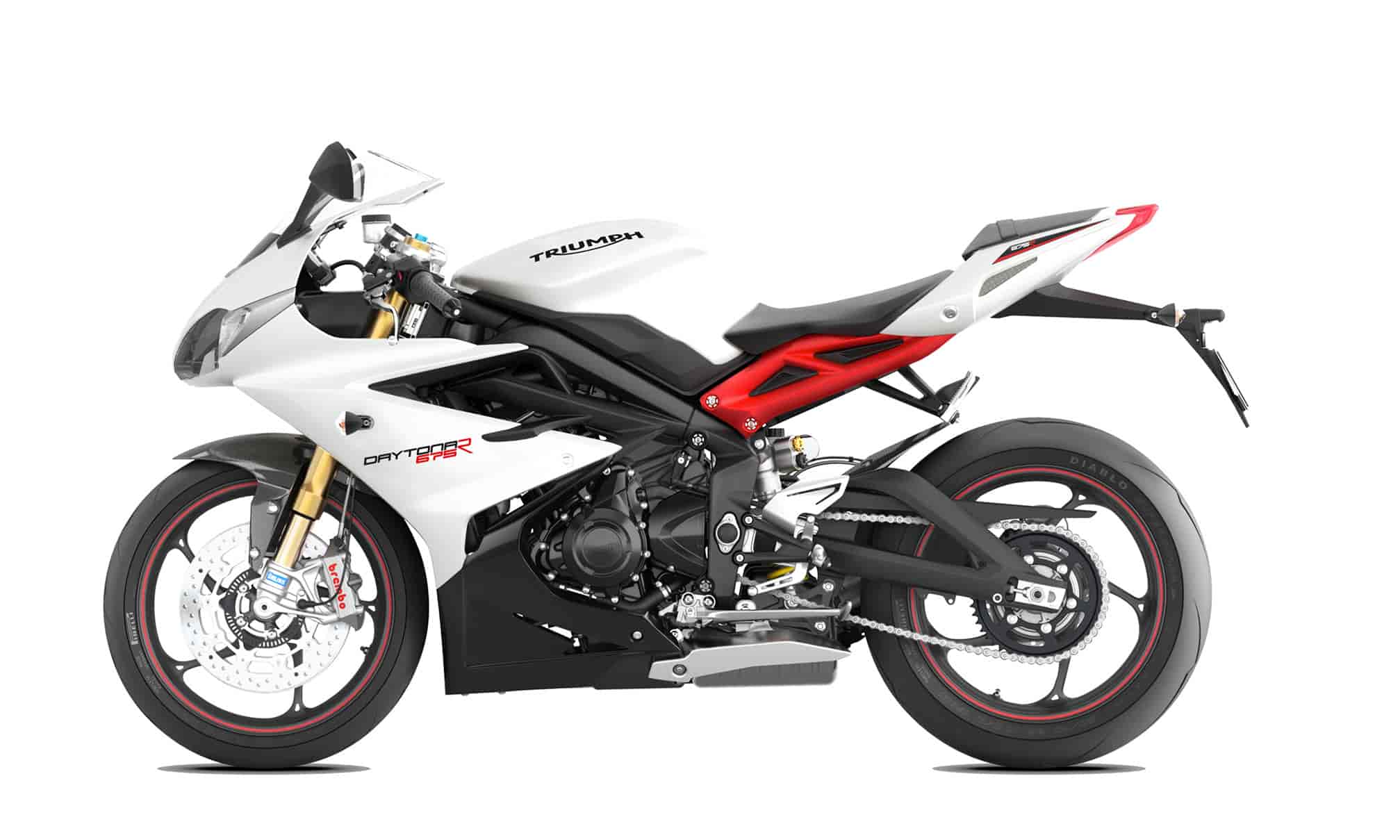

– Crystal White & Jet Black
– Matt Phantom Black & Matt Aluminium Silver







2015 Triumph Daytona 675R ABS www.Totalmotorcycle.com Features and Benefits

Engine

Construction

The 2013 Daytona 675Rs engine is now even more focussed. We’ve built it with a new shorter stroke and wider bore dimensions for even more useable power and acceleration. The cylinder block is now cast separately from the upper crankcase to cope with higher pressures, more torque and more power.

In addition to the 675, the R now comes with a quickshift gearchange, reprogrammed for 2013 to give you even faster, smoother shifting.


Internals

With twin injectors per cylinder the new Daytona can draw more fuel quicker when you open the throttle fully and demand more from the engine.

A first for a production Triumph, we have now fitted substantially lighter titanium valves to cope better with the higher revs. This also means lighter valve springs can be used, reducing valve train wear and friction.

We also knew that the weight reduction was enough to give us the space to add some metal to the valves without compromising the valve train, so the top of the valve ‘mushroom’ heads were reshaped to improve gas flow around the valve and into the combustion chamber. This means better efficiency and a boost in torque at low and medium revs.


Sound

We enlarged the through-airflow headstock so that the intake mouth is positioned in the highest pressure zone centrally at the front of the bike. Improving flow efficiency, so that air passes in a straight line through the centre of the headstock to the airbox.

And when the air passes through the centre of the cockpit zone, it gives you even more of that distinctive three-cylinder intake snarl. And it’s not just the volume of the sound that’s better, it’s now there over a much wider range of revs for an even more focussed, involving ride than ever before.


Performance

The overall theme for this bike is more torque, better acceleration and more useable power.

One of the main contributors to this is the improved bore and stroke. We built the latest Daytona 675R with a shorter stroke allowing us to set a 500rpm higher rev ceiling at 14,500 and we increased power to 128PS and maximum torque to 75Nm. So the new engine now gives you higher power for longer. Wringing even more performance out of the bike as well bringing more of the rider out of you.
– See more at: http://www.triumphmotorcycles.co.uk/motorcycles/daytona/2015/daytona-675r-abs#engine

Chassis

Frame

The new Daytona 675R frame is made from eight castings. That means fewer welds and a lighter construction with no loss of strength or stiffness for a more focussed ride.

We sharpened the geometry with a change in the rake from 23.9° to 22.9° and a reduction in trail from 89.1mm to 87.2mm. And now, the swingarm pivot position is adjustable so you can tailor the handling more precisely to your riding style and the conditions.


Suspension

We fitted the 675R with Öhlins NIX30 forks for reduced friction, finer damping control and a wider range of adjustability compared with the standard equipment.

The rear shock is an Öhlins TTX ‘twin tube’ unit that delivers more consistent and predictable performance on the track and is easily adjustable for spring preload, ride height and rebound and compression damping.


Swingarm

The 2013 Daytona’s new rigid aluminium swingarm is designed asymmetrically to make room for the improved exhaust system. You can now even adjust its pivot and personalise the bike’s geometry, fine-tuning it to suit your riding style and conditions.


Brakes

We fitted the 675R with the latest Brembo Monobloc front brake callipers in place of the standard bike’s Nissin units as they are especially resistant to heat fade. Being machined from single blocks of aluminium rather than two sections bolted together, you also get increased strength and reduced distortion under the extreme pressures of heavy braking as experienced in track use – which in turn improves feel and feedback to you, the rider.


Wheels and Tyres

Shaving weight off a bike shaves milliseconds off a lap time. So we reduced the 675R’s wheel weight because, with their gyroscopic effect, weight lost here is like eight times the weight lost elsewhere on a bike. We fitted new wheels with the new rear being 0.5kg lighter than the outgoing model. And Pirelli Dragon SuperCorsa tyres for optimum performance.


Steering Damper

The Daytona 675R is fitted with new, state-of-the-art KYB centre-fixed cartridge forks that use an internal damping cartridge which is rigidly located at both ends, rather than floating at one end as in conventional designs. Because it’s supported by thinner walls, it has more room for the damping piston, so a larger diameter one can be used, improving damping accuracy.


Riding Position

We have improved the 675Rs riding position by raising the bars slightly but with a 10mm reduction in seat height. Every bit a focussed supersport riding stance, designed to get the best out of you in track conditions.


Details

High-spec carbon fibre cockpit infills and front mudguard – light and strong.

At the rear, a styled hugger sits neatly on the swingarm. Looks fantastic and keeps the dirt off your Öhlins suspension.


Mass Centralisation

By relocating the silencer to under the engine, rapid direction changes are now more fluid and more controlled. Rider input is rewarded with an incredibly controlled response.

Concentrating as much of the mass of the bike at the centre has increased the Daytona 675s agility and grip, so you can achieve higher lean angles through the corners. And you’ll find that the bike now responds even more readily to your input through the handlebars.

Equipment and Technology

ABS The very latest switchable ABS system is fitted, weighing just 1.5kg (3.3lb) and having a track setting which allows rear wheel drift. The system allows more aggressive braking in good conditions meaning that ABS will only activate when crossing wet surfaces or the side of the track. It works so well that, on a perfect track day, you won’t even notice it.

Slip-Assist Clutch

The new clutch design increases the friction so that lighter springs are needed. This reduces the effort needed at the clutch lever, making life easier for you around the track.

Quickshifter

Get the real race feel with clutchless gear changes without even having to back off the throttle, maximising acceleration.

Removable Number Plate and Indicators

As with the 675 you can remove the already slender number plate and rear indicator mounting by simply removing three bolts, just for track day use.

Programmable Rev Lights

Programmable gear change indicators let you manually set up where in the rev range you want the lights to come on and prompt a gear change.

Instruments and Computer

The Daytona already had a lap timer, two trip computers, gear change indicators, shift lights and a clock. Now, the 675Rs instruments are also configured to show fuel gauge, tyre pressures (where optional Tyre Pressure Monitoring System is fitted) and ABS switching. So you know more of what’s going on as you ride.

Immobiliser

To protect your Daytona 675R from the wrong kind of attention, we’ve added a high technology security system. It detects a microchip in the key body and if it’s not present the ignition system is disabled. This prevents a copy of the correct key being used to switch the bike on.

Optional TPMS

Especially on a bike as track-focussed as the Daytona 675R, a change tyre pressure can alter handling dramatically. Our Tyre Pressure Monitoring System will let you know any change in pressure before it becomes an issue.










2015 Triumph Daytona 675R ABS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13999 USD

Engine and Transmission

typeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
capacity675cc
bore76mm
stroke49.58
systemMultipoint sequential electronic fuel injection with twin injectors, forced air induction and SAI
exhaustStainless steel 3 into 1 system with under engine silencer incorporating a valve
final driveO ring chain
clutchWet, multi-plate, slipper.
gearbox6-speed, close ratio
oil capacity1US Gallon

Chassis Running Gear and Displays

frameFront – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
swingarmBraced, twin-sided, aluminium alloy with adjustable pivot position
Front WheelsCast aluminium alloy 5-spoke 17 x 3.5in
Rear WheelsCast aluminium alloy 5-spoke 17 x 5.5in
Front Tires120/70 ZR 17
Rear Tires180/55 ZR 17
Front SuspensionÖhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping, 120mm travel
Rear SuspensionÖhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable, rebound and compression damping, 133mm rear wheel travel
brakes frontTwin 310mm floating discs, Brembo 4-piston radial mono-block calipers, switchable ABS
brakes rearSingle 220mm disc, Brembo single piston caliper, switchable ABS

Dimensions and Capacities

length2045mm
width handlebars695
height without mirror1112mm
seat height830mm
wheelbase1375mm
rake23.0º
trail87.9mm
tank capacity4.6us gallon
wet weight189 kg
dry weight169 kg

Performance

max power ec128BHP @ 12500
max torque ec74NM @ 11900

Fuel Consumption

urban46.2mpg
56mph/90kph68.4mpg
75mph/120kph52.4mpg










2015 Triumph Daytona 675R ABS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $13,999 CDN

Engine and Transmission

typeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
capacity675cc
bore76mm
stroke49.58
systemMultipoint sequential electronic fuel injection with twin injectors, forced air induction and SAI
exhaustStainless steel 3 into 1 system with under engine silencer incorporating a valve
final driveO ring chain
clutchWet, multi-plate, slipper.
gearbox6-speed, close ratio
oil capacity1US Gallon

Chassis Running Gear and Displays

frameFront – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
swingarmBraced, twin-sided, aluminium alloy with adjustable pivot position
Front WheelsCast aluminium alloy 5-spoke 17 x 3.5in
Rear WheelsCast aluminium alloy 5-spoke 17 x 5.5in
Front Tires120/70 ZR 17
Rear Tires180/55 ZR 17
Front SuspensionÖhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping, 120mm travel
Rear SuspensionÖhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable, rebound and compression damping, 133mm rear wheel travel
brakes frontTwin 310mm floating discs, Brembo 4-piston radial mono-block calipers, switchable ABS
brakes rearSingle 220mm disc, Brembo single piston caliper, switchable ABS

Dimensions and Capacities

length2045mm
width handlebars695
height without mirror1112mm
seat height830mm
wheelbase1375mm
rake23.0º
trail87.9mm
tank capacity4.6us gallon
wet weight189 kg
dry weight169 kg

Performance

max power ec128BHP @ 12500
max torque ec74NM @ 11900

Fuel Consumption

urban46.2mpg
56mph/90kph68.4mpg
75mph/120kph52.4mpg






2015 Triumph Daytona 675R ABS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £10,949.00 GBP (On The Road inc 20% Vat)

Engine and Transmission

typeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
capacity675cc
bore76mm
stroke49.58
systemMultipoint sequential electronic fuel injection with twin injectors, forced air induction and SAI
exhaustStainless steel 3 into 1 system with under engine silencer incorporating a valve
final driveO ring chain
clutchWet, multi-plate, slipper.
gearbox6-speed, close ratio
oil capacity3.6L

Chassis, Running Gear and Displays

frameFront – Aluminium beam twin spar. Rear – 2 piece high pressure die cast
swingarmBraced, twin-sided, aluminium alloy with adjustable pivot position
Front WheelsCast aluminium alloy 5-spoke 17 x 3.5in
Rear WheelsCast aluminium alloy 5-spoke 17 x 5.5in
Front Tyres120/70 ZR 17
Rear Tyres180/55 ZR 17
Front SuspensionÖhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping, 120mm travel
Rear SuspensionÖhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable, rebound and compression damping, 133mm rear wheel travel
brakes frontTwin 310mm floating discs, Brembo 4-piston radial mono-block calipers, switchable ABS
brakes rearSingle 220mm disc, Brembo single piston caliper, switchable ABS

Dimensions and Capacities

length2045mm
width handlebars695
height without mirror1112mm
seat height830mm
wheelbase1375mm
rake23.0º
trail87.9mm
tank capacity17.4l
wet weight189 kg
dry weight169 kg

Performance

max power ec128BHP @ 12500
max torque ec74NM @ 11900

Fuel Consumption

urban46.3mpg
56mph/90kph68.4mpg
75mph/120kph52.4mpg


Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
