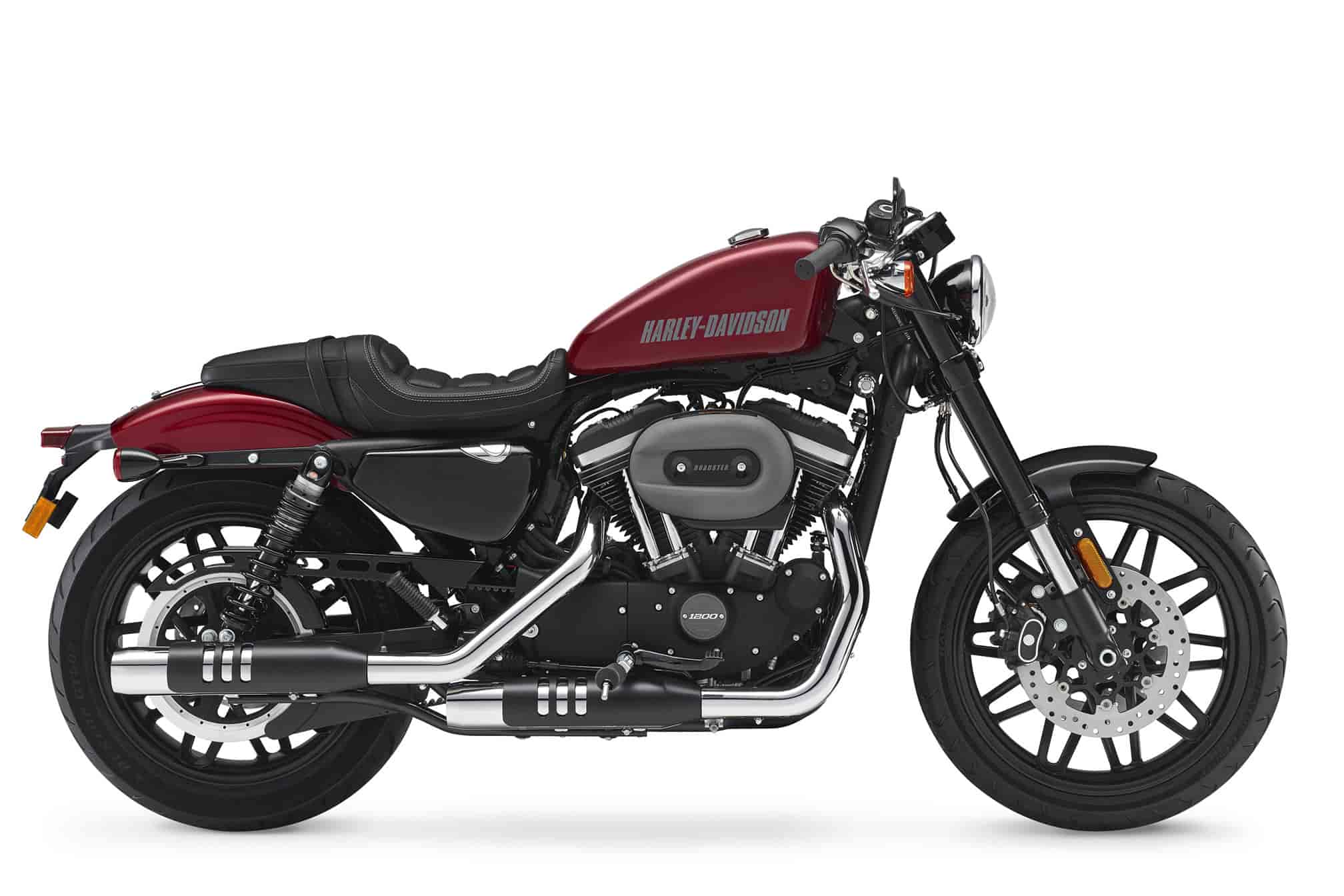

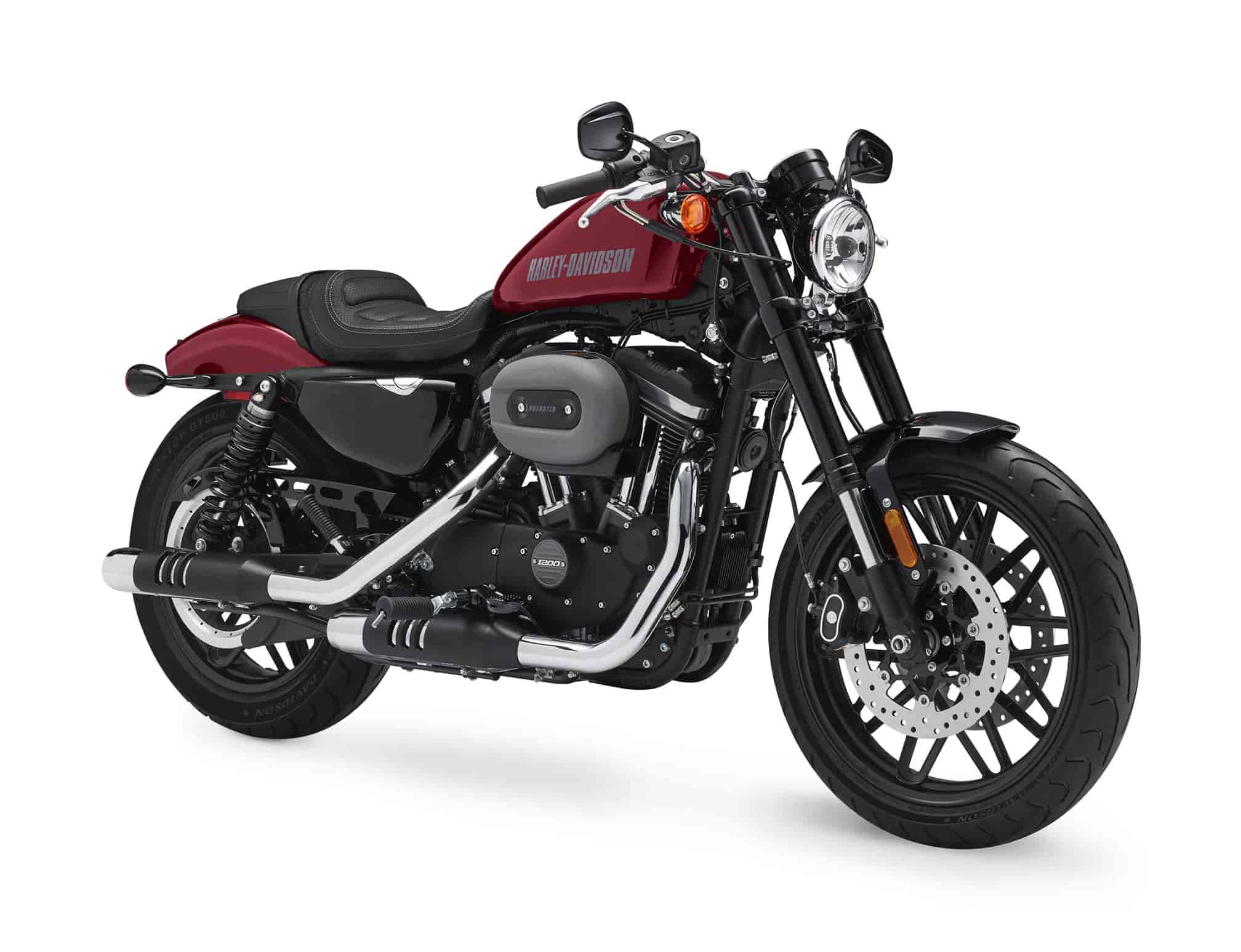

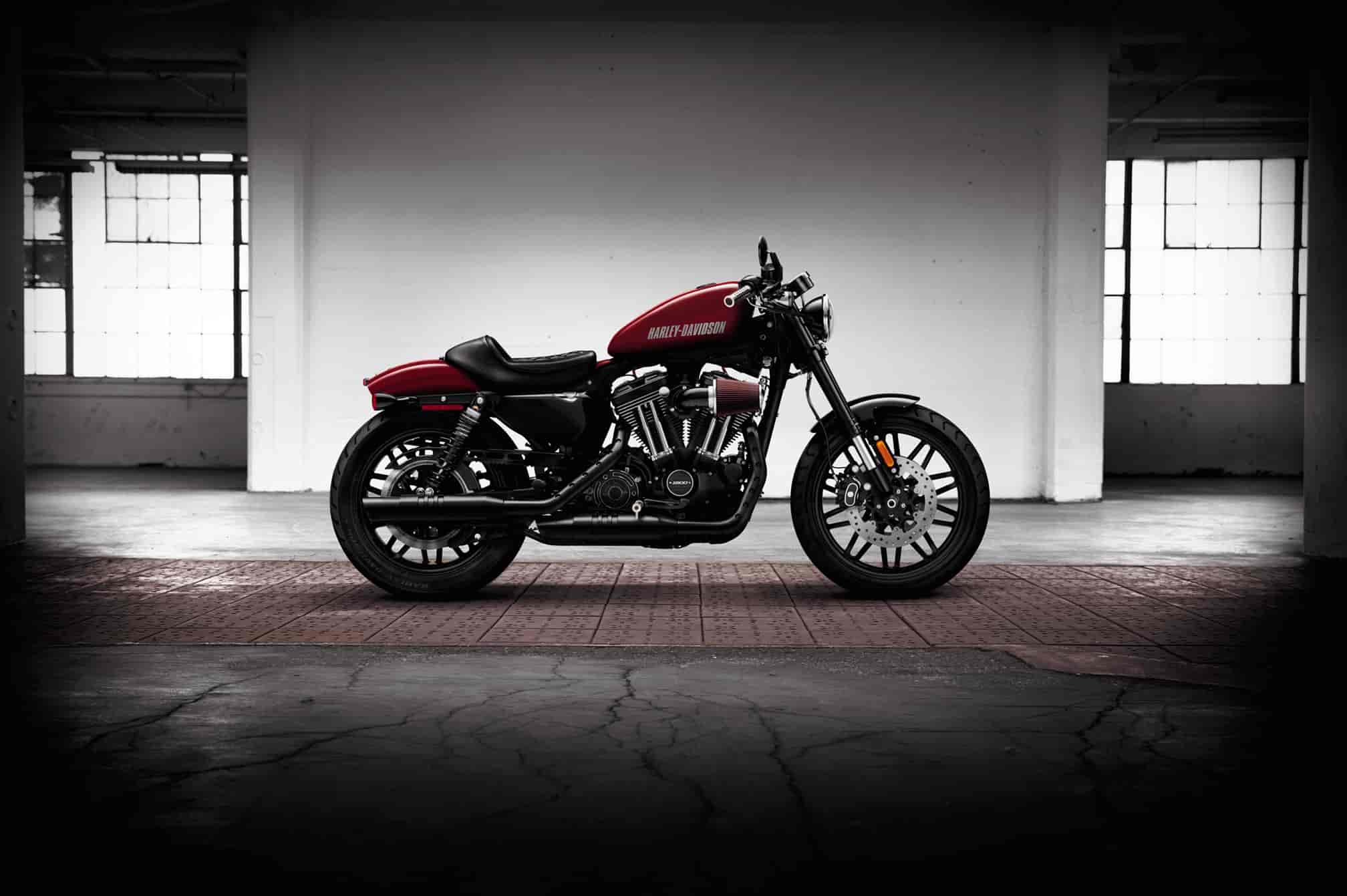

2016 Harley-Davidson Roadster

Back to 2016 Harley-Davidson Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster

2016 Harley-Davidson Softail Fat Boy
2016 Harley-Davidson Roadster



2016 Harley-Davidson Roadster Review

2016 Harley-Davidson Roadster on www.Totalmotorcycle.com

The new Roadster™ motorcycle combines stoplight-to-stoplight power, agility and garage-built custom style to shatter every mold….

Shaped by nearly 60 years of heritage and stripped to the essential elements of a pure riding machine, the new 2016 Harley-Davidson Roadster joins the Dark Custom lineup with a minimalist design inspired by classic racing motorcycles and current trends in stripped-down, naked custom bikes.


2016 Harley-Davidson Roadster www.Totalmotorcycle.com Key Features

NEW IN 2016
– Premium emulsion technology rear shocks with screw style pre-load adjustment
– 43 mm inverted front forks with premium cartridge dampening technology and triple clamp design
– Optimized steering geometry for a responsive, confidence-inspiring ride
– Two-up seat with ribbed detail and minimalist styling
– Lightweight, Offset-Split 5-Spoke Cast Aluminum wheels; 19-inch front, 18-inch rear
– Lowered handlebar
– Extreme chopped rear fender with Integrated license plate bracket/rear lighting assembly (North America only)
– Finned cast timer cover
– Custom tank graphics



Tucked in, fast back style and corner cranking torque for a street eating machine.

The new Roadster™ puts a powerful new level of sport into the Sportster® line-up. Its refined performance package includes 43mm inverted front forks with massive triple clamps, powerful dual-disc front brakes, premium rear suspension and new dual gauge instrumentation to complement the iconic fuel tank and chopped rear fender. The riding position is aggressive, but comfortable for long rides thanks to the 19” front and 18” rear offset-split 5-spoke cast aluminum wheels, lowered bars, mid-mount controls and a new two-up seat. Its 45-degree, 1200 cc engine delivers massive off-the-line torque. Turn it loose at the green light.




Authentic Styling

It only takes three words to describe the look of the Roadster™ motorcycle: garage-built custom. You get blacked-out styling details, slammed bars, chopped rear fender, race-inspired graphics, a finned timer cover, slotted black exhaust shields. The list goes on.


Iconic Engine


Low-end torque is the calling card of the 1200 cc Evolution® V-Twin motor mounted in the nimble frame of the new Roadster™. It’s also known for the soul-satisfying sound.


Technology

The Roadster™ motorcycle gives you the attitude of a garage-built custom, but you get modern features like a hands-free, factory installed H-D™ Smart Security System. Dual disc front brakes with floating rotors. And optional anti-lock brakes front and rear.


Handling

The Roadster has plenty of stoplight-to-stoplight muscle, but the places this machine truly shines is in the corners. It’s the only Sportster® in the line with inverted front forks. And there’s a new 43mm front suspension with cartridge damping and a new steering geometry that make for easy handling and a quick response to your inputs. It’s all riding on sticky Dunlop® Harley-Davidson® Series Radial tires.


Comfort

One look at the Roadster™ is all it takes to make you want to get in the saddle and go hard. We added to that feeling with a ride that makes you never want to stop. The new two-up seat is low-profile, but designed to keep you comfortable all day. And the premium suspension is built to absorb the punishment the road wants to throw at your body.







2016 Harley-Davidson Roadster www.Totalmotorcycle.com Features and Benefits

HARLEY-DAVIDSON UNVEILS NEW STRIPPED-DOWN DARK CUSTOM MOTORCYCLE
Harley-Davidson Roadster Plays Starring Role in Latest ‘Live Your Legend’ Commercial

MILWAUKEE (April 18, 2016) – The Harley-Davidson® Dark Custom™ lineup has a new addition. With a minimalist, fastback design inspired by classic racing motorcycles, the nimble Harley-Davidson® Roadster™ will inspire a new generation of riders to take to the streets.

“Since its introduction in 1957, the Harley-Davidson Sportster has proved capable of constant reinvention, and the Roadster writes a new chapter in that story,” said Harley-Davidson Director of Styling Brad Richards. “We’ve watched our customers take the Sportster in so many different directions. The Roadster is a mash-up of styling genres, but the intent was to build a rider’s motorcycle, a Sportster that’s lean and powerful and connects the rider to the road.”

Roadster stars in “Cut Loose,” the third commercial in Harley-Davidson’s ‘Live Your Legend’ global marketing campaign that shows how riding a Harley-Davidson® motorcycle can enable riders to create deeper bonds and share richer experiences with friends and family. ‘Live Your Legend’ campaign ads include snapshots of life-enriching moments, as well as the unique and unforgettable bonds of friendship that riders develop by riding Harley-Davidson motorcycles.

As the newest member of the Dark Custom lineup, Roadster combines modern performance and retro-inspired styling with premium suspension components, an air-cooled 1200cc V-Twin engine that delivers a strong pulse of mid-range torque and a profile reminiscent of vintage racing motorcycles from the 1950s and 1960s.

“We wanted to give the Roadster some DNA from the high-performance KHR models of the mid-50s, and later Sportsters tuned for the drag strip,” said Richards. “Those bikes had fenders cut to the struts, the small fuel tank, and were stripped to their bare essentials to achieve a singular performance purpose.”

The 19-inch front and 18-inch rear Offset-Split 5-Spoke cast aluminum wheels were designed specifically for the Roadster and contribute to its balanced, athletic stance. The Roadster puts its rider in an aggressive posture with a new low-rise handlebar and mid-mount foot controls that center the rider’s weight over the classic profile of the 3.3-gallon Sportster® fuel tank.

“The wheels were inspired by classic laced wheels, and are the most intricate cast wheel we’ve ever created,” said Harley-Davidson Industrial Designer Ben McGinley. “The interlacing spokes shoot outward toward opposite sides of the wheel, creating a dramatic visual effect. These wheels are also very light for their size, which contributes to the Roadster’s handling performance.”

Roadster’s suspension is enhanced by new 43mm inverted single-cartridge forks with tri-rate springs gripped in robust triple clamps and rear suspension featuring gas-charged emulsion coil-over shocks and tri-rate springs with adjustable pre-load and offers greater suspension travel than any other Sportster model – 4.5 inches in front and 3.2-inches in the rear. Outstanding stopping power is achieved with dual 11.8-inch floating rotors on the front wheel. The Roadster is available with optional ABS brakes.

In keeping with its stripped-down styling, the Roadster’s rear fender has been clipped 1.5 inches shorter than previous bobbed Sportster fenders. The slotted belt guard and muffler shields mimic the lightening holes drilled in race-bike components, and a single four-inch diameter instrument tucked low in front of the triple clamp features a sweeping analog tachometer with an inset digital speedometer. Rear turn signals mounted directly to the fender struts, a side-mount license plate and fastback seat design give the rear of the bike a tight and uncluttered look.

“The seat’s profile flows into the very short rear fender,” said McGinley. “The cover features a series of pads inspired by an armored leather jacket, and the rear of the seat is designed as a passenger pillion, to give the Roadster added versatility.”

The Roadster model will be offered in four color choices: Vivid Black with a charcoal denim pinstripe; Black Denim with a red pinstripe; Velocity Red Sunglo with a red pinstripe; and two-tone Billet Silver/Vivid Black with a burgundy pinstripe.










2016 Harley-Davidson Roadster – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Starting from $11,199 – $11,749 USD

PRICING 6
Vivid Black $11,199
Color Option $11,549
Two-Tone Option $11,749
Security Option $395
ABS Option $795
California Emissions $100
Freight $360
DIMENSIONS
Length 86 in.
Seat Height, Unladen 7 30.9 in.
Ground Clearance 6 in.
Rake (steering head) (deg) 28.9
Trail 5.5 in.
Wheelbase 59.3 in.
Tires, Front Specification 120/70R19 M/C
Tires, Rear Specification 150/70R18 M/C
Fuel Capacity 3.3 gal.
Oil Capacity (w/filter) 2.8 qt.
Weight, As Shipped 549 lb.
Weight, In Running Order 568 lb.
ENGINE
Engine 1 Air-cooled, Evolution®
Bore 3.5 in.
Stroke 3.811 in.
Displacement 73.4 cu in
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 38/57 ratio
Gear Ratios (overall) 1st 9.315
Gear Ratios (overall) 2nd 6.653
Gear Ratios (overall) 3rd 4.948
Gear Ratios (overall) 4th 4.102
Gear Ratios (overall) 5th 3.517
CHASSIS
Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
Wheels, Front Type 9 Black Offset, Split 5-Spoke Cast Aluminum
Wheels, Rear Type Black Offset, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type Dual-piston front, Dual-piston rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 76 ft-lb
Engine Torque (rpm) 3,750
Lean Angle, Right (deg.) 30.8
Lean Angle, Left (deg.) 31.1
Fuel Economy: Combined City/Hwy 5 48 mpg
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) and ABS (optional)

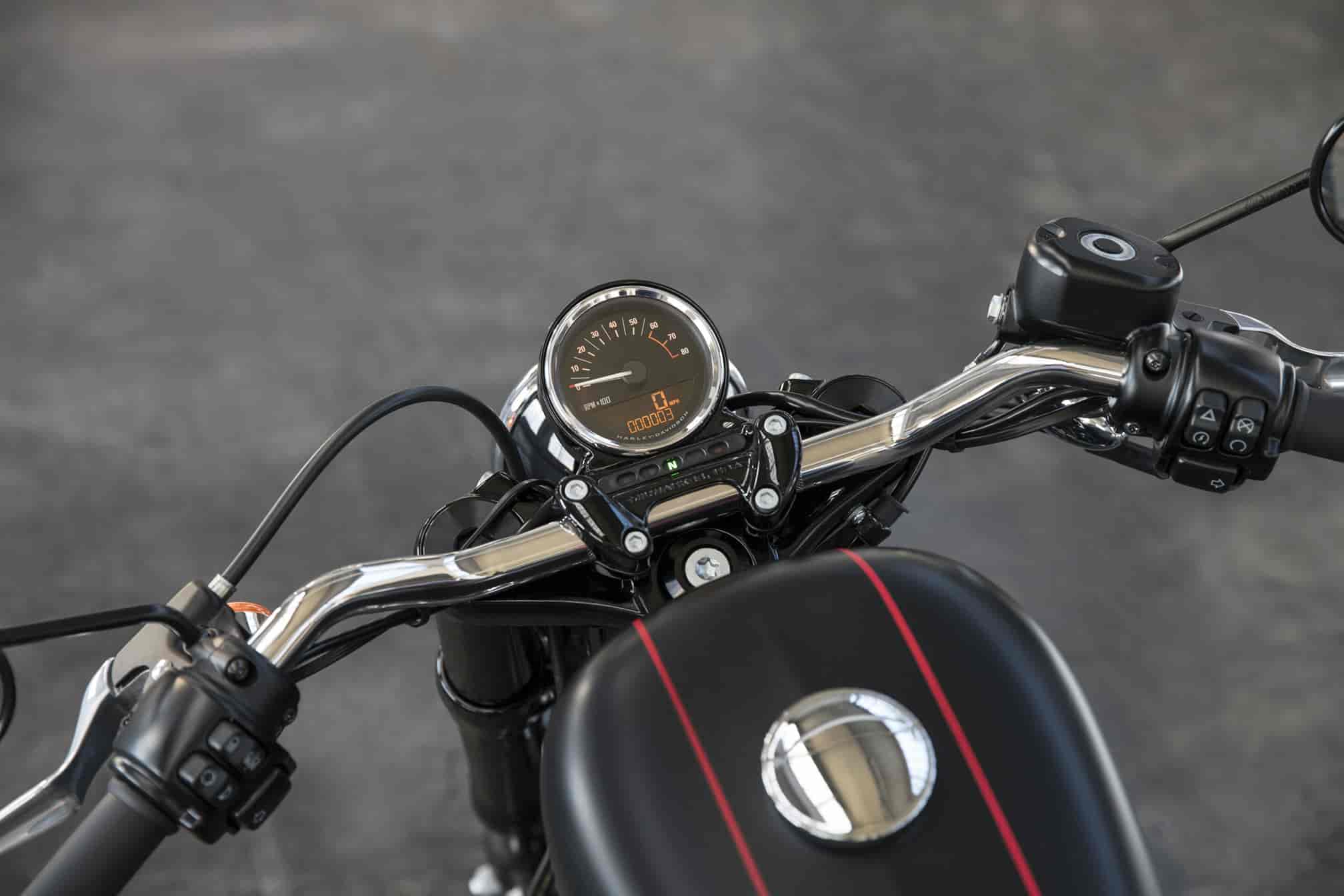

Gauges Dual function gauge – 4″ Digital Speedometer / Analog Tachometer
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.









2016 Harley-Davidson Roadster – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $TBA CDN

DIMENSIONS
Length 2,186 mm
Seat Height, Unladen 6 785 mm
Seat Height, Unladen 152 mm
Ground Clearance 28.9
Rake (steering head) (deg) 140 mm
Trail 1,505 mm
Wheelbase 120/70R19 M/C
Tires, Front Specification 150/70R18 M/C
Tires, Rear Specification 12.5 l
Fuel Capacity 2.6 l
Oil Capacity (w/filter) 249 kg
Weight, As Shipped 258 kg
ENGINE
Engine 1 Air-cooled, Evolution®
Bore 88.9 mm
Stroke 96.8 mm
Displacement 1,202 cc
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 38/57 ratio
Gear Ratios (overall) 1st 9.315
Gear Ratios (overall) 2nd 6.653
Gear Ratios (overall) 3rd 4.948
Gear Ratios (overall) 4th 4.102
Gear Ratios (overall) 5th 3.517
CHASSIS
Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
Wheels, Front Type Black Offset, Split 5-Spoke Cast Aluminum
Wheels, Rear Type 8 Black Offset, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type Dual-piston front, Dual-piston rear
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 103 Nm
Engine Torque (rpm) 3750.0
Lean Angle, Right (deg.) 30.8
Lean Angle, Left (deg.) 31.1
Fuel Economy: Combined City/Hwy 5 4.9 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) and ABS (optional)
Gauges Dual function gauge – 4″ Digital Speedometer / Analog Tachometer
1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Measurement reflects 180 lb. (81.7 kg) operator weight.
7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8. Standard and optional wheels may vary by country and region.







2016 Harley-Davidson Roadster – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £9695 – £10,145 GBP (On The Road inc 20% Vat)

PRICING 5
Vivid Black £ 9,695
Color Option £ 9,895
Two-Tone Option £ 10,145
DIMENSIONS
Length 2,185 mm
Seat Height, Unladen 785 mm
Ground Clearance 150 mm
Rake (steering head) (deg) 28.9
Trail 140 mm
Wheelbase 1,505 mm
Tyres, Front Specification 120/70R19 M/C
Tyres, Rear Specification 150/70R18 M/C
Fuel Capacity 12.5 l
Oil Capacity (w/filter) 2.6 l
Weight, As Shipped 250 kg
Weight, In Running Order 259 kg
ENGINE
Engine Air-cooled, Evolution®
Bore 88.9 mm
Stroke 96.8 mm
Displacement 1,202 cc
Compression Ratio 10.01
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 38/57 ratio
Gear Ratios (overall) 1st 9.315
Gear Ratios (overall) 2nd 6.653
Gear Ratios (overall) 3rd 4.948
Gear Ratios (overall) 4th 4.102
Gear Ratios (overall) 5th 3.517
CHASSIS
Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
Wheels, Front Type Black Offset, Split 5-Spoke Cast Aluminum
Wheels, Rear Type Black Offset, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type Dual-piston front, Dual-piston rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 97 Nm
Engine Torque (rpm) 4250.0
Lean Angle, Right (deg.) 30.8
Lean Angle, Left (deg.) 31.1
Fuel Economy: Combined City/Hwy 4.9 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system
Gauges 4″ Digital Speedometer / Analog Tachometer
1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2. Recommended 95 octane or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. See motorcycle owner’s manual for complete details.
5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
6. Measurement reflects 81.7 kg operator weight.
7. Security system includes immobiliser and siren.
8. Standard and optional wheels may vary by country and region.



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
