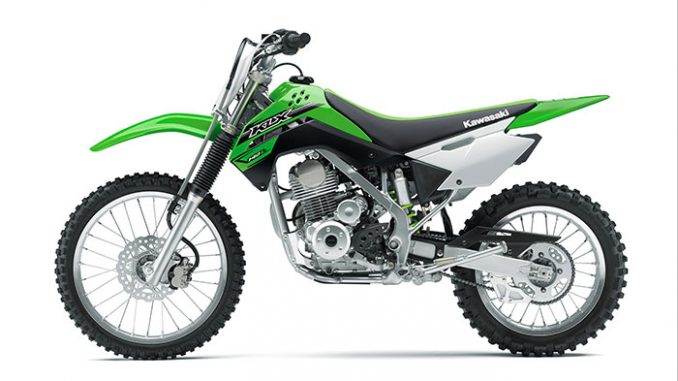

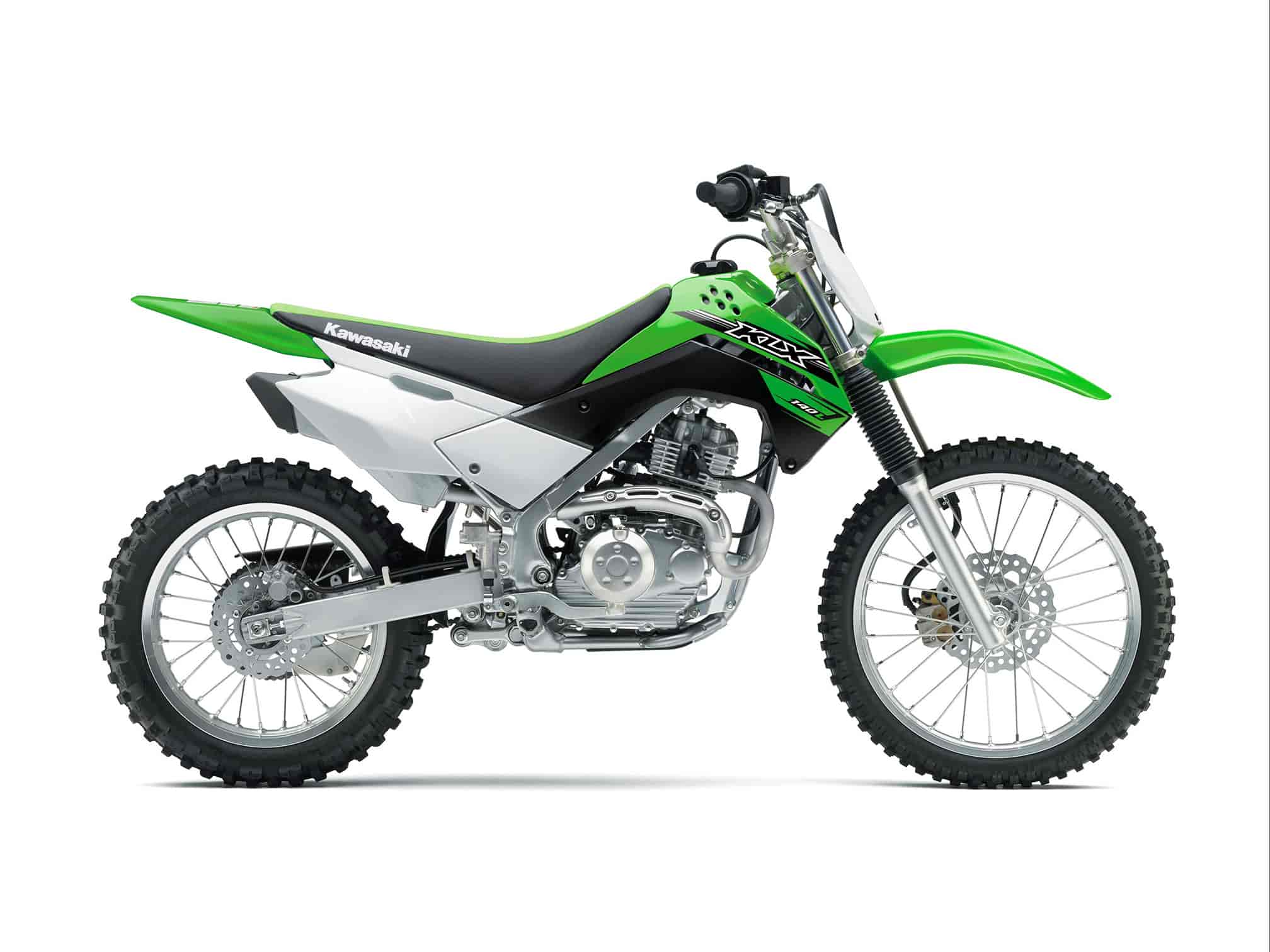

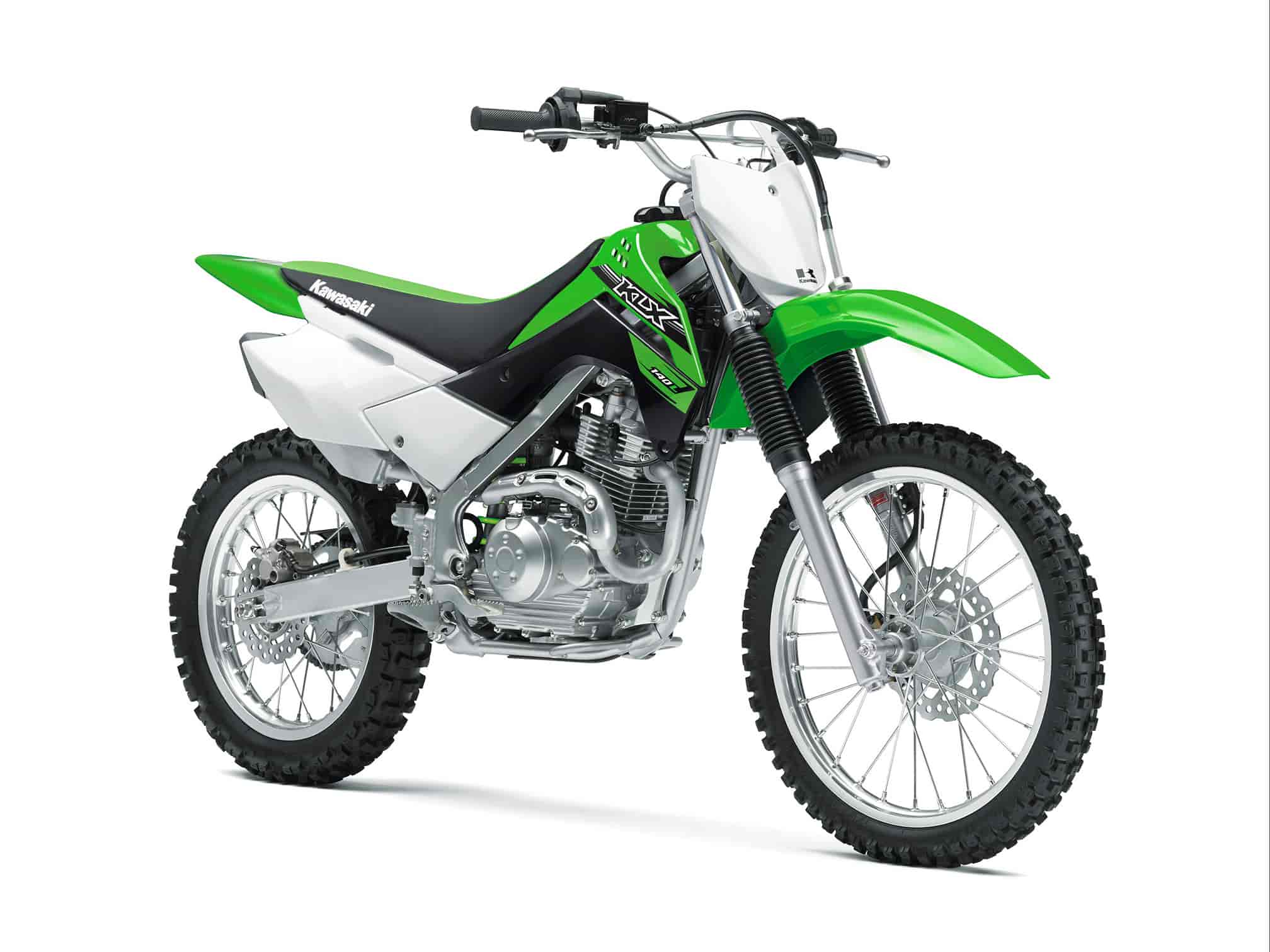

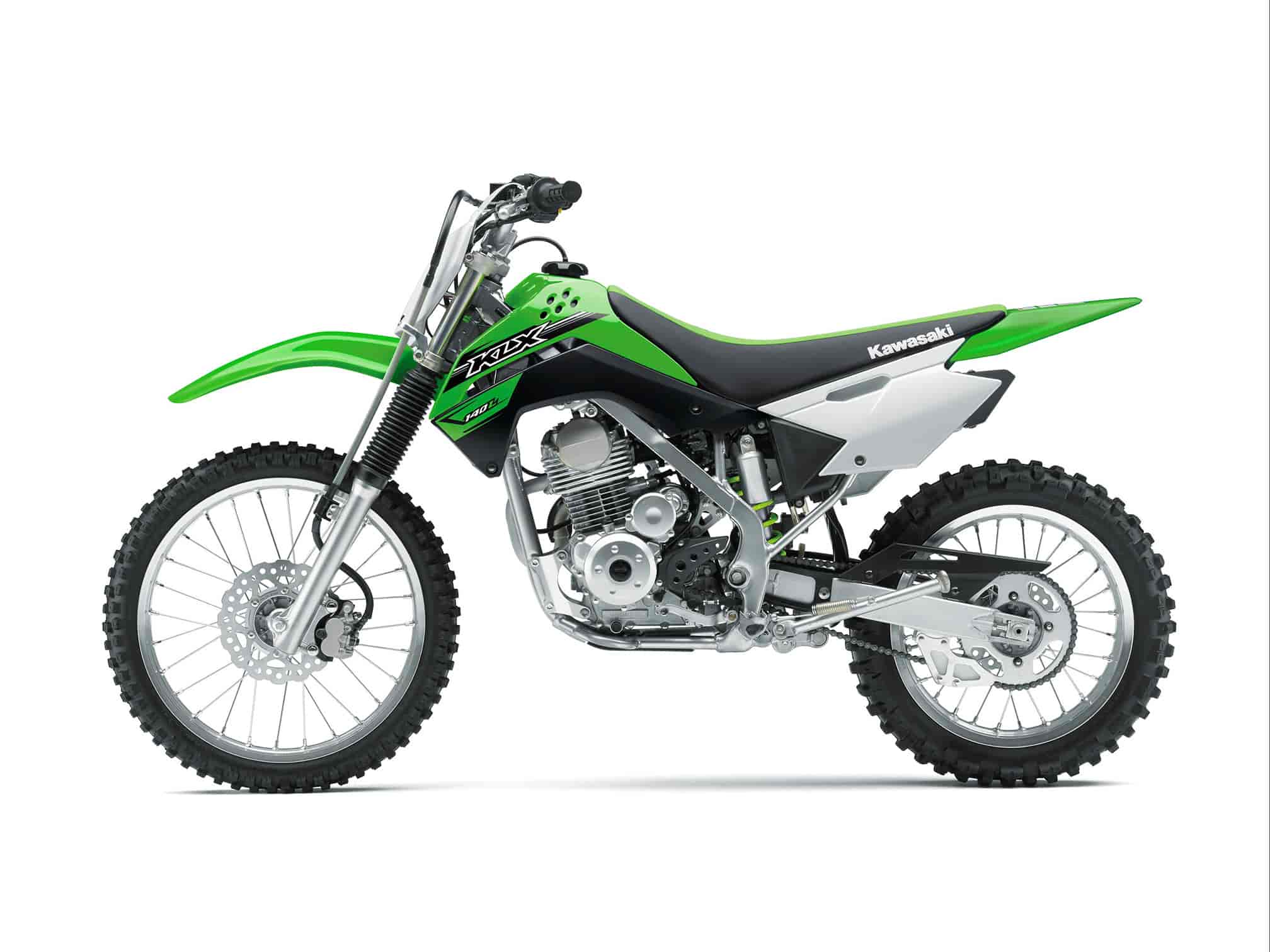

2016 Kawasaki KLX140L Review
2016 Kawasaki KLX140L on www.Totalmotorcycle.com
THE RIGHT SIZE FOR FUN…
The KLX®140—as well as the slightly larger KLX140L—is the perfect t if you’re looking for a fun and durable off-road motorcycle that’s easy to ride. With lower seat heights, electric start and smooth power in a chassis that’s easy to handle, the KLX140/140L has the capability to provide endless Good Times.
Off-road riders and mini-moto enthusiasts don’t have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasaki’s KLX140 has opened the door for a wider variety of riders in the small displacement off-road arena.
Both the KLX140 and KLX140L share a rigid box section steel perimeter frame for excellent handling characteristics, as well as a lightweight aluminum swingarm. They have 33mm telescopic front forks and a Uni-Trak® rear linkage for the adjustable rear shock. On the KLX140, this single rear shock has five-way preload adjustment, while the KLX140L offers a taller seat height (31.5” compared to 30.7” for the KLX140), longer suspension travel at each end, with the rear shock using a remote reservoir, adjustable preload, 22-way rebound and 14-way compression damping adjustment.
Showing the KX heritage, both the KLX140 and KLX140L use large 220mm petal-shape front rotor with a twin-piston caliper, and a 186mm petal-shape rear rotor. These provide plenty of stopping power. And the KX influence continues with the wheels, which have strong die-cast hubs and lightweight RK EXCEL aluminum rims. The KLX140 uses a 17” front and 14” rear wheel, while the taller KLX140L is equipped with a 19” front and 16” rear wheels to accommodate taller riders, accounting for the extra ground clearance on the 140L.
Color: Lime Green
2016 Kawasaki KLX140L www.Totalmotorcycle.com Key Features
The Kawasaki KLX® family of off-road bikes is built for beginners and expert riders alike. Four models with two engine configurations suit a variety of riders, from young to old, short to tall.
Engineered by the same team that developed the Kawasaki KX™ motocross family, the KLX models have performance racing heritage and durability to keep going as long as the rider can, ensuring reliable, all-day enjoyment.
The KLX®140L off-road motorcycle is the bigger brother to the KLX140 and provides a roomier riding position for taller riders. It features larger wheels, and a more performance-oriented suspension that stands up to the demands of more aggressive riding.
•Push button electric start
•High-revving 144cc air-cooled, SOHC, four-stroke engine
•Taller (19F, 16R) wheels than the KX140 (17F, 14R) contribute to a taller 31.5 inch seat height
•7.1 inches of front and rear suspension travel to soak up bumps
•Front and rear disc brakes provide strong progressive stopping power
2016 Kawasaki KLX140L www.Totalmotorcycle.com Features and Benefits
The KLX140/140L has strong stopping power with front and rear disc brakes. The 220mm petal brake disc in the front with a largebore 27mm twin-piston caliper. Slowing the rear is a 186mm petal brake disc with a 27mm single-piston caliper.
The KLX140L features 19-inch front and 16-inch rear wheels to allow a more comfortable seat height for taller riders and ample
ground clearance. The KLX140 rides on 17-inch front and 14-inch rear wheels for a lower seat height and nimble handling.
A low 30.7-inch seat height on the KLX140 (31.5-inch seat on the KLX140L) feels just right. The rigid, high-tensile steel perimeter frame creates a stable and well-balanced chassis for a condence-inspiring ride.
2016 Kawasaki KLX140L – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3399 USD
4-stroke, 1-cylinder, SOHC, Air-cooled
Bore x Stroke
58.0 x 54.4mm
Five-speed with wet multi-disc manual clutch
Front Suspension / Wheel Travel
33mm telescopic fork / 7.1 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in
Front Tire Size
Rear Tire Size
Single 220mm petal disc with a dual-piston caliper
Single 186mm petal disc with single-piston caliper
High-Tensile steel, box-section perimeter
27° / 3.8 in
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months
2016 Kawasaki KLX140L – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3999 CDN
Type 4-stroke, Single
Bore and stroke 58.0 x 54.4 mm
Compression ratio 9.5:1
Valve system SOHC, 2 valves, screw type adjusters
Fuel system Keihin PB20 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Front: type Single 220 mm petal disc
Front: calipers Dual-piston caliper
Rear: type Single 186 mm petal disc
Rear: calipers Single-piston caliper
Overall length 1,895 mm (74.6 in.)
Overall width 790 mm (31.1 in.)
Overall height 1,075 mm (42.3 in.)
Wheelbase 1,285 mm (50.6 in.)
Ground clearance 255 mm (10.0 in.)
Seat height 800 mm (31.5 in.)
Curb mass** 95 kg (209.4 lbs.)
Fuel capacity 5.8 litres (1.3 gal.)
Final drive Chain
Primary reduction ratio 2.880 (72/25)
Gear ratio: 1st 2.667 (40/15)
Gear ratio: 2nd 1.895 (36/19)
Gear ratio: 3rd 1.474 (28/19)
Gear ratio: 4th 1.182 (26/22)
Gear ratio: 5th 1.000 (24/24)
Final reduction ratio 3.923 (51/13)
Clutch Wet multi-disc, manual, cable operation
Type Tubular double cradle, box section perimeter, high-tensile steel
Wheel travel: front 180 mm (7.1 in.)
Tire: front 70/100-19
Wheel travel: rear 180 mm (7.1 in.)
Tire: rear 90/100-16
Caster (rake) 27°
Trail 96 mm (3.8 in.)
Suspension, front 33 mm telescopic fork
Suspension, rear Uni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
Warranty 6 months warranty
2016 Kawasaki KLX140L – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.
