2016 Zero FXS Review

2016 Zero FXS on www.Totalmotorcycle.com

Ride the City. Rail the Track….

Whether you’re charging through the inner city supermoto style or indulging in backroad shenanigans, the new Zero FXS is ready to push the limits. Delivering a nearly instantaneous 70 ft-lbs of torque, up to 44 hp and weighing less than 300 lbs, the Zero FXS is quick and agile. Suspension and brakes are ideally suited to the rigors of spirited riding, giving the rider greater control. 17” wheels and Pirelli Diablo Rosso tires provide superior grip and corner control…for good reason: the throttle response is simply stunning. The Zero FXS takes supermoto to a new level. Think of it as supermoto on steroids.


No ride time is wasted thanks to its maintenance-free powertrain, and each mile covered costs only around a penny in electricity. The Zero FXS features a unique, patented modular power pack system that allows recharging either on or off the bike, making it ideal for the city. With advanced ABS, fully adjustable suspension, dual projector beam headlights, alloy wheels and high performance street tires, it’s ready to hit the supermoto track or turn formerly mundane tasks into thrilling rides.






2016 Zero FXS www.Totalmotorcycle.com Key Features

Game Changing Z-Force® Power Pack

A fully modular system

The Zero FXS features a fully modular power pack system. With slots for two power packs, you can operate the Zero FXS with either one or both slots filled. The modules can be charged either on the motorcycle or elsewhere using optional accessories, giving you the ability to charge without a street-level outlet.

The Zero FXS can be purchased with either one module (ZF3.3) or two modules (ZF6.5).

· Fully modular Z-Force® quick-swap technology allows you to swap power packs in seconds. You can also upgrade your motorcycle’s max capacity from 3.3 kWh to 6.5 kWh. · Note: Adding a second power pack may require an update of the vehicle’s registration documents. Please check with your local vehicle approval authority for details.

· State-of-the-art power pack configuration and cell chemistry · Cells last 2,500 full charge-discharge cycles before hitting 80% capacity, yielding as much as 203,000 miles on the original power pack
· Highest energy density in the electric vehicle industry

· Isolated power systems and 12 volt system for running accessories

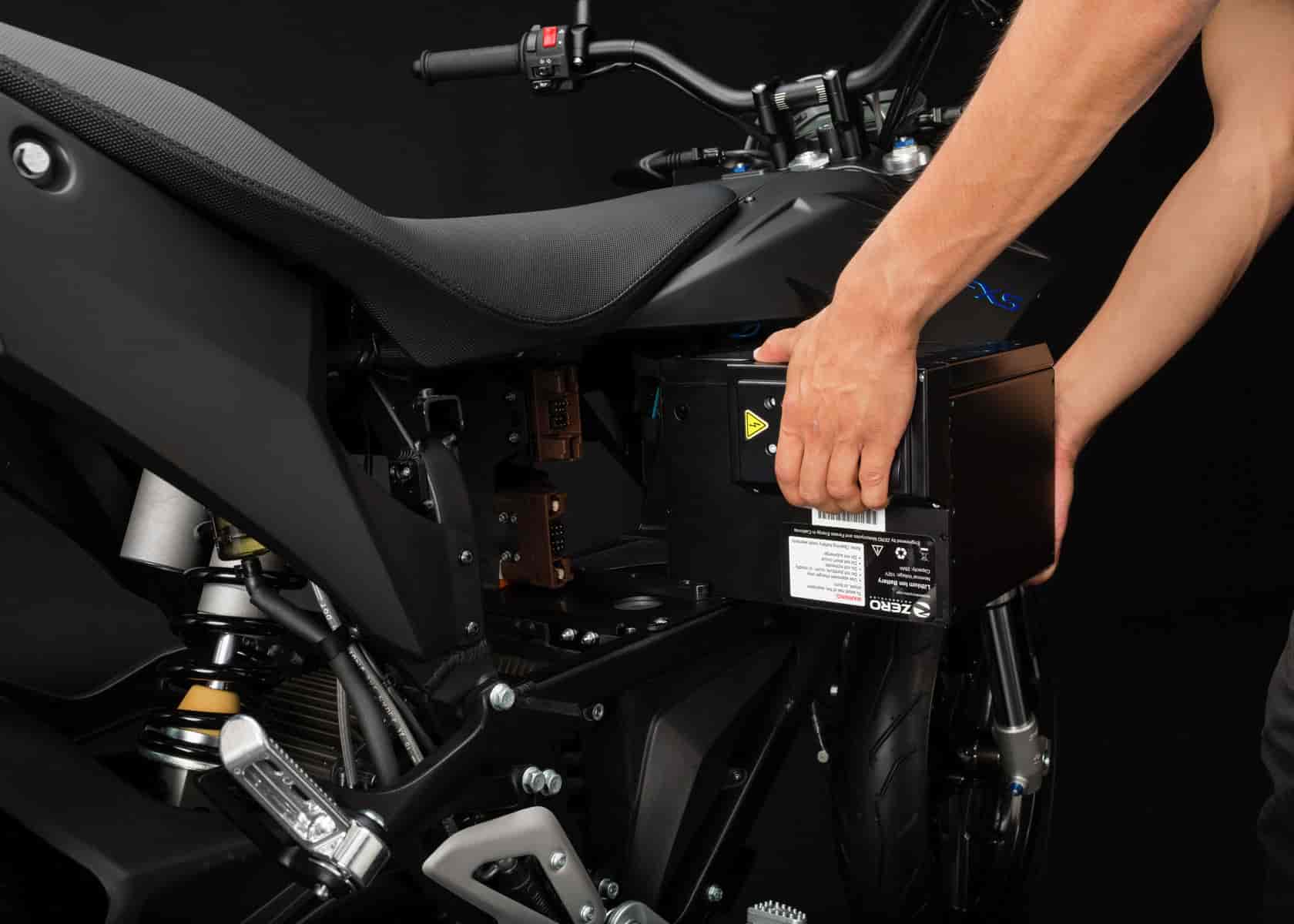

· Modules can be fully removed from the motorcycle and transported to charge anywhere (this requires the purchase of a stand-alone Quick Charger and the Power Pack Module Charging Adapter)
· Module locking system for increased security and peace of mind
· Scalable off-board charging options available to reduce recharge times (see specs for details)





2016 Zero FXS www.Totalmotorcycle.com Features and Benefits


Revolutionary Z-Force® IPM Motor

Thrilling acceleration with 70 ft-lbs torque

At the heart of the Zero FXS powertrain is a highly efficient and robust motor. The patent-pending Z-Force® interior permanent magnet (IPM) design cools rapidly and offers Zero’s highest thermal capability. This significantly improves performance during hard riding and allows higher sustained top speeds. As with all Z-Force® motors, the IPM design is light, compact and powerful, and requires no regular maintenance. When slowing down, the motor generates electricity that is channeled back into the power pack to help extend ride times.

· Designed from the ground up by Zero Motorcycles to be the world’s most efficient, powerful, compact, brushless and sealed air-cooled motor
· Produces 44 hp and 70 ft-lbs of torque (Zero FXS ZF6.5)
· Requires no routine maintenance
· Operates with such high efficiency that it does not require any complex cooling system
· Instant torque and broad power band for impressive acceleration
· Quad-level regenerative system recharges the power pack when decelerating · Re-gen level is increased during brake application vs. “neutral” deceleration
· Both braking and “neutral” re-gen levels are set higher in Eco vs. Sport mode
· “Custom” mode performance profile can be set using the Zero Motorcycles App




Zero FXS Electric Motorcycle Motor

Zero FXS Electric Motorcycle Charging System
Charge Anywhere

Plug in at any standard outlet

The Zero FXS charging system is integrated into the motorcycle and can be plugged in at any standard outlet. No additional equipment is required for standard charging. This allows you to conveniently charge in your garage, at the office or when you stop at one of your favorite places while enjoying a day out.

The Zero FXS power pack modules can be removed from the motorcycle and charged separately using optional accessories. This makes it possible to charge the modules anywhere and thereby eliminates the necessity of a street-level outlet. Charging times can be reduced by up to ~75% by using a scalable off-board charging system.*

*Requires optional accessories. Please see your Zero Motorcycles dealer.



Zero FXS Electric Motorcycle Frame

Frame and Bodywork

Light Aircraft Grade Aluminum

At the core of the Zero FXS lies a hand-crafted aircraft grade aluminum frame that Zero engineered from the ground up. Its combination of lower weight and higher strength means more responsiveness. In the corners and off the line, this translates into greater acceleration. For added durability, each frame is shot-peened and anodized.

· Rigid, robust and lightweight frame
· Hydroformed top tube for increased strength and reduced weight
· Large cylindrical swingarm cross tube for increased stiffness and suspension response
· Entire frame is shot-peened and anodized for resistance to corrosion and abrasion
· Robust headtube and head bearings for increased torsional rigidity and improved control





Zero FXS Electric Motorcycle Front Fork

Showa Suspension

The Magic Ride

Zero worked in close collaboration with Showa to develop suspension systems that provide excellent small bump compliance, predictable control of bigger impacts and exceptionally smooth action under all conditions. Torsional rigidity of the front end improves handling, and a hollow front axle reduces unsprung weight. Suspension settings are completely customizable to meet the demands of a wide variety of riders.

· Exceptionally smooth action for improved comfort and control
· Fully adjustable settings to meet the demands of a wide variety of riders
· Hollow front axle reduces unsprung weight
· Durable and highly protective fork guards
· Developed in close collaboration with Showa



Zero FXS Electric Motorcycle brakes

Bosch Anti-lock Brake System (ABS)

Powerful. Precise. Control.

The Zero FXS features an advanced Bosch anti-lock brake system (ABS) that improves control in a wide array of conditions and ensures the best braking performance.

· Advanced Bosch ABS is standard
· ABS can be switched on or off depending on rider preference
· Incredibly smooth actuation for improved control under extreme braking
· Refined hydraulic ratios improve braking power and modulation




Zero FXS Electric Motorcycle Wheels
Wheels and Tires

Hold your line.

Pirelli tires are standard on the Zero FXS, providing improved traction in a wide variety of conditions and excellent road feel. The Zero FXS alloy wheels are designed to reduce unsprung weight while not compromising on strength.

· High performance Pirelli Diablo Rosso II tires provide outstanding traction on paved surfaces
· Stylish cast alloy wheels are equipped with a large carrier-less front rotor to reduce unsprung weight and increase stopping power




Zero FXS Electric Motorcycle Drivetrain

Direct Drive Gearing

Instant torque with a twist

Featuring a clutchless direct drive, the Zero FXS is geared for rapid acceleration and maximum efficiency. Without ever needing to shift, the Zero FXS provides controlled and powerful acceleration at any speed between 0-80 mph. The carbon fiber belt achieves minimal frictional losses for increased overall range and is integral to making the powertrain maintenance-free.

· Sophisticatedly simple “just ride” direct-drive system means no clutch, no shifting and no need to carry a heavy and complex transmission
· Maintenance-free and virtually silent belt drive system
· Clutchless single speed that simplifies operation
· Geared for rapid acceleration and maximum efficiency
· Adjustable rear axle to modify belt tension





Dash and Controls

Impressive information. Elegantly Displayed.

The dash is designed by Zero to quickly and accurately provide useful data on such information as state of charge, power output and your selected riding profile. You can toggle through three riding profiles using the ergonomic right-hand switch gear to better meet the needs of your ride: Sport, Eco, Custom. The dash screen features a cool blue backlit LCD display and integrates seamlessly into the front of the motorcycle. Want more information about the motorcycle while riding or at home· Try the Zero Motorcycles App.

· High contrast and blue backlit LCD screen features data that allows you to better understand your state of charge, see your current riding profile and view other useful riding information
· Ergonomic right-hand switch assembly with integrated switch to toggle on the fly between Sport, Eco and Custom riding modes
· Custom riding mode setting allows you to set your own performance profile (custom mode performance profile must be configured within the Zero Motorcycles App)
· Projector beam headlights and integrated fly screen provide a refined and contemporary front profile




Zero FXS Electric Motorcycle Dashboard

Zero FXS Electric Motorcycle App

Zero Motorcycles App

Get your Motorcycle Dialed

Using the Zero Motorcycles App you can see detailed information about your motorcycle such as the time until charged, average watts per mile, total charge cycles and much more. When parked, the app allows you to set the custom riding mode’s performance profile by adjusting the parameters for top speed, maximum torque and maximum regenerative braking. While riding, your phone transforms into a customized dash that provides detailed real-time motorcycle information. Synced using Bluetooth, the app works on iPhone and Android mobile devices.











2016 Zero FXS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,495 ZERO FXS zf3.3; $10,990 ZERO FXS zf6.5 USD

range ZERO FXS zf3.3
City 45 miles (72 km)
Highway, 55 mph (89 km/h) 27 miles (43 km)
 » Combined 34 miles (55 km)
Highway, 70 mph (113 km/h) 18 miles (29 km)
 » Combined 26 miles (42 km)
Motor
Max torque 70 ft-lb (95 Nm)
Max power 27 hp (20 kW) @ 3,700 rpm
Top speed (max) 82 mph (132 km/h)
Top speed (sustained) 75 mph (121 km/h)
Acceleration, 0-60 mph (0-100 km/h) 4.1 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 101,000 miles (163,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 3.3 kWh
Nominal capacity 2.9 kWh
Charger type 650 W, integrated
Charge time (standard) 4.7 hours (100% charged) / 4.2 hours (95% charged)
 » With one accessory charger 2.1 hours (100% charged) / 1.6 hours (95% charged)
 » With max accessory chargers 1.5 hours (100% charged) / 1.0 hour (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.0 in (1,422 mm)
Seat height 32.9 in (836 mm)
Rake 24.4°
Trail 2.8 in (71 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 251 lb (114 kg)
Carrying capacity 379 lb (172 kg)
Economy
Equivalent fuel economy (city) 530 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway) 215 MPGe (1.09 l/100 km)
Typical cost to recharge $0.37
Pricing
MSRP $8,495
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/50,000 miles

range ZERO FXS zf6.5
City 90 miles (145 km)
Highway, 55 mph (89 km/h) 54 miles (87 km)
 » Combined 68 miles (109 km)
Highway, 70 mph (113 km/h) 37 miles (60 km)
 » Combined 52 miles (84 km)
Motor
Max torque 70 ft-lb (95 Nm)
Max power 44 hp (33 kW) @ 3,700 rpm
Top speed (max) 82 mph (132 km/h)
Top speed (sustained) 75 mph (121 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.8 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 203,000 miles (327,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours (95% charged)
 » With max accessory chargers 1.7 hours (100% charged) / 1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.0 in (1,422 mm)
Seat height 32.9 in (836 mm)
Rake 24.4°
Trail 2.8 in (71 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 293 lb (133 kg)
Carrying capacity 337 lb (153 kg)
Economy
Equivalent fuel economy (city) 530 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway) 215 MPGe (1.09 l/100 km)
Typical cost to recharge $0.73
Pricing
MSRP $10,990
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/50,000 miles












2016 Zero FXS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $11,044 ZERO FXS zf3.3; $14,287 ZERO FXS zf6.5 CDN

range ZERO FXS zf3.3
City 45 miles (72 km)
Highway, 55 mph (89 km/h) 27 miles (43 km)
 » Combined 34 miles (55 km)
Highway, 70 mph (113 km/h) 18 miles (29 km)
 » Combined 26 miles (42 km)
Motor
Max torque 70 ft-lb (95 Nm)
Max power 27 hp (20 kW) @ 3,700 rpm
Top speed (max) 82 mph (132 km/h)
Top speed (sustained) 75 mph (121 km/h)
Acceleration, 0-60 mph (0-100 km/h) 4.1 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 101,000 miles (163,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 3.3 kWh
Nominal capacity 2.9 kWh
Charger type 650 W, integrated
Charge time (standard) 4.7 hours (100% charged) / 4.2 hours (95% charged)
 » With one accessory charger 2.1 hours (100% charged) / 1.6 hours (95% charged)
 » With max accessory chargers 1.5 hours (100% charged) / 1.0 hour (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.0 in (1,422 mm)
Seat height 32.9 in (836 mm)
Rake 24.4°
Trail 2.8 in (71 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 251 lb (114 kg)
Carrying capacity 379 lb (172 kg)
Economy
Equivalent fuel economy (city) 530 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway) 215 MPGe (1.09 l/100 km)
Typical cost to recharge $0.37
Pricing
MSRP $11,044 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/80,000 km

range ZERO FXS zf6.5
City 90 miles (145 km)
Highway, 55 mph (89 km/h) 54 miles (87 km)
 » Combined 68 miles (109 km)
Highway, 70 mph (113 km/h) 37 miles (60 km)
 » Combined 52 miles (84 km)
Motor
Max torque 70 ft-lb (95 Nm)
Max power 44 hp (33 kW) @ 3,700 rpm
Top speed (max) 82 mph (132 km/h)
Top speed (sustained) 75 mph (121 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.8 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 203,000 miles (327,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours (95% charged)
 » With max accessory chargers 1.7 hours (100% charged) / 1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.0 in (1,422 mm)
Seat height 32.9 in (836 mm)
Rake 24.4°
Trail 2.8 in (71 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 293 lb (133 kg)
Carrying capacity 337 lb (153 kg)
Economy
Equivalent fuel economy (city) 530 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway) 215 MPGe (1.09 l/100 km)
Typical cost to recharge $0.73
Pricing
MSRP $14,287 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/80,000 km







2016 Zero FXS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer GBP/EUR (On The Road inc 20% Vat)

range ZERO FXS zf3.3
City 72 km
Highway, 89 km/h 43 km
 » Combined 55 km
Highway, 113 km/h 29 km
 » Combined 42 km
Motor
Max torque 95 Nm
Max power 27 hp (20 kW) @ 3.700 rpm
Licensing Requirement A2 Licence
Top speed (max) 132 km/h
Top speed (sustained) 121 km/h
Acceleration, 0-100 km/h 4,1 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 163.000 km
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 3,3 kWh
Nominal capacity 2,9 kWh
Charger type 650 W, integrated
Charge time (standard) 4,7 hours (100% charged) / 4,2 hours (95% charged)
 » With one accessory charger 2,1 hours (100% charged) / 1,6 hours (95% charged)
 » With max accessory chargers 1,5 hours (100% charged) / 1,0 hour (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 178 mm
Rear suspension travel 227 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3,00 x 17
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.422 mm
Seat height 836 mm
Rake 24,4°
Trail 71 mm
Weight
Frame 9,1 kg
Curb weight 114 kg
Carrying capacity 172 kg
Economy
Equivalent fuel economy (city) 0,44 l/100 km
Equivalent fuel economy (highway) 1,09 l/100 km
Typical cost to recharge 0,67 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/80.000 km



range ZERO FXS zf6.5
City 145 km
Highway, 89 km/h 87 km
 » Combined 109 km
Highway, 113 km/h 60 km
 » Combined 84 km
Motor
Max torque 95 Nm
Max power 44 hp (33 kW) @ 3.700 rpm
Licensing Requirement A2 Licence
Top speed (max) 132 km/h
Top speed (sustained) 121 km/h
Acceleration, 0-100 km/h 3,8 seconds
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 327.000 km
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 6,5 kWh
Nominal capacity 5,7 kWh
Charger type 650 W, integrated
Charge time (standard) 8,9 hours (100% charged) / 8,4 hours (95% charged)
 » With one accessory charger 3,8 hours (100% charged) / 3,3 hours (95% charged)
 » With max accessory chargers 1,7 hours (100% charged) / 1,2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 132T / 25T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 178 mm
Rear suspension travel 227 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3,00 x 17
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.422 mm
Seat height 836 mm
Rake 24,4°
Trail 71 mm
Weight
Frame 9,1 kg
Curb weight 133 kg
Carrying capacity 153 kg
Economy
Equivalent fuel economy (city) 0,44 l/100 km
Equivalent fuel economy (highway) 1,09 l/100 km
Typical cost to recharge 1,34 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/80.000 km







*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 2132 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
