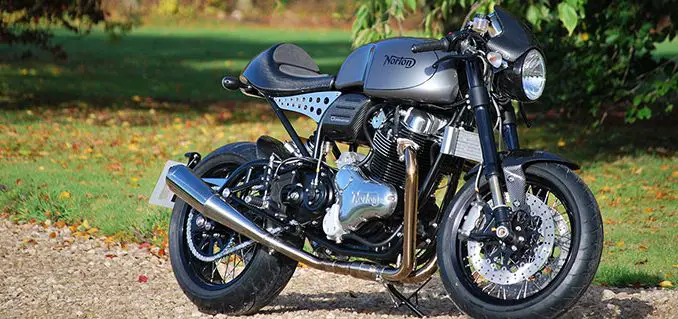

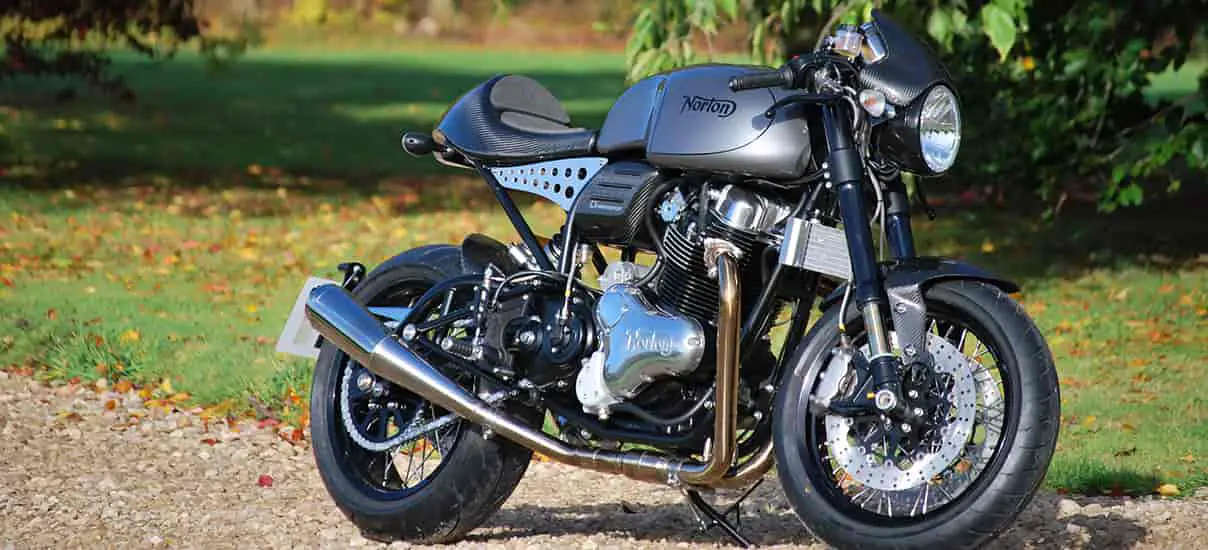

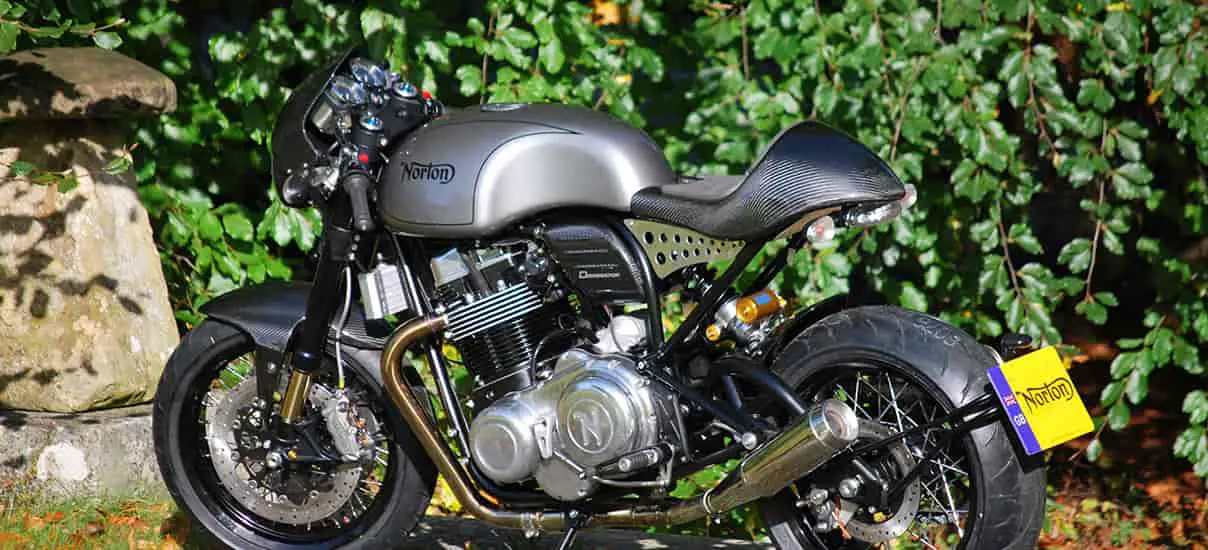

2017 Norton Dominator Review

2017 Norton Dominator

2017 Norton Dominator

2017 Norton Dominator

2017 Norton Dominator

2017 Norton Dominator Review

2017 Norton Dominator on www.Totalmotorcycle.com

Dominate…

Following on from the success of the Domiracer comes the production Dominator. Built using high specification components whilst maintaining a classic appearance and style.

2017 Norton Dominator www.Totalmotorcycle.com Key Features

– Featherbed sports chassis

– USD Ohlins forks

– Radial Brembo Brake Calipers

– Black anodised rims

– Black anodised rims

– Short open pipes supplied

2017 Norton Dominator www.Totalmotorcycle.com Features and Benefits

Norton heritage

Norton returns, the name synonymous with the British sport motorcycling culture, and a brand that added so many enduring names to the motorcycle lexicon – Commando, Dominator, and of course Norton Manx whose fame was gained while dominating world Gran Prix road racing for decades. When the first Norton motorcycle, the ‘Engerette’, rolled out of the original Birmingham England
factory in 1902, it was the birth of a lineage of motorcycles that shapes the motorcycle scene to this day. It is fitting that the new factory and world headquarters of Norton are based at the spiritual centre of British motorsport, the famous Donington Park Grand Prix Circuit, so near the traditional heart of the British motorcycle industry in Birmingham. We embrace the passion and pride of Norton’s heritage, with our eyes firmly fixed on the future. We proudly continue the legacy and assume the mission of designing, engineering and building motorcycles that reflect the best of this iconic brand.

Features common to all Norton Commando 961 models

Norton is, and always will be a premium priced motorcycle with an emphasis on the quality of materials and attention to detail – designed and engineered for superior road manners and exceptional road holding. We are proudly British. More than 80% of a Norton’s individual parts are ‘Made in England’, and combine with some of the best components available.

Chassis and running gear

The Norton reputation for superior road-holding is legendary, and continues by building a chassis of the finest materials with real world geometry and settings. Norton frames are crafted in-house at our Castle Donington factory from cold drawn 1 inch diameter, .08″ wall thickness European steel.The frame also acts as the oil reservoir for the dry sump engine. Road manners are further enhanced by employing confidence inspiring and fully adjustable Ohlins suspension both front and rear, while braking tasks are handled by premier Brembo calipers, discs and master cylinders.

BIKE OPTIONS

FACTORY FIT OPTIONS PRICE

Carbon Fibre Wheels £2,195
Polished Wheels £245
Painted Flag on The Tail £250
Polished Chassis Pack £595

ACCESSORIES PRICE

Chrome Plated Side Stand £150
Polished Gearbox Filler £50
Aluminium Fuel Tank £2,400
Long Open Exhaust Silencers £895
De-cat Exhaust System £295
Aluminium Oil Cooler £245
Black Paddock Stand £195
Megaphone Pipes £1,950

2017 Norton Dominator – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See dealer for pricing in USD

Engine

Engine type: In house developed parallel twin with dry sump lubrication. Black with polished covers. Compression ratio: 10.1:1
Displacement: 961cc Power: 80PS at 6500RPM
Cooling system: Air/Oil Torque: 90Nm at 5200RPM
Valve actuation: Push rod, hydraulic roller lifter, 2 valves per cylinder Exhaust: Stainless steel
Bore x Stroke: 88mm x 79mm Ignition: Crank fired electronic fuel injection & 2 way catalytic converters. Euro 3 compliant.

Transmission

Gear box: 5-Speed, Constant Mesh
Final drive: 525 O-ring chain
Clutch: Wet multi-plate

Dimensions

Wheelbase: 1450mm (55.9″) Front tyre: 120/70 x 17″
Rake: 24.0° Rear tyre: 180/55 x 17″
Trail: 99mm (3.9″) Front wheel travel: 115mm (4.53″)
Front wheel: 36 spoke 3.5″ x 17″ Black Rim Rear wheel travel: 100mm (3.94″)
Rear wheel: 40 spoke 5.5″ x 17″ Black Rim Seat height: 813mm (23″)

Suspension

Front suspension: 43mm Black-line Ohlins USD – adjustable preload, compression & rebound damping
Rear suspension: Ohlins TTX 36 mono shock with remote reservoir – adjustable ride height, preload and compression

Brakes

Front Brakes: Full Brembo system, twin Brembo 320mm fully-floating high carbon stainless steel discs & Brembo 4 piston “Mono bloc” radially mounted calipers. Brembo radial front brake master cylinder with remote reservoir.

Rear Brakes: Full Brembo system, single Brembo 220mm disc & Brembo 2 piston calliper. Brembo rear brake master cylinder
Clutch: Brembo radial hydraulic clutch master cylinder with remote reservoir and Brembo slave cylinder

Performance

Power: 80PS @ 6500rpm
Torque: 90Nm @ 5200rpm

Electronics & Controls

Charging system: 300 watt hi-output charging system

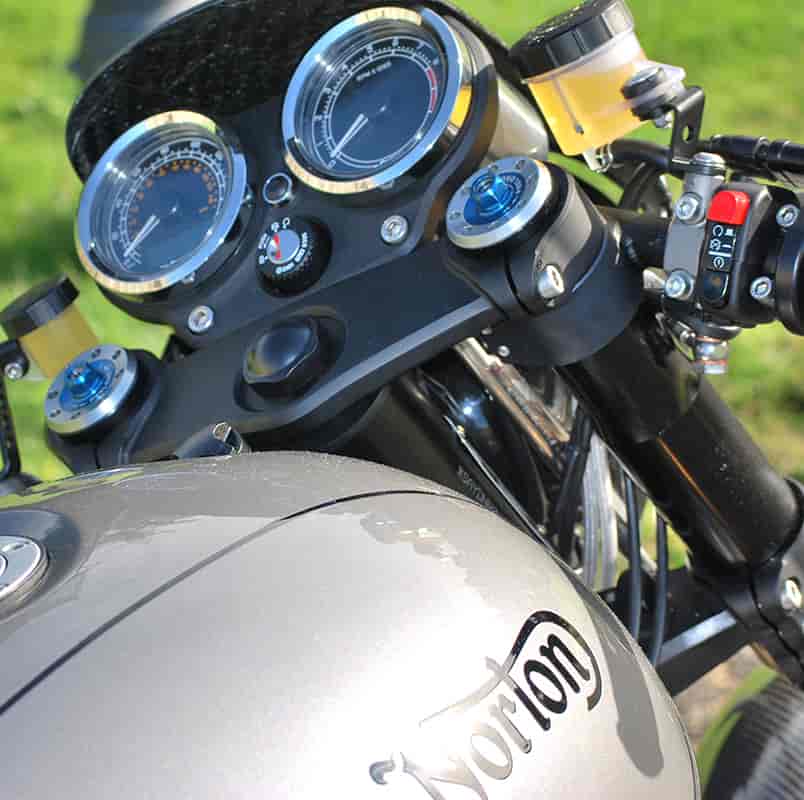

Instrumentation: Norton electronic analogue speedo and tachometer
Starting system: Electric push button start

Colour Options

Titanium Grey with Black Pinstripe

2017 Norton Dominator – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

Engine

Engine type: In house developed parallel twin with dry sump lubrication. Black with polished covers. Compression ratio: 10.1:1
Displacement: 961cc Power: 80PS at 6500RPM
Cooling system: Air/Oil Torque: 90Nm at 5200RPM
Valve actuation: Push rod, hydraulic roller lifter, 2 valves per cylinder Exhaust: Stainless steel
Bore x Stroke: 88mm x 79mm Ignition: Crank fired electronic fuel injection & 2 way catalytic converters. Euro 3 compliant.

Transmission

Gear box: 5-Speed, Constant Mesh
Final drive: 525 O-ring chain
Clutch: Wet multi-plate

Dimensions

Wheelbase: 1450mm (55.9″) Front tyre: 120/70 x 17″
Rake: 24.0° Rear tyre: 180/55 x 17″
Trail: 99mm (3.9″) Front wheel travel: 115mm (4.53″)
Front wheel: 36 spoke 3.5″ x 17″ Black Rim Rear wheel travel: 100mm
(3.94″)
Rear wheel: 40 spoke 5.5″ x 17″ Black Rim Seat height: 813mm (23″)

Suspension

Front suspension: 43mm Black-line Ohlins USD – adjustable preload, compression & rebound damping
Rear suspension: Ohlins TTX 36 mono shock with remote reservoir – adjustable ride height, preload and compression

Brakes

Front Brakes: Full Brembo system, twin Brembo 320mm fully-floating high carbon stainless steel discs & Brembo 4 piston “Mono bloc” radially mounted calipers. Brembo radial front brake master cylinder with remote reservoir.
Rear Brakes: Full Brembo system, single Brembo 220mm disc & Brembo 2 piston calliper. Brembo rear brake master cylinder
Clutch: Brembo radial hydraulic clutch master cylinder with remote reservoir and Brembo slave cylinder

Performance

Power: 80PS @ 6500rpm
Torque: 90Nm @ 5200rpm

Electronics & Controls

Charging system: 300 watt hi-output charging system
Instrumentation: Norton electronic analogue speedo and tachometer
Starting system: Electric push button start

Colour Options

Titanium Grey with Black Pinstripe

2017 Norton Dominator – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)

Engine

Engine type: In house developed parallel twin with dry sump lubrication. Black with polished covers. Compression ratio: 10.1:1
Displacement: 961cc Power: 80PS at 6500RPM
Cooling system: Air/Oil Torque: 90Nm at 5200RPM
Valve actuation: Push rod, hydraulic roller lifter, 2 valves per cylinder Exhaust: Stainless steel
Bore x Stroke: 88mm x 79mm Ignition: Crank fired electronic fuel injection & 2 way catalytic converters. Euro 3 compliant.

Transmission

Gear box: 5-Speed, Constant Mesh
Final drive: 525 O-ring chain
Clutch: Wet multi-plate

Dimensions

Wheelbase: 1450mm (55.9″) Front tyre: 120/70 x 17″
Rake: 24.0° Rear tyre: 180/55 x 17″
Trail: 99mm (3.9″) Front wheel travel: 115mm (4.53″)
Front wheel: 36 spoke 3.5″ x 17″ Black Rim Rear wheel travel: 100mm
(3.94″)
Rear wheel: 40 spoke 5.5″ x 17″ Black Rim Seat height: 813mm (23″)

Suspension

Front suspension: 43mm Black-line Ohlins USD – adjustable preload, compression & rebound damping
Rear suspension: Ohlins TTX 36 mono shock with remote reservoir – adjustable ride height, preload and compression

Brakes

Front Brakes: Full Brembo system, twin Brembo 320mm fully-floating high carbon stainless steel discs & Brembo 4 piston “Mono bloc” radially mounted calipers. Brembo radial front brake master cylinder with remote reservoir.

Rear Brakes: Full Brembo system, single Brembo 220mm disc & Brembo 2 piston calliper. Brembo rear brake master cylinder
Clutch: Brembo radial hydraulic clutch master cylinder with remote reservoir and Brembo slave cylinder

Performance

Power: 80PS @ 6500rpm
Torque: 90Nm @ 5200rpm

Electronics & Controls

Charging system: 300 watt hi-output charging system
Instrumentation: Norton electronic analogue speedo and tachometer
Starting system: Electric push button start

Colour Options

Titanium Grey with Black Pinstripe

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
