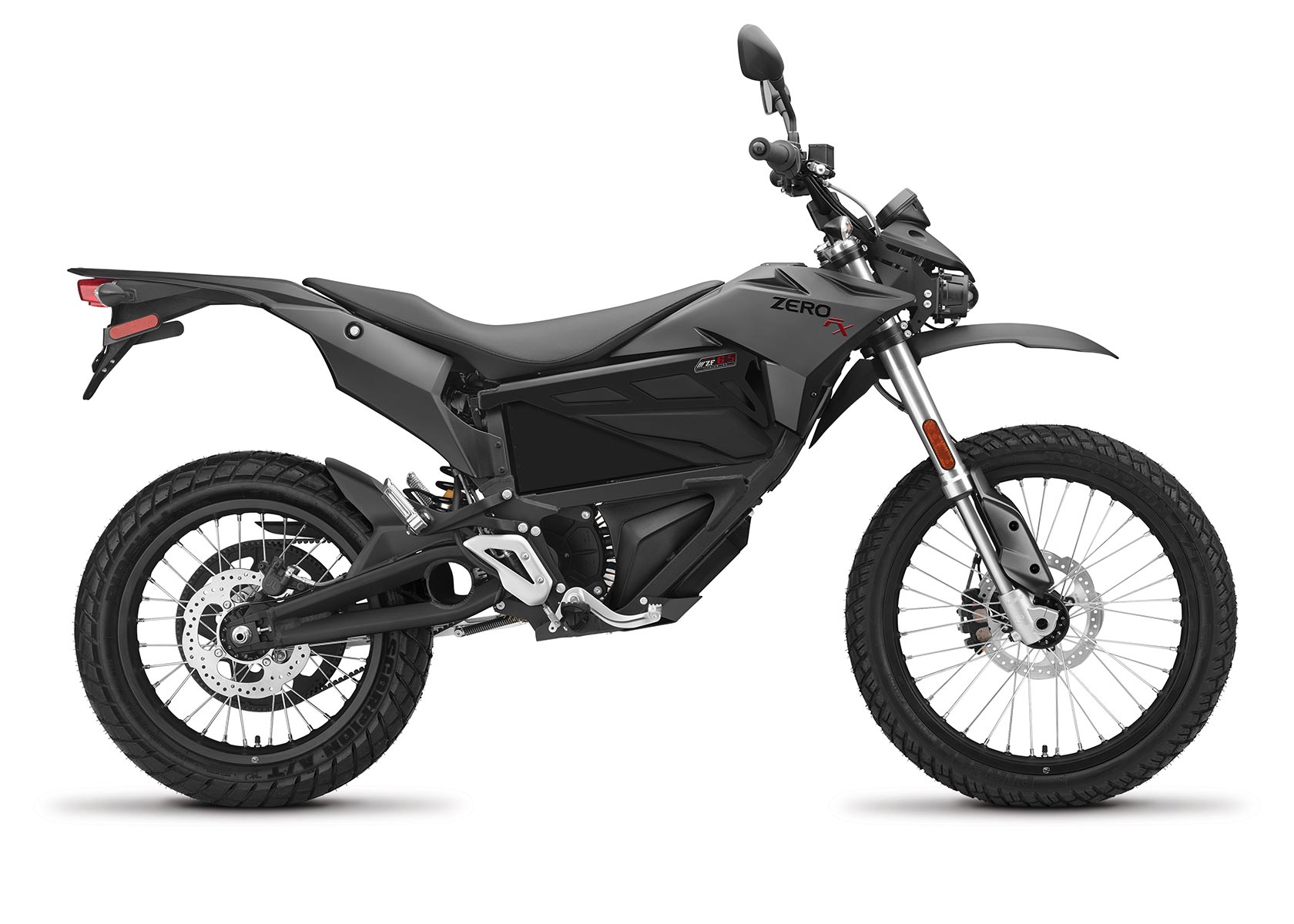

2017 Zero FX

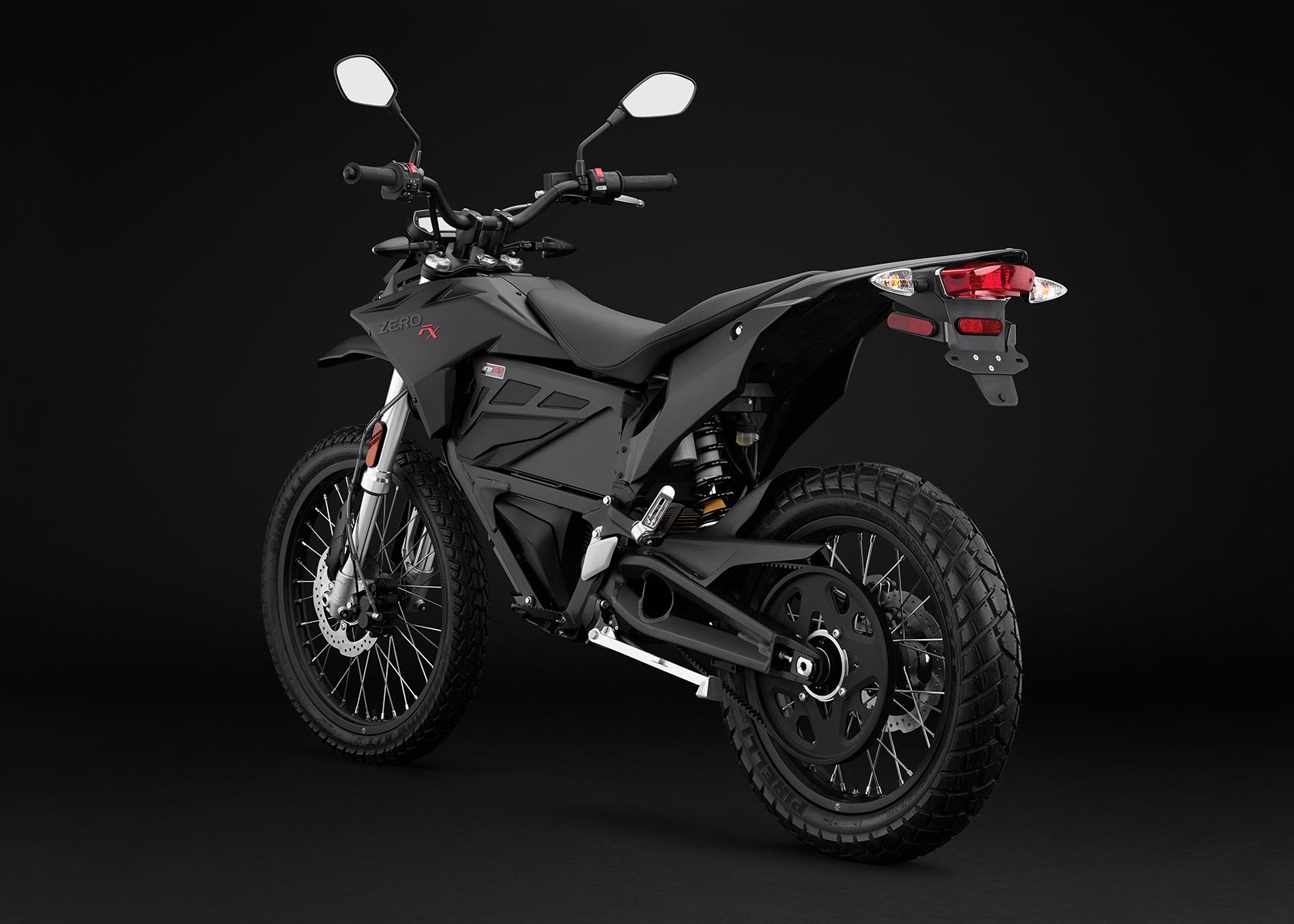

2017 Zero FX

2017 Zero FX
2017 Zero FX

2017 Zero FX
2017 Zero FX

2017 Zero FX
2017 Zero FX



2017 Zero FX Review

2017 Zero FX on www.Totalmotorcycle.com

Compact. Fiercely powerful. Attack the trails and twisties…

Do Anything. Ride Anywhere.

You’ve never experienced power and freedom like this. All those things you wished you could get away with…they just became possible. It is said, “Absolute power corrupts absolutely.” Just in case you find this to be true, hit the eco-switch…or don’t.

Delivering a nearly instantaneous 78 ft-lb of torque and weighing less than 300 lb, the Zero FX takes any type of riding to bold new levels. Stealthily ride at any hour of the day or night, on a motorcycle that distills riding into its most basic and adrenaline-pumping elements.

Tempting you to ride on any terrain that crosses your path, the Zero FX chassis hails from Zero Motorcycles’ championship-winning off-road heritage and features the most advanced Z-Force® technology yet.

Equipped with a maintenance-free powertrain, belt drive and optional fully modular power pack system, no riding time is wasted and each mile ridden only costs around a penny in electricity.


2017 Zero FX www.Totalmotorcycle.com Key Features

2017 Advancements
Upgraded Power Packs with a New Five-Year, Unlimited-Mileage Warranty
11% More Torque. 5% Increase in Power. Smoother Delivery.
Wider, Stronger Drive Belt

2017 Zero FX www.Totalmotorcycle.com
Features and Benefits

Game Changing Z-Force® Power Pack
Modular or fully integrated

The Zero FX is available in two configurations:

Zero FX ZF3.3 – “Refuel” in seconds with removable power packs. The Zero FX ZF3.3’s hot-swappable system allows riders to purchase multiple batteries that can be charged on or off the bike using optional accessories.Add a second module to match the performance of the ZF6.5.

Zero FX ZF6.5 – Equipped with an integrated, higher capacity 6.5 kWh battery, this option is simpler and more cost effective while delivering more power “out of the box.”

Z-Force® power packs are backed by a five-year, unlimited mileage warranty
Worry-free, zero maintenance batteries are designed to last the life of the motorcycle.
Fully modular Z-Force® quick-swap technology allows you to swap power packs on the Zero FX ZF3.3 in seconds. You can also upgrade the motorcycle’s max capacity from 3.3 kWh to 6.5 kWh
Note: Adding a second power pack may require an update of the vehicle’s registration documents. Please check with your local vehicle approval authority for details
State-of-the-art power pack configuration and cell chemistry
Cells last 2,500 full charge/discharge cycles before hitting 80% capacity, yielding as much as 185,000 miles on the original power pack
Highest energy density in the electric vehicle industry
Isolated power systems and 12 V system for running accessories
Modules can be fully removed from the motorcycle and transported to charge anywhere (this requires the purchase of a stand-alone Quick Charger and the Power Pack Module Charging Adapter)
Module locking system for increased security and peace of mind
Scalable off-board charging options available to reduce recharge times (see specs for details)

Revolutionary Z-Force® Motor
Thrilling acceleration with 78 ft-lb of torque

The motor in the Zero FX is configured to produce incredible torque and sits inside the lightest motorcycle in the lineup. The result is thrilling acceleration. Zero Motorcycles designed the Z-Force® motor from the ground up to be compact, efficient and powerful. Completely air-cooled, the motor is designed to provide a fantastic riding experience minus the need for any regular maintenance. When slowing down, the motor generates electricity that is channeled back
into the power pack to help extend ride times.

Zero Motorcycles’ proprietary Z-Force® motor is the industry’s most efficient, powerful, compact, brushless and sealed air-cooled motor
Z-Force® IPM (Interior Permanent Magnet) motor is more efficient and cools more rapidly for improved performance during hard riding and higher sustained top speeds
Produces 46 hp and 78 ft-lb of torque (Zero FX ZF6.5)
Requires no routine maintenance
Highly efficient, zero-maintenance powertrain does not require a complex cooling system
Instant torque and broad power band for impressive acceleration
Quad-level regenerative system recharges the power pack when decelerating
Re-gen level is increased during brake application vs. “neutral” deceleration
Both braking and “neutral” re-gen levels are set higher in Eco vs. Sport mode
“Custom” mode performance profile can be set using the Zero Motorcycles App

Charge Easily.
Charge Anywhere.

Zero’s charging options are designed to fit your lifestyle. Every Zero comes standard with a simple and lightweight cable that plugs into any household outlet.

For home or office use, Zero’s scalable “Quick Charger” system can dramatically reduce charging times. The system uses up to four stand-alone (off-board) 1kW chargers that work in conjunction with the motorcycle’s standard (on-board) charger.

rame and Bodywork
Light Aircraft-Grade Aluminum

At the core of the Zero FX lies the ultimate dirt bike frame that Zero engineered from the ground up and handcrafted using aircraft-grade aluminum. The resulting combination of lower weight and higher strength means more responsiveness.In the corners and off the line, this translates into greater acceleration. For added durability, each frame is shot-peened and anodized.

Rigid, robust and lightweight frame
Hydroformed top tube for increased strength and reduced weight
Large cylindrical swingarm cross tube for increased stiffness and suspension response
Entire frame is shot-peened and anodized for resistance to corrosion and abrasion
Robust headtube and head bearings for increased torsional rigidity and improved control
The headlight, dash, key switch and bodywork are refined to provide elegant instrumentation and a sleeker front end aesthetic

Showa Suspension
The Magic Ride

Zero worked in close collaboration with Showa to develop suspension systems that provide excellent small bump compliance, predictable control of bigger impacts and exceptionally smooth action under all conditions. Torsional rigidity of the front end improves handling, and a hollow front axle reduces unsprung weight. Suspension settings are completely customizable to meet the demands of a wide variety of riders.

Exceptionally smooth action for improved comfort and control
Fully adjustable settings to meet the demands of a wide variety of riders
Hollow front axle reduces unsprung weight
Durable and highly protective fork guards
Developed in close collaboration with Showa

Bosch Anti-lock Brake System (ABS)
Powerful. Precise. Control.

The Zero FX features an advanced Bosch anti-lock brake system (ABS) that improves control in a wide array of conditions and ensures the best braking performance.

Advanced Bosch ABS is standard
ABS can be switched on or off depending on rider preference
Incredibly smooth actuation for improved control under extreme braking
Refined hydraulic ratios improve braking power and modulation

Wheels and Tires
Paved Road. Dirt Road. No Road.

Pirelli tires are standard on the Zero FX, providing improved traction in a wide variety of conditions, excellent durability and road feel. The Zero FX alloy wheels are designed to reduce unsprung weight while not compromising on strength.

Dynamic Pirelli Scorpion MT 90 tires offer high performance from daily urban use to weekend off-road adventure
Wider 21 x 1.85 front and 18 x 2.5 rear wheels for increased strength and greater aftermarket tire options

Direct Drive Gearing
Instant torque with a twist

Featuring a clutchless direct drive, the Zero FX is geared for rapid acceleration and maximum efficiency. Without ever needing to shift, the Zero FX provides controlled and powerful acceleration at any speed between 0-85 mph. The carbon fiber belt achieves minimal frictional losses for increased overall range and is integral to making the powertrain maintenance-free.

Sophisticatedly simple “just ride” direct-drive system means no clutch, no shifting and no need to carry a heavy and complex transmission
Maintenance-free and virtually silent belt drive system
Clutchless single speed that simplifies operation
Geared for rapid acceleration and maximum efficiency
Adjustable rear axle to modify belt tension

Dash and Controls
Impressive Information. Elegantly Displayed.

The dash is designed by Zero to quickly and accurately provide useful data on such information as state of charge, power output and your selected riding profile. You can toggle through three riding profiles using the ergonomic right-hand switchgear to better meet the needs of your ride: Sport, Eco, Custom. The dash screen features a cool blue backlit LCD display and integrates seamlessly into the front of the motorcycle. Want more information about the motorcycle while riding or at home? Try the Zero Motorcycles App.

High-contrast blue backlit LCD screen features data that allows you to better understand your state of charge, see your current riding profile and view other useful riding information
Ergonomic right-hand switch assembly with integrated switch to toggle on the fly between Sport, Eco and Custom riding modes
Custom riding mode setting allows you to set your own performance profile (custom mode performance profile must be configured within the Zero Motorcycles App)
Projector beam headlights and integrated fly screen provide a refined and contemporary front profile

Zero Motorcycles App
Get Your Motorcycle Dialed

Using the Zero Motorcycles App you can see detailed information about your
motorcycle such as the time until charged, average watts per mile, total charge
cycles and much more. When parked, the app allows you to set the custom riding
mode’s performance profile by adjusting the parameters for top speed,
maximum torque and maximum regenerative braking. While riding, your phone
transforms into a customized dash that provides detailed real-time motorcycle
information. Synced using Bluetooth, the app works on iPhone and Android mobile
devices.


2017 Zero FX – www.Totalmotorcycle.com
USA Specifications/Technical Details
US MSRP Price: $8,495 to $10,995 USD

range ZERO FX ZF3.3 MODULAR
City 41 miles (66 km)
Highway, 55 mph (89 km/h) 25 miles (40 km)
 » Combined 31 miles (50 km)
Highway, 70 mph (113 km/h) 17 miles (27 km)
 » Combined 24 miles (39 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 27 hp (20 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux,
interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative
deceleration
Power system
Est. pack life to 80% (city) 92,000 miles (148,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 3.3 kWh
Nominal capacity 2.9 kWh
Charger type 650 W, integrated
Charge time (standard) 4.7 hours (100% charged) / 4.2 hours (95%
charged)
 » With one accessory charger 2.1 hours (100% charged) / 1.6 hours
(95% charged)
 » With max accessory chargers 1.5 hours (100% charged) /
1.0 hour (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring
preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable
spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm
disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm
disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 247 lb (112 kg)
Carrying capacity 383 lb (174 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.37
Pricing
Effective price after federal tax credit $7,645
(Additional government incentives may be available)
MSRP $8,495
(Does not include government incentives. Does not include local shipping,
applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited miles

range ZERO FX ZF6.5
City 82 miles (132 km)
Highway, 55 mph (89 km/h) 50 miles (80 km)
 » Combined 62 miles (100 km)
Highway, 70 mph (113 km/h) 35 miles (56 km)
 » Combined 49 miles (79 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 46 hp (34 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux,
interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative
deceleration
Power system
Est. pack life to 80% (city) 185,000 miles (298,000 km)
Power pack Z-Force® Li-Ion intelligent integrated
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95%
charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours
(95% charged)
 » With max accessory chargers 1.7 hours (100% charged) /
1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring
preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable
spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm
disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm
disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 289 lb (131 kg)
Carrying capacity 341 lb (155 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.73
Pricing
Effective price after federal tax credit $9,445
(Additional government incentives may be available)
MSRP $10,495
(Does not include government incentives. Does not include local shipping,
applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited miles

range ZERO FX ZF6.5 MODULAR
City 82 miles (132 km)
Highway, 55 mph (89 km/h) 50 miles (80 km)
 » Combined 62 miles (100 km)
Highway, 70 mph (113 km/h) 35 miles (56 km)
 » Combined 49 miles (79 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 46 hp (34 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux,
interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative
deceleration
Power system
Est. pack life to 80% (city) 185,000 miles (298,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95%
charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours
(95% charged)
 » With max accessory chargers 1.7 hours (100% charged) /
1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring
preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable
spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm
disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm
disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 289 lb (131 kg)
Carrying capacity 341 lb (155 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.73
Pricing
Effective price after federal tax credit $9,895
(Additional government incentives may be available)
MSRP $10,995
(Does not include government incentives. Does not include local shipping,
applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited miles


2017 Zero FX – www.Totalmotorcycle.com
Canadian Specifications/Technical Details
Canada MSRP Price: $10995 to $14,395 CAD

range ZERO FX ZF3.3 MODULAR
City 41 miles (66 km)
Highway, 55 mph (89 km/h) 25 miles (40 km)
 » Combined 31 miles (50 km)
Highway, 70 mph (113 km/h) 17 miles (27 km)
 » Combined 24 miles (39 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 27 hp (20 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 92,000 miles (148,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 3.3 kWh
Nominal capacity 2.9 kWh
Charger type 650 W, integrated
Charge time (standard) 4.7 hours (100% charged) / 4.2 hours (95% charged)
 » With one accessory charger 2.1 hours (100% charged) / 1.6 hours (95% charged)
 » With max accessory chargers 1.5 hours (100% charged) / 1.0 hour (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper,240 x 4.5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 247 lb (112 kg)
Carrying capacity 383 lb (174 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.37
Pricing
MSRP $10,995 CAD
(MSRP does not include shipping, applicable taxes, PDI, registration or dealer installation.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited km

range ZERO FX ZF6.5
City 82 miles (132 km)
Highway, 55 mph (89 km/h) 50 miles (80 km)
 » Combined 62 miles (100 km)
Highway, 70 mph (113 km/h) 35 miles (56 km)
 » Combined 49 miles (79 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 46 hp (34 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux,
interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative
deceleration
Power system
Est. pack life to 80% (city) 185,000 miles (298,000 km)
Power pack Z-Force® Li-Ion intelligent integrated
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours (95% charged)
 » With max accessory chargers 1.7 hours (100% charged) / 1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 289 lb (131 kg)
Carrying capacity 341 lb (155 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.73
Pricing
MSRP $13,795 CAD
(MSRP does not include shipping, applicable taxes, PDI, registration or dealer installation.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited km

range ZERO FX ZF6.5 MODULAR
City 82 miles (132 km)
Highway, 55 mph (89 km/h) 50 miles (80 km)
 » Combined 62 miles (100 km)
Highway, 70 mph (113 km/h) 35 miles (56 km)
 » Combined 49 miles (79 km)
Motor
Peak torque 78 ft-lb (106 Nm)
Peak power 46 hp (34 kW) @ 4,300 rpm
Top speed (max) 85 mph (137 km/h)
Top speed (sustained) 70 mph (113 km/h)
Type Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 185,000 miles (298,000 km)
Power pack Z-Force® Li-Ion intelligent modular
Max capacity 6.5 kWh
Nominal capacity 5.7 kWh
Charger type 650 W, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With one accessory charger 3.8 hours (100% charged) / 3.3 hours (95% charged)
 » With max accessory chargers 1.7 hours (100% charged) / 1.2 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 8.60 in (218 mm)
Rear suspension travel 8.94 in (227 mm)
Front brakes Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm
disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel 1.85 x 21
Rear wheel 2.50 x 18
Dimensions
Wheelbase 56.6 in (1,438 mm)
Seat height 34.7 in (881 mm)
Rake 25.4°
Trail 4.1 in (104 mm)
Weight
Frame 20 lb (9.1 kg)
Curb weight 289 lb (131 kg)
Carrying capacity 341 lb (155 kg)
Economy
Equivalent fuel economy (city) 485 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway) 205 MPGe (1.15 l/100 km)
Typical cost to recharge $0.73
Pricing
MSRP $14,395 CAD
(MSRP does not include shipping, applicable taxes, PDI, registration or dealer installation.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/unlimited km

Specifications are subject to change without notice. Imagery may not reflect most current product specifications. Zero Motorcycles reserves the right to make improvements and/or design changes without any obligation to previously sold, assembled or fabricated equipment.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 1608 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
