DEFINES THE STATE OF THE ART IN STRIPPED DOWN BAGGER STYLE.

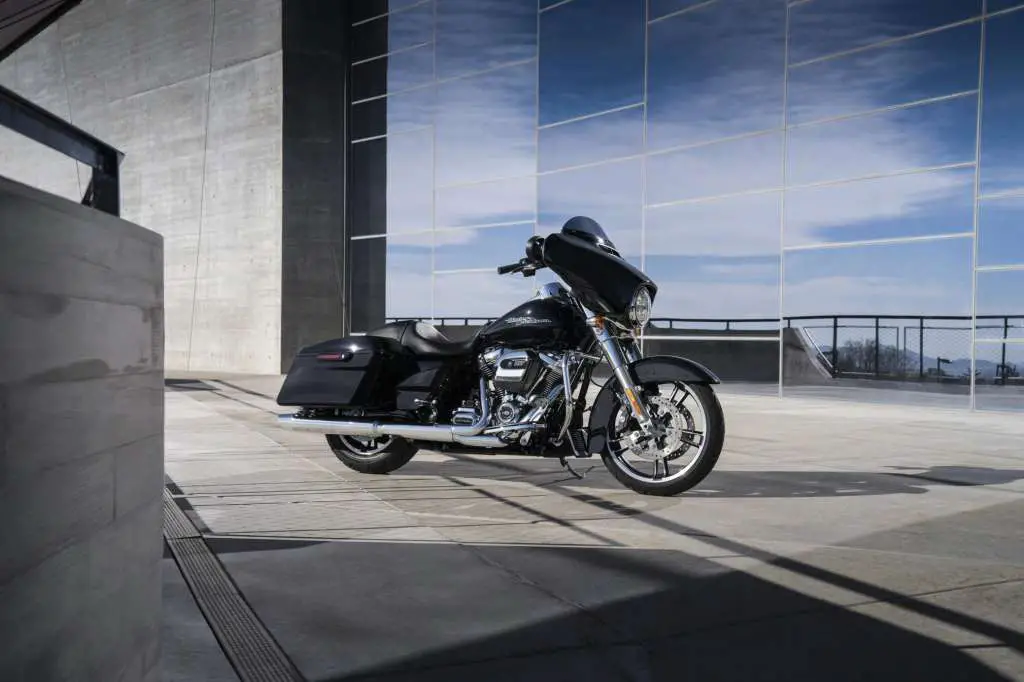

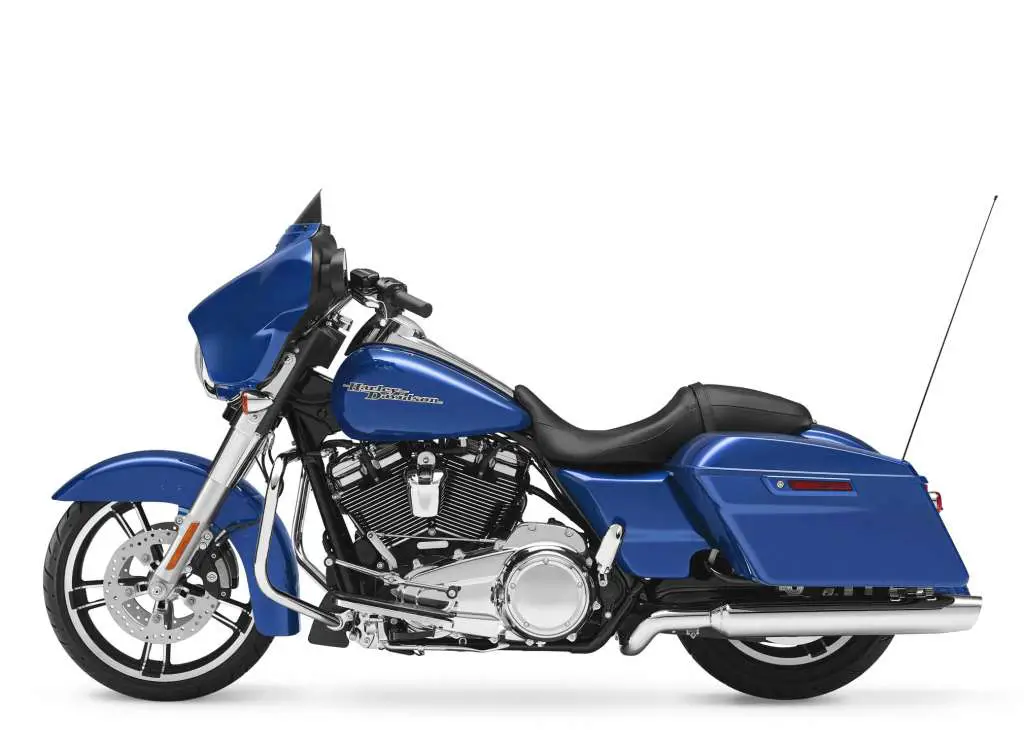

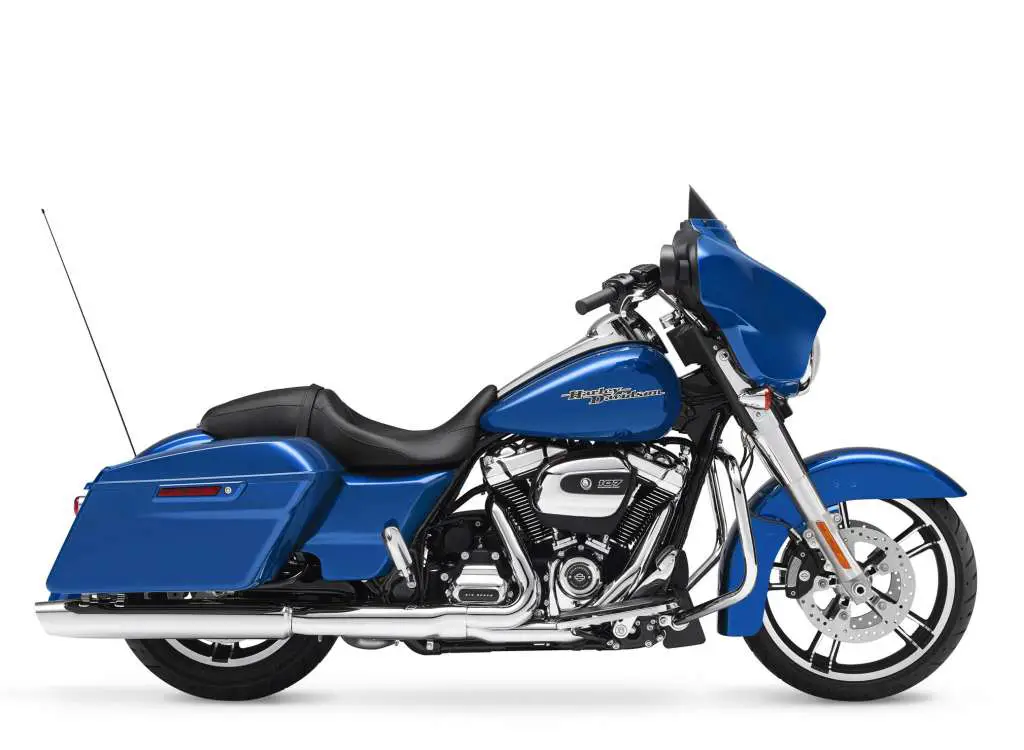

2018 Harley-Davidson Street Glide:

Street Glide® has the original stripped-down hot-rod look that is often copied but has never been equalled. The Milwaukee-Eight® 107 engine backs up the look with massive torque. The ride is unmatched as well, thanks to the fully adjustable rear suspension and responsive front suspension and Reflex™ linked Brembo® brakes. You also get a BOOM!™ Box 4.3 radio that puts out 25 watts per channel.

There’s a pride that comes from riding the original, and when it comes to the stripped down, hot rod look, that would be the Harley-Davidson® STREET GLIDE®.

Harley-Davidson Touring Story – Long haul comfort. No restraints.

Harley-Davidson® Touring models feature long haul comfort combined with power that will unleash your soul. Spanning decades of heritage and nostalgia, Touring bikes began their lineage in 1936 when the Motor Company introduced a new engine design nicknamed the Knucklehead. From that heritage grew the powerful Milwaukee Eight® engine with more power, comfort, and handling to go the distance, making piling up the miles
rewarding and comfortable for both rider and passenger.

2018 Harley-Davidson Street Glide Totalmotorcycle.com Key Features

NEW FOR 2018
◾New Milwaukee-Eight® 107 powertrain with blacked-out components and exhaust and unique engine-turned air cleaner insert (first for Milwaukee-Eight engine)
◾Aggressive blacked-out styling on triple clamps, front forks, headlight nacelle, and engine guards, and console with engine-turned highlights
◾New gloss black Turbine wheels; 19-inch front and 18-inch rear
◾Stretched Saddle Bags and FLHX rear fascia create a slammed profile; uses same all-new front and rear suspension setup as Street Glide Special/Road Glide Special
◾A new 9-inch-tall, 1.25-inch-diameter mini-ape handlebar combines a profiling rider attitude with comfort for the open road
◾Reflex™ Linked Brakes with ABS and Security system are standard equipment
◾Four colour options: Charcoal Denim, Vivid Black, Hot Rod Red Flake Hard Candy Custom, Olive Gold

2018 Harley-Davidson Street Glide Totalmotorcycle.com Features and Benefits

THIS IS WHERE THE HIGHWAY MEETS THE STREET

BOOM!™ Box 4.3 Infotainment System

Powerful and balanced sound for you tunes along with entertainment and communication at your fingertips. Includes Bluetooth® capabilities and a USB port.

Batwing Fairing

The Batwing fairing has an iconic shape with a sleek, progressive style that delivers smooth air flow and reduced head buffeting.

Milwaukee-Eight® V-Twin Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.

Responsive Suspension

High-performing front and rear suspension with easily hand-adjustable rear shocks put you in control of a plush ride.

Reflex™ Linked Brembo® Brakes with optional ABS

The front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter the road condition. No matter how good you are, this will make you a better rider.

2018 Harley-Davidson Street Glide – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

Pricing⁶

• Vivid Black $20,999
• Color $21,499
• Anniversary Color $21,999
• Hard Candy Custom $23,999

Engine

• Engine ¹ Milwaukee-Eight^® 107
• Bore 3.937 in.
• Stroke 4.375 in.
• Displacement 107 cu in
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

• Length 96.5 in.
• Seat Height, Laden ⁷ 26.1 in.
• Seat Height, Unladen 27.4 in.
• Ground Clearance 5.3 in.
• Rake (steering head) (deg) 26
• Trail 6.7 in.
• Wheelbase 64 in.
• Tires, Front Specification 130/60B19 61H
• Tires, Rear Specification BW 180/55B18 81H
• Fuel Capacity 6 gal.
• Oil Capacity (w/filter) 5.2 qt.
• Weight, As Shipped 796 lb.
• Weight, In Running Order 829 lb.
• Luggage Capacity -Volume 2.3 cu ft

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 111 ft-lb
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31
• Lean Angle, Left (deg.) 29
• Fuel Economy: Estimated City/Hwy ⁵ 45 mpg

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁹ Enforcer Cast Aluminum
• Wheels, Rear Type Enforcer Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁸ High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

INFOTAINMENT

• Infotainment system Boom!™ Box 4.3
• Type Color
• Watts Per Channel 25
• Speakers 2
• Speaker Size 5.25 inch standard
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• FM Standard
• Weather Band (WB) Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• SiriusXM Presets 20 – P&A Upgrade (USA & Canada only)
• Lauguages “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Hands-free Mobile Phone – via Bluetooth standard
• Voice Recognition Languages: Phone functions only “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Voice Recognition Languages: Tuner/Media/Navigation “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages “English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported
• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
• 7. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 9. Standard and optional wheels may vary by country and region

2018 Harley-Davidson Street Glide – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Below for Pricing in CDN

Pricing

• Vivid Black $ 26,199
• Color $ 26,799
• Anniversary Color $ 28,299
• Hard Candy Custom $ 29,649

Dimensions

• Length 2,450 mm
• Seat Height, Unladen 695 mm
• Ground Clearance 135 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tires, Front Specification 130/60B19 61H
• Tires, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.9 l
• Weight, As Shipped 361 kg
• Weight, In Running Order 376 kg
• Luggage Capacity -Volume 0.064 m³

Engine

• Engine ¹ Milwaukee-Eight™ 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,746 cc
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type Enforcer Cast Aluminum
• Wheels, Rear Type ⁸ Enforcer Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 151 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 32
• Lean Angle, Left (deg.) 31
• Fuel Economy: Estimated City/Hwy ⁵ 5.2 l/100 km

Electric

• Lights (as per country regulation), Indicator Lamps ⁷ High beam, running lights, directional lights, low oil pressure, engine diagnostics, neutral, cruise control, speakers, accessory, battery, gear indication, security system (optional), 6-speed, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 2
• Speaker Size 5.25 inch
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• FM Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• SiriusXM Presets 20 – P&A Upgrade
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese”
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 8. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Street Glide – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Below for Pricing in  GBP (On The Road inc 20% Vat)

Pricing⁵

• Vivid Black £21,245
• Color £21,595
• Hard Candy Custom £22,385
• 115th Anniversary £22,495

Engine

• Engine ² Milwaukee-Eight^® 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,745 cc
• Compression Ratio 10.0:1
• Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

• Length 2,450 mm
• Seat Height, Unladen 695 mm
• Ground Clearance 135 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tyres, Front Specification BW 130/70B18 63H
• Tyres, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.9 l
• Weight, As Shipped 361 kg
• Weight, In Running Order 376 kg
• Luggage Capacity -Volume 0.064 m³

Performance

• Engine Torque Testing Method EC 134/2014
• Engine Torque ³ 150 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 32
• Lean Angle, Left (deg.) 31
• Fuel Economy Testing Method EC 134/2014
• Fuel Economy 5.9 l/100 km
• CO2 Emissions Testing Method EC 134/2014
• CO2 Emissions 135 g/km

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁷ Enforcer Cast Aluminium
• Wheels, Rear Type Enforcer Cast Aluminium
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁶ High beam, running lights, directional lights, low oil pressure, engine diagnostics, neutral, cruise control, speakers, accessory, battery, gear indication, security system (optional), 6-speed, low fuel warning, ABS (optional), miles to empty display, fog/aux lamp indicator
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 2
• Speaker Size 5.25 inch standard
• Headset Specifications (if equipped) 16-64 ohms
• FM Standard
• MW Standard
• LW Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
• 2. Recommended 95 octane or higher fuel (R+M)/2.
• 3. Values shown are nominal. Performance may vary by country and region.
• 4. See motorcycle owner’s manual for complete details.
• 5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
• 6. Security system includes immobiliser and siren.
• 7. Standard and optional wheels may vary by country and region.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
