REDLINE YOUR ADRENALINE LEVEL.

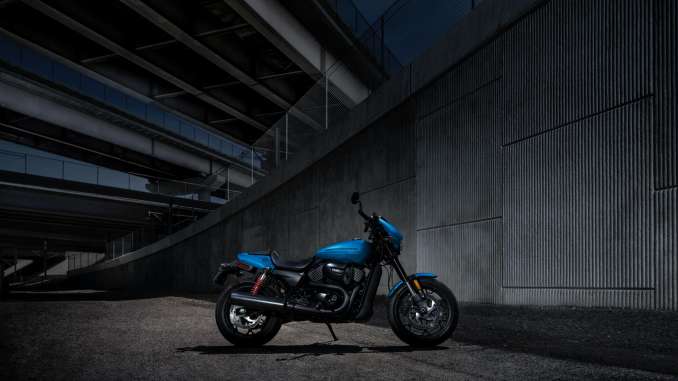

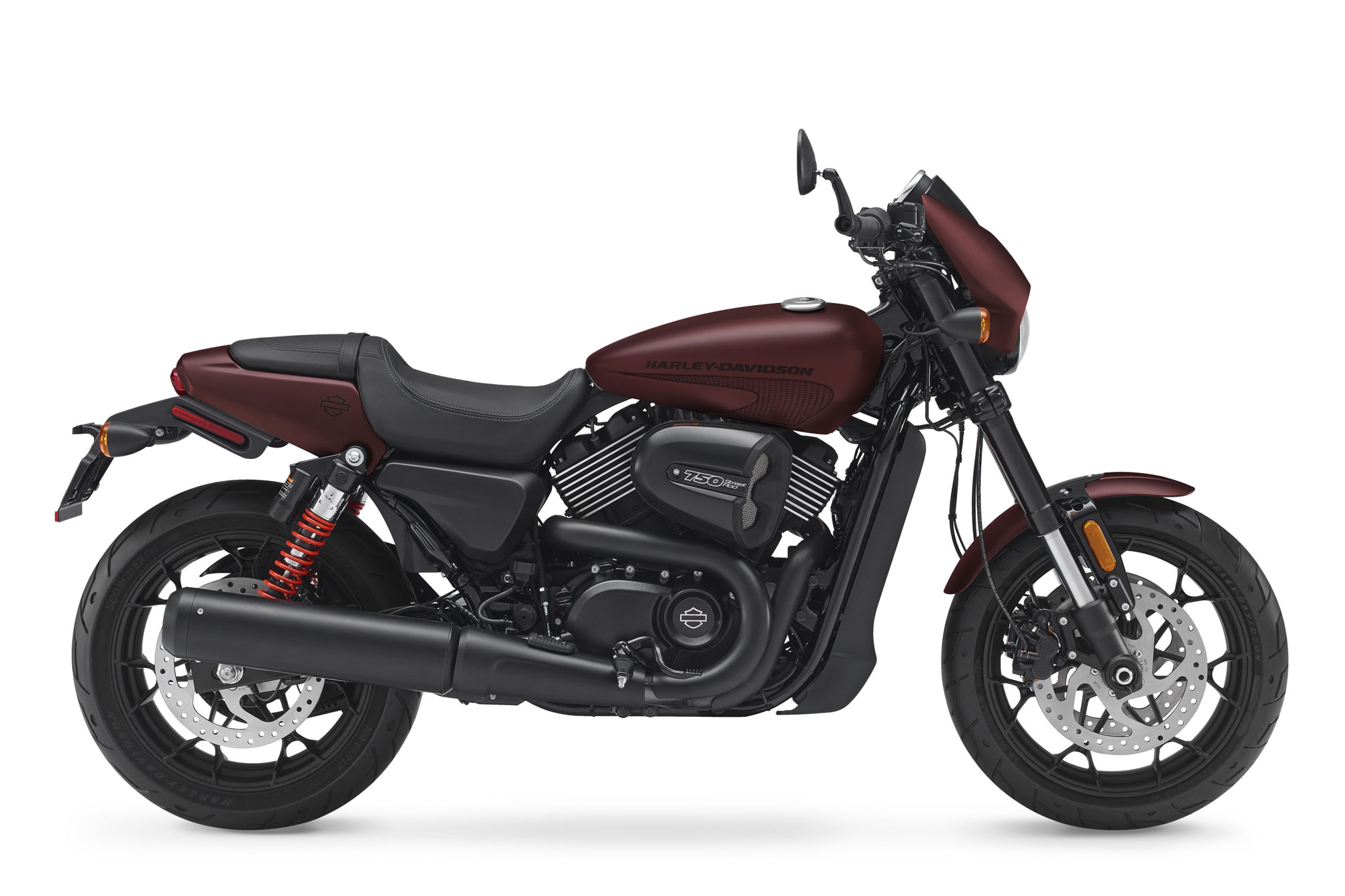

2018 Harley-Davidson Street Rod:
The all-new Street Rod™ has a new High Output Revolution X™ engine, drag-style bars with bar-end mirrors, new 43mm inverted front forks and piggyback reservoir rear shocks – plus up to a 40° lean angle.
2018 Harley-Davidson Street Rod Totalmotorcycle.com Key Features
If you’re going to hit it, hit it hard. The all-new Street Rod™ motorcycle is built to take you to the edge.
Harley-Davidson Street® Story
Harley-Davidson Street® models are designed for the next generation of global riders – urban dwellers looking to express their individuality and independence. The nimble chassis and dialed-in suspension are designed and built to tear up the city streets and the minimalist, blacked-out appearance offers the perfect blank canvas for customization.
And with the lowest price point in the H-D® lineup, The Street™ family makes attaining a Harley-Davidson® motorcycle an easier reality for riders around the world.
2018 Harley-Davidson Street Rod Totalmotorcycle.com Features and Benefits
New High Output Revolution X™ 750 Engine
With a blacked-out finish, the High Output Revolution X™ engine features a dual throttle body, cylinder heads, enhanced intake ports and cams, and a 12.0:1 compression ratio that delivers 18% more horsepower and 8% more torque than the Harley-Davidson Street® 750.
Dual Disc Front Brakes
Drag-Style Bars with Bar-End Mirrors
They make for a sportier and aggressive riding position to take on the traffic-snarled urban jungle.
Lightweight Front Fender and Performance Tail Section
A lightweight front fender with black fender bracket plus the 2-up seat performance tail section give the Street Rod™ bike a sleek, refined look from front to back.
Responsive Front and Rear Suspension
New 43mm inverted front forks and rear piggyback shocks offer increased suspension travel and are tuned for a sportier ride and greater lean angle.
3.5 Gallon Tear Drop Tank
A 3.5 gallon metal teardrop tank designed with a fast graphic and Harley-Davidson script to show it’s the real deal.
Two-Piece 2-Up Seat with Passenger Foot Pegs
You get a two-piece 2-up seat with a 29.8” seat height, a perforated finish and a French stitch pattern along with foot pegs for your passenger.
2018 Harley-Davidson Street Rod – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8699 to 8994 USD
PRICING6
Vivid Black $8,699
Color $8,994
ENGINE
Engine 1 High Output Revolution X™ V-Twin
Bore 3.4 in.
Stroke 2.6 in.
Displacement 46 cu in
Compression Ratio 12.0:1
Fuel System 3 Mikuni Twin Port Fuel Injection, 42 mm bore
Exhaust Black two-into-one exhaust
DIMENSIONS
Length 83.9 in.
Seat Height, Laden 7 29.8 in.
Seat Height, Unladen 30.1 in.
Ground Clearance 8.1 in.
Rake (steering head) (deg) 27
Trail 3.9 in.
Wheelbase 59.4 in.
Tires, Front Specification 120/70 R17 V
Tires, Rear Specification 160/60 R17 V
Fuel Capacity 3.5 gal.
Oil Capacity (w/filter) 3.3 qt.
Weight, As Shipped 505 lb.
Weight, In Running Order 525 lb.
PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 47.9 ft-lb
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 37.3
Lean Angle, Left (deg.) 40.2
Fuel Economy: Estimated City/Hwy 5 54 mpg
DRIVETRAIN
Primary Drive Gear, 36/68 ratio
Gear Ratios (overall) 1st 14.272
Gear Ratios (overall) 2nd 10.074
Gear Ratios (overall) 3rd 7.446
Gear Ratios (overall) 4th 6.006
Gear Ratios (overall) 5th 5.037
Gear Ratios (overall) 6th 4.533
CHASSIS
Wheels, Front Type 9 Black, 7-Split Open Spoke Cast Aluminum
Wheels, Rear Type Black, 7-Split Open Spoke Cast Aluminum
Brakes, Caliper Type 2-piston floated front and rear
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
- Recommended 91 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional fuel systems may vary by country.
- See motorcycle owner’s manual for complete details.
- Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
- Standard and optional wheels may vary by country and region.
2018 Harley-Davidson Street Rod – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $10399 to 10749 CDN
Pricing
Vivid Black $ 10,399
Color $ 10,749
Dimensions
Length 2,130 mm
Seat Height, Unladen 765 mm
Ground Clearance 205mm
Rake (steering head) (deg) 27
Trail 99 mm
Wheelbase 1,510 mm
Tires, Front Specification 120/70 R17 V
Tires, Rear Specification 160/60 R17 V
Fuel Capacity 13.2 l
Oil Capacity (w/filter) 3.1 l
Weight, As Shipped 229 kg
Weight, In Running Order 238 kg
Engine
Engine 1 High Output Revolution X™ V-Twin
Bore 85 mm
Stroke 66 mm
Displacement 749 cc
Compression Ratio 12.0:1
Fuel System 3 Mikuni Twin Port Fuel Injection, 42 mm bore
Exhaust Black two-into-one exhaust
Drivetrain
Primary Drive Gear, 36/68 ratio
Gear Ratios (overall) 1st 14.272
Gear Ratios (overall) 2nd 10.074
Gear Ratios (overall) 3rd 7.446
Gear Ratios (overall) 4th 6.006
Gear Ratios (overall) 5th 5.037
Gear Ratios (overall) 6th 4.533
Chassis
Wheels, Front Type Black, 7-Split Open Spoke Cast Aluminum
Wheels, Rear Type 8 Black, 7-Split Open Spoke Cast Aluminum
Brakes, Caliper Type 2-piston floated front and rear
Performance
Engine Torque Testing Method J1349
Engine Torque 2 65 Nm
Engine Torque (rpm) 4,000
Lean Angle, Right (deg.) 37.3
Lean Angle, Left (deg.) 40.2
Fuel Economy: Estimated City/Hwy 5 4.3 l/100 km
Electric
Lights (as per country regulation), Indicator Lamps 7 High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system,gear indication, battery, low fuel warning, cruise control, ABS, miles to empty display, fog/aux lamp indicator, Tire Pressure Monitoring System indicator
Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
- Recommended 91 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional fuel systems may vary by country.
- See motorcycle owner’s manual for complete details.
- Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
- Standard and optional wheels may vary by country and region.
2018 Harley-Davidson Street Rod – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £6745 to 6999 GBP (On The Road inc 20% Vat)
PRICING5
- Vivid Black £6,745
- Color £6,995
ENGINE
- Engine 2 High Output Revolution X™ V-Twin
- Bore 85 mm
- Stroke 66 mm.
- Displacement 749 cc
- Compression Ratio 12.0:1
- Fuel System Mikuni Twin Port Fuel Injection, 42 mm bore
- Exhaust Black two-into-one exhaust
DIMENSIONS
- Length 2,130 mm
- Seat Height, Unladen 765 mm
- Ground Clearance 205 mm
- Rake (steering head) (deg) 27
- Trail 99 mm
- Wheelbase 1,510 mm
- Tyres, Front Specification 120/70 R17 V
- Tyres, Rear Specification 160/60 R17 V
- Fuel Capacity 13.2 l
- Oil Capacity (w/filter) 3.1 l
- Weight, As Shipped 229 kg
- Weight, In Running Order 238 kg
PERFORMANCE
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 65 Nm
- Engine Torque (rpm) 4,000
- Lean Angle, Right (deg.) 37.3
- Lean Angle, Left (deg.) 40.2
- Fuel Economy Testing Method EC 134/2014
- Fuel Economy: Estimated Hwy/City 4.3 l/100 km
- CO2 Emissions Testing Method EC 134/2014
- CO2 Emissions 103 g/km
DRIVETRAIN
- Primary Drive Gear, 36/68 ratio
- Gear Ratios (overall) 1st 14.272
- Gear Ratios (overall) 2nd 10.074
- Gear Ratios (overall) 3rd 7.446
- Gear Ratios (overall) 4th 6.006
- Gear Ratios (overall) 5th 5.037
- Gear Ratios (overall) 6th 4.533
CHASSIS
- Wheels, Front Type 7 Black, 7-Split Open Spoke Cast Aluminium
- Wheels, Rear Type Black, 7-Split Open Spoke Cast Aluminium
- Brakes, Caliper Type 2-piston floated front and rear
ELECTRIC
- Lights (as per country regulation), Indicator Lamps 6 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
- Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap
- 1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- 2. Recommended 95 octane or higher fuel (R+M)/2.
- 3. Values shown are nominal. Performance may vary by country and region.
- 4. See motorcycle owner’s manual for complete details.
- 5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
- 6. Security system includes immobiliser and siren.
- 7. Standard and optional wheels may vary by country and region.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
