IT IS NEVER TOO EARLY FOR A BIG ADVANTAGE.
What parent doesn’t want the best for his or her kids? You try to give them every advantage you can—a safe place to live, a good education. You try to be a good role model. You teach them that if they’re going to try, they should try their hardest. And nothing delivers that lesson like competition.

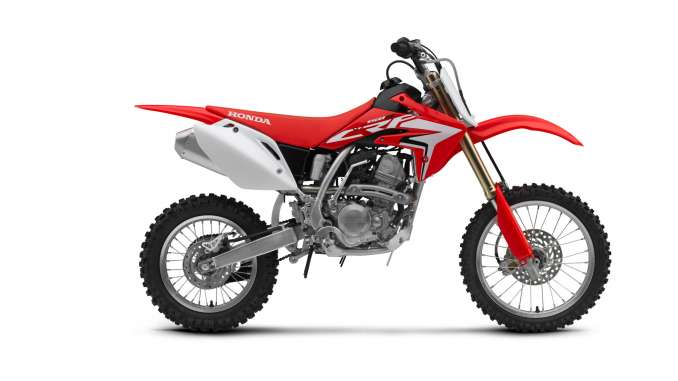

Honda’s CRF150R is designed to give your young Red Rider the biggest advantage ever on the motocross track. It’s not just an off-road bike with a low seat height; it’s a serious competition machine tailor-maid for young racers. Designed around a single-cylinder Honda Unicam engine, it offers all the performance your riders need to keep them at the front of the pack and get them on top of the podium. For 2018 we’ve updated the CRF150R’s look with new graphics right in line with our open-class CRF450R’s.
Plus, since the right-sized bike is critical, to fit a wider variety of riders, we also make the CRF150R available in a second version: the CRF150R Expert, featuring bigger wheels, a higher seat and longer swingarm.
Premium Suspension.
Showa® front and rear gives you unrivaled suspension action, especially over smaller, faster bumps that unsettle a bike’s chassis.
Honda Performance.
Thanks to the Unicam® cylinder head, this four-stroke engine is more powerful yet more compact, improving handling, power and efficiency.
Winning Starts Here.
2018 Honda CRF150R Totalmotorcycle.com Key Features
As Amsoil Honda hotshot Carson Mumford demonstrates on the amateur national circuit, where he regularly posts moto wins and podium finishes, Honda’s smallest motocross machine is more than competitive against its competition, thanks to a Unicam® four-stroke engine (based on the power plants of the larger Honda motocrossers) that offers a spread of ample, useable power and torque across the rev range. Suspension duties are handled by Showa®, with a 37mm inverted fork and Pro-Link® rear link system, and new graphics for 2018 align the model with the CRF450R. In addition to the standard version, Honda offers the CRF150R Expert, which features larger wheels, a taller seat and a longer swingarm.
Engine/Drivetrain
•High-performance Unicam cylinder-head design.
•Compact, lightweight engine assembly weighs only 43.6 pounds.
•Twin-sump lubrication system separates the oil supply for the crankshaft, piston and valve train from the clutch and transmission. This ensures a cool supply of oil to the clutch, eliminates potential clutch and transmission material contamination of the engine oil, reduces the amount of circulating oil and permits the use of a smaller oil pump.
•Cylinder head, piston, camshaft and carburetor provide power, torque and rideability throughout the powerband.
•Lightweight, compact, internal auto decompression and handlebar-mounted hot-start system provide easy starting, hot or cold.
•32mm Keihin FCR carburetor with an accelerator-pump circuit provides accurate fuel metering, resulting in crisp throttle response and god rideability throughout the powerband.
•Suspension settings provide good action through even the toughest of track conditions.
•Exhaust system uses a lightweight stainless-steel exhaust header and re-packable aluminum muffler.
•Durable close-ratio five-speed transmission.
Chassis/Suspension
•Front and rear suspension settings unique to the CRF150R deliver ideal bump-absorption characteristics.
•Lightweight, high-tensile steel frame with large-diameter frame tubing and cross-member provides excellent turning performance and straight-line tracking.
•37mm leading-axle inverted Showa cartridge fork features friction-reducing design to improve compression and rebound control.
•Pro-Link® rear suspension.
•Strong, lightweight wheels are durable and minimize unsprung weight.
•Lightweight front and rear disc brakes with high-performance pads offer powerful, precise braking.
•Stout 15mm front and 17mm rear axles incorporate a surface-treatment for added strength and durability.
•Large-capacity airbox and reusable two-stage foam air filter.
•Lightweight plastic body components (radiator shroud, side covers, rear fender, seat base, fuel tank, front fender and front number plate) offer a slim, aggressive style.
•High-quality Dunlop tires.
•HRC works-type rear-brake system integrates the rear master cylinder and fluid reservoir, eliminating the separate rear master-cylinder reservoir and hose.
•Consult owner’s manual for optional racing parts
•Specifications subject to change
2018 Honda CRF150R Totalmotorcycle.com Features and Benefits
Excellent mass centralization
Ultra-high rpm, 149 cc engine is one of the most advanced in the sport, its unique 4-valve, Unicam design gives it very compact dimensions and excellent mass centralization for effortless direction changes on the ground or altitude changes in the air. Rail it or whip it with confidence.
Power when you want it
Short-skirted piston and light flywheel mean the CRF’s willing engine builds revs very quickly—no waiting for the power to “hit”.
Consistent engine operating temperature
Liquid cooling and a Nikasil cylinder liner help to extend engine life. The cooling system’s lightweight aluminum radiator helps to reduce weight and ensure consistent engine operating temperature no matter how hard you push.
More immediate throttle
Flat-slide, FCR 32 mm carburetor is fitted with an accelerator pump for more immediate throttle response. Go ahead, use the 4-stroke advantage to grab the holeshot.
Less shifting more enjoyment
Broad 4-stroke power characteristics allow the CRF150RB to use a five-speed gearbox for less shifting so you can concentrate on your riding.
Easy start from hot or cold
Although the 4-stroke engine is hard to stall, it’s nice to know that an automatic decompression system makes starting easy, hot or cold.
Maximum power output
Maintenance-free digital CD ignition system includes a throttle angle sensor so it can tailor the ignition curve to provide maximum power output whenever you grab that throttle.
Increased durability & maximum control
Heavy-duty clutch is fitted with tough friction plates for increased durability but retains a light pull at the lever giving you maximum control.
Excellent performance
Lightweight high-tensile steel frame with large-diameter tubing provides excellent turning performance and keeps you tracking straight through the whoops.
Riding comfort & traction
37 mm, inverted, Showa cartridge front fork features adjustable compression and rebound settings. The fork’s low-friction design will be especially appreciated when it’s helping the front wheel to follow small surface irregularities without breaking traction.
Improved turning precision
Wide-section aluminum top and bottom triple-clamps hold the inverted forks rigidly and position the fork tubes far apart giving you improved turning precision and control.
Comfort on any terrain
Pro-Link® rear suspension system features a fully adjustable Showa shock that effectively soaks up whatever the track or trail can throw at it.
Precise control over any terrain
Lightweight wheels and hubs help to reduce un-sprung weight allowing the wheels to effectively follow uneven terrain. The strong and rigid, but lightweight, box-section aluminum swingarm further enhances rear wheel tracking offering precise control whether you’re braking over stutter bumps or root infested trails.
Easy braking in any condition
Lightweight front and rear disc brakes with high-performance pads offer powerful, easy to modulate braking even when you’re riding in the worst conditions.
Consistent power
Large-capacity airbox and reusable two-stage foam air filter means power won’t drop off during long, dusty rides.
Stay comfortable & stay put
Slim, well-padded seat is comfortable and allows maximum movement. Non-slip seat cover gives you excellent control.
Personalized comfort
Fully adjustable, high-quality controls include comfortable grips, dogleg levers, side-pull throttle and a folding shift lever. Cleated, folding, self-cleaning footpegs offering excellent grip complete the impressive collection of thoughtful touches.
2018 Honda CRF150R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5099 USD
ENGINE
Engine Type 149cc liquid-cooled single-cylinder single cylinder four stroke
Bore And Stroke 66mm x 43.7mm
Compression Ratio 11.7:1
Valve Train Unicam®, four-valve; 26mm intake, steel; 22.5mm exhaust, steel
Induction Keihin® 32mm flat slide with Throttle Position Sensor (TPS)
Ignition Solid-state CD with electronic advance
DRIVE TRAIN
Transmission Close-ratio five speed
Final Drive #420 chain; 15T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension 37mm fully adjustable leading-axle inverted Showa® cartridge fork; 10.8 inches
travel
Rear Suspension Pro-Link® fully adjustable Showa single shock; 10.7 inches travel
Front Brake Single 220mm disc
Rear Brake Single 190mm disc
Front Tire 70/100-17 Dunlop MX51
Rear Tire 90/100-14
DIMENSIONS
Rake 27°2′ (Caster Angle)
Trail 78mm (3.1 inches)
Wheelbase 49.6 inches
Seat Height 32.8 inches
Ground Clearance 11.9 inches
Curb Weight 185 pounds (Includes all standard equipment, required fluids and full tank of
fuel–ready to ride.)
Fuel Capacity 1.11 gallons
OTHER
Emissions Consult owners manual for optional racing parts.
Available Colors Red
Model ID CRF150R
2018 Honda CRF150R – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN
Engine & Drivetrain
Engine type
Liquid-cooled single-cylinder 4-stroke
Displacement
149 cc
Bore & stroke
66 mm x 43.7 mm
Compression ratio
11.7:1
Valve train
Unicam, 4 valves
Fuel delivery
Keihin 32 mm flat-slide carb with throttle position sensor
Transmission
Close-ratio five-speed
Final drive
#420 O-ring-sealed chain, 15T/56T
Chassis & Suspension
Front suspension
37 mm fully adjustable inverted Showa cartridge fork; 275 mm (10.8 in.) travel
Rear suspension
Pro-Link® fully adjustable Showa single shock; 242 mm (10.7 in.) travel
Dimensions & Additional Information
Tires
Front: 70/100-17 Rear: 90/100-14
Brakes
Front: 220 mm disc with dual-piston caliper Rear: 190 mm disc
Ground clearance
302 mm (11.9 in.)
Seat height
833 mm (32.8 in.)
Wheelbase
1,260 mm (49.6 in.)
Curb weight
84 kg (185 lbs.) including required fluids and full tank of gas—ready to ride
Fuel capacity
4.2 L
Colour
Extreme Red
2018 Honda CRF150R – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £3999 GBP (On The Road inc 20% Vat)
Engine
Bore × Stroke (mm) 66 x 43.8
Carburation 32mm Keihin FCR flat slide carburettor with throttle position sensor (TPS)
Compression Ratio 11.7:1
Engine Displacement (cc) 149.7
Engine Type (cm³) Liquid-Cooled 4-Stroke 4-Valve Unicam Single
Max. Power Output 17.5 kW / 12,500rpm
Max. Torque 14.1 Nm / 11,000rpm
Starter Kick
Wheels
Brakes Front 220mm hydraulic disc with single-piston caliper and sintered metal pads
Brakes Rear 190mm hydraulic disc with single piston caliper and sintered metal pads
Suspension Front 37mm inverted Showa leading-axle telescopic fork with adjustable compression and rebound damping; 275mm axle travel
Suspension Rear Pro-Link with single Showa damper, adjustable compression and rebound damping; 273mm axle travel
Tyre Size Front 70/100-19
Tyre Size Rear 90/100-16
Wheels Front Aluminium rim/wire spoke
Wheels Rear Aluminium rim/wire spoke
Dimensions and Weights
Caster Angle 27°
Dimensions (L×W×H) (mm) 1,900 x 770 x 1,171
Frame type Semi-double; Steel tube
Fuel Tank Capacity (Litres) 4.3 litres
Ground Clearance (mm) 336
Kerb Weight (kg) 84.4
Seat Height (mm) 866
Trail (mm) 96
Wheelbase (mm) 1285
Transmission
Clutch Wet, multiplate
Final Drive #420 Roller Chain
Gearbox 5-speed
Instruments and Electrics
Ignition System Solid-state Capacitor Discharge (CDI) with electronic advance
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
