UNIQUE AND BOLD.

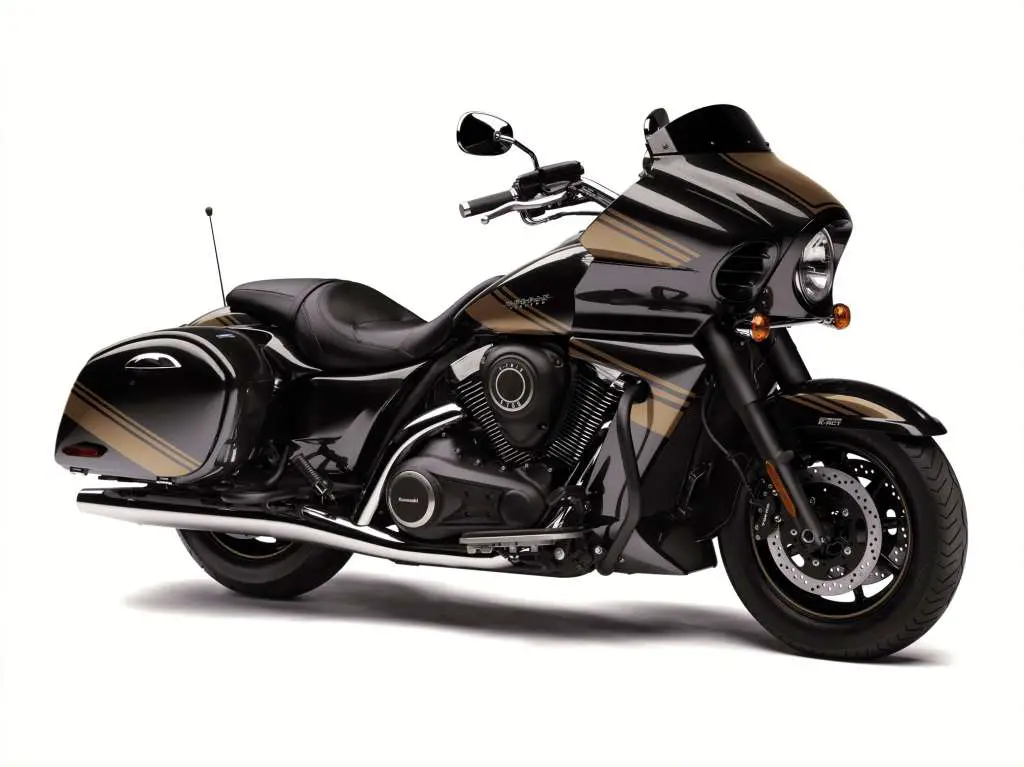

2019 Kawasaki Vulcan 1700 Vaquero ABS:

It may look like a custom V-twin bagger, but the Vulcan® 1700 Vaquero® ABS cruiser is in a class of its own. A roaring 1,700cc engine featuring advanced Kawasaki technology offers a smooth, reassuring ride. The blacked-out engine, distinct bodywork styling and select chrome accents create a unique and bold appearance.

The Vulcan® 1700 Voyager® ABS touring cruiser is intended for riders who seek modern comfort and plenty of technology as well as the legendary Kawasaki dependability. With its ample storage capacity and large fuel tank, the 2019 Kawasaki Vulcan 1700 Voyager ABS is equipped to reach destinations with ease, and its range of features will help the rider to arrive in comfort. In 2019, the Vulcan Voyager ABS motorcycle is available in Candy Imperial Blue/Metallic Graphite Gray with an MSRP of $17,499 USD.

The Vulcan® 1700 Vaquero® is based on the Vulcan® 1700 Voyager® and it features many original-design components like the engine shrouds, side covers, rear fender, mufflers and side opening saddlebags. The Vaquero’s numerous blacked-out parts contribute to a hard, aggressive image.

COMBINING SHOW-STOPPING STYLE WITH THE PERFORMANCE AND DEPENDABILITY OF A PRODUCTION KAWASAKI MOTORCYCLE, THE VULCAN® 1700 VAQUERO® IS THE BEST OF BOTH WORLDS.

2019 Kawasaki Vulcan 1700 Vaquero ABS Totalmotorcycle.com Key Features

• AGGRESSIVE STYLING
• ELECTRONIC CRUISE CONTROL
• ADVANCED COACTIVE-BRAKING TECHNOLOGY (K-ACT) SYSTEM WITH ABS
• MUSCULAR V-TWIN ENGINE
• FULL-FEATURE AUDIO SYSTEM
• OPEN CRUISER RIDING POSITION

2019 Kawasaki Vulcan 1700 Vaquero ABS Totalmotorcycle.com Features and Benefits

V-Twin Engine
• Long stroke engine designed to deliver high levels of torque.
• Liquid-cooled A/C generator reduces the temperature of generator stator coils and thus increases output to handle additional accessories.
• Semi-dry sump(KP) design reduces overall engine height and keeps excess oil away from the crank to prevent power-robbing stirring loss. Oil is stored in the transmission, which eliminates the
need for an oil tank. Triple oil pumps (2 scavenge and 1 feed pump) help reduce stirring loss and provide superb oil circulation.
• Water jackets surround only the top quarter of the cylinders and the polished-edge fins match the cylinder heads while attractively tapering to the cylinder bases.
• High-performance forged pistons(KP) are lightweight, stronger and more heat resistant than cast versions. Oil jets help cool the pistons for added durability.
• Dual primary engine balancers (KP) and rubber engine mounts (KP) help isolate high-frequency vibration while providing the rider with the core power-pulse feeling of the muscular engine.
• Single-pin crankshaft for that classic V-twin rumble and characteristic pulse.

Digital Fuel Injection (KP)
• Dual 42mm throttle bodies with Atomizing Fuel Injectors produce a fine fuel mist for better combustion and fuel consumption.

Electronic Throttle Valve (ETV) (KP)
• The throttle pulley operates an acceleration position sensor (APS) that uses the ECU to send a signal to a small motor that actually operates the throttle valves.

This makes throttle pull very light for reduced rider fatigue and the more precise throttle control results in better performance, smoother running and increased fuel mileage.

• Using a cable-operated APS eliminates expensive switch housing electronics that can be damaged and costly to replace should the motorcycle get tipped on its right side.

Electronic Cruise Control
• Works in conjunction with the ETV to automatically maintain a set speed when in third gear or higher and when traveling between 30 and 85 mph.
• Convenient controls located within easy thumb reach on the right handlebar.

TCBI with Digital Advance (KP)
• Microprocessor controlled timing provides precise engine management.

6-Speed Transmission
• Overdrive 6th gear reduces rpm at higher speeds and helps increase fuel mileage.
• Gear position sensor communicates with the ECU to help reduce fuel consumption and adjust timing to provide better power feeling, and an indicator on the speedometer allows the rider to monitor
current gear position at a glance.

Belt Drive
• Lower unsprung weight than shaft drive to improve ride quality and suspension action.
• Carbon fiber belt provides much more strength than Kevlar while allowing the belt to be narrower.
• More efficient so more power reaches the rear wheel.
• Low maintenance and low noise.
• Large steel box-section backbone frame is very rigid and helps contribute to high stability and lightweight handling at low speeds.
• Low profile reduces seat height for an easier reach to the ground.

Dual Air-Assisted Rear Shocks
• Air shocks provide a wide range of adjustment to match the load or riding preference.
• Special spring rates to match the increased weight of the trunk and saddlebags.

Kawasaki Advanced Coactive-braking Technology (K-ACT)(KP)
• K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS is a linked brake system that ensures ideal brake force distribution for confident, highly effective braking.
• Electronic system controls brake force distribution between the front and rear brakes to enhance overall braking performance, no matter how hard the front and/or rear brakes are applied.
• Anti-lock Braking System (ABS) is incorporated into K-ACT to help prevent the wheels from locking during hard, straight-up braking for enhanced control.
• For maximum controllability in tight corners or when making U-turns, K-ACT does not engage when braking is initiated at speeds below 12 mph. The ABS disengages at speeds below 4 mph.

Triple Disc Brakes
• Dual 300mm front discs and a single 300mm rear disc stop with authority.

Frame-Mounted Fairing
• Directs wind buffeting to the chassis to keep steering feel light and pure.

Full-Featured Audio System
• Navigation audio prompt capability allows voice prompting audio to be heard through the speakers (or Kawasaki Genuine Accessory Helmet Headsets) when using Garmin Zumo 600/665 GPS. (Kawasaki
• AM/FM tuner with front fairing-mounted 40-watt speakers is standard equipment.
• Easy-to-use audio controls are located within easy thumb reach on the left handlebar.
• Standard audio system is equipped to easily expand with optional iPod™, XM™ tuner and CB radio attachments.

Electric Speedometer
• Electric design reduces weight and eliminates the front wheel drive unit and cable for a cleaner look.
• Analog instrument faces & evoke memories of the hot rods from the ‘60s.
• Digital displays include odometer, trip meter, clock, fuel range and average mpg.
• Gear position indicator makes it easy to determine which gear the transmission is in at a glance.

Classic Styling
• LED tail light provides excellent visibility when activated, and makes a strong visual statement with chrome surround.
• Tank, seat, fenders, saddlebags and details designed with a classic 1960‘s feel.
• Adjustable front brake and clutch levers and master cylinders enhance rider comfort and styling.

36-month Warranty
• Vulcan Vaquero model features a 36-month factory warranty.

2019 Kawasaki Vulcan 1700 Vaquero ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16799 USD
Canada MSRP Price: $19499 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Power

Engine

4-stroke, 52° V-twin, liquid-cooled

Displacement

1,700cc/103.7 cu in

Bore x Stroke

102.0 x 104.0mm

Compression Ratio

9.5:1

Maximum Torque

107.6 lb-ft @ 2750 rpm

Fuel System

DFI® 42mm throttle bodies (2)

Ignition

TCBI with digital advance

Transmission

6-speed with overdrive and positive neutral finder

Final Drive

Carbon fiber-reinforced belt

Performance

Front Suspension / Wheel Travel

45mm hydraulic fork/5.5 in

Rear Suspension / Wheel Travel

Swingarm with twin air-assisted shocks, with 4-way rebound damping/3.1 in

Front Tire

130/90×16

Rear Tire

170/70×16

Front Brakes

Dual 300mm discs, dual four-piston calipers, K-ACT II ABS

Rear Brakes

Single 300mm disc, twin-piston caliper, K-ACT II ABS

Details

Frame Type

Steel, double-cradle with box-section single-tube backbone

Rake/Trail

30°/7.0 in

Overall Length

98.8 in

Overall Width

38.2 in

Overall Height

50.8 in

Ground Clearance

5.7 in

Seat Height

28.7 in

Curb Weight

844.5 lb**

Fuel Capacity

5.3 gal

Wheelbase

65.6 in

Color Choices

Metallic Spark Black

Warranty

36 Month Limited Warranty

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months

2019 Kawasaki Vulcan 1700 Vaquero ABS – Totalmotorcycle.com Canada Specifications/Technical Details

Power

Engine

4-stroke, 52° V-twin, liquid-cooled

Displacement

1,700cc/103.7 cu in

Bore x Stroke

102.0 x 104.0mm

Compression Ratio

9.5:1

Maximum Torque

107.6 lb-ft @ 2750 rpm

Fuel System

DFI® 42mm throttle bodies (2)

Ignition

TCBI with digital advance

Transmission

6-speed with overdrive and positive neutral finder

Final Drive

Carbon fiber-reinforced belt

Performance

Front Suspension / Wheel Travel

45mm hydraulic fork/5.5 in

Rear Suspension / Wheel Travel

Swingarm with twin air-assisted shocks, with 4-way rebound damping/3.1 in

Front Tire

130/90×16

Rear Tire

170/70×16

Front Brakes

Dual 300mm discs, dual four-piston calipers, K-ACT II ABS

Rear Brakes

Single 300mm disc, twin-piston caliper, K-ACT II ABS

Details

Frame Type

Steel, double-cradle with box-section single-tube backbone

Rake/Trail

30°/7.0 in

Overall Length

98.8 in

Overall Width

38.2 in

Overall Height

50.8 in

Ground Clearance

5.7 in

Seat Height

28.7 in

Curb Weight

844.5 lb**

Fuel Capacity

5.3 gal

Wheelbase

65.6 in

Color Choices

Metallic Spark Black

Warranty

36 Month Limited Warranty

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months

* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.

2019 Kawasaki Vulcan 1700 Vaquero ABS – Totalmotorcycle.com European Specifications/Technical Details

TBA

2019 Kawasaki Vulcan 1700 Vaquero ABS – Totalmotorcycle.com Australian Specifications/Technical Details

TBA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
