2019 Suzuki DR-Z125L Guide

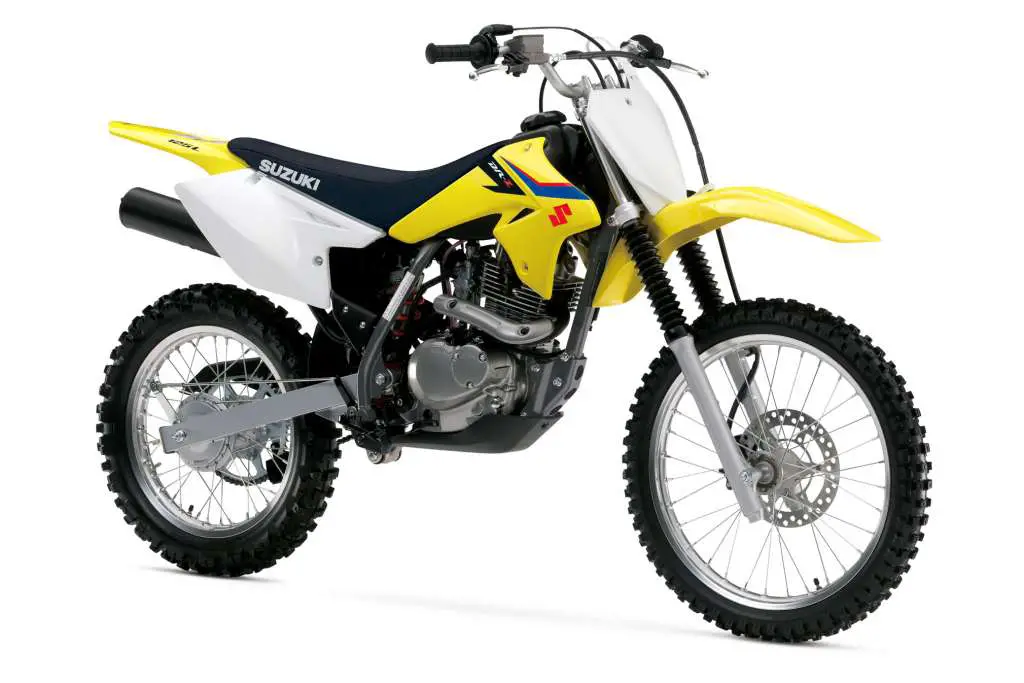

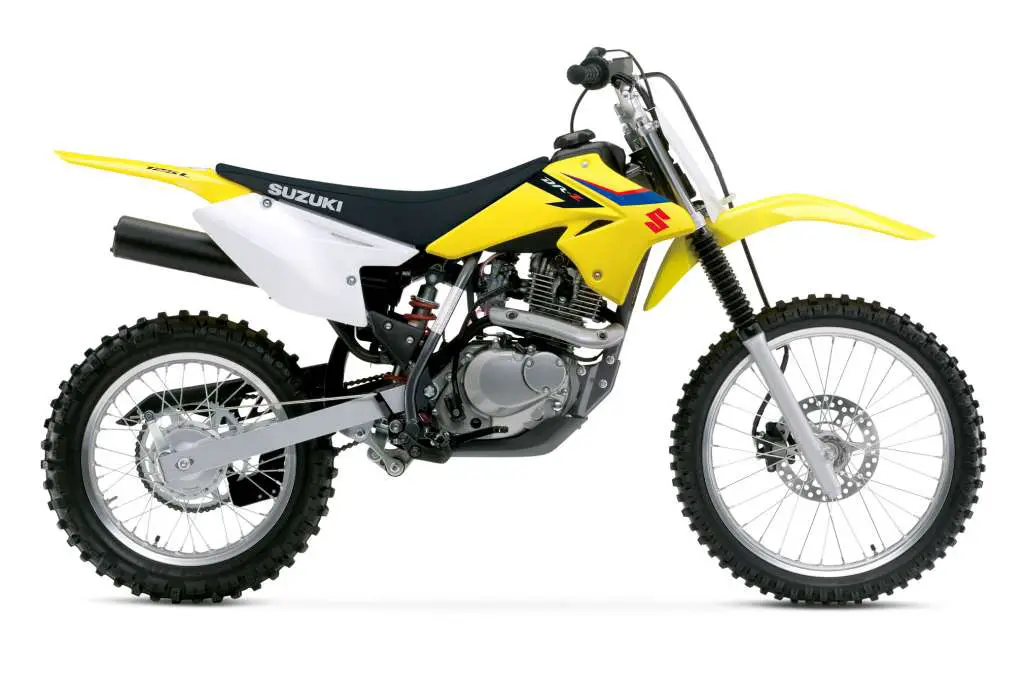

2019 Suzuki DR-Z125L

2019 Suzuki DR-Z125L 2019 Suzuki DR-Z125L

YOU CAN’T JUDGE A BOOK BY ITS COVER.

2019 Suzuki DR-Z125L:

Here comes the 2019 DR-Z125L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size-appropriate motorcycle. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z promotes a more race-oriented look, while the sharp handling and strong low-end and mid-range power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover, because the DR-Z125L is an unassuming package packed with loads of fun.

The 2019 DR-Z125L comes stocked with all the necessities for long, exciting rides. A larger 19-inch front tire and 16-inch rear tire as well as a front disk brake provide a longer lifespan of usefulness. Styled to reflect the RM-Z models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z125L is a simple package packed with loads of fun.









2019 Suzuki DR-Z125L Totalmotorcycle.com Key Features

WHAT’S NEW FOR 2019

The DR-Z125L features new colour graphics, along with new colour surfaces: Black Front Brake Hose Guide, Yellow Frame Covers







2019 Suzuki DR-Z125L Totalmotorcycle.com Features and Benefits

Engine Features

Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.

Precise digital CDI ignition system has an ignition-timing map that’s tuned to optimize the engine’s power characteristics.

Mikuni VM20SS carburetor contributes to excellent throttle response.

The DR-Z125L is EPA Emissions and California red sticker compliant.

Suzuki Composite Electrochemical Material (SCEM)-plated cylinder is used for durability, weight reduction, and superior heat transfer.



Transmission Features

Five-speed transmission with link-type gearshift system allows for precise operation and gives a positive feel.

Easy-pull, rack-and-pinion manual clutch lets the rider control takeoffs and power delivery.



Chassis Features

Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.

Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.

The seat and bodywork design provides a seamless surface for easy maneuverability.

Appropriate 32-inch seat height lets the bike fit a variety of riders.

Strong braking performance is provided by a lightweight front disc brake and rear drum brake.

Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.

The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight.

Bright Suzuki Factory Yellow bodywork includes matching race-inspired graphics.

A lightweight plastic skid plate helps protect the bottom of the engine.



Additional Features

Six-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).

A variety of Genuine Suzuki Accessories for DR-Z125L owners are available, including a large selection of Suzuki logo apparel.





2019 Suzuki DR-Z125L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3299 USD
Canada MSRP Price: $3499 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU
Engine
Engine 124cc, 4-stroke, air-cooled, single cylinder, SOHC
Bore x Stroke 57.0 mm x 48.8 mm (2.244 in. x 1.921 in.)
Compression Ratio 9.5:1
Fuel System Mikuni VM20SS, single carburetor
Starter Primary kickstarter
Lubrication Wet sump
Drive Train
Clutch Wet multi-plate
Transmission 5-speed constant mesh
Final Drive Chain, DID 428HG, 130 links
Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, single rotor
Brakes Rear Drum brake
Tires Front 70/100-19 M/C 42M, tube type
Tires Rear 90/100-16 M/C 52M, tube type
Fuel Tank Capacity 4.8 L (1.3 US gal.)
Color Champion Yellow No. 2
Electrical
Ignition Electronic ignition (CDI)
Spark Plug NGK DR8EA or DENSO X24ESU
Dimensions
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Seat Height 805 mm (32.0 in)
Curb Weight 89.0 kg (196 lb.)
Warranty
Warranty 6-month unlimited mileage limited warranty.*
Extensions *Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).







2019 Suzuki DR-Z125L – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
Ignition Electronic ignition (CDI)
Engine 124cc, 4-stroke, air-cooled, OHC
Bore Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump
Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank Capacity 4.8L (1.3 US gal)
DimensionsandCurbWeight
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Ground Clearance 290 mm (11.4 in)
Seat Height 805 mm (32.0 in)
Curb Weight 89 kg (196 lbs)
DriveTrain
Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links
Warranty
Warranty 6 Months unlimited mileage limited warranty









2019 Suzuki DR-Z125L – Totalmotorcycle.com European Specifications/Technical Details









2019 Suzuki DR-Z125L – Totalmotorcycle.com Australian Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
