2019 Triumph Scrambler 1200XE

2019 Triumph Scrambler 1200XE 2019 Triumph Scrambler 1200XE 2019 Triumph Scrambler 1200XE 2019 Triumph Scrambler 1200XE 2019 Triumph Scrambler 1200XE 2019 Triumph Scrambler 1200XE

EXTREME OFF-ROAD CAPABILITY.

2019 Triumph Scrambler 1200XE:

The top-specification all-new Scrambler 1200 XE represents the ultimate in motorcycling freedom. A motorcycle that enjoys unparalleled road and off-road capability, with a commanding riding position and an ergonomically optimized set-up that handles every bit as naturally on the tarmac as it does doing what even the most focused adventure bike can do, plus of course, full-on scrambling.

With a beautiful combination of poise, iconic design and premium finish, married to class-leading road-focused capability and a whole new benchmark in off-road scrambling performance – the result is nothing short of breath-taking.

The equipment specification, which includes premium Öhlins long travel rear suspension and Brembo M50 brakes, is without doubt category dominating. We’ve also packed the XE with advanced technology to give the rider everything that’s needed to approach every ride with poise and assurance, with class-leading features that include cornering optimized ABS and traction control, and 6 riding modes including Off-Road Pro.

To further reflect its top-of-the-range status, there are many premium finishes and details that are exclusive to the 1200 XE, and over 80 custom Scrambler 1200 accessories and two inspiration kits to help spec up your scrambler to go everywhere you need – from town, to touring, to tearing up the desert.



Built to be just as great on the road but with even more extreme off-road capability.



FEATURES EXCLUSIVE TO THE SCRAMBLER XE

CHASSIS

  • Longer travel Showa adjustable USD forks with 250mm travel
  • Longer travel Öhlins adjustable rear suspension with 250mm travel
  • Longer travel aluminum swingarm (579mm)
  • Adjustable folding foot controls
  • Hand guards with aluminum brace
  • Brembo MCS lever

TECHNOLOGY

  • Optimized Cornering ABS and Traction Control, facilitated by an inertial measurement unit (IMU)
  • Six riding modes (Road, Rain, Sport, Off-Road, Rider-Configurable and Off-Road Pro)

STYLING

  • Top-of-the-range finishes & detailing
  • Iconic Triumph tank badge
  • Silver handlebar finish with black anodized risers and clamps.
  • Gold colored forks

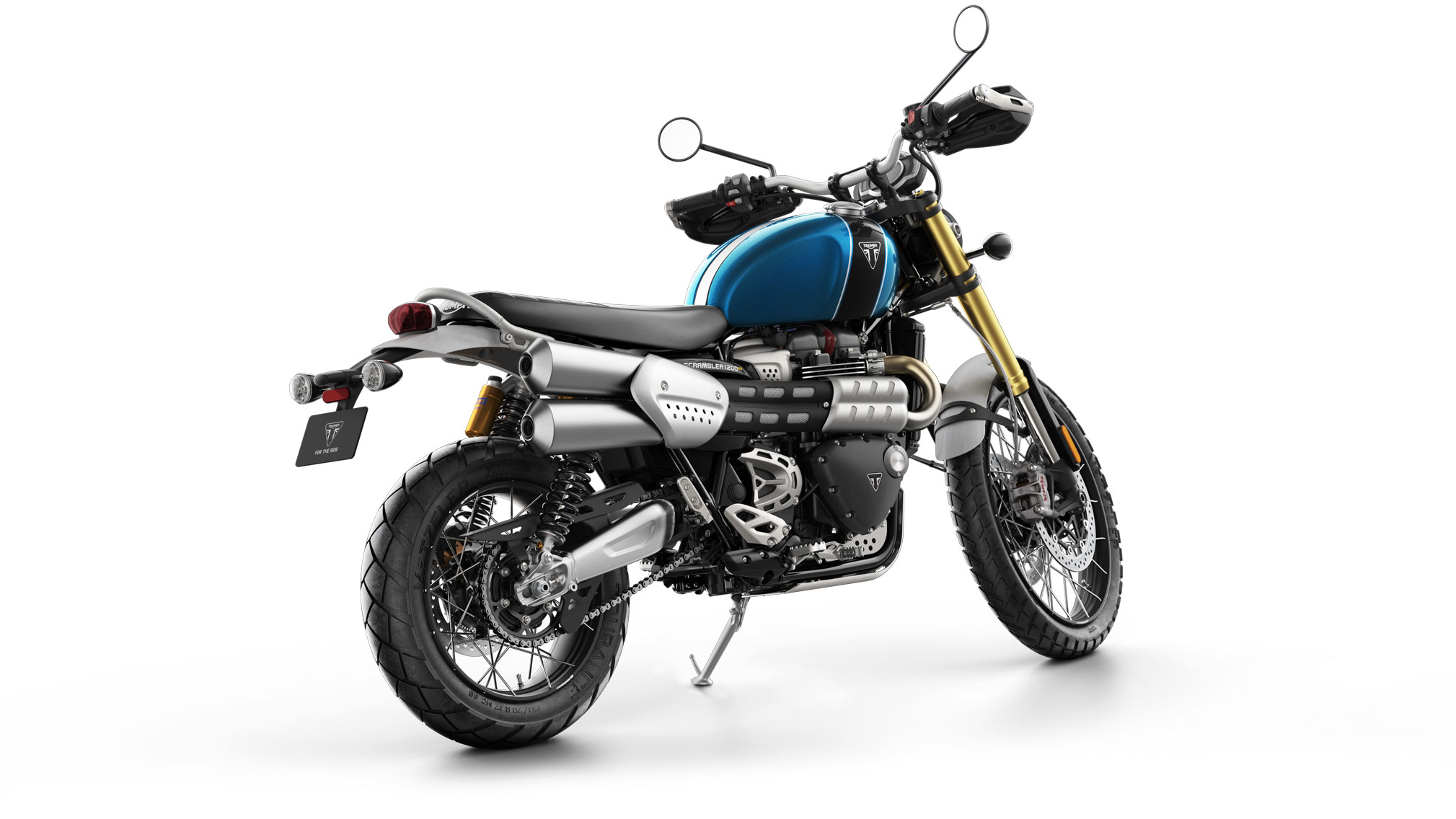

  • Two color schemes: Fusion White with Brooklands Green, and Cobalt Blue with Jet Black





Introducing the Scrambler 1200 XC and Scrambler 1200 XE line up, all-new benchmark-setting motorcycles that represent a first for dual-purpose capability and modern custom style. These beautiful new 1200 scramblers deliver a category redefining level of performance, specification and finish, fused with Triumph’s iconic Scrambler DNA and all the capability of a genuine adventure motorcycle.

Built to deliver a sublime riding experience on every road, and packed with class-leading specification and state-of-the-art technology, these new modern classics take the legend that Triumph started to a whole new level. The first of a new generation, and the best in every dimension. The real deal is here.

State-of-the-art. Category-dominating. Class-leading. Given all the superlatives, the message is clear. Triumph’s all-new Scrambler 1200s have been developed to be the ultimate motorcycling experience in terms of style, road-going capability and comfort AND true off-road adventure; designed to be brilliant whatever the ride.

For the first time, the highest specification, engineering, style, and technology have been fused together to create a bike that is truly dual-purpose; a phenomenal ‘any road’ motorcycle, with genuine scrambling DNA.

These are the Scrambler 1200’s highlights that make booking a test ride a must.



SCRAMBLER 1200 IN NUMBERS

1200 CC ENGINE

Higher performance Bonneville twin with thrilling signature scrambler tune and hair-raising soundtrack.

81 Ft-Lb PEAK TORQUE

Game-changing capability with incredible torque delivered low down and a thrilling 89hp peak power output.

21″ LACED FRONT WHEEL

Class-leading road, off-road and scrambler capability delivered by the highest level of specification available.

80+ ACCESSORIES

A brand new custom classic scrambler, enhance your Scrambler 1200’s finish with over 80 accessories.





TRIUMPH MAKE HISTORIC RETURN TO THE LEGENDARY BAJA 1000 RACE WITH THE ALL NEW TRIUMPH SCRAMBLER 1200 XE



BAJA 1000 Entry

Triumph Motorcycles are excited to announce their return to the historic Baja 1000 desert endurance race with the all-new Scrambler 1200 XE, piloted by stuntman and experienced  off-road and desert racer Ernie Vigil.

The Race

Originating in early 60’s and evolving significantly over time, the gruelling Score International Baja 1000 Rally is held on the California / Mexico peninsula and is considered to be the ultimate non-stop desert race in the World. The Baja 1000 allows various types of vehicles to compete on the same course with classes for; cars, trucks, ATVs, buggies and of course motorcycles. The Baja 1000 forms part of the World Championship of desert racing. Over the years, the race has attracted many celebrity participants including Steve McQueen, James Garner and Paul Newman.

About the motorcycle

Riding an almost-standard specification all-new Triumph Scrambler 1200 XE, designed to be the absolute pinnacle in modern Scrambler capability and the first of a new generation, Ernie will continue Triumph’s peerless bloodline of racing scramblers that can trace their roots back to the very beginning of the scene.

Triumph played a pivotal role at the beginning of the scrambler scene in the 1960s with the leading performance bikes of the day taken desert scrambling, with stripped back bodywork and pipes, inspiring the very first dedicated production scramblers, with the 1963 Bonneville T120TT, Bonneville 120c and TR6c and SC. These were the ‘real’ desert sleds, fuelling the scrambler scene, these were the bikes that Steve McQueen took to the desert and rode in the ISDT, these were the bikes that Bud Ekins raced and won on in the dirt and that raced in the legendary Big Bear and Baja 1000. The new generation 1200 XE takes this historic bloodline to the next level.

These benchmark setting motorcycles represent a first for dual-purpose capability and modern custom style. with a new level of category dominating capability. Having completed a rigorous testing regime prior to launch, the Triumph Scrambler 1200 XE is ready to take on the Baja 1000 with a few selected adaptions designed to take on this extreme racing challenge.

Key Baja 1000 race adaptions include:

  • Engine protection bars
  • Extended sump guard
  • Removed front and rear turn indicators
  • Removed pillion pegs
  • Race exhaust system and tune
  • Additional Race-specification lighting

To find out more about the all-new Triumph Scrambler 1200 XE & XC model line-up, please reference our press release for full details on these category dominating motorcycles. Press Release entitled – “The New Scrambler 1200 XC & XE”











2019 Triumph Scrambler 1200XE Totalmotorcycle.com Key Features

THE NEW SCRAMBLER 1200

For the first time ever, the new Scrambler 1200 line-up introduces the ultimate combination of 1200cc Bonneville twin power, class-leading ‘state-of-the-art’ rider-focused technology, beautiful modern custom styling, and peerless original design DNA. A whole new benchmark for category-defining capability, this motorcycle delivers everything required to take your riding fun to the most exciting level on the road and off it.

There are two remarkable new models, the incredibly well-equipped XC and the top-of-the-range XE, and both are designed for peerless style and capability; for the road, for genuine adventure and for full-on scrambling.  The first-of-a-kind new dual-purpose Scrambler 1200 XC delivers remarkable high performance road and off-road capability, and the even higher specification Scrambler 1200 XE is built to meet more extreme off-road challenges still.  A true advance in motorcycling, this is the birth of a whole new kind of scrambling generation.

NEXT GENERATION SCRAMBLING

The first, the best, and the most exciting on every level. Leading the next evolution in scrambling, our two new benchmark-setting 2019 Scrambler 1200 models have raised the bar with genuine dual-purpose motorcycles designed to meet the needs of riders seeking commanding road-riding control and comfort, and fast, fun, flowing, dirt riding capability.

This is a major step forward for Triumph’s incredible custom classic offering that brings class-leading performance, equipment and technology specifications to a new motorbike range, designed and built for all-road and off-road adventures too. Its distinctive style and iconic silhouette is completed by the sculpted high level exhaust, bench seat, upright commanding riding position and purposeful looks.





Two new benchmark setting Scramblers

o 1200 Scrambler XC – built with an all-road & off-road focus

o 1200 Scrambler XE – built to be just as great on the road but with even more extreme off-road capability



Thrilling performance

o High Power 1200cc Bonneville twin engine, with dedicated Scrambler tune, delivering 90 PS @ 7,400 rpm

o Incredible torque output of 110 Nm @ 3,950rpm

o Sculpted high level exhaust and a signature twin Scrambler soundtrack



Category dominating capability

o Class leading state-of-the-art technology including;

– 2nd generation TFT instruments

– 6 riding modes, including Off-Road Pro on the XE

– Optimised cornering ABS and cornering traction control on the XE

– IMU and fully integrated technology system

– All LED lighting, including signature DRL headlight

– Intuitive switch cubes & 5-way joystick

– Illuminated backlit switches

– Torque-assist clutch

– Keyless ignition

– Cruise control

– USB charging socket

– Heated grips as standard on the XE and accessory fitted on the XC

– World’s first motorcycle integrated GoPro control system, Triumph’s first turn-by-turn navigation system and Bluetooth phone and music operation (all enabled by an accessory Bluetooth connectivity module)

o Class leading specification and equipment

– Öhlins first-in-class long travel fully adjustable RSU

– Showa fully adjustable long travel forks

– Brembo twin M50 radial monobloc front calipers

– Crafted long-travel aluminium swingarm

– Dedicated Scrambler frame

– Folding foot controls, adjustable on the XE

– High-specification side laced wheels

– Category-first 21” front wheel, with adventure focused tubeless tyres

– Handbook approved Pirelli Scorpion Rally Tyres







2019 Triumph Scrambler 1200XE Totalmotorcycle.com Features and Benefits

First-in-class ‘modern classic’ and ‘adventure’ capable dual purpose motorcycles



Breath-taking Scrambler style

o Category leading finish and detailing

o 21st century scrambler-defining custom style

o Iconic silhouette and sculpted high level twin exhaust system

o Seamless fuel tank with brushed aluminium Monza-style filler cap and brushed stainless strap



Built for riders to personalise

o 80+ new Scrambler accessories

o Two new inspiration kits

– The ‘Escape’ inspiration kit, with luggage set-up for touring

– The ‘Extreme’ inspiration kit, for even more off-road focused set-up



THE ORIGINAL SCRAMBLERS & GENESIS FOR TODAY’S SCRAMBLER SCENE

Born from an unparalleled blood line, the new Scrambler 1200 line-up can trace its roots directly back to the original Scrambler scene in the early 1950’s, where Triumph played a pivotal role and set the template for what made a scrambler great. Building the leading bikes of the day, stripped back with straight-through ‘twin pipes’ fitted high or low sling and chopped off – Triumphs were the original and real desert sleds. These inspired the world’s first production scramblers, with the Bonneville T-120TT and the TR6’SC’. And these were the bikes that Steve McQueen took to the desert, that Bud Ekins raced and won on, in the dirt, and that competed the most challenging desert races of all time – the Baja 1000. In 2006, with the launch of the very first ‘modern era’ Scrambler, Triumph again delivered the genesis of a new category. This triggered the world of Scramblers we see today and a whole new global fan base, from urban riders to movie stars, all in love with that iconic Triumph scrambler style and timeless silhouette.



TWO BENCHMARK SETTING NEW SCRAMBLER 1200s

Two all-new models comprise the Triumph Scrambler 1200 line-up. The Scrambler 1200 XC, which is built for the road and for real off-road riding fun, and the range-topping Scrambler 1200 XE, which takes the specification to the highest level and its off-road capability and scrambling credentials to the very top of the motorcycling world.



THRILLING PERFORMANCE

Both new Scramblers deliver category leading torque and a dedicated ‘scrambler tune’ courtesy of the latest generation Bonneville High Power 1200cc engine. The charismatic 270° firing interval ensures a smooth, linear power delivery from the slick six-speed gearbox.

Evolved specifically for the Scrambler, the 1200 engine provides 90 PS @ 7,400 rpm, which is 12.5% more power than the Bonneville T120 and an incredible 38% more than the 2019 Street Scrambler.

Additionally, the Scrambler 1200 power plant is tuned to deliver ‘high torque’ off-road and on, low down and across the mid-range, with peak torque of 110Nm at a low 3,950 rpm. This is also greater that the Street Scrambler by 37.5%.

Delivering the Scrambler soundtrack is a beautifully crafted twin high level exhaust system with stainless steel headers and brushed stainless steel silencers for a deep punchy scrambler sound.

Just like all the new generation Bonnevilles, the Scrambler 1200 engine delivers leading modern classic capability with ride-by-wire, as well as a sensitively incorporated liquid cooling system for enhanced performance and cleaner, more fuel efficient riding.

Both Scrambler 1200 models also feature a high first major service interval of 10,000 miles/16,000 km.



CATEGORY DOMINATING CAPABILITY

Taking the capability to the highest level, the Scrambler 1200s feature a class-leading standard of rider focused technology, including:

2nd generation TFT instruments Both models feature Triumph’s latest generation full-colour TFT instruments, with a stylish design and two information layout design themes that can be personalised. This includes an all-new feature that allows the rider to update the start-up screen message with their name.



Up to 6 riding modes, including ‘Off-Road Pro’ Both models feature Road, Rain, Off-Road, Sport and Rider-configurable riding modes which adjust the throttle response, ABS settings and traction control setting to suit rider preference and riding conditions.



On top of these 5 modes, the Scrambler 1200 XE also features the ‘Off-Road Pro’ mode, which delivers our most off-road focused set up for advanced adventure riding and scrambling. The ‘Off-Road Pro’ mode turns ABS and traction control off, and uses the ‘Off-Road’ throttle map.

Optimised Cornering ABS – supported by an IMU (XE only)



Exclusive to the Scrambler XE is the Optimised Cornering ABS, fitted as standard. This maintains the optimum braking performance, whatever the lean angle. The Scrambler 1200 XC features switchable ABS and its three ABS modes are selected manually via the Rider-configurable riding mode.



Optimised Cornering Traction Control – supported by an IMU (XE only)



The Scrambler 1200 XE also features Optimised Cornering Traction Control as standard, which automatically adapts the level of traction control depending on the riding conditions. This maintains the optimum level of traction control for the lean angle of the bike. The Scrambler XC features instead switchable traction control with five ride modes, which are selected manually via the Rider-configurable riding mode.



IMU – Inertial Measurement Unit (XE only)

An advanced Inertial Measurement Unit (IMU), developed in partnership with Continental, supports the optimum function of the Optimised Cornering ABS and Traction Control on the Scrambler 1200 XE. This takes constant measurements of roll, pitch, yaw, lean angle and acceleration rates, responding with appropriate active safety features.



All LED lighting with *DRL headlight

Both Scrambler 1200 models come with all LED lighting, including 5 inch headlight, tail light with new more attractive diffused opacity detailing, and indicators (in applicable markets).

The headlight also incorporates LED Daytime Running Lights (*in applicable markets) which provides excellent visibility and a distinctive light profile.



Illuminated backlit switches The switches on both Scrambler models are backlit from LEDs housed inside the switch cubes, enhancing rider interaction and improving control by giving a soft glow in all lighting conditions.



Torque assist clutch Designed to reduce clutch lever effort for the rider, bringing a lighter touch and feel to the clutch and making it easier to ride, and for longer.



Keyless ignition Triumph’s keyless ignition system is fitted as standard on both models. The system recognises the proximity of the keyless fob and then enables ignition via the switch cube mounted start button. There is also the ability to disable the key’s wireless transmission function at the touch of a button for even greater security.



Heated grips Heated grips are also fitted as standard to the Scrambler 1200 XE, and are available as an accessory on the Scrambler 1200 XC. These are neatly integrated with a button on the left hand grip providing greater rider comfort, with two modes.



Cruise control Electronic cruise control is fitted as standard to both Scrambler models. This is a single button system fitted into the left hand switch cube. This feature can be easily accessed while riding for maximum convenience and safety.

USB charging Both new Scramblers feature a 5 vault USB power socket for charging personal equipment. This is integrated into a new foam lined storage box under the seat.





World’s first integrated GoPro control system

A world’s first for any motorcycle – Triumph introduces an integrated GoPro control system, facilitating GoPro camera operation, which is facilitated by an accessory fitted connectivity Bluetooth module.

The connection and control is displayed on the TFT instruments, enabling intuitive video and photo operation via the switchgear.



Turn-by-turn navigation system Another Triumph first comes with the introduction of an integrated turn-by-turn navigation system powered by Google™ – their first motorcycle manufacturer partnership. The navigation system is facilitated through an accessory fitted Bluetooth connectivity module. Once the rider has selected the route on the Triumph app and set-off, the instruments present turn symbols on the screen using simple graphic icons. With this system, the rider has at their disposal a navigation system, a route-planner, their final destination and points of interest such as hotels, petrol stations and restaurants.



Triumph app

For iOS and Android phones, riders can download for free the all new Triumph app, which delivers the connected navigation function. The navigation, route planner, final destination and points of interest (hotels, fuel, restaurants etc.) are all controlled by the rider through this app.



Integrated phone and music operation

The new Scrambler 1200s both feature full Bluetooth phone integration, with clear display on the colour TFT instruments, and intuitive phone operation via the switchgear, allowing the rider to select music, control the volume and take calls. This is facilitated through an accessory fitted connectivity Bluetooth module.



CLASS LEADING SPECIFICATION & EQUIPMENT

With a unique Öhlins collaboration, plus a dedicated new Scrambler chassis tailored for focused off-road capability and comfortable rider ergonomics, the new Scrambler 1200s have been developed to deliver a first-in-class dual purpose ‘classic and adventure’ capability.

Both models feature totally unique new fully-adjustable twin-spring Öhlins rear suspension units that deliver category leading wheel travel and suspension capability, for amazing off-road capability and ground clearance.

The more extreme off-road oriented XE version delivers 250mm wheel travel, and the dual purpose XC delivers 200mm. Both models are equipped with piggy-back reservoirs.

‘’The twin spring Öhlins RSU on the new Triumph Scrambler 1200 combines new technology with inspiration from 70’s motocross to deliver high performance and long suspension travel capability.

Our testing team were amazed with the performance of the new 1200 Scramblers, and considered them to be actually more capable off-road than many of the adventure bikes they had tested.’’

Emil Åberg ÖHLINS Key Account manager – MC OEM

Both Scramblers also feature a new crafted long travel aluminium swingarm, which is longer on the XE version, making the new XC and XE truly capable in all riding conditions.

Topping off the high-specification engineering innovation there are premium Brembo M50 radial monobloc calipers, folding foot controls which are adjustable on the XE model, and first-in-class tubeless tyres and spoked 21’ inch front wheel.

BREATH-TAKING SCRAMBLER STYLE

These bikes have absolutely Scrambler-defining modern custom style with category leading finish and detailing, setting a new template for what a 21st century Scrambler should look like. Incorporating all of the original Scrambler design DNA and iconic silhouette the new XC and XE feature a host of signature scrambler details, including:

– New design ‘seamless’ sculpted Scrambler fuel tank, with classic scrambler tank ‘cut-away’ features

– Beautifully engineered side-laced wheels

– Brushed aluminium Monza-style filler cap

– Brushed stainless steel tank strap

– Classic bench seat



Reflecting its top-of-the-range status, the Scrambler 1200 XE comes with even more premium details, including being the first bike to carry the iconic Triumph triangle badge on the tank, plus:

– Hand guards with aluminium brace

– Brembo MCS lever

– Silver handlebar finish with black anodised risers and clamp

– And gold coloured forks



Both Scramblers come in a choice of two alternative premium twin-paint schemes

– Scrambler 1200 XC

– Jet Black and Matt Black

– Khaki Green and Brooklands Green

– Scrambler 1200 XE

– Fusion White and Brooklands Green

– Cobalt Blue and Jet Black



80+ DEDICATED NEW SCRAMBLER CUSTOM ACCESSORIES

The new Scrambler 1200 XC and XE have been designed with personalisation at heart, with more than 80 accessories to deliver more rugged off-road focus, more style and more everyday usability.

The off-road accessories include:

– High level front mudguard

– Stainless steel engine bars

– Headlight grille



Styling and practicality accessories include:

– Connectivity Bluetooth module

– Arrow carbon fibre silencer

– Indicator relocation kit

– Handlebar brace

– Number board.



For longer distance escapes and daily practicality, accessories include:

– New developed rugged panniers

– Rugged tank bag

– 30 litre roll bag.



TWO NEW INSPIRATION KITS

To showcase the dual-character of the bikes, we’ve created a set of two exciting inspiration kits to use as the starting point for riders to design their own Scrambler 1200 custom, or to have fitted as a complete set – the fully loaded Escape kit and the off-road, stripped back Extreme kit.

‘Escape’ inspiration kit

Bringing an adventure touring style, the ‘Escape’ inspiration kit features a host of new Scrambler 1200 accessories. Including:

– Rugged pannier and fitting kit

– Handguards kit

– Grab rack kit

– LED fog lamps

– Centre stand

– Flyscreen and mounting kit



‘Extreme’ inspiration kit

Showcasing the more overtly off-road and stripped back custom style accessories, including:

– Arrow carbon silencer (homologated)

– Aluminium radiator guard

– Machined oil filler cap

– High front mudguard

– Black handlebar brace

– LED indicator kit and rear light relocation kit

– Side stand base extension

– Stainless steel dresser bar

– Headlight grille

– Headlight bezel



Bonneville Collection Clothing: Scrambler Range Adding to the hugely popular Bonneville clothing collection, Triumph has developed a dedicated range of Scrambler 1200 clothing, with a selection of short sleeve t-shirts, checkerboard goggles and a collection of riding and casual wear for men and women.











2019 Triumph Scrambler 1200XE – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU
Engine & Transmission
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11:1
Max Power EC 90PS/ 89bhp (66.2kW) @7,400rpm
Max Torque EC 110 Nm @ 3950 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
Chassis
Frame Tubular steel with aluminium cradle
Swingarm Twin-sided, aluminium
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tyre 90/90-21
Rear Tyre 150/50 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Off­road/Off-road Pro/Rider-Customisable)
Dimensions & Weights
Width Handlebars 905
Height Without Mirror 1250
Seat Height 870
Wheelbase 1570
Rake 26.9 º
Trail 129.2
Dry Weight 207
Tank Capacity 16
Fuel Consumption
Fuel Consumption 4.9 l/100km (58 MPG)
CO2 Figures EURO 4 Standard: 113g/km







2019 Triumph Scrambler 1200XE – Totalmotorcycle.com Canada Specifications/Technical Details
Engine & Transmission
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11:1
Max Power EC 90PS/ 89bhp (66.2kW) @7,400rpm
Max Torque EC 110 Nm @ 3950 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
Chassis
Frame Tubular steel with aluminium cradle
Swingarm Twin-sided, aluminium
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tyre 90/90-21
Rear Tyre 150/50 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Off­road/Off-road Pro/Rider-Customisable)
Dimensions & Weights
Width Handlebars 905
Height Without Mirror 1250
Seat Height 870
Wheelbase 1570
Rake 26.9 º
Trail 129.2
Dry Weight 207
Tank Capacity 16
Fuel Consumption
Fuel Consumption 4.9 l/100km (58 MPG)
CO2 Figures EURO 4 Standard: 113g/km









2019 Triumph Scrambler 1200XE – Totalmotorcycle.com European Specifications/Technical Details
Engine & Transmission
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11:1
Max Power EC 90PS/ 89bhp (66.2kW) @7,400rpm
Max Torque EC 110 Nm @ 3950 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
Chassis
Frame Tubular steel with aluminium cradle
Swingarm Twin-sided, aluminium
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tyre 90/90-21
Rear Tyre 150/50 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Off­road/Off-road Pro/Rider-Customisable)
Dimensions & Weights
Width Handlebars 905
Height Without Mirror 1250
Seat Height 870
Wheelbase 1570
Rake 26.9 º
Trail 129.2
Dry Weight 207
Tank Capacity 16
Fuel Consumption
Fuel Consumption 4.9 l/100km (58 MPG)
CO2 Figures EURO 4 Standard: 113g/km









2019 Triumph Scrambler 1200XE – Totalmotorcycle.com Australian Specifications/Technical Details











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 2352 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
