2020 Honda Shadow Phantom Guide

SUBTLE KNOCKOUT.

2020 Honda Shadow Phantom:

Sometimes a whisper can be louder than a shout. That’s the idea behind the 2020 Honda Shadow Phantom. Understated when it comes to bright colors or chrome. An over-achiever when it comes to a low center of gravity, rideability, comfort, and performance. Check out the spoked wheels, black rims, bobbed fenders and matte black accents. And at the heart of the matter, a blacked-out 745cc V-twin and throaty exhaust that offers the wide torque spread and user-friendly power every cruiser rider wants. No wonder it’s a popular favorite.

For those who eschew bling and prefer their bobber-inspired V-twin cruisers to have a minimalist, uncluttered look with an extensive blackout treatment, but also appreciate the convenience of reliable performance and programmed fuel injection, the low-profile Shadow Phantom® continues to be a popular stable in Honda’s lineup.









2020 Honda Shadow Phantom Totalmotorcycle.com Key Features









2020 Honda Shadow Phantom Totalmotorcycle.com Features and Benefits

ENGINE / DRIVETRAIN

  • 745cc liquid-cooled V-twin engine produces impressive power over a broad rpm range.
  • Crankshaft features long-stroke design to produce strong V-twin feel and low-rpm torque peak.
  • Three-Valve Dual-Plug Combustion Chamber.
  • Wide-ratio five-speed transmission.
  • Programmed Fuel Injection (PGM-FI) for good throttle response and fuel efficiency.

CHASSIS / SUSPENSION

  • Bobber-inspired styling with extensive blacked-out and matte finishes.
  • Minimalist front fender.
  • Handlebar shape enhances bobber styling.
  • Sturdy and responsive 41mm fork features large-diameter matte-finished shrouds and large billet-aluminum triple clamp for a distinctive look, and delivers confident, neutral handling.
  • Dual-shock rear suspension features five-position spring preload adjustability for a smooth ride.
  • Single front disc brake with twin-piston caliper grips a 296mm drilled rotor between sintered metal pads. Rear brake is drum type.
  • Shaft final-drive system provides smooth and reliable low-maintenance operation.
  • Spoke black wheels and hubs feature a 120/90-17 front tire and 160/80-15 rear tire to complete the overall custom look.
  • Low 25.8 inch seat height.
  • Sleek, one-piece gunfighter-type seat.
  • Tank-mounted speedometer in a stylish 3.7 gallon fuel tank.

Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

HONDA ACCESSORIES

Boulevard Screen (smoke), Custom Rider Seat, Solo Rider Rear Carrier, Backrest (tall/low), Rear Carrier, Backrest/Rear Carrier Mounting Brackets, Tank Belt (plain/studded), Saddlebags, Saddlebag Supports, Saddlebag Liner Set, Touring Bag (plain/studded/fringed), Front Pouch (plain/studded), Cycle Cover

WARRANTY: Because we are so confident in the quality of each of our Honda Accessories, we are pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

  • Meets current CARB and EPA standards.
  • California version differs slightly due to emissions equipment.









2020 Honda Shadow Phantom – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $7,899
USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
ENGINE
Type745cc liquid-cooled 52º V-twin
Valve TrainSOHC; three valves per cylinder
Bore x Stroke79.0mm x 76.0mm
Compression Ratio9.6:1
InductionPGM-FI w/ automatic enrichment, one 34mm throttle body
IgnitionDigital w/ 3D mapping, two spark plugs per cylinder
StarterElectric
TransmissionWide-ratio five-speed
ClutchMultiplate wet
Final DriveShaft
SUSPENSION
Front41mm telescopic fork; 4.6 in. travel


Rear

Dual shocks w/ five-position spring preload adjustability; 3.5
in. travel
BRAKES
FrontSingle 296mm disc w/ twin-piston caliper
Rear180mm drum
TIRES
Front120/90-17
Rear160/80-15
MEASUREMENTS
Rake (Caster Angle)34°
Trail161mm (6.3 in.)
Length94.3 in.
Width32.5 in.
Height42.9 in.
Seat Height25.8 in.
Ground Clearance5.1 in.
Wheelbase64.6 in.
Fuel Capacity3.7 gal., incl. 0.9-gal. reserve

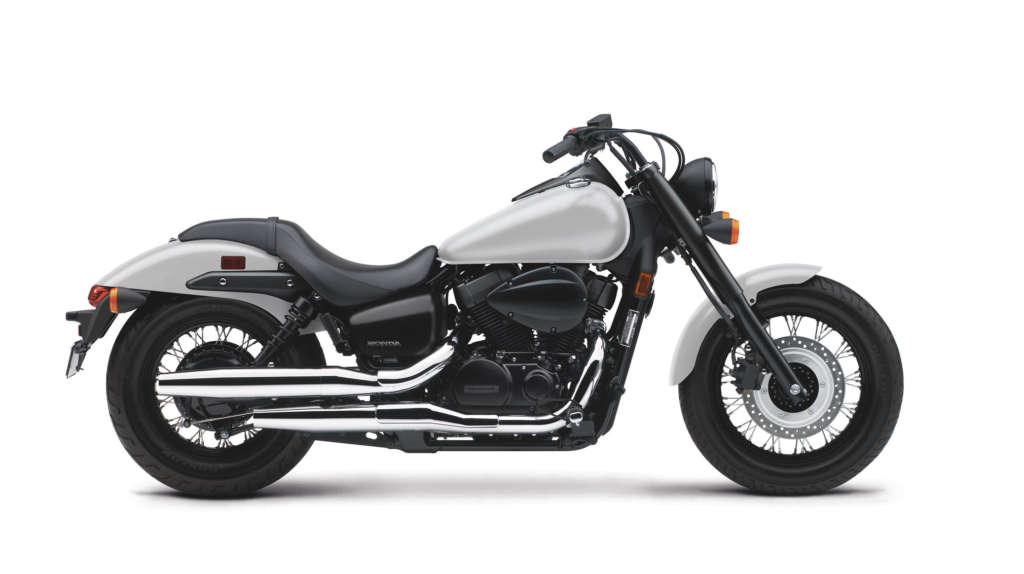

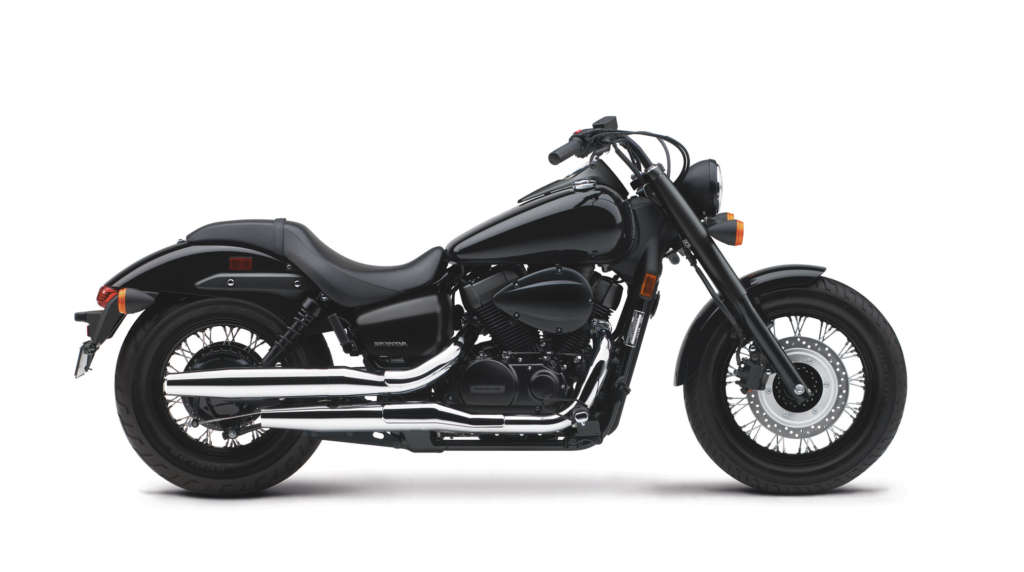

ColorBlack, Matte Pearl White
Curb Weight*549 lbs.



*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current EPA standards

Models sold in California meet current CARB standards and may differ slightly due to emissions equipment Specifications subject to change





2020 Honda Shadow Phantom – Totalmotorcycle.com Canada Specifications/Technical Details









2020 Honda Shadow Phantom – Totalmotorcycle.com European Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
