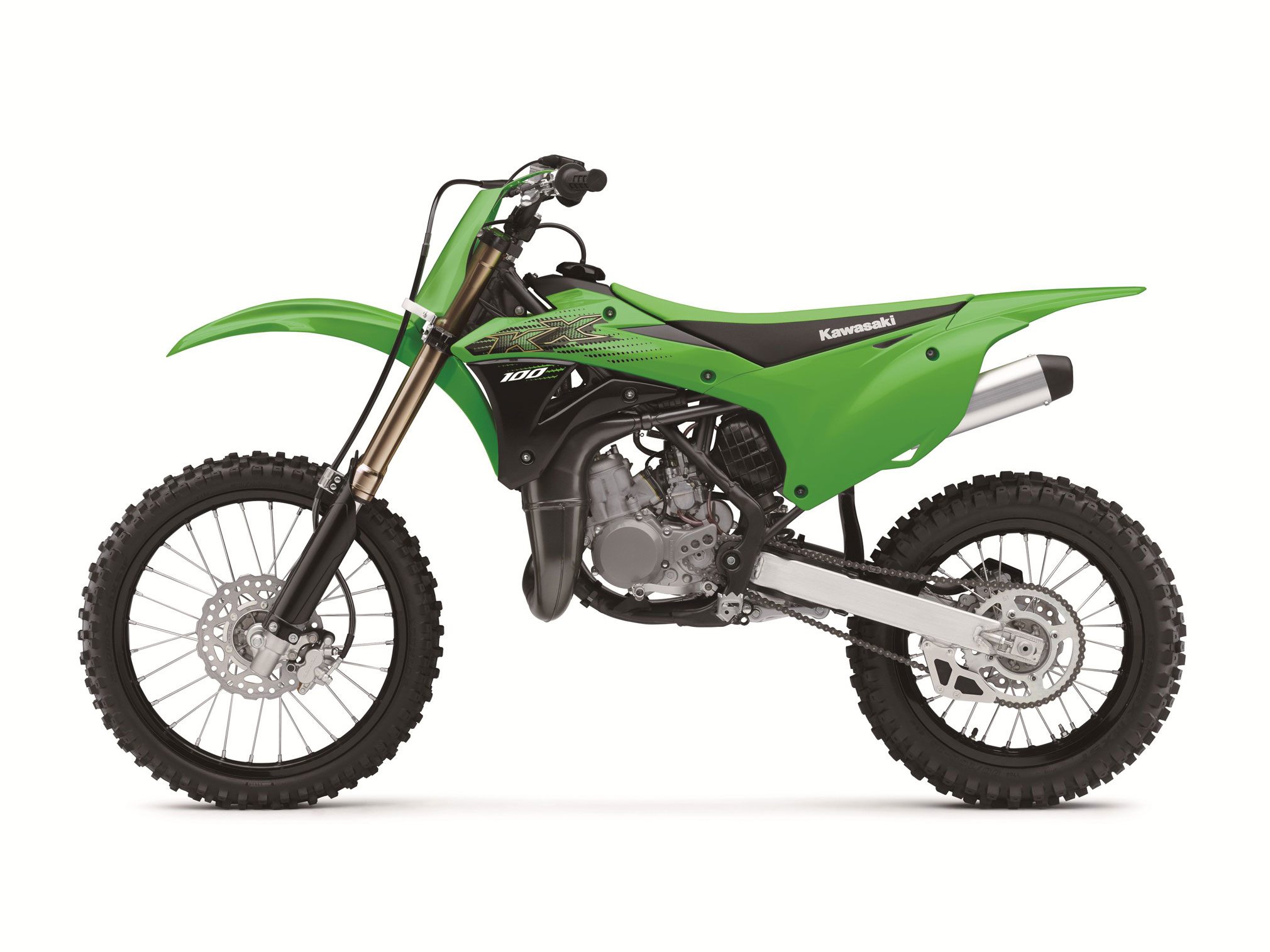

2020 Kawasaki KX100 Guide

2020 Kawasaki KX100

2020 Kawasaki KX100 2020 Kawasaki KX100 2020 Kawasaki KX100

THE BRIDGE TO GREATNESS.

2020 Kawasaki KX100:

Mold your aspiring racer by bridging the gap to full-size bikes with the KX™100 dirt bike. With a 99cc engine, this two-stroke super-mini gives riders the perfect blend of durability and proportionate power increase with a larger chassis before transitioning to the big bikes.

We designed the KX100 from the ground up for teenage chargers who are between the mini 85s and full-size 250s. Its 19-inch front and 16-inch rear wheels are sized just right for adolescent racers and its generous 275mm of front and rear wheel travel is widely tuneable to let your inner-race shine.

Despite its smaller stature, the powerful 99cc two-stroke engine in the KX™100 motorcycle resembles the jaw dropping “big bike” look of its larger KX counterparts, while maintaining its ability to outperform the competition. Designed using the same championship winning technology as Kawasaki’s full-size motocross models, an adjustable handlebar mounting system allows for riders to place themselves in the best ride position. Backed by winning performance from Kawasaki Team Green, the KX100 has been a natural step for the riders who are looking to make the transition from the 85cc class to a full-size motocross bike.





2020 Kawasaki KX100 Totalmotorcycle.com Key Features
  • 19-inch front wheel and 16-inch rear wheel
  • 3-inch seat height, 13-inch ground clearance
  • Front and rear disc brakes





2020 Kawasaki KX100 Totalmotorcycle.com Features and Benefits

ENGINE

Super-Mini with Big Power

99cc liquid-cooled two-stroke engine makes for the perfect stepping stone by bridging the performance gap from minis to full-size bikes. With proportionate power increase, this amateur champion delivers strong and instant power when the rider demands it.



SUSPENSION

Exceptional Ride

Front and rear suspension can be tuned to the rider’s preference. The 36mm inverted cartridge fork offers 20-way adjustable compression damping and 10.8 inches of travel. In the rear, the Uni-Trak® suspension features 10.8 inches of travel and has adjustable compression, rebound and preload.



BRAKES

Premium Stopping Power

A 220mm petal brake rotor in the front and a 184mm petal brake rotor in the rear offer progressive braking performance for confident riding. The petal design reduces unsprung weight while also helping to keep the brake pads clean and cool. The result is consistent braking performance with a firm feel.



ERGONOMICS

Built To Fit

KX™100 motorcycle grows with your young racer thanks to the ERGO-FIT® system. Featuring six-position adjustable handlebar mounts, ERGO-FIT enables riders to set their ideal ride position. Plus, larger (19F, 16R) wheels than the KX85 (17F, 14R) contribute to a taller 34.3-inch seat height and higher 13.0-inch ground clearance.







2020 Kawasaki KX100 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4599 USD
Canada MSRP Price: $5349 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Power

Engine

2-stroke, 1-cylinder, piston reed valve, water-cooled

Displacement

99cc

Bore x Stroke

52.5 x 45.8mm

Compression Ratio

10.2:1 (low speed) – 8.7:1 (high speed)

Fuel System

Keihin PWK28

Ignition

CDI with digital advance

Transmission

6-speed, return shift

Final Drive

Chain

Performance

Front Suspension / Wheel Travel

36mm inverted telescopic cartridge fork with 20-way compression damping/10.8 in

Rear Suspension / Wheel Travel

Uni-Trak® single shock system with 24-way compression and 21-way rebound damping plus adjustable spring preload/10.8 in

Front Tire

70/100-19

Rear Tire

90/100-16

Front Brakes

Disc

Rear Brakes

Disc

Details

Frame Type

High-tensile steel perimeter design with subframe member

Rake/Trail

29°/4.3 in

Overall Length

75.6 in

Overall Width

30.1 in

Overall Height

45.3 in

Ground Clearance

13.0 in

Seat Height

34.3 in

Curb Weight

169.7 lb**

Fuel Capacity

1.32 gal

Wheelbase

51.6 in

Color Choices

Lime Green

Warranty

Not Available

Kawasaki Protection Plus™ (optional)

Not Available









2020 Kawasaki KX100 – Totalmotorcycle.com  Canadian Specifications/Technical Details

Engine

Displacement99cc
Type2-stroke, Single with KIPS
Bore and stroke52.5 x 45.8 mm
CoolingLiquid, twin radiators
Compression ratio10.2 (low speed), 8.7 (high speed)
Fuel systemKeihin PWK28 carburetor
IgnitionDigital-CDI
LubricationPetrol mix (32:1), 2-stroke racing oil
Induction2-petal carbon-fibre piston reed valve

Brakes

Front: typeSingle 220 mm disc
Front: calipersDual-piston caliper
Rear: typeSingle 184 mm disc
Rear: calipersSingle-piston caliper

Dimensions

Overall length1,920 mm (75.2 in.)
Overall width765 mm (28.9 in.)
Overall height1,150 mm (43.5 in.)
Wheelbase1,310 mm (50.8 in.)
Ground clearance330 mm (13.0 in.)
Seat height870 mm (34.3 in.)
Curb mass**77 kg (157 lbs.)
Fuel capacity5 litres (1.21 gal.)

Drivetrain

Transmission6-speed, constant mesh, return shift
Final driveChain
Primary reduction ratio3.400 (68/20)
Gear ratio: 1st2.538 (33/13)
Gear ratio: 2nd1.875 (30/16)
Gear ratio: 3rd1.500 (27/18)
Gear ratio: 4th1.250 (25/20)
Gear ratio: 5th1.090 (24/22)
Gear ratio: 6th0.956 (22/23)
Final reduction ratio3.923 (51/13)
ClutchWet multi-disc

Frame

TypeTubular single cradle, high tensile steel perimeter
Wheel travel: front275 mm (10.8 in.)
Tire: front70/100-19
Wheel travel: rear275 mm (10.8 in.)
Tire: rear90/100-16
Caster (rake)29°
Trail108 mm (4.1 in.)
Steering angle (left/right)45° / 45°

Suspension

Suspension, front36 mm inverted telescopic cartridge fork with 20-way compression damping
Suspension, rearUni-Trak single-shock system with 24-way compression and 21-way rebound damping, plus adjustable spring preload







2020 Kawasaki KX100 – Totalmotorcycle.com European Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
