2020 Triumph Speed Triple RS : HIGHEST LEVEL OF PEDIGREE.

2020 Triumph Speed Triple RS.

Aggressive, agile and purposeful; the legendary Triumph Speed Triple created the performance naked category back in 1994 and coined the phrase ‘factory streetfighter’. The latest generation of Triumph’s modern motorcycle icon builds on the Speed Triple’s perfect balance of power, handling, and capability, making it the most advanced and powerful Speed Triple ever built. The new S and RS models are improved in every way, with the RS having the highest ever level of specification to reflect its new name and pedigree.

The new models now feature all new high-gloss ten-spoke wheels for a more premium and contemporary look, while retaining the instantly recognisable aggressive, nose-down, focussed attitude that the Speed Triple is loved for. The new race-style upswept twin silencers on the Speed Triple S have a larger bore and are fitted with aluminium heat shields, a black-painted body and a more slender stainless-steel end cap. Lightweight sports silencers are standard on the RS and they bring a significant improvement to the roar of the Triple engine, making the latest model the best sounding Speed Triple sound ever.

The new generation Speed Triple S and RS incorporate a major engine development and advanced engineering for performance enhancement and a weight saving. All 105 new engine components play a role to offer more power and torque throughout the rev range and a smoother, more linear power delivery. Peak power is now 7% higher than the previous generation at 150 PS and peak torque is up 4% at 117 Nm.

Colours:

Choice of two different colour combinations:

Jet Black or Crystal White, both with a titanium rear subframe, graphite wheel pinstripes, silver seat stitching and graphite decals





2020 Triumph Speed Triple RS Totalmotorcycle.com Key Features

•Lighter weight carbon fibre body panels
•Higher specification Öhlins suspension
•Billet machined handlebar clamps, risers, swingarm pivot covers and rear wheel cover
•Red ‘R’ detailing on seat stitching, rear subframe and wheel pinstripes





2020 Triumph Speed Triple RS Totalmotorcycle.com Features and Benefits

THE LEGEND COMES OF AGE

In 1994 we launched a bike that ignited a segment, defined a category and gave birth to the term ‘Streetfighter’. Over the past 21 years it has evolved but stayed true to its roots through its brooding minimalist stance encasing a thrilling Triumph Triple engine delivering a perfect balance of POWER, PRECISION, CHARACTER AND PERFORMANCE.

So how to make the new generation even better… with eye catching lines, billet machined components, stick-to-the-road Öhlins suspension on the R , incredible stopping performance from Brembo Monobloc brakes… add to that cutting-edge rider-aid technology combined with fistfuls of torque and real world power from the all-new 1050cc Triple engine, tuned for ultimate performance…we believe that’s how.



Configuration

A wall of pure linear torque and real world riding power is in your grasp and the Speed Triple’s new engine is tuned to deliver more than ever. When you wind on the power the all new free flowing under seat exhaust system unleashes the rich characterful roar unique to a Triumph triple engine… for all around you to hear.

The three-cylinder all new 1050cc engine in the Speed Triple delivers the ultimate real world riding experience. The delivery of the acres of full range torque is controlled by you. For the first time, five selectable rider modes have been added that allow you to select how the power is delivered in conjunction with the very latest rider focused technology that includes: throttle mapping, traction control and ABS. The modes include: Rain, Road, Sport, a map that is configurable by you and a fifth, Track mode for well…the Track.

The all new under seat exhaust system is not just a thing of beauty, it is lighter than its predecessor, 70% freer-flowing and tuned to unleash the rich characterful roar unique to a Triumph triple engine.



Engine

Our all new 1050cc triple engine incorporates 104 new developments that deliver More Power, More Torque and More Responsiveness, where the merest twist of the ride by wire throttle delivers an instantaneous wave of torque and a truly heart thumping surge of acceleration.

New ride by wire throttle bodies, new ECU, new cylinder head design, new combustion chamber, new header design, new fuel delivery system, new slip assist clutch, new crankshaft, new airbox… equals an all-new engine with a smaller, narrower profile and delivering the ultimate road riding experience. A guaranteed thrill for anyone who rides it.



Configuration

A wall of pure linear torque and real world riding power is in your grasp and the Speed Triple’s new engine is tuned to deliver more than ever. When you wind on the power the all new free flowing under seat exhaust system unleashes the rich characterful roar unique to a Triumph triple engine… for all around you to hear.

The three-cylinder all new 1050cc engine in the Speed Triple delivers the ultimate real world riding experience. The delivery of the acres of full range torque is controlled by you. For the first time, five selectable rider modes have been added that allow you to select how the power is delivered in conjunction with the very latest rider focused technology that includes: throttle mapping, traction control and ABS. The modes include: Rain, Road, Sport, a map that is configurable by you and a fifth, Track mode for well…the Track.

The all new under seat exhaust system is not just a thing of beauty, it is lighter than its predecessor, 70% freer-flowing and tuned to unleash the rich characterful roar unique to a Triumph triple engine.



Technology

LED Indicators

Highlighting the attention to detail of the Triumph Speed Triple, slim-line LED indicators are fitted (in applicable markets). Featuring a crafted polished aluminium body, the indicators add a finishing touch to the new slim profile styling.



RBW Throttle

The new Triumph Speed Triple features a ride-by-wire throttle that interprets grip position for more instant and accurate throttle response and control. It also has the added benefit of improving engine efficiency and fuel economy.



Single Sided Swingarm

More than just a signature styling characteristic, the new Speed Triple’s single-sided swingarm is engineered to optimise handling stability – not to mention making it easier to clean the rear wheel, or remove it when changing the rear tyre.



Riding Modes

The new Speed Triple features five selectable riding modes – Rain, Road, Sport, Track and a Rider-configurable mode. Each mode varies throttle response, ABS settings and traction control levels. Rain provides a softer throttle response, whilst Sport and Track provide a sharper, more aggressive throttle map. The riding modes can be quickly changed via new handlebar switchgear during riding, you can flip between road and track whenever the conditions or the mood takes you… or better still if the twisties come calling.



Twin Silencers

The under seat exhaust on the new Triumph Speed Triple, with black wrap and shot-blasted and anodised aluminium heat shields, are lightweight and incredibly efficient, but best of all, they sound incredible.



Styling

With its bold, distinctive looks, the Speed Triple is one of the most instantly recognisable silhouettes. The new Speed Triple takes this to the next level; aggressive and hunkered nose down, new low profile stance, more focused, more athletic, more streamlined. New twin headlights, single-sided swingarm and underseat exhaust are its signature. The new Speed Triple redefines the look and iconic style.



Handlebar Clamps and Risers

Exclusive to the new Speed Triple R, outstanding attention to high quality detail is evident immediately when you reach for its handlebars. The wide alloy bars are held by a pair of clamps and risers exquisitely machined from a solid aluminium billet, designed for style, engineered for substance.



Mudguard and Tank Infill Panels

Saving every ounce of weight makes a big difference in performance. That’s why the Speed Triple R features an exclusive, lightweight carbon fibre front mudguard and a pair of carbon fibre tank infill panels, both for that high-performance style and to save weight.



Rear Wheel Finisher

The smallest details can make the biggest impact, which is why the new Triumph Speed Triple R comes with a rear wheel finisher made from machined billet of aluminium. A true reflection of our attention to detail.



‘R’ Styling Features

The dynamics of the Triumph Speed Triple front end is epitomised by a pair of signature profiled headlights and fly screen that incorporates its air intake scoop between the lights, giving a lower more aggressive look.



Fly Screen

The new dynamics of the Triumph Speed Triple front end is epitomised by a pair of signature profiled headlights and fly screen that incorporates its air intake scoop between the lights, giving a lower more aggressive look.



Bar End Mirrors

The new Speed Triple features a pair of aluminium bar-end mirrors that not only give an improved rearward view but add to the sleek and aggressive profile of the bike.



Fuel Tank

The new Speed Triple features a sleek fuel tank with a low side profile for a fully integrated design. Ergonomically styled for its streamlined athletic appearance, it’s also made from magnetic tankbag-friendly steel.



Radiator Shrouds

A narrow radiator gives the Speed Triple a slim front end profile. The sleek radiator cowls and a bellypan (standard fit on the R version) adds to the distinctive design silhouette.



Twin Seat

The new Triumph Speed Triple’s seat is a separate two-piece design, focussed to deliver the best individual shape for comfort. The rider’s seat has 20mm narrower front profile which aids control and improves ‘stand-over’, but is also now wider and more supportive at the back making it even more comfortable. The Triumph logo is embossed on the leading edge of the pillion seat, giving added detail.



Twin Silencers

The under seat exhaust on the new Triumph Speed Triple, with black wrap and shot-blasted and anodised aluminium heat shields, are lightweight and incredibly efficient, but best of all, they sound incredible.



Styling

With its bold, distinctive looks, the Speed Triple is one of the most instantly recognisable silhouettes. The new Speed Triple takes this to the next level; aggressive and hunkered nose down, new low profile stance, more focused, more athletic, more streamlined. New twin headlights, single-sided swingarm and underseat exhaust are its signature. The new Speed Triple redefines the look and iconic style.



Riding and Handling

The Triumph Speed Triple is defined by its ability to deliver dynamic handling in all riding conditions and the new Speed Triple builds on that reputation. A forward, aggressive riding position ensures total control, total confidence, whether you’re forging a path through urban sprawl, sweeping at speed across the countryside or hitting the apex at a race track.



Suspension

The new Speed Triple S has preload, compression and rebound damping-adjustable 43mm upside-down Showa forks and Showa monoshock rear suspension unit, utilising factory honed settings. The Speed Triple R uses 43mm Öhlins NIX30 upside down forks and Öhlins TTX36 twin tube rear monoshock both fully adjustable for preload, compression and rebound damping. This all means it sticks to the road when the throttle is open and the bends are calling.



Wheels, Brakes and Tyres

For the ultimate in stopping power, the new Triumph Speed Triple S and Speed Triple R both use radial Brembo monobloc calipers, gripping 320mm discs, in conjunction with switchable, variable ABS. Adding to all-round braking performance and balanced high-grip and durability, both Speed Triple S and Speed Triple R use Pirelli Diablo Supercorsa tyres running on light, cast aluminium wheels.



Frame

With heritage drawn from the ground-breaking 1995 Triumph Daytona T595 superbike, the new Speed Triple has a twin spar tubular aluminium frame bringing its perfect blend of rigidity and feel.



Chassis overview

The new Triumph Speed Triple has agility, stability and engagement at the heart of its handling characteristics. With its dynamic and refined ride balanced by a bold, aggressive attitude you will find yourself looking for excuses to take the long way home for maximum fun and maximum thrills.









2020 Triumph Speed Triple RS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16,350 USD
Canada MSRP Price: $18,300 CDN
Europe/UK MSRP Price: £13,600  GBP (On The Road inc 20% Vat)
ENGINE & TRANSMISSION
Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Capacity 1,050 cc
Bore 3.11 in (79 mm)
Stroke 2.81 in (71.4 mm)
Compression 12.92:1
Max Power EC 148 Hp (110 kW) @ 10,500 rpm
Max Torque EC 86 FT-lbs @ 7,150 rpm
System Multipoint sequential electronic fuel injection with SAI
Exhaust Stainless Steel 3 into 1 into 2 high level stainless steel mufflers
Final Drive X ring chain
Clutch Wet, multi-plate slip-assist clutch
Gearbox 6-speed
CHASSIS
Frame Aluminum beam twin-spar
Swingarm Single-sided, aluminum alloy with eccentric chain adjuster
Front Wheel Cast aluminum alloy multi-spoke 17 in x 3.5 in
Rear Wheel Cast aluminum alloy multi-spoke 17 in x 6.0 in
Front Tire 120/70 ZR17
Rear Tire 190/55 ZR17
Front Suspension Ohlins 43 mm NIX30 upside down forks with adjustable preload, rebound and compression damping, 120 mm travel
Rear Suspension Öhlins TTX36 twin tube monoshock with preload, rebound and compression damping, 130 mm rear wheel travel
Front Brakes Twin 12.6 in (320 mm) floating discs, Brembo 4-piston Monobloc radial calipers Switchable ABS
Rear Brakes Single 10.04 in (255 mm) disc, 2-piston sliding caliper Switchable ABS

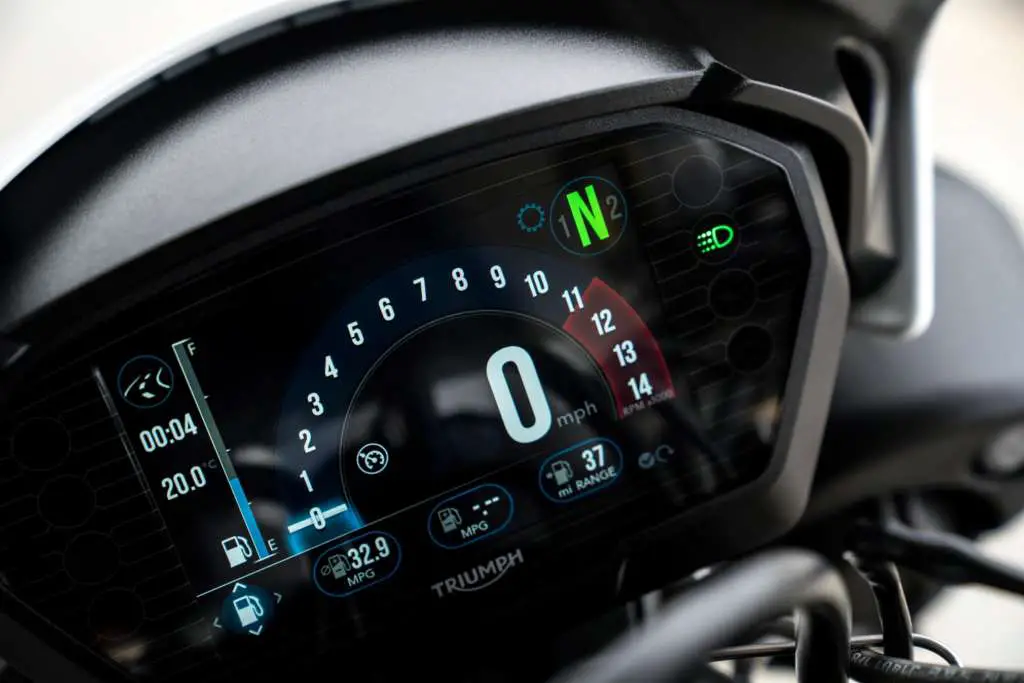

Instrument Display and Functions Full-color 5″ TFT instruments
DIMENSIONS & WEIGHTS
Width Handlebars 30.51 in (775 mm)
Height Without Mirror 42.13 in (1,070 mm)
Seat Height 32.48 in (825 mm)
Wheelbase 56.89 in (1,445 mm)
Rake 22.9 º
Trail 3.59 in (91.3 mm)
Dry Weight 416 lbs (189 Kg)
Tank Capacity 4.1 US gallons (15.5 L)
FUEL CONSUMPTION
Fuel Consumption 45.2 mpg (5.2 L/100km)







2020 Triumph Speed Triple RS – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION
Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 1050 cc
Bore 3.11 in (79 mm)
Stroke 2.81 in (71.4 mm)
Compression 12.92:1
Max Power EC 148 Hp (110 kW) @ 10,500 rpm
Max Torque EC 86 FT-lbs @ 7,150 rpm
System Multipoint sequential electronic fuel injection with SAI
Exhaust Stainless Steel 3 into 1 into 2 high level stainless steel silencers
Final Drive X ring chain
Clutch Wet, multi-plate slip assist clutch
Gearbox 6-speed
CHASSIS
Frame Aluminium beam twin-spar
Swingarm Single-sided, aluminium alloy with eccentric chain adjuster
Front Wheel Cast aluminium alloy multi-spoke 17 x 3.5 in
Rear Wheel Cast aluminium alloy multi-spoke 17 x 6.0 in
Front Tire 120/70 ZR17
Rear Tire 190/55 ZR17
Front Suspension Ohlins 43 mm NIX30 upside down forks with adjustable preload, rebound and compression damping, 120 mm travel
Rear Suspension Öhlins TTX36 twin tube monoshock with preload, rebound and compression damping, 130 mm rear wheel travel
Front Brakes Twin 320 mm floating discs, Brembo 4-piston Monobloc radial calipers. Switchable ABS
Rear Brakes Single 255 mm disc, 2-piston sliding caliper. Switchable ABS
Instrument Display and Functions Full-colour 5″ TFT instruments
DIMENSIONS & WEIGHTS
Width Handlebars 30.51 in (775 mm)
Height Without Mirror 42.13 in (1,070 mm)
Seat Height 32.48 in (825 mm)
Wheelbase 56.89 in (1,445 mm)
Rake 22.9 º
Trail 3.59 in (91.3 mm)
Dry Weight 416 lbs (189 Kg)
Tank Capacity 4.1 US gallons (15.5 L)
FUEL CONSUMPTION
Fuel Consumption 5.2 L/100km
CO2 Figures EURO 4 Standard: 119 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.







2020 Triumph Speed Triple RS – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 1050 cc
Bore 79 mm
Stroke 71.4 mm
Compression 12.92:1
Max Power EC 150 PS / 148 Bhp (110 kW) @ 10,500 rpm
Max Torque EC 117 Nm @ 7,150 rpm
System Multipoint sequential electronic fuel injection with SAI
Exhaust Stainless Steel 3 into 1 into 2 high level stainless steel silencers
Final Drive X ring chain
Clutch Wet, multi-plate slip assist clutch
Gearbox 6-speed
CHASSIS
Frame Aluminium beam twin-spar
Swingarm Single-sided, aluminium alloy with eccentric chain adjuster
Front Wheel Cast aluminium alloy multi-spoke 17 x 3.5 in
Rear Wheel Cast aluminium alloy multi-spoke 17 x 6.0 in
Front Tyre 120/70 ZR17
Rear Tyre 190/55 ZR17
Front Suspension Ohlins 43 mm NIX30 upside down forks with adjustable preload, rebound and compression damping, 120 mm travel
Rear Suspension Öhlins TTX36 twin tube monoshock with preload, rebound and compression damping, 130 mm rear wheel travel
Front Brakes Twin 320 mm floating discs, Brembo 4-piston Monobloc radial calipers. Switchable ABS
Rear Brakes Single 255 mm disc, 2-piston sliding caliper. Switchable ABS
Instrument Display and Functions Full-colour 5″ TFT instruments
DIMENSIONS & WEIGHTS
Width Handlebars 775 mm
Height Without Mirror 1,070 mm
Seat Height 825 mm
Wheelbase 1,445 mm
Rake 22.9 º
Trail 91.3 mm
Dry Weight 189 kg
Tank Capacity 15.5 L
FUEL CONSUMPTION
Fuel Consumption 5.2 L/100km
CO2 Figures EURO 4 Standard: 119 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
