2020 Zero FXS Guide

2020 Zero FXS

2020 Zero FXS 2020 Zero FXS 2020 Zero FXS 2020 Zero FXS 2020 Zero FXS

2020 Zero FXS : STEALTHY SUPERMOTO.

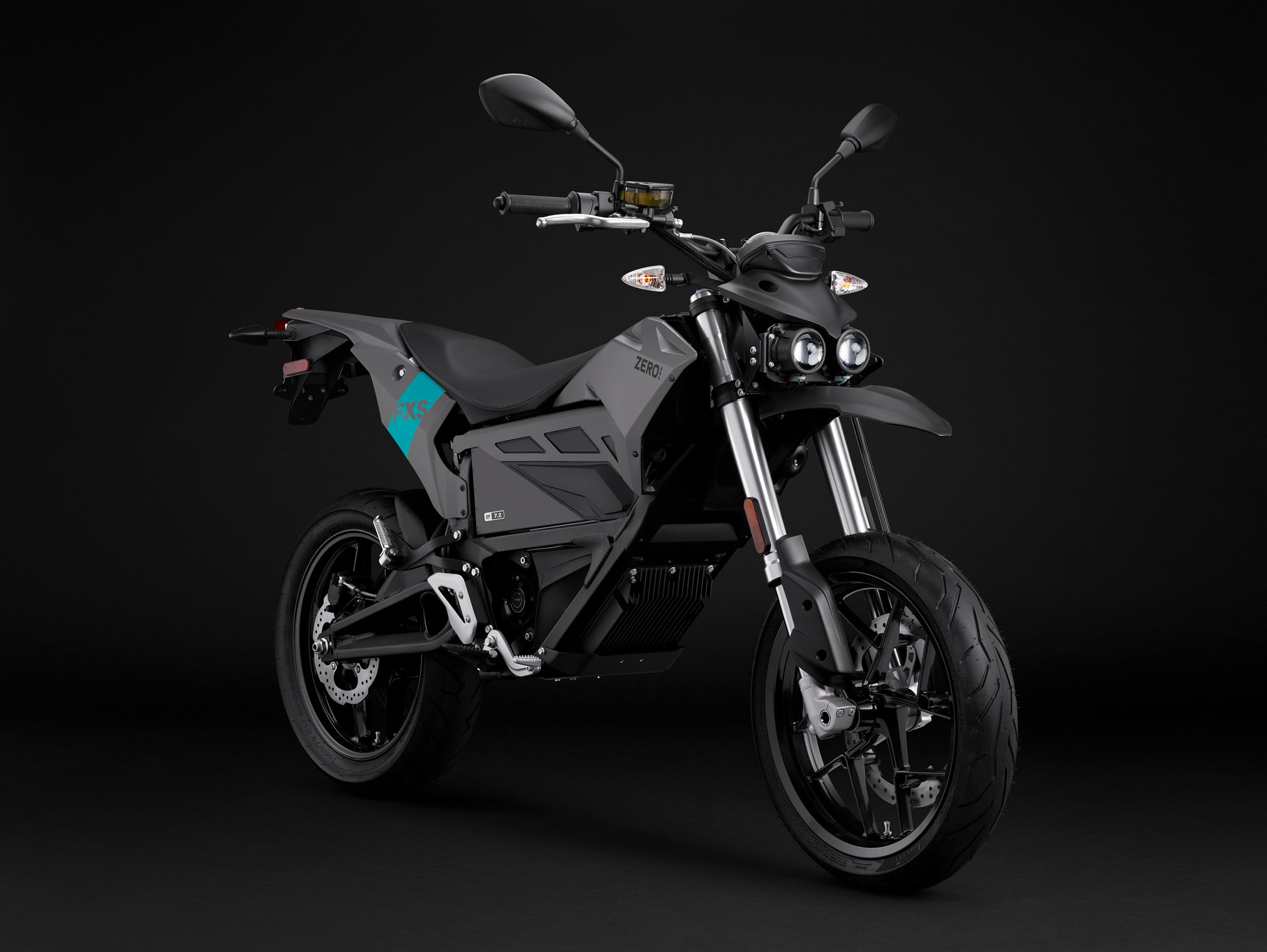

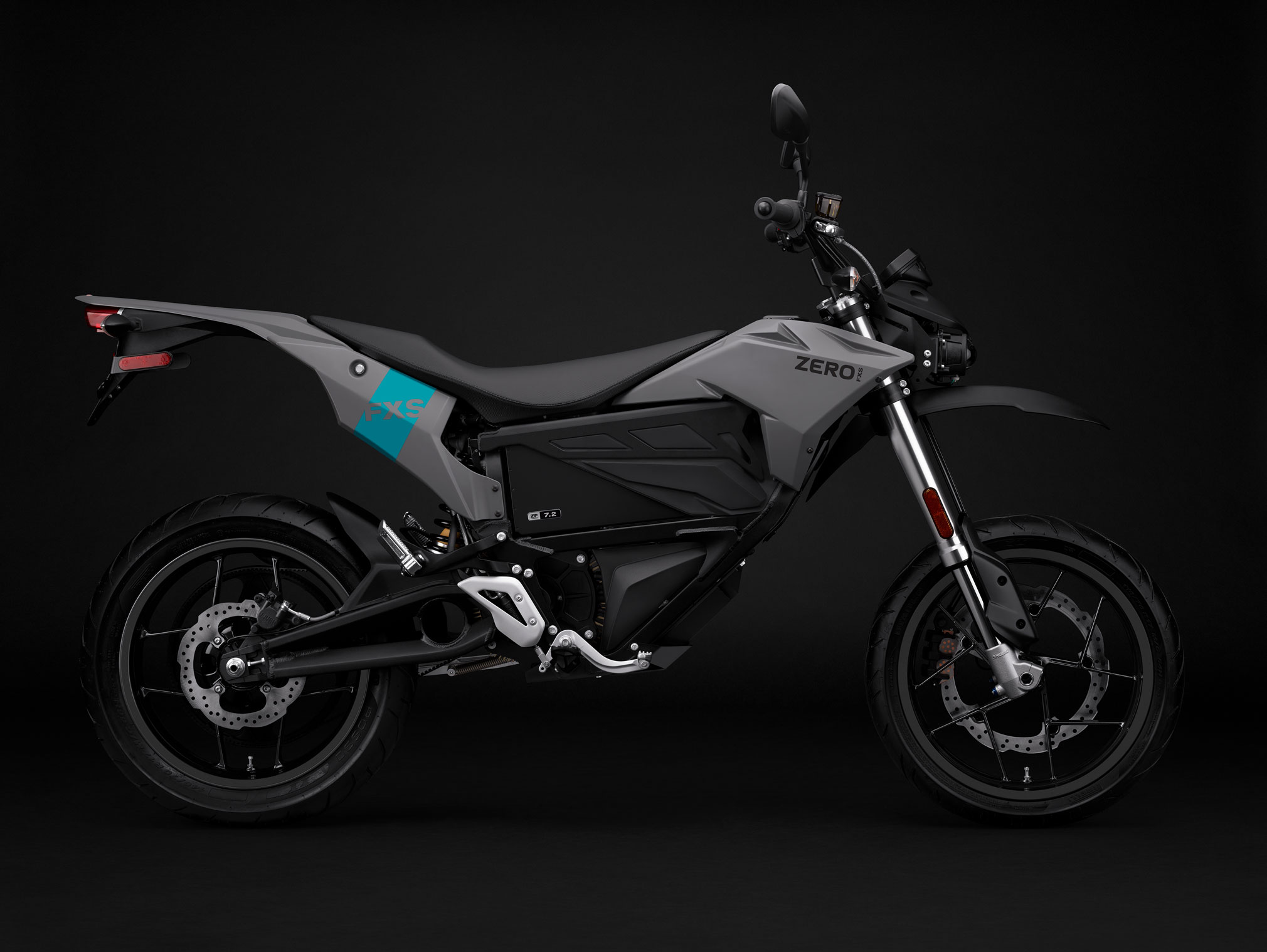

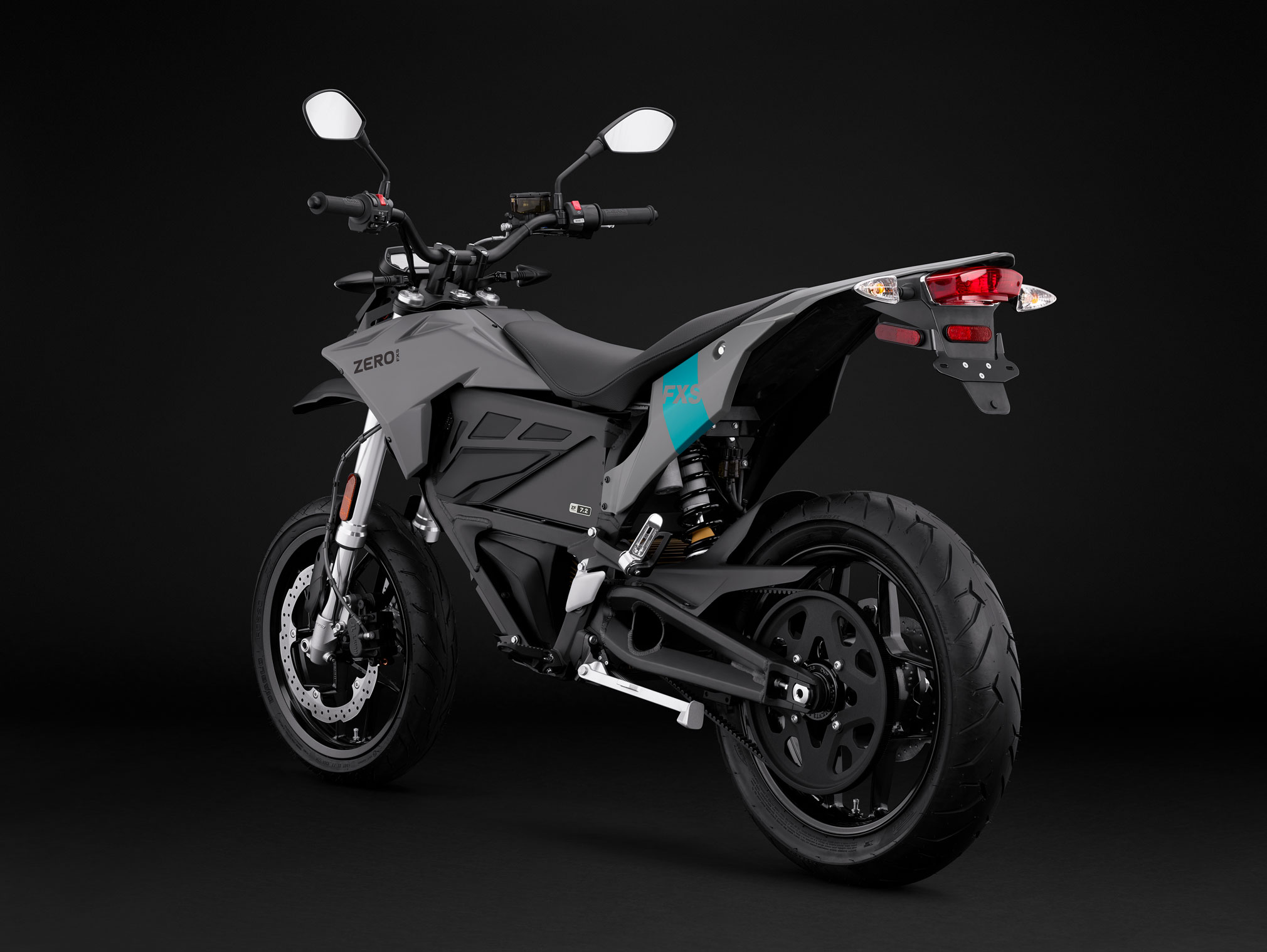

Introducing the 2020 Zero FXS.

Quick. Mean. Compact. With precise handling and blistering acceleration, the Zero FXS stealthily shreds any urban slalom or conquers your local track with tarmac carving fierceness. Combining off road ruggedness with on-road agility, the Zero FXS is the ultimate way to cut through the concrete jungle.



The Zero FXS is available in two configurations:

ZERO FXS ZF3.6
Hot swappable. Modular.
The ZF3.6 is among Zero’s most economical models and ideal for inner city use or for those looking for an ultra-fast “recharge.” Its hot-swappable Z-Force® system allows batteries to be swapped in seconds for freshly charged battery modules using optional accessories. Add a second module to match the range and performance of the ZF7.2.

Range (mi): 50 city / 20 highway

Color: Slate



ZERO FXS ZF7.2
2x the range “out of the box”
The ZF7.2 offers twice the range and power of the ZF3.6. The battery is fully integrated into the motorcycle to offer the most economical way of maximizing the range of the Zero FXS.

Range (mi): 100 city / 40 highway

Color: Slate





2020 Zero FXS Totalmotorcycle.com Key Features

OWNERSHIP ADVANTAGE
Exhilarating performance. Carefree ownership.
There are some clear advantages to going electric: no need to visit the gas station, no oil, no exhaust, etc. In addition, there are a host of benefits experienced by Zero owners on a regular basis that are not as obvious. Behind the design of each cutting edge model is a philosophy of elegant simplicity that keeps the weight of the motorcycle low, virtually eliminates all routine powertrain maintenance and yields stealthy acceleration. The result is an incredibly exhilarating ride and an ownership experience that appreciates mile after mile.

Zero Motorcycle ownership – savings over time
A Long Term Perspective
As a premium brand, Zero designs each motorcycle with the sort of quality and integrity that inspires an exceptional riding experience. Beyond that, the upfront cost of a Zero is not what it appears to be when compared against its traditional internal combustion counterparts. Each mile ridden on a Zero is considerably less expensive, making it considerably more enjoyable, due to the elimination of routine powertrain maintenance and no gas expenses. As it turns out, when compared to other premium brands, a Zero starts saving the owner money on gas and maintenance from day one. In fact, over the life of their motorcycle many Zero owners actually save more than they would have if they had purchased a comparable internal combustion model.

Zero Routine Powertrain Maintenance
All Zero motorcycles feature a direct drive, maintenance-free powertrain. As an incredibly efficient system, direct drive channels power directly from the motor to the rear wheel via a strong and silent, constant tension belt. Not only does direct drive minimize friction loss by eliminating clutches and gears, but it also helps eliminate the need for routine powertrain maintenance and reduces the weight of the motorcycle.

TOP 15 THINGS YOU’LL NEVER DO AGAIN

BUY GAS

REPLACE CLUTCH

SYNC THROTTLE AND IDLE SPEED

CHANGE ENGINE OIL FILTER

LUBRICATE CHOKE CABLES

CHANGE ENGINE OIL

CHECK ENGINE OIL

ADJUST VALVE CLEARANCE

CHANGE AIR FILTER

REPLACE TIMING BELT

CHECK EXTERNAL FUEL HOSES

REPLACE SPARK PLUGS

CHANGE FUEL FILTER

ADJUST CLUTCH CABLES

CHECK CLUTCH FLUID LEVEL



CHARGING THAT FITS YOUR LIFESTYLE
Charging on models FX, FXS, S, and DS requires no additional equipment or installations, and the SR/F can access any outlet with the included EVSE cable. Bring your Zero home, plug it into your nearest outlet. Done.

Start every day with a full “Tank”
Ditch the gas station. Plug in at night and wake up every morning with a full “tank.” Per hour of charging, a Zero takes you farther than just about any EV in the world. As a result, most owners use a household outlet to “fuel” their daily rides.

Charge Even Faster
Add dozens of miles of range while grabbing coffee. Adding the Rapid Charge option to SR/F boosts charging by 6 kW, up to a staggering 12 kW capacity. 2015 and newer Zero S and Zero DS models can be complemented with a 6 kW Charge Tank. The Charge Tank and SR/F use the EV standard J1772 connection that is uniform throughout the rapidly expanding network of Level 2 (220 V) public and home charging stations. Zero’s fastest charging options increase charging speeds by up to 10 times what you’d expect from a normal household outlet, enabling recharges to 95% in as little as one hour.

Scalable Quick Chargers
For home or office use, the scalable “Quick Charger” system can more than double charging speeds (dramatically reducing charging times) for any Zero FX, FXS, S, or DS. The system uses stand-alone (off-board) 1kW chargers that work in conjunction with the motorcycle’s standard (on-board) charger. Note: each charger typically needs to be plugged into a separate circuit.



OWNERSHIP ADVANTAGE
Exhilarating performance. Carefree ownership.
There are some clear advantages to going electric: no need to visit the gas station, no oil, no exhaust, etc. In addition, there are a host of benefits experienced by Zero owners on a regular basis that are not as obvious. Behind the design of each cutting edge model is a philosophy of elegant simplicity that keeps the weight of the motorcycle low, virtually eliminates all routine powertrain maintenance and yields stealthy acceleration. The result is an incredibly exhilarating ride and an ownership experience that appreciates mile after mile.

A Long Term Perspective
As a premium brand, Zero designs each motorcycle with the sort of quality and integrity that inspires an exceptional riding experience. Beyond that, the upfront cost of a Zero is not what it appears to be when compared against its traditional internal combustion counterparts. Each mile ridden on a Zero is considerably less expensive, making it considerably more enjoyable, due to the elimination of routine powertrain maintenance and no gas expenses. As it turns out, when compared to other premium brands, a Zero starts saving the owner money on gas and maintenance from day one. In fact, over the life of their motorcycle many Zero owners actually save more than they would have if they had purchased a comparable internal combustion model.

Zero Routine Powertrain Maintenance
All Zero motorcycles feature a direct drive, maintenance-free powertrain. As an incredibly efficient system, direct drive channels power directly from the motor to the rear wheel via a strong and silent, constant tension belt. Not only does direct drive minimize friction loss by eliminating clutches and gears, but it also helps eliminate the need for routine powertrain maintenance and reduces the weight of the motorcycle.

Z-FORCE® MOTOR
Instant Torque. Impressive Power. Incredible Efficiency.
The Z-Force® motor was developed from the ground up by Zero Motorcycles to be optimized for efficiency, power and size. The Z-Force® motor features an interior permanent magnet (IPM) design that significantly improves performance during hard riding and allows higher sustained top speeds. Even more impressive, the compact brushless motor requires no liquid or forced-air cooling and requires no routine maintenance.

When combined with a Z-Force® Power Pack, the remarkably compact and light motor delivers amazing horsepower and breathtaking acceleration. Providing a unique ride quality, the motor produces 100% torque from a standstill for instantaneous throttle response and incredible off-the-line performance.

While sophisticated, the Z-Force® motor is designed to make the ownership experience simple and exhilarating. All extra parts, maintenance concerns and weight have been eliminated to help riders focus on the best part of owning a motorcycle – the ride.

POWER TANK
Install Any Time. Go Farther.
The Z-Force® Power Tank adds an additional 3.6 kWh of battery storage capacity to any 2014 or later Zero SR/F, Zero S, Zero SR, Zero DS or Zero DSR model*. An optional accessory, the Power Tank can be added at any time-during or after motorcycle purchase. For example, if you purchase a Zero SR ZF14.4, you could upgrade your motorcycle to 18 kWh of battery capacity if additional range is needed. With that much energy, you can travel up to 223 miles in the city or 112 miles on the highway.

The Power Tank is a dealer-installed accessory which comes complete with a Z-Force® Power Pack module and all necessary hardware. On Zero S, SR, DS and DSR, the Power Tank completely replaces the tank bodywork and tank storage area. The Zero SR/F retains a small lockable storage area with the Power Tank installed.

*Please note that the Power Tank is not compatible with motorcycles equipped with the Charge Tank or with the an additional 6 kW Rapid Charge module installed. Power Tank will be available for Zero SR/F in fall of 2019.



Get your ride dialed.
Bluetooth enabled connectivity for both iPhone and Android mobile devices
Adjustable motorcycle performance to enable sportier or more economical riding
Customizable display reports precise state of charge and real-time power usage while riding
Owners of 2017-2020 models can use the Zero Motorcycles app to update their motorcycle’s firmware, saving time, money and service trips.

ENVIRONMENT
Clean. And getting Cleaner Every Year.
Zero Motorcycles’ 100% electric powertrain significantly reduces CO2 and noxious fumes emissions while also saving oil reserves. Regardless of any one personal or political reason, conserving oil and reducing tail pipe emissions offer a wide range of benefits. In fact, because the electrical grid is becoming increasingly efficient year after year, a Zero will become more energy efficient and cleaner with age. And for those who truly aspire to absolute energy independence or eliminating emissions, it is even possible to power a Zero using completely renewable energy sources. Regardless of where the energy comes from, there’s something very freeing about passing the gas station as the prices continue to hit new highs.

Two Zero motorcycles off road at dusk
“Americans spend in excess of 100 hours commuting to work each year. For the nation as one, the average daily commute to work lasted about 24.3 minutes in 2003. A motorcycle or a scooter does not offer a lot of passenger room or storage space, but most get far better mileage than even a hybrid car and at a far cheaper price. Moreover, two wheelers have the added advantage of maneuverability to beat the rush hour traffic. With fuel prices skyrocketing, motorcycles and scooters can be a practical fuel-economy transportation option for the typical half hour drive to work.” – AMERICAN COMMUNITY SURVEY (ACS) DATA RELEASED BY THE U.S. CENSUS BUREAU MARCH 2005

Fewer Emissions
More than 50 studies and analyses conclude: fewer emissions from plug-in vehicles

Plug-ins would provide carbon emissions reductions in 49 U.S. states, including some that are heavily dependent on coal
For a car – about a 70% reduction in emissions
For a motorcycle – over 90% reduction in emissions

Cleaner Running Every Year
As the electrical grid gets cleaner – plug-ins get even cleaner
Plug-in cars move emissions away from population centers.
Output from a few thousand power plants is easier to control than 200 million vehicle tailpipes.

Less expensive than you expect.
One of the first questions that everyone asks about electric motorcycles is, unsurprisingly, “how far?” Zero Motorcycles offers an entire model line, and each model and variation has a different range. At present, the longest range in the lineup goes to the Zero SR ZF14.4 + Power Tank with 223 miles in the city. However, there are a number of options with lesser ranges that offer different benefits for those who only want a motorcycle for getting around town or the city. After all, selecting an electric motorcycle is all about making the best choice for your lifestyle.

To select the motorcycle that best meets your needs, we recommend you see how far you typically ride in a day. Depending on how closely you watch your mileage, the answer may surprise you. According to the US Department of Transportation, the average ‘driver’ travels about 13,476 miles per year. That breaks down to roughly 37 miles on average per day. Once you own a Zero, 37 miles will cost you a whopping 37¢ per day. Did we mention that there’s also no routine powertrain maintenance?

Maximize your Range
Range varies in electric motorcycles similarly to how it varies in gas motorcycles. However, the big difference between electric and gas is that energy consumption is averaged over a shorter distance on an electric motorcycle. Electric motorcycles are designed for convenient daily recharges versus less frequent and less convenient trips to the gas station. As a result, the same electric motorcycle often yields different ranges from one full recharge to the next.

How to Predict the Range
To generally predict how an electric motorcycle’s range will be affected, you can use the four factors:

By considering each of these factors, you can use specifications such as city, highway or combined ranges as standards to estimate what the motorcycle’s practical range will be under your particular usage case.











2020 Zero FXS Totalmotorcycle.com Features and Benefits

POWERFUL. MINIMALIST.
The Zero FXS delivers unfiltered thrill by combining our most compact Z-Force® powertrain with Pirelli Diablo Rosso II tires and the off-road DNA of the Zero FX. No shifting or clunkiness. Directly connect your desire for speed with instant, massive, silent, and seamless acceleration.

Transform performance profiles with the press of a button to perfectly conquer city streets or your local supermoto track. The Zero FXS is pre-programmed with Eco or Sport modes. Connect using your mobile device to customize performance or get stats on your ride.

CHARGING. NO STATION NEEDED.
Standard outlet. Done. No special charging equipment required. Your household outlets just became “fueling” stations that deliver daily rides at a fraction of the cost of gasoline. Ride up to 100 miles a day in the city and plug in overnight to start the next day with a full “tank.”

Need a faster charging solution? Use accessory Quick Chargers to cut charge times by over 60%.

PASS ON SERVICE.
Imagine savage performance delivered without tedious and greasy servicing regimes. Forget oil changes, spark plugs, clutches, filters, chain adjustments or expensive tune-ups. Instead, a carbon fiber belt cleanly connects the rear wheel to an air-cooled Z-Force® motor that uses a single moving part. Swap threadbare tires. Replace used-up brake pads. Ride.

Always advancing. Code for the Z-Force® powertrain is constantly refined to deliver improved performance. The Zero App easily delivers the upgrades using your mobile device.

GO THE DISTANCE.
The Zero FXS travels up to 100 mi when traversing city streets. At its core is Zero’s most compact and lightweight Z-Force® battery that, like rest of the lineup, boasts the highest power and energy density in the EV industry.

Don’t need the range and looking for Zero’s most economical model? Drop some weight. The Zero FXS ZF3.6 cuts the battery’s weight and size by roughly fifty percent. Add a second battery module at any time to match the range and performance of the ZF7.2.









2020 Zero FXS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 8995 – 10995 USD
Canada MSRP Price: $ 11,795 – 14,495 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing GBP (On The Road inc 20% Vat)
RANGEZERO FXS ZF3.6 MODULARZERO FXS ZF7.2
City?50 miles (80 km)100 miles (161 km)
Highway, 55 mph (89 km/h)?30 miles (48 km)60 miles (97 km)
Combined?37 miles (60 km)75 miles (121 km)
Highway, 70 mph (113 km/h)?20 miles (32 km)40 miles (64 km)
Combined?29 miles (47 km)57 miles (92 km)
MOTOR
Peak torque78 ft-lb (106 Nm)78 ft-lb (106 Nm)
Peak power?27 hp (20 kW) @ 4,300 rpm46 hp (34 kW) @ 4,300 rpm
Top speed (max)?85 mph (137 km/h)85 mph (137 km/h)
Top speed (sustained)?75 mph (121 km/h)75 mph (121 km/h)
TypeZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motorZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller?High efficiency, 550 amp, 3-phase brushless controller with regenerative decelerationHigh efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
POWER SYSTEM
Power packZ-Force® Li-Ion intelligent modularZ-Force® Li-Ion intelligent integrated
Max capacity?3.6 kWh7.2 kWh
Nominal capacity?3.2 kWh6.3 kWh
Charger type650 W, integrated650 W, integrated
Charge time (standard)?5.1 hours (100% charged) / 4.6 hours (95% charged)9.7 hours (100% charged) / 9.2 hours (95% charged)
With one accessory charger?2.3 hours (100% charged) / 1.8 hours (95% charged)4.1 hours (100% charged) / 3.6 hours (95% charged)
With max accessory chargers?1.6 hours (100% charged) / 1.1 hours (95% charged)1.8 hours (100% charged) / 1.3 hours (95% charged)
InputStandard 110 V or 220 VStandard 110 V or 220 V
DRIVETRAIN
TransmissionClutchless direct driveClutchless direct drive
Final drive90T / 18T, Poly Chain® HTD® Carbon™ belt90T / 18T, Poly Chain® HTD® Carbon™ belt
CHASSIS / SUSPENSION / BRAKES
Front suspensionShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound dampingShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspensionShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound dampingShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel?7.00 in (178 mm)7.00 in (178 mm)
Rear suspension travel?8.94 in (227 mm)8.94 in (227 mm)
Front brakesBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm discBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakesBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm discBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tirePirelli Diablo Rosso II 110/70-17Pirelli Diablo Rosso II 110/70-17
Rear tirePirelli Diablo Rosso II 140/70-17Pirelli Diablo Rosso II 140/70-17
Front wheel3.00 x 173.00 x 17
Rear wheel3.50 x 173.50 x 17
DIMENSIONS
Wheelbase?56.0 in (1,422 mm)56.0 in (1,422 mm)
Seat height?32.9 in (836 mm)32.9 in (836 mm)
Rake?24.4°24.4°
Trail?2.8 in (71 mm)2.8 in (71 mm)
WEIGHT
Curb weight251 lb (114 kg)293 lb (133 kg)
Carrying capacity379 lb (172 kg)337 lb (153 kg)
ECONOMY
Equivalent fuel economy (city)?533 MPGe (0.44 l/100 km)533 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway)?213 MPGe (1.10 l/100 km)213 MPGe (1.10 l/100 km)
Typical cost to recharge?$0.40$0.81
PRICING
MSRP##########
Does not include government incentives. Does not include local shipping, applicable taxes, PDI, or road registration fees.
WARRANTY
Standard motorcycle warranty*2 years2 years
Power pack warranty*5 years/unlimited miles5 years/unlimited miles





2020 Zero FXS – Totalmotorcycle.com Canadian Specifications/Technical Details
RANGEZERO FXS ZF3.6 MODULARZERO FXS ZF7.2
City?50 miles (80 km)100 miles (161 km)
Highway, 55 mph (89 km/h)?30 miles (48 km)60 miles (97 km)
Combined?37 miles (60 km)75 miles (121 km)
Highway, 70 mph (113 km/h)?20 miles (32 km)40 miles (64 km)
Combined?29 miles (47 km)57 miles (92 km)
MOTOR
Peak torque78 ft-lb (106 Nm)78 ft-lb (106 Nm)
Peak power?27 hp (20 kW) @ 4,300 rpm46 hp (34 kW) @ 4,300 rpm
Top speed (max)?85 mph (137 km/h)85 mph (137 km/h)
Top speed (sustained)?75 mph (121 km/h)75 mph (121 km/h)
TypeZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motorZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller?High efficiency, 550 amp, 3-phase brushless controller with regenerative decelerationHigh efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
POWER SYSTEM
Power packZ-Force® Li-Ion intelligent modularZ-Force® Li-Ion intelligent integrated
Max capacity?3.6 kWh7.2 kWh
Nominal capacity?3.2 kWh6.3 kWh
Charger type650 W, integrated650 W, integrated
Charge time (standard)?5.1 hours (100% charged) / 4.6 hours (95% charged)9.7 hours (100% charged) / 9.2 hours (95% charged)
With one accessory charger?2.3 hours (100% charged) / 1.8 hours (95% charged)4.1 hours (100% charged) / 3.6 hours (95% charged)
With max accessory chargers?1.6 hours (100% charged) / 1.1 hours (95% charged)1.8 hours (100% charged) / 1.3 hours (95% charged)
InputStandard 110 V or 220 VStandard 110 V or 220 V
DRIVETRAIN
TransmissionClutchless direct driveClutchless direct drive
Final drive90T / 18T, Poly Chain® HTD® Carbon™ belt90T / 18T, Poly Chain® HTD® Carbon™ belt
CHASSIS / SUSPENSION / BRAKES
Front suspensionShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound dampingShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspensionShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound dampingShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel?7.00 in (178 mm)7.00 in (178 mm)
Rear suspension travel?8.94 in (227 mm)8.94 in (227 mm)
Front brakesBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm discBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakesBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm discBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tirePirelli Diablo Rosso II 110/70-17Pirelli Diablo Rosso II 110/70-17
Rear tirePirelli Diablo Rosso II 140/70-17Pirelli Diablo Rosso II 140/70-17
Front wheel3.00 x 173.00 x 17
Rear wheel3.50 x 173.50 x 17
DIMENSIONS
Wheelbase?56.0 in (1,422 mm)56.0 in (1,422 mm)
Seat height?32.9 in (836 mm)32.9 in (836 mm)
Rake?24.4°24.4°
Trail?2.8 in (71 mm)2.8 in (71 mm)
WEIGHT
Curb weight251 lb (114 kg)293 lb (133 kg)
Carrying capacity379 lb (172 kg)337 lb (153 kg)
ECONOMY
Equivalent fuel economy (city)?533 MPGe (0.44 l/100 km)533 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway)?213 MPGe (1.10 l/100 km)213 MPGe (1.10 l/100 km)
Typical cost to recharge?$0.40$0.81
PRICING
MSRP$11,795 CAD$14,495 CAD
MSRP does not include shipping, applicable taxes, PDI, registration or dealer installation.
WARRANTY
Standard motorcycle warranty*2 years2 years
Power pack warranty*5 years/unlimited km5 years/unlimited km





2020 Zero FXS – Totalmotorcycle.com Europe Specifications/Technical Details
RANGEZERO FXS ZF7.2ZERO FXS ZF7.2 11 KW
City?161 km161 km
Highway, 89 km/h?97 km97 km
Combined?121 km121 km
Highway, 113 km/h?64 km64 km
Combined?92 km92 km
Range (based on EU standard)?106 km106 km
MOTOR
Net torque?106 Nm106 Nm
Peak power?44 hp (33 kW) @ 4.500 rpm44 hp (33 kW) @ 4.400 rpm
Continuous power?21 hp (15 kW) @ 4.300 rpm15 hp (11 kW) @ 3.700 rpm
Licensing Requirement?A2 LicenceA1/B Licence**
Top speed (max)?132 km/h132 km/h
Top speed (sustained)?121 km/h121 km/h
TypeZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motorZ-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller?High efficiency, 550 amp, 3-phase brushless controller with regenerative decelerationHigh efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
POWER SYSTEM
Power packZ-Force® Li-Ion intelligent integratedZ-Force® Li-Ion intelligent integrated
Max capacity?7,2 kWh7,2 kWh
Nominal capacity?6,3 kWh6,3 kWh
Charger type650 W, integrated650 W, integrated
Charge time (standard)?9,7 hours (100% charged) / 9,2 hours (95% charged)9,7 hours (100% charged) / 9,2 hours (95% charged)
With one accessory charger?4,1 hours (100% charged) / 3,6 hours (95% charged)4,1 hours (100% charged) / 3,6 hours (95% charged)
With max accessory chargers?1,8 hours (100% charged) / 1,3 hours (95% charged)1,8 hours (100% charged) / 1,3 hours (95% charged)
InputStandard 110 V or 220 VStandard 110 V or 220 V
DRIVETRAIN
TransmissionClutchless direct driveClutchless direct drive
Final drive90T / 18T, Poly Chain® HTD® Carbon™ belt90T / 18T, Poly Chain® HTD® Carbon™ belt
CHASSIS / SUSPENSION / BRAKES
Front suspensionShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound dampingShowa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspensionShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound dampingShowa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel?178 mm178 mm
Rear suspension travel?227 mm227 mm
Front brakesBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm discBosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakesBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm discBosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tirePirelli Diablo Rosso II 110/70-17Pirelli Diablo Rosso II 110/70-17
Rear tirePirelli Diablo Rosso II 140/70-17Pirelli Diablo Rosso II 140/70-17
Front wheel3,00 x 173,00 x 17
Rear wheel3,50 x 173,50 x 17
DIMENSIONS
Wheelbase?1.422 mm1.422 mm
Seat height?836 mm836 mm
Rake?24,4°24,4°
Trail?71 mm71 mm
WEIGHT
Curb weight133 kg133 kg
Carrying capacity153 kg153 kg
ECONOMY
Equivalent fuel economy (city)?0,44 l/100 km0,44 l/100 km
Equivalent fuel economy (highway)?1,10 l/100 km1,10 l/100 km
Typical cost to recharge?1,48 €1,48 €
WARRANTY
Standard motorcycle warranty*2 years2 years
Power pack warranty*5 years/unlimited km5 years/unlimited km

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 3648 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
