2021 BMW R18 Dragster Guide

2021 BMW R18 Dragster

2021 BMW R18 Dragster 2021 BMW R18 Dragster 2021 BMW R18 Dragster 2021 BMW R18 Dragster 2021 BMW R18 Dragster 2021 BMW R18 Dragster

2021 BMW R18 Dragster : LIVE YOUR LIFE A QUARTER MILE AT A TIME.

2021 BMW R18 Dragster Guide.

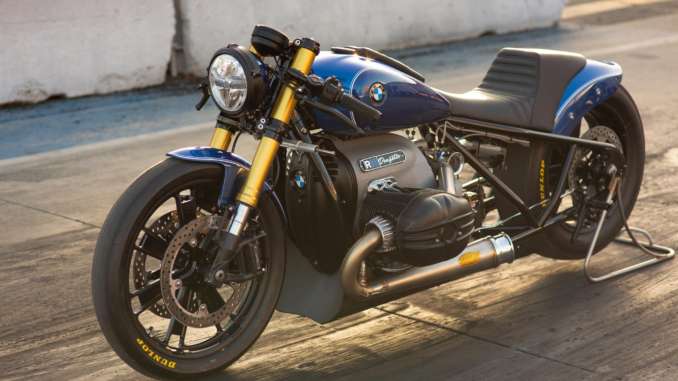

The renowned custom bike designer Roland Sands stripped down the BMW R 18 to create a straight line dragster featuring the iconic and massive boxer powerplant. The result: the R 18 Dragster. He and his team have created a unique masterpiece built around the impressive 2-cylinder Big Boxer, giving their creativity free reign in the process.

Roland Sands’ personal story served as a source of inspiration for his work on this bike. “With an engine that’s so visibly the center piece, I immediately thought of muscle cars. My family has always been into going fast and my dad was a drag racer, so I thought it made sense to strip the bike down to the essentials and shape it to go fast on a straight track,” the designer explains.

The new BMW R 18: a cruiser rooted in history.
With the new R 18, BMW Motorrad presented the brand’s first series production bike for the cruiser segment in April 2020. Like no other
BMW motorcycle before it, this model stands entirely in the tradition of historical BMW motorcycles – both technically and with regard to its design. It is based on illustrious models such as the BMW R 5 and shifts the focus back to the motorcycle essentials: purist, no-frills technology and the boxer engine as the center of riding pleasure. The “Big Boxer” continues the line of traditional air-cooled boxer engines that have offered inspiring riding since BMW Motorrad first began production in 1923.



The new R 18 invokes our history and the iconic hallmarks of our brand which we have worked very hard on. The result: a cruiser that is full of character boasting a boxer engine with the most displacement that we have ever built as well as timeless design features, such as the white double striping on the R 18 First Edition.

We have counted on the boxer since 1923 – by conviction. The 1802 ccm two-cylinder boxer engine of the R 18 is the boxer with the most displacement that we have ever built. It delivers its maximum torque of 158 Nm at 3000 rpm. From 2000 rpm to 4000 rpm, it always delivers over 150 Nm, meaning a consistently high torque with the typical running characteristics of a boxer. At 4750 rpm, the Big Boxer delivers 67 kW (91 hp). Thereby combining its core tradition with modern technology. For pure emotion on the road.







2021 BMW R18 Dragster Totalmotorcycle.com Key Features

The R 18 Dragster custom bike in detail

  • The frame has been modified completely removing the rear suspension for drag racing.
  • Front and rear fenders have been slightly modified utilizing the stock sheet metal parts in order to keep the classic R 18 silhouette.
  • The headlight has been taken from the original R 18 and is highlighted with the headlight bezel from the design collection of milled aluminium parts.
  • The standard exhaust has been replaced with a hand fabricated Stainless Steel twin megaphone system utilizing the exhaust tips from the milled aluminium parts.
  • The hydraulic front brake and clutch master cylinders are from Roland Sands Design.
  • The tank has been taken over from the original R 18.
  • The paint finish is a two tone metallic blue with classic white BMW pin-stripes by Roland’s long time painter Chris Wood.
  • The fork has been taken from the BMW R nineT.
  • The front braking system has been taken from the BMW S 1000 RR superbike.
  • The seat has been built from scratch and is a RSD custom seat by Saddlemen.







2021 BMW R18 Dragster Totalmotorcycle.com Features and Benefits

The technical design process used by Roland Sands.

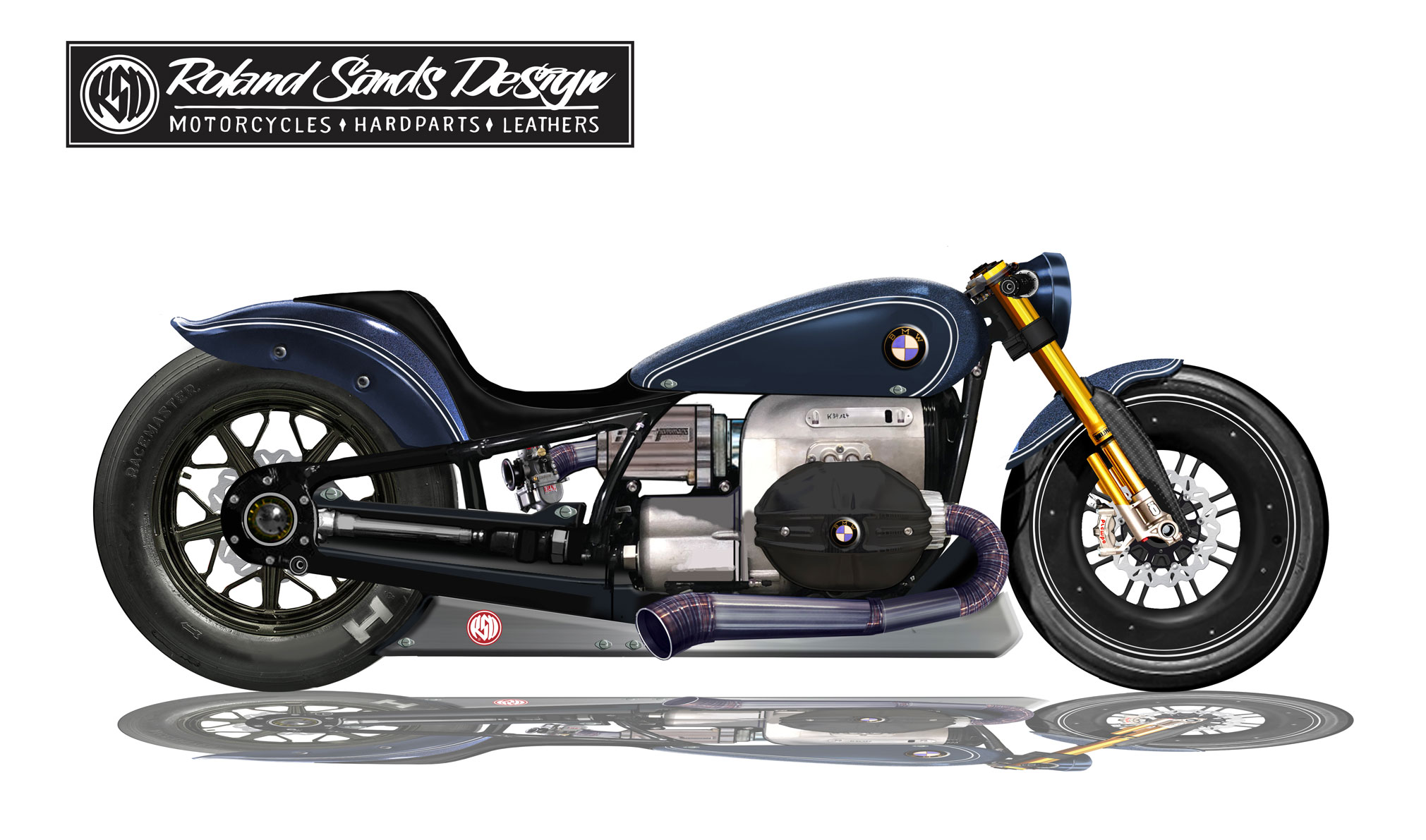

Roland Sands always starts by sketching his ideas on paper. This allows him to figure out the basics of the shape and what the stance and the geometry of the bike could look like. “In the end, the real magic happens when we bring the sketch to life”, Roland explains.

More than any other motorcycle, the new R 18 offers a highly customizable design. It features an easily removable rear frame and a simple-to-dismantle painted parts set. This gives the customer a high degree of freedom for easily converting the rear end of the new R 18 to suit personal preferences. In addition you can also change the paint finish to suit your personal taste. “The electronics were definitely the most difficult task we had to deal with as we put in nitrous oxide, stripped out the stock exhaust and changed the intake drastically. It was a bit of an experiment, but we dialed it in! The final product is impressive and characterised by a high level of craftsmanship, as can be expected from BMW Motorrad. Right from the beginning, I couldn’t wait to get customizing!” Roland points out.

For the the R 18 Dragster, the team around Roland Sands retained the stock neck geometry of the R 18, removed the bike’s rear end and turned it into a drag racer. Moreover, they chose to modify the front and rear fender to fit the modified frame. The whole customizing process took about three and a half months. The bike then headed to the workshop for final assembly and a day at a drag strip.

“Every bike needs different sources depending on the build, special materials or parts. Every new bike concept is a bit of a learning process even after having built over 200 bikes. We always want to understand the genre of the bike we are building in, it’s the key to keeping it authentic and functional,” explains Roland Sands.

Aside from the R 18 Dragster custom bike, Roland Sands also created two different design collections of milled aluminium parts for the launch of the R 18 Cruiser: “Machined” and “2-Tone-Black”. The “Machined” and “2-Tone-Black” ranges include front and rear wheels available in different dimensions than the standard sizes. In addition, the range of these exclusive milled parts includes speedometer housings, handlebar clamps, risers, handlebar grips, hand levers and mirrors as well as engine housing trim elements, filler caps, intake silencer covers and much more.

For the R 18 Dragster, Roland Sands used the milled parts design collection “2-Tone-Black” to customize levers, wheels, valve covers, breast plate, headlight and gauges. The front end was taken from the BMW R nineT. The seat as well as the exhaust were created from scratch.



Roland Sands: The man behind the designs

By his own account, Roland Sands basically grew up on a motorcycle and motorcycling is in his blood. His dad was a drag racer who built custom bikes and parts. As a result, Roland was brought up surrounded by cool bikes. It wasn’t long before he, too, was riding dirt bikes, taking them apart and rebuilding them. He had a racing career of his own that spanned ten years.

Today Roland is a world famous designer of custom bikes and motorcycle apparel with customers in all corners of the world.

The designer is best known for combining styles and creating new genres in the process. “Combining a racing aesthetic and function with a custom style – this is what we are probably best known for. We like to make stock machines perform better,” says Roland.

For Roland Sands, motorcycling is not simply a job. “It’s really hard to describe in a few sentences. Riding a motorcycle to me is like becoming one with the machine. My motorcycle is my life, it’s everything, it’s what I do.”







2021 BMW R18 Dragster – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ Concept Model USD
Canada MSRP Price: $ Concept Model CDN
Europe/UK MSRP Price: £ Concept Model GBP (On The Road inc 20% Vat)

2021 BMW R18 Dragster is a concept model. The specs below are for the normal BMW R18 for reference.



Engine

Design

Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.

Bore x stroke

107.1 mm x 100.0 mm

Capacity

1,802 cc

Nominal capacity

91 hp at 4,750 rpm

Max. torque

116 lbs-ft at 3,000 rpm

Compression ratio

9.6 :1

Fuel preparation

Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off and twin-spark ignition.

Emission control

Regulated three-way catalytic converter

Mileage / consumption

Maximum speed

over 111 mph

Fuel type

Super plus lead-free (max. 15% ethanol, E15) Gasoline (min. 90 AKI Octane Rating, max. 15% ethanol content)

Electrical system

Alternator

Permanent magnet generator 600 W (nominal capacity)

Battery

12 V / 26 Ah, maintenance-free

Power transmission

Clutch

Single-disc dry clutch

Gears

6-speed transmission

Secondary drive

Shaft drive

Suspension / brakes

Frame

Double-cradle steel frame

Front suspension / spring elements

Telescopic fork

Rear suspension / spring elements

Steel swingarm with central shock strut

Spring travel, front / rear

4.7” / 3.5”

Wheelbase

68.1”

Castor

5.9”



Steering head angle

57.3°

Wheels

Spoke wheel

Rim dimensions, front

3.5″ x 19″

Rim dimensions, rear

5.0″ x 16″

Tire, front

120/70 R 19

Tire, rear

180/65 B16

Brake, front

Twin disc brake, diameter 300 mm, four-piston fixed callipers

Brake, rear

Single disc brake, diameter 300 mm, four-piston fixed caliper

ABS

BMW Motorrad Integral ABS (partially integral)

Dimensions / weights

Seat height, unladen

27.2”

Rider step length, unladen

64.2”

Usable tank capacity

approx. 4.23 gal

of which reserve

1 gal

Length

96.1″

Height (excluding mirrors)

44.3″

Height (above mirror, at DIN empty weight)

48.5″

Width (with mirror)

38.0″

Unladen weight, fully fuelled/road-ready

761 lbs

1)

Max. permitted weight

1,234.6 lbs

Max. load (with standard equipment)

474 lbs

1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity









2021 BMW R18 Dragster – Totalmotorcycle.com Canada Specifications/Technical Details

2021 BMW R18 Dragster is a concept model. The specs below are for the normal BMW R18 for reference.



Design

Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.

Bore x stroke

107.1 mm x 100 mm

Capacity

1802 cm³

Nominal capacity

67 kW at 4750 rpm

Max. torque

158 Nm at 3000 rpm

Compression ratio

9.6 :1

Fuel preparation

Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off, twin-spark ignition: BMS-O with e-gas

Emission control

Regulated three-way catalytic converter

Mileage / consumption

Maximum speed

over 180 km/h

Consumption per 100 km based on the WMTC

5.6 l/100km

Fuel type

Super plus lead-free (max. 15% ethanol, E15) ROZ 95 90 AKI

Electrical system

Alternator

Permanent magnet generator 600 W (nominal capacity)

Battery

12 V / 26 Ah, maintenance-free

Power transmission

Clutch

Single-disk dry clutch

Gears

6-gear shifting claw transmission in separate transmission housing

Secondary drive

Shaft drive

Suspension / brakes

Frame

Double-cradle steel frame with screwed-on underbeams

Front suspension / spring elements

Telescopic fork

Rear suspension / spring elements

Steel swinging fork with central shock strut

Spring travel, front / rear

120 mm / 90 mm

Wheelbase

1731 mm

Castor

150 mm

Steering head angle

57,3°

Wheels

Spoke wheel (front only)

Rim dimensions, front

3,5″ x 19″

Rim dimensions, rear

5,0″ x 16″

Tire, front

120/70 R 19

Tire, rear

180/65 B16

Brake, front

Twin disc brake, diameter 300 mm, 4-piston fixed callipers

Brake, rear

Single disc brakes, diameter 300 mm, four-piston fixed calipers

ABS

BMW Motorrad Integral ABS (partially integral)

Dimensions / weights

Seat height, unladen

690 mm

Rider step length, unladen

1630 mm

Usable tank capacity

approx. 16 l

of which reserve

approx. 4 l

Length

2440 mm

Height (excluding mirrors)

1126 mm

Height (above mirror, at DIN empty weight)

1232 mm

Width (with mirror)

964 mm

Unladen weight, fully fuelled/road-ready

345 kg

1)

Max. permitted weight

560 kg

Max. load (with standard equipment)

215 kg

1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity









2021 BMW R18 Dragster – Totalmotorcycle.com European Specifications/Technical Details

2021 BMW R18 Dragster is a concept model. The specs below are for the normal BMW R18 for reference.



Engine

Design

Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.

Bore x stroke

107.1 mm x 100 mm

Capacity

1802 cm³

Nominal capacity

67 kW (91 hp) at 4750 rpm

Max. torque

158 Nm at 3000 rpm

Compression ratio

9.6 :1

Fuel preparation

Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off, twin-spark ignition: BMS-O with e-gas

Emission control

Regulated three-way catalytic converter

Mileage / consumption

Maximum speed

over 110mph

Consumption per 100 km based on the WMTC

5.6 l/100km

Fuel type

Super plus lead-free (max. 15% ethanol, E15) ROZ 95 90 AKI

Electrical system

Alternator

Permanent magnet generator 600 W (nominal capacity)

Battery

12 V / 26 Ah, maintenance-free

Power transmission

Clutch

Single-disk dry clutch

Gears

6-gear shifting claw transmission in separate transmission housing

Secondary drive

Shaft drive

Suspension / brakes

Frame

Double-cradle steel frame with screwed-on underbeams

Front suspension / spring elements

Telescopic fork

Rear suspension / spring elements

Steel swinging fork with central shock strut

Spring travel, front / rear

120 mm / 90 mm

Wheelbase

1731 mm

Castor

150 mm

Steering head angle

57,3°

Wheels

Spoke wheel (front only)

Rim dimensions, front

3,5″ x 19″

Rim dimensions, rear

5,0″ x 16″

Tyre, front

120/70 R 19

Tyre, rear

180/65 B16

Brake, front

Twin disc brake, diameter 300 mm, four-piston fixed calipers

Brake, rear

Single disc brakes, diameter 300 mm, four-piston fixed calipers

ABS

BMW Motorrad Integral ABS (partially integral)

Dimensions / weights

Seat height, unladen

690 mm

Rider step length, unladen

1630 mm

Usable tank capacity

approx. 16 l

of which reserve

approx. 4 l

Length

2440 mm

Height (excluding mirrors)

1126 mm

Height (above mirror, at DIN empty weight)

1232 mm

Width (with mirror)

964 mm

Unladen weight, fully fuelled/road-ready

345 kg

1)

Max. permitted weight

560 kg

Max. load (with standard equipment)

215 kg

1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
