2021 Kawasaki KLX140RF Guide

2021 Kawasaki KLX140RF

2021 Kawasaki KLX140RF 2021 Kawasaki KLX140RF 2021 Kawasaki KLX140RF 2021 Kawasaki KLX140RF

2021 Kawasaki KLX140RF : FUN BEGINS WITH THE PUSH OF A BUTTON.

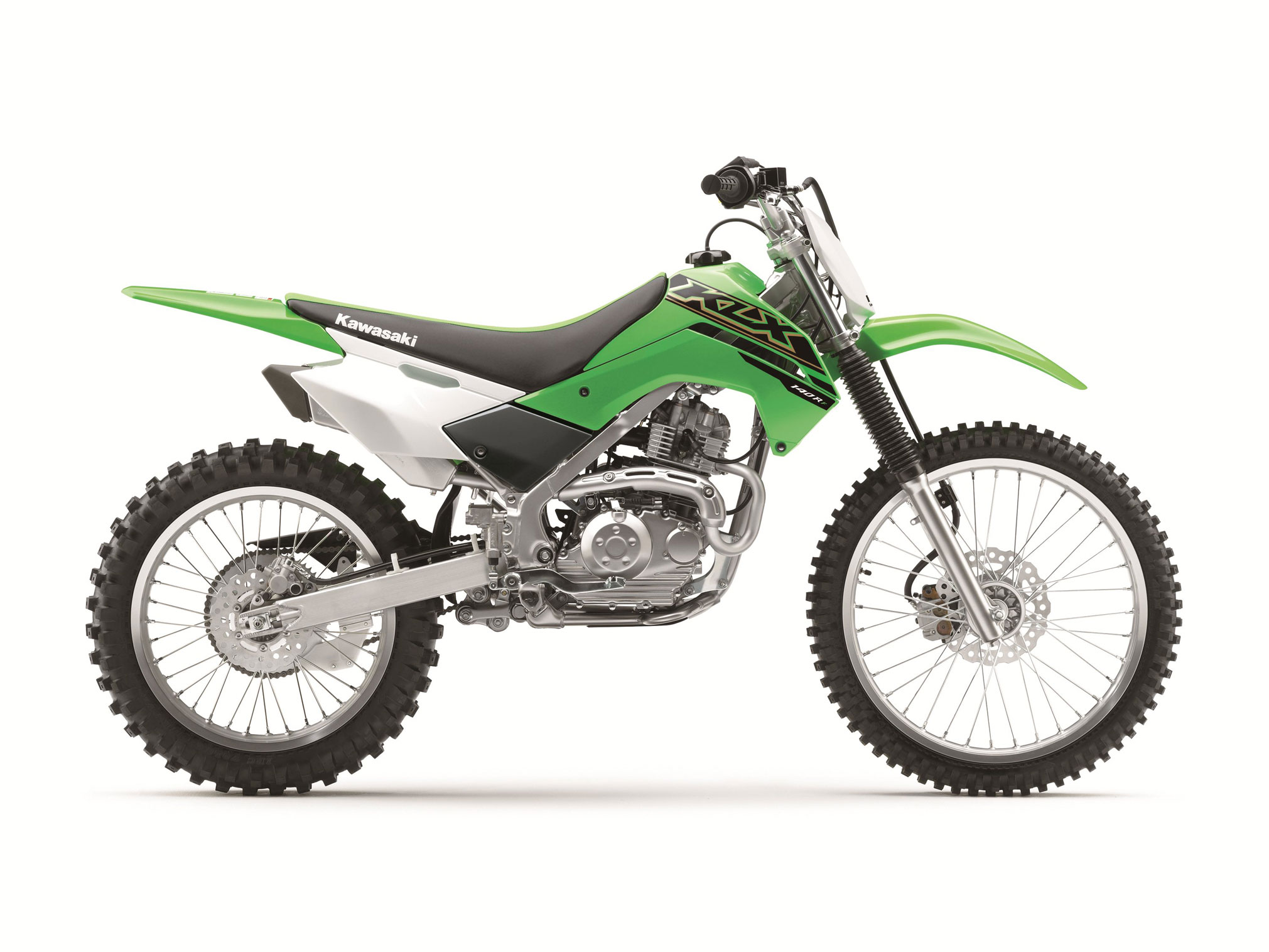

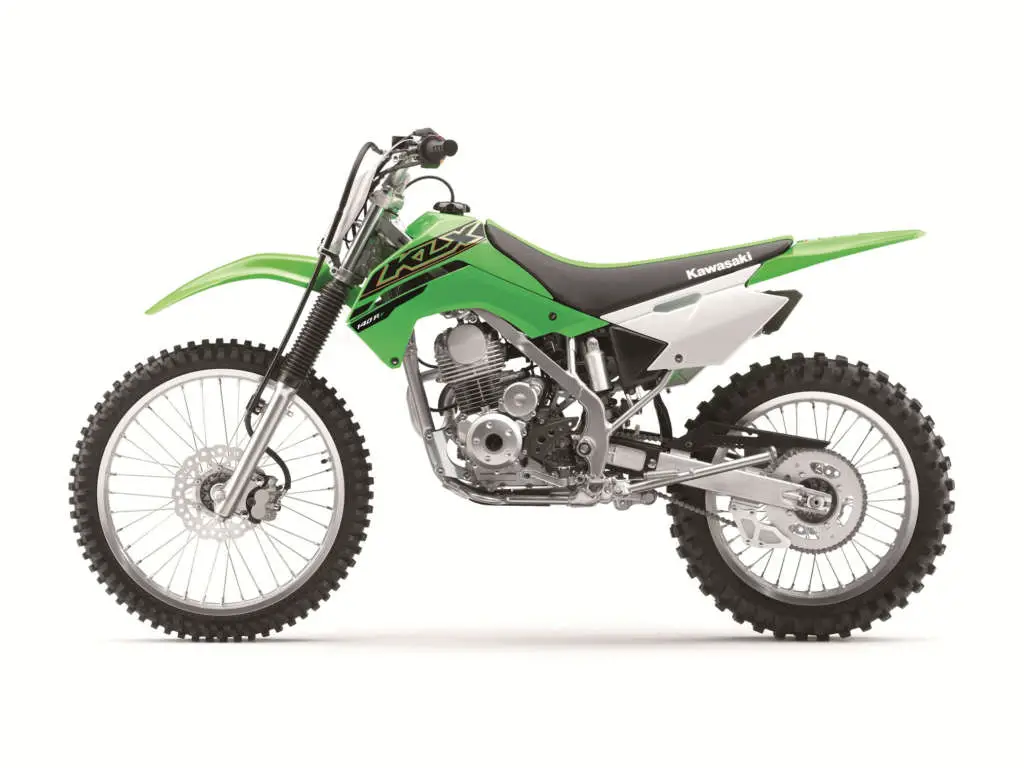

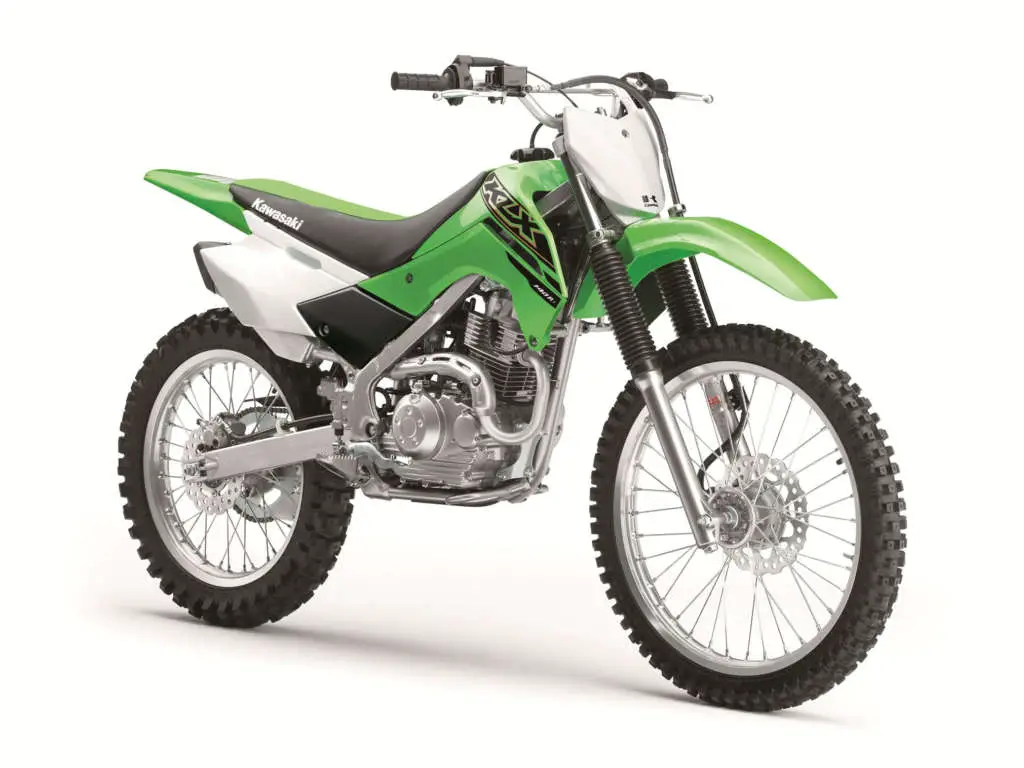

Introducing the 2021 Kawasaki KLX140RF.

The KLX®140R F motorcycle is the third variation of the KLX 140 models and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel. The KLX®140R F comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear.

Featuring confident handling, KLX®140R motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R lineup offers a 144cc engine, plush suspension and a push button electric start, making for great trailblazers.

ADDITIONAL VEHICLE FEATURES:
Full-size wheels (F21”, R18”) and ground clearance (315 mm [12.4 in])
Adjustable long travel suspension
Disc brakes front and rear





2021 Kawasaki KLX140RF Totalmotorcycle.com Key Features

PUSH BUTTON ELECTRIC START
HIGH-REVVING 144cc AIR-COOLED, SOHC, FOUR-STROKE ENGINE
5-SPEED TRANSMISSION WITH MANUAL CLUTCH
FRONT AND REAR DISC BRAKES



A fan favorite, the Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while out on the trails. Completing the rest of the 2021 KLX family line up are five additional models, which consist of four engine configurations and are built to suit a variety of riders.







2021 Kawasaki KLX140RF Totalmotorcycle.com Features and Benefits

CONFIDENT HANDLING
LIGHTWEIGHT RIGID FRAME
A lightweight box-section perimeter frame made from high-tensile steel provides exceptional rigidity and strength. The narrow profile contributes to an easier rider grip and smoother movement on the bike. Working together, the highly capable suspension and lightweight chassis deliver handling that exudes confidence.

SMOOTH POWER
ELECTRIC START
The high-revving, 144cc, air-cooled SOHC 4-stroke engine easily starts with the push of a button. Air-cooling eliminates the need for radiators, keeping the chassis slim and lightweight while a 5-speed transmission with manual clutch delivers smooth shifting and acceleration.

RELIABLE BRAKING
FRONT AND REAR DISC BRAKES
Front and rear disc brakes provide strong progressive stopping power. The 220mm front petal disc with a dual-piston caliper is complemented by a 186mm rear petal disc with single-piston caliper, inspiring confidence on the trails.







2021 Kawasaki KLX140RF – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,749 USD
Canada MSRP Price: $4449 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
POWER
Engine
4-stroke single, SOHC, air-cooled
Displacement
144cc
Bore x Stroke
58.0 x 54.4mm
Compression Ratio
9.5:1
Fuel System
20mm Keihin carburetor
Ignition
Digital DC-CDI
Transmission
5-speed, return shift, with wet multi-disc manual clutch
Final Drive
Chain
PERFORMANCE
Front Suspension / Wheel Travel
33mm telescopic fork/7.5 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with piggyback reservoir, 20-way rebound damping and threaded preload adjustability/7.9 in
Front Tire
2.75×21
Rear Tire
4.10×18
Front Brakes
Single 220mm petal disc with a dual-piston caliper
Rear Brakes
Single 186mm petal disc with single-piston caliper
DETAILS
Frame Type
High-tensile steel, box-section perimeter
Rake/Trail
27/4.6 in
Overall Length
78.9 in
Overall Width
31.1 in
Overall Height
44.7 in
Ground Clearance
12.4 in
Seat Height
33.9 in
Curb Weight
218.2 lb**
Fuel Capacity
1.5 gal
Wheelbase
52.4 in
Color Choices
Lime Green
Warranty
6 Months
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months





2021 Kawasaki KLX140RF – Totalmotorcycle.com  Canadian Specifications/Technical Details



POWER

Engine 144cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB20
Ignition Digital DC-CDI
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 5-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain

PERFORMANCE

Frame Perimeter, box-section, high-tensile steel
Front Suspension / Wheel Travel ø33 mm telescopic fork / 190 mm (7.5 in)
Rear Suspension / Wheel Travel Uni Trak, single shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable preload / 200 mm (7.9 in)
Rake / Trail 27.0° / 116 mm
Steering Angle (L/R) 41° / 41°
Front Tire 2.75-21 45M
Rear Tire 4.10-18 59M
Front Brake Single ø220 mm petal disc with dual-piston caliper
Rear Brake ø190 mm petal disc with single-piston caliper

DETAILS

Dimensions (L x W x H) 2,005 x 790 x 1,135 mm (78.9 x 31.1 x 44.7 in)
Wheelbase 1,330 mm (52.4 in)
Road Clearance 315 mm (12.4 in)
Seat Height 860 mm (33.9 in)
Curb Mass** 99 kg (218 lb)
Fuel Capacity 5.8 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2019 Canadian Kawasaki Motors, Inc.

Specifications subject to change.





2021 Kawasaki KLX140RF – Totalmotorcycle.com European Specifications/Technical Details

NA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
