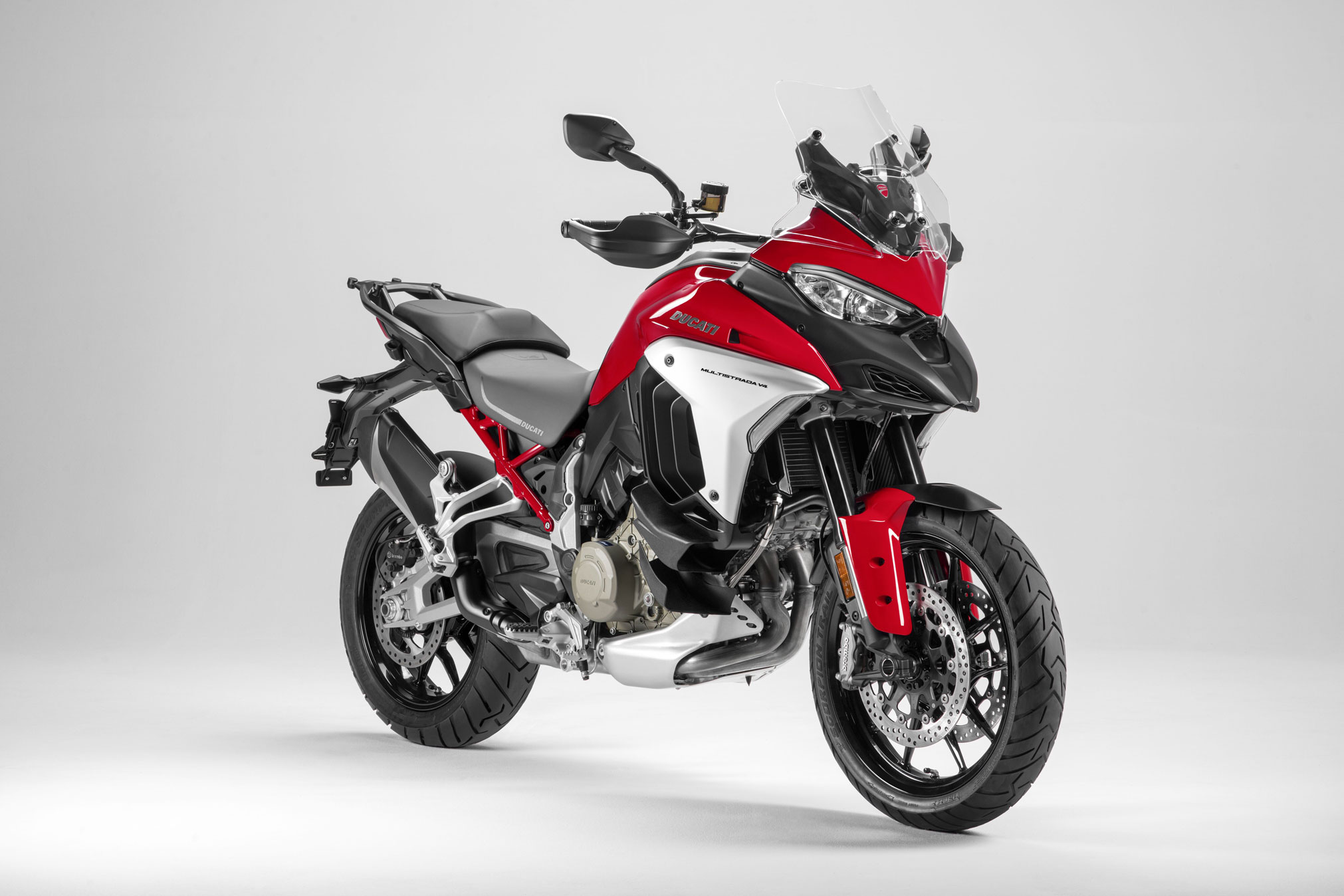

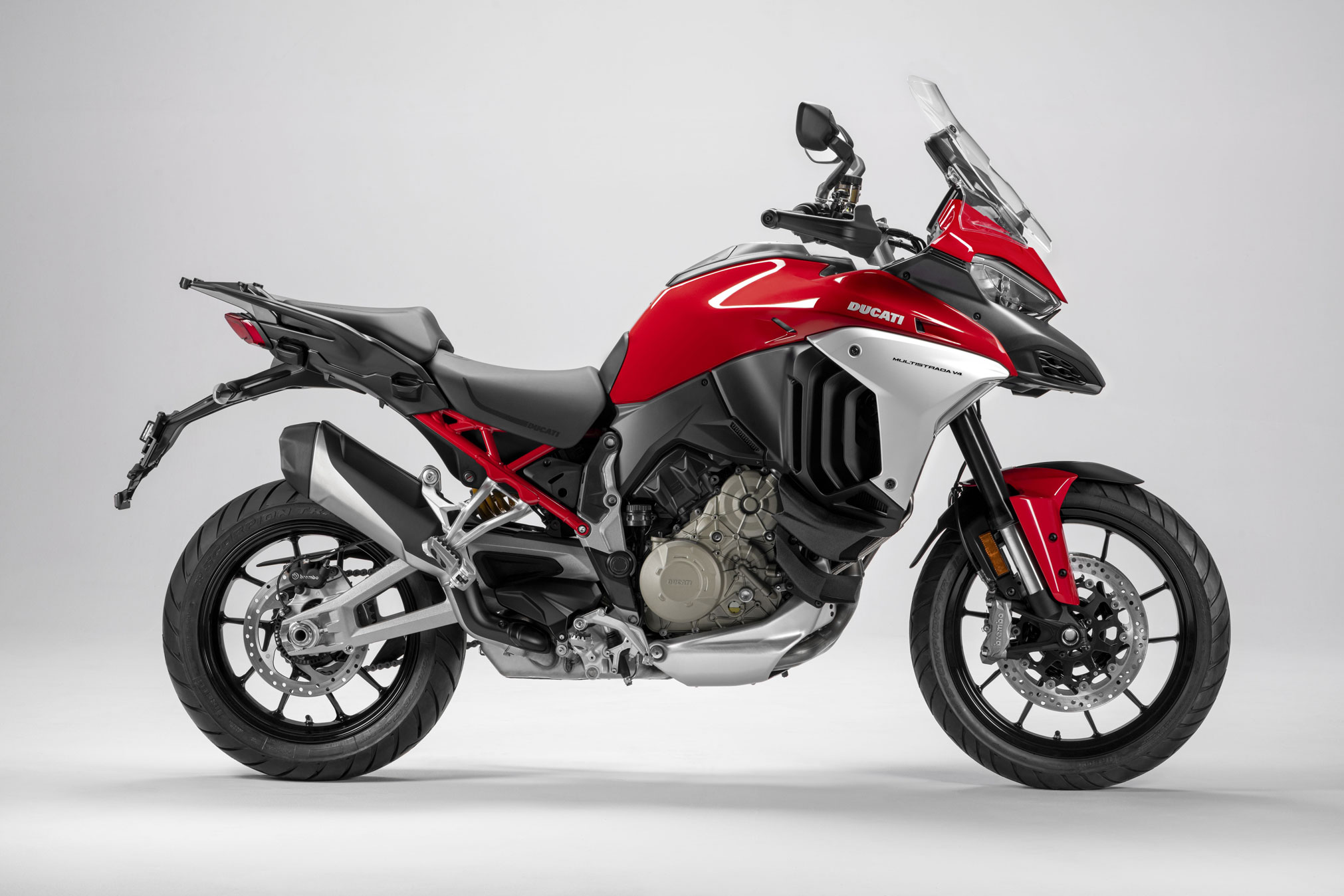

2022 Ducati Multistrada V4: CLASSIC DUCATI.
Introducing the new 2022 Ducati Multistrada V4…
Ducati Red with black wheels
Get ready to discover the fourth Multistrada generation.
Sportier and more touring, stronger in off-road use and easier in urban action. Lightweight and compact, with the new 170 HP V4 Granturismo engine for a sporty and exciting ride on mixed terrain. Ready for long journeys thanks to the navigation-system that can be viewed on the dashboard and the innovative rider assistance radar-system, it will offer you excellent riding comfort and a main service-interval only after 36,000 miles, the Oil Service, are now scheduled at 9,300 miles or 24 months.
And when the asphalt ends fun will continue thanks to the high ground clearance, the electronic suspension, the surprisingly fluid power delivery and the perfect ergonomics for stand-up riding. After your adventures you will feel great ease and control in daily use thanks to the advanced electronic ride assist systems and the ability to adjust the seat down to 810 mm in height.
New Ducati Multistrada V4: ruling all roads has never been easier.
2022 Ducati Multistrada V4 Totalmotorcycle.com Key Features
Sport
Unmistakable Ducati personality
Lightweight and compact, with the 170 HP of the new V4 Granturismo engine, the fourth generation Multistrada will give you a sporty and exhilarating ride on the turns.
Travel
Once and half the world’s circumference of fun.
Ready for long journeys thanks to the navigator that can be viewed on the dashboard and the innovative riding assistance radar system, the new Multistrada V4 will offer you excellent riding comfort. The first important maintenance interval will be only after 37,300 miles.
Enduro
Designed to overcome any obstacle. By itself.
The new Multistrada V4 is fun even when the asphalt ends, thanks to the wide ground clearance, the electronic suspensions, the surprising fluidity of delivery and its shapes also designed for standing riding.
Urban
Ready, agile and connected. Like you.
Designed to make low speed maneuvering easy. Comfortable in everyday use also thanks to the adjustable saddle, hyper-connected thanks to the new generation mirroring.
2022 Ducati Multistrada V4 Totalmotorcycle.com Features and Benefits
The most advanced Multistrada ever
EVOLUTED RIDABILITY
Compact and agile, the frame and chassis have been designed to deliver ease of riding and safe stability at high speeds.
FRONT AND REAR RADAR SYSTEMS
Evolutionary front and rear Radar technology with Blind Spot Detection system. Every journey has never been so under control.
170 HP OF POWER AND SMOOTHNESS
170 HP of pure sporting spirit. Powerful and fluid all along the torque curve. Unmistakable signature of the new Ducati V4 Granturismo engine.
37,300 MILES OF FREEDOM
Maintenance schedules have been extended to up to 37,300 miles. An absolute milestone that raises the standard of reliability and maintenance costs.
INTEGRATED NAVIGATOR SYSTEM
Integrated Navigation System and smartphone mirroring experience. Enter the world of connected intelligence.
AERODYNAMIC PROTECTION
The adjustable multi-element windshield was developed in wind tunnel sessions in order to enhance the attitude of facing long journeys. Full protection that transforms every ride in a total comfort experience.
Design
Form follows function. The design of the new Multistrada V4 achieves the perfect balance between functionality and Italian design. A style shaped directly by robustness, aerodynamic innovations and the pursuit of maximum comfort.

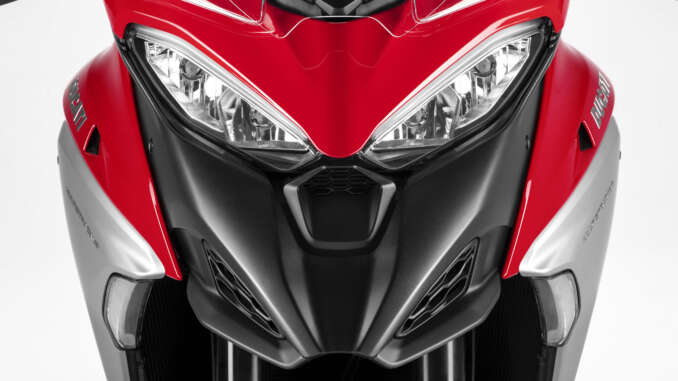

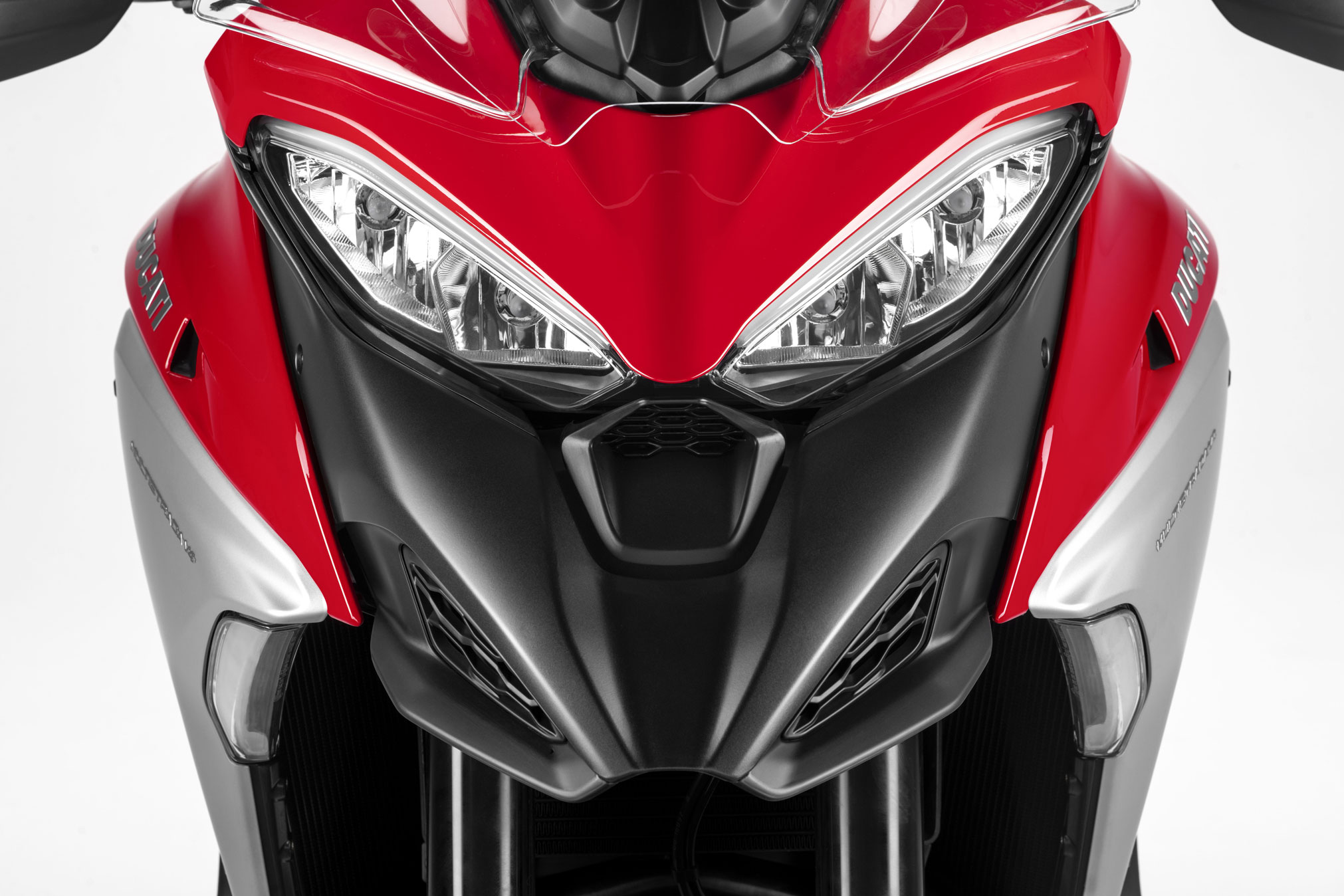

DRL headlight
The new full LED headlamp with Cornering Light system defines the unmistakably Ducati style of the new Multistrada V4.
Wind-shaped curves
Aerodynamics shapes the new design of the Multistrada V4 both to increase stability and to ensure thermal and aerodynamic comfort in all riding conditions.
Welcoming shape
Like every Ducati, the Multistrada V4 is modeled around the rider, to instill the feeling of greater control and riding pleasure.
2022 Ducati Multistrada V4 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $19995 USD
Canada MSRP Price: $22395 CDN
Europe/UK MSRP Price: £16295 GBP (On The Road inc 20% Vat)
Engine
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Dispalcement
1,158 cc (71 cu in)
Bore X Stroke
83 mm x 53.5 mm
Compression ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
92 lb ft (125 Nm) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Ø 50 mm fully adjustable usd fork
Front wheel
Light alloy cast, 3″ x 19″
Front tire
Pirelli Scorpion Trail II 120/70 ZR 19
Rear Suspension
Fully adjustable monoshock, Remote spring preload adjustment, aluminum double-sided swingarm
Rear Wheel
Light alloy cast, 4.5″ x 17″
Rear tire
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel travel (front/rear)
170 mm / 180 mm (6.7 in / 7.1 in)
Front Brake
2 x Ø 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
5″ TFT color display
Kerb weight
529 lb
Seat height
Adjustable, 33.1 in – 33.9 in (840 mm – 860 mm)
Wheelbase
61.7 in (1,567 mm)
Rake
24.5°
Trail
4.0 in (102.5 mm)
Fuel tank capacity
5.8 US gal (22 l)
Number of seats
2
Safety equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light
Standard equipment
Backlit handlebar switches, 5″ TFT color display
Warranty
24 months (48 months*), unlimited mileage
Maintenance
9,000 miles / 24 months
Valve clearance check
36,000 miles
CO2 emissions
162 g/km
Consumption
6.5 l/100 km
2022 Ducati Multistrada V4 – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Dispalcement
1,158 cc (71 cu in)
Bore X Stroke
83 mm x 53.5 mm
Compression ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
92 lb ft (125 Nm) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Ø 50 mm fully adjustable usd fork
Front wheel
Light alloy cast, 3″ x 19″
Front tire
Pirelli Scorpion Trail II 120/70 ZR 19
Rear Suspension
Fully adjustable monoshock, Remote spring preload adjustment, aluminum double-sided swingarm
Rear Wheel
Light alloy cast, 4.5″ x 17″
Rear tire
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel travel (front/rear)
170 mm / 180 mm (6.7 in / 7.1 in)
Front Brake
2 x Ø 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
5″ TFT color display
Kerb weight
529 lb
Seat height
Adjustable, 33.1 in – 33.9 in (840 mm – 860 mm)
Wheelbase
61.7 in (1,567 mm)
Rake
24.5°
Trail
4.0 in (102.5 mm)
Fuel tank capacity
5.8 US gal (22 l)
Number of seats
2
Safety equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light
Standard equipment
Backlit handlebar switches, 5″ TFT color display
Warranty
24 months (48 months*), unlimited mileage
Maintenance
9,000 miles / 24 months
Valve clearance check
36,000 miles
CO2 emissions
162 g/km
Consumption
6.5 l/100 km
2022 Ducati Multistrada V4 – Totalmotorcycle.com European Specifications/Technical Details
Engine
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Dispalcement
1,158 cc (71 cu in)
Bore X Stroke
83 mm x 53.5 mm
Compression ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
92 lb ft (125 Nm) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Ø 50 mm fully adjustable usd fork
Front wheel
Light alloy cast, 3″ x 19″
Front tire
Pirelli Scorpion Trail II 120/70 ZR 19
Rear Suspension
Fully adjustable monoshock, Remote spring preload adjustment, aluminum double-sided swingarm
Rear Wheel
Light alloy cast, 4.5″ x 17″
Rear tire
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel travel (front/rear)
170 mm / 180 mm (6.7 in / 7.1 in)
Front Brake
2 x Ø 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
5″ TFT color display
Kerb weight
529 lb
Seat height
Adjustable, 33.1 in – 33.9 in (840 mm – 860 mm)
Wheelbase
61.7 in (1,567 mm)
Rake
24.5°
Trail
4.0 in (102.5 mm)
Fuel tank capacity
5.8 US gal (22 l)
Number of seats
2
Safety equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light
Standard equipment
Backlit handlebar switches, 5″ TFT color display
Warranty
24 months (48 months*), unlimited mileage
Maintenance
9,000 miles / 24 months
Valve clearance check
36,000 miles
CO2 emissions
162 g/km
Consumption
6.5 l/100 km
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
