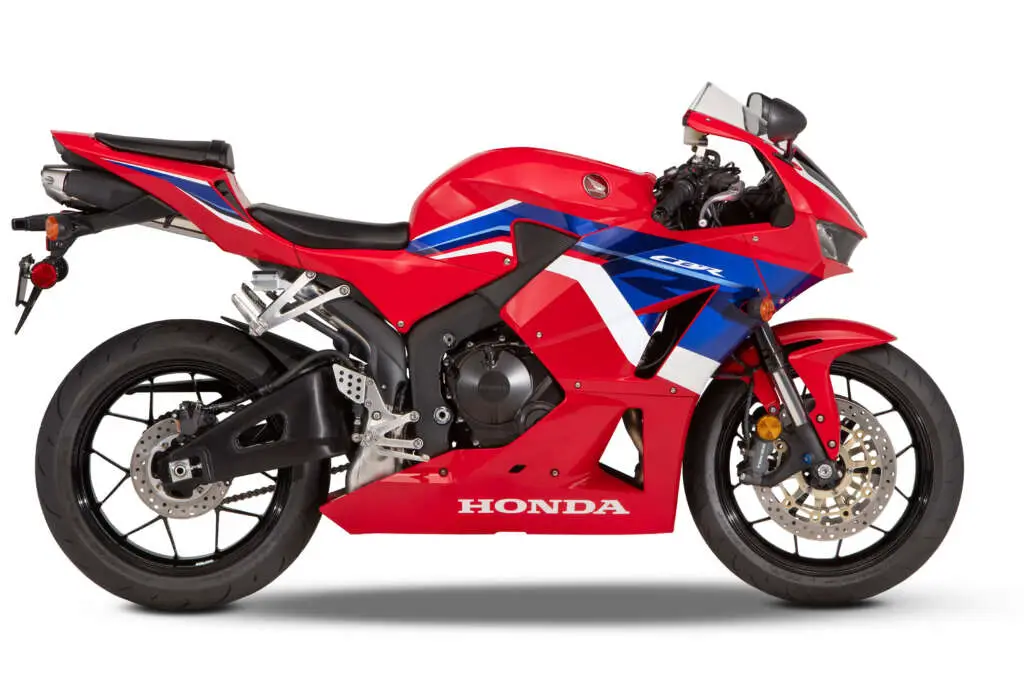

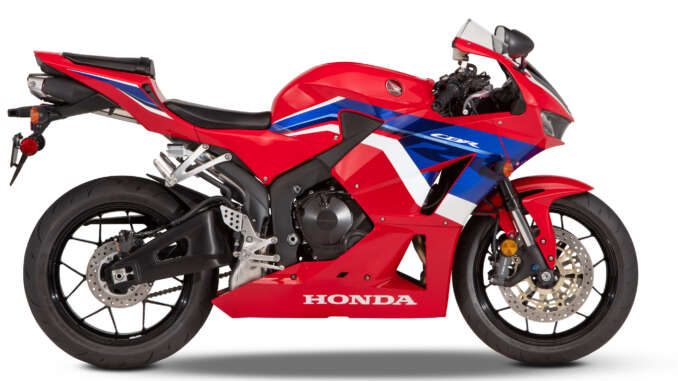

2022 Honda CBR600RR ABS: PERFORMANCE AT ITS BEST.
Introducing the 2022 Honda CBR600RR ABS…
Sportbikes—especially 600-class machines—are for riders who want to feel the highest degree of connection with their motorcycles. Because the greater the connection, the more rewarding the ride. And that’s why we strive to make our Honda CBR600RR models as good as they are. The high-revving inline-four engine is instantly responsive. The aluminum chassis and premium suspension precisely connect you with the road like nothing else. And only a 600 can give you the light, crisp handling so many sportbike riders find so attractive. Available with optional anti-lock brakes, the CBR600RR is the best example of a highly refined breed. Is it for you? Ride one and see.
2022 Honda CBR600RR ABS Totalmotorcycle.com Key Features
Premium Features
- Electronic Combined ABS
Standard Features
- 599cc liquid-cooled inline four-cylinder
- Honda Electronic Steering Damper
- Unit Pro-Link® Suspension
- Honda Multi-Action System (HMAS) Inverted Fork

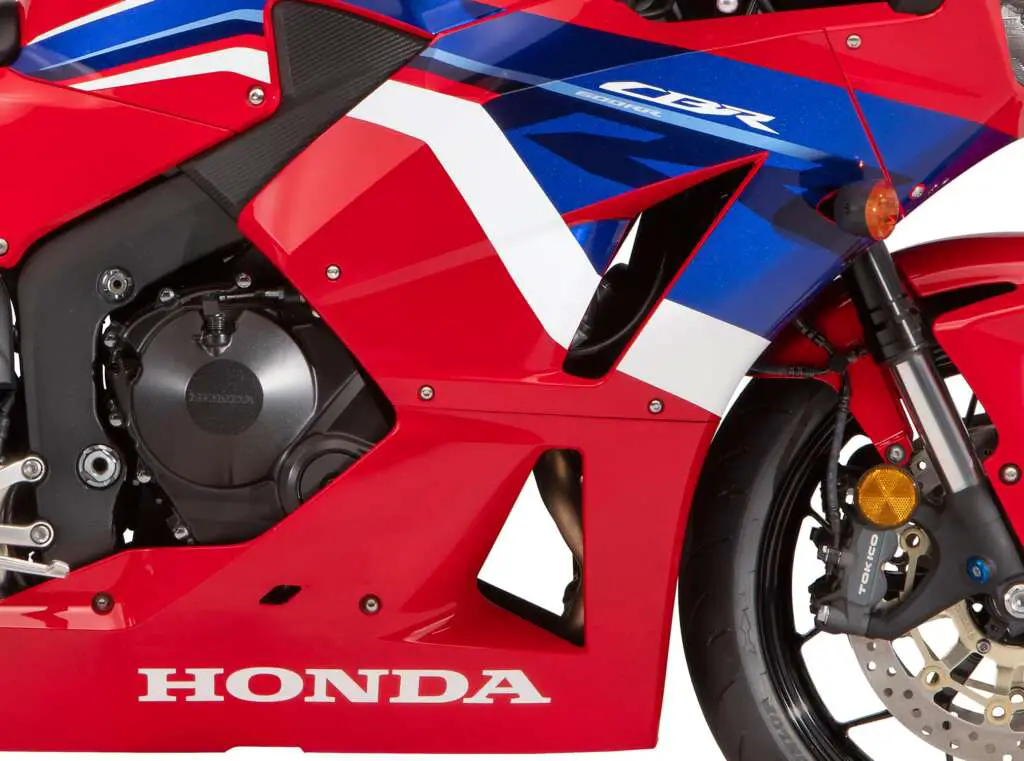

RADIAL-MOUNTED FRONT-BRAKE CALIPERS
The CBR600RR uses radial-mounted monoblock front-brake calipers. This construction makes the caliper stiffer, and that means you get better
brake feel for more linear, powerful stopping. Each caliper also uses four chromium-plated aluminum pistons for smooth, friction-free operation.
CENTRALLY LOCATED FUEL TANK
The CBR600RR’s 4.8-gallon fuel tank is positioned in the center of the chassis and low in the frame. This allows for a more compact design, but even more important helps centralize the bike’s mass. Increased mass centralization means the CBR is more responsive to rider input, especially when
leaning the bike into a turn or standing it up at the exit.
Honda ELECTRONIC STEERING DAMPER (HESD)
Most steering dampers only sense handlebar deflection speed. The Honda Electronic Steering Damper (HESD) is way more sophisticated. It also detects vehicle speed, and adjusts damping proportionally. That helps maintain low-speed maneuverability while providing excellent, predictable high-speed handling.
DUAL-STAGE FUEL INJECTION
Two sets of injectors per cylinder ensure both low and high-rpm performance. You get near instantaneous high-rpm response, along with great low-rpm metering and clean running.
2022 Honda CBR600RR ABS Totalmotorcycle.com Features and Benefits
BRAKING
RADIAL MOUNTED FRONT-BRAKE CALIPERS
The CBR600RR uses radial-mounted monoblock front-brake calipers. This construction makes the caliper stiffer, and that means you get better brake feel for more linear, powerful stopping. Each caliper also uses four chromium-plated aluminum pistons for smooth, friction-free operation.
12-SPOKE WHEELS
With their consistent rigidity and balance, these sharp-looking 12-spoke cast aluminum wheels work with the fork and enhance suspension feedback to deliver real handling improvements.
ELECTRONIC COMBINED ANTI-LOCK BRAKING (C-ABS)
The available electronically controlled C-ABS distributes brake force over both wheels, helping to maintain braking confidence in less-than-ideal conditions. The system electronically measures rider input on the brake lever and pedal, and applies only the front or rear brake in some cases or combines both brakes in other situations.
LINE-BEAM HEADLIGHTS
Line-beam headlights feature a two-piece reflector design that utilizes two H7 bulbs for optimum light distribution and unique compact design. The result: the headlight helps you see better and also helps make you visible to traffic.
ENGINEERING
CENTRALLY LOCATED FUEL TANK
The CBR600RR’s 4.8-gallon fuel tank is positioned in the center of the chassis and low in the frame. This allows for a more compact design, but even more important helps centralize the bike’s mass. Increased mass centralization means the CBR is more responsive to rider input, especially when leaning the bike into a turn or standing it up at the exit.
HANDLING
Honda ELECTRONIC STEERING DAMPER (HESD)
Most steering dampers only sense handlebar-deflection speed. The Honda Electronic Steering Damper (HESD) is way more sophisticated. It also detects vehicle speed, and adjusts damping proportionally. That helps maintain low-speed maneuverability while providing excellent, predictable high-speed handling.
Honda MULTI-ACTION SYSTEM (HMAS) INVERTED FORK
The HMAS cartridge fork features an exclusive internal piston construction. The innovative design employs smaller-diameter pistons to keep oil velocity high for improved damping characteristics and an expanded range of adjustability. The result: you get more precise suspension performance, especially over smaller surface irregularities.
UNIT PRO-LINK® SUSPENSION
By eliminating the frame-mounted top shock mount, Unit Pro-Link® isolates the chassis from bumps, resulting in more precise handling and better traction. Developed on Honda’s championship-winning MotoGP bikes, it’s a perfect example of the CBR’s superior engineering.
PERFORMANCE
DUAL-STAGE FUEL INJECTION
Two sets of injectors per cylinder ensure both low- and high-rpm performance. You get near-instantaneous high-rpm response, along with great low-rpm metering and clean running.
DUAL-STAGE RAM AIR
A nose-mounted, two-stage ram air system provides a high volume of cool air to the air box for linear power delivery and superb engine performance.
2022 Honda CBR600RR ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12999 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
ENGINE
Engine Type 599cc Liquid-Cooled Inline Four-Cylinder
Bore And Stroke 67mm x 42.5mm
Induction Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition Computer-controlled digital transistorized with 3-D mapping
Compression Ratio 12.2:1
Valve Train DOHC; four valves per cylinder
DRIVE TRAIN
Transmission Close-ratio six-speed
Final Drive #525 O-ring chain; 16T/42T
CHASSIS SUSPENSION BRAKES
Front Suspension
41mm inverted Big Piston Fork with spring preload, rebound and compression
damping adjustability; 4.3 inches travel
Rear Suspension
Unit Pro-Link® HMAS™ single shock with spring preload, rebound and compression
damping adjustability; 5.1 inches travel
Front Brake
Dual radial-mounted four-piston calipers with full-floating 310mm discs; Honda
Combined ABS
Rear Brake Single-caliper 220mm disc; Honda Combined ABS
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
DIMENSIONS
Rake (Caster Angle) 23.5°
Trail 3.9 inches
Wheelbase 53.9 inches
Seat Height 32.3 inches
Curb Weight
434 pounds (Includes all standard equipment, required fluids and a full tank of
fuel—ready to ride)
Fuel Capacity 4.8 gallons
Miles Per Gallon
44 MPG – Honda’s fuel economy estimates are based on EPA exhaust emission
measurement test procedures and are intended for comparison purposes only. Your
actual mileage will vary depending on how you ride, how you maintain your vehicle,
weather, road conditions, tire pressure, installation of accessories, cargo, rider and
passenger weight, and other factors.
OTHER
Model ID CBR600RA
Emissions Meets current EPA standards. California version meets current CARB standards and
may differ slightly due to emissions equipment.
Available Colors Grand Prix Red Tricolor
FACTORY WARRANTY INFORMATION
One Year Included Transferable, unlimited-mileage limited warranty
Optional Extended Extended coverage available with a HondaCare Protection Plan®
2022 Honda CBR600RR ABS – Totalmotorcycle.com Canada Specifications/Technical Details
NA
2022 Honda CBR600RR ABS – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
