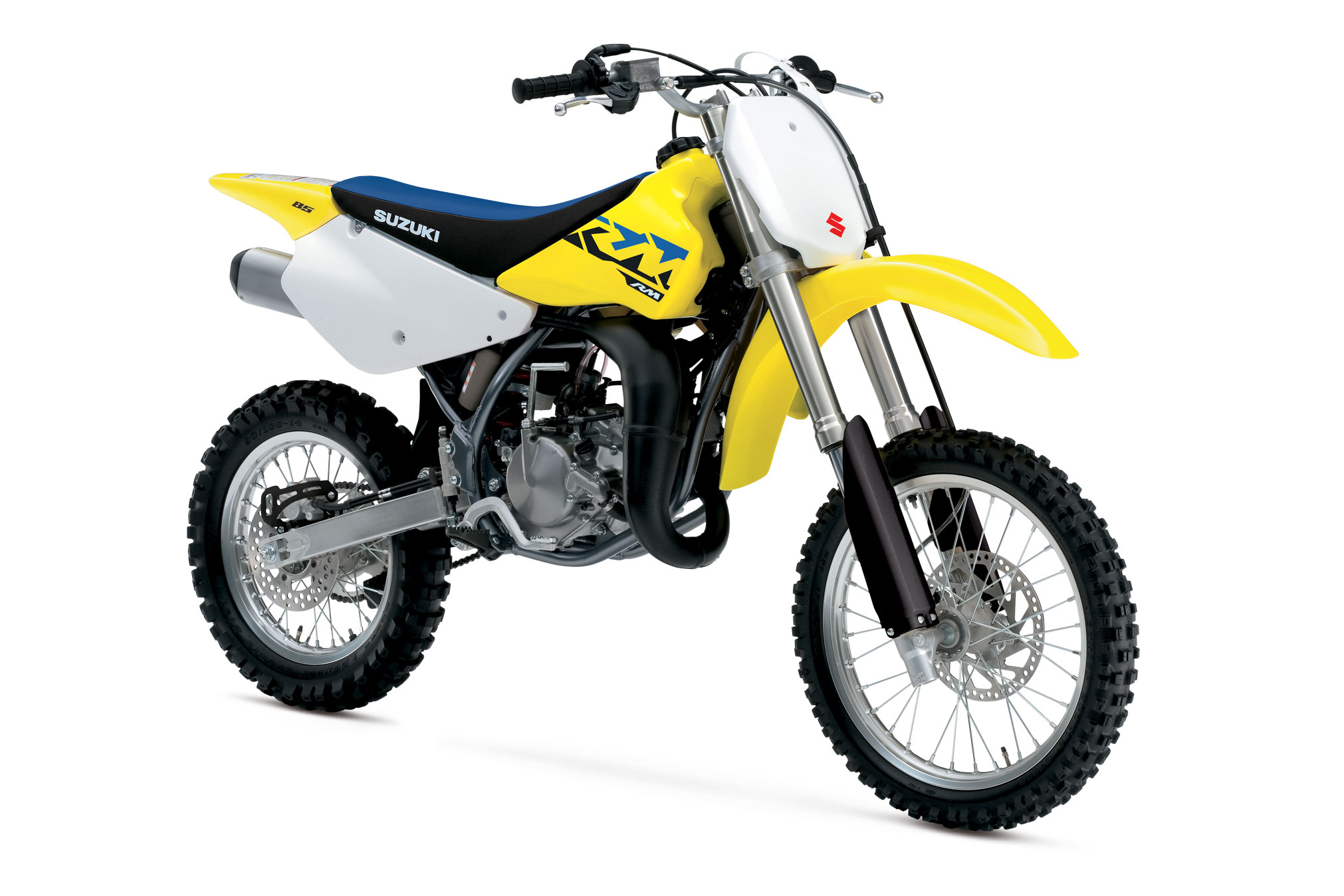

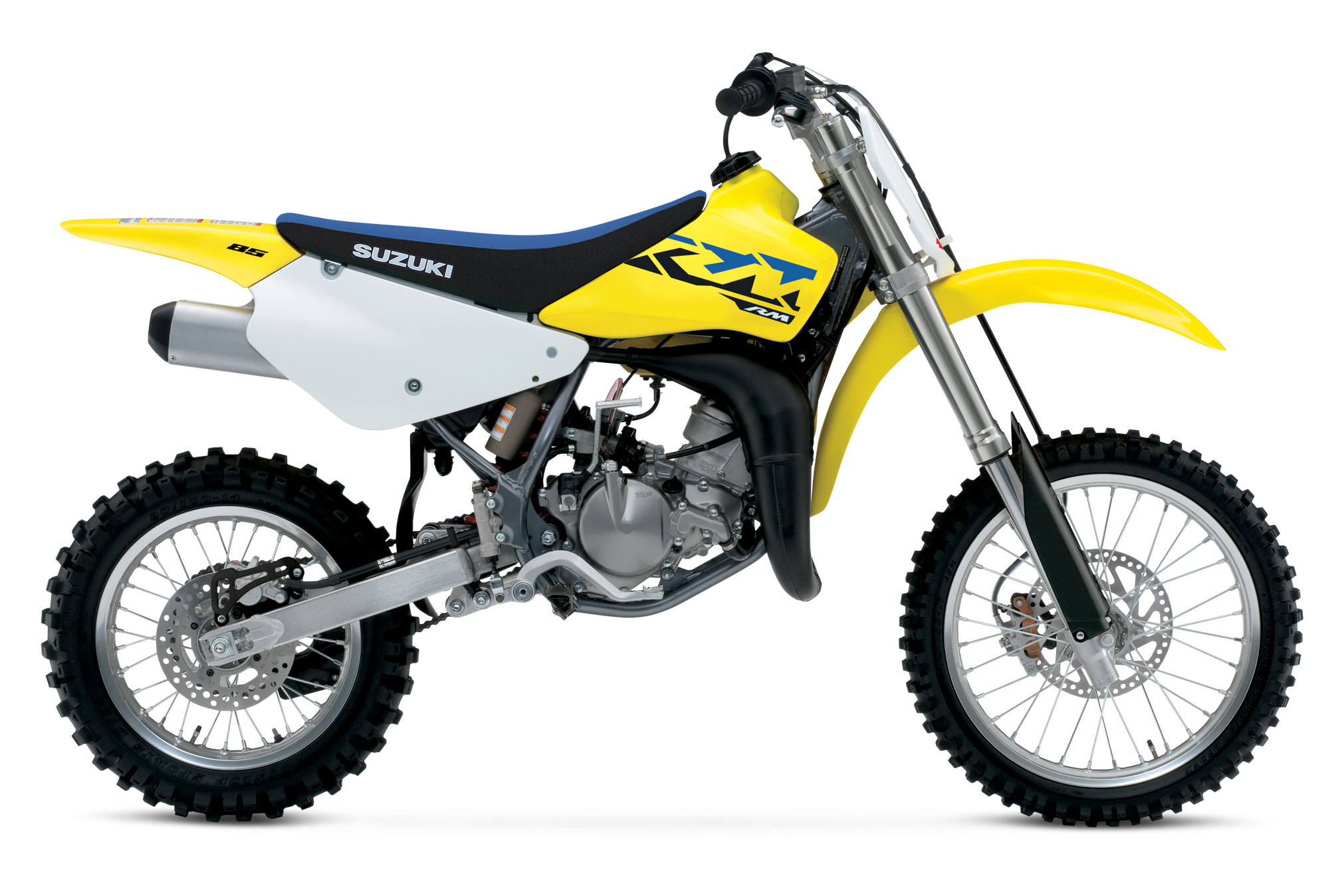

2022 Suzuki RM85 Guide

2022 Suzuki RM85

2022 Suzuki RM85 2022 Suzuki RM85

2022 Suzuki RM85: RACING SUCCESS STARTS HERE.

Introducing the 2022 Suzuki RM85…

The 2022 RM85 continues to carry on the powerful tradition of racing excellence in the Suzuki motocross family. The reliable two-stroke engine produces smooth power at any rpm with an emphasis on low- to mid-range performance. Just like its larger RM-Z cousins, the RM85 delivers class-leading handling for both experienced racers and rookie riders alike. With its smooth power delivery and lightweight handling, the RM85 is the perfect motocross bike for anyone learning to race and striving to win!

Competition motorcycles like the RM85 can only be ridden on non-public land in California per California Air Resource Board (CARB) regulations.

The RM85 continues to carry on the powerful tradition of racing excellence in the Suzuki motocross family. The reliable two-stroke engine produces smooth power at any rpm with an emphasis on low- to mid-range performance. Just like its larger rm-z cousins, the RM85 delivers class-leading handling for both experienced racers and rookie riders alike. With its smooth power delivery and lightweight handling, the RM85 is the perfect motocross bike for anyone learning to race and striving to win!







2022 Suzuki RM85 Totalmotorcycle.com Key Features

Liquid-cooled, 84.7cc, 2-stroke, single cylinder engine produces smooth power at any RPM

Six-speed transmission with precise shifting and clutch action lets riders blast out of any corner

Class-leading light weight and nimble handling

Fully adjustable Showa inverted fork and piggyback reservoir rear shock

Includes the ability to earn Suzuki contingency and track-side support



84.7CM3 2-STROKE ENGINE

84.7cm3, 2-stroke, liquid-cooled, crankcase reed-valve engine with bore and stroke of 48.0mm x 46.8mm. The cylinder features Suzuki Composite Electrochemical Material (SCEM) for durability, weight reduction and effective heat transfer to get superior class performance.

220MM FRONT DISC

2-piston caliper front brake with 220mm (8.7 in) large-diameter disc and rear brake with 200mm (7.9 in) disc provide excellent braking performance.

TEXTURED SURFACE SEAT

Each side of the seat has textured surface for better knee gripping.

INVERTED-STYLE FRONT FORK

The Showa 37mm inverted-style front fork is completely adjustable for rider weight, style, and ability. The fork features a cartridge system with fully adjustable rebound damping and 20-way adjustable compression damping (also included are guards to protect the inner fork tubes). The fork legs have 275 mm (10.8 inches) of travel.

TRANSMISSION

This durable transmission features a refined shift mechanism with a strong detent spring and needle bearing on the left side of the shift drum. The RM85 is equipped with a smooth-shifting, six-speed transmission and a precise rack-and-pinion activated clutch.

CLASS-LEADING PERFORMANCE

A tubular steel frame with aluminum beam swingarm provides class-leading performance on the track, especially in the corners. Designed for rigidity, durability, and straight-line performance, the frame features large diameter tubing in key areas and a large front reinforcement plate.













2022 Suzuki RM85 Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
The high-revving, 84.7cc, two-stroke, liquid-cooled, reed-valve, single cylinder engine has a bore and stroke of 48.0 mm x 46.8mm.

The cylinder features Suzuki Composite Electrochemical Material (SCEM) for durability, low weight, and effective heat transfer for superior class performance.

The exhaust valves are made of aluminum to best match the expansion rate of the cylinder, improving sealing for better engine performance.

The exhaust valve governor and actuator help provide good throttle response and overall tractability.

Precise Keihin PE28 carburetor provides smooth throttle response and is designed for simplified maintenance and tuning.

Digital CDI mapping helps create strong engine performance at high rpm.

The large-capacity radiator provides efficient engine cooling at all engine speeds.



TRANSMISSION FEATURES
The RM85 is equipped with a smooth-shifting, six-speed transmission and a precise rack-and-pinion activated clutch.

The long clutch lever makes it easy to accurately locate and work the engagement point during starts and when driving off corners.

This durable transmission features a refined shift mechanism with a strong detent spring and needle bearing on the left side of the shift drum.

A knurled shift-pedal tip delivers excellent grip and shift feel for precise gear selection.

CHASSIS FEATURES
A tubular steel frame with aluminum beam swingarm provides class-leading performance on the track, especially in the corners. Designed for rigidity, durability, and straight-line performance, the frame features large diameter tubing in key areas and a large front reinforcement plate.

The Showa 37mm inverted-style front fork is completely adjustable for rider weight, style, and ability. The fork features a cartridge system with fully adjustable rebound damping and 20-way adjustable compression damping (also included are guards to protect the inner fork tubes). The fork legs have 275 mm (10.8 inches) of travel.

The Showa large diameter rear shock absorber is valved to produce a plush feel and is resistant to bottoming. The shock provides 277 mm (10.9 inches) of wheel travel and features adjustable compression and rebound damping force adjustment.

A twin-piston caliper front brake with 220mm (8.7-inch) large-diameter disc and a rear brake with 200mm (7.9-inch) disc to provide excellent braking performance.

The light, narrow-diameter front and rear brake hoses improve feel and feedback to the rider. The front hose is routed behind the fork leg, eliminating the need for a brake hose cover.

A rigid rear brake caliper provides reliable braking performance and long pad life, and is easy to maintain. The caliper’s plastic guard reduces the possibility of damage and saves weight.

The forged aluminum alloy rear brake pedal is light and strong, while providing the rider accurate braking feel.

High-quality footpegs are made of cast chrome-molybdenum steel, instead of stamped steel, which makes them more durable with better grip.

Champion Yellow bodywork with RM-Z style graphics design plus black fork protectors and guards provide a professional race look.

Each side of the new color seat has a textured surface for better knee gripping.

The RM85’s wheel sizes meet AMA 85cc class regulations (Front: 70/100-17; Rear: 90/100-14).

ADDITIONAL FEATURES
Competition motorcycles like the RM85 can only be ridden on non-public land in California per California Air Resource Board (CARB) regulations.









2022 Suzuki RM85 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4399 USD
Canada MSRP Price: $5199 CDN
Europe/UK MSRP Price: £ TBA GBP (On The Road inc 20% Vat)

Engine84.7cc, 2-stroke, liquid-cooled, single cylinder
Bore x Stroke48.0 mm x 46.8 mm (1.88 in. x 1.84 in.)
Compression Ratio9.5/10.9:1
Fuel SystemKeihin PE28, single carburetor
StarterPrimary kickstarter

ClutchWet multi-plate
Transmission6-speed constant mesh
Final DriveChain, DID 428DS, 118 links

Suspension FrontTelescopic, pneumatic/coil spring, oil damped
Suspension RearLink type, coil spring, oil damped, adjustable spring preload
Brakes FrontDisc brake, single rotor
Brakes RearDisc brake, single rotor
Tires Front70/100-17 M/C 40M, tube type
Tires Rear90/100-14 M/C 49M, tube type
Fuel Tank Capacity5.0 L (1.3 US gal.)
ColorChampion Yellow No. 2

IgnitionElectronic ignition (CDI)
Spark PlugNGK BR10ES

Overall Length1805 mm (71.1 in.)
Overall Width735 mm (28.9 in.)
Overall Height1100 mm (43.3 in.)
Wheelbase1240 mm (48.8 in.)
Ground Clearance325 mm (12.8 in.)
Seat Height850 mm (33.5 in.)
Curb Weight73 kg (161 lb.)

WarrantyNot applicable







2022 Suzuki RM85 – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
Type 2-stroke, liquid-cooled
Displacement 84.7 cc
Bore x Stroke 48.0 mm (1.890 in) x 46.8 mm (1.843 in)
Compression Ratio 9.5/10.9:1 (Low Speed/High Speed)
Fuel System KEIHIN PE28, single
Starter Primary kick
Lubrication Fuel/oil premixture of 30 : 1
Ignition Electronic ignition (CDI)
Oil Capacity 5.0 L (1.3 US gallons)
DRIVE TRAIN
Transmission 6-speed constant mesh
Final Drive Chain, D.I.D. 428DS, 118 links
CHASSIS
Length 1805 mm (71.1 in)
Width 735 mm (28.9 in)
Height 1100 mm (43.3 in)
Wheelbase 1240 mm (48.8 in)
Seat Height 850 mm (33.5 in)
Curb Mass 73 kg (161 lbs)
Suspension Front Telescopic, pneumatic/coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Disc brake
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Fuel Tank 5.0 L (1.3 US gallons)
WARRANTY
No warranty







2022 Suzuki RM85 – Totalmotorcycle.com European Specifications/Technical Details

NA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
