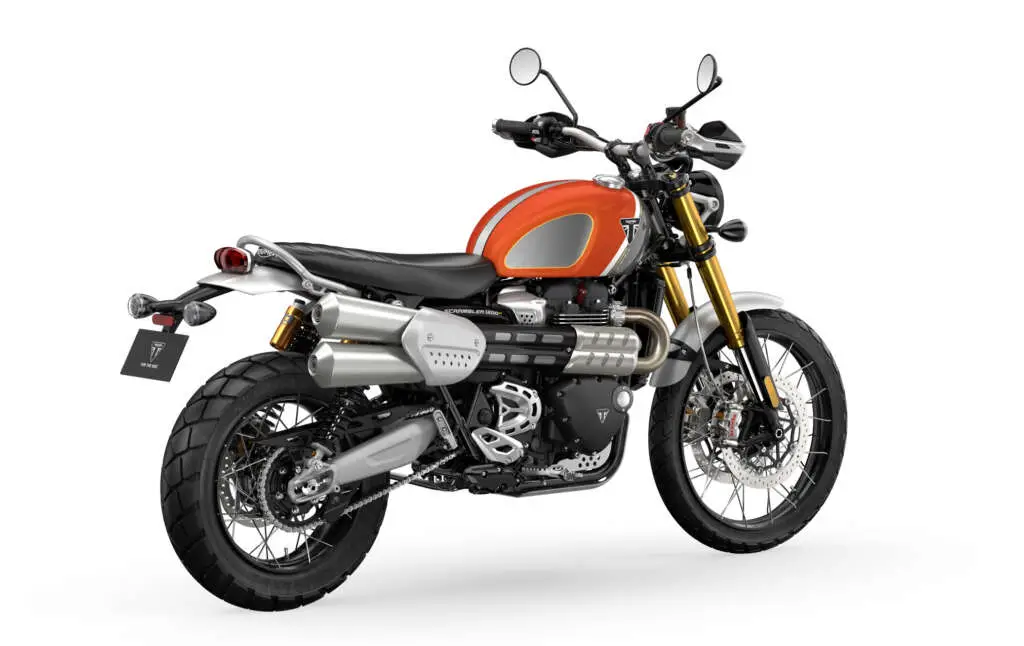

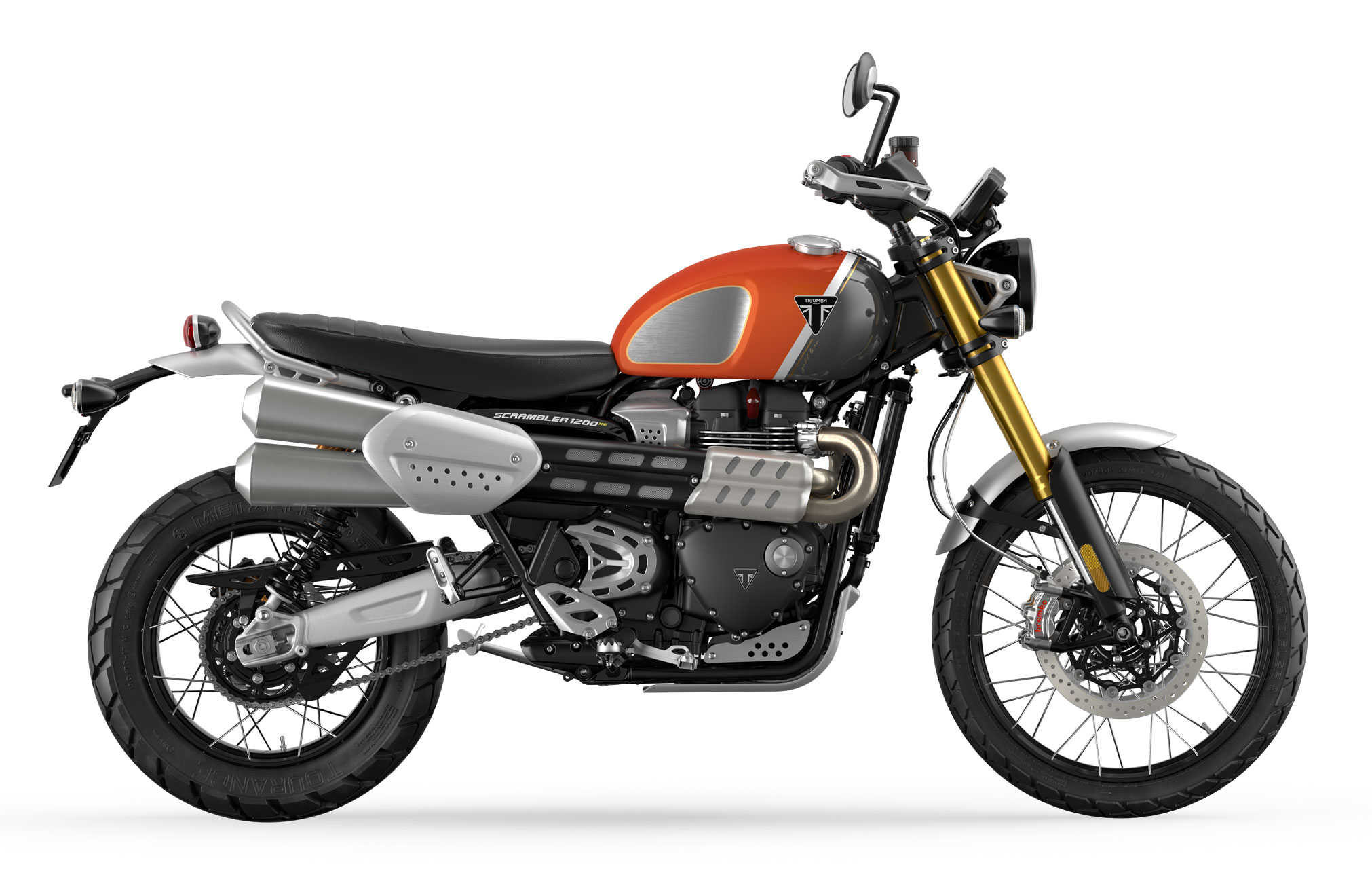

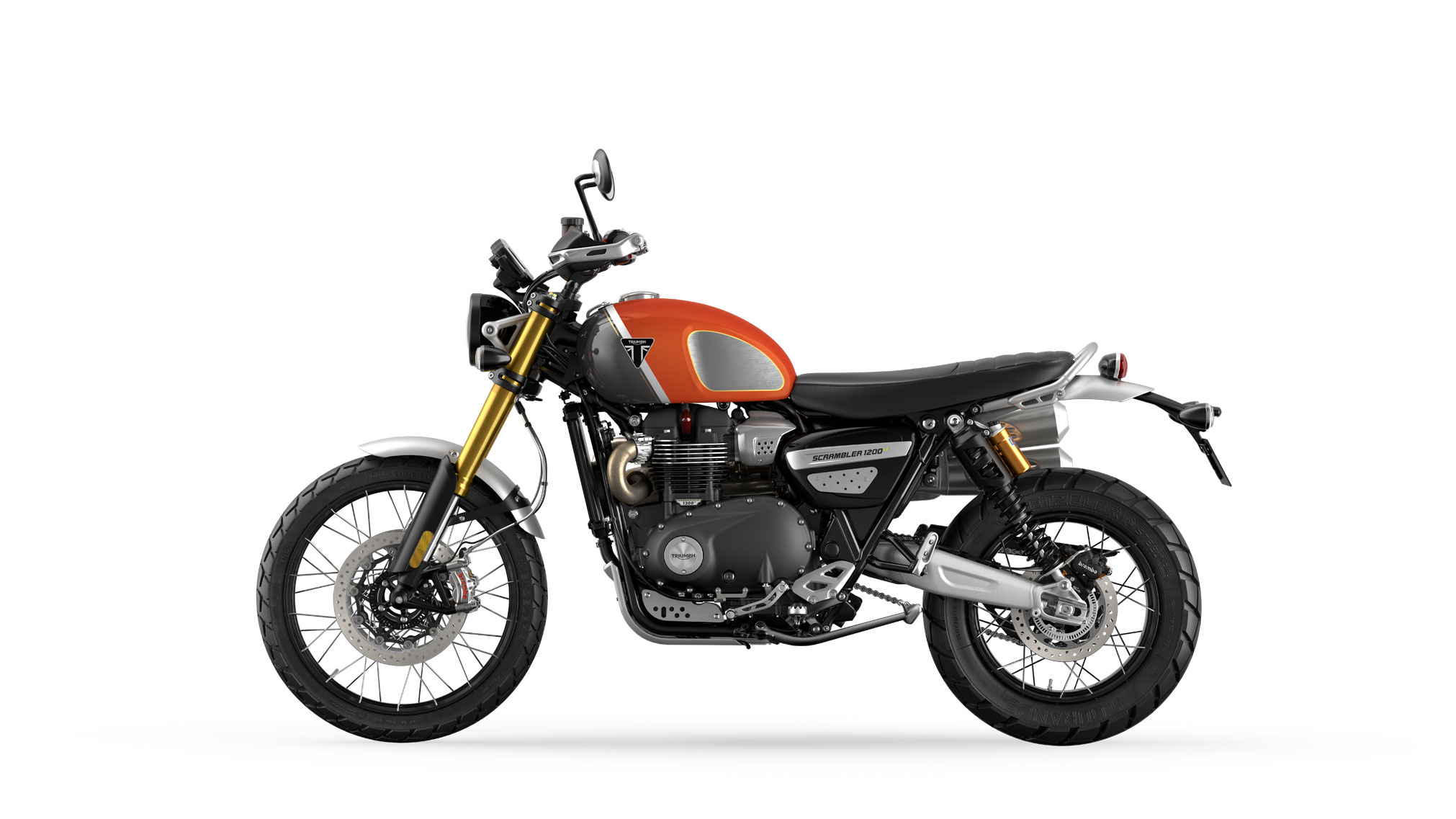

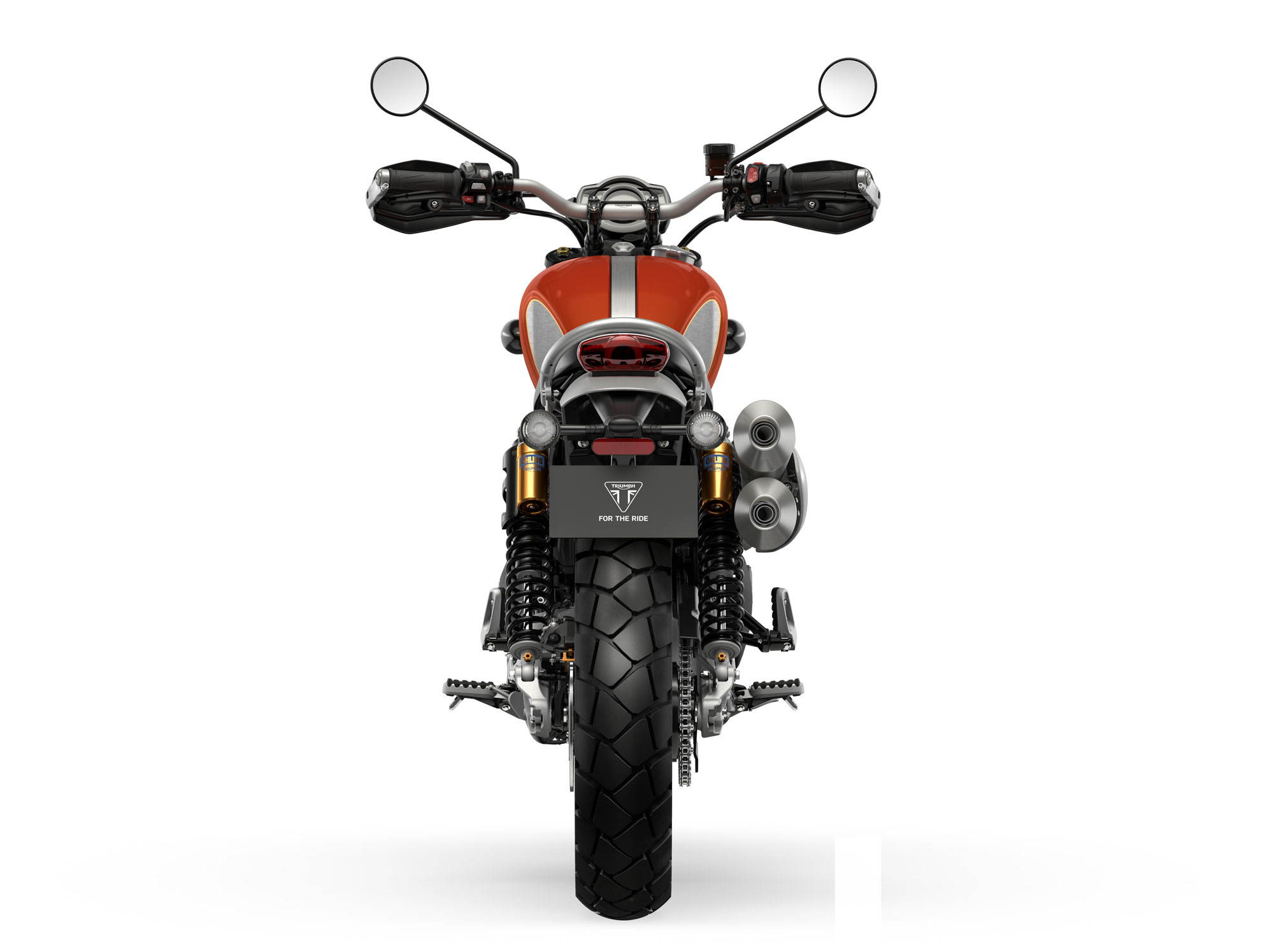

2022 Triumph Scrambler 1200XE Gold Line Guide

2022 Triumph Scrambler 1200XE Gold Line

2022 Triumph Scrambler 1200XE Gold Line 2022 Triumph Scrambler 1200XE Gold Line 2022 Triumph Scrambler 1200XE Gold Line 2022 Triumph Scrambler 1200XE Gold Line 2022 Triumph Scrambler 1200XE Gold Line

2022 Triumph Scrambler 1200XE Gold Line: BIG ADVENTURES AWAIT.

Introducing the 2022 Triumph Scrambler 1200XE Gold Line…

The ultimate in off-road classic crossover performance, the premium Gold Line Edition is built for big adventures.

The Scrambler 1200 also gets its own Gold Line Editions – the versatile XC with its plush suspension and unrivalled, all-road, all-day performance and comfort, and the stunning XE – the world’s first genuine dual purpose modern classic adventurer, with a category-leading level of performance and specification.

Both models are powered by a High Power 1200cc Bonneville twin engine and both benefit from state-of-the-art rider-focused technology and an exceptional level finish and detailing.

The Scrambler 1200 XC Gold Line Edition comes in a stylish combination of Carnival Red and Storm Grey, with a hand-painted gold line running alongside an Aluminum Silver tank stripe and the subtle signature ‘gold line’ logo. The brushed foil knee pad graphics are also edged with a hand-painted gold line.  The side panel and headlamp bowl are both finished in the classic Jet Black.

The scheme for the Scrambler 1200 XE Gold Line Edition consists of a striking Baja Orange and Silver Ice tank, with a Pure White stripe and hand painted gold line.  As with the XC model, the brushed foil knee pad graphics are gold-lined, and the side panel and headlamp bowl are Jet Black.







2022 Triumph Scrambler 1200XE Gold Line Totalmotorcycle.com Key Features

Showcasing the hand-painted gold lining skills of Triumph’s expert paint shop and reflecting customer demand for brighter and more custom-inspired schemes, the new Bonneville Gold Line Editions bring a unique style and premium hand-painted detail to eight motorcycles in Triumph’s renowned Modern Classic range.

All available for one year only, the Gold Line Editions feature all of the recent updates of the new Bonneville generation, including enhanced capability and performance, and more beautiful style.

Following the success of the Street Twin Gold Line Edition launched earlier in 2021, which sold out within the season, the new range of eight Bonneville Gold Line Editions takes the latest generation models and adds a unique and exquisite hand-painted ‘gold line’ colour scheme to each.

Perfectly illustrating the quality and attention to detail that Triumph is renowned for, and only available for one year, these new Gold Line Editions are premium, desirable and exclusive.

The Art of Gold Lining
The industry-leading hand-painted gold lining expertise of Triumph’s paint shop is a skill that takes incredible patience, years of experience and the steadiest of hands.

Many of the new Gold Line Edition designs start with a two-colour base scheme, where the joining point between the two colours is flattened down. The gold line is then carefully hand-applied, usually in one continuous stroke by the artist, using a very specialised soft-bristled sword-liner brush. Once the pin stripe is in place, it’s sealed against the elements with a final clear coat of lacquer.

The paints used for the gold lining are specially formulated by mixing a powered colour with a cellulose lacquer for exactly the right consistency, as normal automotive paint is too thin for brush work.

Just like every hand-lined Triumph, the artist adds the finishing detail to each Gold Line Edition by signing their work with their initials, providing a personal touch that makes every hand-painted Triumph special.









2022 Triumph Scrambler 1200XE Gold Line Totalmotorcycle.com Features and Benefits
  • Baja Orange and Silver Ice fuel tank with Pure White stripe, brushed foil knee pads, hand painted gold lining and elegant ‘gold line’ logo
  • Jet Black side panel and headlight bowl

Engine
1200cc twin engine (Euro 5 compliant)

Suspension
Fully-adjustable Showa upside-down forks and Öhlins long travel rear suspension units

Brakes
Brembo M50 brakes with optimized cornering switchable ABS

Clutch
Torque assist clutch

Riding Modes
6 riding modes (Road, Rain, Sport, Rider Configurable, Off-Road and Off-Road Pro)

Traction Control
Ride-by-wire throttle with optimized cornering switchable traction control

Instruments
Multi-functional instruments with personalizable TFT display

Connectivity
My Triumph Connectivity System (Accessory fit)

Lighting
All-LED lighting, with DRL headlight in applicable markets

Service
10,000 miles/12 months service interval, whichever comes first

Keyless
Keyless ignition system, single button cruise control, under seat USB charging and illuminated switches



NEW BONNEVILLE GOLD LINE EDITIONS

EIGHT UNIQUE CUSTOM-INSPIRED DESIGNS, AVAILABLE FOR ONE YEAR ONLY

 Showcasing the hand-painted gold lining skills of Triumph’s expert paint shop and reflecting customer demand for brighter and more custom-inspired schemes, the new Bonneville Gold Line Editions bring a unique style and premium hand-painted detail to eight motorcycles in Triumph’s renowned Modern Classic range.

All available for one year only, the Gold Line Editions feature all of the recent updates of the new Bonneville generation, including enhanced capability and performance, and more beautiful style.









2022 Triumph Scrambler 1200XE Gold Line – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16500  USD
Canada MSRP Price: $17450  CDN
Europe/UK MSRP Price: £ 12,800 (On The Road inc 20% Vat)

ENGINE & TRANSMISSION

Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 11 :1
Max Power EC 90PS/ 89bhp (66.2kW) @7,250rpm
Max Torque EC 110 Nm @ 4500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS

Frame Tubular steel
Swingarm Twin-sided, aluminium, 579mm long
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tire 90/90-21
Rear Tire 150/70 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-­road/Rider-Customisable)
DIMENSIONS & WEIGHTS

Width Handlebars 905
Height Without Mirror 1250
Seat Height 870
Wheelbase 1570
Rake 26.9 º
Trail 129.2
Tank Capacity 16
Wet Weight 230
FUEL CONSUMPTION

Fuel Consumption 4.6 litres / 100 km
CO2 Figures 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE

Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first







2022 Triumph Scrambler 1200XE Gold Line – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE & TRANSMISSION

Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 11 :1
Max Power EC 90PS/ 89bhp (66.2kW) @7,250rpm
Max Torque EC 110 Nm @ 4500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS

Frame Tubular steel
Swingarm Twin-sided, aluminium, 579mm long
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tire 90/90-21
Rear Tire 150/70 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-­road/Rider-Customisable)
DIMENSIONS & WEIGHTS

Width Handlebars 905
Height Without Mirror 1250
Seat Height 870
Wheelbase 1570
Rake 26.9 º
Trail 129.2
Tank Capacity 16
Wet Weight 230
FUEL CONSUMPTION

Fuel Consumption 4.6 litres / 100 km
CO2 Figures 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE

Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first







2022 Triumph Scrambler 1200XE Gold Line – Totalmotorcycle.com European Specifications/Technical Details

ENGINE & TRANSMISSION

Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11.0:1
Max Power EC 90PS/ 89bhp (66.2kW) @7,250rpm
Max Torque EC 110 Nm @ 4500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS

Frame Tubular steel
Swingarm Twin-sided, aluminium, 547mm
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tyre 90/90-21
Rear Tyre 150/70 R17
Front Suspension Showa 45mm fully adjustable upside down forks, 200mm travel
Rear Suspension Öhlins fully adjustable piggy-back RSUs with twin springs. 200mm rear wheel travel
Front Brakes Twin 320mm discs, Brembo M50 monobloc calipers. Radial master cylinder
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions Full-colour TFT instruments
DIMENSIONS & WEIGHTS

Width Handlebars 840 mm
Height Without Mirror 1200 mm
Seat Height 840 mm
Wheelbase 1530 mm
Rake 25.8 º
Trail 121 mm
Tank Capacity 16 L
Wet Weight 230 kg
FUEL CONSUMPTION

Fuel Consumption 4.6 litres / 100 km
CO2 Figures 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE

Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
