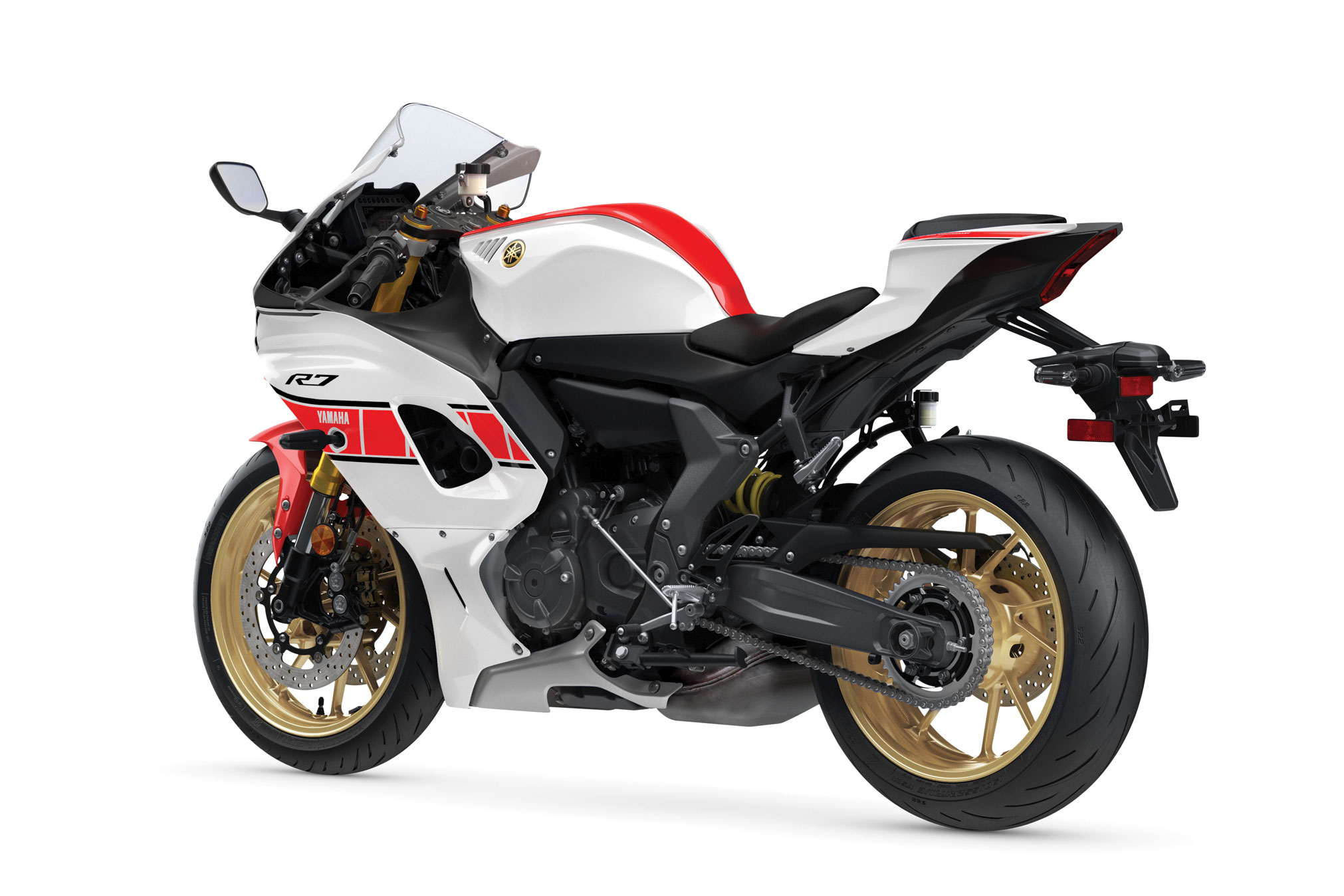

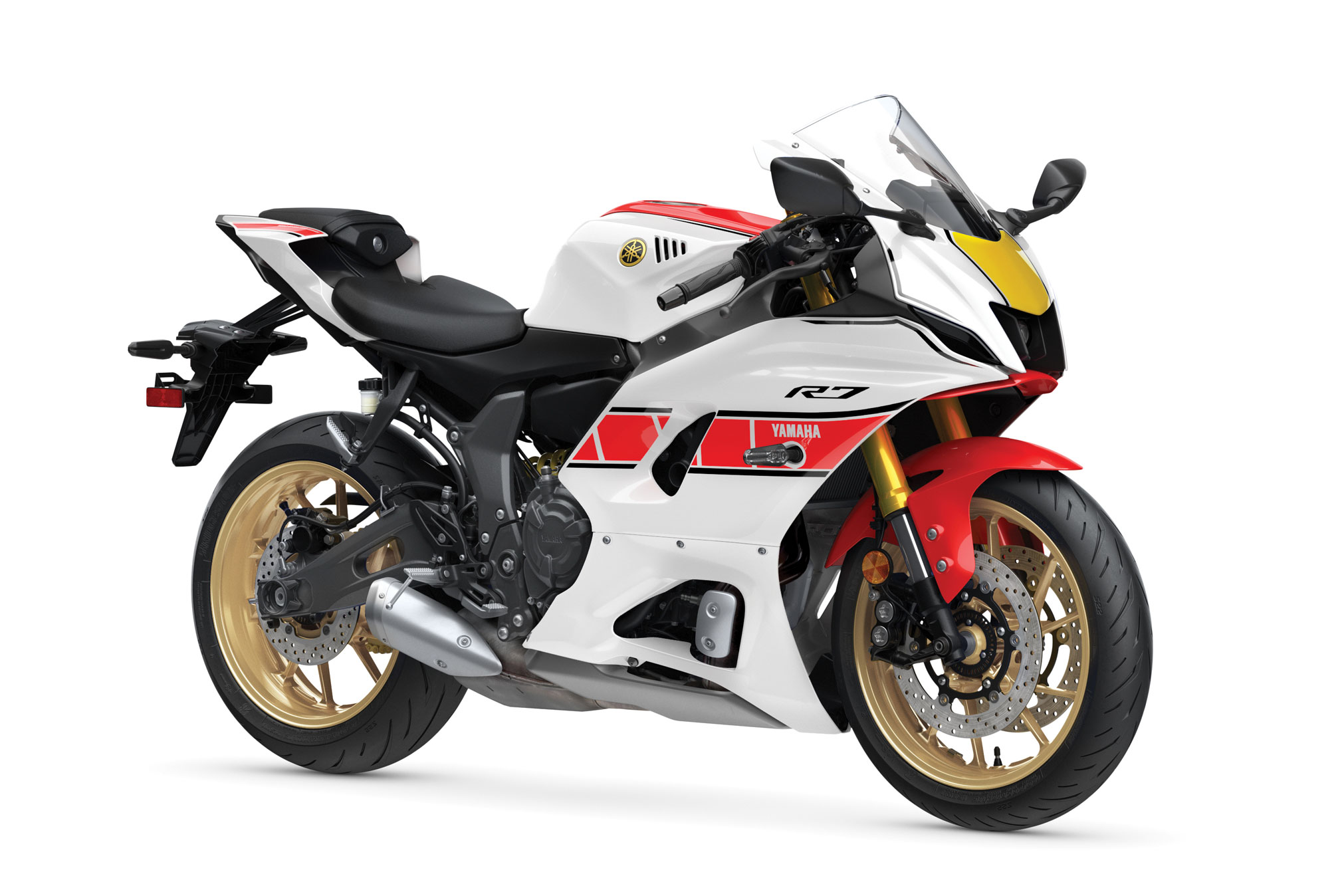

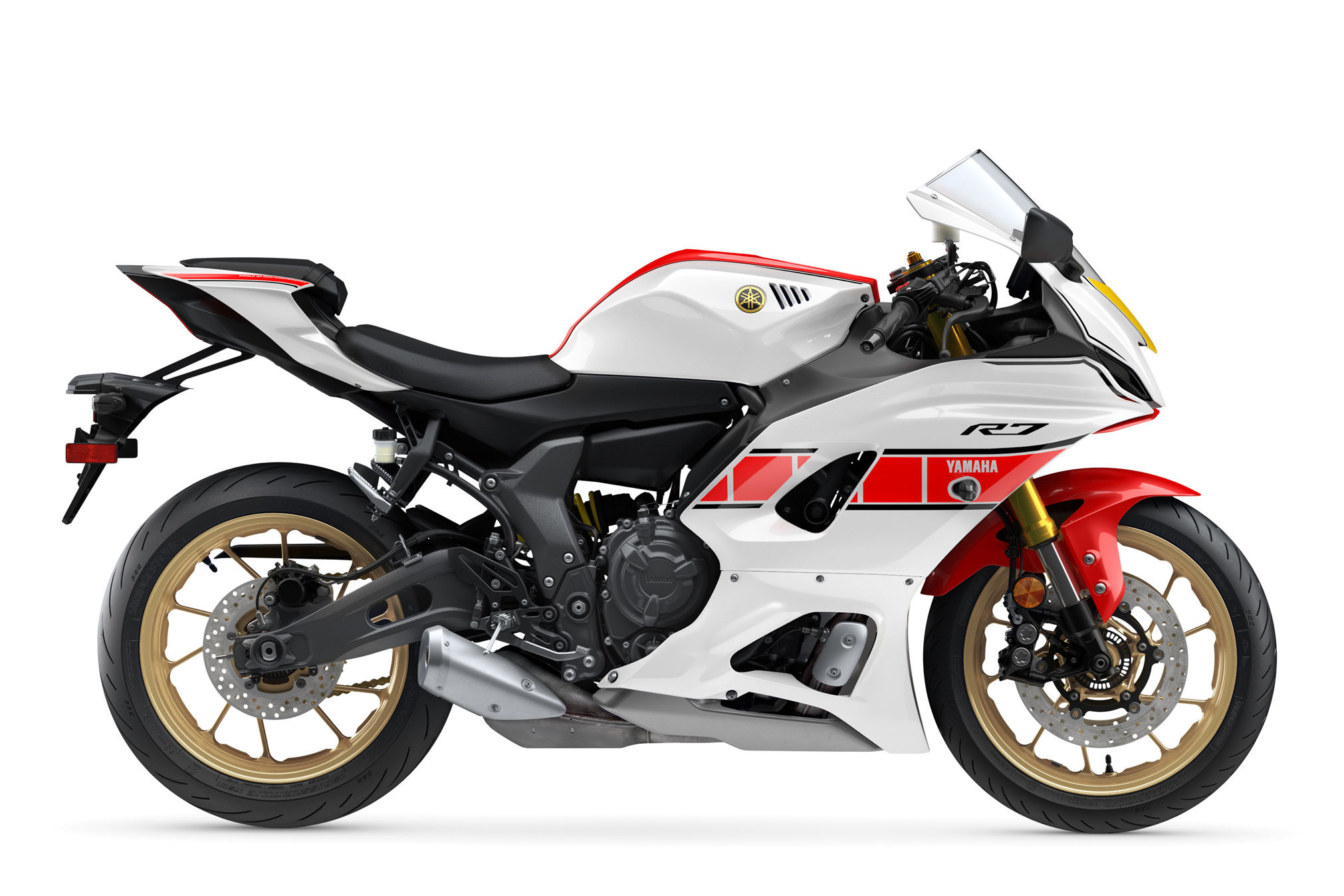

2022 Yamaha YZF-R7 World GP 60th Anniversary Edition: FROM R HERITAGE COMES R WORLD.
Introducing the new 2022 Yamaha YZF-R7 World GP 60th Anniversary Edition…
With bold Yamaha Heritage White and Rapid Red chain‑block livery and a host of special detailing touches, the World GP 60th Anniversary Edition YZF‑R7 is striking from every angle.
A new generation supersport featuring Yamaha’s legendary styling combines an advanced CP2 engine with an ultra-thin and lightweight chassis to provide torquey performance. Bridging the gap between the entry-level YZF-R3 and the prestigious YZF-R1, the 2022 YZF-R7 offers a unique package of performance and sporty styling that is true to its R-Series DNA and the lineup’s aspirational history of racing success. From its adjustable Monocross single-shock striking a balance between ride comfort and sporty performance to its proven engine and potent braking power, the R7 is designed to deliver the pinnacle of performance on and off the track.
Created using the same pure race-bred DNA that comes with every Yamaha Supersport bike, the R7’s compact dimensions and high-torque engine are guaranteed to put a smile on your face with every ride. And to celebrate 60 years of Grand Prix racing, Yamaha has created the exclusive R7 World GP 60th Anniversary with the iconic white and red “speed block” colour scheme.
Legendary winning colours.
Yamaha’s involvement in Grand Prix racing started way back in 1961 when the company entered the French GP to compete at the highest level. The team’s first victory came soon after, and Yamaha won the first of many World Championships in 1964. The race wins continue, with over 500 victories recorded to date – and many more to come.
Every R-Series supersport owes its existence to Yamaha’s race bikes. The R7 World GP 60th Anniversary’s iconic white body colour with red “speed block” graphics and special 60th anniversary emblem – combined with a red front fender, yellow front plate and gold-coloured wheels – embodies 60 years of GP racing and celebrates the famous race bikes and riders that have helped to make Yamaha what it is today.
The R7 World GP 60th Anniversary is a perfect example of Yamaha’s mission to create high quality motorcycles that inspire, thrill and excite. Fast, light and agile – and finished in Yamaha’s most famous historic white and red racing colours – this is the ultimate accessible Supersport.
2022 Yamaha YZF-R7 World GP 60th Anniversary Edition Totalmotorcycle.com Key Features
At a glance
- World GP 60th Anniversary livery
- High-torque 689cc CP2 engine
- Athletic design with R-Series DNA
- Aerodynamic cowling and twin-eye face
- A&S clutch for increased controllability
- Lightweight frame tuned for idealised chassis rigidity
- Fully-adjustable inverted 41 mm front forks
- Adjustable link-type rear shock
- Radial-mount front brake calipers
- Sports, tucked-in riding position gives optimum agility
- Lightweight 10-spoke wheels
- Optional Quick Shift System for seamless upshifts
TOP FEATURES
- Distinctive World GP 60th Anniversary Edition Styling
From the distinctive 60th Anniversary Yamaha Heritage White and Rapid Red chain-block livery to the numerous special detailing touches, including gold forks, gold wheels, Yamaha factory race-bike gold Tuning Fork emblems, black levers and special commemorative badging on the airbox cover, the striking YZF-R7 World GP 60th Anniversary Edition pays tribute to Yamaha’s passion for racing and winning at the highest levels of motorsport. - Torquey CP2 Powerplant
Yamaha’s proven 689cc liquid-cooled, inline 2-cylinder DOHC fuel-injected CP2 engine delivers excellent power and performance throughout the rpm range for an exhilarating ride and a true supersport experience. Its 270-degree crankshaft delivers linear torque for exciting acceleration and limited vibration. - All-New A&S Clutch
A first for Yamaha’s CP2 platform, the all-new Assist and Slipper clutch reduces clutch lever force while providing seamless downshifts and a controlled feeling over the bike’s engine braking. This helps make the supersport riding experience more accessible to more riders. For fast and smooth upshifts, an optional Quick Shift System (QSS) is also available on the YZF-R7. - Thin Proportions for Perfect Control
All-new dimensions give the YZF-R7 the slimmest proportions of the entire R-Series family, aiding in confident cornering performance on the track and quick, agile direction changes on twisty roads. The slim design also reduces wind resistance for optimal aerodynamics, while new bodywork incorporates the rider’s body to improve the flow of air around the bike. - Sporty New Suspension
The YZF-R7 features an inverted 41mm front fork with optimized spring rate and damping settings for an excellent front-end feel during cornering and braking. An all-new linked-type Monocross single-shock with adjustable spring preload and rebound damping strikes an ideal balance between ride comfort and supersport performance, for capability across a wide range of uses from urban commuting to track days. - Adaptive Bi-Functional LED Headlight
The iconic R-Series M-shaped intake duct and twin-eye look compliments the all-new YZF-R7 along with an adaptive bi-functional LED headlight.
2022 Yamaha YZF-R7 World GP 60th Anniversary Edition Totalmotorcycle.com Features and Benefits
ENGINE
- Torquey CP2 Powerplant
Yamaha’s proven 689cc liquid-cooled, inline 2-cylinder DOHC fuel-injected CP2 engine delivers excellent power and performance throughout the rpm range for an exhilarating ride and a true supersport experience. Its 270-degree crankshaft delivers linear torque for exciting acceleration and limited vibration. - Linear Torque with Smooth Acceleration
The all-new YZF-R7 boasts a 270-degree crankshaft that delivers a tactile experience of pulse and acceleration with limited vibration. The CP2 engine provides the rider a linear-feeling, direct connection from the throttle to the rear wheel. - All-New A&S Clutch
A first for Yamaha’s CP2 platform, the all-new Assist and Slipper clutch reduces clutch lever force while providing seamless downshifts and a controlled feeling over the bike’s engine braking. This helps make the supersport riding experience more accessible to more riders. For fast and smooth upshifts, an optional Quick Shift System (QSS) is also available on the YZF-R7. - Quick Shift System for Smooth Upshifts
An optional Quick Shift System (QSS) can be paired with the YZF-R7 to help provide speedy, smooth upshifts. When the sensor on the shift rod detects movement in the gearshift lever, adjustments are made in the engine output according to ECU calculations to instantly cancel out the drive torque of the engaged gear to promote swifter gear changes. - Strong, Lightweight Pistons
Forged aluminum pistons with direct-plated cylinders integrated with the crank case make for lighter weight and excellent strength at extreme temperatures, ensuring reliability at higher rpm.
CHASSIS/SUSPENSION
- Supersport Riding Position
The YZF-R7’s carefully developed rider’s triangle and racing-inspired cockpit puts you in a comfortable, confidence-inspiring riding position. A new seat combined with new tank covers featuring deep knee pockets, provide optimal hip and knee positioning. Riders get the freedom to adjust positions while also maintaining a firmly planted feel in corners and sturdy body hold under braking. Separate clip-on handlebars are set in relation to rider hip and footpeg placement for a commanding riding position. - Inverted Front Fork
The YZF-R7 features a preload, rebound and compression adjustable inverted KYB 41mm front fork offering optimized spring rates and damping settings for an excellent front-end feel during cornering and braking. - Lightweight Frame Tuned for Rigidity Balance
A high-strength steel frame with a rigid-mount aluminum center brace provides an optimized balance of rigidity for linear and nimble responsiveness to rider input. - Monocross Rear Shock
The all-new linked-type Monocross single-shock design reduces weight and further centralizes mass. Its adjustable spring preload and rebound damping are tuned to strike an ideal balance between ride comfort and sporty performance, for capability across a wide range of uses from urban commuting to track days. - Potent Braking
A newly-designed radial brake master cylinder from Brembo combines with radial-mounted front brake calipers on dual 298mm front brake rotors to optimize braking pressure for linear delivery with excellent performance and controllability. - Thin Proportions for Perfect Control
All-new dimensions give the YZF-R7 the slimmest proportions of the entire R-Series family, aiding in confident cornering performance on the track and quick, agile direction changes on twisty roads. The slim design also reduces wind resistance for optimal aerodynamics, while new bodywork incorporates the rider’s body to improve the flow of air around the bike. - Sporty New Suspension
The YZF-R7 features an inverted 41mm front fork with optimized spring rate and damping settings for an excellent front-end feel during cornering and braking. An all-new linked-type Monocross single-shock with adjustable spring preload and rebound damping strikes an ideal balance between ride comfort and supersport performance, for capability across a wide range of uses from urban commuting to track days.
ADDITIONAL FEATURES
- Adaptive Bi-Functional LED Headlight
The iconic R-Series M-shaped intake duct and twin-eye look compliments the all-new YZF-R7 along with an adaptive bi-functional LED headlight. - LED Lighting
Light Emitted Diode (LED) elements are used for the front and rear turn signals, the tail light unit and the headlights. Not only do LEDs offer long life with minimal power draw, they provide brilliant illumination for confidence and visibility day or night. - Refined Sportbike Ergonomics
Thanks to the low-profile fuel tank design and compact clip-on handlebar position, the rider is able to naturally grip the machine for confidence, especially when tucking aggressively behind the windscreen on the racetrack. - Distinctive World GP 60th Anniversary Edition Styling
From the distinctive 60th Anniversary Yamaha Heritage White and Rapid Red chain-block livery to the numerous special detailing touches, including gold forks, gold wheels, Yamaha factory race-bike gold Tuning Fork emblems, black levers and special commemorative badging on the airbox cover, the striking YZF-R7 World GP 60th Anniversary Edition pays tribute to Yamaha’s passion for racing and winning at the highest levels of motorsport.
ELECTRONICS
- Digital LCD Instrumentation
A new full-LCD instrument panel informs the rider of gear position, fuel capacity, real time and average fuel economy, water temp, clock, and more—all presented in a high-contrast display.
2022 Yamaha YZF-R7 World GP 60th Anniversary Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9299 USD
Canada MSRP Price: $10799 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Engine Type 689cc liquid-cooled, 4-stroke, DOHC inline twin- cylinder; 4-valves per cylinder
Bore x Stroke 80.0mm x 68.6mm
Compression Ratio 11.5:1
Fuel Delivery Fuel injection
Transmission 6-speed; multiplate wet clutch; with Assist &
Slipper clutch
Final Drive Chain
Suspension / Front Telescopic fork; 5.1-in travel, adjustable for
preload, rebound and compression
Suspension / Rear Linked-type Monocross shock, adjustable preload
and rebound; 5.1-in travel
Brakes / Front Dual 298mm hydraulic disc
Brakes / Rear 245mm hydraulic disc
Tires / Front 120/70ZR17 Bridgestone® BATTLAX HYPERSPORT S22F
Tires / Rear 180/55ZR17 Bridgestone® BATTLAX HYPERSPORT S22R
L x W x H 81.5 in x 27.8 in x 45.7 in
Seat Height 32.9 in
Wheelbase 54.9 in
Rake (Caster Angle) 23.7°
Trail 3.5 in
Minimum Ground
Clearance
5.3 in
Fuel Capacity 3.4 gal
Fuel Economy 58 MPG
Wet Weight 414 lb
Warranty 1 Year (Limited Factory Warranty)
Color Heritage White/Redline
2022 Yamaha YZF-R7 World GP 60th Anniversary Edition – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder |
| DISPLACEMENT | 689cc |
| BORE AND STROKE | 80 x 68.6 mm |
| COMPRESSION RATIO | 11.5:1 |
| MAXIMUM TORQUE | 6.9 kg-m (50 ft-lbs.) @ 6,500 rpm |
| FUEL DELIVERY | Fuel injection |
| ESTIMATED FUEL CONSUMPTION± | 4.6 L/100km (58 mpg) |
| LUBRICATION | Wet sump |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | 6-speed; multiplate wet clutch; with Assist & Slipper clutch |
| FINAL DRIVE | “O”-ring chain |
CHASSIS
| SUSPENSION (FRONT) | Telescopic fork; 5.1-in travel, adjustable for preload, rebound and compression |
| SUSPENSION (REAR) | Linked-type Monocross shock, adjustable preload and rebound; 5.1-in travel |
| BRAKES (FRONT) | Dual 298mm hydraulic discs / 4-piston calipers / ABS equipped |
| BRAKES (REAR) | 245mm hydraulic disc / single piston caliper / ABS equipped |
| TIRES (FRONT) | 120/70ZR17 |
| TIRES (REAR) | 180/55ZR17 |
CRITICAL DATA
| LENGTH | 2,070 mm (81.5″) |
| WIDTH | 706 mm (27.8″) |
| HEIGHT | 1,161 mm (45.7″) |
| WHEELBASE | 1,394 mm (54.9″) |
| RAKE / TRAIL | 23° / 1016 mm |
| GROUND CLEARANCE | 135 mm (5.3″) |
| SEAT HEIGHT | 836mm (32.9″) |
| FUEL CAPACITY | 13 litres |
| WET WEIGHT | 188 kg (414 lb.) |
| COLOUR(S) | Yamaha Racing Blue Performance Black |
2022 Yamaha YZF-R7 World GP 60th Anniversary Edition – Totalmotorcycle.com European Specifications/Technical Details
- Engine
Engine type
2-cylinder, Liquid-cooled, EURO5, 4-stroke, 4-valves, DOHC
Displacement
689cc
Bore x stroke
80.0 x 68.6 mm
Compression ratio
11,5:1
Maximum power
54,0 kW (73,4 PS) @ 8.750 rpm
Limited power version
35,0 kW (47,6 PS) @ 7.750 rpm
Maximum torque
67,0 Nm (6.8 kg-m) @ 6.500 rpm
Lubrication system
Wet sump
Clutch type
Wet, Multiple Disc
Ignition system
TCI
Starter system
Electric
Transmission system
Constant Mesh, 6-speed
Final transmission
Chain
Fuel system
Fuel Injection
- Chassis
Frame
Diamond
Caster angle
23°40′
Trail
90 mm
Front suspension system
Telescopic fork
Rear suspension system
Swingarm, (link suspension)
Front travel
130 mm
Rear travel
130 mm
Front brake
Hydraulic dual disc brake, Ø298 mm
Rear brake
Hydraulic single disc brake, Ø245 mm
Front tyre
120/70ZR17M/C (58W) Tubeless
Rear tyre
180/55ZR17M/C (73W) Tubeless
- Dimensions
Overall length
2.070 mm
Overall width
705 mm
Overall height
1.160 mm
Seat height
835 mm
Wheel base
1.395 mm
Minimum ground clearance
135 mm
Wet weight (including full oil and fuel tank)
188 kg
Fuel tank capacity
13,0 l
Oil tank capacity
3,0 l
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
