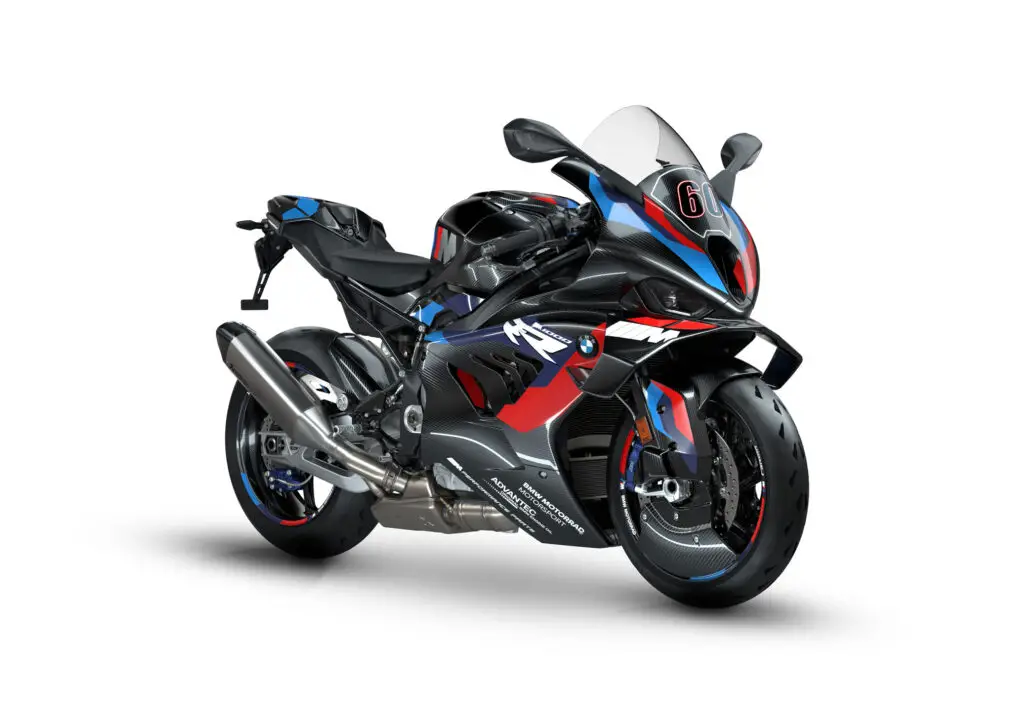

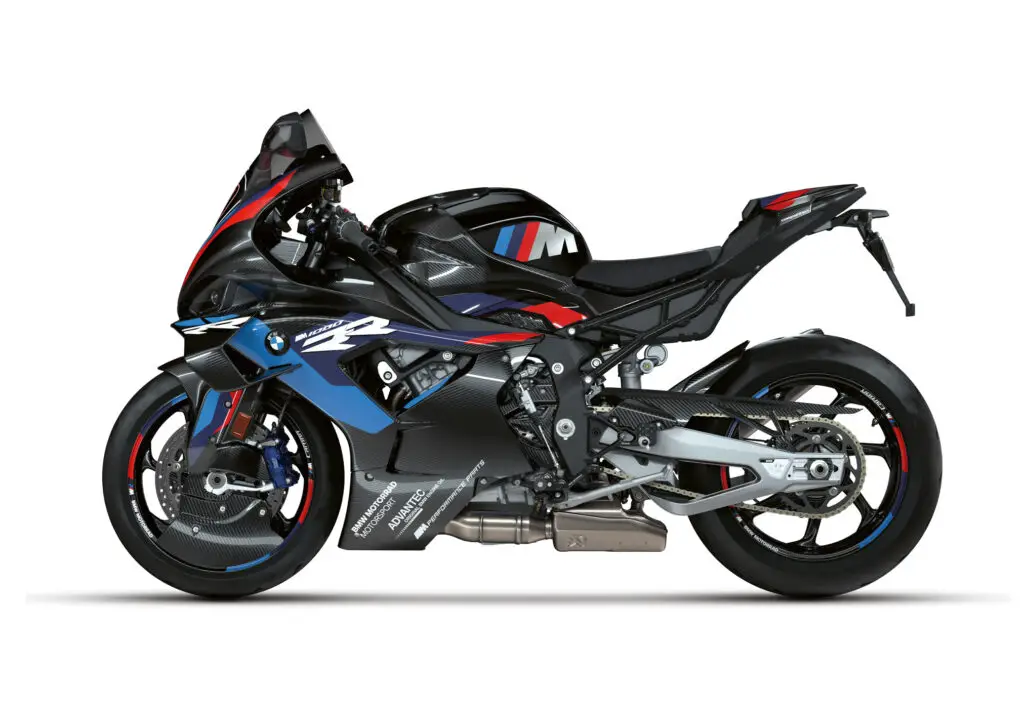

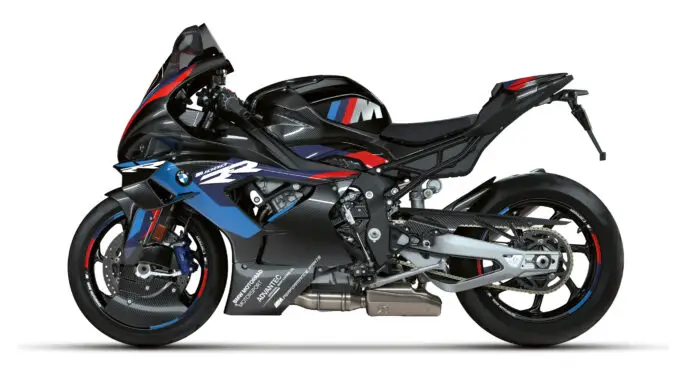

2023 BMW M1000RR M Competition: BLACK CARBON CHANGE.

Introducing the 2023 BMW M1000RR M Competition…

Racing meets aesthetics: The M Competition package includes the M GPS lap trigger and related activation code, the M Aero wheel covers, an anodized rear wheel swing arm that is 7.7 ounces lighter, and the DLC-coated M Endurance chain. Also available: M Carbon package with high-quality visible carbon and clear coat components, M Billet pack with new 5.3 ounces lighter M footrest, and Carbon passenger seat cover or Passenger package.





2023 BMW M1000RR M Competition Totalmotorcycle.com Key Features

The highlights of the new BMW M RR and M RR M Competition.

  • M RR 999 cc 4-cylinder engine developed for racing purposes.
  • Output 205 hp at 13,000 rpm and 83 lb-ft. at 11,000 rpm.
  • 2-Ring forged pistons.
  • Fully CNC machined intake ports and BMW ShiftCam technology to vary valve timing and lift.
  • Titanium valves, optimized camshafts and light, narrow rocker arms.
  • Light, compact engine with longer and lighter (85-grams / 3-ounces less) Pankl titanium connecting rods for reduced friction and weight compared to the S RR.
  • Anti-hopping clutch without self-boosting optimized for race starts.
  • Improved intake system with shorter intake funnels, compared to the S 1000 RR, for improved flow at high engine speeds.
  • Lightweight exhaust system with titanium manifold, front and rear silencers.
  • NEW: Improved aerodynamics with more downforce even at lean angles while still slightly improving top speed.
  • NEW: New fairing in visible carbon fibre with new carbon fibre front fairing carrier and new carbon fibre M Winglets.
  • NEW: New visible carbon fibre front fender with integrated brake cooling ducts.
  • NEW: M Aero Wheel Covers made from visible carbon fibre.
  • NEW: M Carbon wheels with new finish and M Design graphics.
  • NEW: Forged wheels available as an alternative to the carbon fibre wheels.
  • NEW: Newly designed rear section.
  • NEW: Ergonomic M Endurance seat.
  • NEW: Short license plate bracket.
  • NEW: Modified wiring harness with LWS connector for easier removal of license plate bracket and lights.
  • Riding modes “Rain”, “Road”, “Dynamic”, “Race” and “Race Pro1- 3” as well as the latest generation of Dynamic Traction Control DTC and DTC wheelie function with 6-axis sensor box.
  • Two adjustable throttle characteristics available now for optimum response. “Engine Brake” with triple adjustability of engine drag torque in “Race Pro” mode.
  • Shift Assistant Pro for fast upshifts and downshifts without using the clutch. The shifting pattern can be easily reversed for track use.
  • Launch Control for improved race starts and Pit Lane Limiter for keeping precise pit lane speed.
  • Hill Start Control Pro for comfortably starting off on inclines.

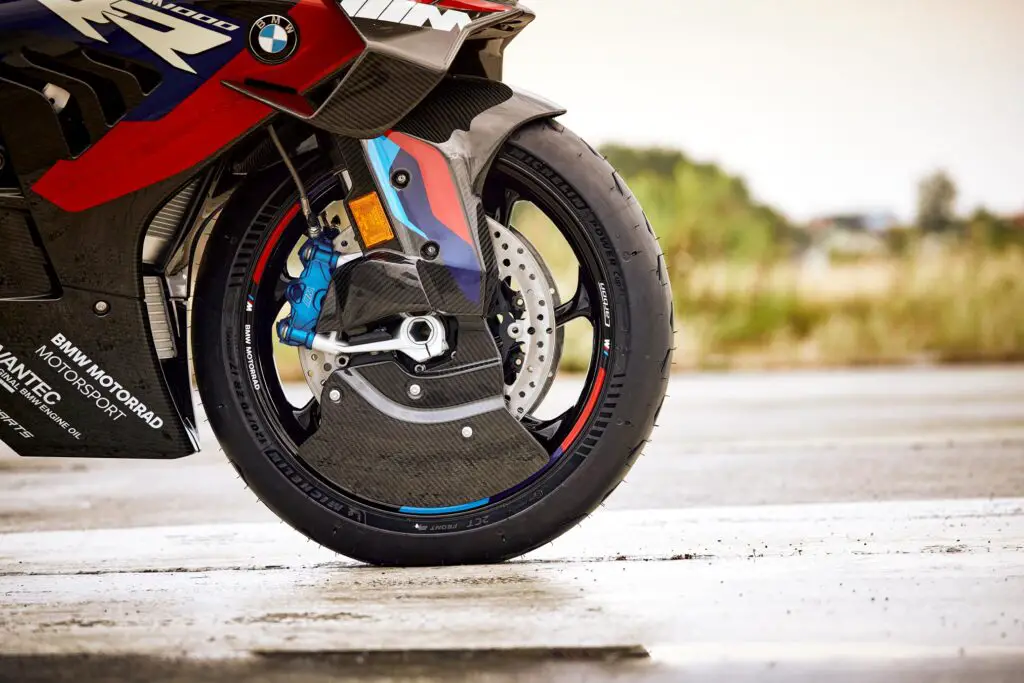

  • M Brakes: Maximum braking performance on the track.
  • Instrument cluster with large, readable 6.5-inch TFT display, start-up animation with M logo and OBD interface for M GPS Datalogger and M GPS Laptrigger.
  • Lightweight M battery, rear USB charging socket, powerful LED light units, electronic cruise control and heated grips.
  • M Competition Package with M GPS Laptrigger and activation code, M milled parts package, M Carbon package, natural anodized swing arm (220 gram / 7.0 ounces lighter than the stock variant), DLC-coated M Endurance chain and pillion package including hump cover.
  • Extensive range of optional accessories and special equipment.



Standard equipment

  • High windscreen
  • BMW Motorrad ABS and ABS Pro
  • Pro riding modes (Rain, Road, Dynamic, Race, Race Pro 1–3, Pit Lane Limiter, Launch Control, Dynamic Traction Control (DTC) +/- Shift, Wheelie Control, Slide Control, Dynamic Brake Control (DBC), shift assistant Pro)
  • Automatic hill start support (HSC) Pro
  • TFT display
  • LED headlights, rear light, and turn indicators
  • Heated grips
  • Cruise control
  • M chassis kit with tail rise kit and swinging arm pivot



Optional equipment

  • M Competition package with M Billet pack (M brake and clutch lever, M rider footrest, M brake lever guard), M Carbon package (covers made of visible carbon for front and rear wheels as well as pinions, chain guard, side and tank trims left/right), M engine protectors, anodised rear wheel swinging arm, M Endurance chain, M GPS lap trigger activation code, Passenger package with tail-hump cover
  • Passenger package (passenger seat, passenger seat cover, and passenger footrests)
  • Start numbers and sponsor sticker kit
  • Anti-theft alarm



Special accessories

  • Radiator grille guards
  • Tinted windscreen
  • High, tinted windscreen
  • M tyre heater
  • M data logger incl. M GPS lap trigger
  • M Cover kit





BMW Motorrad Canada is proud to announce the updated 2023 BMW M 1000 RR, developed to set a new milestone in the field of superbikes homologated for racing. Two colours and variants will be available: The M RR in Light White non-metallic and the M RR M Competition in Blackstorm Metallic.

“We have achieved an engineering masterpiece in the aerodynamic development of the M RR due to our unwavering ambition, total passion and technical finesse. Thanks to countless hours in the wind tunnel as well as in road tests, we were able to considerably increase the top speed with unchanged engine output and at the same time significantly increase the downforce, also when banking in corners. Our development work will be rewarded with racing success.”

Christian Gonschor, Project Management M 1000 RR









2023 BMW M1000RR M Competition Totalmotorcycle.com Features and Benefits

Engine and chassis.

The new M RR uses the familiar water-cooled inline 999 cc 4-cylinder engine designed for racing purposes and in particular for the Superbike World Championship. Power delivery remains at 205 hp at 13,000 rpm and 83 lb-ft. of torque at 11,000 rpm. The maximum engine speed of the M RR is 15,100 rpm. As before, the chassis of the new M RR relies on the aluminum bridge frame as its centrepiece, supplemented by an upside-down fork and central suspension strut with Full Floater Pro kinematics. The primary goal when designing the chassis and suspension was to achieve the best possible lap times on the track. That’s why the chassis of the M RR is uncompromisingly designed for the track but is nevertheless also ideal for everyday riding on the street.

Improved aerodynamics increase both top speed and downforce.

The increased potential of the new M RR results above all from advancements in the area of aerodynamics. Never before has BMW Motorrad invested more development work in a fairing through simulation, optimization in the wind tunnel and testing on the track. The expertise of the BMW in-house motorsport department provided significant support in the design process.

For example, a newly designed fairing made of visible carbon with a higher windscreen provides an increase in top speed in conjunction with optimized airflow around the rider. Another positive effect of the new fairing is the now integrated protection of the M engine covers. For the first time, this fairing uses a light, yet rigid, fairing front beam made of carbon fibre. Improved accessibility to the cable connections on the front indicator lights ensures even faster removal to make the M RR “ready for track use.”

With the new M RR, BMW Motorrad achieved a masterpiece of engineering in terms of aerodynamics. The seemingly mutually exclusive goals of “increasing top speed” and “increasing downforce” were both achieved in the M RR through careful development of all aerodynamically relevant components while also benefiting the rider with noticeable physical relief due to the greatly improved airflow.

In the course of this aerodynamic development, the M Winglets were completely revised. In addition to achieving the highest possible maximum speed, which is essential for winning races, another goal is to achieve the best possible contact between the tires and the road surface – especially when accelerating and cornering.

Wheelies are absolutely undesirable from a riding dynamics point of view, as the drive force in a wheelie is not converted 100 percent into forward momentum but is wasted on raising the front end. Accordingly, the traction control kicks in to stop the wheelie and thus reduces the driving force. Valuable tenths of a second are lost here.



The new BMW M 1000 RR

The M Winglets on the front fairing of the new M RR now produce significantly more aerodynamic downforce than before – both when riding upright and when leaning in corners. The tendency to wheelie is reduced and thus the need for traction control to kick in is reduced. The rider can have greater confidence in front wheel grip for achieving more extreme lean angles or higher cornering speeds at the same lean angle. At the same time, the rider benefits from a slight increase in top speed.



Speed Current downforce Increase 2023+ M RR downforce
150 km/h 9.1 lbs. +3.5 lbs. 12.6 lbs.
200 km/h 15.8 lbs. +6.2 lbs. 22.0 lbs.
250 km/h 25.2 lbs. +9.2 lbs. 34.4 lbs.
300 km/h 36.0 lbs. +13.8 lbs. 49.8 lbs.



Another central point in optimizing the entire aerodynamics package was around the area of the front wheel. Here, for the first time in the history of BMW Motorrad, brake cooling air ducts, made of visible carbon fibre, are used. They are integrated into the new front mudguards which have been optimized for improved airflow around the fork legs and brake calipers and in reducing the temperature of the M brakes by up to 50 degrees Fahrenheit in track operation, helping them to achieve even higher performance and a more constant pressure point. The M Aero Wheel Covers, also made of visible carbon fibre, lower drag further – especially at speeds above 250 km/h. The M Aero Wheel Covers are included in the M 1000 RR M Competition package.



M Carbon wheels

Carbon fibre – once developed for the aerospace industry, this high-strength and super-light material first established itself in racing and now also in BMW motorcycles. BMW Motorrad uses it wherever minimum weight and maximum rigidity are required. The M Carbon wheels of the new M RR are an ideal area of application for this material, which is processed in a very elaborate process using high-pressure ovens – so-called autoclaves – because the advantages are obvious. Less weight means lower rotational mass leading not only to improved acceleration and braking behavior but also makes the bike easier to handle.

In the new M RR, the M Carbon wheels feature a new lacquer clearcoat that brings out the deep black shimmering carbon fibre structure even more intensively. New graphics in M design on the rims emphasize this high-tech look. As an alternative to the M Carbon wheels, the new M RR can now also be ordered with forged wheels.

Redesigned rear end and ergonomic M Endurance seat

A newly designed rear end makes the current M RR look lighter and sportier. The short license plate bracket and the ergonomically designed M Endurance seat are new features. The special design of the seat contour provides the rider with a significantly larger contact area when hanging-off. The benefits are better feedback and fatigue-free riding. As before, the license plate bracket and the indicator and license plate lights form one unit and the functions of the brake and taillights are integrated into the side indicator lights. The extremely compact grouping makes it easy to get the M RR ready for track use in a few simple steps. Thanks to a modified wiring harness, which is now equipped with a LWS connector, disassembly is now even quicker and easier.

Updated M Competition Package

If the M RR in standard trim is still not enough for you, the M Competition Package offers a mix of premium components for the racing technology enthusiast and the aesthetically minded rider alike. In addition to the M GPS Laptrigger software and associated activation code, the M Competition package includes the M milled parts package, the M Carbon package as well as a natural-coloured anodized, 220-grams lighter swinging arm, the DLC-coated M Endurance chain and the Passenger Package including hump cover. Components of the M milled parts package are brake and clutch levers milled from high-strength aluminum and anodized, as well as a new, weight-optimized rider footrest system reduced to the essential functions and a brake lever guard. The M Carbon package includes covers for the rear wheel made of visible carbon and coated with clear lacquer, as well as the drive sprocket, a chain guard and the side and tank panels on the left and right.

BMW Motorrad customer racing

The new M RR is homologated with FIM regulations for the FIM Superstock class as well as the FIM Superbike World Championship and will be manufactured in the minimum number of 500 units required for the World Championship and beyond. Within the price range specified by the regulations, the new M RR already has all the essential extras for motorsport homologation. This makes the M RR a highly effective basic motorbike for the Superstock and Superbike classes as well as for endurance races for numerous teams all over the world.

Standard Equipment

  • 999 cc, 4-cylinder engine with 2 injectors per cylinder
  • Titanium exhaust
  • Anti-hopping clutch
  • BMW ShiftCam variable camshaft control
  • Gear shift assist Pro
  • ABS Pro with Race ABS (Partly integral) linked with Ride Modes
  • Carbon wheels
  • Dynamic Traction Control
  • Rear compression, rebound & preload adjustable
  • Steering stabilizer
  • M Chassis kit
  • M Winglet
  • Radial front brake caliper
  • Upside Down Fork
  • Electronic immobilizer
  • Colour TFT screen 6.5″ with Connectivity and Multi-controller.
  • Heated Grips
  • LED turn indicators, headlight and taillight with Comfort Turn Indicators
  • M Lightweight Battery
  • Drop Sensor
  • USB port
  • Cruise control
  • On Board Computer
  • M sport seat
  • Ride Modes Pro
  • Adjustable handbrake and clutch levers
  • Detachable license plate bracket
  • Hill Start Control Pro
  • Aluminum Fuel Tank



Optional Packages and Equipment

M Competition Package

  • Black Storm Metallic / M Motorsport
  • M Endurance chain
  • Clear anodized Swingarm
  • M GPS Laptrigger
  • Passenger Kit
  • M Carbon Package
    • M Carbon front and rear fenders
    • M Aero Wheel Cover
    • M Airbox Cover
    • M Carbon tank covers left and right
    • M Carbon Chain Guard
    • M Carbon Sprocket Cover
    • M Carbon Passenger Seat Cover
  • M Billet Package
    • M Folding Brake Lever
    • M Brake Lever Guard
    • M Folding Clutch Lever
    • M Rider Footrest System



M Performance Parts

  • M GPS activation code
  • M GPS Datalogger including M GPS Laptrigger
  • M Endurance chain
  • M axle protectors
  • M Carbon airbox cover
  • M Carbon wheels
  • M Carbon chain guard
  • M Carbon rear wheel cover
  • M Carbon sprocket cover
  • M Carbon tank cover left/right
  • M rider footrests
  • M rider footrest system
  • M seat / M seat high / M seat low
  • M pillion footrests left/right
  • M folding handbrake lever
  • M remote adjustment for brake
  • M handbrake lever protector
  • M chain tensioner
  • M folding clutch lever
  • M clutch lever protector
  • M mounting stand receptacle
  • M oil filler neck
  • M cover kit
  • M fork clamp for stub handlebars left/right
  • M forged wheels
  • M tire warmers



Comfort, Design and Maintenance

  • Pillion seat
  • Windscreen tinted
  • Knee pads for tank.
  • Tank pad
  • Protective glass for 6.5-inch TFT display
  • Motorbike rug
  • BMW Motorrad Battery Charger Plus
  • Sport wheel stands, front and rear











2023 BMW M1000RR M Competition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $38,365 USD
Canada MSRP Price: from $43,360 CDN
Europe/UK MSRP Price: from £35,890 GBP (total selling price)

Engine   Liquid-cooled inline 4-cylinder
Capacity cc 999
Bore x stroke mm 80.0 x 49.7
Power hp 205 @ 13,000 rpm
Torque lb-ft. 83 @ 11,000 rpm
Max. engine speed rpm 15,100
Compression ratio   13.5:1
Fuel   Power rated at 98 RON. 95-98 RON knock control
Valvetrain   DOHC, valve actuation via single cam followers

BMW ShiftCam variable intake cam control

Valves per cylinder   4
Intake / Exhaust valve diameter mm 33.5 / 27.2
Throttle body diameter mm 48
Engine control   BMS-0
Emission control   Closed-loop three-way catalytic converter

Alternator watts 450
Battery Volta / Ah M lightweight battery 12v / 5 Ah
Headlamp   LED free-form twin low-beam, LED free-form high-beam
Starter kW 0.8

Clutch   Self-reinforcing multi-plate anti-hopping oil bath clutch,

mechanically operated

Gearbox   6-speed, constant-mesh
Primary ratio   1.652
Transmission gear ratios I   2.647
II   2.091
III   1.727
IV   1.500
V   1.360
VI   1.261
Secondary ratio   2.706
Rear wheel drive type   Chain

Frame construction type   Aluminum composite bridge frame, engine self-supporting
Front suspension   Upside-down telescopic fork, 45 mm slide tube diameter

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Rear suspension   Aluminum underslung double-sided swingarm

Central spring and shock absorber

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Suspension travel front / rear inches 4.7 / 4.6
Wheel castor inches 3.9
Steering head angle degrees 23.6

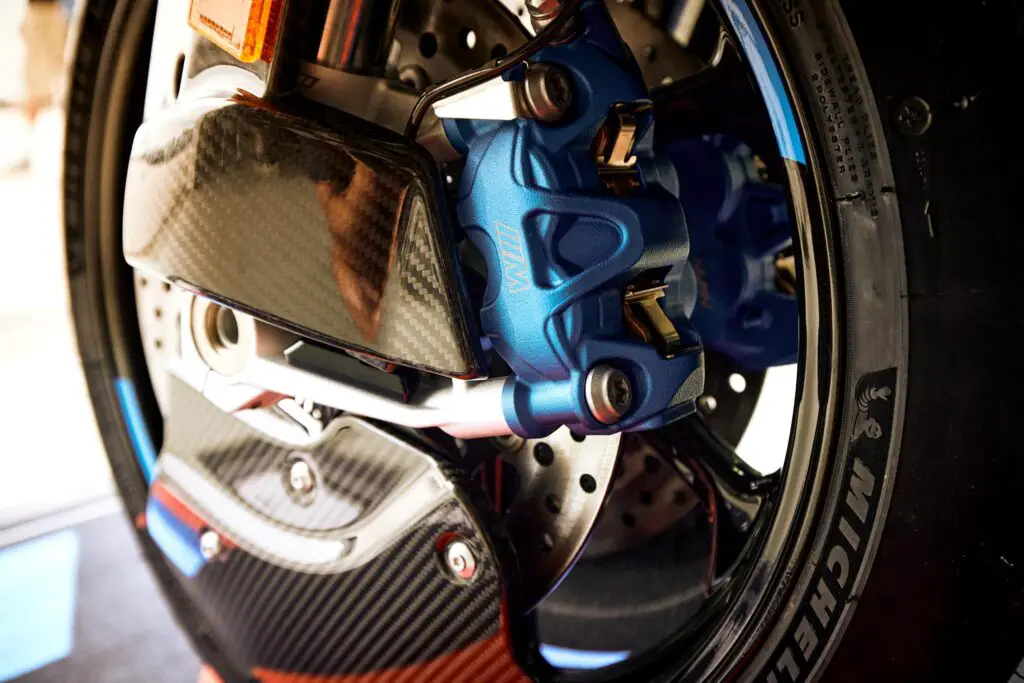

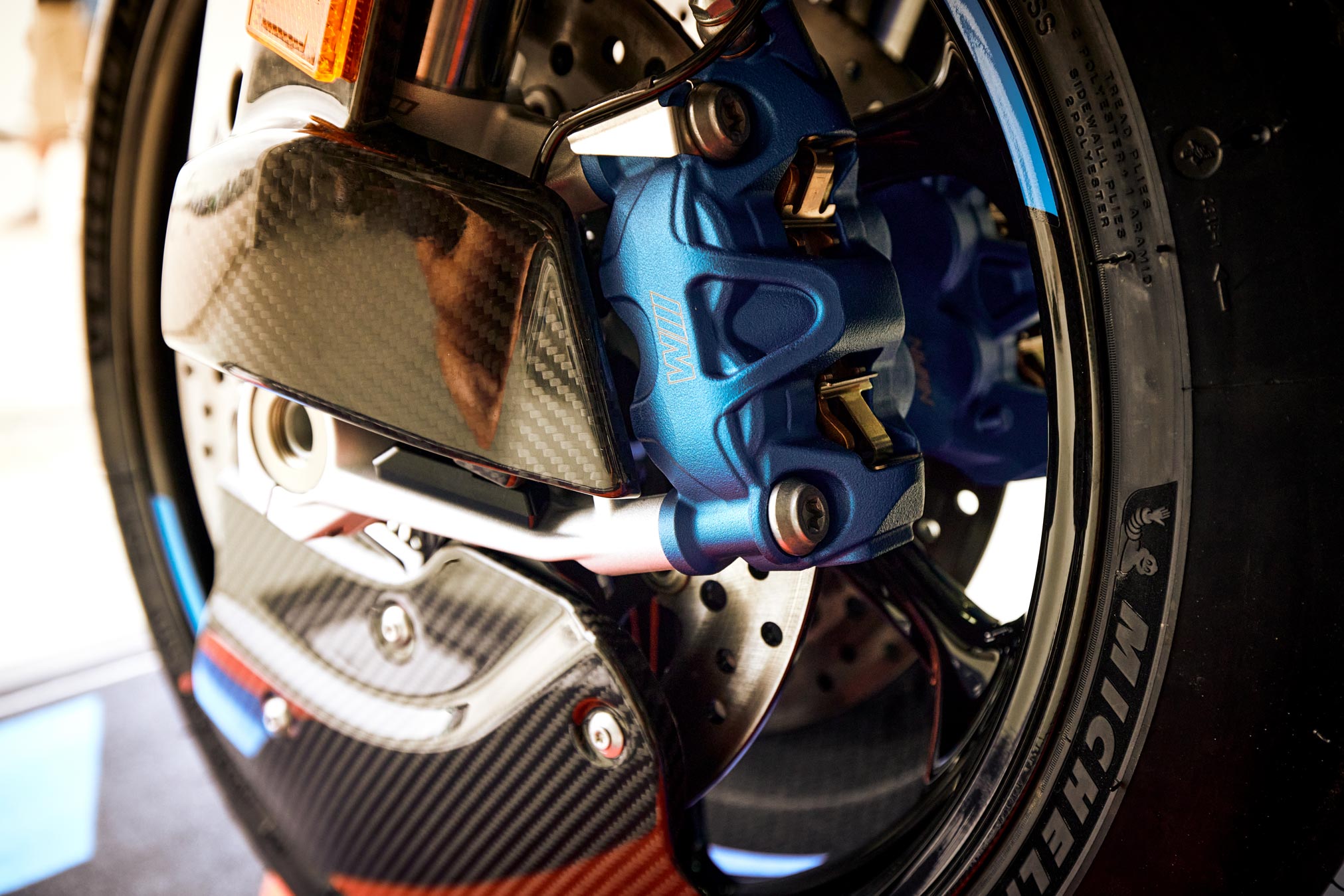

Brakes, front   Twin M 320 mm / 12.6-inch floating disks

4-piston fixed calipers

Brakes, rear   Single 220 mm / 8.7-inch, two-piston fixed caliper
ABS   BMW Motorrad ABS Pro, partially integral, disengageable
Traction control   BMW Motorrad DTC
Wheels   Standard M Carbon wheels
Wheels, front / rear inches 3.50 x 17 / 6.00 x 17
Tires, front / rear   120/70 ZR17 / 200/55 ZR17

Length x width x height inches 81.6 x 33.4 x 47.4
Wheelbase inches 57.4
Seat height inches 32.8
Curb weight lbs. 423
Dry weight lbs.  375
Permitted total weight lbs. 897
Fuel tank capacity gallons 4.35

Acceleration, 0-60 mph seconds 3.1
Top speed mph 189+









2023 BMW M1000RR M Competition – Totalmotorcycle.com Canada Specifications/Technical Details

Engine Liquid-cooled inline 4-cylinder
Capacity cc 999
Bore x stroke mm 80.0 x 49.7
Power hp 205 @ 13,000 rpm
Torque lb-ft. 83 @ 11,000 rpm
Max. engine speed rpm 15,100
Compression ratio 13.5:1
Fuel Power rated at 98 RON. 95-98 RON knock control
Valvetrain DOHC, valve actuation via single cam followers

BMW ShiftCam variable intake cam control

Valves per cylinder 4
Intake / Exhaust valve diameter mm 33.5 / 27.2
Throttle body diameter mm 48
Engine control BMS-0
Emission control Closed-loop three-way catalytic converter
Alternator watts 450
Battery Volta / Ah M lightweight battery 12v / 5 Ah
Headlamp LED free-form twin low-beam, LED free-form high-beam
Starter kW 0.8
Clutch Self-reinforcing multi-plate anti-hopping oil bath clutch, mechanically operated
Gearbox 6-speed, constant-mesh
Primary ratio 1.652
Transmission gear ratios I 2.647
II 2.091
III 1.727
IV 1.500
V 1.360
VI 1.261
Secondary ratio 2.706

Rear wheel drive type Chain
Frame construction type Aluminum composite bridge frame, engine self-supporting
Front suspension Upside-down telescopic fork, 45 mm slide tube diameter

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Rear suspension Aluminum underslung double-sided swingarm

Central spring and shock absorber

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Suspension travel front / rear mm 120 / 118
Wheel castor mm 101.4
Steering head angle degrees 23.6
Brakes, front Twin M 320 mm / 12.6-inch floating disks

4-piston fixed calipers

Brakes, rear Single 220 mm / 8.7-inch, two-piston fixed caliper
ABS BMW Motorrad ABS Pro, partially integral, disengageable
Traction control BMW Motorrad DTC
Wheels Standard M Carbon wheels
Wheels, front / rear inches 3.50 x 17 / 6.00 x 17
Tires, front / rear 120/70 ZR17 / 200/55 ZR17
Length x width x height mm 2,085 x 899 x 1,224
Wheelbase mm 1,456
Seat height mm 832
Curb weight kg 193
Dry weight kg 170
Permitted total weight kg 407
Fuel tank capacity litres 16.5
Acceleration, 0-60 mph seconds 3.1
Top speed km/h 300+













2023 BMW M1000RR M Competition – Totalmotorcycle.com European Specifications/Technical Details

Engine

Rated output

156 kW (212 hp) at 14,500 rpm

Emission control

Closed-loop 3-way catalytic converter

Type

Water/oil-cooled in-line four-cylinder, four-stroke engine with four titanium valves per cylinder and BMW Shiftcam variable intake camshaft control

Bore x stroke

80 mm x 49.7 mm

Capacity

999 cc

Max. torque

113 Nm at 11,000 rpm

Compression ratio

13.5 : 1

Mixture control

Electronic injection, variable intake pibe

Exhaust emission standards

EU 5

Performance / fuel consumption

Maximum speed

314 km/h

Fuel consumption per 100 km based on WMTC

6.5 l

CO2 emission based on WMTC

151 g/km

Fuel type

Premium unleaded (max. 5 % ethanol, E5), 95-98 ROZ/RON (max. rated output with ROZ 98)

Electrical system

Alternator

450 W

Battery

M Lightweight Battery, 12 V / 5 Ah, Lithium-ion

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch

Gearbox

Claw-shifted 6-speed gearbox with straight cut gears

Drive

Chain 525 17/46

Traction control

BMW Motorrad DTC

Chassis / brakes

Frame

Bridge-type frame, cast aluminium, co-supporting engine

Front wheel location / suspension

Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable

Rear wheel location / suspension

Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload

Suspension travel, front / rear

120 mm / 118 mm

Wheelbase

1,457 mm

Castor

101.4 mm

Steering head angle

66.2°

Wheels

M Carbon wheels

Rim, front

3.50 x 17″

Rim, rear

6.00 x 17″

Tyre, front

120/70 ZR17

Tyre, rear

200/55 ZR17

Brake, front

M Twin disc brake, diameter 320 mm, 4-piston fixed caliper

Brake, rear

M Single disc brake, diameter 220 mm, 2-piston fixed caliper

ABS

BMW Motorrad Race ABS (partial integral)

ABS Pro

ABS Pro (settings for Rain, Road, Dynamic mode, no ABS Pro in Race and Race Pro mode 1-3)

Dimensions / weights

Seat height at unladen weight

832 mm

Inner leg curve at unladen weight

1,845 mm

Usable tank volume

16.5 l

Reserve

approx. 4 l

Length

2,085 mm

Width

899 mm (above mirror)

Dry weight

170 kg (M Competition Package 169.8 kg) without battery

Unladen weight, road ready, fully fuelled

193 kg (M Competition Package 191.8 kg)

1)

Permitted total weight

407 kg

Payload (with standard equipment)

214 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.













Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10494 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
