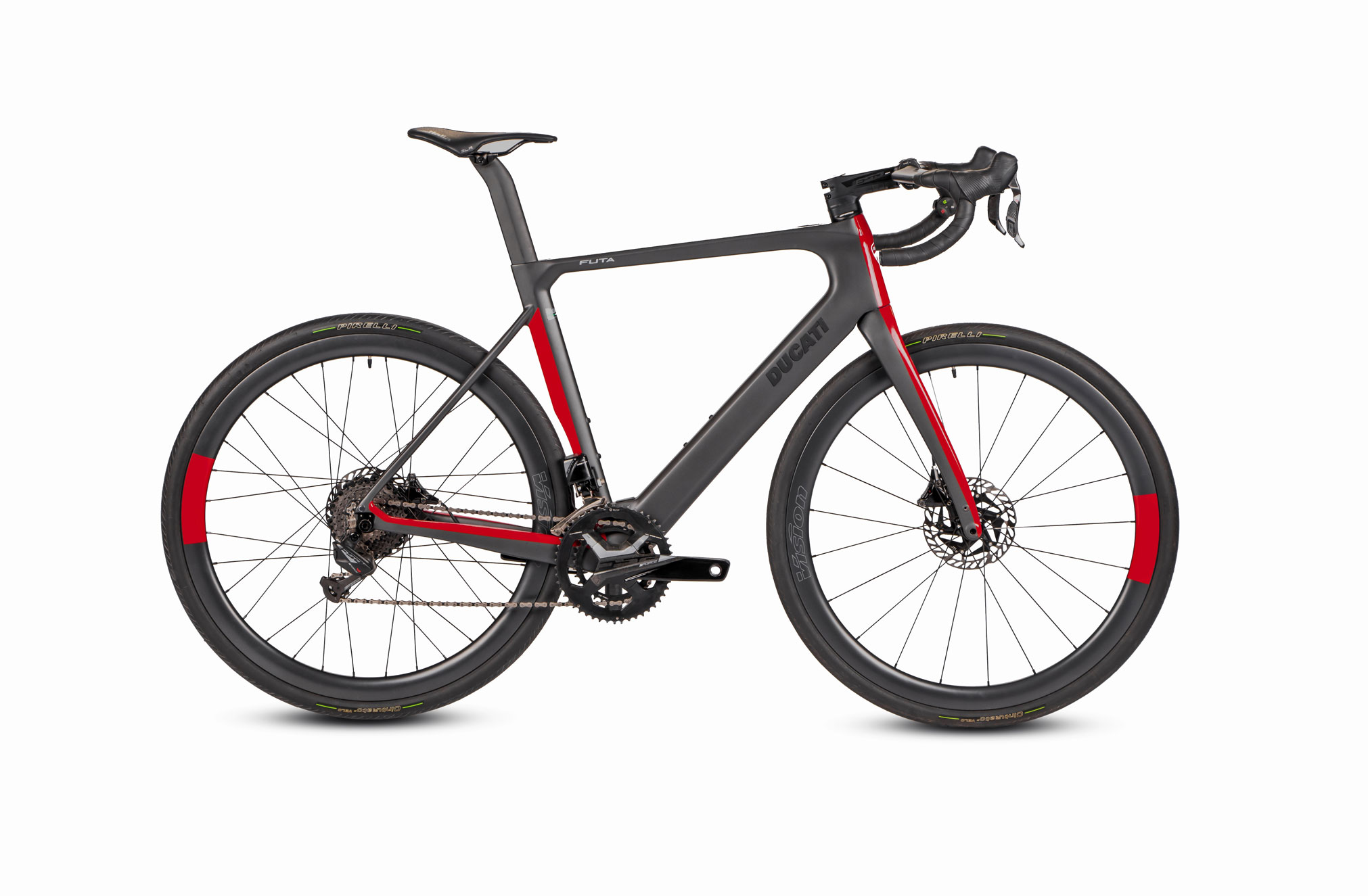

2023 Ducati Futa: SPORT ENDURANCE EBIKE.

Introducing the new 2023 Ducati Futa…

The new Ducati Futa is a high-performance e-road, designed for those who want to train, have fun and ride at their best, alone or in company. The Futa is a light E-Bike, which represents the perfect balance between comfort and performance, allowing you to go up even the most demanding climbs with the awareness of being able to fully enjoy them.

The carbon fibre monocoque frame features a sport endurance geometry, but with technical choices oriented to aerodynamics and speed. The compact seatstays, with lowered liners, makes the E-Bike comfortable, while generating less aerodynamic drag. The rear triangle is stiff laterally, precisely by virtue of the choice of liners positioning and favours a better transmission of power to the wheel, as well as increasing the responsiveness of the bike.

Downtube, seat post and fork liners are expertly profiled, and their reliefs are highlighted by the play of colours of the livery, which sees grey and black as the main colours with accents in Ducati Red.

The engine, located on the rear hub, is the FSA System HM 1.0 with 250W and 42Nm of torque which boasts a fluid and natural delivery in all conditions and is among the lightest and most compact in its category (3.98 kg). This engine is equipped with 5 assistance levels that can be selected via the Garmin control on the handlebar, which allow you to manage the desired level of support. The FSA app, available for iOS and Android devices, allows the rider to view statistics, system status, remaining battery life and charge status quickly and intuitively. Through the app it is also possible to download any software updates and communicate with FSA service centres around the world.

Thanks to its low weight (12.4Kg in M size) and to an almost imperceptible engine resistance, exceeding 25Km/h, the Ducati Futa is always responsive and fast on flat stretches. The standard FSA K-Force WE group set features an exceptionally smooth and fast 2×12-speed wireless electronic shifting, powerful 160mm disc brakes with adjustable UD carbon interchangeable levers and crankset with pedal arms in carbon.

The Vision AGX30 wheels with carbon rims are fitted with 35mm Pirelli Cinturato Velo TLR tyres, which guarantee smoothness, comfort and grip, combined with considerable strength. The 250Wh FSA battery





2023 Ducati Futa Totalmotorcycle.com Key Features

E-bike model range
Our e-bikes are developed in partnership with THOK E-Bikes and are known for their innovative geometric solutions, advanced technology and Italian design. Choose your e-bike.

Ducati E-Bikes today reach the highest performance on every route and testify to the goal of offering unique and meaningful experiences. A journey that began together with partner Thok E-Bikes in 2019 and which in 2023 will further enrich the range of models available.









2023 Ducati Futa Totalmotorcycle.com Features and Benefits

E-Road according to Ducati
With the new Futa, Ducati enters the E-Road segment: pedal-assisted road bikes.

A name that is part of Ducati’s DNA, in honour of the curves of the pass of the same name between Emilia Romagna and Tuscany, known and loved by all Ducatisti.

A lightweight e-road that embodies the pure Ducati spirit by focusing on design, innovation and fun in a perfect combination of comfort and performance: a latest generation product developed to cover greater distances and gradients beyond your expectations.

Carbon fiber frame
The carbon fiber monocoque frame has a sport endurance geometry, but with technical choices oriented towards aerodynamics and speed.

The compact rear stay, with lowered sheaths, makes the bike comfortable, while generating less aerodynamic drag. The rear triangle is rigid laterally, precisely by virtue of the choice of the position of the sheaths and favours a better transmission of power to the wheel, as well as increasing the responsiveness of the bike. Down tube, seat post and fork sliders are expertly profiled and their reliefs are highlighted by the play of colors of the livery which sees grey and black as the main colors with accents in Ducati Red.

FSA System HM 1.0 engine
The engine, located on the rear hub, with 250W and 30.9 lb-ft of torque that boasts a fluid and natural delivery in all conditions and is among the lightest and most compact in its category (8.7 lb). This engine is equipped with 5 assistance levels that can be selected via the Garmin control on the handlebar that allow you to manage the desired level of support.

The FSA app, available for iOS and Android devices, allows the cyclist to view driving statistics, system status, remaining battery life and charge status quickly and intuitively. Through the app it is also possible to download any software updates and communicate with FSA service centres around the world. The 250Wh FSA battery is perfectly integrated into the down tube, with the possibility of installing an optional range extender for an additional 250Wh.

FSA K-Force WE complete groupset
With an elegant style it is the result of many years of research and development. The K Force WE groupset boasts a 2×12 speed wireless electronic shifting that ensures smooth, quiet, fast and precise speed changes.

The interchangeable UD carbon levers ensure an intuitive and comfortable grip, especially thanks to the depth adjustment in three positions. Allowing you to change speeds one by one or to scroll the entire cassette in one of the directions. The crankset with carbon cranks and the powerful and modular 160 mm disc brakes complete the group.

Trimax Carbon Aero handlebar
An aerodynamic handlebar in carbon fiber among the most resistant on the market and full of notable details that make it very comfortable. Like the 10° forward bend, which allows the hands to reach them more comfortably and with an ideal position to facilitate breathing.

Vision AGX30 wheels
A solidly built and reliable wheelset. The carbon rims not only contribute to weight saving but also promote pedalling efficiency, especially in the acceleration phases. Pirelli Cinturato Velo “tubeless ready” tires (35×700) are synonymous with grip, comfort and sturdiness.









2023 Ducati Futa – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8295 USD
Canada MSRP Price: $10995 CDN
Europe/UK MSRP Price: £7490 GBP (On The Road inc 20% Vat)

Frame
Ducati – E-road Carbon UD Tecnology Frame, Fork offset 45 mm, full internal cable
Battery
FSA – 250 Wh integrated + 250 Wh range extender (optional)
Stem
FSA – SMR Forged alloy with integrated cable
Handlebar
VISION – HB Trimax Carbon Aero Bar
Brakes
FSA – K-Force WE Hydraulic Disk Brake with 160 mm FSA rotor
Crankset
FSA – K-Force WE 172.5 mm – 50/34 T
Cassette
FSA – K-Force WE 11-32T
Wheelset
VISION AGX 30 – custom label
Tires
Pirelli – Cinturato Velo TLR (700 x 35C)
Seatpost
Ducati – Carbon UD
Saddle
Selle Italia – SLR Boost with Mag frame
Engine
FSA – HM 1.0 Hub motor (250 Watt, 42 Nm)
Remote control
Powered by Garmin
Drivetrain
FSA – K-Force WE 12 S Electronic
Shift lever
FSA – K-Force WE 12 S
Weight
12,4 Kg size M without pedals
Sizes
S 53 – M 55 – L 57 – XL 59









2023 Ducati Futa – Totalmotorcycle.com Canada Specifications/Technical Details

Frame
Ducati – E-road Carbon UD Tecnology Frame, Fork offset 45 mm, full internal cable
Battery
FSA – 250 Wh integrated + 250 Wh range extender (optional)
Stem
FSA – SMR Forged alloy with integrated cable
Handlebar
VISION – HB Trimax Carbon Aero Bar
Brakes
FSA – K-Force WE Hydraulic Disk Brake with 160 mm FSA rotor
Crankset
FSA – K-Force WE 172.5 mm – 50/34 T
Cassette
FSA – K-Force WE 11-32T
Wheelset
VISION AGX 30 – custom label
Tires
Pirelli – Cinturato Velo TLR (700 x 35C)
Seatpost
Ducati – Carbon UD
Saddle
Selle Italia – SLR Boost with Mag frame
Engine
FSA – HM 1.0 Hub motor (250 Watt, 42 Nm)
Remote control
Powered by Garmin
Drivetrain
FSA – K-Force WE 12 S Electronic
Shift lever
FSA – K-Force WE 12 S
Weight
12,4 Kg size M without pedals
Sizes
S 53 – M 55 – L 57 – XL 59







2023 Ducati Futa – Totalmotorcycle.com European Specifications/Technical Details

Frame
Ducati – E-road Carbon UD Tecnology Frame, Fork offset 45 mm, full internal cable
Battery
FSA – 250 Wh integrated + 250 Wh range extender (optional)
Stem
FSA – SMR Forged alloy with integrated cable
Handlebar
VISION – HB Trimax Carbon Aero Bar
Brakes
FSA – K-Force WE Hydraulic Disk Brake with 160 mm FSA rotor
Crankset
FSA – K-Force WE 172.5 mm – 50/34 T
Cassette
FSA – K-Force WE 11-32T
Wheelset
VISION AGX 30 – custom label
Tires
Pirelli – Cinturato Velo TLR (700 x 35C)
Seatpost
Ducati – Carbon UD
Saddle
Selle Italia – SLR Boost with Mag frame
Engine
FSA – HM 1.0 Hub motor (250 Watt, 42 Nm)
Remote control
Powered by Garmin
Drivetrain
FSA – K-Force WE 12 S Electronic
Shift lever
FSA – K-Force WE 12 S
Weight
12,4 Kg size M without pedals
Sizes
S 53 – M 55 – L 57 – XL 59







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
