Gearbox

6 speed

Primary drive

1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26

Ratio

Straight cut gears, Ratio 1.85:1

Final drive

Chain, front spocket 15, rear sprocket 46

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch

Frame

Tubular steel Trellis frame

Front suspension

Upside down Kayaba 41 mm fork

Front wheel

Spoked aluminium wheel 3.00″ x 18″

Front tyre

Pirelli MT 60 RS 110/80 R18

Rear suspension

Kayaba rear shock, pre-load adjustable.

Rear wheel

Spoked aluminium wheel 5.50″ x 17″

Rear tyre

Pirelli MT 60 RS 180/55 R17

Wheel travel (front/rear)

150 mm / 150 mm (5.9 in / 5.9 in)

Front brake

Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment

Rear brake

Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment

Instrumentation

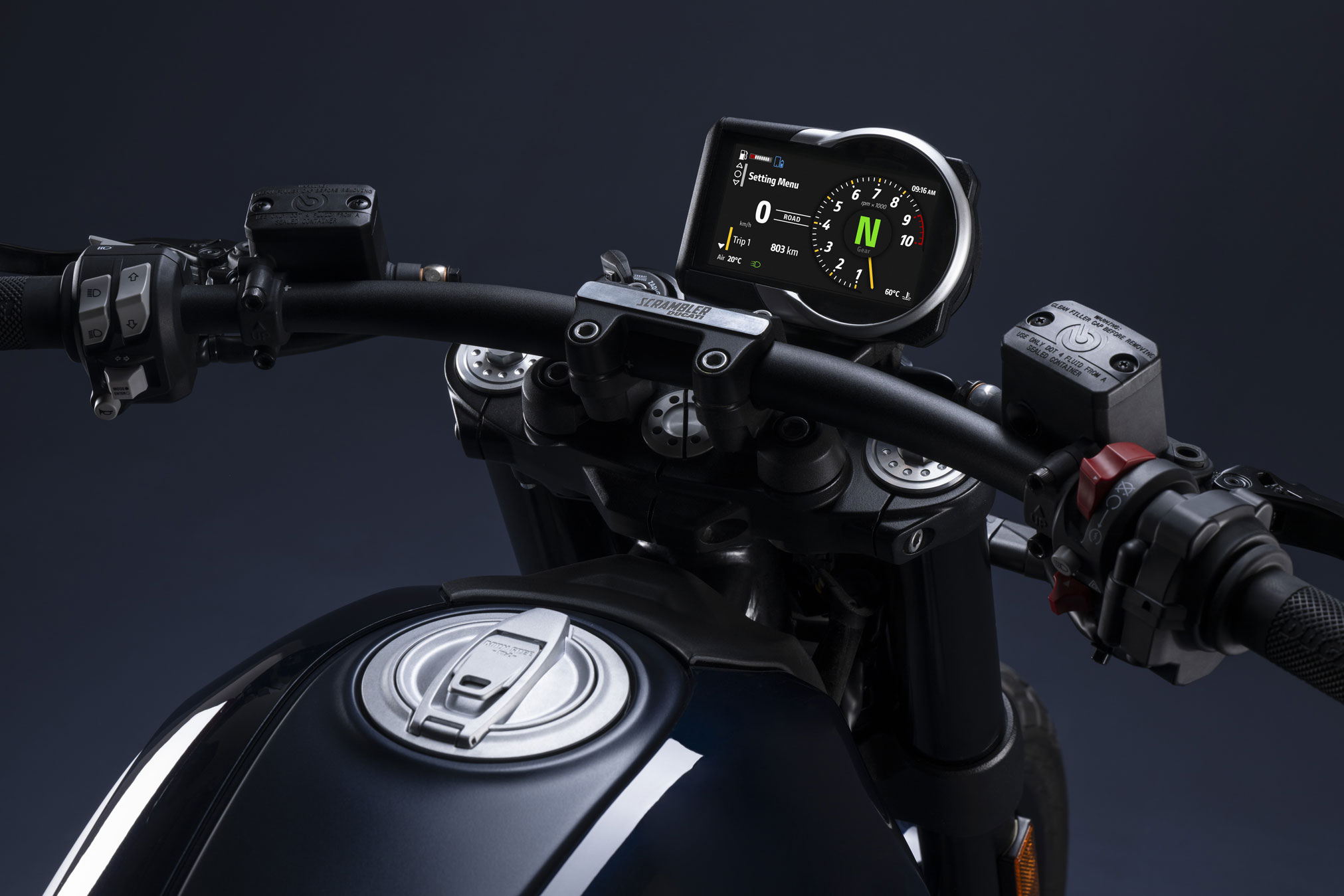

4.3″ TFT colour display

Dry weight

176 kg (388 lb)

Kerb weight

191 kg (421 lb)

Seat height

795 mm (31.3 in)
810 mm (31.9 in) with high seat accessory
780 mm (30.7 in) with low seat accessory

Wheelbase

1.449 mm (57 in)

Rake

24°

Trail

108 mm

Fuel tank capacity

13,5 l (3,57 US gal)

Number of seats

2
Safety equipment

Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Daytime Running Light*

Standard equipment

4.3″ TFT color display, ride by wire, full LED lighting system, LED turn indicators, USB socket under the seat, variable section flat handlebar, bar-end rearview mirrors, Ducati Performance LED turn indicatos, sporty front mudguard, side number plates, sporty tail, dedicated seat, dedicated livery, spoked wheels

Ready for

Ducati Multimedia System, Ducati Quick Shift

Warranty

24 months unlimited mileage

Maintenance service intervals

12,000 km (7,500 mi) / 12 months

Valve clearance adjustment

12,000 km (7,500 mi)

Emission notes

*Please check with your dealer product availability
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
