2023 Harley-Davidson Freewheeler Guide

Contents: Review – Key Features – Features & Benefits – Specifications

Contents: Review – Key Features – Features & Benefits – Specifications

2023 Harley-Davidson Freewheeler: OWN THE ROAD.

Introducing the 2023 Harley-Davidson Freewheeler…

The Freewheeler model, an attitude-soaked, cruiser-inspired trike, gets a blacked-out restyle for 2023. The front end, headlamp nacelle, tank console, hand and foot controls, powertrain and exhaust all have black finishes in place of previous bright finishes. The result is a dramatic change in appearance that reinforces this model’s raw, hot-rod attitude.

Cruise with confidence. Blacked-out hot-rod styling. Own the road.

Hot-rod attitude on three wheels, the 2023 Freewheeler delivers aggressive style, confidence and performance.

2023 Harley-Davidson Freewheeler Totalmotorcycle.com Key Features

• Upright riding position
• Floorboards
• Passenger seat
• Trunk
• Rider safety enhancements available
• Milwaukee-Eight 114 V-Twin Powertrain
• Blacked out hot-rod styling and attitude
• 3-Wheel Comfort and performance

2023 Harley-Davidson Freewheeler Totalmotorcycle.com Features and Benefits

Trike: Roll with confidence, comfort, and head-turning custom style on three wheels.

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

MILWAUKEE-EIGHT 114
Loads of torque for power for when you need it. Blast off from stops, hit entrance ramps and roll on the passing power, with that familiar H-D sound.

RIDER SAFETY ENHANCEMENTS
Increase road confidence with Trike-specific Rider Safety Enhancements by Harley-Davidson including Cornering Enhanced Electronic Linked Braking (C-ELB), Cornering Enhanced Antilock Braking System (C-ABS), Cornering Enhanced Traction Control System (C-TCS) and Drag-Torque Slip Control System (DSCS).

THROW IT IN REVERSE
Electric reverse gear makes it easier to move vehicle in and out of parking spaces or a garage.

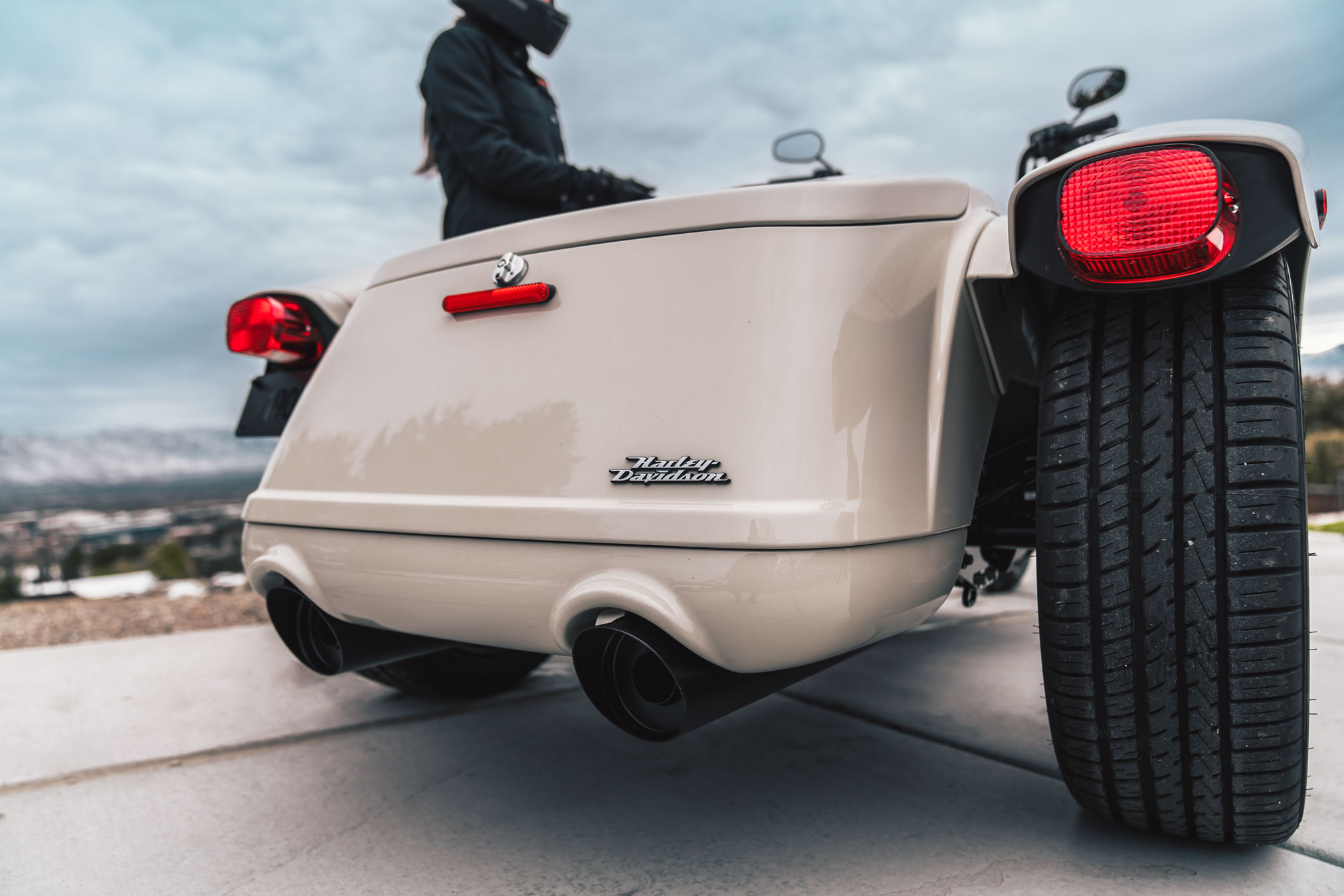

TRUNK SPACE
Weather-proof rear trunk with top-mounted door for easy loading.

REAR VIEW
Bobtail rear fenders and slash cut pipe for extra attitude.

BLACKED-OUT STYLING
Soaking in blacked-out attitude from the front end, headlamp nacelle, tank console, hand and foot controls to the powertrain and exhaust.

CHASSIS
Built on a chassis engineered by Harley-Davidson exclusively for three-wheeled vehicles that offers optimized handling and performance.

2023 Harley-Davidson Freewheeler – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $29,999 to $31,499 USD
Canada MSRP Price: $36,599 to $38,499 CDN
Europe/UK MSRP Price: £31,495 to £32,345 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

103 in.

SEAT HEIGHT, LADEN ⁷

26.2 in.

GROUND CLEARANCE

4.9 in.

RAKE

26

TRAIL

3.96 in.

WHEELBASE

65.7 in.

TIRES, FRONT SPECIFICATION

MT 130/60B19 M/C 61H

TIRES, REAR SPECIFICATION

P215/45R18 83T

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

6 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

1,074 lb

WEIGHT, IN RUNNING ORDER

1,110 lb.

LUGGAGE CAPACITY -VOLUME

2 cu ft

ENGINE

ENGINE ¹

Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Shorty slash down-style chrome finish mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

122 ft-lb

ENGINE TORQUE (RPM)

2750

HORSEPOWER

90 HP / 67 kW @ 4750 rpm

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

43 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE ⁹

Cast Aluminum

WHEELS, REAR TYPE ⁹

Cast Aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Freewheeler – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,615 mm

SEAT HEIGHT, UNLADEN

700 mm

GROUND CLEARANCE

125 mm

RAKE

26

TRAIL

101 mm

WHEELBASE

1,670 mm

TIRES, FRONT SPECIFICATION

MT 130/60B19 M/C 61H

TIRES, REAR SPECIFICATION

P215/45R18 83T

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

488 kg

WEIGHT, IN RUNNING ORDER

504 kg

LUGGAGE CAPACITY -VOLUME

0.06 m³

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Shorty slash down-style chrome finish mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

165 Nm

ENGINE TORQUE (RPM)

2750

HORSEPOWER

90 HP / 67 kW @ 4750 rpm

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5.5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE ⁴

Cast Aluminum

WHEELS, REAR TYPE ⁴

Cast Aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Freewheeler – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,615 mm

SEAT HEIGHT, UNLADEN

700 mm

GROUND CLEARANCE

125 mm

RAKE

26

TRAIL

101 mm

WHEELBASE

1,670 mm

TYRES, FRONT SPECIFICATION

MT 130/60B19 M/C 61H

TYRES, REAR SPECIFICATION

P215/45R18 83T

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

496 kg

WEIGHT, IN RUNNING ORDER

513 kg

LUGGAGE CAPACITY -VOLUME

0.06 m³

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

Shorty slash down-style chrome finish mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

159 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

87 HP / 65 kW @ 5020 rpm

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

6.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

151 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

10.534

GEAR RATIOS (OVERALL) 2ND

7.302

GEAR RATIOS (OVERALL) 3RD

5.423

GEAR RATIOS (OVERALL) 4TH

4.392

GEAR RATIOS (OVERALL) 5TH

3.741

GEAR RATIOS (OVERALL) 6TH

3.157

CHASSIS

FRONT FORK

49mm dual bending valve

REAR SHOCKS

Hand-adjustable emulsion rear suspension

WHEELS, FRONT TYPE ⁴

Cast aluminum

WHEELS, REAR TYPE ⁴

Cast aluminum

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent

GAUGES

Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
