2023 Harley-Davidson Pan-America: EMBRACE REAL-LIFE ADVENTURE.

Introducing the 2023 Harley-Davidson Pan-America…

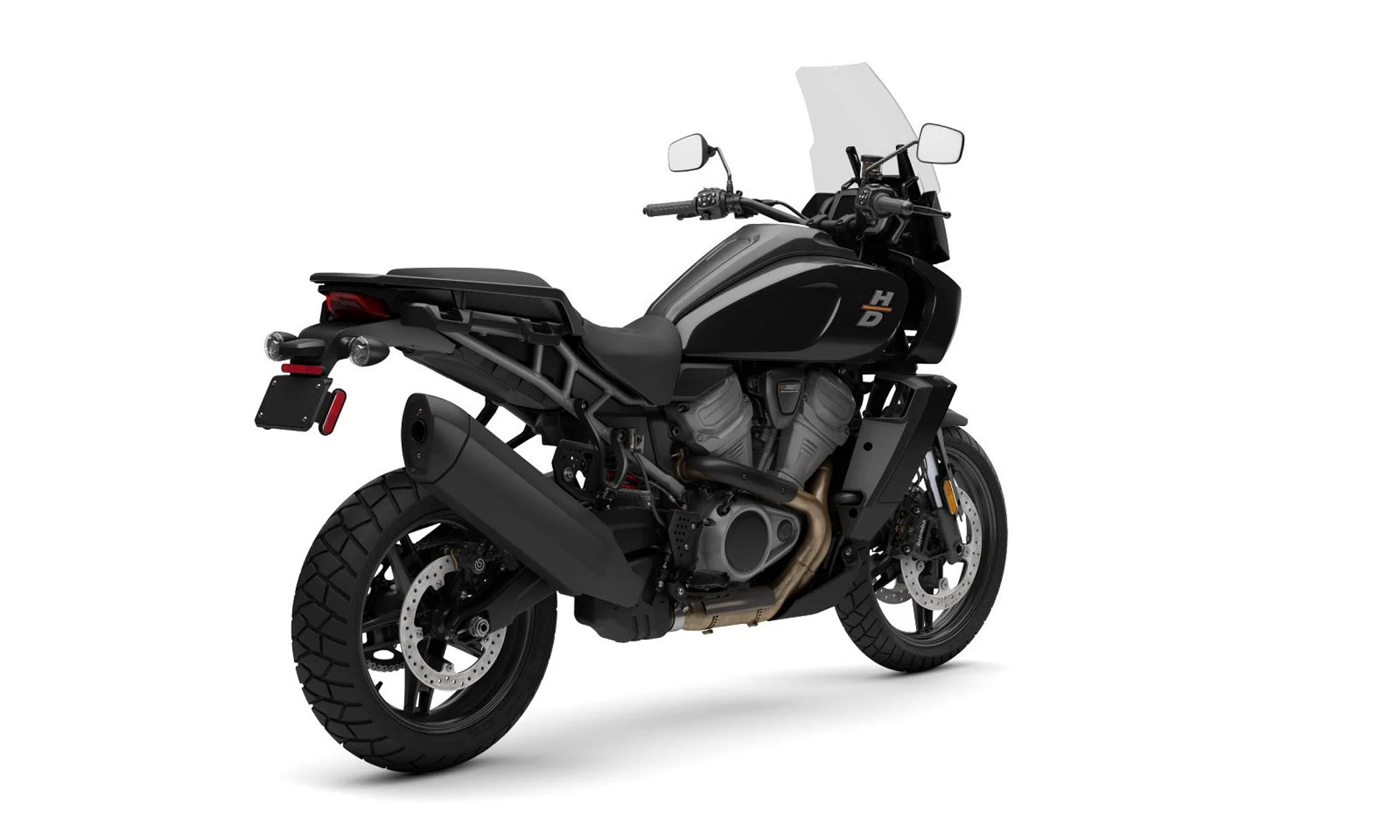

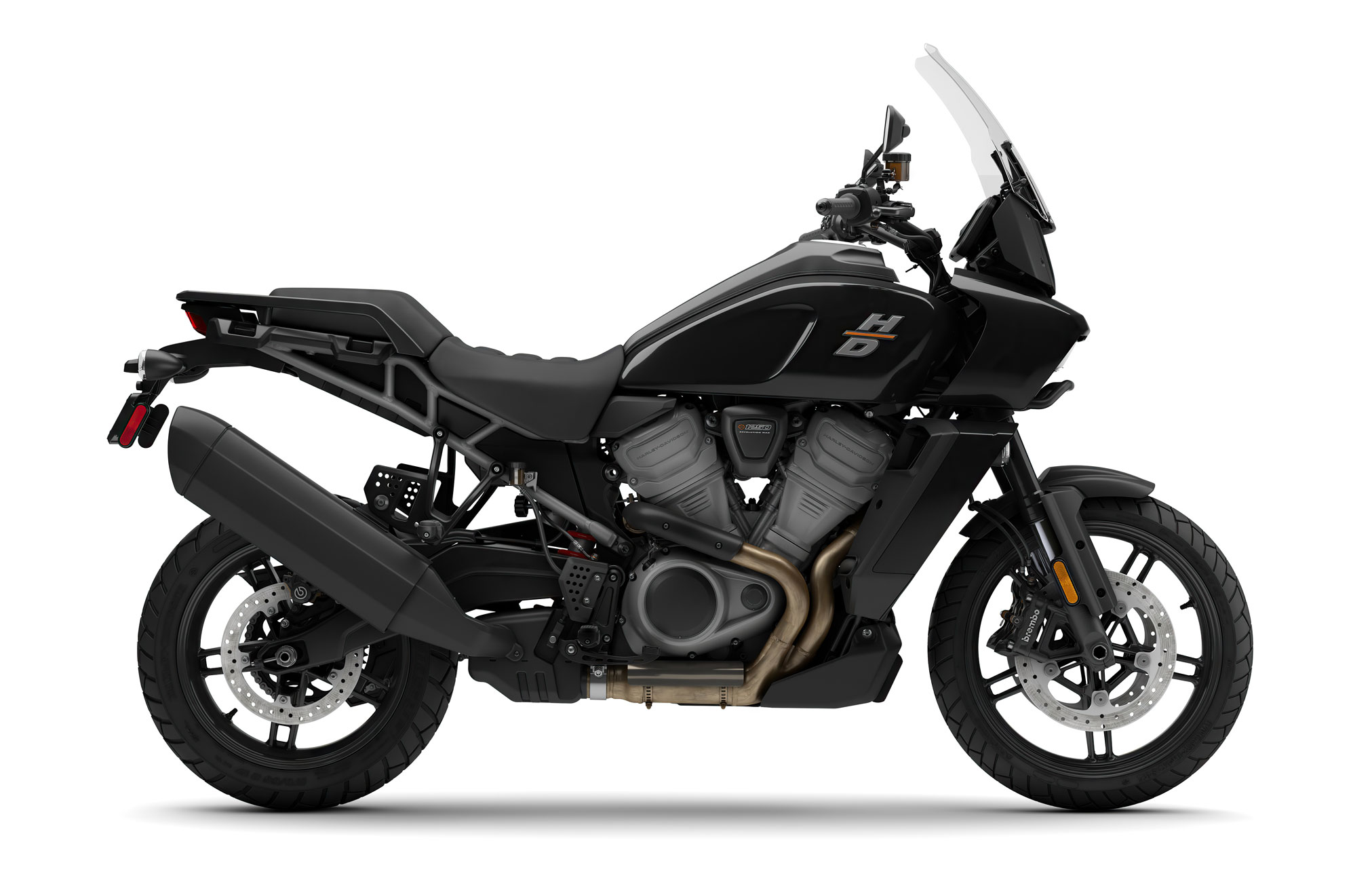

The Harley-Davidson Pan America 1250 model is a rugged, powerful, technologically advanced multi-purpose motorcycle designed for riders ready to embrace real-life adventure. The riding experience is refined, capable and intuitive, on a motorcycle that stays composed and confident wherever your adventure takes you.

Choose your own adventure. The 5.6-gallon fuel tank will take you farther. Make roads less traveled your mission.

Pan America 1250 motorcycle is a two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.

2023 Harley-Davidson Pan-America Totalmotorcycle.com Key Features

• Upright riding position
• Mid-mount foot controls
• Passenger seat
• Tall
• Frame mounted fairing
• Rider safety enhancements available
• Versatility and comfort, on and off-road
• Enthusiasts who see touring as detouring
• Riders seeking power, tech and capability in a design package that is uniquely H-D

2023 Harley-Davidson Pan-America Totalmotorcycle.com Features and Benefits

Adventure Touring – Where touring becomes detouring, and everything is a road.

The Pan America motorcycle is Harley-Davidson’s explore-it-all machine for riders who see touring as detouring – on road and off. This rugged, powerful, technologically advanced multi-purpose vehicle is designed from the ground up to be capable, confidence inspiring, and fun wherever the road may take you. Harley-Davidson has leveraged its deep design and engineering capabilities to create these all-new, adventure-touring motorcycles, each designed with premium features, outstanding performance and innovative technology.

H-D/MICHELIN SCORCHER
Set on a 19-inch front and 17-inch rear cast aluminum wheelset, these tires were developed by Michelin with an eye to meet the demands of on-road and off-road Adventure Touring. All aspects, from internal construction to external profile and tread, were analyzed by Michelin to optimize performance.

ROAD READY
Refined, capable and intuitive, Pan America 1250 is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity.

DUAL PURPOSE POWERTRAIN
The Revolution Max 1250 is a structural component of the motorcycle chassis, eliminating a traditional frame — which significantly reduces overall weight and keeps handling taut.

REVOLUTION MAX ENGINE
With 150 horsepower and a flexible powerband, the Revolution Max powertrain maximizes your riding experience.

CHOOSE YOUR RIDE MODE
Choose from 5 pre-programmed Ride Modes (Sport, Road, Rain, Off-Road, and Off-Road Plus) or create your own custom mode — tuning your bike with a specific combination of power delivery, engine braking, Cornering Enhanced Antilock Braking System (C-ABS) and Cornering Enhanced Traction Control System (C-TCS) settings.

Customization Packages

PAN AMERICA 1250 ULTIMATE TREKKER PACKAGE
Head out for a weekend or around the world with a collection of accessories designed to support the biggest adventure tour. Rugged detachable luggage for all your gear. Added protection for rider and motorcycle. How far will you go?

PAN AMERICA 1250 MIDNIGHT PACKAGE
A black-out beauty equipped with a select collection of accessories designed to support the biggest adventure tour. Performance upgrades. Rugged luggage for all your gear. Added protection for rider and motorcycle. How far will you go?

PAN AMERICA 1250 GREAT ESCAPE PACKAGE
Ready for the daily commute or a week-long tour equipped with a select collection of accessories designed to versatility, comfort and performance. Detachable luggage. Performance upgrades. Wind and weather protection. Where does your road lead?

2023 Harley-Davidson Pan-America – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17,699 USD
Canada MSRP Price: $21,999 CDN
Europe/UK MSRP Price: £17,095 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

89.4 in.

SEAT HEIGHT, LADEN ⁷

32 in.

GROUND CLEARANCE

8.3 in.

RAKE

25

TRAIL

4.3 in.

WHEELBASE

62.2 in.

TIRES, FRONT SPECIFICATION

120/70R19 60V

TIRES, REAR SPECIFICATION

170/60R17 72V

TIRE, TYPE

Michelin Scorcher “Adventure”, Radial

FUEL CAPACITY

5.6 gal.

OIL CAPACITY (W/FILTER)

4.75 qt.

WEIGHT, AS SHIPPED

505 lb.

WEIGHT, IN RUNNING ORDER

540 lb.

ENGINE

ENGINE ¹

Revolution Max 1250

BORE

4.134 in.

STROKE

2.846 in.

DISPLACEMENT

76.4 cu in

COMPRESSION RATIO

13.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

94 ft-lb

ENGINE TORQUE (RPM)

6750

HORSEPOWER

150 HP / 112 kW @ 9000 rpm

LEAN ANGLE, RIGHT (DEG.)

42

LEAN ANGLE, LEFT (DEG.)

42

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

46 mpg

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

13.11

GEAR RATIOS (OVERALL) 2ND

9.687

GEAR RATIOS (OVERALL) 3RD

7.509

GEAR RATIOS (OVERALL) 4TH

6.057

GEAR RATIOS (OVERALL) 5TH

5.08

GEAR RATIOS (OVERALL) 6TH

4.436

CHASSIS

FRONT FORK

47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping

WHEELS, FRONT TYPE ⁹

Aluminum cast, satin black

WHEELS, REAR TYPE ⁹

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

Daymaker Signature LED headlamp, low and high beam with signature position lighting, LED Tail/Stop lamp with signature tail lighting, LED bullet turn signals

GAUGES

6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

TYPE

Color TFT w/ Touch

SCREEN SIZE

6.8 in.

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Engine temp, Battery Voltage

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Pan-America – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,265 mm

SEAT HEIGHT, UNLADEN

869 mm low; 894 mm high

GROUND CLEARANCE

210 mm

RAKE

25

TRAIL

108 mm

WHEELBASE

1,580 mm

TIRES, FRONT SPECIFICATION

120/70R19 60V

TIRES, REAR SPECIFICATION

170/60R17 72V

TIRE, TYPE

Michelin Scorcher “Adventure”, Radial

FUEL CAPACITY

21.2 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

229 kg

WEIGHT, IN RUNNING ORDER

245 kg

ENGINE

ENGINE ²

Revolution Max 1250

BORE

105 mm

STROKE

72.3 mm

DISPLACEMENT

1,252 cc

COMPRESSION RATIO

13.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

127 Nm

ENGINE TORQUE (RPM)

6750

HORSEPOWER

150 HP / 112 kW @ 9000 rpm

LEAN ANGLE, RIGHT (DEG.)

42

LEAN ANGLE, LEFT (DEG.)

42

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5.1 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

13.11

GEAR RATIOS (OVERALL) 2ND

9.687

GEAR RATIOS (OVERALL) 3RD

7.509

GEAR RATIOS (OVERALL) 4TH

6.057

GEAR RATIOS (OVERALL) 5TH

5.08

GEAR RATIOS (OVERALL) 6TH

4.436

CHASSIS

FRONT FORK

47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, TYPE

Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

Daymaker Signature LED headlamp, low and high beam with signature position lighting, LED Tail/Stop lamp with signature tail lighting, LED bullet turn signals

GAUGES

6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

TYPE

Color TFT w/ Touch

SCREEN SIZE

173 mm

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Engine temp, Battery Voltage

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Pan-America – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,270 mm

SEAT HEIGHT, UNLADEN

850 mm low; 890 mm high

GROUND CLEARANCE

210 mm

RAKE

25

TRAIL

108 mm

WHEELBASE

1,585 mm

TYRES, FRONT SPECIFICATION

120/70R19 60V

TYRES, REAR SPECIFICATION

170/60R17 72V

TYRE, TYPE

Michelin Scorcher “Adventure”, Radial

FUEL CAPACITY

21.2 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

229 kg

WEIGHT, IN RUNNING ORDER

245 kg

ENGINE

ENGINE ²

Revolution Max 1250

BORE

105 mm

STROKE

72.3 mm

DISPLACEMENT

1,252 cc

COMPRESSION RATIO

13.0:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

128 Nm

ENGINE TORQUE (RPM)

6750

HORSEPOWER

150 HP / 112 kW @ 8750 rpm

LEAN ANGLE, RIGHT (DEG.)

42

LEAN ANGLE, LEFT (DEG.)

42

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

129 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

13.11

GEAR RATIOS (OVERALL) 2ND

9.687

GEAR RATIOS (OVERALL) 3RD

7.509

GEAR RATIOS (OVERALL) 4TH

6.057

GEAR RATIOS (OVERALL) 5TH

5.08

GEAR RATIOS (OVERALL) 6TH

4.436

CHASSIS

FRONT FORK

47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

Daymaker Signature LED headlamp, low and high beam with signature position lighting, LED Tail/Stop lamp with signature tail lighting, LED bullet turn signals

GAUGES

6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

TYPE

Color TFT w/ Touch

SCREEN SIZE

173 mm

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Engine temp, Battery Voltage

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

HILL HOLD CONTROL (HHC)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
