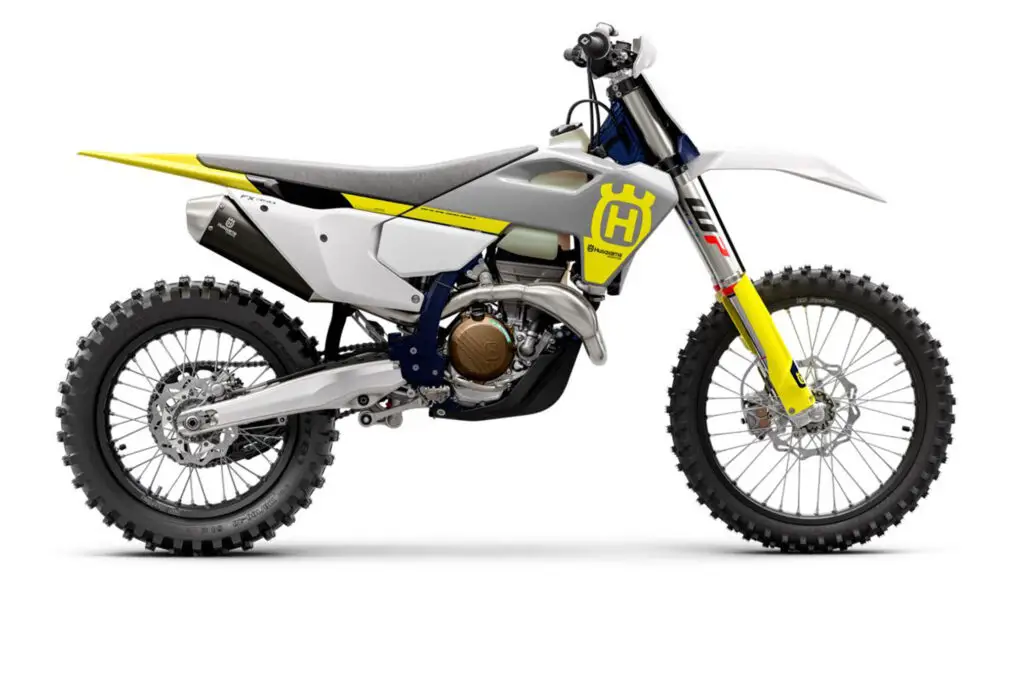

2023 Husqvarna FX350: RIDE THE SMARTER LINE.
Introducing the 2023 Husqvarna FX350…
With the agility of a 250 and a 450-rivalling power-to-weight ratio, the FX 350 strikes a competitive balance between power and handling. This appeals to both professional and amateur riders alike, as a user-friendly riding experience is guaranteed in all conditions. With considered revisions to the engine and chassis for 2023, together with advanced electronics to further enhance performance, the FX 350 is a highly capable off-road machine. Complete with a new, Swedish-inspired white, yellow, and grey colour scheme, which is applied to redesigned bodywork, the striking aesthetics, improved ergonomics, and flatter seat profile clearly indicates the continued development of the FX 350.
2023 Husqvarna FX350 Totalmotorcycle.com Key Features
What is new for 2023:
- New bodywork with specifically tailored ergonomics for easier movement on the motorcycle
- New hydro-formed chromium-molybdenum frames significantly improve anti-squat behavior
- New topology-optimized die-cast aluminum swingarm provides optimal rigidity and low weight
- New throttle body fuel injection on 2-stroke engines ensures class-leading power and rideability
- New FC/FX 250 and FC/FX 350 DOHC engines deliver class-leading torque and peak power
- New Quickshift sensor ensures seamless upshifting on all FC 4-stroke models and the cross-country FX 450
- New electric start on all 2-stroke models
- New aluminum-polyamide hybrid subframe construction provides specifically calculated rigidity and advanced durability
- New WP XACT 48 mm front forks with AER technology offer more progressive end-of-stroke damping
- New WP XACT rear shock design with CFD-optimized main piston and tool-free adjusters
- New multifunctional Map Select Switch also activates the Quickshifter, Traction, and Launch Control on select models
- High-performance Brembo hydraulic clutch system
- Premium-quality ProTaper handlebars
- Electric start powered by a lightweight Li-Ion 2.0 Ah battery
USQVARNA MOTORCYCLES UNVEILS ITS NEW GENERATION OF MOTOCROSS AND CROSS-COUNTRY MACHINERY
DESIGNED FROM THE GROUND UP WITH INNOVATIVE ENGINEERING TECHNIQUES THE FC AND TC MOTOCROSS AND FX AND TX CROSS-COUNTRY MODELS CONTINUE TO OUTPERFORM THE COMPETITION
Continuing to deliver true motocross performance, the all-new 2023 Husqvarna Motorcycles TC and FC models further enhance the on-track riding experiences of all riders. Highly capable of competing at the top levels of racing as standard, technical advancements across the five-motorcycle-strong range include new engines, suspension, frames, swingarms, and bodywork. Each of the 2-stroke and 4-stroke machines receive tailored developments for maximum performance.
Taking charge in the off-road segment is the all-new, technologically advanced cross-country TX and FX models, which share the innovative platforms found on the 2023 motocross range. With off-road suited features such as large capacity fuel tanks, cross-country specific settings in the WP XACT suspension, convenient, newly designed side stands and a 21/18-inch D.I.D DirtStar wheel set fitted with Dunlop MX33 fronts and AT81 rears, this new generation of TX and FX machines is ready to take off-road riding and racing to the next level of performance and control.
Strengthening their positions as the leading 2-strokes on the market, the TC 125 and TC 250 are now equipped with Electronic Fuel Injection (EFI) and E-Start as standard. The throttle body fuel injection system ensures class-leading power and rideability, as well as enhancing reliability, and lowering overall running costs. Both machines are now easily started with the simple press of a button. These significant enhancements underline the continued evolution of these popular models, which set the benchmark for premium motocross machinery in the highly competitive 2-stroke segment. Enjoying the same, innovative throttle body fuel injection for 2023, the all-new TX 300 continues to lead the way in off-road 2-stroke development.
The 2023 FC 250, FC 350 and FX 350 are powered by all-new 4-stroke engines that are designed to be faster, lighter, and play a vital role in enhancing overall handling. Utilizing the latest technology and electronic rider aids, these models remain at the forefront of motocross and cross-country machinery development alongside the FC 450 and FX 450, which feature a revised and repositioned engine to improve mass centralization.
All machines in the motocross and cross-country line-up are engineered to outperform the competition. Expertly assembled with high quality components for enhanced performance, reliability, and customization, these models are equipped with WP suspension for unsurpassed comfort and straight-line stability. The new WP XACT 48 mm front forks offer more progressive end-of-stroke damping thanks to an improved hydrostop. In addition, the WP XACT rear shock is designed with a refined main piston for improved comfort and features tool-free adjusters for fast setting changes. Complete with ProTaper handlebars, a Brembo clutch, and Dunlop tires, each model is equipped with a map select switch for selectable engine maps and a personalized riding experience.
2023 Husqvarna FX350 Totalmotorcycle.com Features and Benefits
Engine
The new FX 350 engine is designed to deliver maximum performance. For 2023, the repositioning of all major engine components and shaft arrangements enhances overall handling with the design improving anti-squat behaviour from the whole chassis. The engine is tilted two degrees backwards and is 8 mm shorter in height to further centralise mass. Weighing just 59.9 lb, the new 350cc 4-stroke engine produces a higher and more usable power output.
Cylinder head
Fully redesigned for 2023, the DOHC cylinder head offers improved durability and serviceability, with Diamond Like Carbon (DLC) coated finger followers to guarantee minimal friction and optimal performance. These actuate large titanium valves, 36.3 mm for the intake and 29.1 mm for the exhaust, which optimise gas flow for strong, usable power across the rev-range, all the way up to the 13,400 rpm limit. Revised valve timings work in perfect harmony with the redesigned camshaft which now features a new bearing bridge designed to increase stiffness and improve serviceability.
Cylinder and piston
An 88 mm bore and 57.5 mm stroke cylinder is professionally engineered from high-strength aluminium for maximum reliability and houses the high performance forged bridged-box-type piston from CP. For 2023, the compression ratio is increased to 14.6:1 for improved torque and peak power.
Crankshaft
At the heart of the high-output, high-revving FX 350 engine is the crankshaft which features a plain big end bearing rotating on two force-fitted bearing shells for maximum reliability and guarantees long service intervals of 90 hours.
Crankcases
Designed for optimised mass centralisation, the FX 350 crankcases house all internal components in the perfect position to achieve the ideal centre of gravity. Manufactured using a high-pressure die cast production process, the result is a thin, exceptionally strong wall thickness at the lowest possible weight.
DS clutch
The FX 350 features a revised (DS) Diaphragm Steel clutch. Engineered from a single piece of CNC-machined steel, the redesigned clutch basket accommodates the new gearbox and allows the use of thin steel liners, which contribute to the compact design of the engine.
Gearbox
Produced by PANKL RACING SYSTEMS, the 6-speed gearbox is designed to be extremely light and durable with optimised gear ratios
Frame
The proven chromium molybdenum steel frame is refined for 2023 to reposition rotational masses inside the engine which together with a new shock mounting position, significantly improves anti-squat behaviour of the chassis. With optimised wall thickness in high-stress areas improving reliability, the frame continues to offer advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption, and exceptional straight-line stability. The frame is finished off in a premium metallic blue powder coating with redesigned standard frame protectors offering superior protection, durability, and grip in any condition. Additionally, the inclusion of forged brackets on the lower frame rails allows for easy installation of the standard skid plate.
Polyamide-reinforced aluminium subframe
Made from 60% polyamide and 40% aluminium, the new two-piece subframe for 2023 ensures exceptional strength and durability at an overall weight of just 3.9 lb. The lower subframe spars and frame mounts are manufactured from cast aluminium for significantly improved reliability. The upper section of the subframe is made from injection-moulded polyamide to enable specific flex characteristics and ensure a lightweight construction.
Triple clamps
Matching the new frame design and suspension set-up, the CNC-machined triple clamps provide precisely calculated geometry for increased stability. Customised handlebar flex can be achieved by the new handlebar clamp which offers two mounting options – rubber-damped for less vibration or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling.
WP XACT front suspension
The 48 mm split air WP XACT forks now offer improved bottoming resistance thanks to a new hydrostop, which applies a progressive damping force in the last 40 mm of travel for even greater comfort. The WP forks are designed with a capsulated, adjustable air spring and pressurized oil chamber for smooth action and consistent damping. Oil and air bypasses reduce pressure peaks and in combination with a midvalve damping system, the forks provide precise feedback to the rider. The settings are easily adjusted via the single air pressure pre-load valve, as well as through easy access click adjusters for compression and rebound. For improved durability, new fork protection rings prevent dirt intrusion. Additionally, the air pump needed to adjust the fork’s air pressure is provided as standard.
WP XACT rear suspension
An all-new design results in a 15 mm shorter rear shock, which is 100 g lighter compared to the previous generation while the rear wheel travel is set at 293 mm. Inside the shock is a Computational Fluid Dynamics (CFD) optimised main piston for improved initial comfort which provides strong hold-up in all conditions. Different sized holes in the shims allow them to open more easily which reduces the overall stress of the oil flow. Complete with low friction SKF seals and a revised linkage system, consistent damping, comfort, and traction are guaranteed with rebound and both high and low speed compression now adjustable by hand.
Swingarm
The new hollow die-cast aluminium swingarm is manufactured from a single piece of aluminium using an improved die-cast production process for optimal stiffness and a 190 g weight reduction over previous versions. In order to optimise and match the flex characteristics from the new frame, a new 22 mm rear axle is fitted. Additionally, the chain guard and chain slider have been completely redesigned for improved durability and are less prone to catching on external objects.
Bodywork
Clean, Swedish-inspired design and ergonomics are tailored to deliver exceptional comfort and control, enabling riders to perform at their best for extended periods of time. Adapted after countless hours of testing, the contact points have been repositioned for 2023 and together with a flatter seat profile, riders can move freely on the motorcycle for total control at all times.
Airbox
Easy access to the TWIN AIR filter is possible without tools, for quicker cleaning and easier maintenance. Precision inlet ducts maximise airflow and offer increased levels of filter protection.
Hydraulic clutch
The high-performance Brembo hydraulic clutch system guarantees even wear, near maintenance-free operation and perfect modulation in every condition. Meaning that play is constantly compensated so that the pressure point, and function of the clutch remain identical in cold or hot conditions, as well as over time. Countless hours of race-focused testing have proven the high-quality, Italian-made Brembo hydraulic systems’ exceptional reliability.
Hydraulic brakes
The highest level of quality is guaranteed with class-leading Brembo callipers made from single pieces of aluminium for strength at the lowest possible weight. Together with a 260 mm front and a 220 mm rear disc removing dirt efficiently, superior stopping power and braking confidence is guaranteed in all conditions.
ProTaper handlebar
Developed between Husqvarna Motorcycles and leading handlebar manufacturer, ProTaper, the exclusive bend offers superior comfort, class-leading strength, and fatigue resistance at the lowest possible weight. Fitted to the handlebar as standard are our open handguards for added protection in the demanding off-road environments.
ODI grips
ODI lock-on grips feature an innovative integrated throttle mechanism and a glue-free installation. The throttle assembly offers easy free-play adjustment with the option to fit alternative cams for a personalised throttle action.
Footrests
All-new, CFD-designed footrests offer a 26.8% larger contact area to ensure better control of the machine while being less susceptible to hooking on deep ruts, take-offs when scrubbing, or trackside barriers. This was achieved by a new, narrower mounting design in the frame layout, which also helps reduce overall weight.
Wheels and tyres
CNC-machined hubs and high-strength alloy rims by D.I.D are finished in striking black. They feature laser engraved logos and are fitted with a DUNLOP GEOMAX MX33 tyre on the front and DUNLOP GEOMAX AT81 tyre on the rear which ensure progressive cornering and superior traction on a variety of terrain.
Exhaust system
The exhaust system on the FX 350 features a flow-designed resonance chamber, which plays a vital role in delivering class-leading performance. Manufactured in two pieces and designed to be as compact as possible, the header pipe allows for the system to be removed without removing the rear shock. The silencer has a short and efficient design, moving weight closer to the centre of gravity and ensuring impressive power while keeping noise as low as possible. A black coating highlights its premium quality.
Cooling system
Manufactured from high-strength aluminium, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air in the most effective way. A large centre tube channels coolant through the frame to reduce pressure at this point in the system for a more consistent flow while a new internal thermostat further enhances reliability.
Fuel tank
A new 2.24 gallon fuel tank integrates neatly into the revised bodywork. Due to the new fuel pump design and position, the tank is emptied further for increased running times. For improved safety, the external fuel line is specifically routed to make it less exposed and susceptible to damage.
Map select switch
A redesigned and intuitive handlebar-mounted map select switch allows riders to activate launch and traction control, and allows riders to toggle between two engine maps. The easy-to-operate map select switch allows racers to quickly alter and set up the engine characteristics on a race by race basis dependent on track conditions and rider preference.
Mapping
For personalised power delivery, the FX 350 has two built-in engine maps as standard. Map 1 offers linear, predictable power, while Map 2 is more aggressive for a sharper throttle response and more explosive power output.
E-Start
As with all 4-strokes in the Husqvarna range, the FX 350 starts with the ease of pressing a button thanks to electric start. A lightweight Li-Ion 2.0 Ah battery is fitted, giving the convenience of electric starting while keeping overall weight to a minimum.
Engine management system
The KEIHIN EMS is designed to be small, lightweight and fast at processing data. It integrates traction control for perfect starts, selectable engine maps via the switch on the handlebar, as well as launch control.
Hour meter
A new hour meter comes with an integrated fuel level indicator, which is visible on the FI status LED, indicating to the rider when the fuel level is becoming low.
Start/stop switch
The new combined start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.
Traction Control
Traction control on the FX 350 is engaged by a button marked ‘TC’ on the Map Select Switch and functions by analysing throttle input from the rider and the rate at which engine RPM increases. If the RPM increases too quickly, the engine management system (EMS) registers a loss of grip and reduces the amount of power to the rear wheel to ensure maximum traction. This is a distinct advantage in wet or muddy conditions.
2023 Husqvarna FX350 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ 11499 USD
Canada MSRP Price: $12799 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
Engine
• Transmission 6-speed
• Starter Electric starter
• Stroke 57.5mm
• Bore 88mm
• Clutch Wet multi-disc DS clutch, Brembo hydraulics
• Displacement 349.7cm³
• EMS Keihin EMS
• Design 1-cylinder, 4-stroke engine
Chassis
• Weight (without fuel) 102.7kg
• Tank capacity (approx.) 8.5l
• Front brake disc diameter 260mm
• Rear brake disc diameter 220mm
• Front brake Disc brake
• Rear brake Disc brake
• Chain X-Ring 5/8 x 1/4″
• Frame design Central double-cradle-type 25CrMo4 steel
• Front suspension WP XACT-USD, Ø 48 mm
• Ground clearance 343mm
• Rear suspension WP XACT Monoshock with linkage
• Seat height 948mm
• Steering head angle 63.9°
• Suspension travel (front) 305mm
• Suspension travel (rear) 293mm
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
