2023 Suzuki GSX-S1000: THE COMPLETE STREET MACHINE.

Introducing the 2023 Suzuki GSX-S1000…

The 2023 GSX-S1000 establishes the performance standard for naked sportbikes by providing superb controllability, agility, and power for an exciting and rewarding riding experience, while complying with worldwide emissions standards. A long-stroke GSX-R1000 engine and nimble chassis combine with sharp, angular styling that hone the GSX-S1000 into an even tighter and more striking package that is ready to turn heads and own the streets.

Styling immediately draws your attention to the GSX-S1000. Clean, straight lines make it clear that this light and muscular, naked sportbike is a serious contender. It is hard not to stare at the stacked Mono-focus LED headlights housed in a minimalistic cowling that resides between a pair of MotoGP-inspired winglets protruding from the angular radiator shrouds.

The GSX-R-based engine is exposed as a clear message to others that this motorcycle makes prestigious peak power with a broad torque curve that delivers street-dominating power. Riders can keep that power under control with the electronic Ride-by-Wire throttle bodies and the latest version of the Suzuki Clutch Assist System (SCAS) that smooths shifting and engine braking.

There’s more GSX-R DNA in the chassis with its aluminum, twin-spar frame design and superbike-braced swingarm. The suspension features a fully adjustable, inverted KYB fork and easy-to-adjust rear shock. Stopping performance is stellar via the dual, ABS-equipped**, radial-mounted, four-piston Brembo front brake calipers and 310mm floating rotors. A wide cast-aluminum handlebar provides a comfortable reach and the proper leverage to hustle the GSX-S1000 through the corners and maneuver in tight city streets and traffic.

The 2023 GSX-S1000 has the Suzuki Intelligent Ride System (S.I.R.S.) in its corner. Make this bike your own using the three-mode Suzuki Drive Mode Selector and the updated, five-mode (and OFF) Advanced Traction Control* System. Give your clutch hand a rest with the Bi-directional Quick Shift system. Suzuki’s popular Easy Start and Low RPM Assist systems get the fun started without any hassle.

Two available body colors, including Suzuki’s hero Metallic Triton Blue and a new Glass Sparkle Black combine with modern logos to help position the 2023 GSX-S1000 as the sport’s dominant naked sportbike not only in performance but in styling as well.

OWN THE STREETS
The New GSX-S1000 combines aggressive looks, relentless torque, exhilarating handling and enhanced electronics for an adrenaline fuelled ride on every street. Sharper. Stronger. Smarter. The complete Street machine.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Traction control cannot prevent the front wheel from losing grip.
**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.







2023 Suzuki GSX-S1000 Totalmotorcycle.com Key Features

RAISED FOR THE STREET
Born of race-winning, track-proven DNA and raised for the street, the honed physique of the new GSX-S1000 morphs it into an even tighter and more striking package that is ready to turn heads and own the streets. It’s all about commanding performance, greater controllability, rider usability, and looks that can’t be beaten.

STREET TUNED PERFORMANCE
The high-performance 999cc four-stroke DOHC liquid-cooled inline-four engine that powers the GSX-S1000 inherits true winning superbike DNA. This street-tuned engine is based on core architecture that benefits from know-how acquired over decades of developing the GSX-R1000 to win countless production race victories, while also incorporating advanced technologies developed for MotoGP racing.

ENGINEERED FOR EXCITEMENT
Just looking at the chassis design, you can sense how agile, controllable and fun the GSX-S1000 is to ride. Every aspect reflects engineering focused on delivering great handling and control, whether riding on city streets, negotiating twisty mountain roads, or even taking the GSX-S1000 to the track.

COMPACT AND LIGHTWEIGHT
The chassis features a compact, lightweight package that makes the GSX-S1000 agile and predictable for a high-performance, large-displacement street bike. Its twin-spar aluminium frame helps deliver sharp handling and great road holding ability, while its straight main tubes are ideal for achieving high rigidity and low weight. All this connects to a ruggedly braced aluminium swingarm that further contributes to the road gripping character that lets you ride with confidence.

BREMBO BRAKES
The GSX-S1000 has high specification radial-mount Brembo monobloc calipers. The calipers each have four opposed 32mm pistons acting on a 310mm floating-mount disc for strong stopping power.

ADJUSTABLE KYB SUSPENSION
The 43mm KYB inverted front forks give a ride that is smooth yet sporty. They feature 120mm of stroke and fully adjustable damping, rebound, compression and spring preload settings. The link-type rear suspension with adjustable rebound damping and spring preload settings reacts efficiently to varying road surfaces to maintain an agile and stable feel while helping offer up to 130mm of rear wheel travel. The suspension settings are tested and tuned to best match the internal structure of the tyre and realise precise handling and improved steering into corners.

HIGH PERFORMANCE WHEELS AND TYRES
Cast aluminium wheels feature sporty good looks and a rigid lightweight structure, in a six spoke design. These are fitted to Dunlop’s new SPORTMAX Roadsport 2 radial tyres rear, these benefit from an updated internal structure custom engineered to perform optimally on the GSX-S1000, as well as an optimised tread pattern with a new compound that enhances positive grip in wet conditions, warms up faster, and wears better. The combination of these wheels and new tyres works harmoniously with the front and rear suspension settings to help realise the great grip, stability and quick handling demanded for sporty performance.

NEW 19L FUEL TANK
The new fuel tank increases capacity to 19L, without appearing larger. This benefits the rider by reducing the frequency of refuelling stops, giving a range of 194 miles possible based on the official WMTC fuel consumption of 46.31MPG.

SUZUKI INTELLIGENT RIDE SYSTEM (SIRS)
The new GSX-S1000 adopts a collection of the advanced electronic systems that comprise the Suzuki Intelligent Ride System (SIRS). These enable the rider to optimise performance characteristics to best suit riding conditions and varying road surfaces, as well as their level of confidence and experience. These benefit the rider by instilling greater confidence and allowing them to concentrate on enjoying the riding experience.

RAZOR SHARP
The goal of the design concept is to visually express the potential of a motorcycle capable of such high performance, and to convey the refinement and sophistication of a product designed to handle more predictably, with greater controllability on any type of ride. Its sharp lines, radical new headlight design, and slim front and rear end sections highlighting the muscular bulk of its mid-section combine to create an aggressive stance that speaks of power and performance potential.

STRIKING HEXAGONAL LED HEADLIGHTS
The radical design and original cut of the hexagonal lenses of the new stacked LED headlight assemblies create a sharp, compact and unique front face. The minimalist cowling that surrounds them adds sharp lines and a sense of tension that is inspired by designs found on Suzuki’s MotoGP racing machines and the latest stealth aircraft.

LCD INSTRUMENTS
The instrument panel packs all required information onto a compact, full LCD screen using a clean and intuitive layout with information displayed in order of priority. It features a custom display with exclusive graphics and blue backlighting matched to the GSX-S1000. The panel’s LCD readouts include the speedometer, tachometer, odometer, dual trip meter, gear position, water temperature, riding range, lap time mode, average fuel consumption, instant fuel consumption, Traction Control mode², SDMS mode, Quick Shift (ON/OFF), fuel gauge, clock, battery voltage, RPM indicator and service reminder.

LED INDICATORS AND TAIL LIGHT
In addition to the prominent headlight the GSX-S1000 also adopt front and rear indicators with LEDs in a thin bar-shaped housings that extend straight outward. While at the rear a thin, flatly shaped rear combination light uses LEDs for high visibility and long life. It is a double lens design that emphasises the stylish lines of the compact tail section.

Led by a stacked mono-focus LED headlight assembly and bold, angular styling that includes MotoGP inspired winglets, the GSX-S1000’s aggressive naked sportbike stance speaks of power and performance potential.

The 999cc, GSX-R-based engine produces high peak power with strong torque in the low- to mid-range that is smoothly controlled by Ride-by-Wire electronic throttle bodies for a stimulating sportbike experience.

Upright streetfighter ergonomics, a twin-spar aluminum frame and fully adjustable KYB suspension deliver controlled handling while ABS-equipped** Brembo Monobloc brake calipers with dual, floating brake rotors provide controlled stopping power.

The Suzuki Clutch Assist System (SCAS) smooths shifting and engine braking, while shifting has never been easier with the Bi-directional Quick Shift system.

The GSX-S1000 uses the Suzuki Intelligent Ride System (S.I.R.S.) with a three-mode Suzuki Drive Mode Selector and the five-mode Advanced Traction Control* System plus the popular Easy Start and Low RPM Assist systems.

Select from Suzuki’s hero Metallic Triton Blue or new Glass Sparkle Black paint scheme – each featuring unique logos that help identify the sport’s dominant naked sportbike.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.













2023 Suzuki GSX-S1000 Totalmotorcycle.com Features and Benefits

ENGINE FEATURES

The GSX-S1000’s long-stroke GSX-R engine is refined to produce a broad, smooth torque curve through the full rev-range with increased peak horsepower.

  • The GSX-S1000 provides predictable and controllable throttle response with abundant top-end power to provide the rider an exciting, responsive, and rewarding riding experience.



The camshaft profiles have reduced lift and valve overlap to not only to improve emissions, but balance the engine’s performance and drivability, enhancing rider control.

  • The valve springs are carefully calibrated to the camshafts to aid performance and improve durability.

The cam chain tensioner and tension adjuster use special materials to reduce friction and improve durability.

Suzuki’s legendary Twin Swirl Combustion Chamber (TSCC) design is machined into the cylinder head that, with the flat-top pistons, achieves an optimal 12.2:1 compression ratio that helps deliver a broad spread of power throughout the entire rev range.

Aluminum pistons, engineered with use of Finite Element Method (FEM) analysis, are cast with optimal rigidity and weight.

  • Ventilation holes between the cylinders reduce pumping loss within the crankcase so the engine can deliver more power and torque.
  • Suzuki Composite Electrochemical Material (SCEM)–plated cylinders integrated into the upper crankcase reduce friction and improve heat transfer and durability.

The matte, textured engine finish presents a strong image of quality while the casting design of the engine covers (clutch, stator, and drive sprocket) are updated over the prior generation parts with a new shape and finish.

Electronic throttle bodies are used on the GSX-S1000, so engine response is smooth and controlled, especially when the rider is applying the throttle to accelerate out of a corner.

  • These Ride-by-Wire throttle bodies provide precise control for the Suzuki Drive Mode Selector (S-DMS), Traction Control* (TC), and Bi-directional Quick Shift system (QS).
  • Long-tip, 10-hole fuel injectors on each throttle body improve fuel atomization, while the ECM’s automatic idle speed control improves cold starting and stabilizes the engine idle.

The air cleaner has an internal structure that contributes to the GSX-S1000’s increased engine performance while maintaining the exciting intake sound that the GSX-S1000 is renowned for.

  • The air cleaner’s external shape was changed to accommodate the larger capacity fuel tank.

Retaining the under-chassis design, sharp looks, and exciting note of the prior generation’s system, the GSX-S1000’s stainless steel, 4-2-1 exhaust system was fully redesigned and tuned.

  • Behind the header pipes, the mid-chamber contains a second catalytic converter to help ensure emissions compliance, a low center-of-gravity, and good exhaust flow to help the engine deliver a strong low- to mid-range punch with an exciting rush to redline.

The effective Suzuki Exhaust Tuning (SET) valve manages flow from the mid-chamber into the sculpted muffler that has a pleasing appearance that is not common to under-chassis exhausts while creating an exciting, distinctive sound.

  • With the catalytic converters located in the mid-chamber, GSX-S1000 riders can fit an EPA or CARB-compliant silencer from suppliers such as Yoshimura R & D, USA.

The digital ignition fires iridium-type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs.

The angular radiator shrouds efficiently guide cooling air to the high-capacity curved radiator.

  • A thermostatically controlled cooling fan helps ensure lower coolant temperatures when riding in slow moving traffic. The design also deflects hot air away from the rider at speed.

Additional heat is removed from the engine via the use of a lightweight and compact liquid-cooled oil cooler (like those used on certain GSX-R models).



TRANSMISSION FEATURES

Like a GSX-R1000, the race-proven, six-speed, close-ratio transmission features vertically staggered shafts to reduce overall engine length.

The precise shift linkage helps the rider easily and quickly select the ideal gear for the riding conditions.

  • A unique shift position sensor sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions. This design creates an exceptionally positive feel at the shift lever on both upshifts and downshifts. This design is also less prone to damage on tip-overs. The transmission’s gearshift cam, shift shaft and clutch release cam were revised to support the function of this bi-directional Quick Shift system.

The latest generation of the Suzuki Clutch Assist System (SCAS) clutch is fitted to the GSX-S1000. More than ever before, the SCAS clutch increases plate pressure under acceleration, yet acts as a slipper clutch to smooth the engine response during engine braking and corner entry.

  • This large-diameter, wet, multi-plate clutch uses a precise cable-activated release, providing the rider with a light pull that also has superb friction-point feel.

The strong, 525 drive chain uses O-rings to preserve internal lubrication, so power is transmitted smoothly and quietly.



CHASSIS FEATURES

Suzuki’s proven, twin-spar aluminum frame helps to ensure nimble handling and great road holding ability. The main spars are straight from the steering head to the swingarm pivot, which is ideal for achieving high rigidity and light weight.

The sturdy aluminum-alloy swingarm comes straight from the GSX-R1000. It is ruggedly braced and helps to ensure great road holding ability, together with superbike looks.

Connected to the swingarm is a link-type rear suspension, with a single shock absorber that features spring preload, and is seven-way adjustable with rebound damping force adjustment.

The 43mm inverted KYB forks have adjustable compression and rebound damping, plus spring preload adjustment with a generous 120 mm (4.7 inches) of front wheel travel.

Unique to GSX-S1000 models, the TRP six-spoke, lightweight, cast aluminum wheels look great and contribute to the bike’s nimble handling and sporty performance.

Dunlop’s Roadsport 2 radial tires (120/70ZR17 at the front and a wide 190/50ZR17 at the rear) are custom-engineered to perform optimally on the GSX-S1000, providing great grip in dry or wet conditions, faster warm-up, and long tread life.

These wheels and tires work in harmony with carefully developed front and rear suspension settings to help realize the great grip, stability and nimble handling demanded for sporty performance, while also contributing to a comfortable ride.

Dual front brakes with fully floating 310mm discs and Brembo Monobloc calipers with four 32mm opposed pistons provide strong and consistent stopping power.

The front brakes are complemented by a 240mm rear disc brake with a Nissin single-piston caliper to help ensure controlled stops.

The front brakes are complemented by a 240mm rear disc brake with a Nissin single-piston caliper to help ensure controlled stops.

The GSX-S1000 features an upright riding position for superior comfort and control. This reasonable sport riding position is the result of a carefully crafted relationship between the handlebar, footrests, and seat.

  • The matte black tapered cast-aluminum handlebar contributes to the excellent riding ergonomics, with great vibration damping and performance-oriented style.
  • This handlebar is 23 mm (0.90 in.) wider than the prior generation model and is rotated slightly upward to raise the grip height in relation to the rider.
  • In addition to increased comfort and a more upright posture, these changes make it easier for the rider to steer the front end with less effort.

The black finish on the shifter, rear brake, and both hand levers matches the performance nature of the motorcycle.

  • The front brake lever features a multi-step adjuster that permits quick adjustment of the lever’s distance from the grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.



BODY & STYLING FEATURES

The GSX-S1000’s fuel tank capacity is a generous 19 L (5.0 US Gal.) to reduce the frequency of gas stops while commuting or on long rides.

  • Prior generation GSX-S1000 fuel tank capacity was 17.0 L (4.5 US gal.).

The front seat was designed for comfortable sport riding that includes a foam shape change to provide great support at the back of the seat while offering excellent freedom of movement for the rider.

  • Compared to the prior generation, the seat is lower, with a height of 810 mm (31.9 inches), and contributes to the sporty, yet upright riding position and aids rider confidence at stops.
  • Positioned on the motorcycle higher so the passenger can see over the rider’s shoulder, the rear seat shape matches the GSX-S1000’s angular styling but retains ample padding and a grab strap.
  • Both seats are covered in a rugged, weather-resistant cover that provides a good balance between grip and smooth movement.

The body work displays a sense of athleticism and muscular strength.

  • The development of the body work was aimed at creating a strong, athletic sense of a well-built and capable street fighter.

The styling is meant to convey an aggressive attitude.

  • The radical design of the stacked LED headlight assembly and its minimalist cowling adds sharp lines that are inspired by the latest stealth aircraft.
  • The fuel tank side cowling blends into the radiator shrouds that have angular winglets, reminiscent of the aerodynamic foils on Suzuki’s World Champion MotoGP race bikes.
  • The bike’s compact nose pairs with the short, compact muffler design and slim design of the tail section to establish a clean, agile look that accentuates the muscular appearance of the engine and fuel tank.
  • The result is a mass-forward image that emphasizes the GSX-S1000’s aggressive stance and eagerness to perform.

Straight, sharp lines emphasize a modern motorcycle of high quality.

  • Straight, sharp lines create a modern design with eye-catching appeal.
  • These accent lines and attention to detail, like the exposed metal finish of the front fork outer tubes and muffler, convey a look of high quality and premium status.

The 2023 GSX-S1000 rolls out with two body color choices:

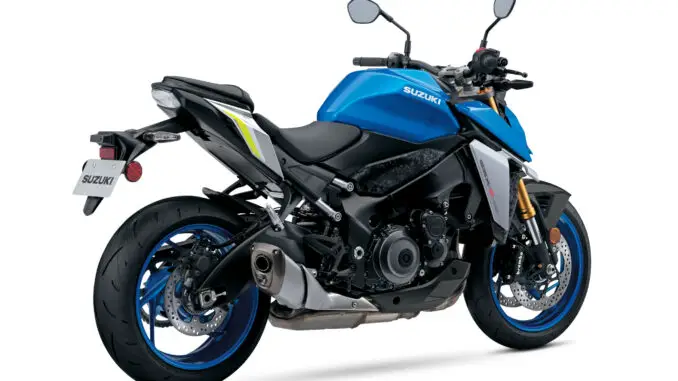

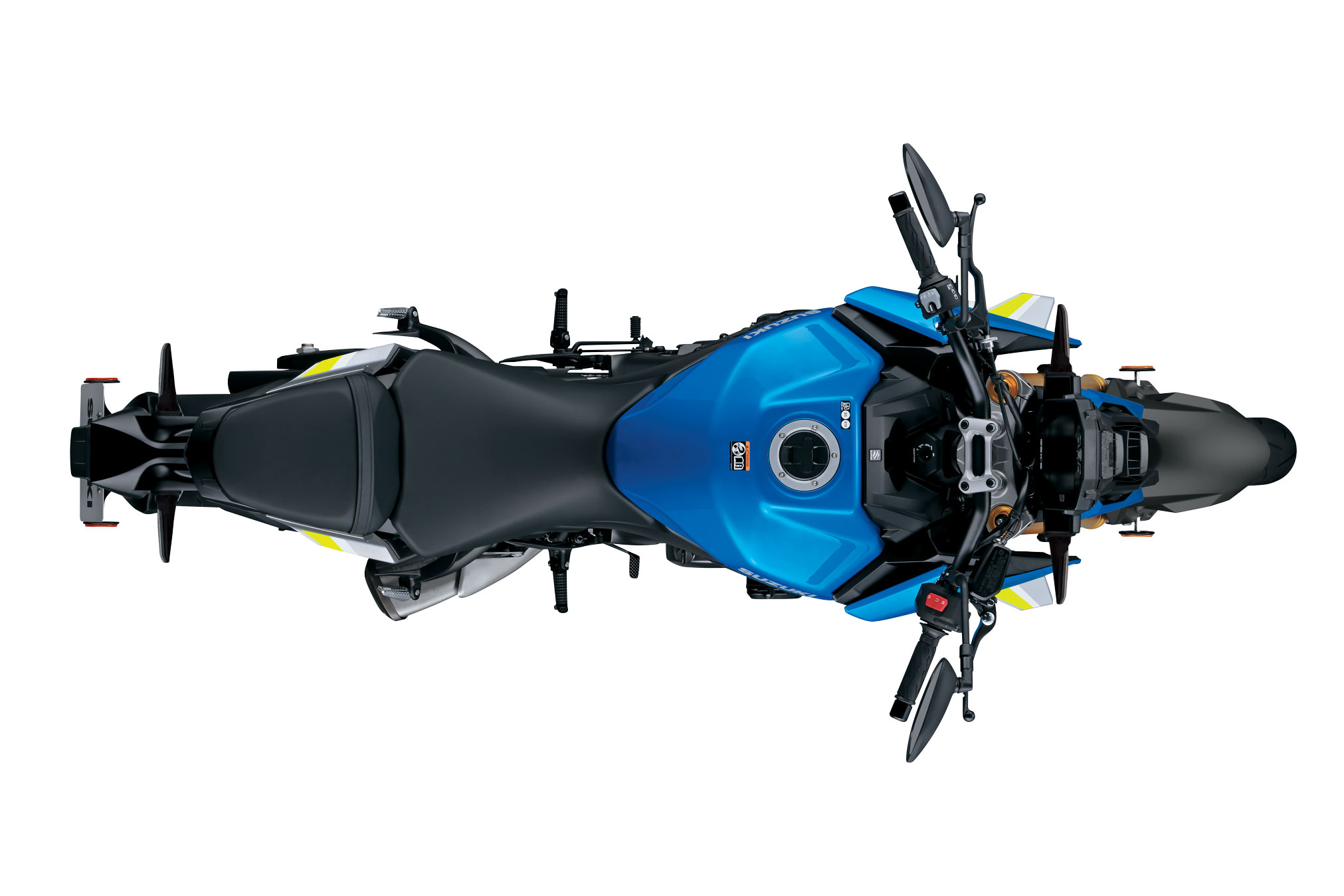

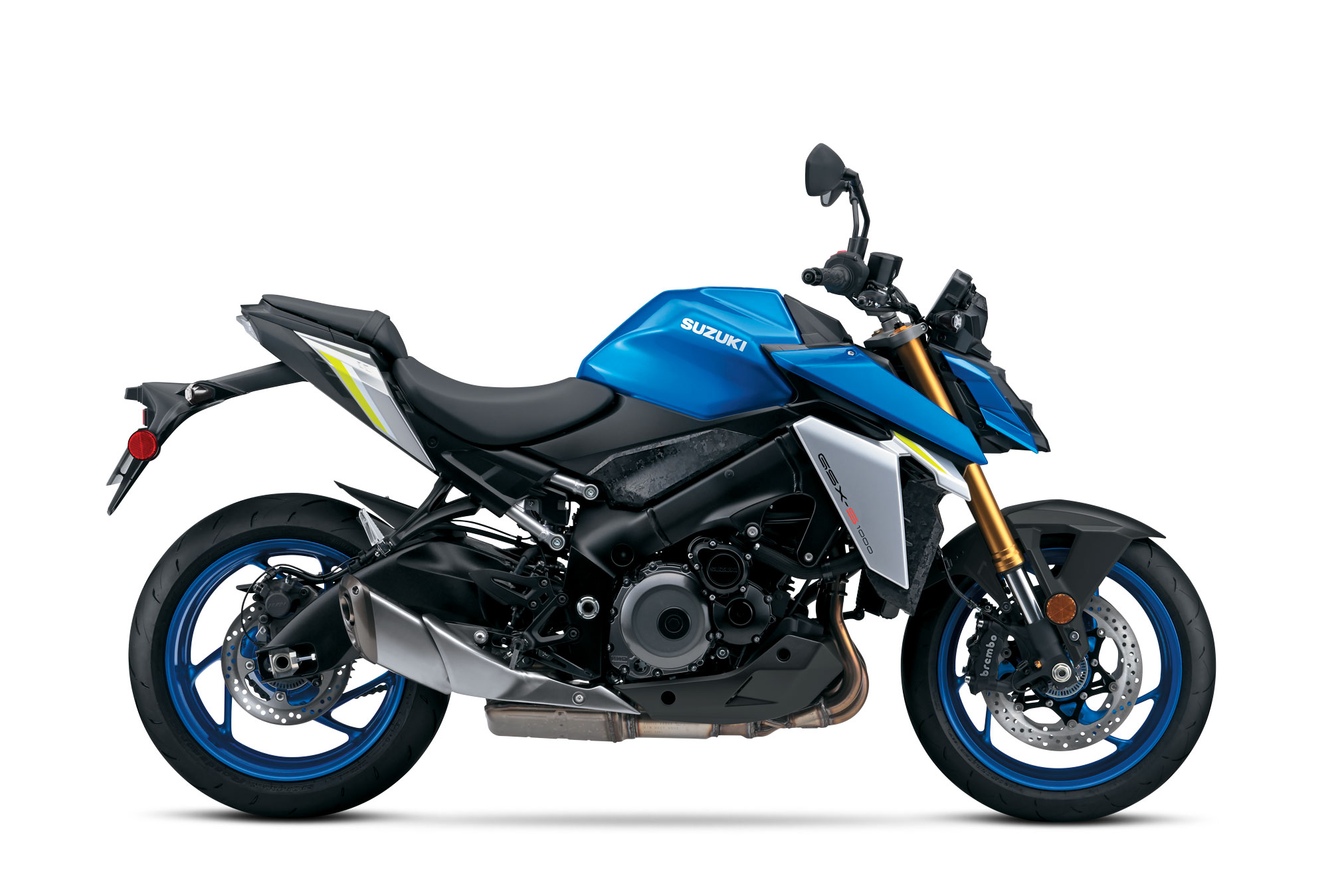

  • Metallic Triton Blue (YSF): the main color and brand symbol for Suzuki’s on-road sports identity.

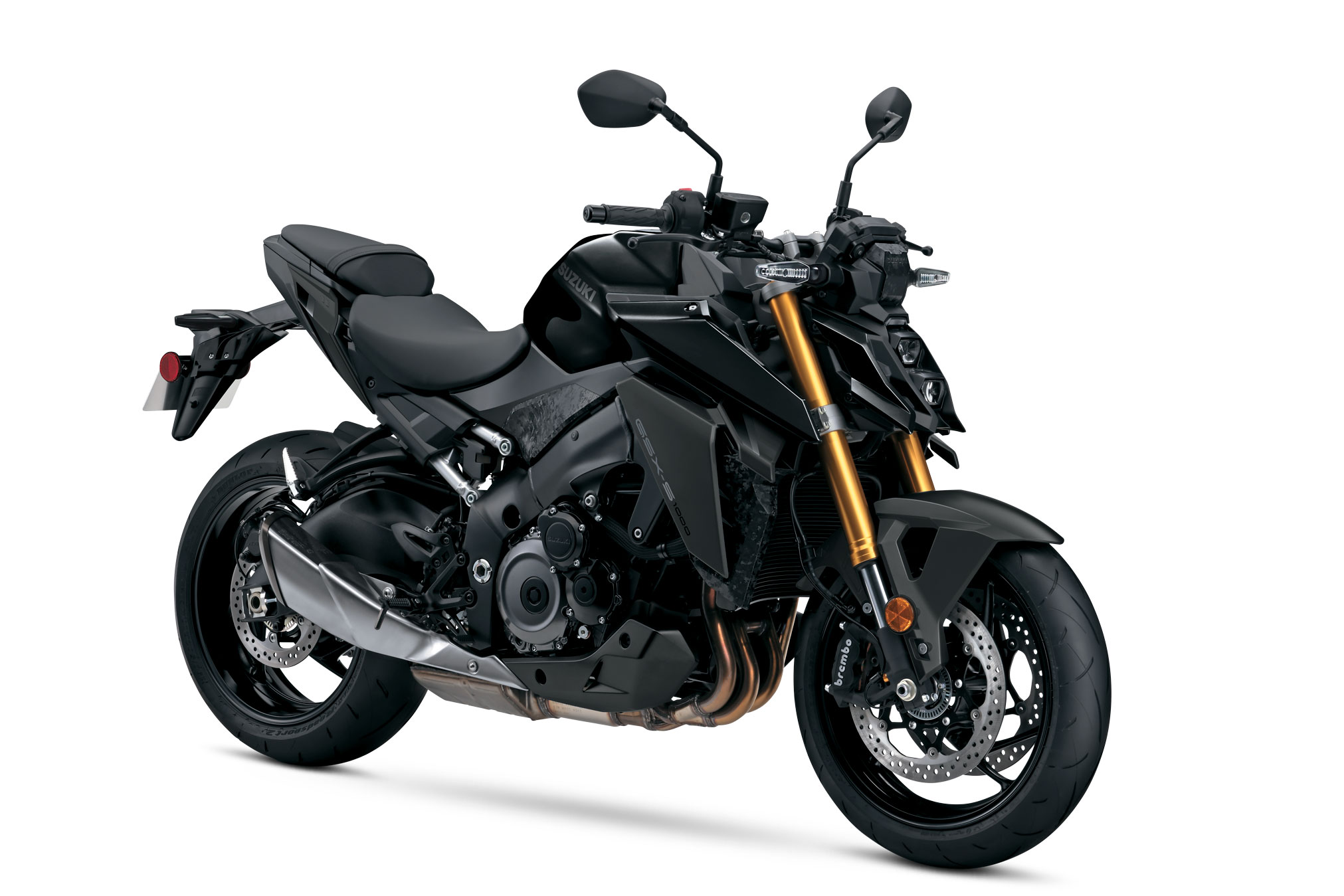

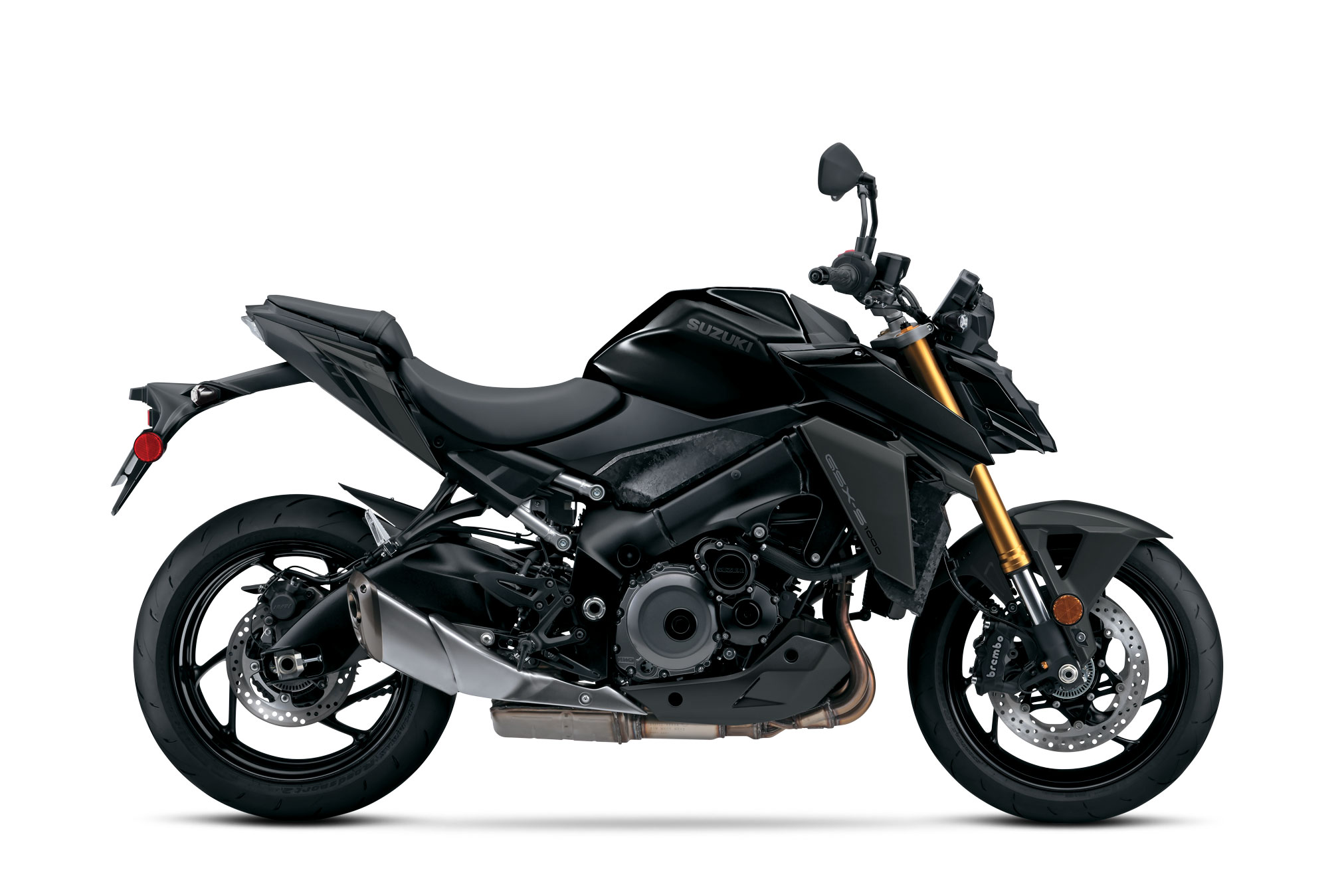

  • Glass Sparkle Black (YVB): Suzuki’s popular, glossy black finish accents the GSX-S1000’s street fighter stance.

Forward-looking model logos and textured surfaces:

  • The understated SUZUKI logos on the fuel tank and the futuristic font for the model’s name on the radiator shroud present a mature, sophisticated appearance.
  • Some panels use a textured pattern that is strategically applied to the sides of the frame so the rider’s legs can better grip the chassis. This pattern also adds a joint appearance of quality and high-performance while enhancing the GSX-S1000’s look of quality.

The custom-designed ignition key sports the GSX-S logo on the hilt aims to instill pride of ownership.



ELECTRICAL & LIGHTING FEATURES

The oil-cooled, three-phase charging system provides ample power for the GSX-S1000’s maintenance-free battery and ride-enhancing electronics.

Suzuki’s Easy Start System requires just a simple touch of the starter button to fire up the engine (without pulling the clutch lever if the transmission is in neutral).

The GSX-S1000’s Computer Area Network (CAN) style wire harness functions as an interconnected information network, rather than using a more complex and slower conventional wiring harness.

  • The CAN-wiring system enables the motorcycle’s various sensors and microcontrollers to communicate instantaneously with each other.
  • With fewer wires, CAN-wiring lets the GSX-S1000 be lighter and simpler and provides a way for the advanced components – like the electronic throttle bodies and bi-directional quick shifter – to communicate faster with the ECM.

A 32-bit ECM provides state-of-the-art engine management that contributes to the operation and optimization of the GSX-S1000’s electrical and S.I.R.S. components.

Using a high-visibility LCD display, the GSX-S1000’s brightness-adjustable instrument cluster, packs a wide range of useful information into a compact module positioned at the center of the large-diameter handlebars. The instrument’s exclusive graphics and adjustable backlighting create a high-quality appearance that will instill pride of ownership, and the fresh information format readouts are easy for the rider to recognize.

  • For 2023, a change from blue to bright white background lighting enhances the visibility of the Instrument Panel to the rider.
  • The LCD panel plays a brief custom animation when the ignition key is turned on, celebrating the GSX-S legacy, and providing anticipation of the ride to come.

The LCD readouts include:

  • Speedometer and tachometer, odometer with twin tripmeters, gear position, fuel gauge, clock, battery voltage and service reminder.
  • Specialized information includes real-time fuel consumption, average fuel consumption, riding range, and lap timer functions.
  • I.R.S. related information includes the Suzuki Drive Mode Selector (S-DMS) setting, Quick Shift (ON/OFF) and Traction Control* mode.

The main LCD panel is flanked by LED indicators for the turn signals, high beam, malfunction, traction control*, ABS**, plus coolant temperature and oil pressure alerts.

The GSX-S1000 is equipped with Suzuki innovative multifunction handlebar switches that are laid out to maximize operating ease and efficiency.

  • The rider can use the LCD panel information and the mode/set switch on the left handlebar to change Suzuki Intelligent Ride System (S.I.R.S.) settings.
  • The right handlebar switch has a poly-function rocker switch that is the engine stop- and start-button but also activates the Easy Start System.

A perfect complement to the GSX-S1000’s razor-sharp styling, the compact vertically stacked LED headlight assembly is trim, tight with the front fork.

Supplied by Koito®, the independent, polygon-shaped, high- and low-beam headlights feature Mono-focus LED technology that shines light directly through a convex lens to brightly illuminate the road.

The dual hexagonal shaped LED headlights are topped by a single LED position light that creates a clean face that is unlike any other motorcycle, making the GSX-S1000 clearly visible to pedestrians and other traffic. It is a light, nimble look that emphasizes the GSX-S1000’s aggressive stance and eagerness to perform.

Front LED turn signals in thin, arrow-shaped housings, extend outward from the steering mount and emphasize the extraordinary appearance of the vertically stacked headlights.

The thin, arrow-like LED rear turn signals combine with a flat rear LED combination light to complement the stylish lines of the svelte tail section and match the bike’s unique advanced styling.

With lower electrical draw than conventional lighting, the LED headlights, position light, turn signals and taillight complement the GSX-S1000’s sharp, angular styling while improving both visibility and durability.



SUZUKI INTELLIGENT RIDE SYSTEM (S.I.R.S.) FEATURES

The Suzuki Drive Mode Selector (SDMS) provides the rider a choice of three different engine power output modes. All three modes deliver maximum engine output but provide different throttle response and torque characteristics when accelerating.

  • These three modes (A, B, and C) provide the rider a quick and easy way to alter the GSX-S1000’s power delivery characteristic to match his or her riding style, or adjust to changing weather, road and other conditions.
    • Mode A (Active)is for active, sporty use that delivers the sharpest throttle response as the rider opens the throttle. Mode A’s torque characteristics are finely tuned to deliver exciting acceleration when hitting the throttle hard, such as when participating in track day events or enjoying a sporty run on clean, winding roads in good weather.
    • Mode B (Basic)is for general, all-around riding, as it features softer throttle response and a more linear power delivery curve as the rider opens the throttle. Settings are tuned to fit a wide range of riding styles and conditions, and to help make the bike controllable in everyday riding situations.
    • Mode C (Comfort)offers a softer throttle response and more gentle torque characteristics, with power increasing in a directly linear fashion as the throttle is opened. This mode is useful when riding on wet or slippery surfaces, or when the rider desires a relaxing, comfortable ride.
  • Using the mode and select switches on the left handlebar, the rider can change SDMS modes while riding. The mode settings are clearly displayed on the LCD instrument panel.

The advanced Ride-by-Wire Electronic Throttle System leverages the capability of the GSX-S1000’s 32-bit ECM and CAN-style wire harness to precisely control engine output relative to throttle action.

  • This precision allows the throttle body action to be tuned to best match each of the SDMS modes. The result is a controllable, linear power delivery that responds faithfully to the rider’s intentions, whether commuting or enjoying a sporty ride on a winding road.

The five-mode Suzuki Traction Control System (STCS) continuously monitors front- and rear- wheel speed, engine RPM, throttle position and gear position to adjust engine output to prevent undesired rear wheel spin, helping maintain traction and power delivery to the road.

  • Compared to the three-mode system on the prior generation GSX-S1000, this updated, five-mode version of STCS features a wider selection of sensitivity to better accommodate a variety of riding conditions, styles, and rider experience. The system can also be turned off when preferred. The higher number the mode, the quicker STCS intervenes to limit rear wheel spin.
  • The STCS modes are displayed on the LCD instrument panel and can be changed on-the-fly, using the left handlebar switch. When the system is trimming power to prevent wheel spin, the TC icon in the center of the instrument panel will illuminate and flash.

The Bi-directional Quick Shift System (QS) allows the rider to shift up or down quickly and easily, without operating the clutch or throttle.

  • To ensure smooth upshifts QS automatically interrupts power delivery just long enough to produce smooth, almost uninterrupted acceleration. When decelerating, the system automatically opens the throttle valves just enough to increase rpm and match engine speed to the next-lower gear. The result of this hands-free, automatic blipping function combines seamlessly with engine braking to create a highly satisfying experience when downshifting.
    • The bi-directional QS works seamlessly in concert with SDMS to bring riders even greater riding enjoyment.
    • Performance of the GSX-S1000’s SACS-style assist & slipper clutch ensures even smoother up- and down-shifts when using QS or manual clutch operation.
    • A unique shift position sensor sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions.

The Suzuki Easy Start System lets the rider start the motorcycle with a simple press of the starter button. There is no need to pull in the clutch lever when the transmission is in neutral, and the starter motor automatically disengages, the instant the engine fires up.

The Low RPM Assist System seamlessly increases engine speed to smooth the power delivery when launching from a standing start or riding at low speeds, which helps ensure better control and operation in stop-and-go traffic. The system also minimizes the possibility of the rider stalling the motorcycle during take-off.



ADDITIONAL FEATURES

A variety of Genuine Suzuki Accessories are available, such as a solo seat cowl, meter visor (acts as a sport screen), billet clutch and brake levers, fuel tank and engine cover protectors, clip-on tank bags, plus a selection of GSX-S logo apparel.

12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.













2023 Suzuki GSX-S1000 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,499 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

  • Engine999cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC
  • Bore x Stroke4 mm x 59.0 mm (2.890 in. x 2.323 in.)
  • Compression Ratio2:1
  • Fuel SystemFuel injection with Ride-by-Wire electronic throttle bodies
  • StarterElectric
  • LubricationWet sump



  • ClutchWet, multi-plate SCAS type
  • Transmission6-speed constant mesh
  • Final DriveChain, RK525GSH, 525 x 116 links



  • Suspension FrontInverted telescopic, coil spring, oil damped
  • Suspension RearLink type, single shock, coil spring, oil damped
  • Brakes FrontBrembo, 4-piston, twin disc, ABS-equipped
  • Brakes RearNissin, 1-piston, single disc, ABS-equipped
  • Tires Front120/70ZR17M/C (58W), tubeless
  • Tires Rear190/50ZR17M/C (73W), tubeless
  • Fuel Tank Capacity0 L (5.0 US gal.)
  • ColorMetallic Triton Blue or Glass Sparkle Black



  • IgnitionElectronic ignition (transistorized)
  • Spark PlugNGK CR9EIA-9 or DENSO IU27D Iridium-style
  • HeadlightStacked LED
  • Tail LightLED



  • Overall Length2115 mm (83.3 in.)
  • Overall Width810 mm (31.9 in.)
  • Overall Height1080 mm (42.5 in.)
  • Wheelbase1460 mm (57.5 in.)
  • Ground Clearance140 mm (5.5 in.)
  • Seat Height810 mm (31.9 in.)
  • Curb Weight214 kg (472 lb.)



  • Warranty12-month unlimited mileage limited warranty
  • ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)











2023 Suzuki GSX-S1000 – Totalmotorcycle.com Canada Specifications/Technical Details

TBA









2023 Suzuki GSX-S1000 – Totalmotorcycle.com European Specifications/Technical Details

DIMENSIONS AND WEIGHTS

Overall length 2115mm (83.27in) Overall width 810mm (42.50in)
Overall height 1080mm (42.52in) Wheelbase 1460mm (57.48in)
Ground clearance 140mm (5.5in) Seat height 810 mm (31.9in)
Kerb mass 214kg (472lbs) Fuel capacity 19.0L (4.2UK gallons)



ENGINE SPECIFICATIONS

Engine capacity 999cc Engine 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore 73.4 x 59.0 (2.89in x 2.32in) Compression ratio 12.2 : 1
Lubrication Wet Sump Ignition Electronic ignition (transistorised)
Fuel system Fuel Injection Transmission 6-speed constant mesh
Drive chain Starter Electric
MPG* 46.31 CO2 143g/km
Power 112kW @ 11,000rpm (152PS) Torque 106.0Nm @ 9,250rpm (78.18lb. ft)†



CHASSIS SPECIFICATION

Front suspension Inverted telescopic, coil spring, oil damped Rear suspension Link type, coil spring, oil damped
Front brakes Disc, twin Rear brakes Disc
Front tyres 120/70ZR17M/C (58W) Rear tyres 190/50ZR17M/C (73W)











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 8576 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 23 great years. Total Motorcycle is my pride and joy and being able to reach out 375 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
