2023 Triumph Speed Twin 1200 Guide

2023 Triumph Speed Twin 1200

2023 Triumph Speed Twin 1200 2023 Triumph Speed Twin 1200 2023 Triumph Speed Twin 1200 2023 Triumph Speed Twin 1200 2023 Triumph Speed Twin 1200

2023 Triumph Speed Twin 1200: PERFORMANCE ICON.

Introducing the 2023 Triumph Speed Twin 1200…

The benchmark modern classic sports icon. Now with upgraded chassis components and a more responsive, more powerful engine for the ultimate in character and performance.

EVOLUTION IN EVERY DIMENSION

Higher performance, better handling, enhanced tech and even more premium style. The incredible Speed Twin 1200 sets a benchmark.

Unmistakable modern sports classic style meets unparalleled dynamic riding capability.

The standard in modern classic roadster design: the original high-performance icon has evolved.

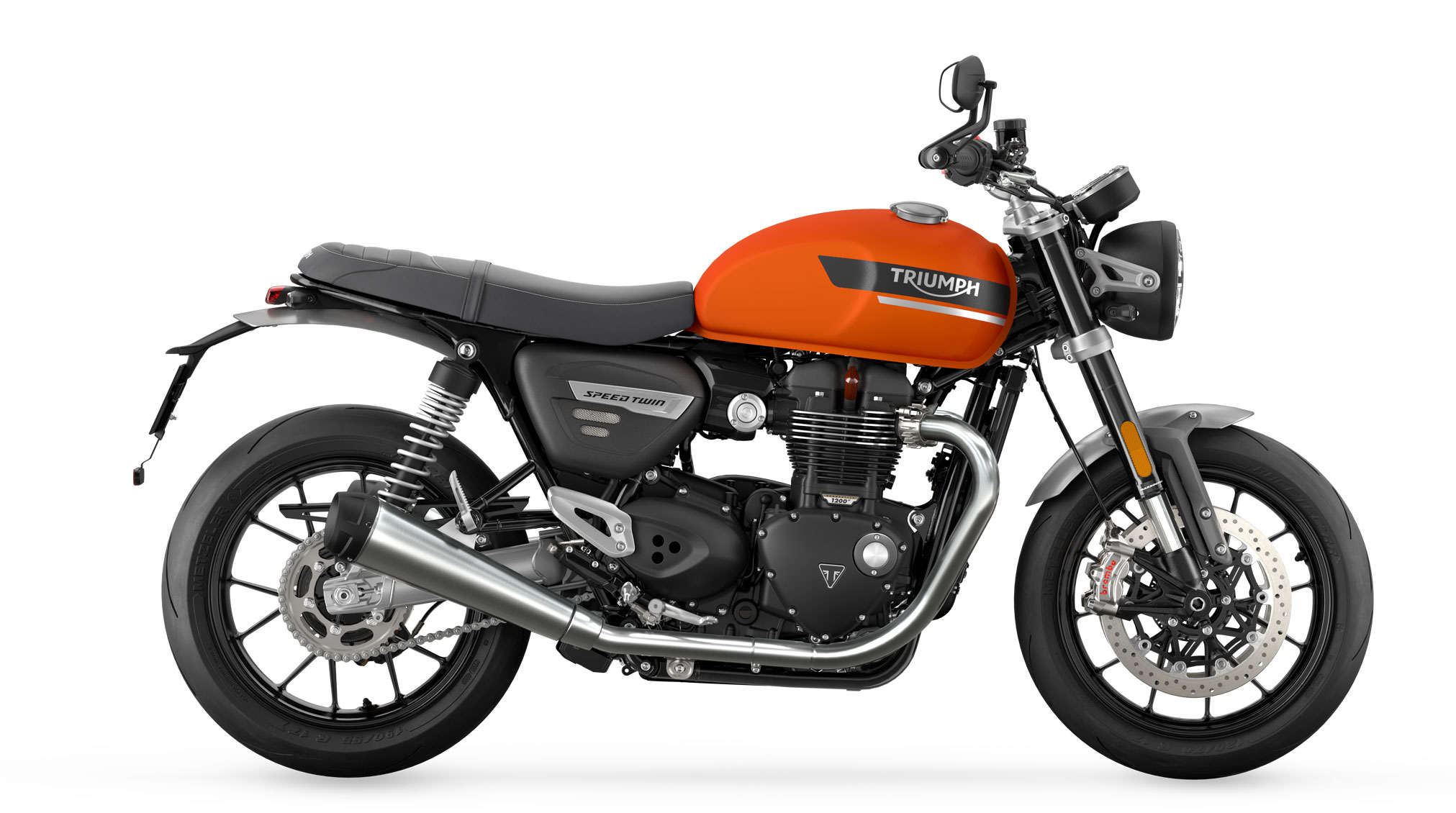

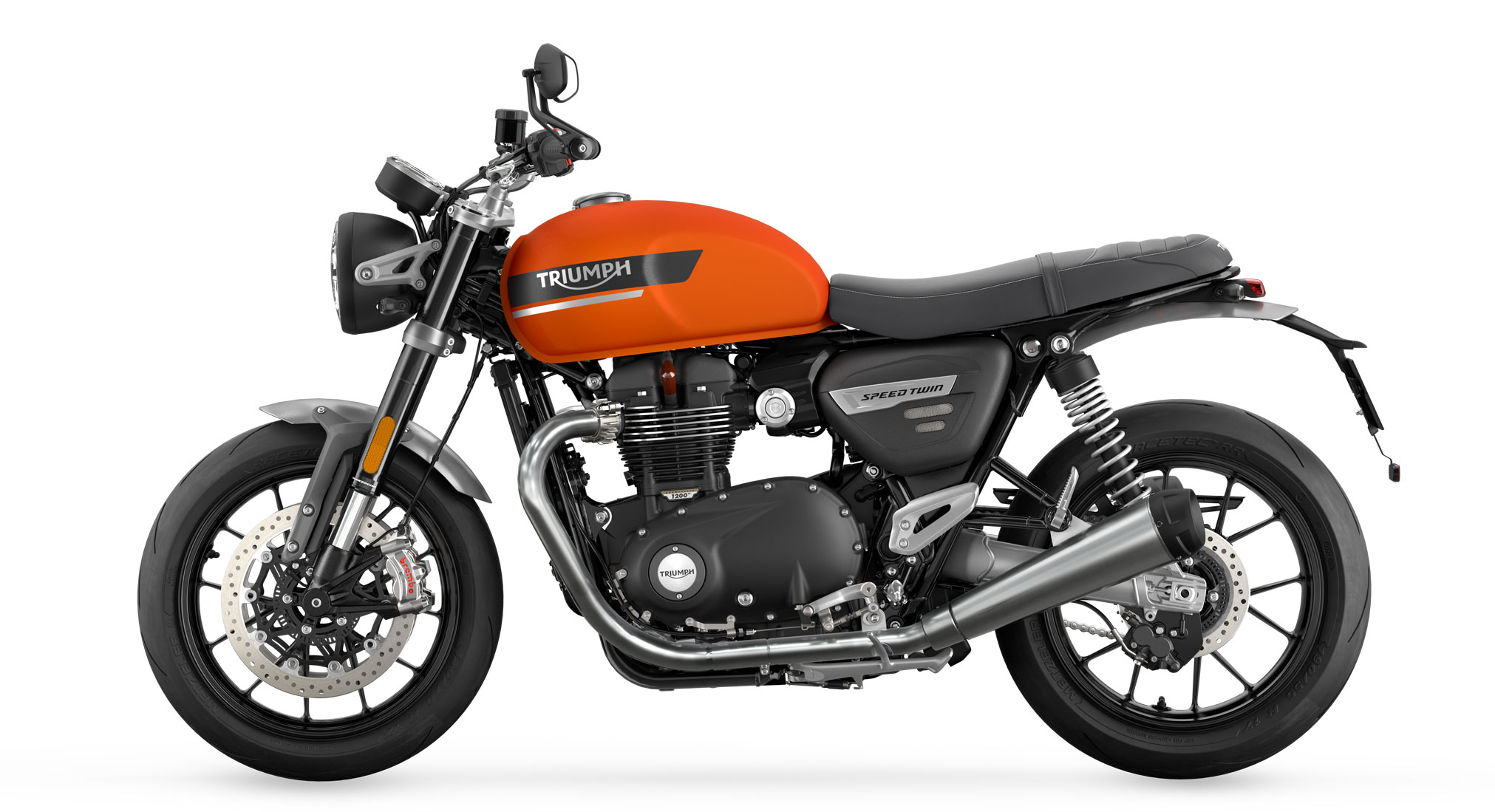

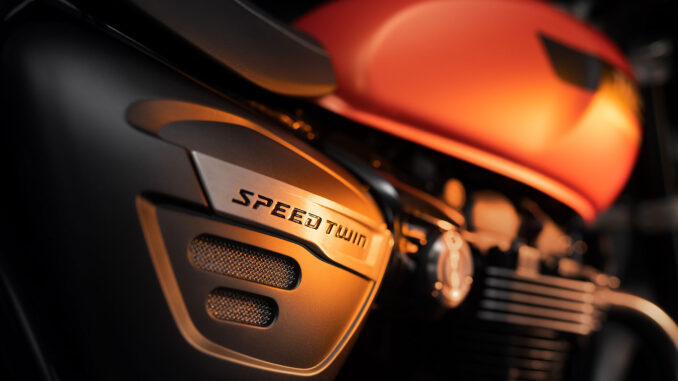

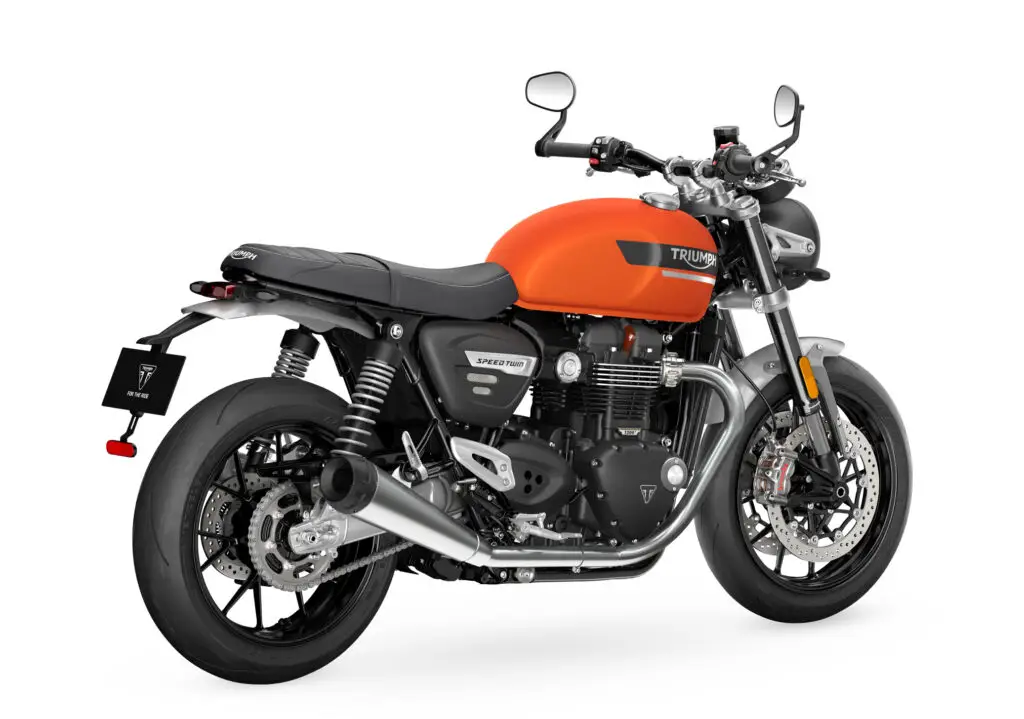

For model year 2023, Triumph’s performance classic Speed Twin 1200 comes in three colours – the classic Jet Black, a striking Red Hopper, and now an exciting new Matt Baja Orange scheme, with stylish Storm Grey and Aluminium Silver tank graphics. The new scheme also features Matt Storm Grey side panels and headlight bowl, matched with Matt Silver Ice fork protectors.







2023 Triumph Speed Twin 1200 Totalmotorcycle.com Key Features

  • Matt Baja Orange NEW
  • Red Hopper
  • Jet Black



EXCITING NEW COLOURS AND NEW NAMES FOR TRIUMPH’S MODERN CLASSICS RANGE

Introducing for model year 2023, a new and exciting range of colour options for the entire Bonneville range, building on the great success of last year’s Gold Line Editions, which responded to customer requests for brighter, more distinctive, and more elegant colour options across the legendary Modern Classics line-up.

These new colours come hand-in-hand with new names for two of the class-defining 900cc models, chosen to better represent the family connections across Triumph’s iconic Bonneville line-up, and their specific engine capacities. From model year 2023, the Street Twin is re-named Speed Twin 900, and the Street Scrambler is re-named the Scrambler 900.



Engine

1200cc twin engine (Euro 5 compliant)

Clutch

Torque assist clutch

Traction Control

Ride-by-wire throttle with switchable traction control

Riding Modes

3 riding modes (Road, Rain and Sport)

Suspension

Marzocchi upside-down forks with cartridge damping and preload-adjustable twin rear suspension units

Brakes

Brembo M50 brakes with switchable ABS

Lighting

LED daytime running light, rear light and indicators

Service

10,000 miles (16,000 km) /12 months service interval, whichever comes first

Immobilizer

Immobilizer and under seat USB charging







2023 Triumph Speed Twin 1200 Totalmotorcycle.com Features and Benefits

SUSPENSION

Tuned to deliver class-leading handling, the Speed Twin 1200’s new 43mm Marzocchi USD cartridge forks are matched with twin rear shocks for 120mm of controlled damping and a confidence-inspiring ride.

BRAKING

Confident and assured braking comes courtesy of powerful new premium specification Brembo four-piston M50 radial monobloc calipers, high performance 320mm floating discs and the latest generation ABS.

ENGINE

A significant engine update brings EURO5-compliance along with a 3PS increase in top-end power, more mid-range torque and reduced inertia for improved responsiveness.

ERGONOMICS

The Speed Twin 1200’s engaging roadster ergonomics and relaxed seating, foot peg and handlebar set up give a comfortable and commanding upright riding position, enhancing its modern sports-focused performance.

HANDLING

Engaging ergonomics and a dedicated roadster-focused chassis combine with new high specification suspension and tires to deliver the Speed Twin 1200’s benchmark confidence-inspiring, agile and intuitive handling.

INSTRUMENTS

The contemporary, feature-packed twin clocks display all the vital info via an easy-to-navigate menu system that is accessed by a handlebar-mounted scroll button.

MODERN CAPABILITY

Upgraded riding modes, alongside traction control, LED lighting and a light-action torque-assist clutch are elegantly integrated with minimal visual impact for maximum rider safety and enjoyment.

RIDING MODES

Three upgraded riding modes, each now with dedicated throttle map and traction control setting, allow changes to be made at the touch of a button to suit conditions and rider preference.

SILENCERS

Engineered for performance and aesthetics, the brushed stainless steel headers and new twin upswept silencers deliver style and the unmistakable Speed Twin 1200 soundtrack.

WHEELS AND TIRES

Metzeler Racetec RR tires fitted to the stylish new lightweight cast aluminum 12-spoke wheels deliver the perfect mix of grip, high-speed stability and handling agility.







2023 Triumph Speed Twin 1200 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $12,595  USD
Canada MSRP Price: $14,045 CDN
Europe/UK MSRP Price: £11,295 (On The Road inc 20% Vat)

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 12.1:1
Max Power EC 100 PS / 98.6 bhp (73.6 kW) @ 7250 rpm
Max Torque EC 83 ft-lb (112 Nm) @ 4250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive O ring chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, with steel cradles
Swingarm Twin sided aluminium
Front Wheel Cast aluminium alloy 17” x 3.5”
Rear Wheel Cast aluminium alloy 17” x 5.0”
Front Tire 120/70 ZR17
Rear Tire 160/60 ZR17
Front Suspension Ø 43mm USD Marzocchi forks, 120mm travel
Rear Suspension Twin RSUs with adjustable preload, 120mm rear wheel travel
Front Brakes Twin Ø 320mm discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single Ø 220mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.6 in (778 mm)
Height Without Mirror 43.2 in (1097 mm)
Seat Height 31.9 in (809 mm)
Wheelbase 55.6 in (1413 mm)
Rake 22.3 º
Trail 3.6 in (91.5 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 476 lb (216 kg)
FUEL CONSUMPTION
Fuel Consumption 46.1 mpg (5.1 L / 100km)
CO2 Figures 131 g/km EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.









2023 Triumph Speed Twin 1200 – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 12.1:1
Max Power EC 100 PS / 98.6 bhp (73.6 kW) @ 7250 rpm
Max Torque EC 83 ft-lb (112 Nm) @ 4250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive O ring chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, with steel cradles
Swingarm Twin sided aluminium
Front Wheel Cast aluminium alloy 17” x 3.5”
Rear Wheel Cast aluminium alloy 17” x 5.0”
Front Tire 120/70 ZR17
Rear Tire 160/60 ZR17
Front Suspension Ø 43mm USD Marzocchi forks, 120mm travel
Rear Suspension Twin RSUs with adjustable preload, 120mm rear wheel travel
Front Brakes Twin Ø 320mm discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single Ø 220mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.6 in (778 mm)
Height Without Mirror 43.2 in (1097 mm)
Seat Height 31.9 in (809 mm)
Wheelbase 55.6 in (1413 mm)
Rake 22.3 º
Trail 3.6 in (91.5 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 476 lb (216 kg)
FUEL CONSUMPTION
Fuel Consumption 46.1 mpg (5.1 L / 100km)
CO2 Figures 131 g/km EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE
Service Interval 10,000 miles/12 months service interval, whichever comes first







2023 Triumph Speed Twin 1200 – Totalmotorcycle.com European Specifications/Technical Details

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 12.1:1
Max Power EC 100 PS / 98.6 bhp (73.6 kW) @ 7250 rpm
Max Torque EC 112 Nm @ 4250 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive O ring chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, with steel cradles
Swingarm Twin sided aluminium
Front Wheel Cast aluminium alloy 17” x 3.5”
Rear Wheel Cast aluminium alloy 17” x 5.0”
Front Tyre 120/70 ZR17
Rear Tyre 160/60 ZR17
Front Suspension Ø 43mm USD Marzocchi forks, 120mm travel
Rear Suspension Twin RSUs with adjustable preload, 120mm rear wheel travel
Front Brakes Twin Ø 320mm discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single Ø 220mm disc, Nissin 2-piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 778 mm
Height Without Mirror 1097 mm
Seat Height 809 mm
Wheelbase 1413 mm
Rake 22.3 º
Trail 91.5 mm
Tank Capacity 14.5 L
Wet Weight 216 kg
FUEL CONSUMPTION
Fuel Consumption 5.1 litres / 100 km
CO2 Figures 116 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE
Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first













Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
