Published June 14, 2022 by Michael Le Pard , Editor‑in‑Chief
2023 Yamaha TT-R230: LEAVE NO TRAIL UNTAMED.

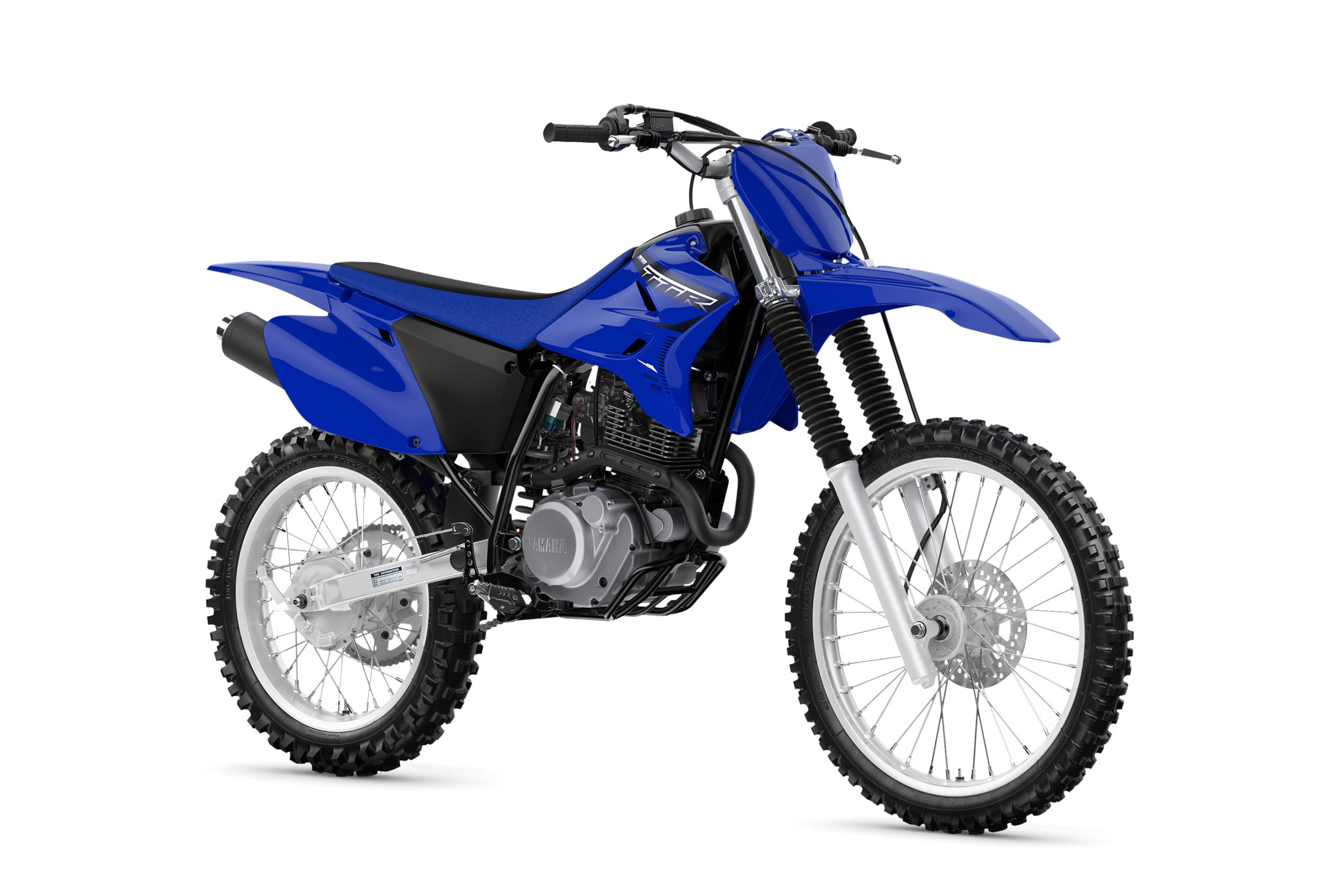

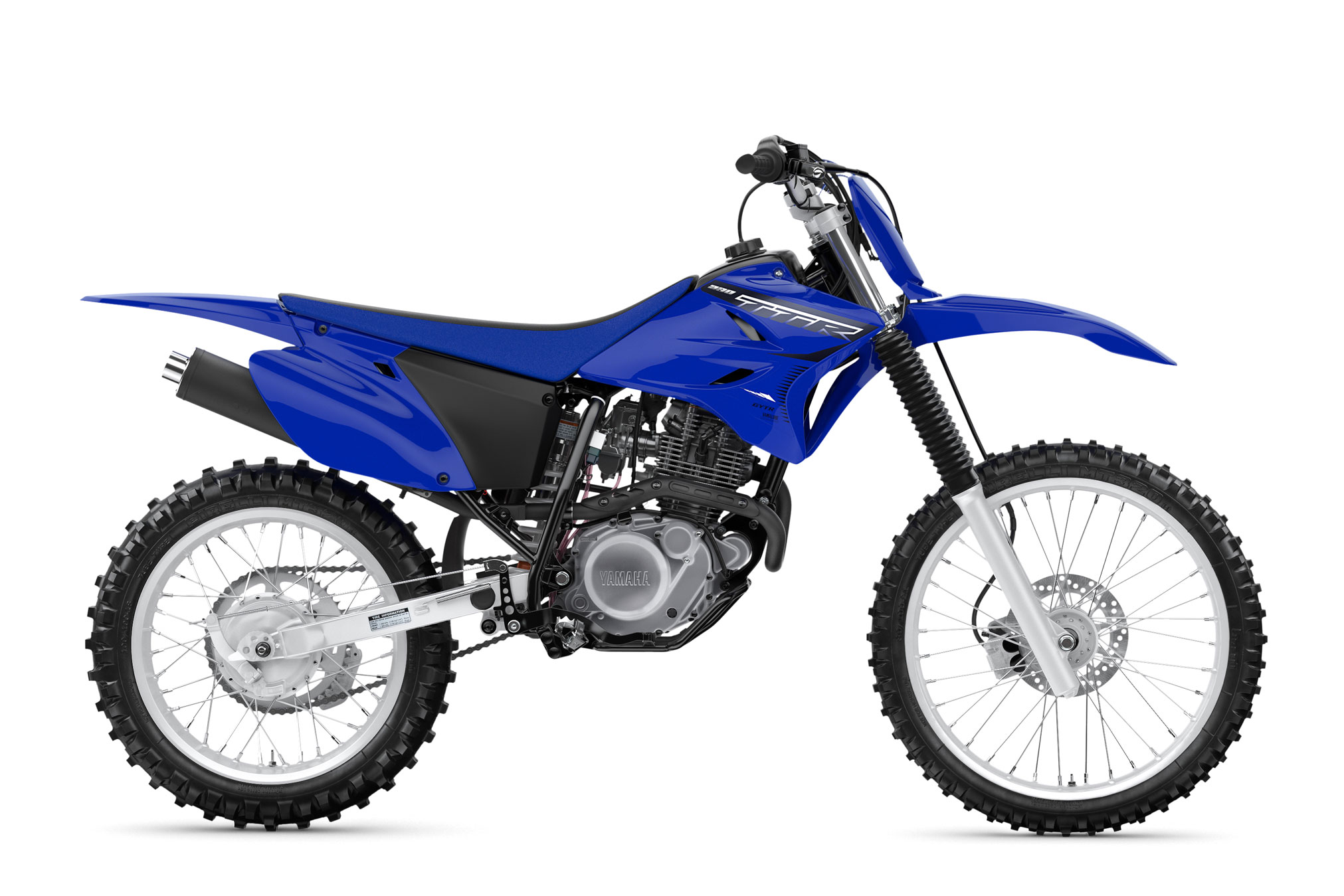

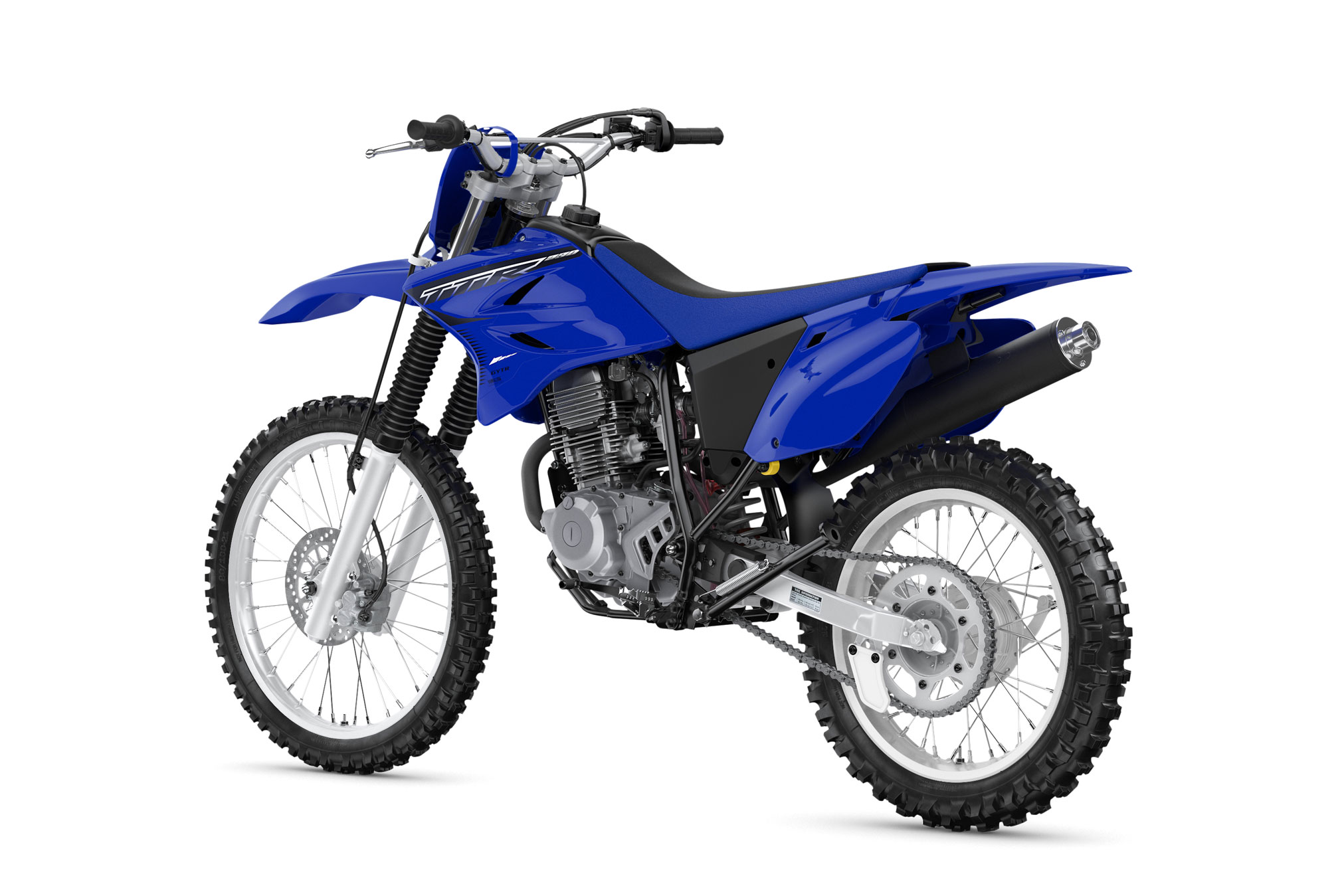

Introducing the new 2023 Yamaha TT-R230…
Easy to ride and easy to maintain, the super‑capable TT‑R230 delivers proven performance.
2023 Yamaha TT-R230 Totalmotorcycle.com Key Features
Broad, Accessible Powerband
YZ-inspired looks with a stout 223cc air-cooled SOHC four-stroke produces predictable, broad power making the TT-R230 a great choice for both beginner and intermediate riders.
Racing-Derived Ergonomics
The competition-style flat seat and tank junction position the rider for greater mobility.
Convenient Electric Start
With a simple push of a button, the electric start makes getting started a breeze.
Trail-Ready Dimensions
The low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trail bike that’s accessible for a wide range of riders.
Robust, Compact Frame
The steel, diamond-type frame design means great handling and strength.
2023 Yamaha TT-R230 Totalmotorcycle.com Features and Benefits
ENGINE
- Broad, Accessible Powerband

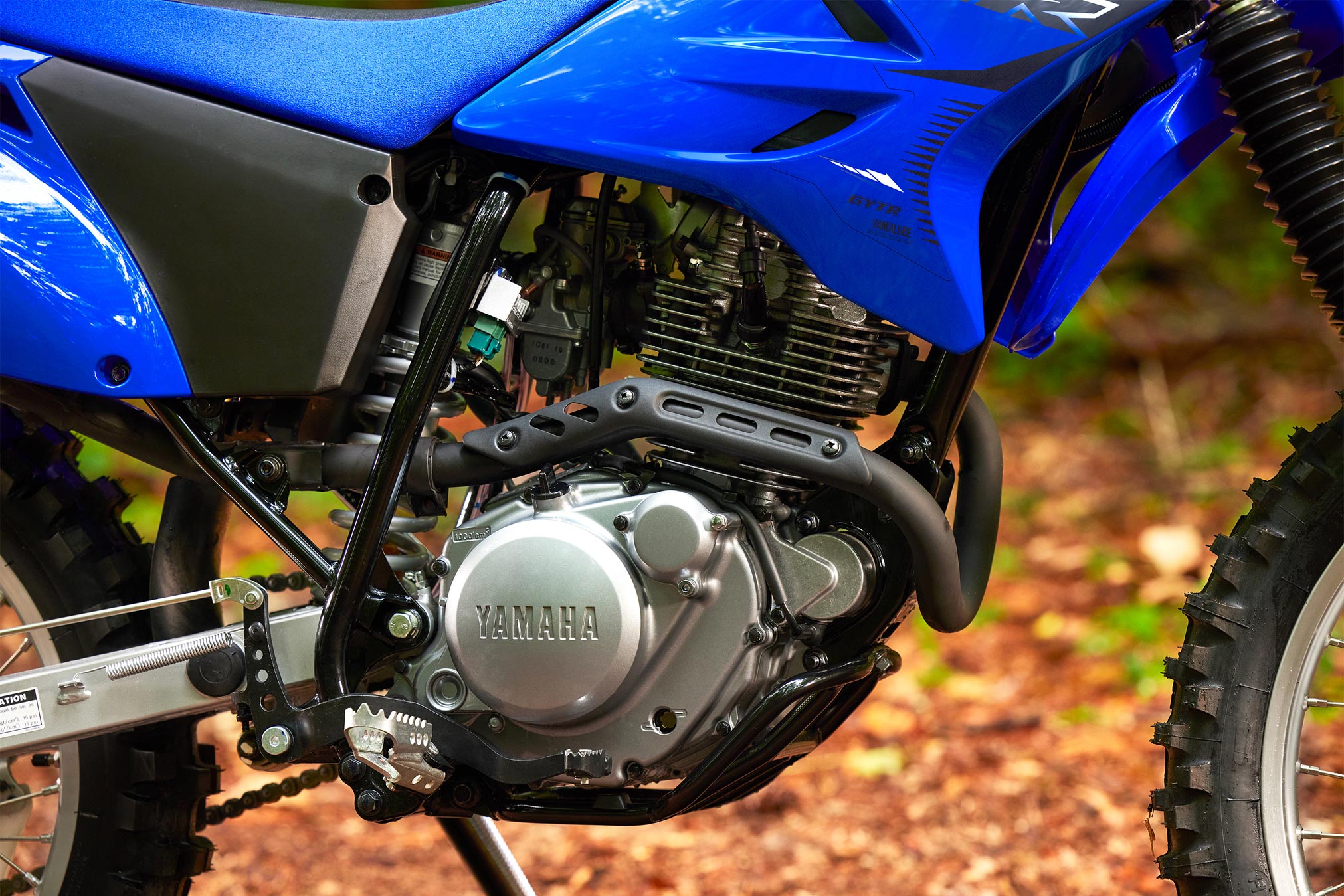

The 223cc air-cooled SOHC four-stroke puts out smooth, widespread power that is perfectly suited for all kinds of trails and riders. The super-reliable electric start adds quick-start convenience. - Six-Speed Transmission
Smooth-shifting, six-speed transmission with heavy-duty clutch is geared for maximum versatility and usable power delivery. - Digital Ignition
CDI magneto ignition system is ultra-reliable and nearly maintenance-free. - Free-Flowing Intake
The YZ-type air filter offers easy maintenance and maximum airflow. - Forest-Friendly Exhaust
The lightweight exhaust includes a quiet muffler and USFS-approved spark arrestor. - Low Maintenance Engine
Automatic cam chain tensioner means minimal maintenance and longer engine life.
CHASSIS/SUSPENSION
- Robust, Compact Frame
The steel frame with a compact wheelbase and low seat height result in superb maneuverability and responsive handling for beginner or intermediate riders. - Advanced Rear Suspension
A linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling. - Trail-Ready Front Fork
The 36mm front fork with 9.4 inches of wheel travel provides plush, confidence-inspiring control over rough terrain. - Generous Ground Clearance
Generous 11.6 inches of ground clearance is enough to handle almost any trail. - Lightweight Swingarm
Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments. - Dual Disc Braking System
The 220mm front disc and 130mm rear drum brakes provide powerful, confident stops. - MX-Style Wheels and Tires
Full size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
ADDITIONAL FEATURES
- Comfortable Saddle
Long gripper seat is low, comfortable and allows for easy rider movement. - Racing Styling
Team Yamaha-inspired colors and graphics and front and side number plates create distinctive, motocross styling. - Grippy Foot Pegs
Large folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions. - Fork Protection
Durable fork boots provide excellent fork seal and stanchion tube protection.
2023 Yamaha TT-R230 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ TBA USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Engine Type 223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke 70.0mm x 58.0mm
Compression Ratio 9.5:1
Fuel Delivery Carburetor
Ignition CDI
Transmission Constant-mesh 6-speed; multiplate wet clutch
Final Drive Chain
Suspension / Front Telescopic fork; 9.4-in travel
Suspension / Rear Single shock; 8.7-in travel
Brakes / Front Hydraulic single disc, 220mm
Brakes / Rear Drum, 130mm
Tires / Front 80/100-21
Tires / Rear 100/100-18
L x W x H 81.3 in x 31.5 in x 46.5 in
Seat Height 34.3 in
Wheelbase 54.5 in
Rake (Caster Angle) 27.0°
Trail 4.4 in
Ground Clearance 11.6 in
Fuel Capacity 2.1 gal
Fuel Economy n/a
Wet Weight 251 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue
2023 Yamaha TT-R230 – Totalmotorcycle.com Canada Specifications/Technical Details
2023 Yamaha TT-R230 – Totalmotorcycle.com European Specifications/Technical Details
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
