2024 BMW R18 Iron Annie: LUFTHANSA & BMW TOGETHER 88 YEARS LATER.
Introducing the 2024 BMW R18 Iron Annie…
The old “Aunt Ju” Junkers Ju 52, the legendary three-engine commercial and transport aircraft from the 1930s, is still familiar to many people. The Ju 52 with the aircraft registration D-AQUI in the Lufthansa colour scheme grey-black from 1936 became particularly well known worldwide. During its time in the USA from 1970 to 1984 under the American aircraft registration N52JU, it was christened “IRON ANNIE” for short by its then owner Martin Caidin.

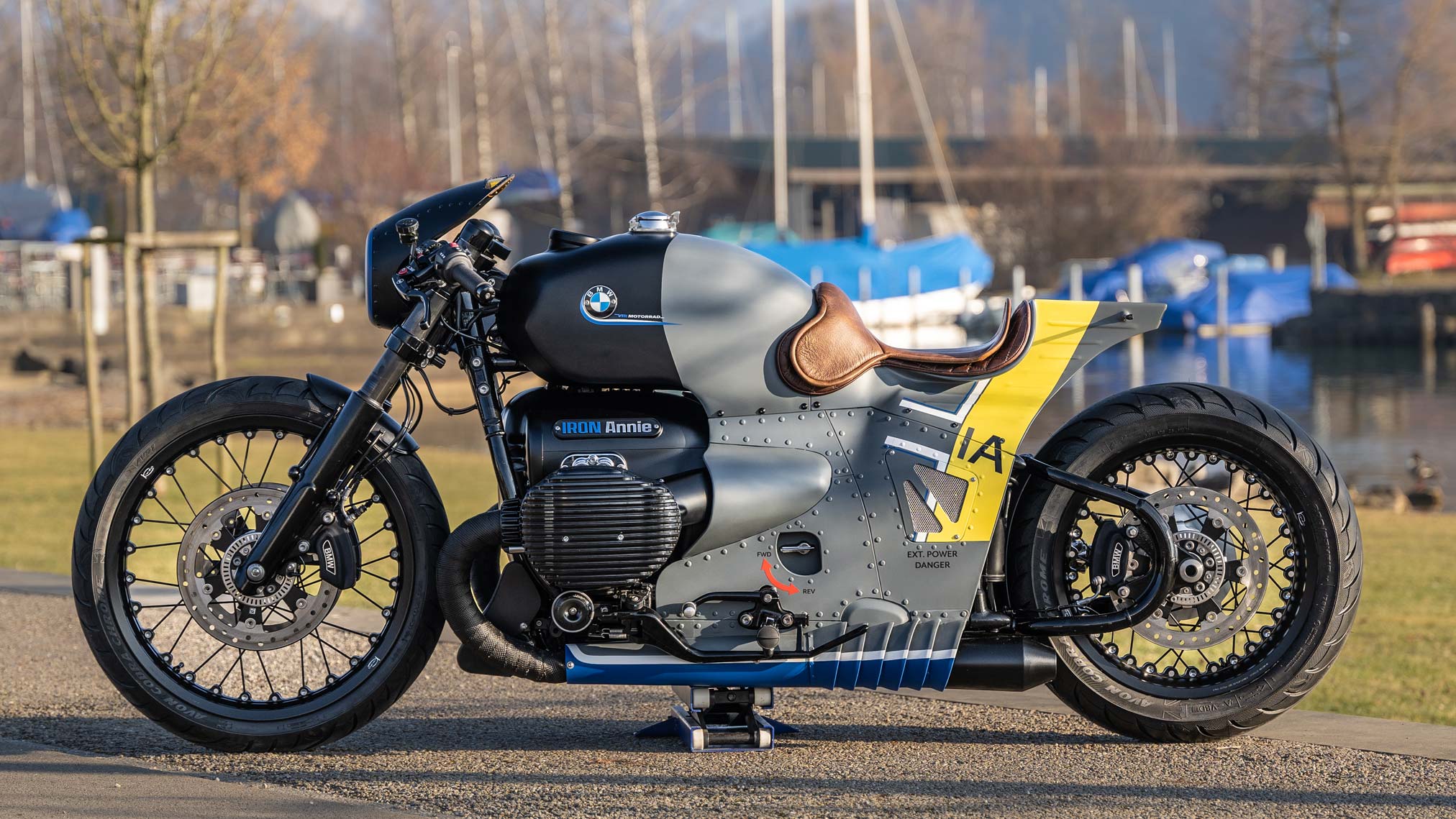

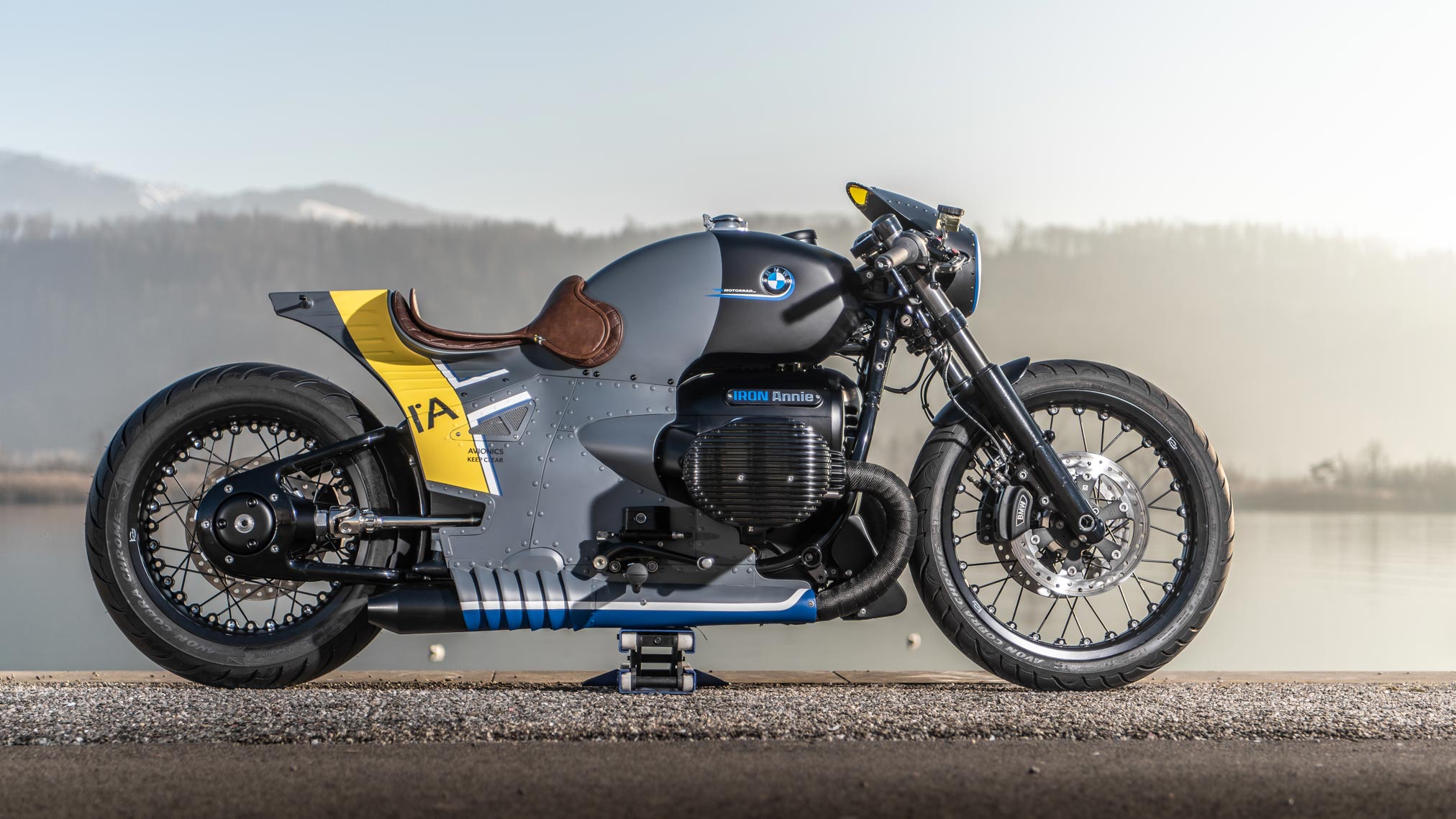

It was precisely this aircraft that inspired a customer of BMW partner VTR Motorrad AG & VTR Customs in Schmerikon, Switzerland, to create a very special customized version of the BMW R 18 – the R 18 “IRON ANNIE”. Years before, the architect had already had an individual R nineT built entirely according to his ideas at VTR Customs and this time, too, aviation style elements from aircraft construction were to be used.
2024 BMW R18 Iron Annie Totalmotorcycle.com Key Features
The R 18 IRON ANNIE will receive road approval and is sure to turn quite a few heads in its new home on Lake Geneva
- Base: BMW R 18 First Edition.
- Sheet metal parts: Fuel tank, rear, side panels, cockpit, mudguard, Aluminium handmade by VTR Customs.
- Fork: shortened and DLC-coated stanchions.
- Suspension strut: Wilbers, height adjustable.
- Wheels: Kineo front 3.5 x 21″, rear 6 x18″.
- Tyres: Avon Cobra, 120/70-21 and 200/55-18.
- Handlebars: ABM Vario Clip.
- Speedometer: Customized by Zeitzone Zürich.
- Brake / clutch pump: Magura HC3.
- Saddle: VTR Customs & Yves Knobel Saddlery.
- Exhaust system: Walzwerk.
- Number plate holder: Berham Customs.

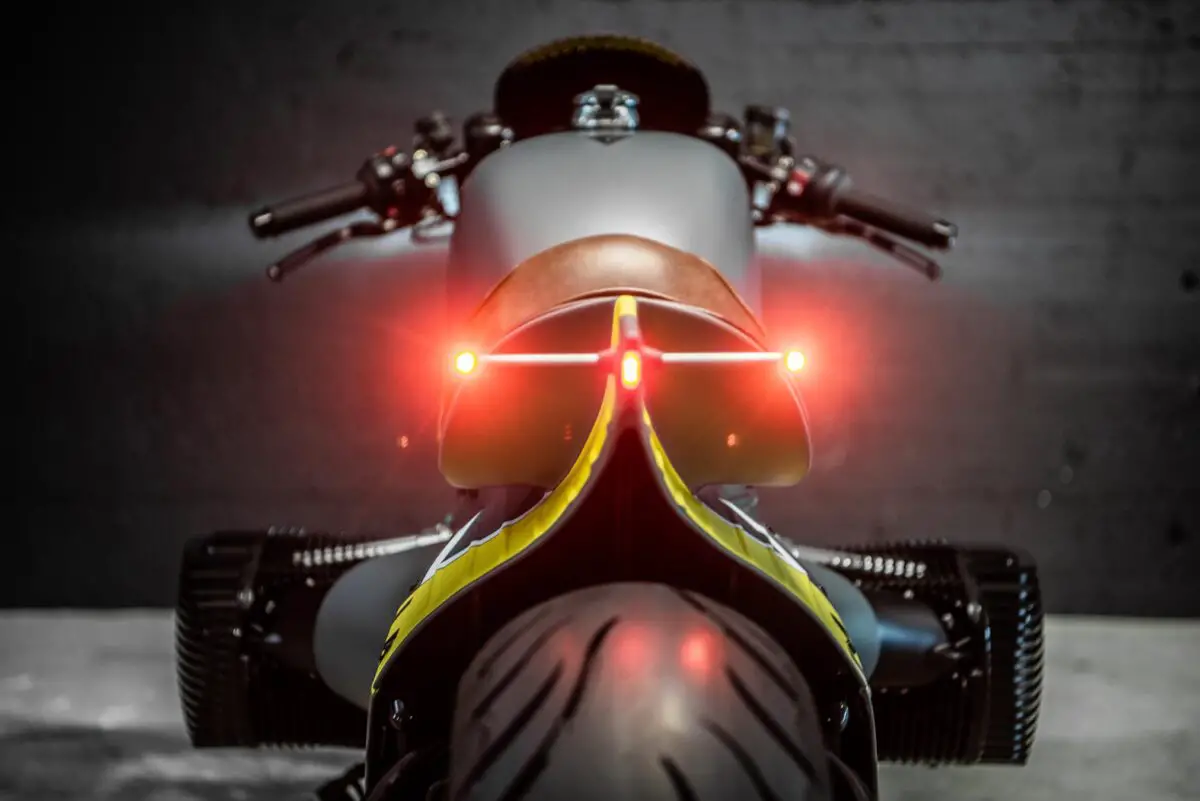

- Side indicator and rear lights: Kellermann Atto.
- Headlight: HIGHSIDER.
- Paintwork: VTR Customs & Freuler AG, Benken.
2024 BMW R18 Iron Annie Totalmotorcycle.com Features and Benefits

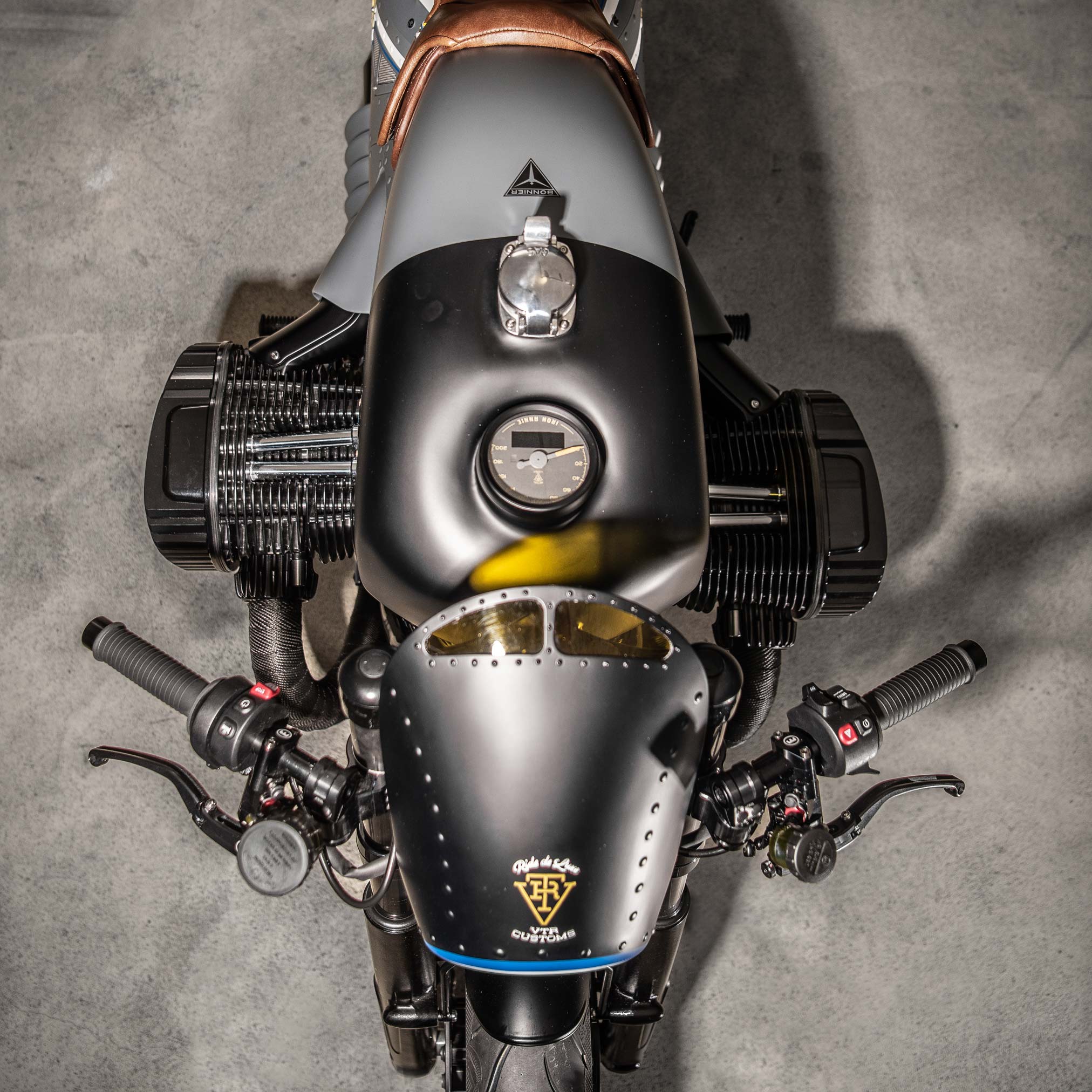

The dial of the speedometer integrated into the tank, which is intended to be reminiscent of old cockpit instruments, or access panels with quick-release fasteners, as found on many aircraft. And of course, it was imperative to borrow from the Ju 52’s characteristic corrugated aluminium planking. At the same time, the seat was to be reminiscent of a riding saddle and, of course, only the “IRON ANNIE” colour scheme in grey and black was to be used for the paintwork.

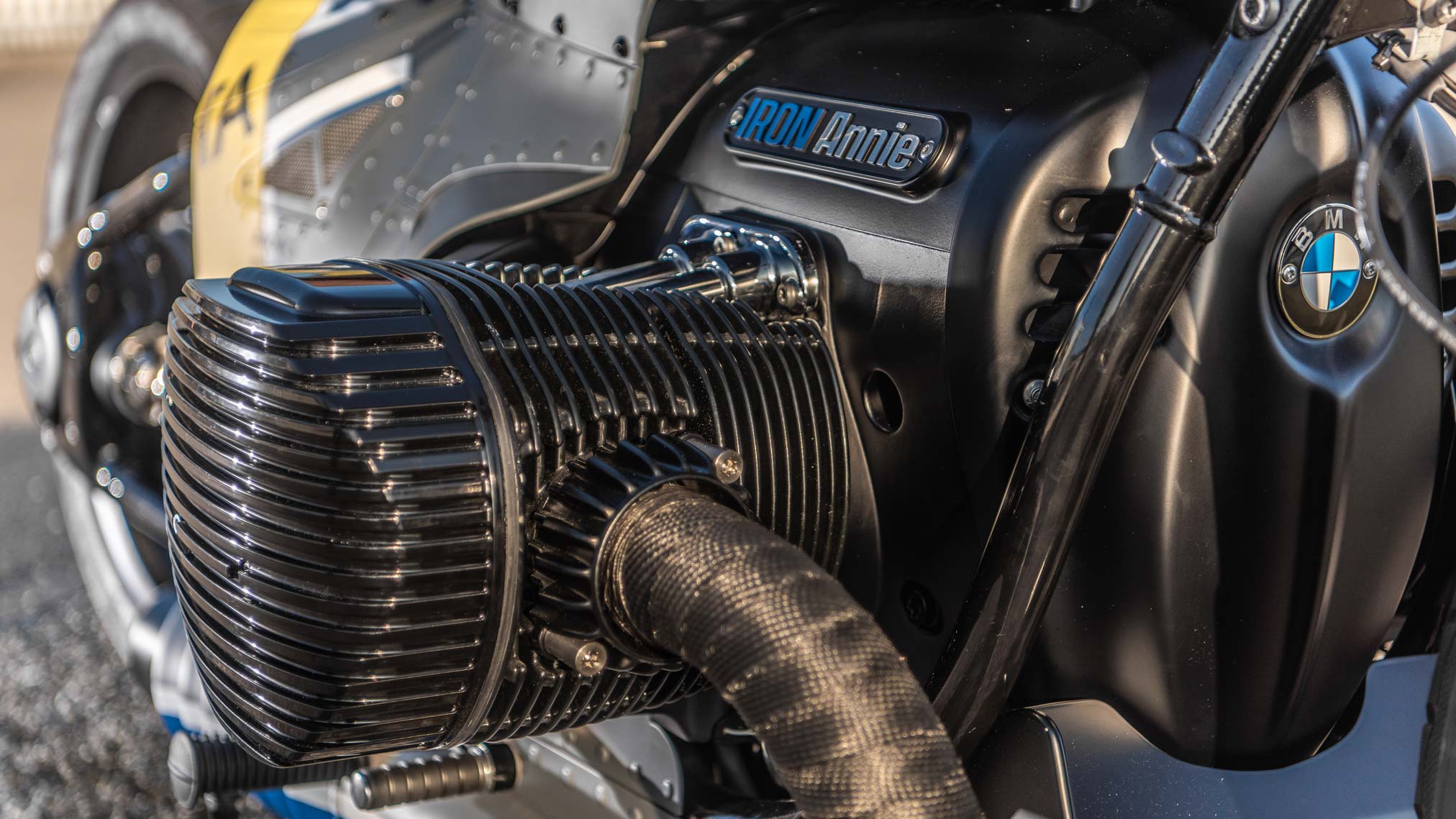

A BMW R 18 First Edition served as the starting point for the customizing project. First the engine was removed and painted black. All chrome parts were painted black and the fork stanchions also received a black coating in the form of a DLC (Diamond Like Carbon) coat.

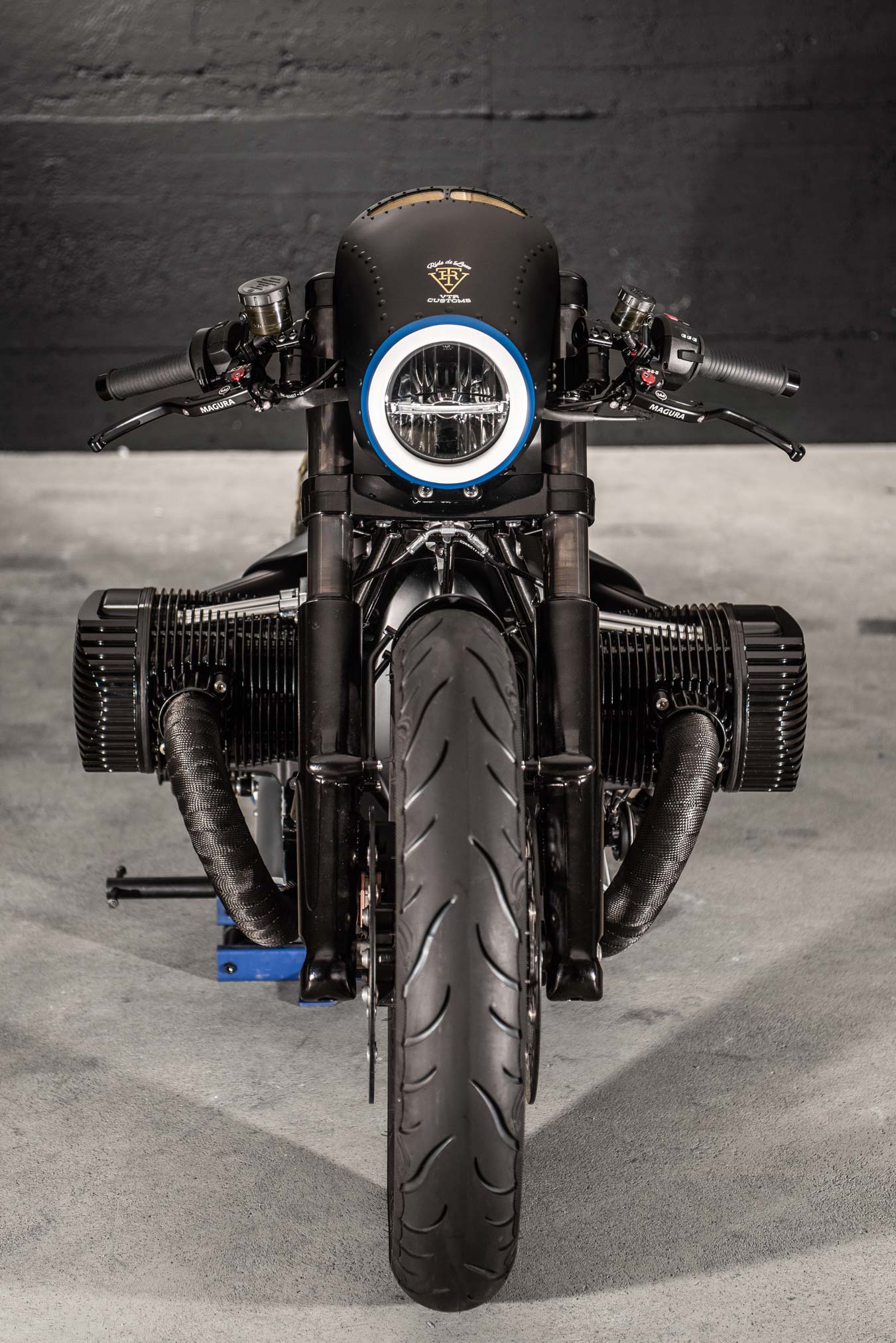

The cockpit trim was pulled back as narrow and flat as possible to emphasise the streamlined shape. The 7 cm shorter fork and a height-adjustable Wilbers shock absorber emphasise the crouched stance of the motorcycle. “To make the bike look smaller and give it a more filigree appearance between the wheels, we had large 18 and 21 inch wheels made by Kineo,” adds Daniel Weidmann, Owner & Managing Director of VTR Motorrad & VTR Customs.
As a further technical treat, racing-style HC3 pumps from Magura were fitted in place of the standard R 18 brake and clutch fittings. The dial of the customized speedometer also received a hand specially made by watchmaker Zeitzone Zurich.

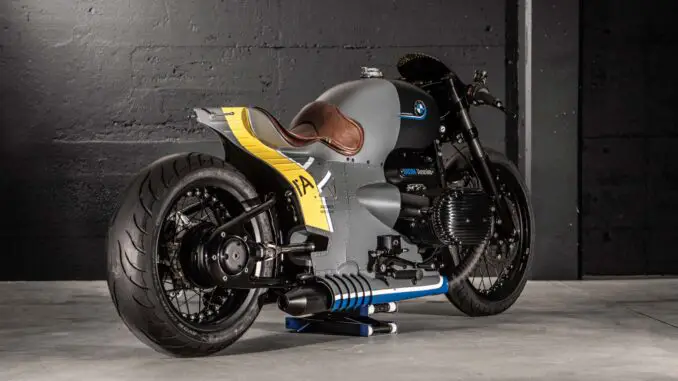

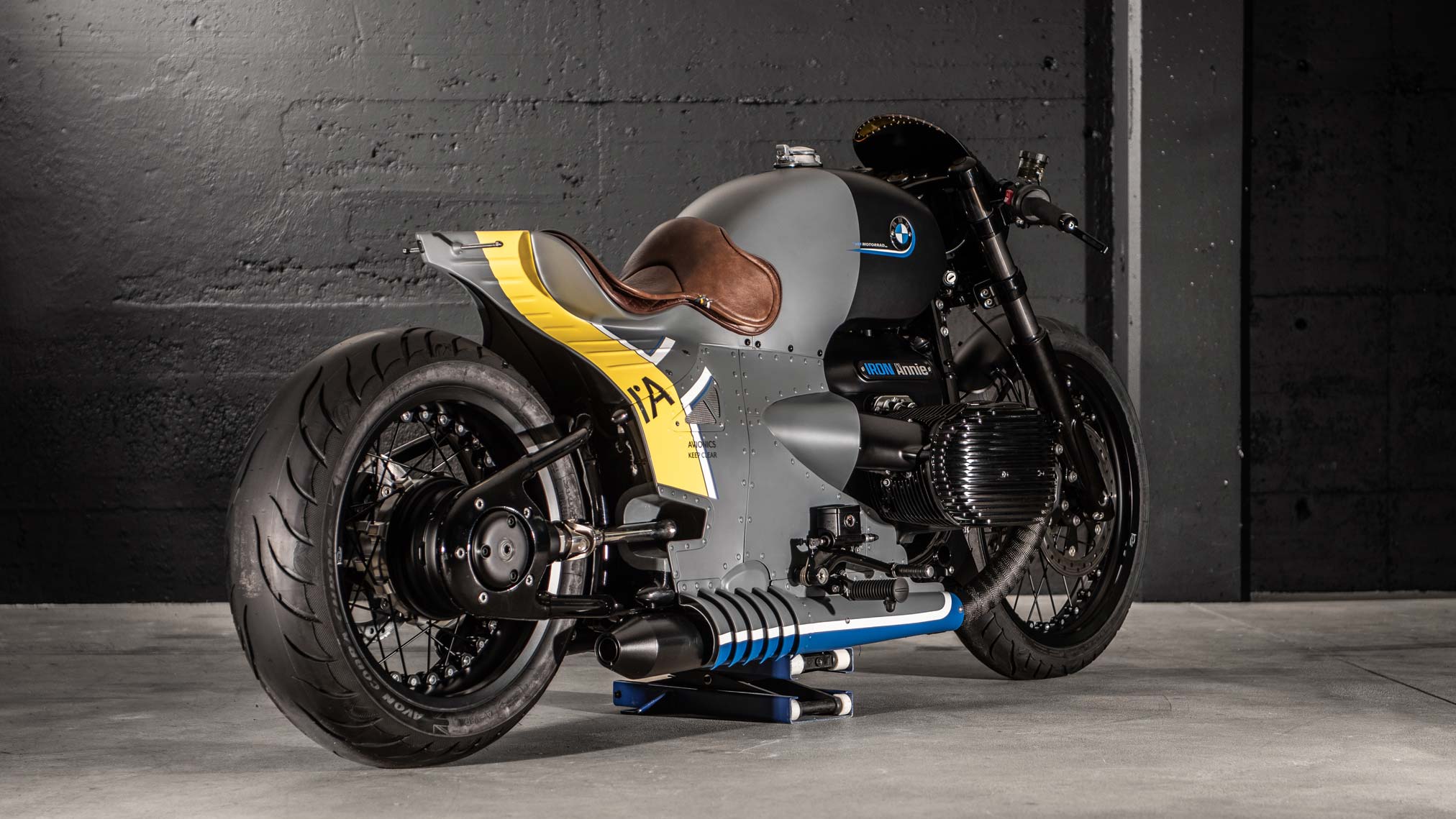

“One of the big challenges with the R 18 IRON ANNIE was the replica cooling fins in the area of the rear silencers. Shaping these parts into parallel and beautiful radii and at the same time still fastening them harmoniously took a number of attempts,” says Daniel Weidmann about the aluminium sheet metal work. This consumed countless hours of work, as the fuel tank, the tail with the suggested tail fin of an aeroplane, the side panels and the cockpit were artfully hand-formed from aluminium sheet. Reminiscences of traditional metal aircraft construction are also provided by the numerous lens-head rivets.
“What almost pained us a little when we saw all the handmade, bright aluminium sheets shimmering and shining was that they would have to be painted. However, we are extremely satisfied with the result because the R 18 IRON ANNIE differs even more clearly from our well-known SPITFIRE, which is also designed in aviation style,” Daniel Weidmann continues.
2024 BMW R18 Iron Annie – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $ NA USD
Canada MSRP Price: from $ NA CDN
Europe/UK MSRP Price: from £ NA GBP (total selling price)
Standard R18:
Engine
Design
Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.
Bore x stroke
4.2” x 3.9”
Capacity
1,802 cc
Nominal capacity
91 hp at 4,750 rpm
Max. torque
116 lbs-ft at 3,000 rpm
Compression ratio
9.6 :1
Fuel preparation
Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off and twin-spark ignition.
Emission control
Regulated three-way catalytic converter
Mileage / consumption
Maximum speed
over 111 mph
Fuel type
Super plus lead-free (max. 15% ethanol, E15) Gasoline (min. 90 AKI Octane Rating, max. 15% ethanol content)
Electrical system
Alternator
Permanent magnet generator 600 W (nominal capacity)
Battery
12 V / 26 Ah
Power transmission
Clutch
Single-disc dry clutch
Gears
6-speed transmission
Secondary drive
Shaft drive
Suspension / brakes
Frame
Double-cradle steel frame
Front suspension / spring elements
Telescopic fork
Rear suspension / spring elements
Steel swingarm with central shock strut
Spring travel, front / rear
4.7” / 3.5”
Wheelbase
68.1”
Caster
5.9”
Steering head angle
57.3°
Wheels
Spoke wheel
Rim dimensions, front
3.5″ x 19″
Rim dimensions, rear
5.0″ x 16″
Tire, front
120/70 R 19
Tire, rear
180/65 B16
Brake, front
Twin disc brake, diameter 300 mm, four-piston fixed calipers
Brake, rear
Single disc brake, diameter 300 mm, four-piston fixed caliper
ABS
BMW Motorrad Integral ABS (partially integral)
Dimensions / weights
Seat height, unladen
27.2”
Rider step length, unladen
64.2”
Usable tank capacity
approx. 4.23 gal
of which reserve
1 gal
Length
96.1″
Height (excluding mirrors)
44.3″
Height (above mirror, at DIN empty weight)
48.5″
Width (with mirror)
38.0″
Unladen weight, fully fuelled/road-ready
761 lbs
1)
Max. permitted weight
1,234.6 lbs
Max. load (with standard equipment)
474 lbs
1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity
2024 BMW R18 Iron Annie – Totalmotorcycle.com Canada Specifications/Technical Details
Standard R18:
Engine
Design
Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.
Bore x stroke
4.2” x 3.9”
Capacity
1,802 cc
Nominal capacity
91 hp at 4,750 rpm
Max. torque
116 lbs-ft at 3,000 rpm
Compression ratio
9.6 :1
Fuel preparation
Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off and twin-spark ignition.
Emission control
Regulated three-way catalytic converter
Mileage / consumption
Maximum speed
over 111 mph
Fuel type
Super plus lead-free (max. 15% ethanol, E15) Gasoline (min. 90 AKI Octane Rating, max. 15% ethanol content)
Electrical system
Alternator
Permanent magnet generator 600 W (nominal capacity)
Battery
12 V / 26 Ah
Power transmission
Clutch
Single-disc dry clutch
Gears
6-speed transmission
Secondary drive
Shaft drive
Suspension / brakes
Frame
Double-cradle steel frame
Front suspension / spring elements
Telescopic fork
Rear suspension / spring elements
Steel swingarm with central shock strut
Spring travel, front / rear
4.7” / 3.5”
Wheelbase
68.1”
Caster
5.9”
Steering head angle
57.3°
Wheels
Spoke wheel
Rim dimensions, front
3.5″ x 19″
Rim dimensions, rear
5.0″ x 16″
Tire, front
120/70 R 19
Tire, rear
180/65 B16
Brake, front
Twin disc brake, diameter 300 mm, four-piston fixed calipers
Brake, rear
Single disc brake, diameter 300 mm, four-piston fixed caliper
ABS
BMW Motorrad Integral ABS (partially integral)
Dimensions / weights
Seat height, unladen
27.2”
Rider step length, unladen
64.2”
Usable tank capacity
approx. 4.23 gal
of which reserve
1 gal
Length
96.1″
Height (excluding mirrors)
44.3″
Height (above mirror, at DIN empty weight)
48.5″
Width (with mirror)
38.0″
Unladen weight, fully fuelled/road-ready
761 lbs
1)
Max. permitted weight
1,234.6 lbs
Max. load (with standard equipment)
474 lbs
1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity
2024 BMW R18 Iron Annie – Totalmotorcycle.com European Specifications/Technical Details
Standard R18:
Engine
Design
Air/oil cooled two-cylinder four-stroke boxer engine with two chain-driven camshafts above the drive shaft.
Bore x stroke
4.2” x 3.9”
Capacity
1,802 cc
Nominal capacity
91 hp at 4,750 rpm
Max. torque
116 lbs-ft at 3,000 rpm
Compression ratio
9.6 :1
Fuel preparation
Electronic intake pipe fuel injection, BMS-K+ electronic engine management with overrun cut-off and twin-spark ignition.
Emission control
Regulated three-way catalytic converter
Mileage / consumption
Maximum speed
over 111 mph
Fuel type
Super plus lead-free (max. 15% ethanol, E15) Gasoline (min. 90 AKI Octane Rating, max. 15% ethanol content)
Electrical system
Alternator
Permanent magnet generator 600 W (nominal capacity)
Battery
12 V / 26 Ah
Power transmission
Clutch
Single-disc dry clutch
Gears
6-speed transmission
Secondary drive
Shaft drive
Suspension / brakes
Frame
Double-cradle steel frame
Front suspension / spring elements
Telescopic fork
Rear suspension / spring elements
Steel swingarm with central shock strut
Spring travel, front / rear
4.7” / 3.5”
Wheelbase
68.1”
Caster
5.9”
Steering head angle
57.3°
Wheels
Spoke wheel
Rim dimensions, front
3.5″ x 19″
Rim dimensions, rear
5.0″ x 16″
Tire, front
120/70 R 19
Tire, rear
180/65 B16
Brake, front
Twin disc brake, diameter 300 mm, four-piston fixed calipers
Brake, rear
Single disc brake, diameter 300 mm, four-piston fixed caliper
ABS
BMW Motorrad Integral ABS (partially integral)
Dimensions / weights
Seat height, unladen
27.2”
Rider step length, unladen
64.2”
Usable tank capacity
approx. 4.23 gal
of which reserve
1 gal
Length
96.1″
Height (excluding mirrors)
44.3″
Height (above mirror, at DIN empty weight)
48.5″
Width (with mirror)
38.0″
Unladen weight, fully fuelled/road-ready
761 lbs
1)
Max. permitted weight
1,234.6 lbs
Max. load (with standard equipment)
474 lbs
1) As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of usable tank capacity
