2024 Harley-Davidson Nightster Guide

Review – Key Features – Features & Benefits – Specifications

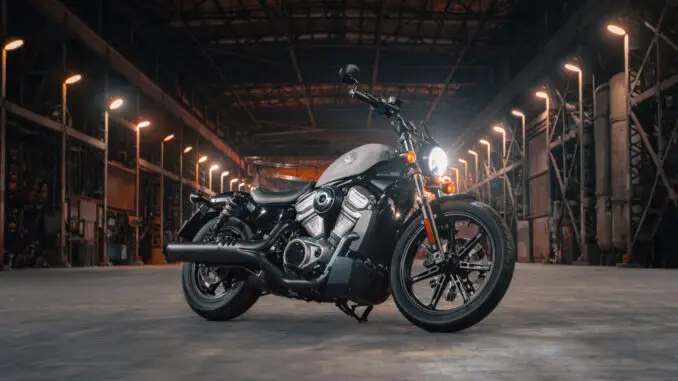

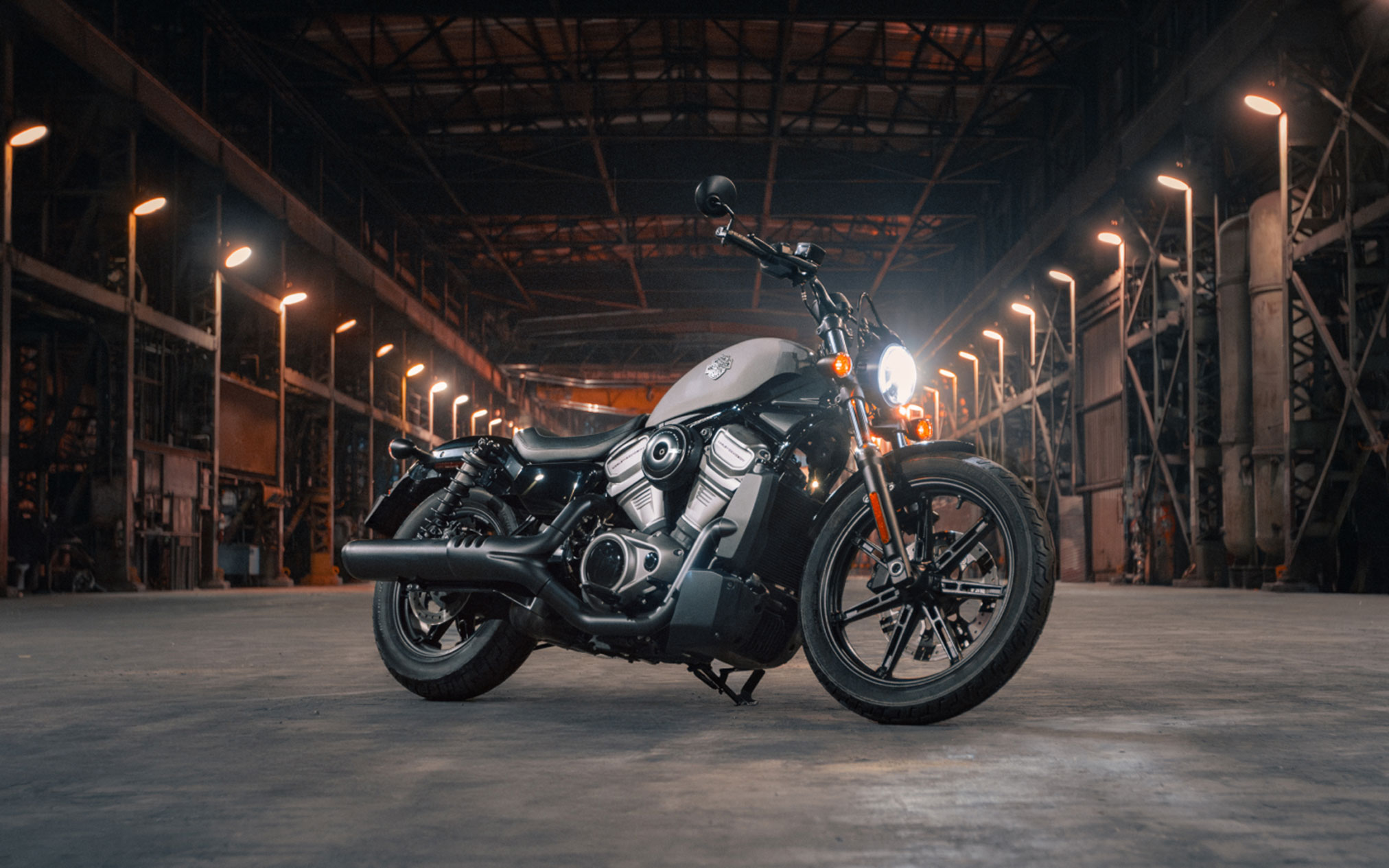

2024 Harley-Davidson Nightster: INTO A NEW DAWN.

Introducing the 2024 Harley-Davidson Nightster…

Designed to inspire riders of all skill levels, the Harley-Davidson Nightster introduces a new narrative in the Sportster™ story.

The 2024 Nightster^® evolves the Sportster^® legacy into a nimble handling and confidence inspiring ride.

2024 Harley-Davidson Nightster Totalmotorcycle.com Key Features

• Forward riding position
• Mid-mount foot controls
• Low
• A2 compatible
• Rider safety enhancements available

AMERICAN DREAMIN’ – The dawn of a new era has arrived for Harley-Davidson.

2024 SPORT MOTORCYCLES

A category created by the venerable Sportster. Iconic design, authentic sound. These are bikes built for carving mountain roads and blasting through city streets.

HARLEY-DAVIDSON REVEALS 2024 MODEL MOTORCYCLES AVAILABLE NOW AT WORLDWIDE AUTHORIZED DEALERSHIPS

Additional New Models to Premier January 24

MILWAUKEE (January 2, 2024) – Harley-Davidson today revealed a portion of its 2024 motorcycle line and announced these bikes are now available at authorized Harley-Davidson dealerships globally, with additional new motorcycle models to be unveiled soon. The limited-production 2024 models from Harley-Davidson Custom Vehicle Operations (CVO) and more new Harley-Davidson motorcycle models will be revealed at 10 a.m. CST on January 24.

The 2024 returning models represent the following categories in the Harley-Davidson motorcycle portfolio, a collection of the sport’s most desirable motorcycles.

Grand American Touring: For riders responding to the call of the open road. Grand American Touring models take riders beyond the horizon with the comfort and community that makes the journey spectacular, from the company that started the cross-country experience.

Cruiser: Iconic and diverse styling – from nostalgic to very modern – is paired with the ability to customize and make the ultimate personal statement.

Sport: Industry-leading performance and advanced technology offer an exhilarating riding experience combined with styling inspired by Harley-Davidson heritage.

Trike: Harley-Davidson Trike models offer an appealing option for those who appreciate the confidence of a three-wheel platform.

Adventure Touring: For riders who want the ability to go anywhere, those who see touring as detouring. The award-winning Pan America motorcycle is a versatile and inspirational machine that makes any surface a road.

2024 Harley-Davidson Nightster Totalmotorcycle.com Features and Benefits

REVOLUTION® MAX 975 ENGINE
A liquid-cooled V-Twin tuned to deliver more torque at low RPM, with strong acceleration from the start and robust power through the mid-range.

EXPOSED DUAL REAR SHOCKS
Modeled after a previous Sportster chassis, the Nightster features exposed dual rear shocks that give the bike sharp handling and provide a critical style line.

FRAME
The engine is a stressed member of the chassis, significantly reducing overall weight and improving stiffness compared to a traditional chassis.

2024 Harley-Davidson Nightster – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Starting at $11,999 USD
Canada MSRP Price: Starting at $14,499 CDN
Europe/UK MSRP Price: Starting at £13,295 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

89.4 in.

SEAT HEIGHT, LADEN ⁷

27.1 in.

GROUND CLEARANCE

4.5 in.

RAKE

30

TRAIL

5.4 in.

WHEELBASE

61.3 in.

TIRE, TYPE

Dunlop^® Harley-Davidson Series Bias Blackwall

TIRES, FRONT SPECIFICATION

100/90-19 57H

TIRES, REAR SPECIFICATION

150/80B16 77H

FUEL CAPACITY

3.1 gal.

OIL CAPACITY (W/FILTER)

4.75 qt.

WEIGHT, AS SHIPPED

462 lb.

WEIGHT, IN RUNNING ORDER

481 lb.

ENGINE

ENGINE ¹

Revolution^® Max 975T

BORE

3.82 in.

STROKE

2.6 in.

DISPLACEMENT

59.5 cu in

COMPRESSION RATIO

12:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

72 ft-lb

ENGINE TORQUE (RPM)

5750

HORSEPOWER

91 HP / 68 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

52 mpg

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

41mm SHOWA^® Dual Bending Valve conventional forks. Aluminum fork triple clamps.

REAR SHOCKS

Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.

WHEELS, FRONT TYPE ⁹

Aluminum cast, satin black

WHEELS, REAR TYPE ⁹

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4-inch viewable round gauge area analog display with, Speedometer, L/R turn Indication, Traction Control Indication, Coolant Temperature Alert, ABS alert, Fog Lamp Indication, Battery Voltage Alert, High Beam Indicator, Low Fuel Indication, Rear-ABS Disabled Indication, Failure-Indication Alert, Neutral Position Indication, Low Tire Pressure indication, Check Engine Light indication, Oil Pressure Alert, Service Indication.

INFOTAINMENT

SCREEN SIZE

4″ Analog Instrument with Segmented LCD

TYPE

Analog display

LANGUAGES

English (default)

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Total Odometer (Selectable Miles or km), Trip A/B, Gear Position Indication, Fuel Range, 12/24 Hr Clock, Digital Tachometer, Segmented Fuel Level, Ride Mode Indication

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2024 Harley-Davidson Nightster – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,270 mm

SEAT HEIGHT, UNLADEN

705 mm

GROUND CLEARANCE

114 mm

RAKE

30

TRAIL

137 mm

WHEELBASE

1,556 mm

TIRE, TYPE

Dunlop^™ Harley-Davidson Series Bias Blackwall

TIRES, FRONT SPECIFICATION

100/90-19 57H

TIRES, REAR SPECIFICATION

150/80B16 77H

FUEL CAPACITY

11.7 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

210 kg

WEIGHT, IN RUNNING ORDER

218 kg

ENGINE

ENGINE ²

Revolution^™ Max 975T

BORE

97 mm

STROKE

66 mm

DISPLACEMENT

975 cc

COMPRESSION RATIO

12:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

97 Nm

ENGINE TORQUE (RPM)

5,750

HORSEPOWER

91 HP / 68 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

4.5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

41 mm SHOWA^™ Dual Bending Valve conventional forks. Aluminum fork triple clamps.

REAR SHOCKS

Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4-inch viewable round gauge area analog display with, Speedometer, L/R turn Indication, Traction Control Indication, Coolant Temperature Alert, ABS alert, Fog Lamp Indication, Battery Voltage Alert, High Beam Indicator, Low Fuel Indication, Rear-ABS Disabled Indication, Failure-Indication Alert, Neutral Position Indication, Low Tire Pressure indication, Check Engine Light indication, Oil Pressure Alert, Service Indication.

INFOTAINMENT

SCREEN SIZE

4″ Analog Instrument with Segmented LCD (102 mm)

TYPE

Analog display

LANGUAGES

English (default)

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2024 Harley-Davidson Nightster – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,250 mm

SEAT HEIGHT, UNLADEN

705 mm

GROUND CLEARANCE

110 mm

RAKE

30

TRAIL

137 mm

WHEELBASE

1,545 mm

TIRE, TYPE

Dunlop^™ Harley-Davidson Series Bias Blackwall

TIRES, FRONT SPECIFICATION

100/90-19 57H

TIRES, REAR SPECIFICATION

150/80B16 77H

FUEL CAPACITY

11.7 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

211 kg

WEIGHT, IN RUNNING ORDER

221 kg

ENGINE

ENGINE ²

Revolution^™ Max 975T

BORE

97 mm

STROKE

66 mm

DISPLACEMENT

975 cc

COMPRESSION RATIO

12:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1; catalyst in header

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

95 Nm

ENGINE TORQUE (RPM)

5750

HORSEPOWER

89 HP / 66 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

130 g/km CO²

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

41 mm SHOWA^™ Dual Bending Valve conventional forks. Aluminum fork triple clamps.

REAR SHOCKS

Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4-inch viewable round gauge area analog display with, Speedometer, L/R turn Indication, Traction Control Indication, Coolant Temperature Alert, ABS alert, Fog Lamp Indication, Battery Voltage Alert, High Beam Indicator, Low Fuel Indication, Rear-ABS Disabled Indication, Failure-Indication Alert, Neutral Position Indication, Low Tire Pressure indication, Check Engine Light indication, Oil Pressure Alert, Service Indication.

INFOTAINMENT

SCREEN SIZE

4″ Analog Instrument with Segmented LCD (102 mm)

TYPE

Analog display

LANGUAGES

English (default)

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

1. All prices shown are suggested retail prices only. Please speak with the dealership team for further details and to obtain a final on the road price.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
