2024 Yamaha XSR700: HAVE A BLAST!
Introducing the new 2024 Yamaha XSR700…
The XSR700 is one of the favourite motorcycles for those riders who seek a rebellious fun machine with a seriously fashionable edge. Great looks inspired by Yamaha’s heritage models combined with the torque rich CP2 engine guarantees an unforgettable ride. Not to mention the hard-to-remove grin on the riders face.
The XSR700 features its timeless design aspects like retro-influenced bodywork, a stepped seat and a classically styled head-and-tail light. Respecting the bikes of the past, whilst embracing the contemporary by making use of all the modern technology likes ABS, LED lights, the most efficient CP2 engine to date and a modern inverted LCD meter.
An accessible motorcycle that is enjoyable for both new and experienced riders. The 2-part frame, tank construction and seat design are still a key factor in the XSR700, safeguarding the easy-to-customise feature the bike is renowned for.
The character of the XSR700 is defined by the sublime combination of a light and agile frame and the torque-rich, playful CP2 engine. The super nimble bike is easy to steer in any setting, from curves and twisty roads to busy city traffic, you’ll have a blast either way.
As with its CP2-brothers the XSR700 is fitted with the EU5 compliant characterful 690cc engine. Refining the rideability of the XSR700 even more – but keeping every bit of fun with the multi-talented engine performance.
The livery of the XSR700 pays tribute to the past, the colour schemes were influenced from iconic motorcycles of Yamaha’s rich history. The famous 2-stroke RD350LC from the early eighties provides the inspiration for the modern interpretation of the colour schemes, resulting in the a crisp Historic White and a more elegant Historic Black combination.
The XSR700 is a true legacy machine, earning it’s stripes on the road. The beating heart of the machine is the versatile character. The XSR700 is a bike to be ridden, anyway you like. From casual cruising to hitting the twisties, the bike can do it all.
An accessible motorcycle that is enjoyable for both new and experienced riders. The 2-part frame, tank construction and seat design are still a key factor in the XSR700, safeguarding the easy-tocustomise feature the bike is renowned for.
The character of the XSR700 is de ned by the sublime combination of a light and agile frame and the torque-rich, playful CP2 engine. The super nimble bike is easy to steer in any setting, from curves and twisty roads to busy city tra c, you’ll have a blast either way.
2024 Yamaha XSR700 Totalmotorcycle.com Key Features
- Top-class look & feel
- XSR family LED lighting
- Revised cockpit layout with integrated headlight stays
- Evolved design details
- 690cc CP2 high-torque EU5 engine
- Light and slim tubular backbone frame
- Engineered for optimum riding enjoyment
- Confidence inspiring riding experience
- Colouring and graphics inspired by
- Yamaha’s past
- Outstanding fuel efficiency
Standout Style
The XSR700 blends Yamaha’s world-class engineering with timeless style, creating a new type of machine for riders looking for an authentic and honest motorcycle that doesn’t sacrifice performance. Drawing influence from Yamaha’s classic “XS” series of motorcycles, the XSR oozes class with its exposed aluminum details, retro-influenced bodywork, stepped seat and custom lighting and instrumentation.
Modern LED Headlight, Classic Style
Heritage-inspired round LED headlight provides modern lighting performance with classic style, while integrated headlight stays connect into the fork shrouds for a compact front expression and a sleek ‘snub-nose’ look.
Advanced Crossplane Crankshaft Concept Engine
The compact two-cylinder engine provides a unique power character with its outstanding torque and throttle response, complemented with strong high-rpm pulling power. It also features Yamaha’s “Crossplane Concept” 270-degree crank that provides linear torque development in response to the rider’s throttle input.
Powerful Braking with ABS
The XSR700 provides exceptional and confident braking power thanks to its modern brake components and 298mm front disks backed up by the security of ABS.
Compact, Sporty Chassis
The narrow frame design features sport-oriented geometry to achieve light and nimble handling and is aided by the minimalist 410-pound wet weight and refined ergonomics.
Sport Heritage
Featuring iconic colours and beautifully sculpted bodywork, Yamaha Sport Heritage bikes capture the true spirit of some of Yamaha’s legendary historic machines from the past. Equipped with the latest engine and chassis designs and benefitting from sophisticated electronic control technology, the XSR models deliver a truly unique riding experience that never fails to get the heart beating faster. The new XSR900 GP is the true embodiment of Yamaha’s illustrious racing past, with an iconic look reminiscent of the 1980s Grand Prix bikes, paired with some of the most advanced technology available in the class.
2024 Yamaha XSR700 Totalmotorcycle.com Features and Benefits
ENGINE
Advanced Twin Cylinder Engine
The XSR700 features a compact 689cc liquid-cooled, inline twin-cylinder, DOHC engine with fuel injection. This engine provides a unique power character with its outstanding low- to mid-range torque and very linear throttle response and complemented with strong high-rpm pulling power. This motor develops 50 foot-pounds of torque and is designed to maximize riding excitement in the real world.
Crossplane Crankshaft Concept
The two-cylinder engine features Yamaha’s “Crossplane Concept” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The CP2 engine is also light, slim and compact and offers an excellent level of rider-to-machine communication.
Offset Cylinder Block
The paired cylinders of the XSR engine are shifted slightly forward compared to the center of the crankshaft. This reduces drag during each combustion stroke of the pistons and improves efficiency.
Vibration-Reducing Counterbalancer
To reduce vibration and provide a smooth, modern engine character, the motor uses a geared counterbalancer that is mounted low and forward on the engine.
Refined, Efficient Fuel Injection
Electronic fuel injection settings deliver a smooth throttle response to enhance riding enjoyment from the open roads to the urban sprawl. The system delivers outstanding torque in the low- and mid-rpm range along with exciting acceleration in the upper rpm range. Combined with the efficient overall engine design, the XSR700 delivers an exceptional 58 mpg.
Compact Six-Speed Transmission
The XSR700’s six-speed transmission takes full advantage of the low-to- mid-range torque and excellent response of the twin-cylinder motor while further enhancing the compact engine design thanks to triangulated input and outputs shafts.
CHASSIS/SUSPENSION
Standout Style
The XSR700 blends Yamaha’s world-class engineering with timeless style, creating a new type of machine for riders looking for an authentic and honest motorcycle that doesn’t sacrifice performance. Drawing influence from Yamaha’s classic “XS” series of motorcycles, the XSR oozes class with its exposed aluminum details, retro-influenced bodywork, stepped seat and custom lighting and instrumentation.
Compact, Sporty Chassis
A lightweight diamond-type high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis which allows for a lighter, more compact main frame design.
Street-Focused Suspension
The 41mm front fork and link-type Monocross rear shock each provide 5.1 inches of suspension travel and are tuned to provide a balance of comfort and control, making it ideal for the street. The shock uses an almost horizontal alignment which helps make the chassis much more compact while rear spring preload adjustment allows the rider to tailor the suspension to match rider weight or load.
Powerful Braking with ABS
The XSR700 provides strong, controllable braking thanks to its modern braking components. Powerful four-piston calipers are paired with large 298mm front brake discs for enhanced performance. ABS comes standard to prevent wheel lock under hard deceleration.
Lightweight Wheels & Michelin Road 5 Tires
Lightweight 10-spoke cast aluminum wheels are now fitted with Michelin Road 5 tires, 120/70ZR17 front and 180/55ZR17 rear, for confident handling and excellent grip in a variety of conditions.
ADDITIONAL FEATURES
Advanced Instrumentation
The round LCD panel features a ton of information: digital tachometer, speedometer, gear position, eco mode indicator, ambient and coolant temperature, a fuel gauge and range of trip computer functions including a clock, instant and average fuel consumption, fuel reserve trip meter and the usual trip meters.
Classically-styled Modern LED Lighting
A heritage-inspired round LED headlight provides both classic style and modern performance in equal measure. A round all-LED tail and brake light mounted above the rear fender and turn signals are also compact, stylish LEDs.

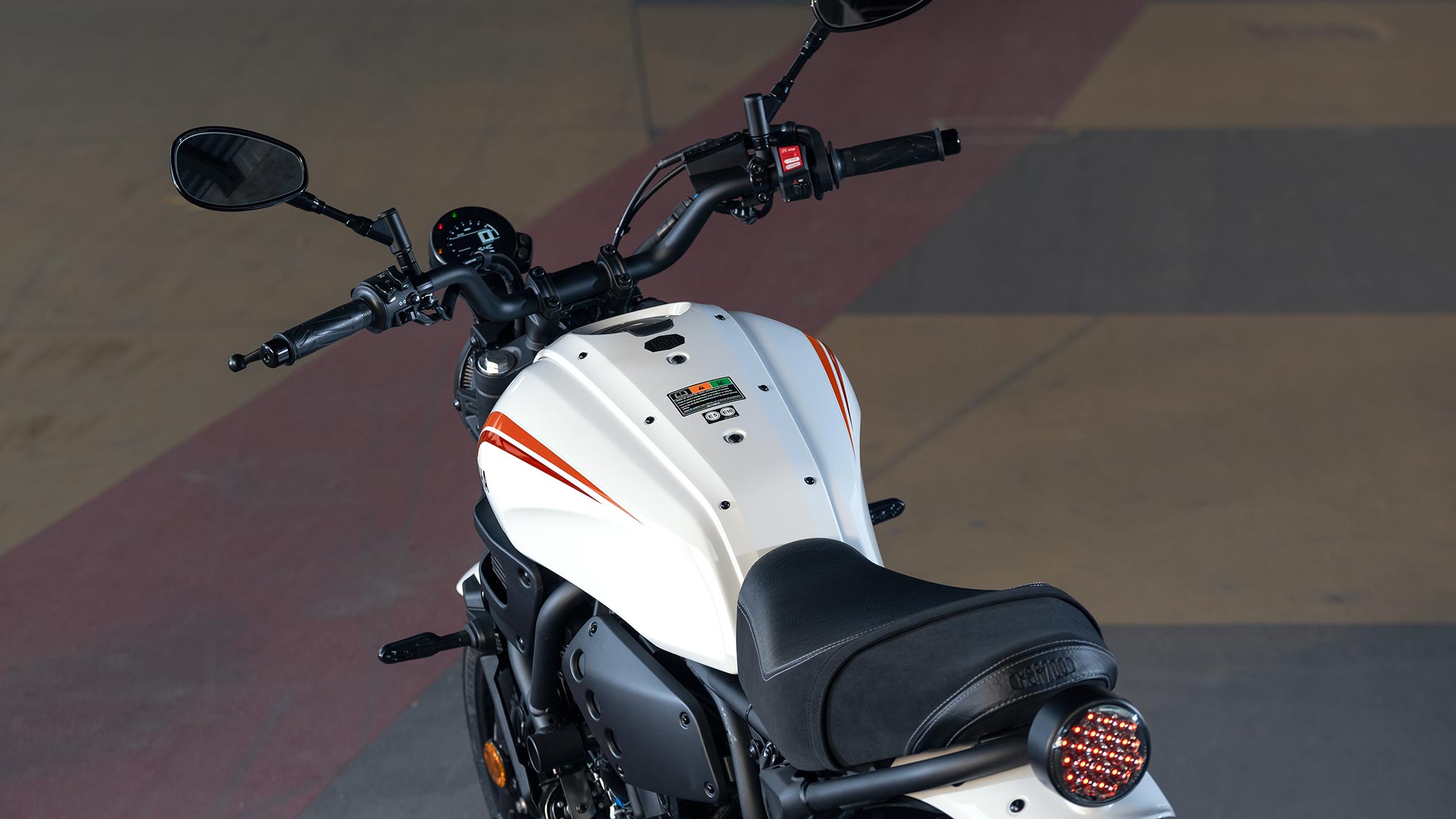

Stylish & Ergonomic Fuel Tank
A compact 3.7 gallon fuel tank is shrouded by beautifully shaped, hand-finished aluminum side covers for a timeless design.
Casual but Sporty Ergonomics
A tall, wide handlebar, stitched two-level seat and perfectly placed foot controls provide a comfortable upright riding position that is ideal for either urban traffic or hustling down a twisty road.
Unique XSR700 Detailing
Every aspect of the XSR700 shows Yamaha’s attention to detail: the single-piece stitched saddle, the classic teardrop mirrors with excellent rearward visibility, the compact radiator which is flanked by exposed aluminum covers, a removable subframe that simplifies customization, and the naked aluminum accents and fender mount. The XSR700 demands a second look, every time.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
New XSR Family LED lighting
The XSR700 is fitted with a heritage inspired round LED headlight with a split projector and a semi-circular position lamp. The LED tail light features a classically shaped round form, and the compact LED indicators are more subtly shaped, whilst providing outstanding visibility.
Revised Cockpit layout with integrated headlight stays
Also classically shaped with modern features, the Inverted LCD meter has been placed in a forward position for improved clarity and visibility. The lines and position are designed to match the all new head light, giving the bike a sleeker “snub nose” look on the front end.
Evolved design details
To accompany the all-black handlebar and levers, the switches have received a technical upgrade, making them more user-friendly. Allowing the rider to access the inverted LCD display remotely. The radiator has also received new side cover and the repositioned headlight has new integrated stays to provide a cleaner appearance.
690cc CP2 high-torque EU5 engine
With the increasing maturity of the XSR700 there are several improvements made both in performance and in safety. As with its CP2 brothers the XSR700 is fitted with the EU5 compliant characterful 690cc engine. Refining the rideability of the XSR700 even more – but keeping every bit of fun with the multi-talented engine performance.
Light and slim tubular backbone frame
For easy manoeuvrability and sharp agility, the XSR700 runs with a slim, light steel backbone frame that is easily customisable due to its two piece subframe. Combined with its compact wheelbase and easy natured suspension system, this strong and light chassis gives a responsive and engaging ride.
Engineered for optimum riding enjoyment
This first machine born under the Faster Sons philosophy delivers genuine retro cool with hints of vintage styling without compromising on riding control. Chassis dimensions and weight distribution have been carefully set to maximise the enjoyment felt during acceleration and give the rider a connected feel with the motorcycle.
Confidence inspiring riding experience
To refine the riding performance the XSR700 has been fitted with new, larger 298 mm front brake discs for improved feel and stopping performance, meanwhile the revised front fork and Michelin Road 5 tires provide enhanced feedback from the road to inspire rider confidence.
Colouring and graphics inspired by Yamaha’s past
The colour schemes were influenced from iconic motorcycles of Yamaha’s rich history. The famous 2-stroke RD350LC from the early eighties provided the inspiration for the modern interpretation of the colour schemes, resulting in the a crisp Historic White and a more elegant Historic Black combination.
2024 Yamaha XSR700 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8899 USD
Canada MSRP Price: $11199CDN
Europe/UK MSRP Price: £8260 GBP (On The Road inc 20% Vat)
ENGINE
Engine Type 689cc liquid-cooled DOHC inline twin cylinder; 8 valves
Bore x Stroke 80.0mm x 68.6mm
Compression Ratio 11.5:1
Fuel Delivery Fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission Constant mesh 6-speed; multiplate wet clutch
Final Drive Chain
Fuel Capacity 3.7 gal
CHASSIS
Suspension/Front 41mm telescopic fork; 5.1-in travel
Suspension/Rear Single shock, adjustable preload; 5.1-in travel
Brakes/Front Dual hydraulic disc, 282mm; ABS
Brakes/Rear Hydraulic disc, 245mm; ABS
Tires/Front 120/70ZR17 Michelin® Road 5
Tires/Rear 180/55ZR17 Michelin® Road 5
DIMENSIONS
LxWxH 81.7 in x 32.3 in x 44.5 in
Seat Height 32.9 in
Wheelbase 55.3 in
Rake (Caster Angle) 25.0°
Trail 3.5 in
Max. Ground Clearance 5.5 in
Fuel Capacity 3.7 gal
Fuel Economy** 58 mpg
Wet Weight*** 410 lb
OTHER
Warranty 1 Year (Limited Factory Warranty)
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha XSR700 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder |
| DISPLACEMENT | 689cc |
| BORE AND STROKE | 80 x 68.6 mm |
| COMPRESSION RATIO | 11.5:1 |
| MAXIMUM TORQUE | 6.9 kg-m (50 ft-lbs.) @ 6,500 rpm |
| FUEL DELIVERY | Mikuni 38 mm dual bore throttle body F.I. |
| ESTIMATED FUEL CONSUMPTION± | 24.5 kpl / 69.2 mpg (Imp.) |
| LUBRICATION | Wet sump |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | 6-speed |
| FINAL DRIVE | “O”-ring chain |
CHASSIS
| SUSPENSION (FRONT) | 41 mm fork / 130mm (5.1″) wheel travel |
| SUSPENSION (REAR) | Adjustable link Monocross / 130 mm (5.1″) wheel travel |
| BRAKES (FRONT) | Dual 282 mm discs / 4-piston calipers / ABS equipped |
| BRAKES (REAR) | 245 mm disc / single piston caliper / ABS equipped |
| TIRES (FRONT) | 120/70ZR17 |
| TIRES (REAR) | 180/55ZR17 |
CRITICAL DATA
| LENGTH | 2,075mm (81.7″) |
| WIDTH | 820 mm (32.3″) |
| HEIGHT | 1,130 mm (44.5″) |
| WHEELBASE | 1,405 mm (55.3″) |
| RAKE / TRAIL | 25° / 90 mm |
| GROUND CLEARANCE | 140 mm (5.5″) |
| SEAT HEIGHT | 835 mm (32.9″) |
| FUEL CAPACITY | 14 litres (3.1 imp. gallons) |
| WET WEIGHT | 186 kg (410 lb.) |
| COLOUR(S) | Raven Heritage White |
2024 Yamaha XSR700 – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine type CP2, Two cylinder, 4-valves, 4-stroke, Liquid-cooled,
DOHC
Displacement 689cc
Bore x stroke 80,0 × 68,6 mm
Compression ratio 11,5 : 1
Maximum power 54,0 kW (73,4 PS) @ 8.750 rpm
Limited power version 35,0 kW (47,6 PS) @ 7.750 rpm
Maximum torque 67,0 Nm (6,8 kg-m) @ 6.500 rpm
Lubrication system Wet sump
Clutch type Wet, Multiple Disc
Ignition system Electronic ignition (TCI)
Starter system Electronic ignition (TCI)
Transmission system Constant Mesh, 6-speed
Final transmission Chain
Fuel consumption 4,3 L/100 km
CO2 emission 100 g/km
Fuel system Electronic Fuel Injection
Chassis
Frame Diamond
Caster angle 24°30
Trail 90 mm
Front suspension system Telescopic fork
Rear suspension system link suspension, Swingarm
Front travel 130 mm
Rear travel 130 mm
Front brake 298 mm
Rear brake 245 mm
Front tyre 120/70 ZR17M/C (58W) Tubeless
Rear tyre 180/55 ZR17M/C (73W) Tubeless
Track n/a
Dimensions
Overall length 2.075 mm
Overall width 820 mm
Overall height 1.130 mm
Seat height 835 mm
Wheel base 1.405 mm
Minimum ground clearance 140 mm
Wet weight (including full oil and fuel tank) 188 kg
Fuel tank capacity 14 L
Oil tank capacity 3,00 L
