2025 Honda Africa Twin: MANUAL CLUTCHING & SHOWA SUSPENSION.

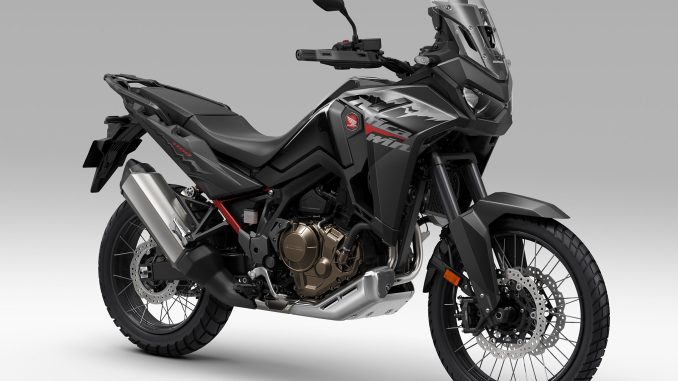

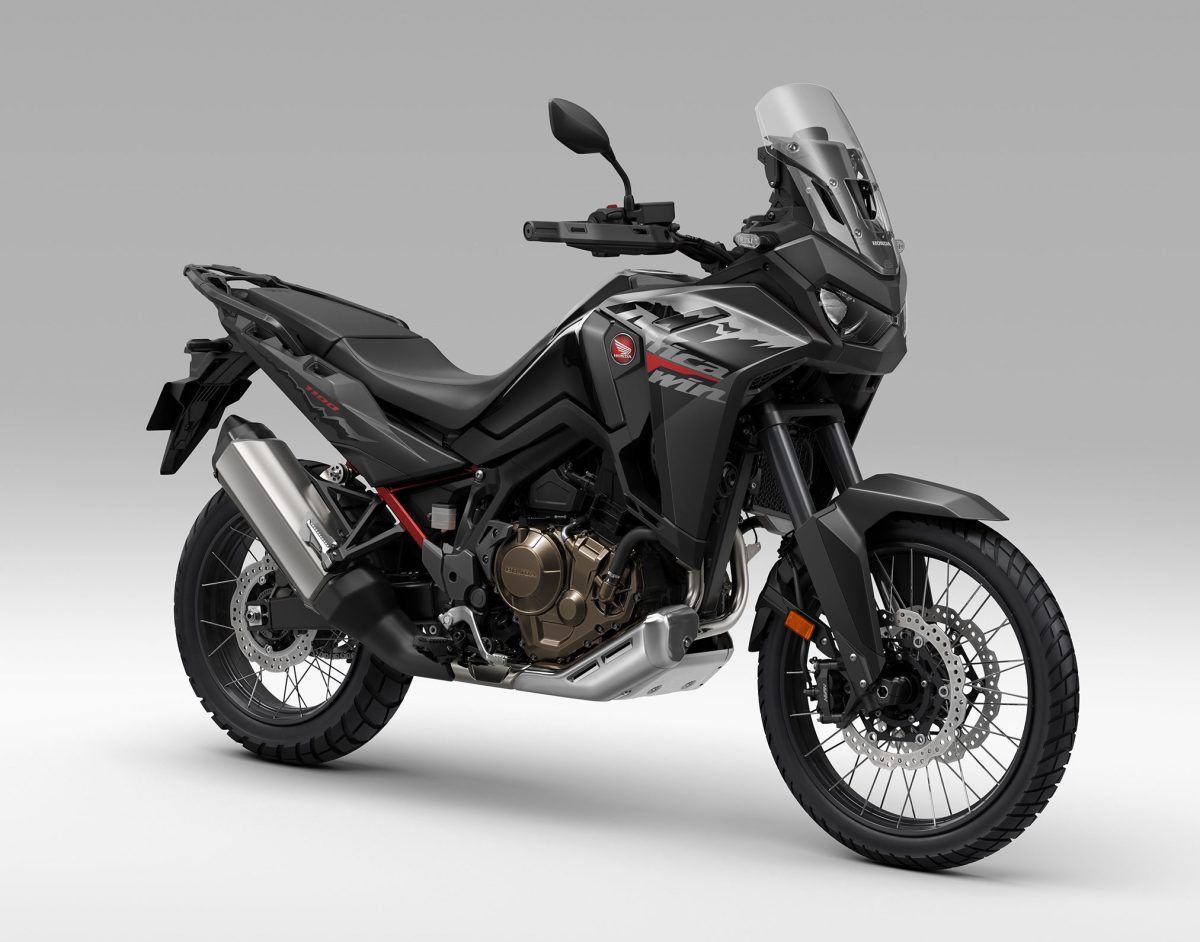

Introducing the 2025 Honda Africa Twin…
The base bike is equipped with Showa coil spring suspension, Same upper fairing, seat unit and 5-way height adjustable screen, plus tubeless tires. A full electronics package employs a six-axis Inertial Measurement Unit to manage riding modes and HSTC as well as Cornering ABS, Wheelie Control, Rear Lift Control, USB port and standard fit cruise control. The full colour 6.5-inch TFT touchscreen incorporates Apple CarPlay®, Android Auto® and Bluetooth connectivity. Four tailor-made Genuine Honda Accessory Packs – Urban, Rally, Travel and Adventure – are ready to create the perfect traveling partner.
It’s been well over three decades since the Honda XRV650 Africa Twin first rolled into Europe and while the motorcycle that now bears its name – launched for 2016 as the CRF1000L Africa Twin – was a brand-new machine from the wheels up, it fully inherited the essence and spirit of what made the original so popular.
It was the balance between power and light weight that was at the heart of the original bike’s appeal, just as it was for the new model. With its unique, athletic appearance, an enjoyable, usable engine and capable, comfortable chassis, the CRF1000L Africa Twin proved itself a true modern-day all-rounder and has been hugely popular with round-the-world adventurers, around-town commuters and weekend tourers alike.
2018 saw the Africa Twin, in both manual transmission and Dual Clutch Transmission (DCT) form, receive Throttle By Wire (TBW) control plus 3 riding modes, expanded Honda Selectable Torque Control (HSTC) options, and intake/exhaust development for improved engine response and sound. The platform also expanded: the Africa Twin Adventure Sports – with the same updates but featuring improved wind protection, greater tank range and longer-travel suspension – extended the machine even further into long-range territory.
For the 2020, the introduction of a bigger capacity, longer stroke 1084cc engine marked another landmark in the evolution of the Africa Twin. The touring ability of the CRF1100L Africa Twin Adventure Sports* was further enhanced by adding the option of Showa Electronically Equipped Ride Adjustment (Showa EERA) suspension.
At the same time the CRF1100L Africa Twin itself was comprehensively redrawn with an aggressive, compact rally style and even sharper off-road focus. Alongside the increase in power and torque from the engine, it was also significantly lighter – in keeping with the first principles set out all those years ago. 2022 saw the Africa Twin gain refined DCT settings for smoother handling in 1st and 2ndgears and standard fitment aluminum rear carrier.
2024 marked another major step forward in the model’s development with an Electronic Suspension (ES) choice, more torque from the engine, further DCT improvements and enhanced equipment levels. Mechanically unchanged for 2025 the Africa Twin continues to build its reputation as a benchmark big-bore on- and off-roader.
Since its reintroduction in 2016, the Africa Twin has been the 2nd most popular model in the 1000cc+ Adventure class, with over 104,000 units bearing the name ‘Africa Twin’ being sold across Europe. Hugely popular, it has always been in Honda’s top three selling models, being top seller in six of the eight calendar years from 2016 to 2023.
The 2025 CRF1100L Africa Twin carries a strong focus on core off-road ability, with the look and feel of a slim rally machine. Its 1,084cc parallel twin cylinder engine produces peak torque of 112Nm with peak power of 75kW.
A rugged steel frame, CRF450R-derived aluminum swingarm, chassis geometry, suspension travel and ground clearance. Tubeless tires allow for easier repairs without the need to remove the wheel.
A six-axis Inertial Measurement Unit (IMU) controls not only the 7-level HSTC but also 3-level Wheelie Control, Cornering ABS (with off-road setting) and Rear Lift Control. There are four default riding modes: URBAN, TOUR, GRAVEL and OFF-ROAD.
Tailored for complete control, the riding position features a slim section seat, and high-set handlebars. Dual LED Daytime Running Lights (DRL) give optimum visibility, improving safety and Cruise Control is a standard fit. Also, to make long-range road riding more comfortable, the aggressively styled front fairing mounts a 5-way adjustable screen for maximum forward visibility or increased wind protection depending on rider choice.
A full colour Multi Information Display (MID) 6.5-inch TFT touch screen brings immersive engagement with the machine’s systems, plus Apple CarPlay®, Android Auto® and Bluetooth connectivity.
The CRF1100L Africa Twin, Honda’s hard-charging off-road adventurer, continues its quest for new horizons alongside the Africa Twin ES, with updated graphics and a new colour combination for 2025.
The 2025 CRF1100L Africa Twin will be available in three paint options that all feature bold new graphics:
- Grand Prix Red
- Matt Ballistic Black Metallic
Engine Type
1083cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin
Transmission
6-speed manual
Front Suspension
45mm inverted telescopic fork; 9.0 inches of travel
Rear Suspension
Pro-Link® system w/ single shock; 8.7 inches of travel
Seat Height
Standard position 34.3 inches/Low position 33.5 inches
Warranty
Transferable, unlimited-mileage limited warranty. One year included
Extended Warranty
2025 Honda Africa Twin Totalmotorcycle.com Key Features
- Option of Showa Electronically Equipped Ride Adjustment (Showa EERATM) suspension; standard Showa suspension remains available
- Lightweight frame, with bolt-on aluminum subframe and light, rigid CRF450R-style swingarm for outstanding rear wheel traction and feel
- Six-axis Bosch IMU control; cornering ABS provides sure-footed braking and features an off-road setting
- 21/18-inch wheels mount tubeless tires
- 1,084cc, twin-cylinder engine generates 112Nm peak torque, with strong performance in the low to mid-rpm range
- 75kW peak power
- Unicam 8-valve head, semi-dry sump and slipper clutch
- IMU-managed HSTC intervention levels allow focus on off-road use
- Wheelie Control features 3 levels and IMU management
- Four riding modes: TOUR, URBAN, GRAVEL and OFF-ROAD
- Two USER modes allow for complete customization
- ‘Easy and direct’ system offers super-fast gear changes in either Manual Transmission (MT)
- Smooth, natural feel when first moving away and at low speed
- S mode (with 3 levels) revs higher and downshifts sooner than D, for more aggressive riding
- G Switch offers more feel for traction off-road
- Incline detection adapts shift pattern depending on gradient
- IMU allows corning detection function for improved shift timings
- 5-way height adjustable screen and upper fairing extend on-road comfort
- Compact body style designed for off-road, with slim seat and high handlebars
- Multi Information Display (MID) 6.5-inch TFT touch screen, Apple CarPlay® and Android Auto® compatible
- Bluetooth connectivity, Daytime Running Lights (DRL) and Cruise Control
- Huge range of Genuine Honda Accessories ready to go, from tank pads to full Pannier/Top Box luggage solutions and each a perfect fit for the Africa Twin
- Accessories are available individually or in dedicated accessory packs
- Rally, Adventure, Urban and Travel Packs make perfect customization easy
The Africa Twin just got an upgrade. It’s still the amazingly agile Adventure bike it has always been – with performance to push to the limit – but with extra low-down torque for drive. A new adjustable screen makes those on-road days much more comfortable. Tubeless tires are easily repairable. And, the Electronic Suspension option of the Africa Twin ES, with Showa-EERA™, opens a whole new horizon of adventure.
Standard Fit Tubeless Tires
Sometimes, mid-adventure, small details matter: 21-inch front/18-inch rear rims now wear tubeless tires, with a revised spoke design, for easy roadside repairs.
6-Axis IMU Dynamic Management
An Inertial Measurement Unit monitors – in a split second – the Africa Twin under braking, cornering and acceleration, providing a premium riding experience synonymous with Africa Twin.
TFT Touch Screen
Apple CarPlay and Android Auto compatible for all smartphone functions, with fully customizable colour 6.5-inch display.
Stronger 1100cc Twin-Cylinder Engine
7% more torque – thanks to tuned intake and exhaust systems – equals responsive acceleration, especially when fully loaded, producing a richer sound.
Off-Road Balance
From gravel tracks to gnarly climbs, the Africa Twin makes it easy thanks to long travel suspension, light weight, and honed chassis geometry.
Extra Wind Protection
The taller, wider screen adjusts through 5 positions for maximum forward visibility or maximum wind protection – you choose.
2025 Honda Africa Twin Totalmotorcycle.com Features and Benefits
Chassis
The standard fully adjustable Showa setup is also available; the 45mm cartridge-type inverted front forks offer long-travel bump absorption with internal damping settings that provide high-quality on and off-road performance. A cast aluminum top yoke and forged bottom yoke, joined by hollow aluminum stem shaft, clamp the fork legs with two bolts each top and bottom. The Showa rear shock features a 46mm cylinder and remote reservoir for stable damping control in even the most extreme off-road riding conditions. Spring preload can be adjusted via a dial on the shock body.
The strength and rigidity balance of the steel semi-double cradle frame revolves around outstanding off-road ability – at the same time reinforcing its all-round on-road manners. Rigidity around the steering head is optimised to enhance feel for front end grip; the main spars are slim and straight with no front cross pipe. Ground clearance is 250mm, with wheelbase of 1575mm and rake and trail of 27.5°/113mm. Wet weight is 231kg and 233kg for the ES .
A bolt-on aluminum subframe allows the CRF1100L Africa Twin to be narrow under the rider, at only 195mm which is crucial for easy ground reach. The lightweight aluminum swingarm – taking its direction from the design used by the CRF450R – maximises rear wheel traction and rider feel. The swingarm pivot points’ inner plates use 600MPa high-strength steel and the upper cross tube that connects them acts as the rear shock upper mount (through a pillow-ball joint) improving feel for rear wheel traction.
At the very heart of the Africa Twin’s all-round performance is a Bosch MM7.10 six-axis Inertial Measurement Unit (IMU) tucked away at the centre of the machine, that measures – in real-time – roll angle/rate, pitch angle/rate and yaw angle/rate. It aids the management of rear wheel traction via TBW and HSTC, front braking grip through cornering ABS, front wheel lift through Wheelie Control and also adds Rear Lift Control. It is also integral to the functioning of the EERATM suspension.
The IMU takes in lean angle, deceleration (from front/rear wheel speed sensors) and incorporates the slip rate of the front and rear wheels to manage braking pressure through the ABS; likewise if it detects sudden rear wheel lift, it finely controls brake force to maintain stability. There is an off-road ABS setting and, when stationary the rear ABS can be cancelled completely for off-road riding if required.
Compact two-piece radial-mount four-piston calipers work dual 310mm ‘wavy’ floating discs through sintered pads. The rear 256mm ‘wavy’ disc features specific hole punching and shaping for optimal rear wheel control.
21-inch front and 18-inch rear (stainless steel) spoked wheels wear 90/90-21 and 150/70-18 tubeless tires, which allow for easier repairs without the need to remove the wheel. Metzeler Karoo Street 90/90-21M/C 54H and 150/70-19-R18M/C 70H are approved as OEM tires. Block pattern Michelin Anakee Wild 90/90-21M/C 54R TL and 150/70-18M/C 70R TL tires are also approved for fitment.

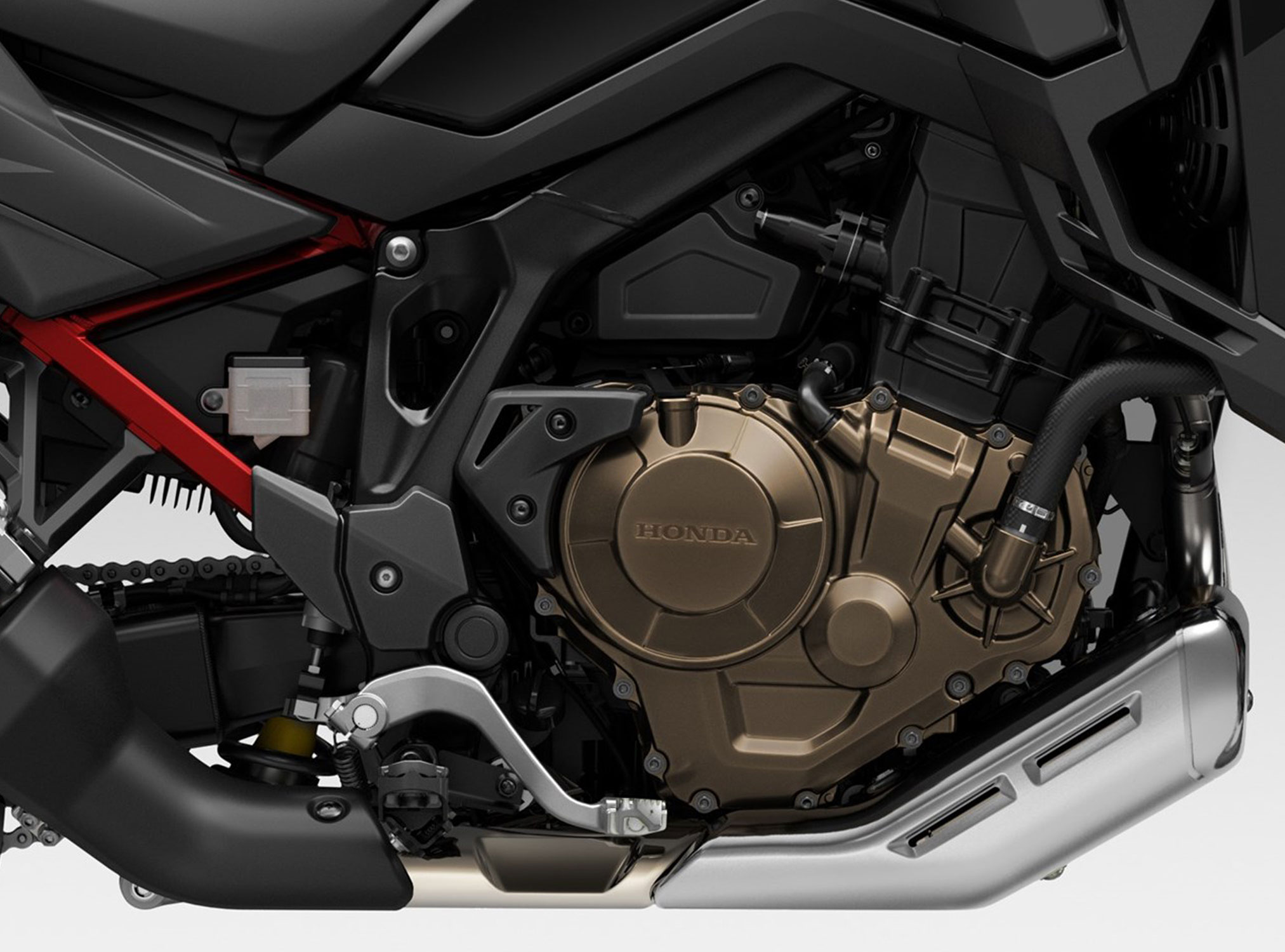

Engine
With the 2024 updates concentrating on increasing torque in the most-used low, mid and upper mid-range, the 1,084cc, 8-valve parallel-twin engine produces 75kW @ 7,500rpm with peak torque of 112Nm @5,500rpm. Bore is set at 92mm with 81.5mm stroke and compression ratio of 10.5:1.
35mm airbox intake ducts draw air to twin, length-optimised internal trumpets. 46mm throttle bodies feed the inlet ports and the bore and cylinder pitches are aligned to create a smooth air intake profile. The injector angle delivers a direct spray into the twin-spark combustion chambers.
Honda’s SOHC Unicam valve train is a feature of the MX competition-specification CRF450R, and the low-set position of the cast camshaft contributes to the compact nature of the cylinder head and entire engine package; inlet valves are 10.1mm in diameter, exhaust valves 9.3mm. aluminum cylinder sleeves save weight while the 270° phased crankshaft and uneven firing interval create the engine’s desirable signature ‘throb’ and character.
The 2024 updates saw the introduction of a reshape of the 270° crankshaft, reshaped and reinforced conrod and 0.4mm longer piston, which also featured a reshaped piston surface crown for optimal ignition and engine performance.
The crankcases are split horizontally; the water pump is housed efficiently within the clutch casing with a thermostat integrated into the cylinder head. Manual versions of the engine share common crankcases with only minor external differences; the water and oil pumps are both driven by the engine’s balancer shafts.
The engine features a semi-dry sump design with in-tank lower crankcase oil storage. This allows a lower pan depth that keeps overall engine height low. As the pressure-fed pump is located within the tank where it delivers its oil from, there is no need for a pressure-feed passage. Secondary vibrations are neutralised by the mutually reciprocating motion of the pistons, while primary inertial and coupling vibrations are cancelled by the use of biaxial balance shafts.
The aluminum clutch centre and pressure plate use ‘assist’ cams to ease upshifts and ‘slipper’ cams for deceleration and downshifting. The six-speed manual gearbox uses the same shift-cam design as found on the CRF450R to ensure positive changes.
The exhaust muffler, also updated for 2024 with increased lower pipe diameter, and revised internal structure, delivers enhanced engine performance in the low and mid-range and gives a pleasing exhaust ‘pulse’ at lower rpm, and more ‘bass-fuelled’ note at high-rpm.
Engine & Chassis Management Electronics
Throttle By Wire (TBW) management and the six-axis Inertial Measurement Unit (IMU) are at the heart of the electronic package. The system offers 4 levels of power and 3 levels of engine braking. There are seven levels of Honda Selectable Torque Control (HSTC) with each level’s amount of intervention being optimised to work with real-time input from the IMU. The spacing of the levels is optimised to allow the rider a finer choice of the amount of rear tire slide for off-road riding. HSTC can also be turned off completely.
Wheelie Control is another feature. With the IMU measuring pitch angle and rate, and controlling engine torque via TBW, the rider can choose between 3 levels of input. Level 1 allows for intended wheel lift but suppresses any sudden movement. Level 3 stops any front wheel elevation and level 2 is mid-way between the two. Like HSTC, Wheelie Control can also be turned off completely.
There are four default riding mode settings: TOUR, URBAN, GRAVEL and OFF-ROAD to cover most riding conditions and situations plus two further customisable USER settings. Even within the default riding modes, it’s possible to change some parameters – HSTC between levels 1-7 (plus off), Wheelie Control between levels 1-3 (plus off).
TOUR employs the highest level of Power (1), for touring with pillion and luggage plus mid-range Engine Braking (2) with active on-road Cornering ABS.
URBAN suits wide-ranging riding requirements and uses mid-level Power (2) and Engine Braking (2) with active on-road Cornering ABS.
GRAVEL delivers the lowest level of Power (4) and Engine Braking (3). Cornering ABS is active with an off-road setting; in this setting, the rear brake ABS cannot be switched off.
OFF-ROAD uses lower-mid level Power (3) and the lowest amount of Engine Braking (3). Cornering ABS is active with an off-road setting; the rear brake ABS can be switched off.
USER 1 & 2 modes offer the rider a choice of two distinct personalized setups – choosing between Power levels 1-4 and Engine Braking 1-3, plus HSTC, Wheelie Control and ABS (on-road/off-road) parameters. USER 1 starts out with level 2 Power and Engine Braking, USER 2 uses level 4 Power and 3 Engine Braking.
The power delivery characteristics remain consistent across all Rider Modes, delivering lower levels of power, depending on Power Mode, in the same way.
At low speeds, the power delivery in 1st and 2nd gears is the same across all Power Modes for optimum rider control and confidence.
Table of Rider Modes:
Rider Mode | Power | Engine Braking | ABS | G Switch | HSTC | Wheelie Control |
TOUR | 1 | 2 | On-road | Not active | Adjustable to rider preference
0-7 |
Adjustable to rider preference
0-3 |
URBAN | 2 | 2 | ||||
GRAVEL | 4 | 3 | Off-road | |||
OFF-ROAD | 3 | 3 | Active | |||
USER 1 & 2 | 1-4 | 1-3 | Either | Either |
Styling & Equipment
Aggressive and compact. Two words that sum up the CRF1100L Africa Twin’s taut rally-style bodywork. And it’s for a reason – to work better off-road. A 5-stage height adjustable screen makes longer road rides, or commuting in and out of town, more comfortable.
The CRF1100L Africa Twin ES also gets heated grips and an ACC charging socket as standard for increased practicality.
Seat height adjusts between two settings, 850/870mm and the high-set handlebars give an upright, high-visibility riding position and comfortable control, whether standing or seated. The tail section is extremely slim, and the narrow seat is carefully contoured to allow good ground reach and easy back and forth movement while an aluminum rear carrier is standard fit for convenient carrying ability.
Holding 18.8L, the fuel tank offers a potential range of over 380km, thanks to fuel economy of 4.9L/100km 20.5km/l in MT.
Dual LED headlights are set high, delivering a penetrating beam, and feature Daytime Running Lights (DRL) that automatically adjust to ambient light intensity, improving safety, no matter the conditions. Knuckle guards are standard.
The full colour Multi Information Display (MID) 6.5-inch TFT touch screen keeps the rider in control of all of the CRF1100L Africa Twin’s systems, with each of the riding modes selectable through the top left of the screen. The MID can also be customised to show various levels of information relative to the riding mode chosen and is easy to use even when wearing gloves.
The MID also incorporates Apple CarPlay® and Android Auto®, allowing use of a smartphone through the touchscreen. Navigation apps can also be accessed and displayed, and, via a Bluetooth helmet headset, calls can be made or received. The smartphone itself plugs into a USB charging port on the right of the MID. Hands-free wireless Bluetooth connectivity is also an option and all control inputs are made from the left-hand switchgear.
The front and rear indicators have an Emergency Stop Signal (ESS) function. When braking suddenly over 50kph the hazard lights flash to warn other road users a hard stop is in process. They also auto-cancel; rather than using a simple timer, the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the situation. The auto-cancel feature can be switched off and standard-fit cruise control eases long-distance highway travel.
A new high-performance, lightweight and compact lithium-ion battery is standard fit, contributing to mass centralisation.
Accessories
For a bike like the Africa Twin – which is going to cover a lot of ground, on or off-road – accessories really matter to an owner. And the range from Honda grows year on year with each part, no matter how small or large, driven by customer use, designed by R&D engineers in Japan and manufactured in Honda centres around the world to exacting standards.
It’s easy, too for a new owner to tailor their Africa Twin via the accessory pack system. Based on four distinct profiles of application they also, thanks to complete compatibly, allow almost limitless customization options using the packs and individual parts, to build an owner’s ultimate Africa Twin.
Rally Pack
Designed to enhance the off-road durability and performance. The pack features wide Rally Footpegs for extra leverage and control and Engine Guards/Radiator Grill to minimize damage. For the Africa Twin with manual transmission a Quickshifter is included. Colour-matched Knuckle Guard Extenders add weather protection, Wheel Stripes add an exclusive splash of colour that complement the overall look.
Adventure Pack
Ready for the long haul. New Front Side Pipes protect bodywork and are constructed from 25mm stainless steel with a polished, electrolytic coating that resists corrosion and is also easy to clean. They also mount the dual Fog Lights in a higher, more aggressive position that on previous models. A 4.5L tank bag provides flexible, easy-to-access storage, while new Side Tank Pads protect paint from knee scuffs and provide additional grip for off-road riding.
Urban Pack
Available in two options – plastic or aluminum. In plastic, a newly redesigned stripe design compliments the 58L Top Box (enough for 2 full-face helmets, comes with a Carrier Bracket, pillion Backrest and Inner Bag. The 42L aluminum Top Box features its own Carrier Bracket and Inner Bag. The Urban Packs also include new, easy-to-fit heated grips and ACC charging socket, which the Africa Twin ES has as standard. Finally a Main Stand makes for straightforward rear wheel/chain maintenance.
Travel Pack
Like the Urban Pack the Travel Pack comes in plastic or aluminum. 40L left/30L right plastic Pannier Cases – also featuring the new designed stripes – also feature one-size Inner Bags. The aluminum Cases 37L left / 33L right come complete with mounting stays, and individual right/left inner bags. Redesigned Upper Deflectors channel airflow around arms and shoulders and Lower Deflectors for the legs improve comfort at highway speeds. Comfort Pillion Footpegs are the finishing touch.
Seat Options
Compared to the standard design the Comfort Seat has an 8% larger surface area compared to previous models and uses a +15mm thicker urethane foam cushion with optimised density to reduce long-distance riding fatigue. The Comfort Seat gives a seat height range of 865/885mm and is available in 3 colour choices: Black/Black, Red/Black and Blue/Black. The Low Seat option drops down to 825/845mm.
The line-up is complemented by a 38L Top Box, black rubber Side Tank Pads, and the SC-Project Slip-on Muffler, available in 2 colours, Titanium Silver and Matt Black.
2025 Honda Africa Twin – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $14,799 USD
Canada MSRP Price: $ TBA CDN (includes Freight, PDI and Fees)
Europe/UK MSRP Price: £13,249 GBP (On The Road inc 20% Vat)
Model | Africa Twin Adventure Sports ES DCT | Africa Twin Adventure Sports ES | Africa Twin DCT | Africa Twin |
ENGINE | ||||
Type | 1,083cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin | |||
Valve Train | SOHC; (4) valves per cylinder | |||
Bore x Stroke | 92.0mm x 81.5mm | |||
Compression Ratio | 10.5:1 | |||
Induction | PGM-FI electronic fuel injection w/ 46mm throttle bodies (Throttle By Wire) | |||
Ignition | Full transistorized | |||
Starter | Electric | |||
Transmission | 6 speed automatic DCT | 6 speed manual | 6 speed automatic DCT | 6 speed manual |
Clutch | (2) multiplate wet | Multiplate wet | (2) multiplate wet | Multiplate wet |
Final Drive | #525 chain; 16T / 42T | |||
SUSPENSION | ||||
Front | 45mm inverted Showa telescopic fork w/ EERA; 8.3 in. wheel travel | 45mm inverted Showa telescopic fork; 9.0 in. wheel travel | ||
Rear | Pro-Link® system w/ single Showa shock w/ EERA; 7.9 in. travel | Pro-Link® system w/ single Showa shock; 8.7 in. travel | ||
BRAKES | ||||
Front | (2) four-piston hydraulic calipers w/ 310mm disks; ABS | |||
Rear | (1) one-piston hydraulic caliper w/ 256mm disk; ABS | |||
TIRES | ||||
Front | 110/80-19 | 90/90-21 | ||
Rear | 150/70R-18 | |||
MEASUREMENTS | ||||
Rake (Caster Angle) | 27º | |||
Trail | 106mm (4.2 in.) | 113mm (4.4 in.) | ||
Length | 91.7 in. | |||
Width | 37.9 in. | 37.7 in. | ||
Height | 60.2 in. (58.1 in. w/ windscreen in low setting | 60.7 in. (58.6 in. w/ windscreen in low setting | ||
Seat Height | 33.7 in. (32.9 in. w/ seat in low setting) | 34.3 in. (33.5 in. w/ seat in low setting) | ||
Ground Clearance | 8.7 in. | 9.8 in. | ||
Wheelbase | 61.8 in. | 62 in. | ||
Fuel Capacity | 6.6 gal. | 5.0 gal. (incl. 1.0 gal. Reserve) | ||
Color | Pearl White | Matte Black Metallic | ||
Curb Weight* | 559 lbs. | 535 lbs. | 510 lbs. |
*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment
Specifications subject to change
2025 Honda Africa Twin – Totalmotorcycle.com Canada Specifications/Technical Details
TBA
2025 Honda Africa Twin – Totalmotorcycle.com Europe Specifications/Technical Details
Engine
· Bore × Stroke (mm)
92.0mm x 81.5mm
· Carburation
PGM-FI
· Compression Ratio
10.5:1
· Engine Displacement (cc)
1084
· Engine Type
Liquid-cooled 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
· Max. Power Output
75.0kW/7500min
· Max. Torque
112Nm/5,500rpm
· Starter
Electric
· Throttle Bore
46mm
· C02 Emissions (g/km)
114g/km
· Oil Capacity (Litres)
4.8
Wheels
· ABS System
2 channel with IMU Selectable ABS MODE with ON road and OFF road
· Brakes Front
310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
· Brakes Rear
256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. 2-Channel with rear ABS off mode.
· Suspension Front
Showa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjustments, 230mm stroke.
· Suspension Rear
Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm rear wheel travel.
· Tyres Front
Bridgestone BATTLAX ADVENTURECROSS TOURER AX41T Metzeler KAROO STREET
· Tyre Size Front
90/90-21M/C 54H (Tubeless)
· Tyre Size Rear
150/70-R18M/C 70H (Tubeless)
· Tyres Rear
Bridgestone BATTLAX ADVENTURECROSS TOURER AX41T Metzeler KAROO STREET
· Wheels Front
21M/C x 2.15 Wire spoke with aluminium rim
· Wheels Rear
18M/C x MT4.00 Wire spoke with aluminium rim
Dimensions and Weights
· Battery Capacity (VAh)
12V-6Ah Li-ion BATTERY
· Caster Angle
27.5°
· Dimensions (L×W×H) (mm)
2330mm X 960mm X 1485mm
· Frame type
SemiDouble Cradle
· Fuel Tank Capacity (Litres)
18.8L
· Fuel Consumption
20.5km/l
· Ground Clearance (mm)
250mm
· Kerb Weight (kg)
231
· Seat Height (mm)
850/870mm (Low Seat option 825mm, Comfort Seat option 885mm)
· Trail (mm)
113 mm
· Wheelbase (mm)
1575mm
· Turning Radius
2.6
· Noise Level
Lurban 75.1dB, Lwot 80.1dB
Transmission
· Clutch
Wet,Multiplate with coil springs,Aluminium Cam Assist and Slipper clutch
· Clutch Operation
Cable
· Final Drive
O-ring sealed chain
· Gearbox
6-speed
· Transmission Type
Manual Clutch Transmission
· Quick Shifter
Optional Accessory
Instruments and Electrics
· Headlights
LED
· 12v Socket
Optional
· Ignition System
Electronic, digital transistor
· Instruments
LCD METER 6.5inch TFT Touch Panel Multi information display
· Tail Light
LED
· Daytime Running Lights
Yes
· Cornering Lights
No
· Connectivity
Bluetooth audio and Apple CarPlay/Android Auto (wired)
· USB Socket
Yes (USB Type A, 1.5A)
· Self Cancelling Indicators
Yes
· Cruise Control
Yes
· Emergency Stop Signal
Yes
· Security
Immobiliser + Optional Alarm
Additional Features
· Riding Modes
Urban, Tour, Gravel, Off Road, User
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
