The 223cc air-cooled SOHC four-stroke puts out smooth, widespread power that is perfectly suited for all kinds of trails and riders. The super-reliable electric start adds quick-start convenience.
Review – Key Features – Features & Benefits – Specifications

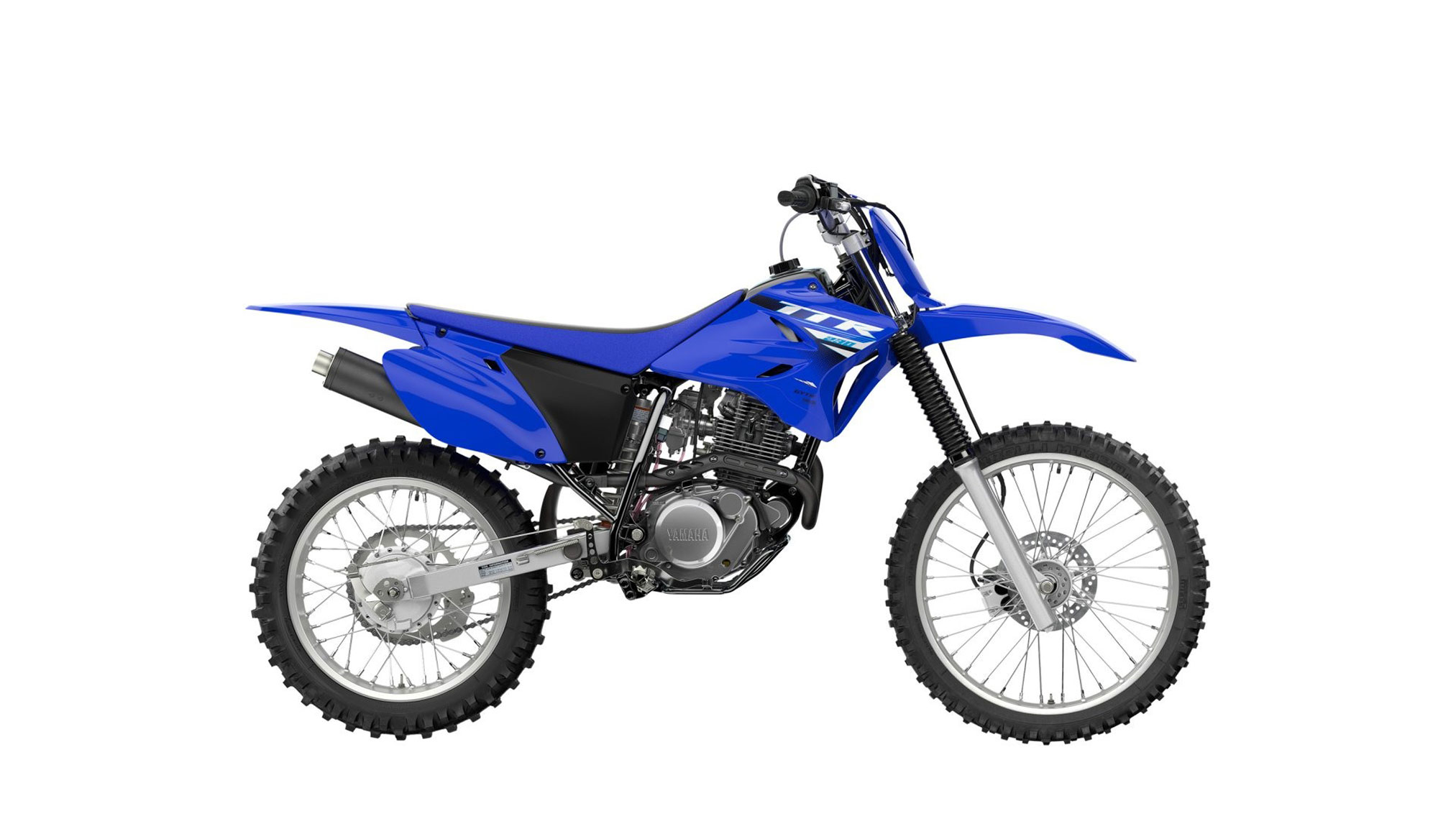

2025 Yamaha TT-R230: EASY TO RIDE.
Introducing the new 2025 Yamaha TT-R230…
Easy to ride and easy to maintain, the super‑capable TT‑R230 delivers proven performance.
Easy-to-use. Easy-to-start. Easy-to-maintain. The super-capable TT-R 230 delivers proven performance for riders of all skill levels. The low seat height and smooth, torquey power are perfect for both beginners and experienced riders.
2025 Yamaha TT-R230 Totalmotorcycle.com Key Features
- Convenient, no-hassle electric starting.
- Proven, 2-valve cylinder head design
- Automatic cam chain tensioner
The TT-R230’s diamond-type steel frame features a compact, 1,385 mm (54.5″) wheelbase to ensure superb manoeuvrability and responsive handling.
A peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant produces predictable power aimed at easing both beginner and intermediate riders into the fun and excitement of off-road riding.
2025 Yamaha TT-R230 Totalmotorcycle.com Features and Benefits
TOP FEATURES
Broad, Accessible Powerband
YZ-inspired looks with a stout 223cc air-cooled SOHC four-stroke produces predictable, broad power making the TT-R230 a great choice for both beginner and intermediate riders.
Racing-Derived Ergonomics
The competition-style flat seat and tank junction position the rider for greater mobility.
Convenient Electric Start
With a simple push of a button, the electric start makes getting started a breeze.
Trail-Ready Dimensions
The low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trail bike that’s accessible for a wide range of riders.
Robust, Compact Frame
The steel, diamond-type frame design means great handling and strength.
ENGINE
Broad, Accessible Powerband
The 223cc air-cooled SOHC four-stroke puts out smooth, widespread power that is perfectly suited for all kinds of trails and riders. The super-reliable electric start adds quick-start convenience.
Six-Speed Transmission
Smooth-shifting, six-speed transmission with heavy-duty clutch is geared for maximum versatility and usable power delivery.
Digital Ignition
CDI magneto ignition system is ultra-reliable and nearly maintenance-free.
Free-Flowing Intake
The YZ-type air filter offers easy maintenance and maximum airflow.
Forest-Friendly Exhaust
The lightweight exhaust includes a quiet muffler and USFS-approved spark arrestor.
Low Maintenance Engine
Automatic cam chain tensioner means minimal maintenance and longer engine life.
CHASSIS/SUSPENSION
Robust, Compact Frame
The steel frame with a compact wheelbase and low seat height result in superb maneuverability and responsive handling for beginner or intermediate riders.
Advanced Rear Suspension
A linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
Trail-Ready Front Fork
The 36mm front fork with 9.4 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.
Generous Ground Clearance
Generous 11.6 inches of ground clearance is enough to handle almost any trail.
Lightweight Swingarm
Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
Braking System
The 220mm front disc and 130mm rear drum brakes provide powerful, confident stops.
MX-Style Wheels and Tires
Full size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
ADDITIONAL FEATURES
Comfortable Saddle
Long gripper seat is low, comfortable and allows for easy rider movement.
Racing Styling
Team Yamaha-inspired colors and graphics and front and side number plates create distinctive, motocross styling.
Grippy Foot Pegs
Large folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
Fork Protection
Durable fork boots provide excellent fork seal and stanchion tube protection.
2025 Yamaha TT-R230 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4,699 USD
Canada MSRP Price: $5,699 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
ENGINE
| Engine Type | 223cc air-cooled SOHC 4-stroke; 2 valves |
| Bore x Stroke | 70.0mm x 58.0mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | Carburetor |
| Ignition | CDI |
| Transmission | Constant-mesh 6-speed; multiplate wet clutch |
| Final Drive | Chain |
| Fuel Capacity | 2.1 gal |
CHASSIS
| Suspension/Front | Telescopic fork; 9.4-in travel |
| Suspension/Rear | Single shock; 8.7-in travel |
| Brakes/Front | Hydraulic single disc, 220mm |
| Brakes/Rear | Drum, 130mm |
| Tires/Front | 80/100-21 |
| Tires/Rear | 100/100-18 |
DIMENSIONS
| LxWxH | 81.3 in x 31.5 in x 46.5 in |
| Seat Height | 34.3 in |
| Wheelbase | 54.5 in |
| Rake (Caster Angle) | 27.0° |
| Trail | 4.4 in |
| Max. Ground Clearance | 11.6 in |
| Fuel Capacity | 2.1 gal |
| Wet Weight*** | 251 lb |
OTHER
| Warranty | 90 Day (Limited Factory Warranty) |
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2025 Yamaha TT-R230 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
ENGINE 4-stroke, air-cooled, SOHC, 2-valve, single
DISPLACEMENT 223 cc
BORE AND STROKE 70 x 58mm
COMPRESSION RATIO 9.5:1
MAXIMUM TORQUE 1.9 kg-m (13.7 ft-lb)@ 6,500 rpm
FUEL DELIVERY Teikei Y26P
IGNITION / STARTING CDI / Electric
TRANSMISSION Constant mesh, 6-speed
FINAL DRIVE Chain
CHASSIS
SUSPENSION (FRONT) Adjustable 36 mm fork / 240 mm (9.4″) wheel travel
SUSPENSION (REAR) Adjustable link-type Monocross / 220 mm (8.7″) wheel travel
BRAKES (FRONT) 220mm disc / twin piston caliper
BRAKES (REAR) Drum
TIRES (FRONT) 80/100-21
TIRES (REAR) 100/100-18
CRITICAL DATA
LENGTH 2,065mm (81.3″)
WIDTH 800mm (31.5″)
HEIGHT 1,180mm (46.5″)
WHEELBASE 1,385mm (54.5″)
GROUND CLEARANCE 295mm (11.6″)
SEAT HEIGHT 870mm (34.3″)
FUEL CAPACITY 8 litres (1.8 imp. gallons)
WET WEIGHT 114kg (251 lb)
COLOUR(S) Yamaha Racing Blue
2025 Yamaha TT-R230 – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
