Review – Key Features – Features & Benefits – Specifications

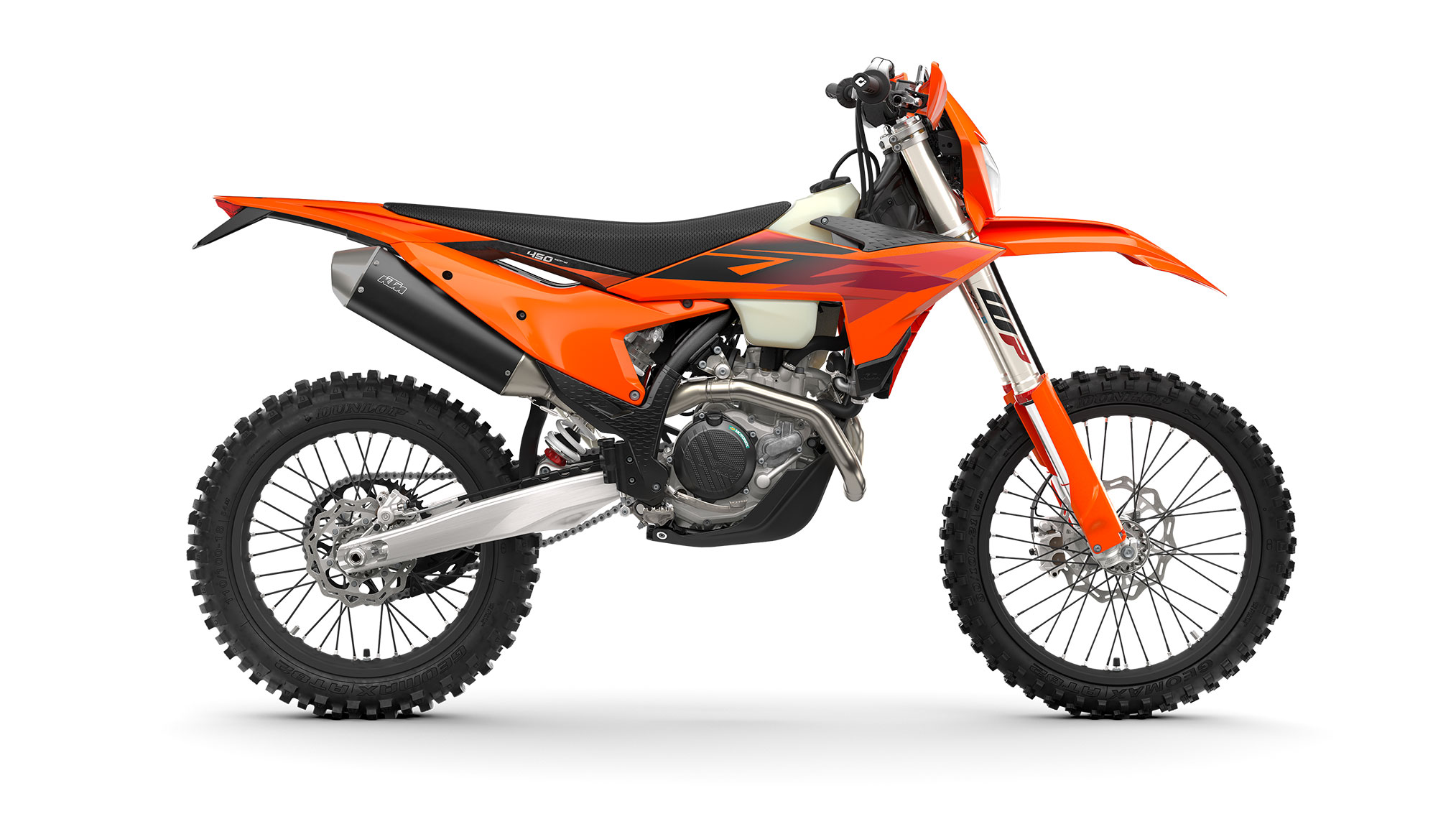

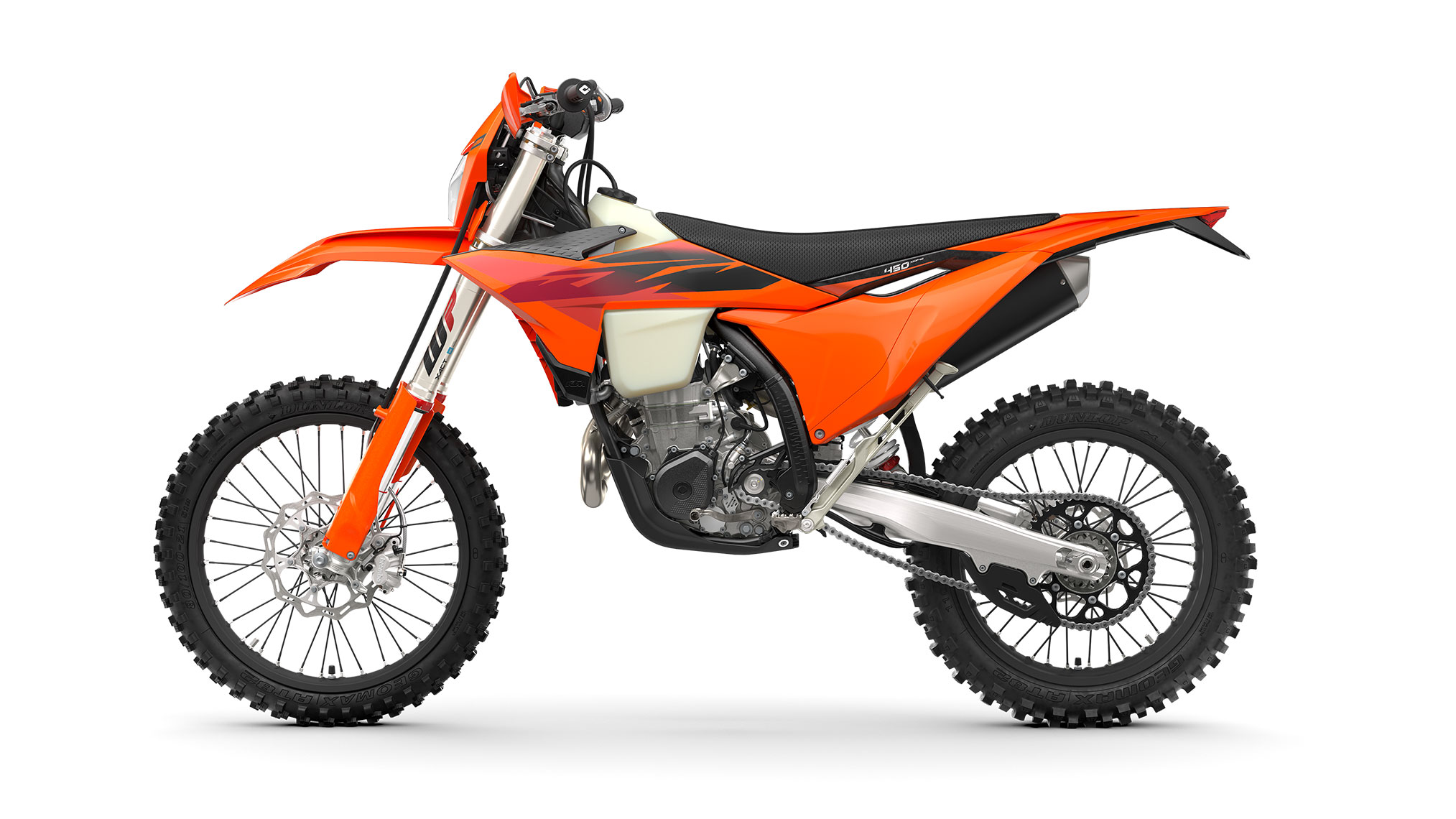

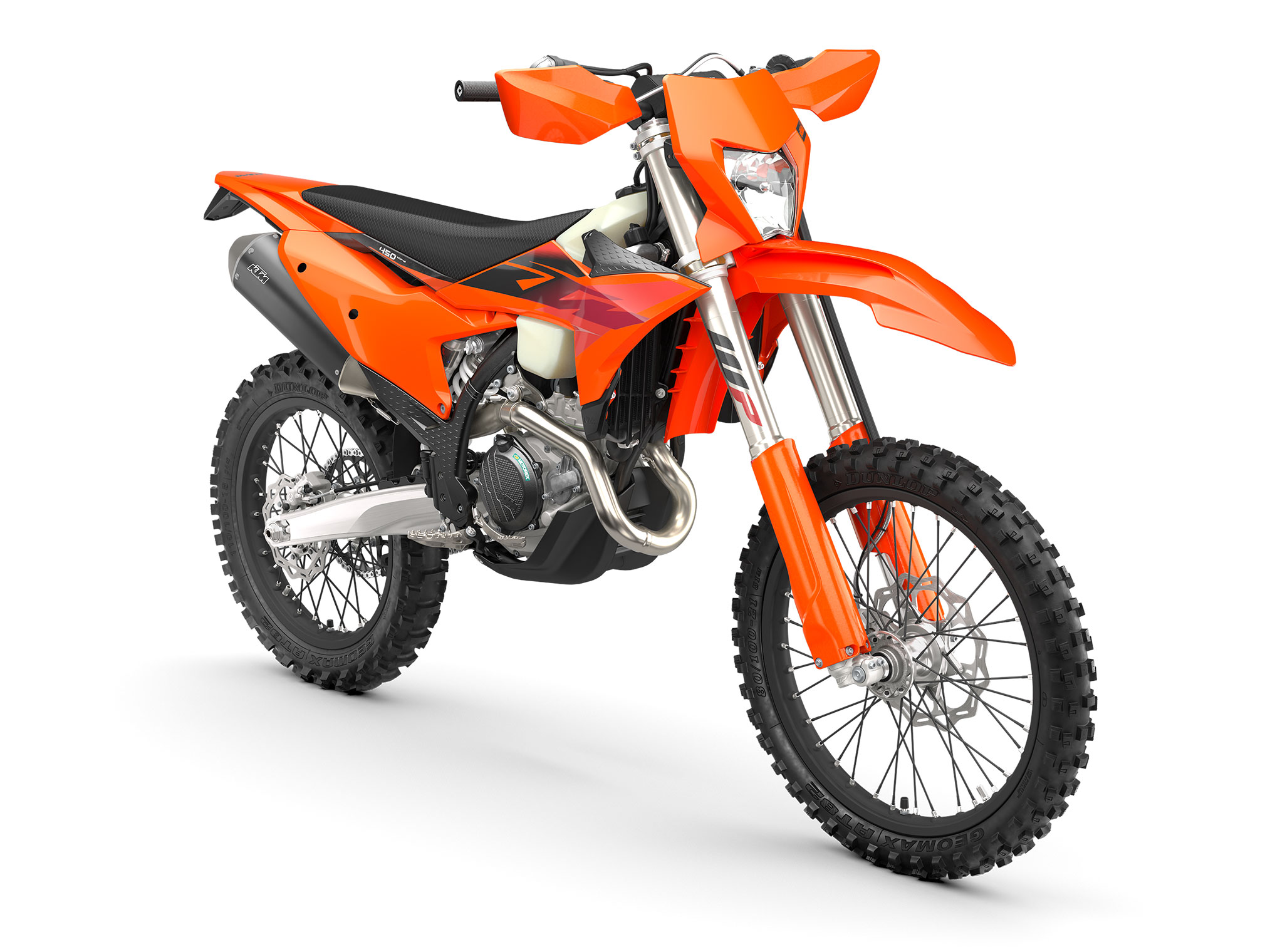

2027 KTM 450 XCF-W: HOLD THE LINE.
Introducing the 2027 KTM 450 XCF-W…
CHALLENGE THE EXTREME
The KTM 450 XCF-W rolls into the open class with a renewed appetite for finding the limit. Boasting a class-leading chassis, unflappable suspension, race-proven bodywork, and rider-focussed ergonomics – not to mention one of the winningest 450 cc engines in the class – the KTM 450 XCF-W is ready to launch off the line with the podium firmly in its sights.
2027 KTM 450 XCF-W Totalmotorcycle.com Key Features
TOTAL DOMINANCE – THE 2027 KTM ENDURO RANGE RETAINS ITS WINNING RECIPE
The 2027 KTM EXC and EXC-F range builds on KTM’s long-standing success at the highest level of enduro competition. Developed through years of championship-winning racing, the latest lineup delivers proven performance, precise control, and rider-focused ergonomics across all terrain.
For 2027, the KTM EXC range receives a fresh Graphics update, reinforcing its distinctive READY TO RACE identity while maintaining the established technical platforms that define KTM’s position at the forefront of enduro.
The range continues with KTM’s advanced chassis concept, proven WP XACT suspension, and refined engine packages across both 2-stroke and 4-stroke models—ensuring a consistent and competitive performance base for riders at every level.
In addition, the KTM enduro range offers access to KTM’s Premium Manufacturer’s Warranty, available in certain territories and subject to servicing and maintenance in line with manufacturer guidelines through authorized KTM dealers.
Spanning a broad displacement range, the 2027 KTM enduro lineup caters to riders of all levels and disciplines. From lightweight 2-stroke machines such as the KTM 125 XC-W to the powerful KTM 500 EXC-F, each model is built to deliver precise handling, controllable power, and confidence in demanding offroad conditions.
Across the 2-stroke lineup, KTM’s Throttle Body Injection (TBI) system ensures consistent fueling, crisp throttle response, and smooth, controllable power delivery—from low-speed technical terrain to high-revving special tests.
On the 4-stroke side, the KTM 250 EXC-F provides an accessible entry into race-proven performance, while the KTM 350 EXC-F remains a benchmark for versatility, balancing agility with increased power. At the top of the range, the KTM 450 EXC-F and KTM 500 EXC-F deliver strong, reliable performance for demanding terrain and extended race conditions.
Supported by KTM’s global dealer network, riders benefit from expert servicing, widespread parts availability, and a full range of KTM PowerParts and KTM PowerWear to customize performance, protection, and comfort.
Built on decades of racing success and continuous development, the 2027 KTM EXC range remains a reference point in enduro—combining proven performance, modern technology, and long-term reliability for riders worldwide.
2027 KTM 450 XCF-W Totalmotorcycle.com Features and Benefits
SETTING THE SAG
Adjustability
Getting READY TO RACE has never been easier. The KTM 450 XCF-W boasts a tool-free suspension setup at both ends. At the rear, our legendary, race-winning PDS technology features hand-adjustable dual compression controls, allowing riders to adjust high- and low-speed settings in a matter of seconds. On the front, the forks are also easily adjusted thanks to hand-adjustable clickers on the bottom of the fork shoe and on the fork top cap, making changing settings on the fly as easy as twisting the throttle.
DEEP BREATH
Air filter box
The air filter box is designed to ensure maximum airflow with minimal water intrusion. Precision in how the inlet ducts are positioned is aimed at preventing air deformation and maintaining filter protection. An enduro-specific splash protector under the airbox prevents water or dirt from splashing up from the rear wheel, while the Twin Air filter and air filter support design features a simple fail-proof mounting system for a secure and accurate filter installation. All this ensures the air filter is easily accessed, without tools, for fast trail-side maintenance.
FULLY FUELED
Fuel Tank
The transparent, polythene (XPE) fuel tank is a signature element of the KTM Enduro lineup. Having undergone thorough race testing in everything from the GNCC to the hardest of FIM hard enduros, these tanks are built, well, like tanks! A one-piece fuel pump and filter manage fuel supply, while servicing is made extra simple with easy fuel filter access.
SWITCH IT UP
Switchgear
The entire KTM Enduro range features an easy-to-use switchgear. On the right side of the handlebar, you’ll find a sleek start/stop switch, and on the left, an optional Map Select switch will allow riders to choose between Map 1 or Map 2.
RIDE MORE
CPC Fuel Connector
A protection cap is used for the CPC fuel connector on all models. This not only prevents dirt from entering the sides of the connector and prevents mistakenly opening, but also adds protection from sticks or stones that might hit it. The small fuel filter in the fuel hose still stays in place and is easily accessible.
COOL HEADED
Cooling System
Keeping cool is made even easier, thanks to a radiator closure with a standard thread opening. This makes it quicker and easier to open the radiator cap for top-ups. A standard radiator fan is fitted for additional cooling.
DROP THE CLUTCH
Quickshifter
Clutchless upshifts are the name of the game with the an optional Quickshifter. The function works by interrupting the ignition for a fraction of a second. This allows upshifting without the use of the clutch lever, while the throttle is fully opened. On the technical side, a sensor on the shift drum notices the force on the shift lever, sending the signal to the ECU and interrupting the ignition timing to slot the next gear in. The Quickshifter can also be deactivated via the map select switch and is only active from 2nd to 6th gear.
TOTAL TRACTION
Traction Control
Blasting through wet and muddy terrain just got a lot easier with the optional Traction Control function. TC analyzes throttle input from the rider and the rate at which the RPM increases in the engine. If the RPM increases too quickly, the EMS registers a loss of grip and reduces the amount of power to the rear wheel. This ensures maximum traction. Of course, it can be switched off for complete control.
SMARTER ELECTRONICS
Offroad Control Unit
The Offroad Control Unit – or OCU – is located under the seat and replaces all the electronic fuses and relays. All outputs are switched depending on signals from the voltage regulator and the ECU continuously. In the event of over-current, outputs are deactivated individually. This makes for easy error detection as the status of each output is indicated by a red or green LED light. This means diagnosing an electrical issue out on the trail is as easy as lifting the seat, and there’s no more need to carry fiddly fuses.
PICK YOUR POWER
Selectable Engine Maps
Designed for easy operation, the map select switch is available as an optional extra and allows for the easy selection of 2 unique engine maps. Map 1 is the standard, more linear, and predictable power map, while map 2 is a more aggressive map for added throttle response and more crisp, explosive power output.
LITHIUM POWERED
Battery & Wiring Harness
The KTM 450 XCF-W is fitted with a proven and reliable electric start system. Powered by an ultra-lightweight 2 Ah lithium-ion starter battery, it provides a safe, reliable starting time and time again, while the wiring harness has most of the electrical components carefully positioned under the seat for easy accessibility.
FLUID RIDER MOTION
Ergonomics
The KTM 450 XCF-W features a rider-focussed body-position triangle, providing improved knee contact – especially when standing on the pegs – with improved gripping surfaces all around. With the plastics working to expel mud buildup in wet, muddy conditions, a flat seat profile with a high grip seat cover providing exceptional rider movement and control, and a polyamide-reinforced aluminum subframe providing unmatched rider feel and feedback, your only concern is navigating the terrain ahead of you.
UNMATCHED PERFORMANCE
Exhaust
Providing the bark to the KTM 450 XCF-W bite, the exhaust system is designed to deliver hard-hitting performance at the lowest possible weight. The 2-piece header pipe design is made to be as compact as possible, with the routing of the header pipe extremely close to the engine for maximum of mass centralization and minimum exposure to rocks. At the nose-making end, a short, compact silencer is crafted from lightweight aluminum and finished in a premium matt black coating.
BUILT TO BE THE BACKBONE
Frame
Specifically engineered for longitudinal rigidity, the KTM Enduro range is engineered around a black powder coated frame providing exceptional rider feedback, energy absorption, and high-speed stability. This is achieved by repositioning the rotating masses in the frame along with a forged steering head connection. The footrest mounts also feature a slim design for less risk of hooking up. And when the ride comes to an end, a forged one-piece side stand ensures your enduro weapon stands proud.
MORE THAN A SUBFRAME
Subframe
An ultra-light lightweight subframe takes charge at the rear of the main frame, featuring a 2-part polyamide and reinforced aluminum construction. With the help of computational dynamics, a specific rigidity was engineered into the subframe, to deliver outstanding handling and rider feedback. This compact subframe design also boasts the the ability to bend and flex in the event of a crash, rather than break, with the subframe fully integrating electronic components, without any extra need for brackets, holders, or unnecessary fixtures.
UNFLAPPABLE FRONT END
WP XACT Closed-cartidge Fork
A 48 mm WP XACT Closed Cartridge spring fork provides fast and consistent damping, with optimized oil flow. This means these forks ensure unmatched performance at every level. Fork protection rings also protect against dirt intrusion. But, best of all, the fork allows for full adjustment of compression and rebound without the need for any tools.
GET THE POWER DOWN
WP XACT Shock
Remaining a hallmark of KTM Enduro weaponry, the PDS rear shock concept improves the anti-squat behaviour of the chassis. This remains the most reliable and maintenance-friendly option for competitive enduro racing. Moreover, a lightweight WP XPLOR PDS rear shock takes charge at the rear.
WHERE RUBBER MEETS DIRT
Wheels and Tires
The KTM 450 XCF-W rolls on a set of high-strength GIANT alloy wheels coupled to CNC-machined hubs and aluminum nipples. These are wrapped in a set of ultra-grippy Dunlop AT82 tires providing exceptional traction in all conditions.
HOLD THE LINE
Stability
The KTM 450 XCF-W remains rock-solid at any speed thanks to a repositioned and forged steering head connection and CNC-milled triple clamps. Made from high-grade aluminum, these feature optimally tuned steering stem stiffness, perfect alignment of the fork tubes, and precise geometry of the fork clamps to ensure highly responsive and smooth fork action – not to mention unwavering stability for those ultra-fast flat-out special stages.
SEE INTO THE FUTURE
LED headlight
Lighting the way forward, the KTM 450 XCF-W range features an LED headlight unit and light mask. The mask itself features improved triple clamp protection against roost and does away with the rubber mounting straps for improved fitment. Most importantly, the LED lighting unit provides serious illumination, making riding in the dark a completely new experience.
Graphics
The KTM Enduro range steps forward with a bold new colorway. Dominant orange is paired with black and red accents, delivering a distinctive and unmistakably READY TO RACE look. In-mold graphics guarantee long-lasting finish, while a black high-grip seat cover enhances rider control. Matching textures across the frame protectors, tank spoilers, and bar pad create a unified, performance-driven aesthetic.
2027 KTM 450 XCF-W – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $12,499 USD
Canada MSRP Price: $ 14,834 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Engine
Design
1-cylinder, 4-stroke engine
Displacement
449.9 cm³
Transmission
6-speed
Fuel-mixture generation
Keihin EFI, throttle body 42 mm
EMS
Keihin EMS
Clutch primary drive teeth
72
Primary drive
29:72
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
4-Stroke
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminum-reinforced polyamide
Chain
520 X-Ring
Suspension
Front suspension
WP XACT-USD, Ø 48 mm
Rear suspension
WP XPLOR shock absorber with PDS
Suspension travel (front)
300 mm
Suspension travel (rear)
310 mm
Front suspension adjustment
Compression and rebound adjustable
Rear suspension adjustment
Compression and rebound adjustable
Dimensions
Seat height
963 mm
Ground clearance
347 mm
Tank capacity (approx.)
8.5 l
Weight (without fuel)
107.5 kg
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
