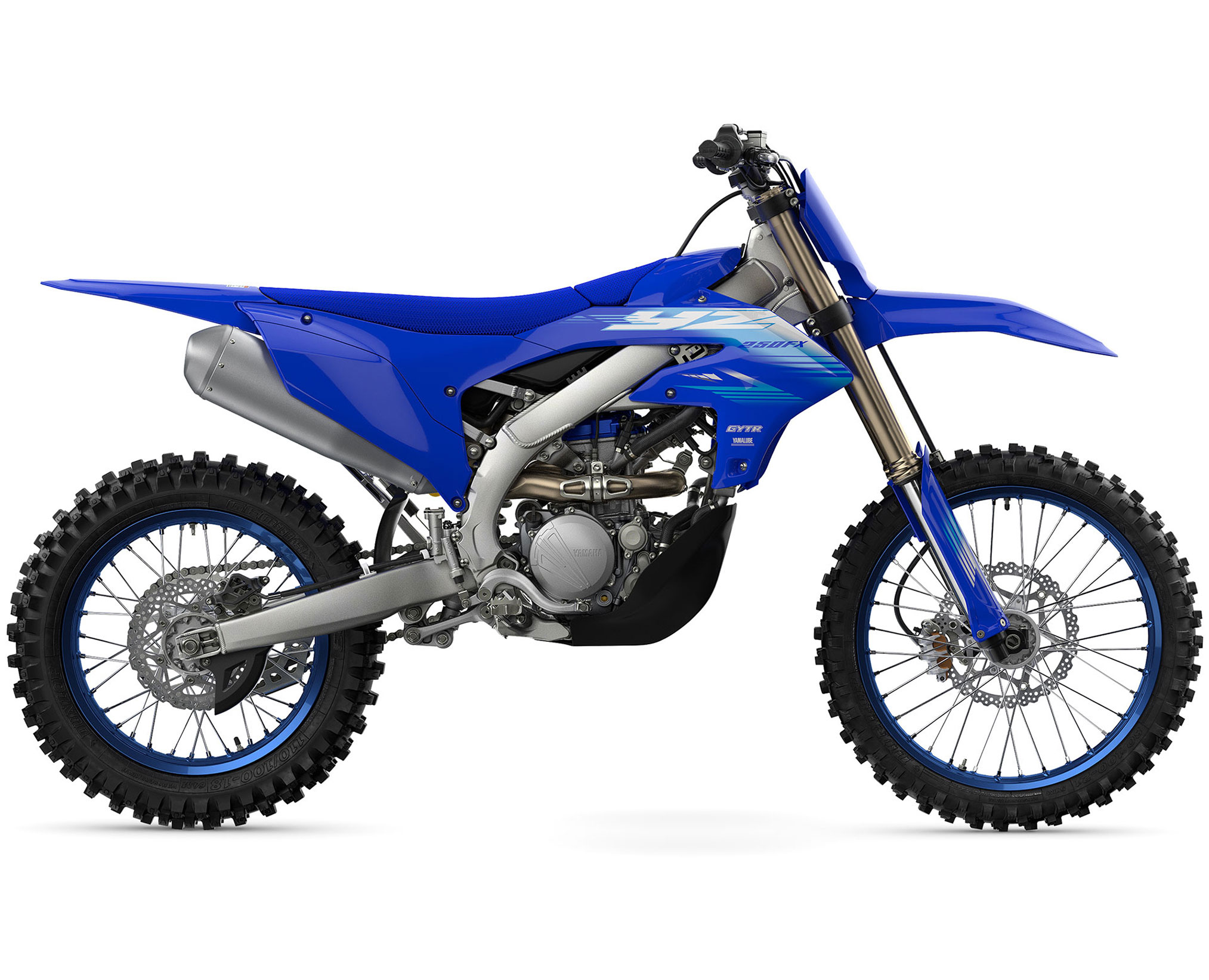

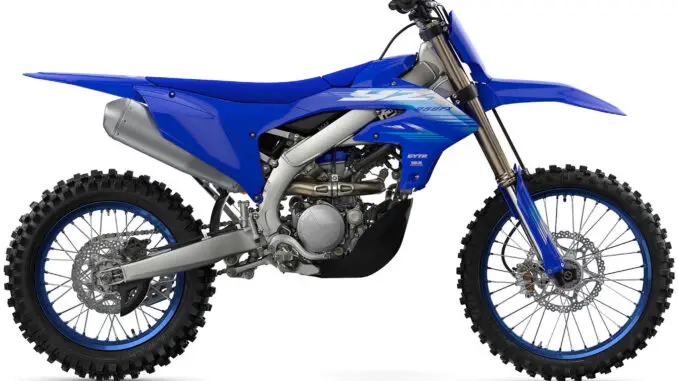

2027 Yamaha YZ250FX: PURE CROSS COUNTRY PERFORMANCE.
Introducing the new 2027 Yamaha YZ250FX…
The YZ250FX delivers big power and light, agile performance while incorporating an advanced chassis and rider-focused ergonomics for carving up cross country courses.
Based on the championship-winning YZ250F, a lightweight, compact chassis offers improved agility and handling in tight, technical terrain, along with better ergos and a more comfortable riding position for less fatigue over greater distances. The perfect weapon for carving up cross country courses.
Advanced 250cc Four-Stroke Engine
Tuned for cross country performance, the compact, powerful YZ250FX engine features a high-spec piston, aggressive cam profiles and forward positioned intake cylinder head layout. The advanced four-stroke engine is known for its broad, useable powerband and class-leading low-end and mid-range torque.
Innovative Yamaha Power Tuner App
Yamaha’s free, downloadable, and industry-leading Power Tuner App brings the flexibility and precision of the GYTR® Power Tuner straight to your smartphone. Dial in fueling and ignition timing changes on the app, then instantly upload them to your bike for ultimate trackside tuning. Features include an intuitive “Simple Tuning” slide bar for engine mapping, four-level Traction Control and Launch Control tuning, a lap timer, and helpful engine and suspension tuning guides.
Advanced Aluminum Bilateral Beam Frame
The YZ250FX’s advanced aluminum bilateral beam frame provides just the right amount of strength and flex for the perfect balance of stability and cornering performance. The result is a well-handling machine with a light feel, controllable agility and increased traction, allowing the rider to charge corners with confidence.
Class-Leading Suspension
Unmatched championship-winning performance comes from the fully adjustable KYB® coil spring-type fork with speed-sensitive damping that delivers exceptional balance between handling and bump absorption. The fork includes a hand-adjustable knob for toolless compression adjustment. Linkage-type rear suspension features a KYB® shock with specially tuned settings providing excellent stability and less pitch on corner entry/exit.
Cross Country Features
The YZ250FX comes race-ready out of the crate with an electric starting system, a 2.1-gallon fuel tank, wide-ratio six-speed transmission, rugged plastic skid plate, 18-inch rear wheel, sealed drive chain and high performance Dunlop® Geomax MX33 tires.
2027 Yamaha YZ250FX Totalmotorcycle.com Key Features
- 250cc DISPLACEMENT
- 243 lb WET WEIGHT
- 37.6 in SEAT HEIGHT
- 57.9 in WHEEL BASE
- An updated Launch Control System controlled through the Power Tuner App optimizes launches when the gate drops.
- New for 2026, an industry-first ECU lock function prevents theft and unauthorized engine start-up via a password-required lock.
- A forged piston features a bridge-box design for maximized strength with minimal weight.
- Intake ports, cam profiles, high-strength connecting rod and optimized crank combine to produce potent high-rpm power.
- A more efficient intake path and revised ECU settings result in better top-end performance and improved over-rev character.
- A redesigned aluminum bilateral beam frame is tuned to provide the perfect balance of stability and cornering performance.
- Fully adjustable Speed Sensitive KYB® fork delivers exceptional balance between handling and bump absorption.
2027 Yamaha YZ250FX Totalmotorcycle.com Features and Benefits
ENGINE
44mm Fuel Injection System
The adjustable fuel injection system uses a 44mm throttle body to ensure optimum fuel atomization and air/fuel calibration.
Adjustable Launch Control
A Launch Control System controlled through the Power Tuner App optimizes launches when the gate drops.
Bridge-Box Forged Piston
A forged piston features a bridge-box design for maximized strength with minimal weight.
Broad-Power 250cc Engine
The YZ250FX’s 250cc four-stroke engine is renowned for broad, useable power and class-leading low-end and mid-range torque.
Centrally-Mounted Electric Starter
A compact, centrally-mounted electric starter system simplifies starting and minimizes restart delays for added convenience.
ECU Anti-Theft Lock
An ECU lock function through the Power Tuner App helps prevent theft and unauthorized engine start-up.
Four-Level Traction Control
Four-level Traction Control selectable within the Yamaha Power Tuner App maintains ideal rear wheel traction.
Handlebar Map Switchbox
Handlebar-mounted switchbox allows on-the-fly selection between two preloaded engine maps with the push of a button.
Heavy-Duty 15-Plate Clutch
The YZ250FX features a large-diameter 15-plate clutch to withstand the extreme demands of cross country racing.
High-RPM Power Components
Intake ports, cam profiles, high-strength connecting rod and optimized crank combine to produce potent high-rpm power.
Low-Friction Piston Assembly
The piston, rings and DLC-coated piston pin, along with the offset cylinder configuration, all reduce friction loss.
Mass-Centralizing Exhaust Design
An innovative exhaust pipe design improves mass centralization and power characteristics.
Power Tuner App Connectivity
Yamaha’s industry-leading Power Tuner App allows owners to tune air/fuel mixture and ignition timing to suit their preference.
Simple Tuning Slide Bar
A “Simple Tuning” slide bar simplifies engine mapping within the Power Tuner App.
Wide-Range Six-Speed Transmission
A six-speed transmission ensures the right gear is available for the wide variety of terrain found in cross country racing.
CHASSIS/SUSPENSION
Adjustable Tapered Handlebar Mounts
Tapered aluminum handlebars are secured to four-position adjustable handlebar mounts.
Dunlop® Geomax MX33 Tires
Premium Dunlop® Geomax MX33 tires maximize traction while delivering excellent durability.
Hand-Adjustable Compression Knob
KYB® fork includes a hand-adjustable knob for easy compression adjustments.
Lightweight Durable Wheels
Strong, lightweight wheels reduce unsprung weight without sacrificing durability.
Optimized Rider Triangle
The rider triangle is improved with increased legroom between the seat and foot pegs for greater rider comfort.
Powerful Dual-Disc Brakes
Large 270mm front and 240mm rear discs combine with Nissin calipers to provide exceptional stopping power and control.
Slim, Rider-Friendly Bodywork
The YZ250FX’s aggressive body design is slim, flat and eases rider movement for improved control.
Speed Sensitive KYB® Fork
Fully adjustable Speed Sensitive KYB® fork delivers exceptional balance between handling and bump absorption.
Stability-Tuned KYB® Rear Shock
A linkage-type rear suspension with KYB® shock is tuned to provide less pitch and improved stability.
Tuned Aluminum Bilateral Frame
An aluminum bilateral beam frame is tuned to provide the perfect balance of stability and cornering performance.
Wide 55mm Foot Pegs
Wide 55mm foot pegs provide additional control and comfort.
ADDITIONAL FEATURES
Embedded Durable Graphics
Premium competition-inspired graphics are embedded to provide excellent durability and scratch resistance.
Enduro-Ready Standard Equipment
Built for enduro with a 2.1-gallon fuel tank, rugged plastic skid plate, 18-inch rear wheel and sealed drive chain.
Tool-Free Air Filter Access
Sleek air cleaner cover provides tool-free access to the air filter for simplified servicing.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2027 Yamaha YZ250FX – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price starting at: $9,099 USD
Canada MSRP Price starting at: $12,349 CDN
Europe/UK MSRP Price starting at: £ See Dealer GBP (On The Road inc 20% Vat)
ENGINE
| Engine Type | 250cc liquid-cooled DOHC 4-stroke; 4 titanium valves |
| Bore x Stroke | 77.0mm × 53.6mm |
| Compression Ratio | 13.8:1 |
| Fuel Delivery | Mikuni® fuel injection, 44mm |
| Transmission | Constant-mesh 6-speed; multiplate wet clutch |
| Final Drive | Chain |
| Fuel Capacity | 2.1 gal |
CHASSIS
| Suspension/Front | KYB® spring-type fork with speed sensitive damping; fully adjustable, 11.8-in travel |
| Suspension/Rear | KYB® single shock; fully adjustable, 12.0 in travel |
| Brakes/Front | Hydraulic disc, 270mm |
| Brakes/Rear | Hydraulic disc, 240mm |
| Tires/Front | 80/100-21 Dunlop® Geomax MX33F |
| Tires/Rear | 110/100-18 Dunlop® Geomax MX33 |
DIMENSIONS
| LxWxH | 85.4 in x 32.5 in x 49.8 in |
| Seat Height | 37.6 in |
| Wheelbase | 57.9 in |
| Rake (Caster Angle) | 27° |
| Trail | 4.8 in |
| Max. Ground Clearance | 13.0 in |
| Fuel Capacity | 2.1 gal |
| Wet Weight*** | 243 lb |
OTHER
| Warranty | 30 Day (Limited Factory Warranty) |
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
