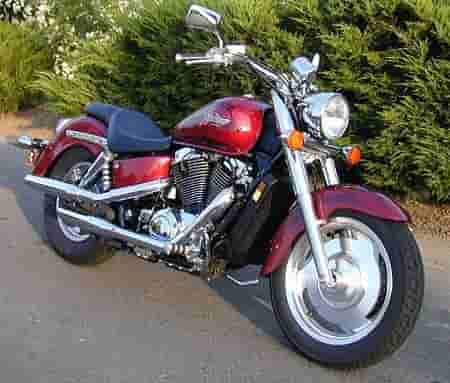

2001 Honda VT1100C2 Shadow Sabre

2001 Honda VT1100C2 Shadow Sabre

2001 Honda VT1100C2 Shadow Sabre



– 2001 Honda VT1100C2 Shadow Sabre

The 2000 Shadow Sabre is a bold new street-rod designed for the rider who wants the highest-performance V-twin custom in Honda’s lineup.

Exclusive Features
· The Shadow Sabre’s engine pumps out class-leading low-end and mid-range power for superb acceleration and gratifying roll-on performance.
· Street-rod styling features chrome fork-leg covers, deeply valanced fenders and beautiful cast aluminum wheels machined to a satin finish.
· Dragster-style seat boasts a low, 690mm seat height for flat-footed confidence during low-speed maneuvers.
· Rider comfort is enhanced with comfortable ergonomics and a firmly padded saddle.
· Progressive springs and plush front and rear suspension settings provide a low-slung custom look while maintaining excellent handling characteristics.

Engine
· The engine’s broad power delivery and five-speed transmission provide spirited performance and exceptional rideability around town or on the open road.
· Rubber-mounted engine with offset-dual-pin crankshaft provides perfect primary balance, enhances engine smoothness and delivers superior rider comfort.
· Three-valve cylinder head design utilizes two spark plugs per cylinder for efficient combustion and high power at all rpm.
· Maintenance-free hydraulic valve-lash adjusters eliminate routine valve adjustments.
· Other maintenance-free features include solid-state digital ignition and automatic cam-chain tensioners.
· Dual 36mm CV carburetors offer crisp throttle response at all rpm.
· Reliable electric-starter system.
· Extensive chrome finishing of engine parts includes crankcase covers, clutch cover and left rear engine cover.
· Black-finished crankcases and cylinders with buffed fin edges complete the custom street-rod look.
· Chromed dual-exhaust system enhances appearance and produces throaty exhaust note.

Chassis/Suspension
· Low, 690mm seat height, comfortable dragster-style seat and semi-swept handlebar combine to create a superbly comfortable riding position.
· Specially designed sturdy steel frame gives the Shadow Sabre a long, low custom stance.
· Large, 41mm extended front fork provides 120mm of plush yet responsive travel.
· Dual chromed rear shocks have 100mm of wheel travel and feature an advanced internal valve system for a comfortable ride.
· Front disc brake features a twin-piston caliper with a large-diameter 316mm rotor. Combined with the rear single-piston caliper and 276mm brake disc, they provide excellent stopping power.
· Strong cast aluminum wheels.
· Wide, low, 120/90-18 front tire enhances street-rod styling and contributes to a comfortable ride.
· Massive, 170/80-15 rear tire offers a wide footprint and a radical custom look.
· Shaft final-drive system provides smooth, low-maintenance operation.

Additional Features
· Large, 16.8 litre gas tank offers extended cruising range.
· Speedometer face features white background with large, easy-to-read numerals.
· Solid aluminum footpegs with wide rubber trim enhance the cutom street-rod look.
· Polished aluminum handlebar switch-housings and triple-clamp assembly.
· Comfortably padded large-diameter handgrips.
· Handlebar switches and controls use internationally approved ISO graphic symbols.
· Convenient push-to-cancel turn-signal switch.
· Powerful 55W/60W halogen headlight.
· Durable, maintenance-free 14-amp hour battery.
· Transferable one-year unlimited-mileage limited warranty.

Available Accessories
· Chrome backrest with pad.
· Leather saddlebags.
· Leather touring bag.
· Tank belt.
· Cycle cover.
· Chrome items include: backrest trim, rear carrier, rider floorboards, passenger floorboards, radiator guard, radiator trim, sidecovers, front fender guard rail, front fender extension, rear fender extension, passing lamp kit, spotlight visors, saddlebag supports, headlight visor, oil filler cap, master cylinder cap, handlebar risers, handlebar clamp, driveshaft cover, triple-clamp covers, front fender ornament, handlebar levers, clutch lever brackets, lever bracket holders and horn.
· Billet items include: backrest trim, rider footpegs, passenger footpegs, driveshaft bolts cover, front tank mount cover, dipstick, oil filler cap, master cylinder cap, license plate frame, ignition and clutch covers, coolant filler assembly, handlebar clamp, handlebar clamp and speedometer cover, and caliper caps.

Specifications:

Engine
1099cc liquid-cooled 45-degree V-twin, dual off-set crankpin

Bore and Stroke
87.5mm x 91.4mm

Compression Ratio
8.0:1

Valve Train
SOHC; three valves per cylinder, self adjusting hydraulic

Carburetion
Two 36mm diaphragm-type CV

Transmission
Five-speed wide ratio

Final Drive
Shaft

Front Suspension
41mm fork; 120mm travel

Rear Suspension
Dual shocks with five-position spring preload adjustability; 100mm travel

Front Brakes
Single 316mm disc with twin-piston caliper

Rear Brakes
Single 276mm disc with single-piston caliper

Front Tires
120/90-18

Rear Tires
170/80-15

Wheelbase
1640mm (64.6 in.)

Seat Height
690mm (27.2 in.)

Dry Weight
260.5 kg (573.2 lbs.)

Fuel Capacity
16.8 litres (3.7 Imp. gal.)

Specifications are subject to change without notice, in accordance with national regulation and legislations.
