2003 Suzuki SV650

Back to 2003 Suzuki Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

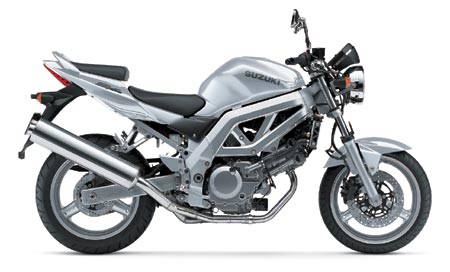

2003 Suzuki SV650

2003 Suzuki SV650



– 2003 Suzuki SV650

Sportbike SV650 – 2003 SV650K3

NEW FEATURES:

– Naked version SV650 with all-new frame, electronic fuel injection and an exciting new look.

– Tube-style handlebar for more upright seating position, plus single, round-style 60/55W headlight

– Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV)- maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output. Includes Auto Fast Idle System (AFIS).

– New 16-bit ECM provides precise control of ignition timing and injector operation for each cylinder.

– Large throttle bodies fed by an 8.5 liter airbox with a flat-panel air filter for easy maintenance.

– Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light.

– Steeply angled tail section houses unique vertically-styled, high visibility LED taillight

– Narrow, lightweight aluminum truss-style frame is constructed using high-vacuum die-cast process for more consistent strength and fewer individual welded sections.

– Large under-seat storage area, passenger grab-bar and tie-down hooks.

– New-style 4.7 gallon fuel tank with low-fuel warning light.

KEY FEATURES:

– Compact 645 cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power.

– 90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact.

– Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves.

– High capacity liquid-cooling system enhances engine performance and durability. Coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight.

– Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase.

– Plastic outer clutch cover and engine sprocket cover for reduced weight and noise.

– Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque.

– 41mm front forks with 130 mm of wheel travel provide a smooth, compliant ride.

– Link-type single-shock rear suspension with 7-way adjustable preload.

– Box-section aluminum swingarm is lightweight with high torsional rigidity.

– Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position.

– Single disc rear brake with 240 mm rotor.

– Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels.

– Hinged fuel tank swings up for easy access to the airbox and carburetors.

SPECIFICATIONS
MSRP: $5,899.00
Engine: 645 cc, four-stroke, liquid cooled, 90° V-twin, DOHC, 8-valves, TSCC. 70 hp (51.5 kW)/ 9,000 rpm, 61.7 Nm/ 7.400 rpm.
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 81.0 x 62.6 mm
Compression ratio: 11.5:1
Fuel System: Fuel Injection
Lubrication: Wet Sump
Ignition: Digital/Transistorized
Starter: Electric
Transmission: 6-speed
Final Drive: #525 chain
Overall Length: 2120 mm (83.5 in.)
Overall Width: 790 mm (31.1 in.)
Overall Height: 1030 mm (40.6 in.)
Seat Height: 800 mm (31.5 in.)
Ground Clearance: 133 mm (5.2 in.)
Wheelbase: 1435 mm (56.5 in.)
Dry Weight: 165 kg (364 lbs.)

Suspension:
FRONT: Telescopic, coil spring, oil damped, fully adjustable preload
REAR: Link-type, 7-way adjustable spring preload
Brakes:
FRONT: Dual hydraulic disc
REAR: Single hydraulic disc
Tires:
FRONT: 120/60-ZR17
REAR: 160/60-ZR17
Fuel Tank Capacity: 17 liter (4.5 gal.)
Color: Silver, Blue

Specifications are subject to change without notice, in accordance with national regulation and legislations.
