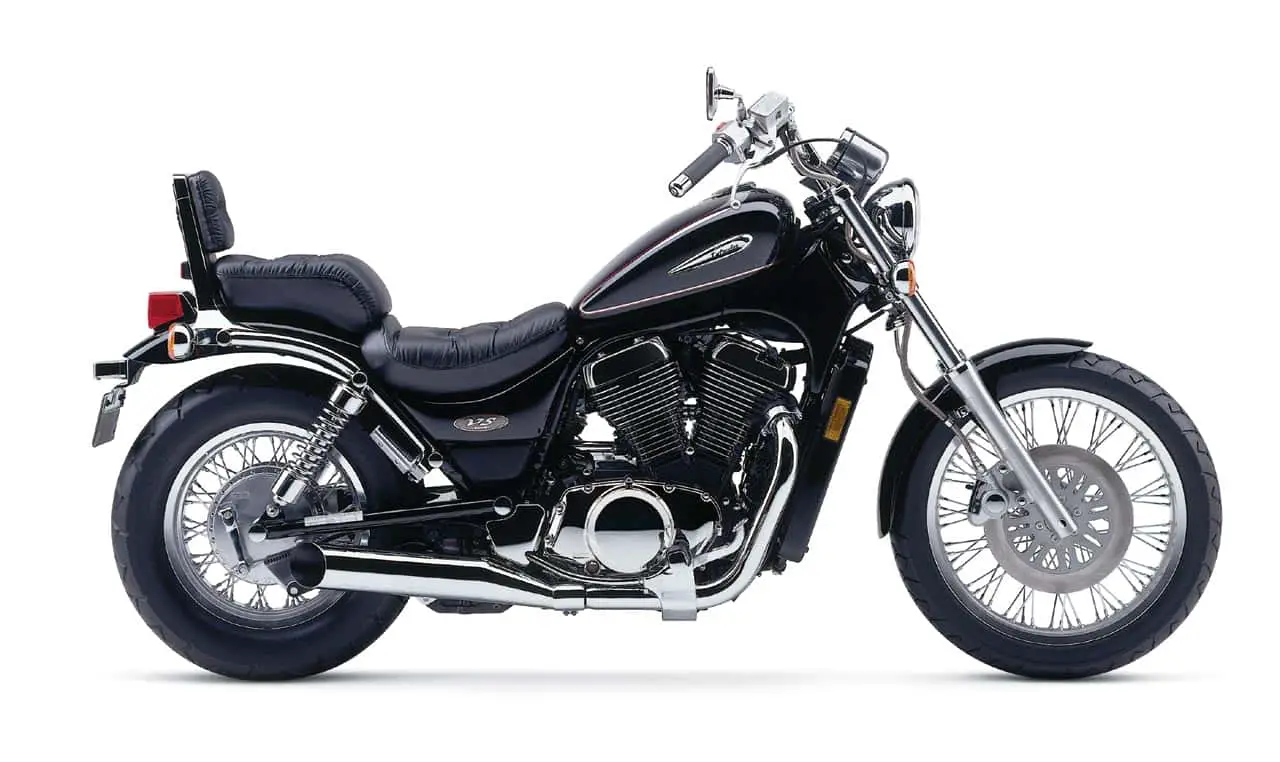

2003 Suzuki VS 800 Intruder
2003 Suzuki VS 800 Intruder

2003 Suzuki VS 800 Intruder
2003 Suzuki VS 800 Intruder



– 2003 Suzuki VS 800 Intruder

Cruiser INTRUDER® 800 – 2003 VS800GLPK3

KEY FEATURES:

– Slim, narrow 45 degree V-twin 805cc, 8-valve engine with Twin Swirl Combustion Chambers produces strong low and mid-range torque

– 45 degree phase, dual-pin crankshaft reduces vibration.

– Responsive, constant-velocity carburetors.

– Silent operation cam chains with automatic tensioners never need adjustment.

– Computer-controlled, maintenance-free electronic ignition.

– Hydraulic clutch eliminates maintenance adjustment.

– Low-maintenance, low-torque-reactive shaft drive.

– Custom-looking chrome exhaust and muffler system provides good looks and throaty exhaust sound.

– Narrow double cradle frame.

– Unique shaft drive/swingarm design.

– 19″ front wheel.

– 60-spoke rear wheel with polished aluminum rim.

– Lightweight (443 lbs.)

– Low seat height (only 27.6 inches).

– Large sissy bar and pad.

– Tripmeter

– Push-to-cancel turn signal switch for easier turn signal operation.

– Wide one-inch diameter, custom-style handlebars.

– Wiring is routed inconspicuously inside the handlebar.


High quality chrome plated parts:

-Engine side covers
-Grab rail
-Front fork brackets
-Rear suspension upper pivot caps
-Exhaust head pipes and mufflers
-Side stand
-Rider’s footrests
-Front brake caliper cover



SPECIFICATIONS
MSRP: $6,399.00
Engine: 805cc, four-stroke, liquid cooled, 45 degree V-twin, SOHC, 8-valves, TSCC. 50 hp (36.8 kW)/ 6,500 rpm, 62 Nm/ 4,000 rpm.
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 83.0 x 74.4mm
Compression ratio: 10.0:1
Fuel System: Front: Mikuni BDS36 Rear: Mikuni BS36
Lubrication: Wet Sump
Ignition: Digital/transistorized
Starter: Electric
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2250mm (88.6 in.)
Overall Width: 885mm (34.8 in.)
Overall Height: 1180mm (46.5 in.)
Seat Height: 700mm (27.6 in.)
Ground Clearance: 125mm (4.9 in.)
Wheelbase: 1560mm (61.4 in.)
Dry Weight: 201kg (443 lbs.) 202kg (445 lbs.) CA model

Suspension:
FRONT: Telescopic, coil spring, oil damped
REAR: Swingarm, oil damped, 5-way adjustable spring preload
Brakes:
FRONT: Single hydraulic disc
REAR: Single drum
Tires:
FRONT: 100/90-19 57H
REAR: 140/90-15 M/C-70H
Fuel Tank Capacity: 12 liter (3.2 gal.) 11 liter (2.9 gal.) CA model
Color: Silver, Black

Specifications are subject to change without notice, in accordance with national regulation and legislations.
