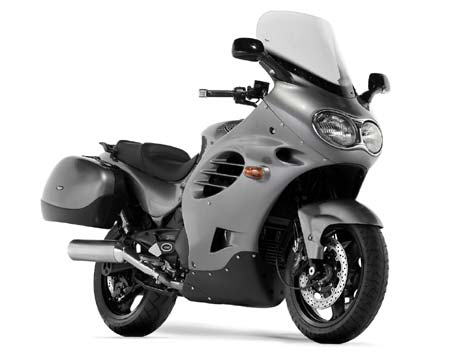

2003 Triumph Trophy
2003 Triumph Trophy

2003 Triumph Trophy
2003 Triumph Trophy

2003 Triumph Trophy
2003 Triumph Trophy

2003 Triumph Trophy
2003 Triumph Trophy


– 2003 Triumph Trophy

2003 Triumph Trophy

Trophy 1200

When a motorcycle continues to be in demand year after year, there’s undoubtedly an attraction and a charm to it that goes way beyond mere specification. The enduring Trophy is one such machine – powerful, supremely comfortable and with a capacious fully-integrated luggage system. It’s a no-nonsense, big-bore tourer in the grand style.
Behind the aerodynamically-efficient and massively protective fairing lies the heart of the machine, the potent 1180cc four-cylinder engine, cranking out a huge 104Nm (77ft lbs) of torque at only 5000rpm. With this sort of roll-on performance available, the six-speed gearbox can be left almost untouched as rapid, relaxed progress can be achieved using just top gear.
Smooth, beautifully-finished and mercifully free of electronic gimmickry, the Trophy is a machine from the traditional touring school of huge power harnessed in a rock-solid, stable chassis. When a bike is this right, year after year, it comes as no surprise that the only thing to be added for 2003 is a new colour option.


Colour Options
Azure Blue
Sunset Red

Triumph Accessories
Alarm/Immobiliser (Thatcham Category MC1 compliant)
Colour Co-ordinated Top Box
Top Box Back Rest
Pannier Inner Bags
Luggage Rack
Fork Protectors
Foot Spoilers
Heated Grips
Front Mudguard Extension
Rear Mudguard Extension



Type Liquid-cooled, DOHC, in-line 4-cylinder
Capacity 1180cc
Bore/Stroke 76 x 65mm
Compression Ratio 10.6:1
Fuel System 4 x 36mm flat slide CV carburettors
Ignition Digital – inductive type

Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Gearbox 6-speed

Frame Micro alloyed high tensile steel spine
Swingarm Twin-sided, aluminium alloy with eccentric chain adjuster
Wheels Front Alloy 3-spoke, 17 x 3.5in
Rear Alloy 3-spoke, 17 x 5.5in
Tyres Front 120/70 ZR 17
Rear 170/60 ZR 17
Suspension Front 43mm forks with triple rate springs
Rear Monoshock with adjustable preload and rebound damping
Brakes Front Twin 310mm floating discs, 4 piston calipers
Rear Single 255mm disc, 2 piston caliper

Length 2152mm (84.7in)
Width (Handlebars) 790mm (31.1in)
Height 1430mm (56.3in)
Seat Height 790mm (31.1in)
Wheelbase 1490mm (58.7in)
Rake/Trail 27°/105mm
Dry Weight 235kg (518lb)
Fuel Tank Capacity 25 litres (6.6 gal US)

(Measured at crankshaft to DIN 70020)
Maximum Power 108PS (107bhp) at 9,000rpm
Maximum Torque 104Nm (77ft.lbf) at 5,000rpm
Warranty 2 years, unlimited mileage
Service Intervals 6000 miles or one year, whichever comes first
