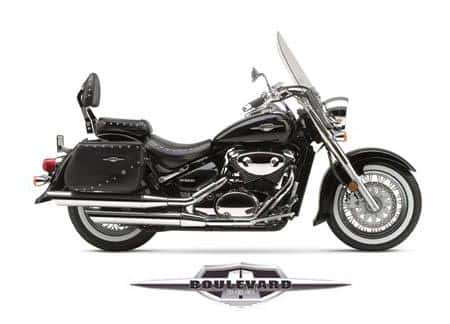

Total Motorcycle Website – 2005 Suzuki Boulevard C50T

– 2005 Suzuki Boulevard C50T

New for 2005

Touring model C50 – the only touring model in its class – equipped with the most popular accessories as standard equipment

Key Features

Custom-designed, height adjustable windshield provides classic styling and full wind protection – includes unique chrome garnish with Boulevard emblem

Attractive studded seats, plus matching touring-style backrest with unique pivoting backrest pad for increased passenger comfort

Large capacity, textured leather saddle bags with Boulevard emblems and convenient twist-lock fasteners

Large white-faced speedometer

Stylish white-wall tires – 130/90-16 front and 170/80-15 rear tire mounted on traditional spoke wheels

Engine Features

Fuel-injected, 50 cubic inch, eight-valve, liquid-cooled, 45 degree V-twin engine tuned for exceptional low rpm power and torque

GSX-R-derived electronic fuel injection system features the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

32-bit ECM provides precise control of ignition timing and multi-hole-type injectors ensuring quick startup and excellent drivability under all conditions

Fuel injection system receives input from gear position sensor, water temp. sensor, air temp. sensor and intake port sensors for efficient power delivery and better fuel economy

Crankshaft designed with 45° offset crank pins to reduce engine vibration without a counterbalancer for a more comfortable ride

Five-speed transmission features a high fifth gear ratio for relaxed highway cruising

Low-maintenance shaft final-drive system is clean-running with low torque reaction

Custom-styled exhaust designed for a deep rumbling sound and tuned low rpm power

Pulsed-secondary air-injection system introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions – CA. spec. model is equipped with a catalyst for further emission reduction

Chassis Features

Fuel tank-mounted speedometer with LCD fuel gauge, clock and indicator lights – cables and wiring are carefully routed for a detailed look

Cradle-type steel frame with color-matched sidecovers, fenders and fuel tank, plus numerous chrome-plated parts

Wide, comfortable seat with low 27.6 inch seat height – passenger seat can be removed for a bobbed rear fender appearance

Wide handlebars and forward-mounted floorboards and foot controls for more comfort around town or on the highway

Telescopic forks with polished aluminum sliders and polished stainless steel stanchion-tube covers

Long 33° rake angle and 65.2 inch wheelbase provide a smooth, comfortable ride

Link-type rear suspension connects to a truss-style swingarm and a single shock absorber with 7-way spring preload adjustment

Powerful multi-reflector headlight housed in an attractive case with stylish headlight rim – headlight switches off during startup to reduce load on battery

Bright, multi-reflector turn signals designed for high visibility and attractive appearance

Standard 4-way emergency flasher and high-beam passing switch

Traditional spoke wheels with chrome-plated rims carry a wide 130/90-16 front tire and 170/80-15 rear tire

Single front disc brake with large 300mm rotor and 180mm rear drum brake for strong braking performance

Optional accessories

All other Suzuki Boulevard Authentic Accessories will fit the C50T

Specifications

Engine: 50 cubic inch, four-stroke, liquid cooled, 45 degree V-twin, SOHC, 8-valves, TSCC
Bore Stroke: 83.0 x 74.4mm
Compression Ratio: 9.4:1
Fuel System: Electronic Fuel Injection
Lubrication: Wet Sump
Ignition: Digital
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2510mm (98.8 in.)
Overall Width: 985mm (38.8 in.)
Overall Height: 1397mm (55.0 in.)
Seat Height: 700mm (27.6 in.)
Ground Clearance: 140mm (5.5 in.)
Wheelbase: 1655mm (65.2 in.)
Dry Weight: 257kg (567 lbs.)
Suspension Front: Telescopic, coil spring, oil damped
Suspension Rear: Link-type, oil damped, 7-way adjustable spring preload
Brakes Front: Single hydraulic disc
Brakes Rear: Single drum
Tires Front: 130/90-16
Tires Rear: 170/80-15
Fuel Tank Capacity: 15.5 liter (4.1 gal.)
Color: Black
