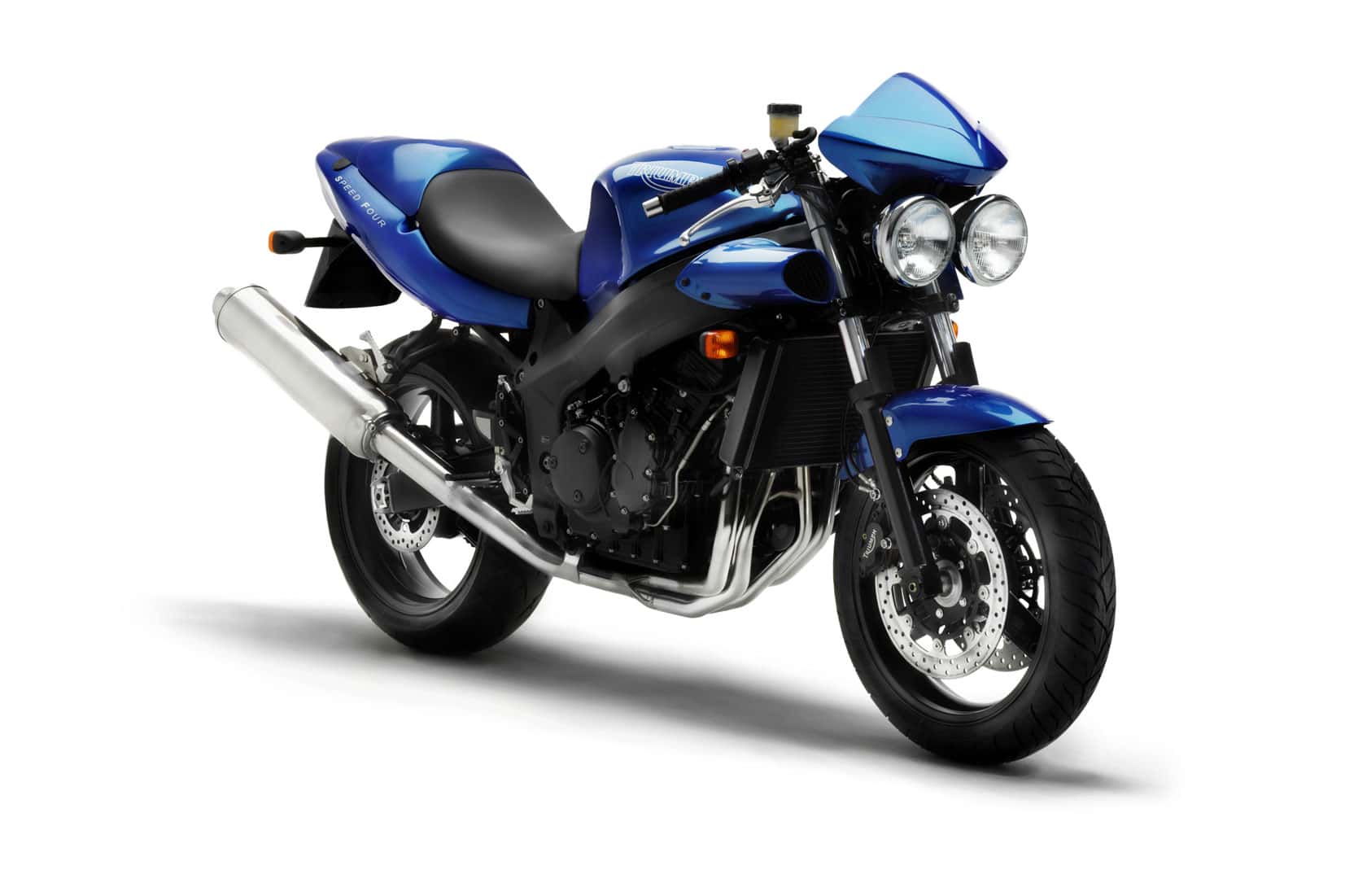

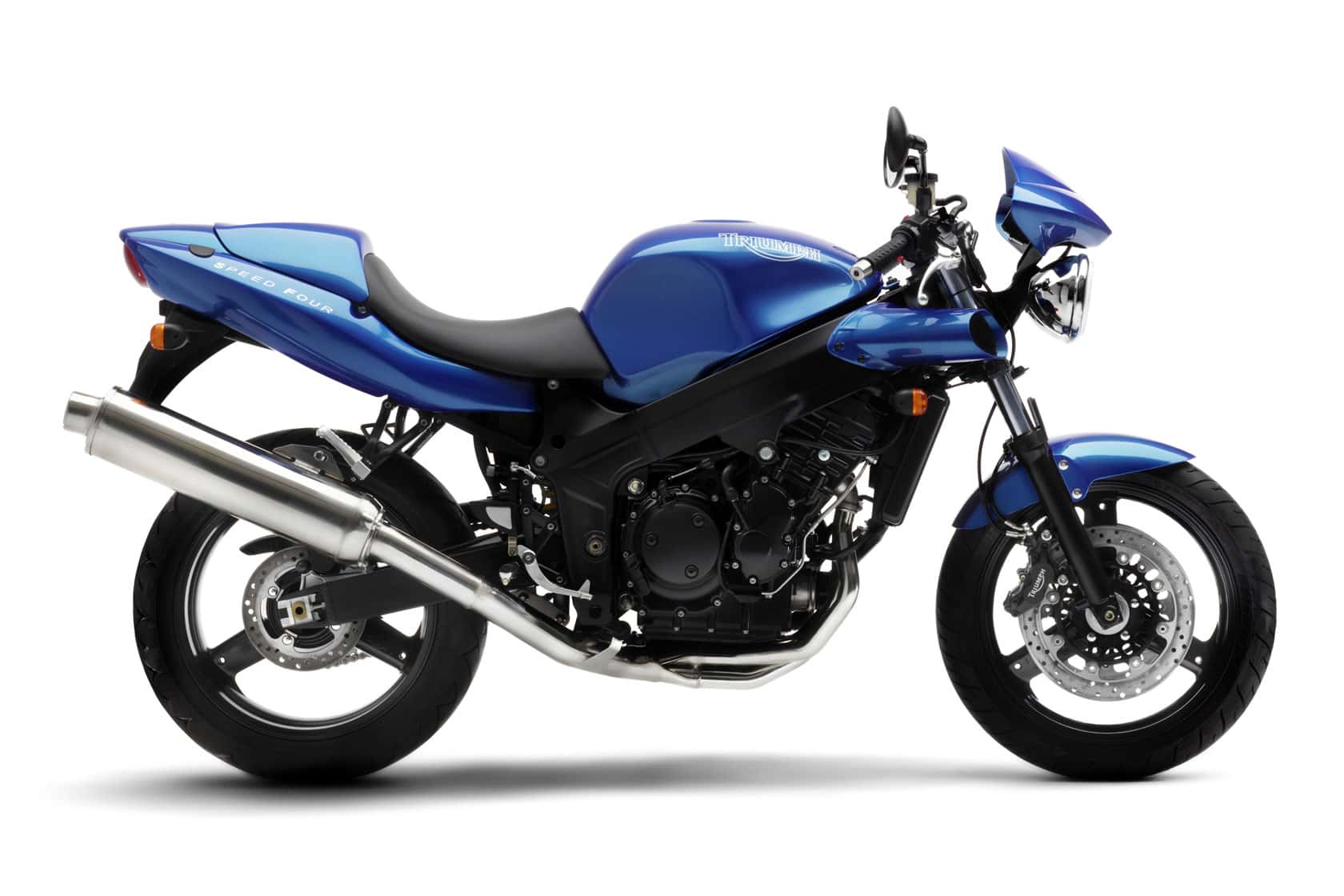

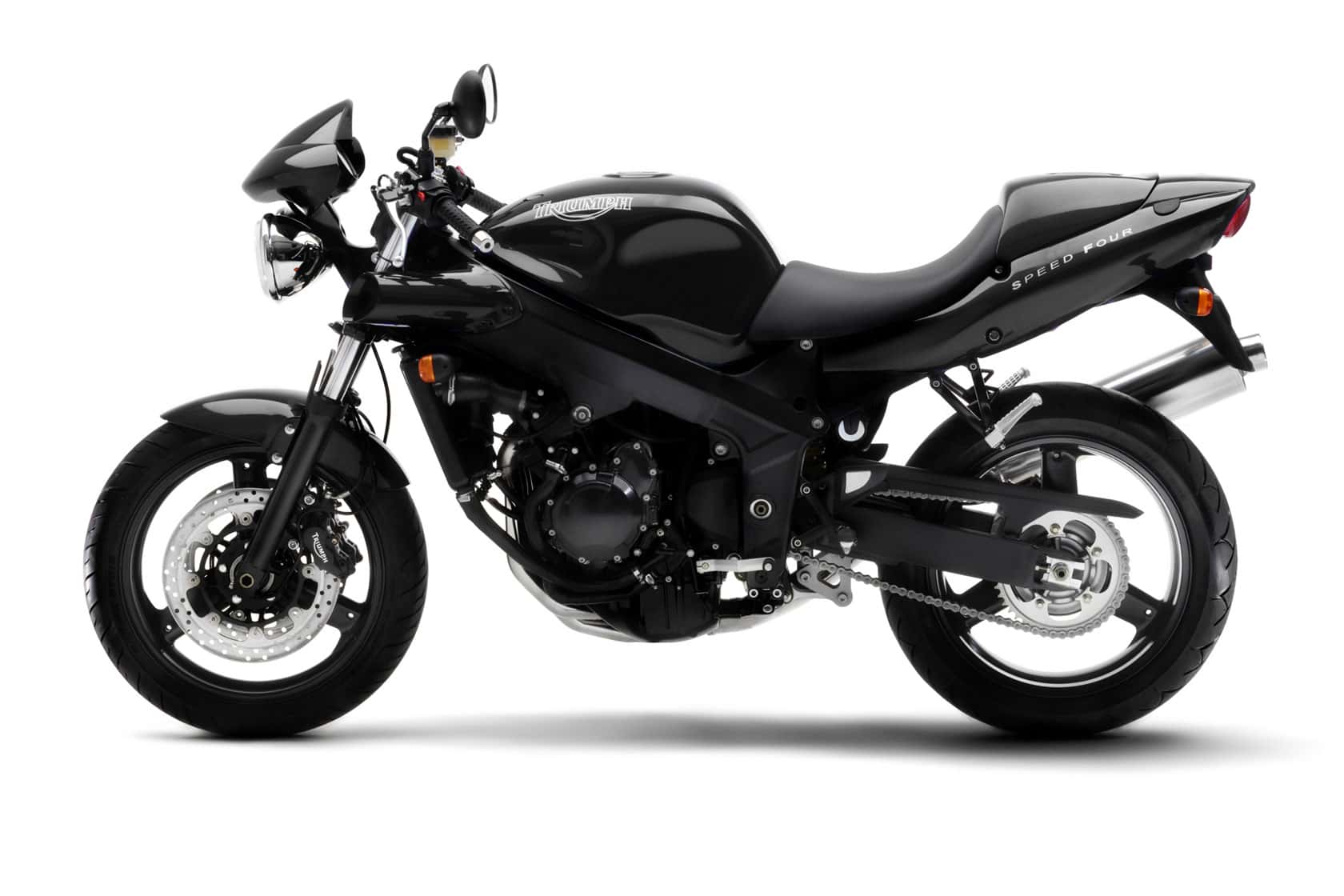

– 2005 Triumph Speed Four
All over Europe the middleweight ‘performance roadster’ class is proving to be one of the most popular segments of the market, especially with younger riders. And Triumph’s Speed Four has carved an exclusive niche by being a motorcycle a long way out of the ordinary and able to perform in many environments, from racetrack to city street, to winding back road – perhaps all in one day.
Drawn from the same supersports stock as the Daytona 650 – and with something more than a little special added, all of its own – the stunning Speed Four proves that it is all, truly, in the mix. And this mix blends a raucous engine, surgically precise handling and outrageous styling, making the Speed Four a class apart.
Completely redefining how a ‘naked’ 600cc machine should perform, feel and look the Speed Four is a highly-specified motorcycle. Its engine is a sophisticated 599cc, DOHC, sixteen-valve, liquid-cooled, four-cylinder unit, with cam profiles and EFI system specifically designed to give a broad spread of mid-range torque and driveability. The slick, six-speed gearbox allows maximum use of the engine’s output.
As does the Speed Four’s chassis. The sweet-revving engine is housed in a sharp-handling aluminium frame, which blesses the Speed Four with accurate, razor-sharp steering plus plenty of ground clearance. Fully-adjustable suspension front and rear provides a wide range of set-up options and up front a pair of massively powerful four-piston calipers clamp on 310mm floating discs. The rear wheel features a 220mm disc and lightweight single piston caliper.
The naked, bare-boned style of the Speed Four marks its individuality, unique character and eagerness to stand well clear of the workaday, homogenous masses. From its distinctive pair of chromed headlights and compact instrument cluster nestling behind the saucy little fly screen, to the twin air scoops and tasteful satin black finish on the frame, engine and swingarm, the Speed Four stands out. Paint options are simple – brooding Jet Black and, new for 2005, Neon Blue.
The Speed Four presents a unique proposition – it’s a statement of attitude mixed with a shot of pure adrenaline.
Specification changes for 2005:
– New Neon Blue paint scheme
2005 Triumph Speed Four Specifications
Type Liquid-cooled, DOHC, in-line 4-cylinder
Bore/Stroke 68 x 41.3mm
Compression Ratio 12.5:1
Fuel System Multipoint sequential electronic fuel injection with forced air induction
Ignition Digital – inductive type – via electronic engine management system
Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Frame Aluminium beam perimeter
Swingarm Twin-sided, aluminium alloy
Wheels Front Alloy 3-spoke, 17 x 3.5in
Rear Alloy 3-spoke, 17 x 5.5in
Tyres Front 120/70 ZR 17
Rear 180/55 ZR 17
Suspension Front 43mm forks with dual rate springs and adjustable preload, rebound and compression damping
Rear Monoshock with adjustable preload, rebound and compression damping
Brakes Front Twin 310mm floating discs, 4 piston calipers
Rear Single 220mm disc, single piston caliper
Length 2165mm (85.2in)
Width (Handlebars) 690mm (27.2in)
Height 1110mm (43.7in)
Seat Height 810mm (31.9in)
Wheelbase 1395mm (54.9in)
Weight (Dry) 170kg (374lbs)
Fuel Tank Capacity 18 litres (4.7 gal US)
(MEASURED AT CRANKSHAFT TO DIN 70020)
Maximum Power 98PS (97bhp) at 11,750 rpm
Maximum Torque 68Nm (51ft.lbf) at 10,500 rpm
COLOURS Jet Black, Neon Blue
Specifications are subject to change without notice, in accordance with national regulation and legislations.
