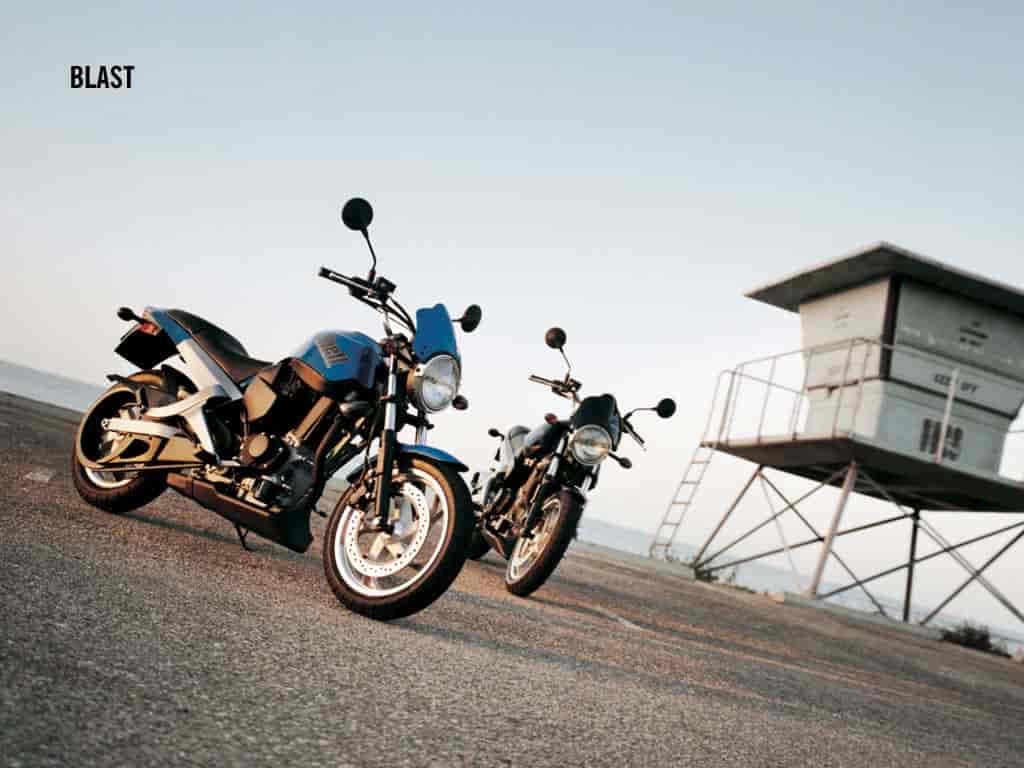

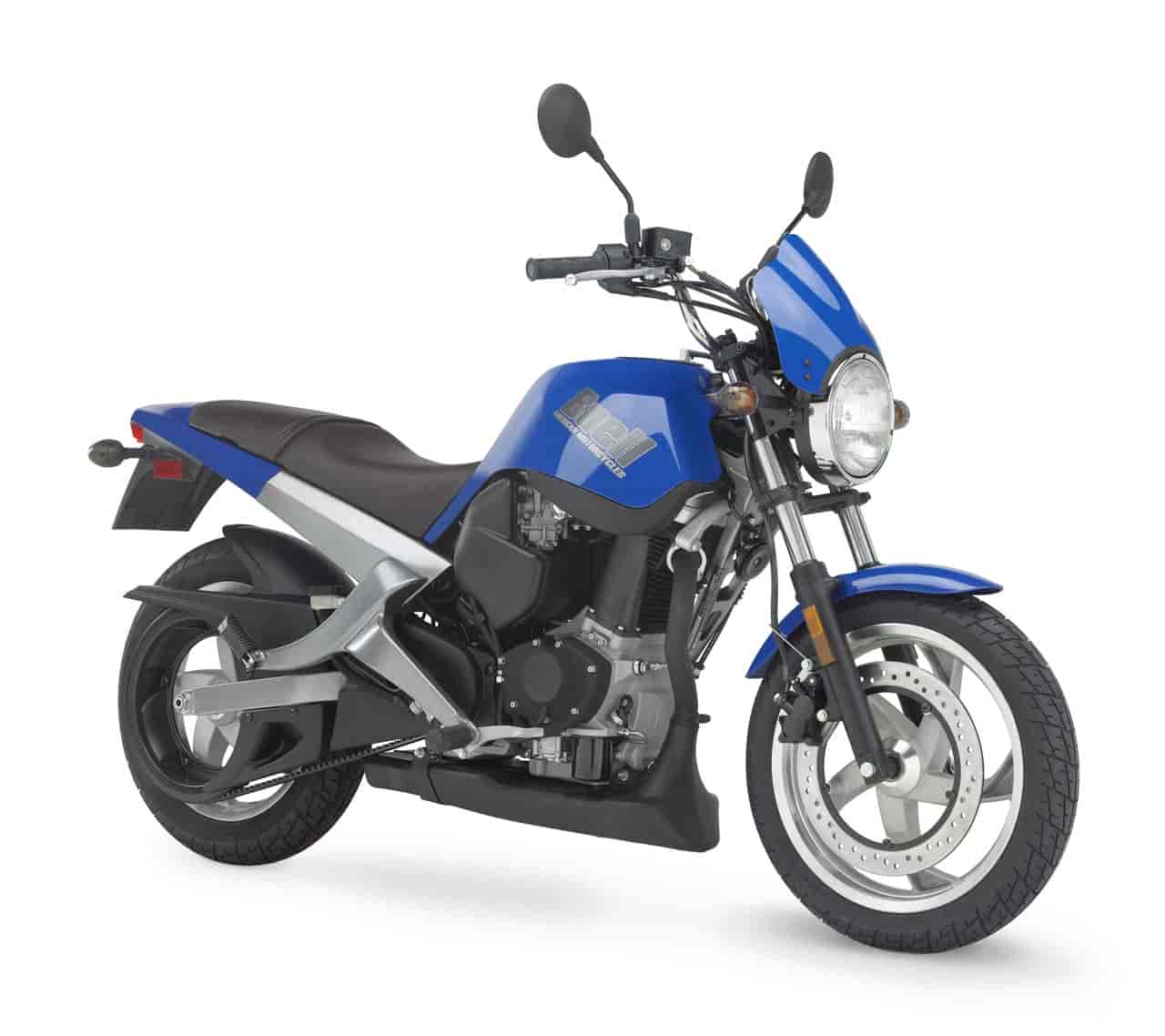

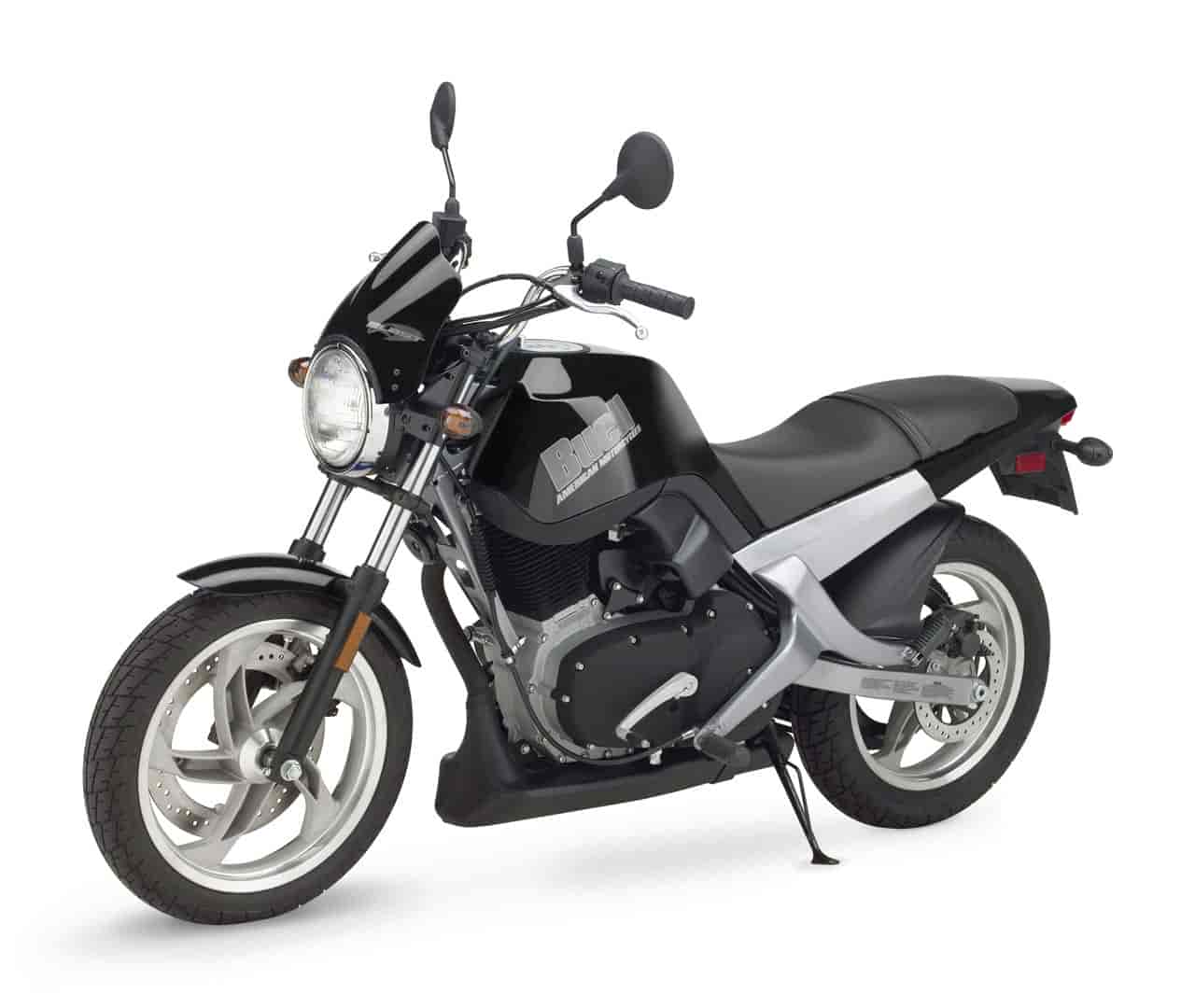

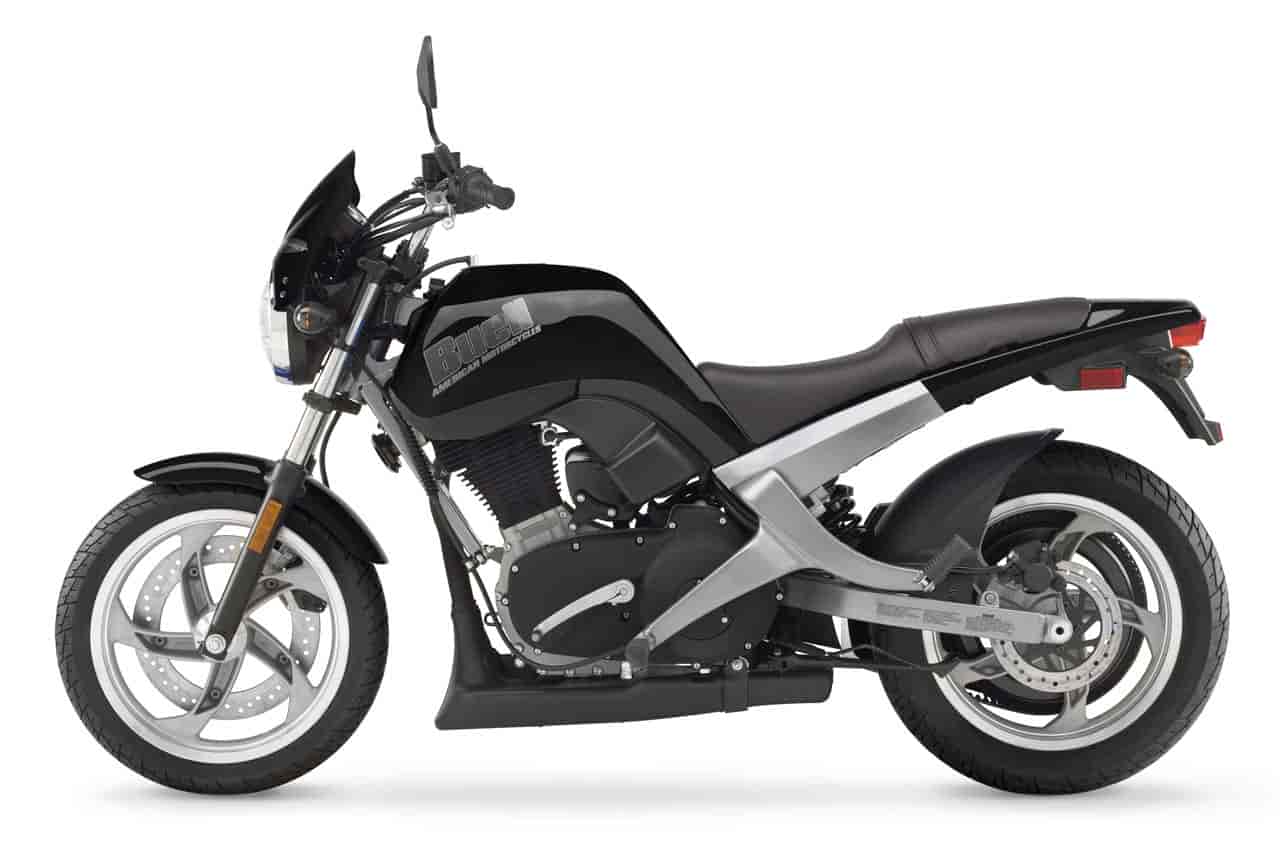

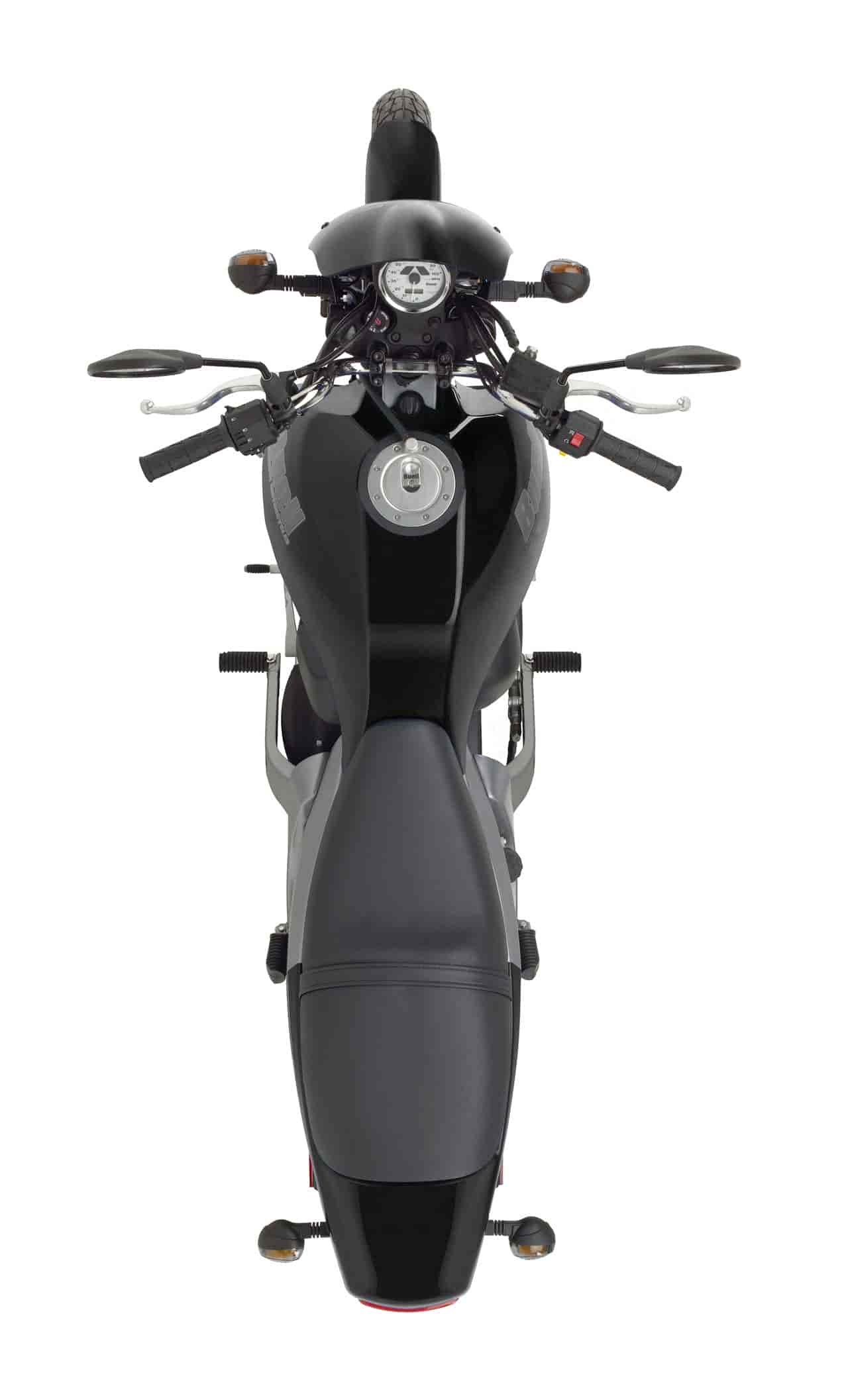

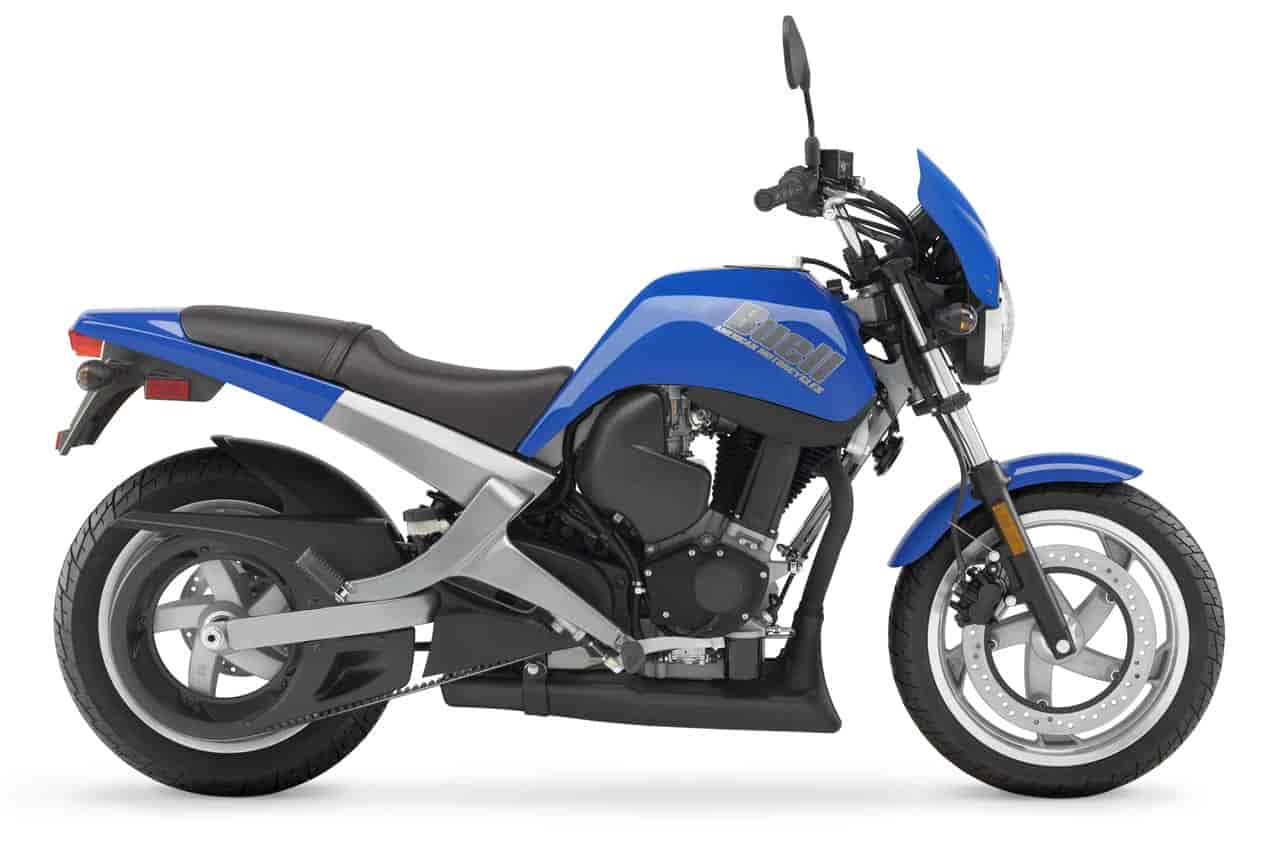

2006 Buell Blast

2006 Buell Blast

2006 Buell Blast

2006 Buell Blast

2006 Buell Blast

2006 Buell Blast



– 2006 Buell Blast

2006 Blast® Overview

The Buell Blast is a motorcycle any rider will enjoy. This lightweight single inspires confidence in beginners, yet offers enough power and refined agility to satisfy the performance expectations of the most experienced motorcyclist. Easy to own and maintain – and easy on fuel at 68 miles per gallon – the Buell Blast is a fun and economical way to get around town or down the highway.

Built for the Real World
The Blast is powered by a reliable, 492cc air-cooled, single-cylinder engine that makes 34 horsepower and offers a broad powerband for easy starts and brisk acceleration, and ample power for highway riding. The muffler is located below the engine to promote a low center of gravity and keep the exhaust away from the legs of the rider and passenger.

With a dry weight of just 360 pounds, the Blast is easy for most riders to handle, and when fitted with an optional low-profile seat, the seat height is just 25.5 inches, so just about any rider can reach the ground to balance at a stop. The standard Blast seat height is 27.5 inches. A Showa gas-charged rear shock and 37mm Showa forks feature progressive-rate springs that provide a controlled and comfortable ride. An automatic choke, low-effort brakes and a low-effort, reduced-reach clutch lever are all designed to make the Blast easier to operate.

Easy Economy
The Blast is also designed to be easy to maintain, with self-adjusting hydraulic valve lifters and a Kevlar-reinforced drive belt that never needs lubrication or adjustment. Fuel economy is 68 mpg in city riding, and a 2.8-gallon fuel tank delivers a cruising range of nearly 200 miles. The Blast is built to be durable, with tough Surlyn composite body panels. The color is molded into the Surlyn, so light scratches can simply be buffed out. The 2006 Blast is offered in Battle Blue or Midnight Black.

Buell Blast features:

492cc single-cylinder air-cooled engine
Dry weight of just 360 pounds
Low-mounted muffler
Automatic choke
Cast aluminum wheels
Quiet and clean Kevlar final-drive belt
Showa gas-charged rear shock
37mm Showa forks
320mm front brake rotor
Low-effort, reduced-reach controls





SPECIFICATIONS (US Imperial):

MSRP (USD)
Manufacturer’s Suggested Retail Price (1) $4,695

DIMENSIONS
Overall Length 77.8 in
Overall Height without mirrors 42.4 in
Seat Height
Laden (2) Standard: 27.5 in
Low Profile: 25.5 in
Width 29.2 in
Ground Clearance N/A
Rake
Steering Head 25º
Fork Angle N/A
Trail 3.4 in
Wheelbase 55.0 in
Fuel Capacity 2.8 gal
Fuel Capacity, DDFI – Low Fuel Indicator Light 0.55 gal
Oil Capacity 2.5 qts
Primary Fluid Capacity 1 qts
Weight
Dry Weight 360 lbs
Gross Vehicle Weight Rating 780 lbs
Load Carrying Capacity 390 lbs

ENGINE
Engine Air-cooled, 4-stroke, single cylinder
Displacement 492 in³
Bore 3.500 in
Stroke 3.125 in
Peak Engine Torque (3) 30 ft-lb
Peak Engine Torque (3) 3200 RPM
Peak Horsepower (3) 34 hp
Peak Horsepower (3) 7500 RPM
Oil Sump (Wet or Dry) Dry
Cooling System Type (Air, Air/Oil or Liquid) Air
Fuel System (Carburated or DDFI) Carburated
Intake Throttle Configuration and Bore Diameter N/A
Compression Ratio 9.20:1
Mileage per US EPA Urban Trace, CITY (4) 69 mpg
Mileage per US EPA HIGHWAY Fuel Economy Test (4) 72.8 mpg

DRIVE TRAIN
Primary Drive Type Triplex Chain
Primary Drive Ratio 1.676:1(57/34)
Secondary Drive Type (6) Kevlar® Belt
Secondary Drive Ratio 2.963:1 (80/27)
Clutch Type Wet, multi-plate
Transmission Type 5-speed, constant mesh
Transmission Ratio
1st 2.688
2nd 1.850
3rd 1.433
4th 1.181
5th 1

CHASSIS
Front Brake System
Front Rotor and Caliper Configuration Four-piston caliper, stainless steel rotor
Front Rotor Size, OD 12.60 in
Front Rotor Size, Width N/A
Rear Brake System
Rear Rotor and Caliper Configuration Dual-piston caliper, stainless steel rotor
Rear Rotor Size, OD 8.66 in
Rear Rotor Size, Width N/A
Rear Suspension Type and Configuration (6) Showa® non-adjustable, gas-charged compression shock
Front Fork and Suspension (6) Showa® non-adjustable gas-charge compression shock.
Front Fork Slider Tube Diameter N/A
Suspension Travel, Front Wheel, Along Fork Line N/A
Suspension Travel, Rear Wheel, Vertical N/A
Lean Angle at Full Suspension Compression, Soft Contact, Left 30.6º
Lean Angle at Full Suspension Compression, Soft Contact, Right 31.7º
Lean Angle at Full Suspension Compression, Hard Contact, Left 30.6º
Lean Angle at Full Suspension Compression, Hard Contact, Right 28.9º
Frame Wide beam HSLA steel backbone frame with built-in oil reservoir, Uniplanar™ powertrain vibration isolation, Titanium color finish
Swingarm N/A
Exhaust System N/A
Muffler Finish N/A

WHEELS AND TIRES
Front Tire (brand | model) (6) Dunlop® | K330 Series Bias Belted
Rear Tire (brand | model) (6) Dunlop® | K330 Series Bias Belted
Tire Size Designator, Front 100/80-16 50s
Tire Size Designator, Rear 120/80-16 50s
Wheel Type, Front 5-spoke cast, Stardust Silver finish
Wheel Type, Rear 5-spoke cast, Stardust Silver finish
Wheel Size, Front 2.50 x 16 (width x dia) (in)
Wheel Size, Rear 2.75 x 16 (width x dia) (in)

ELECTRICAL
Battery Type and Specifications Sealed lead acid, 12 amp/hour
Charging System Specifications 297-watt AC alternator, solid-state regulator/rectifier
Starter System Specifications 1.2 kW electric with Bendix-type engagement
Headlamp Type and Wattages (high and low) 55-watt low beam, 55-watt high beam (sealed beam) (as per country regulation)
Tail Light Wattages (stop and running) 5W Stop
Turn Signal Lights Type (manual or self-canceling) and Wattage Manual canceling, 10W
License Plate Lamp Wattage N/A
High Beam Indicator Lamp Available Yes
Neutral Indicator Lamp Available Yes
Oil Indicator Lamp Available Yes
Low Fuel Indicator Lamp Available N/A
Turn Signals Indicator Lamp Available Yes
Hazard Warning Indicator Lamp Available N/A
Engine Diagnostics Indicator Lamp Available N/A
Speedometer/Odometer Type (mechanical or electronic) Electronic
Resettable Tripmeter Available Yes
Tachometer Available N/A
Additional Electronic Features N/A

MISCELLANEOUS
Under Seat Trunk Available Yes
Windscreen or Flyscreen Flyscreen
Tool Kit Available N/A
Luggage or Protective racks N/A
Tie-Down Hooks N/A

COLORS (7)
Body Work Battle Blue
Midnight Black
Frame N/A
Wheels Stardust Silver
Engine N/A

Warranty:
24 months / unlimited mileage
Specifications for non-U.S. markets might differ. Buell reserves the right to discontinue models or change specifications at any time without incurring and obligations. Vehicle specifciations may vary from country to country depending on laws. Some models are not available in certain countries.
(1) Prices listed are Manufacturers Suggested Retail Prices for sale in the United States of America. Prices exclude set-up, title, and licensing and are subject to change. Dealer prices may vary. Additional California fees required. See your dealer for details.

(2) Measurement reflects 180 lb./81.7 kg. operator weight.

(3) Per SAE J607, North America

(4) Based on test conducted under lab conditions per U.S. E.P.A. test procedures. Milage will vary depending on personal riding habits, weather conditions, trip length and vehicle condition.

(5) Hibrex® Goodyear® and Flexten® are registered trademarks of the Goodyear Tire & Rubber Company.

(6) Showa® Dunlop® Pirelli® and Kevlar® are registered trademarks of their respective owners.

(7) Availability of colors may vary from dealer to dealer and is subject to change without notice.



SPECIFICATIONS (Metric):

MSRP (USD)
Manufacturer’s Suggested Retail Price (1) $4,695

DIMENSIONS
Overall Length 1976 mm
Overall Height without mirrors 1077 mm
Seat Height
Laden (2) Standard: 699 mm
Low Profile: 648 mm
Width 742 mm
Ground Clearance N/A
Rake
Steering Head 25º
Fork Angle N/A
Trail 86 mm
Wheelbase 1397 mm
Fuel Capacity 10.6 liters
Fuel Capacity, DDFI – Low Fuel Indicator Light 2.1 liters
Oil Capacity 2.4 liters
Primary Fluid Capacity 0.9 liters
Weight
Dry Weight 163 kg
Gross Vehicle Weight Rating 354 kg
Load Carrying Capacity 177 kg

ENGINE
Engine Air-cooled, 4-stroke, single cylinder
Displacement 30 cm³
Bore 88.90 mm
Stroke 79.38 mm
Peak Engine Torque (3) 41 N-m
Peak Engine Torque (3) 3200 RPM
Peak Horsepower (3) 25.35 kW
Peak Horsepower (3) 7500 RPM
Oil Sump (Wet or Dry) Dry
Cooling System Type (Air, Air/Oil or Liquid) Air
Fuel System (Carburated or DDFI) Carburated
Intake Throttle Configuration and Bore Diameter N/A
Compression Ratio 9.20:1
Mileage per US EPA Urban Trace, CITY (4) 3.4 liters per 100 km
Mileage per US EPA HIGHWAY Fuel Economy Test (4) 3.2 liters per 100 km

DRIVE TRAIN
Primary Drive Type Triplex Chain
Primary Drive Ratio 1.676:1(57/34)
Secondary Drive Type (6) Kevlar® Belt
Secondary Drive Ratio 2.963:1 (80/27)
Clutch Type Wet, multi-plate
Transmission Type 5-speed, constant mesh
Transmission Ratio
1st 2.688
2nd 1.850
3rd 1.433
4th 1.181
5th 1

CHASSIS
Front Brake System
Front Rotor and Caliper Configuration Four-piston caliper, stainless steel rotor
Front Rotor Size, OD 320 mm
Front Rotor Size, Width N/A
Rear Brake System
Rear Rotor and Caliper Configuration Dual-piston caliper, stainless steel rotor
Rear Rotor Size, OD 220 mm
Rear Rotor Size, Width N/A
Rear Suspension Type and Configuration (6) Showa® non-adjustable, gas-charged compression shock
Front Fork and Suspension (6) Showa® non-adjustable gas-charge compression shock.
Front Fork Slider Tube Diameter N/A
Suspension Travel, Front Wheel, Along Fork Line N/A
Suspension Travel, Rear Wheel, Vertical N/A
Lean Angle at Full Suspension Compression, Soft Contact, Left 31.5º
Lean Angle at Full Suspension Compression, Soft Contact, Right 33.3º
Lean Angle at Full Suspension Compression, Hard Contact, Left 37º
Lean Angle at Full Suspension Compression, Hard Contact, Right 41.6º
Frame Wide beam HSLA steel backbone frame with built-in oil reservoir, Uniplanar™ powertrain vibration isolation, Titanium color finish
Swingarm N/A
Exhaust System N/A
Muffler Finish N/A

WHEELS AND TIRES
Front Tire (brand | model) (6) Dunlop® | K330 Series Bias Belted
Rear Tire (brand | model) (6) Dunlop® | K330 Series Bias Belted
Tire Size Designator, Front 100/80-16 50s
Tire Size Designator, Rear 120/80-16 50s
Wheel Type, Front 5-spoke cast, Stardust Silver finish
Wheel Type, Rear 5-spoke cast, Stardust Silver finish
Wheel Size, Front 63.5 x 406.4
Wheel Size, Rear 69.85 x 406.4

ELECTRICAL
Battery Type and Specifications Sealed lead acid, 12 amp/hour
Charging System Specifications 297-watt AC alternator, solid-state regulator/ rectifier
Starter System Specifications 1.2 kW electric with Bendix-type engagement
Headlamp Type and Wattages (high and low) 55-watt low beam, 55-watt high beam (sealed beam) (as per country regulation)
Tail Light Wattages (stop and running) 5W Stop
Turn Signal Lights Type (manual or self-canceling) and Wattage Manual canceling, 10W
License Plate Lamp Wattage N/A
High Beam Indicator Lamp Available Yes
Neutral Indicator Lamp Available Yes
Oil Indicator Lamp Available Yes
Low Fuel Indicator Lamp Available N/A
Turn Signals Indicator Lamp Available Yes
Hazard Warning Indicator Lamp Available N/A
Engine Diagnostics Indicator Lamp Available N/A
Speedometer/Odometer Type (mechanical or electronic) Electronic
Resettable Tripmeter Available Yes
Tachometer Available N/A
Additional Electronic Features N/A

MISCELLANEOUS
Under Seat Trunk Available Yes
Windscreen or Flyscreen Flyscreen
Tool Kit Available N/A
Luggage or Protective racks N/A
Tie-Down Hooks N/A

COLORS (7)
Body Work Battle Blue
Midnight Black
Frame N/A
Wheels Stardust Silver
Engine N/A

Warranty:
24 months / unlimited mileage
Specifications for non-U.S. markets might differ. Buell reserves the right to discontinue models or change specifications at any time without incurring and obligations. Vehicle specifciations may vary from country to country depending on laws. Some models are not available in certain countries.
(1) Prices listed are Manufacturers Suggested Retail Prices for sale in the United States of America. Prices exclude set-up, title, and licensing and are subject to change. Dealer prices may vary. Additional California fees required. See your dealer for details.

(2) Measurement reflects 180 lb./81.7 kg. operator weight.

(3) Per SAE J607, North America

(4) Based on test conducted under lab conditions per U.S. E.P.A. test procedures. Milage will vary depending on personal riding habits, weather conditions, trip length and vehicle condition.

(5) Hibrex® Goodyear® and Flexten® are registered trademarks of the Goodyear Tire & Rubber Company.

(6) Showa® Dunlop® Pirelli® and Kevlar® are registered trademarks of their respective owners.

(7) Availability of colors may vary from dealer to dealer and is subject to change without notice.
