2006 Ducati Sport 1000

You are here: HomeNew 2006 Models — 2006 Ducati Motorcycle Models

2006 Ducati Sport 1000
Back to 2006 Ducati Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000

2006 Ducati Sport 1000
2006 Ducati Sport 1000



– 2006 Ducati Sport 1000

2006 Ducati Sport 1000

Ducati’s first big sportbikes – the superbikes of their era – date back to the early 1970’s. They raced and they won; they were the joy of the most sport-oriented and fanatical riders, and now they are sought-after collectors’ items. Now, as then, they are seen as fine examples of style and performance, but above all, they are magnificent motorcycles to look at and to ride.
These bikes were made with the heart and the head, so they were minimalist machines with few frills but plenty of thrills to ride.

It was an era when every detail and each component was as important as the overall impression of the complete motorcycle. From the lustre of an engine case to the shape of a valve cover, from the elegant routing of a fuel line to the graphic treatment of the livery, every element was important in its individual form and in harmony with the total finished creation. These were motorcycles to race, motorcycles to ride, motorcycles to inspire. They were the awesome sport motorcycles that built the art and culture of Italian motorcycling.

The 1970’s was a period when manufacturers were pouring-out a seemingly endless string of new models. One or two became classics; most went through life unnoticed, and then were forgotten; but no-one ever forgot the gorgeous Ducati big bore race bikes or their road-going counter parts which fuelled the fantasies of a whole generation.

This style of bike, a concept of essential purposeful design was an idea that never really died; it just lay dormant, biding its time until the moment was ripe to rise again. An essential, racing twin-cylinder, with lines designed more by the hand of a man than the click of a mouse; mechanical details boldly in view, harmonious shapes and only the best componentry: let’s face it, they are things of beauty. An agile, lightweight bike as advanced as this is a joy to ride, especially if it has got a vibrant, pulsating engine like the twin-cylinder Ducati Desmo.

The recipe couldn’t be simpler. Or could it? It takes a deep-rooted pedigree and the aptitude for designing bikes for people who really love them, but then that’s all in the Ducati “DNA”.

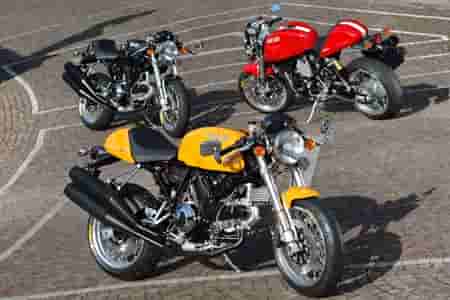

The unique new family of Ducati SportClassics is the premier example on the world stage of “vintage” styled motorcycles built with the best of modern technology and components. Bikes built in Italy, bikes built with soul, to be as seductive as their ancestors of the wild 70’s, but to be as fun to ride quickly and reliable as a modern bike must.

Timeless beauty is the result, and obsessive attention to detail. But then what do you expect? Ducati SportClassics are real motorcycles for real bikers. But above all, they are real Ducati motorcycles!



DUCATI SPORTCLASSIC

If ever there was a motorcycle manufacturer capable of turning dreams into reality, it’s Ducati.
At the end of 2003, Ducati previewed three new concept bikes at the Tokyo Motor Show, which embodied the beauty, timeless style and sporting heritage of the Ducati motorcycles of the 1970’s. Now, just two years later, the three bikes are coming off the production lines in Bologna; three unprecedented creations that make up a complete family of “classically styled” sport motorcycles, called the Ducati SportClassic family: the Paul Smart 1000 Limited Edition, the Sport 1000 and the GT 1000 (due in Spring 2006).

The new SportClassic family reflects the styling of the motorcycles built in Ducati’s workshops in the 1970’s, characterised by a minimalist, racing look, with exposed chassis and engines, complimented by bodywork with elegant rounded shapes.

To emphasis the unique style and performance origins of the three SportClassics, Ducati has used top-level components styled with original form and finishes, featuring chrome and polished aluminium that provide the final touch, personalise the range and evoke the lines of the bikes from which they’re inspired. New colours and new colour combinations emphasize the original lines of the design.

Even though they reflect the best of the past, they incorporate the latest Ducati technology and engineering, creating a thoroughly modern motorcycle that lives-up to today’s standards of road-going performance.

The Paul Smart L.E., Sport and GT are all powered by the advanced 1000 DS Desmo engine. The torquey air-cooled 90° L-Twin is the perfect match to power these new sport bikes. Slim between the legs and exposed for all to see, the latest two valve Desmo system, fuel-injection and computer controlled engine management ensure that the 1000 DS engine is powerful, dependable and thrilling to ride. Of course, these bikes take advantage of the Ducati tubular Trellis frame that perfectly enhances the beauty of the SportClassics, while delivering confident handling and consistent road manners.

With bikes that are as capable as the SportClassics, great brakes are fundamental. High quality Brembo callipers with sintered pads are used, gripping huge 320mm discs up front for strong and consistent stopping power.

The Ducati SportClassics feature distinguishing exclusive components such as beautiful wire spoke wheels laced with alloy rims, black-finish race inspired exhaust systems, unique new swingarms, rear suspension featuring side-mounted shocks, and exposed engine parts with chromed or black painted finishes.



DUCATI PAUL SMART 1000 Limited Edition

The new Ducati Paul Smart 1000 L.E. is inspired by the 1974 Super Sport 750 and is a tribute to the 750 “Imola” bike that the English racer Paul Smart took to victory in the 1972 Imola 200.

On a cloudy day in April 1972, Paul Smart of Kent, England, tested the new Taglioni designed race bike. It was a momentous event in motorcycling history. On that day, Smart rode a new untested Ducati 750 twin to a historic surprise victory at the Imola 200, beating all comers. In the same race the Italian racer Bruno Spaggiari, also riding a Ducati 750, crossed the finish line in second place for a Ducati sweep of the event. Inspired by these results, Engineer Taglioni decided to introduce production motorcycles with the styling and the latest technological solutions of the 750 “Imola”.

It was the beginning of the modern Ducati racing era and the emergence of the big-bore twin, sport bike dynasty. Descendants of that historic race bike led the way to the production 750SS, Hailwood’s Isle of Man winning 900SS, contemporary SuperSports and eventually the Superbikes of today.


The 1974 Super Sport 750 is clearly the crown jewel of any classic motorcycle collection.
Often referred to as the original Superbike, it was the first Ducati to combine all the performance of Smart’s race bike with a new elegant and trend setting design. The bike boasted beautifully styled components like the “round case” Bevel Drive twin engine, equipped for the first time with Engineer Fabio Taglioni’s Desmodromic valve actuation system. The development of the Ducati Desmodromic system started in the late 50’s and continues to evolve to this day. Every street and racing engine Ducati produces still utilizes the Desmodtromic system; it remains a significant factor in Ducati’s performance advantage. The SuperSport 750 boasted an elegantly styled fairing and bodywork painted in the now famous Metallic Silver colour, complimented by a frame painted in Sea Green. Viewed from any angle the bike always seems in harmony with itself and its street environment. In its day it was “the” ultimate sport bike.

After more than thirty years Ducati reintroduces the same essential lines that represent the very essence and pinnacle of beauty in the renaissance of sport motorcycles.

The new Ducati Paul Smart 1000 Limited Edition features unmistakeable styling, accentuated by the rounded lines of the fairing and fuel tank. The new exhaust system, in black chromed and sanded stainless steel, has distinctive stacked twin silencers positioned on the right-hand side of the bike.

The unique steel tube swingarm is characterized by an elliptical “GP” style right leg, which accommodates the placement of the new exhaust system.
The advanced air-cooled Desmo 1000 DS engine delivers the perfect balance of torque and horsepower performance.

The exclusive character of the Paul Smart 1000 Limited Edition, of which only 2000 will be produced, is underlined by the use of top-level fully-adjustable Öhlins suspension and by the Metallic Silver fairing and Sea Green frame colours, as on the 1974 Super Sport 750.




DUCATI SPORT 1000

In 1973 the Ducati 750 Sport, which was the predecessor of the Super Sport 750, first appeared in bright yellow paint. With its solo seat and simple single headlamp, the Sport was essentially a production Cafè Racer. Enthusiasts modified and enhanced these bikes to become the “street racer” of the time. The clip-on handlebars, racing stripe down the centre of the tank and solo seat of the Sport 750 anticipated the emerging street performance trend and the Cafè Racer image of the period.

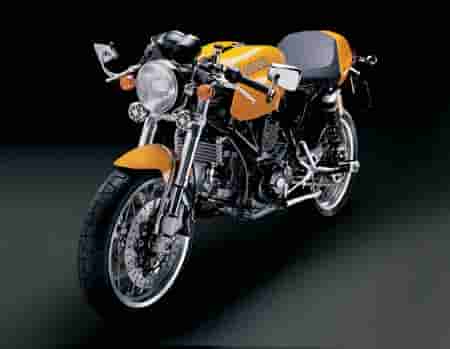

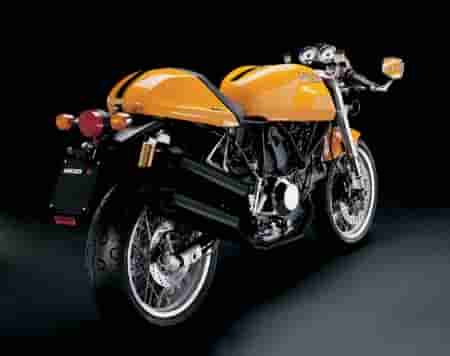

The new Ducati Sport 1000 captures the bold Cafè Racer style and essential beauty of the 70’s motorcycles. The bike features a single large diameter round headlamp and chromed mirrors mounted on the ends of the handlebars, very much typical of the custom sport bikes of the time.

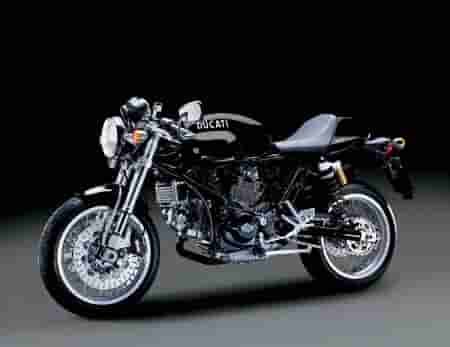

The Sport 1000 is available in three traditional monochromatic colour schemes of period: Burnt Yellow, Ducati Red and Ducati Black. The traditional style theme is further enhanced with the use of a contrasting racing stripe added to the fuel tank and tailpiece of each bike. All three colours are complimented with a classic black frame.

The Sport 1000’s suspension features 43mm upside-down forks by Marzocchi, while the rear suspension is handled by a fully adjustable single shock absorber by Sachs.



TECHNICAL FEATURES


Chassis

The SportClassic models all take advantage of the signature Ducati ALS 450 steel tubular trellis frame, specifically engineered to give the bikes precise and confident handling.
The frame’s high torsional rigidity ensures gratifying, sure-footed road manners even when pushed to the limit.

This trellis frame is used on all Ducati motorcycles, but lends itself especially well to the style of the SportClassics, and in particular with Sea Green finish of the Paul Smart 1000 Limited Edition linking it by way of colour to the original 1974 Super Sport 750.

On the Sport 1000, the frame has a black paint finish and is essentially the same as the one used on the Paul Smart, except for the exclusion of the steering damper mount and the position of the steering lock and ignition switch mounting.

Both the Paul Smart and the Sport have clip-on handlebars. The decision to use these race-inspired parts underlines the sporting spirit of these new twin-cylinders and the style of the originals. On the Sport version the handlebars are positioned 20 mm higher than on the Paul Smart.

The Ducati SportClassic models have a wheelbase of 1425 mm and trail of 103 mm, which is achieved by moving the fork legs forward by 25 mm with respect to the steering axis (front wheel hub offset) and setting fork rake at 24°. The slightly longer wheelbase compared with most Ducati sport bikes (the wheelbase of the Supersport 1000 DS, for example, is 1395mm) accentuates the typical styling of the 1970s, when bikes tended to be longer. (The 750 GT, Sport and Super Sport built between 1971 and 1978, for example, had a wheelbase from 1500 to 1530mm)


Swingarm

The Paul Smart and the Sport use a welded steel tube swingarm with an outer diameter of 60 mm and wall thickness of 2 mm. Both feature an elliptical right arm to accommodate the new exhaust system with stacked twin silencers, and a robust cross-member that joins the elliptical arm with the round one (on the chain side), where the rear shock absorber mount is located.

The use of the cross-member, together with the gusset between the cross-member and the arched tube, ensures a high level of rigidity, which has a positive effect on ride precision.

The two swingarm legs are made from extruded, bent tubing, while the distinctive shape of the cross-member is created by hydroforming technology.

This new swingarm features a simple, rational system for adjusting drive chain tension.
The chain is tensioned by tightening the nuts on the plugs on the end of the swingarm on stud-bolts rigidly connected to a sliding element inside the swingarm legs. The rear wheel assembly is tightened by means of an external nut, which acts by locking the sliders inside and outside the legs.

Although this system is reminiscent of systems used on bikes from the 1970s, a closer look shows that the swingarm, wheel hub and all the other components of the wheel set are much larger and robust than on the motorcycles from that era.

Suspension

In the suspension department, the whole family mounts quality componentry.

The Paul Smart 1000 Limited Edition is a contemporary interpretation of Paul Smart’s 750 “Imola” and the Super Sport 750 of 1974, which were the sport bikes par excellence at the time, so nothing but the best will do. In fact, the bike is fitted both front and rear with fully adjustable Öhlins suspension.

At the rear, the suspension stands out with its single shock mounted on the left-hand side, highlighting the new exhaust system with stacked twin silencers on the right-hand side.

The rear shock and Öhlins fork belong to a range normally assigned to racing use and thus feature a wide range of adjustments. The rear shock, like the 43 mm upside down forks, can be adjusted for spring pre-load, compression and rebound damping, to ensure the ability to perfectly tune the suspension for all riding conditions.

The search for perfection in every detail continues with the use of a polished Sachs steering damper with chromed rod, which enhances the bike’s stability and ride precision.

On the Sport 1000, suspension duties are handled by a 43 mm Marzocchi upside-down fork up front and by a Sachs shock at the back, with adjustable spring pre-load, compression and rebound damping. The Sport 1000’s suspension is tuned for sporting use plus reasonable comfort as required for road use.

Wheels

The Paul Smart and Sport 1000 mount classic wire-spoke wheels.

The lightweight Excel 17″ aluminium alloy rims keep the overall weight of the front wheel assembly down to a minimum.

The 36 chromed steel dehydrogenated spokes are equal length and are variable diameter tapering from 5mm at the hub to 4.4 mm at the rim. The technical choice to use 36 spokes keeps un-sprung weight down to a minimum. The wheel hub is made from paint-finished, die-cast aluminium.

In keeping with the SportClassics traditional styling and appeal, the wheels chosen are classic centre-spoke drilled rims, and therefore utilize tube-type tyres.

The tyres themselves, produced specifically for the Ducati SportClassics feature a tread design reflecting that of the 1970’s motorcycles. However, they are made with modern construction techniques and advanced rubber compounds.

Brakes

The front brake system on the Ducati SportClassics consist of two Brembo floating callipers with 30 and 32 mm diameter pistons which are thermally insulated. The discs are semi-floating with a diameter of 320 mm and thickness of 4 mm.

The spoke wheels made it necessary to use this type of calliper, which is more compact on the side facing the wheel. Unlike the majority of top-end braking systems, which use organic pads, the callipers mounted on this new family of motorcycles use sintered pads that ensure high braking performance in line with Ducati standards.

The rear brake system consists of a floating single piston Brembo brake calliper and a 245 mm disc.

Exhaust system

The Paul Smart and Sport use a new black-finish stainless steel exhaust system. The system features distinctive stacked twin silencers on the right-hand side of the bike.

The lines and colours of the silencers take their styling cue from the exhausts used on race bikes of the 60’s and 70’s.

The two manifolds, which are joined by a compensation tube on which the lambda probe is mounted, are connected to the stacked twin silencers, which are fixed to the frame by means of a trellis support in chromed steel.

These two motorcycles are the first Ducati models to comply with EURO 3 anti-pollution standards: the lambda probe inside the compensation tube of the two exhaust manifolds combines with two trivalent catalysers housed in the two silencers. The function of the lambda probe is to measure the oxygen in the exhaust gases and then, via the engine control unit, calibrate the mixture ratio during specific engine operating conditions. The two trivalent catalysers oxidise the unburnt hydrocarbons and carbon monoxide, and reduce the nitrogen oxide.


Electronics

The three SportClassic have a new layout for the electrical system, which helps to conceal the wiring while giving users easy access to all the main components of the system.

The main components of the system, i.e. the ECU, fuses and voltage regulator, are located beneath the seat, in the bottom of which there is a spacious storage compartment.

A Magneti Marelli 5AM engine control unit manages the fuel injection and ignition of the 1000 DS engine. The control unit, which is housed under the rear of the seat, is very compact and features a re-programmable Flash EPROM. It also contains the power circuits for the two ignition coils with a double output (each coil is connected to the two spark plugs of each cylinder) and the two very compact PICO series fuel injectors (one per cylinder).

An innovative feature is the use of a Stepper Motor for automatic control of idling speed, as already fitted on the Ducati Multistrada. This method of control ensures perfect adjustment of idling speed in the many varied ambient conditions and after extensive service life. This means that the throttle body can dispense with the cold start mechanism, thus considerably simplifying the system that operates the throttles. The idling regulator has a shutter with a horizontal action driven by a lead screw/nut system connected to an electric stepper motor. It is housed in an aluminium casting with which the by-pass circuit on the throttles is made, by means of rubber hoses. The system is directly controlled by the ECU, which applies special strategies for automatic control of idling speed.


Style and finish

Although technologically state-of-the-art, the Paul Smart 1000 L.E. and Sport 1000 introduce an array of features that profoundly reflect the style of the past.

The unmistakeable style of the Paul Smart 1000 L.E. is accentuated by the rounded lines of the fairing and fuel tank, the unique shape of the seat, exhaust system and wire wheels.
Astride the bike you are immediately aware of the attention to detail: after your eyes settle briefly on the shiny chromed fuel cap, you are soon drawn to the distinctive, polished and anodised steering head. Then you spot the fully polished steering damper with chromed rod fixed to the steering head with an aluminium clamp. A tapered mount on the top crown, and aluminium tubing going side to side supports the fairing assembly. Your gaze then falls on the instrument panel with white instrument faces bearing the classic Ducati logo as used on the fuel tank. The instruments are further embellished by chromed trim rings and control buttons.
The exclusive character of the Paul Smart 1000 Limited Edition is underlined by the engraving on the top of the tapered fairing mount, declaring the bikes limited edition status and its tribute to Paul Smart.

The minimalist approach of the original Café Racers is embodied in the Sport 1000, which its simple single large headlamp and bar-end chromed mirrors. The yellow, black and red colours, enhanced by the contrasting racing stripes down the centre of the fuel tank and tailpiece, accentuate the eccentricity of this “sport naked” beauty.
The bike is characterised by the elegant finishes of polished aluminium, chrome and monochromatic paint.

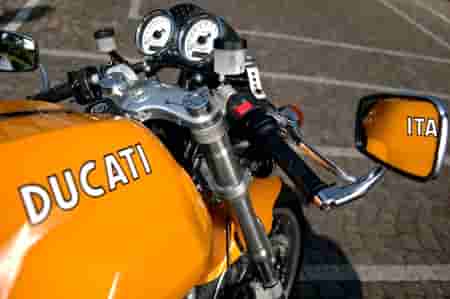

The front end of the bike is characterised by the finishes of the instrument panel and the distinctive top clamp with its two hallmark fork caps in polished, anodised aluminium alloy.

And countless details enhance the looks of the two new Ducati SportClassics.

The distinctive shape of the seat is emphasised by its double-stitched cover, which accentuates the lines of the seat, and features an embossed Ducati logo.

The attention to detail is applied to normally mundane components like foot-peg brackets and foot pegs, gear shifter, rear brake lever and side stand which in the case of the SportClassics are finished in polished aluminium.

The 90° twin cylinder itself is embellished with special details such as a chromed clutch and crank shaft timing inspection covers, polished valve covers and black timing belt covers.

The rounded shapes of the new tail light and chromed turn signals are also details with strong 1970’s styling.

Another elegant reflection on the past is the housing and mounting of the battery. Its moulded plastic case, embossed with the traditional Ducati logo, is enveloped by a steel base “drilled” for lightening, which for battery removal, pivots on two pins on the frame.


Engine


When choosing the power for the SportClassic family, the ideal solution was the muscular Desmodue 992cc air-cooled twin-cylinder, Ducati 1000 Dual Spark engine, known and appreciated for its abundant torque and excellent reliability.

Compact, powerful and acknowledged as the ultimate expression of the Ducati philosophy of air-cooled twin design, the 1000 Dual Spark Desmo – already used on the Monster, Multistrada and Super Sport families – represents the result of decades of experience and a whole series of innovations that extend from the combustion chambers to the crankshaft. The end result is a powerful engine that is particularly exuberant in the mid-range and generally acknowledged as the most advanced air-cooled L-twin ever designed. In addition to offering the significant advantages of an air-cooled power plant, the 1000 DS also draws inspiration from the advanced Testastretta racing engine, including the special casting techniques used to make the cylinder heads, the use of oil-pressurized plain bearings to support the camshafts, and the angles and configuration of the valves.
All this, plus the exclusive Dual Spark ignition, with its “double flame front”, offers more complete combustion, while simultaneously boosting mid-range power and reducing emission levels.


A closer look at the 1000 DS engine reveals a reduced angle between the intake and exhaust valves, one of the basic principles with which the renowned Testastretta engine was designed, which allows for a more compact combustion chamber, reducing the volume and thus obtaining improved combustion. The improved efficiency of the combustion chamber allows the engine to run on a leaner air/fuel mixture without compromising performance at high temperatures and significantly reduces emissions of hydrocarbons (HC).
The camshafts are supported on oil pressurized plain bearings, which reduce the overall dimensions, the weight, and the number of moving parts, while also improving heat dispersal. The new configuration also puts the camshafts in a more direct relationship with the valves, reducing friction and stress on valve components and thus increasing reliability. In fact, although the cylinder head is more compact, it allows more space for the intake and exhaust valves, these being 45 mm and 40 mm in diameter respectively. Further innovations include valve seats made of beryllium bronze, a technologically advanced material that affords better heat dispersal and wear-resistance and thus maintains valve clearances more accurately over a longer period of time.

The 1000 DS engine uses an over-square 94mm bore and 71.5mm piston stroke. The pistons are now fitted with nitrided steel rings, which afford improved sealing and significantly reduce oil consumption. The 94 mm pistons are linked to the crankshaft with new connecting rods, made from a new material composition (30NiCrMo4) that has exceptional flow characteristics during forging. In cross section, the new rods are thinner side-to-side, but wider fore to aft, increasing strength and lowering weight for increased reliability and performance.
The new crankshaft is of a more compact design and the oil passages have been strategically repositioned in areas less critical for its structural strength. The result is a crankshaft that is more rigid and with less flex, making for less vibration and improved reliability.

Finally, both the clutch housing and the clutch plates are now made from a special aluminium alloy. Thanks to this new material, the clutch has a significantly longer service life due to the more balanced wear factor of the alloy. The clutch also now runs quieter due to improved tolerances and the lower resonance value of aluminium compared to steel.




TECHNICAL SPECIFICATIONS
PAUL SMART 1000 Limited Edition

Engine
Type L-twin cylinder, 2 valves per cylinder Desmodromic, air cooled
Displacement 992 cc
Bore x Stroke 94 x 71.5 mm
Compression Ratio 10:1
Power 67.7 KW – 92 HP @ 8000 rpm
Torque 91.1 Nm – 9.3 Kgm @ 6000 rpm
Fuel injection Marelli electronic fuel injection, 45 mm throttle bodies
Exhaust Black exhaust system with two mufflers r.h.
Emissions Euro 3

Transmission

Gearbox 6-speed
Ratio 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive Straight cut gears; Ratio 1.84
Final drive Chain; Front sprocket 15; Rear sprocket 38
Clutch Dry multiplate with hydraulic control

Chassis

Frame Tubular steel trellis frame
Wheelbase 1425 mm / 56.1 in
Rake 24°
Steering angle 30°
Front suspension Ohlins fully adjustable 43 mm upside-down fork
Front wheel travel 120 mm / 4.7 in
Front wheel Spoke wheel with aluminium rim, 3.50 x 17
Front tyre 120/70 R 17
Rear suspension Ohlins fully adjustable single shock absorber on the left side
Rear wheel travel 130 mm / 5.1 in
Rear wheel Spoke wheel with aluminium rim, 5.50 x 17
Rear tyre 180/55 R 17
Front brake 2 x 320 mm semi-floating discs, floating calliper 2-piston, 2- sintered pad calliper
Rear brake 245 mm disc, 1-piston floating calliper
Fuel tank capacity 15 l (of which 3.5 l reserve) / 3.9 US gal (of which 1 US gal reserve)
Dry weight 181 Kg / 398 lbs
Seat height 825 mm / 32.5 in
Max height 1150 mm / 45.3 in
Max length 2180 mm / 85.8 in
Instruments Electronic panel: speedometer, rev counter, warning light for low oil pressure, indicators for high beam, fuel reserve, turn signals, LCD clock, immobilizer
Warranty 2 years unlimited mileage


SPORT 1000
Engine

Type L-twin cylinder, 2 valves per cylinder Desmodromic, air cooled
Displacement 992 cc
Bore x Stroke 94 x 71.5 mm
Compression Ratio 10:1
Power 67.7 KW – 92 HP @ 8000 rpm
Torque 91.1 Nm – 9.3 Kgm @ 6000 rpm
Fuel injection Marelli electronic fuel injection, 45 mm throttle bodies
Exhaust Black exhaust system with two mufflers r.h.
Emissions Euro 3

Transmission
Gearbox 6-speed
Ratio 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive Straight cut gears; Ratio 1.84
Final drive Chain; Front sprocket 15; Rear sprocket 38
Clutch Dry multiplate with hydraulic control

Chassis

Frame Tubular steel trellis frame
Wheelbase 1425 mm / 56.1 in
Rake 24°
Steering angle 28°
Front suspension 43 mm upside-down fork
Front wheel travel 120 mm / 4.7 in
Front wheel Spoke wheel with aluminium rim, 3.50 x 17
Front tyre 120/70 R 17
Rear suspension Fully adjustable single shock absorber on the left side
Rear wheel travel 130 mm / 5.1 in
Rear wheel Spoke wheel with aluminium rim, 5.50 x 17
Rear tyre 180/55 R 17
Front brake 2 x 320 mm semi-floating discs, floating calliper 2-piston, 2- sintered pad calliper
Rear brake 245 mm disc, 1-piston floating calliper
Fuel tank capacity 15 l (of which 3.5 l reserve) / 3.9 US gal (of which 1 US gal reserve)
Dry weight 179 Kg / 394 lbs
Seat height 825 mm / 32.5 in
Max height 1037 mm / 40.8 in
Max length 2180 mm / 85.8 in
Instruments Electronic panel: speedometer, rev counter, warning light for low oil pressure, indicators for high beam, fuel reserve, turn signals, LCD clock, immobilizer
Warranty 2 years unlimited mileage
